Advanced avionics and data processing

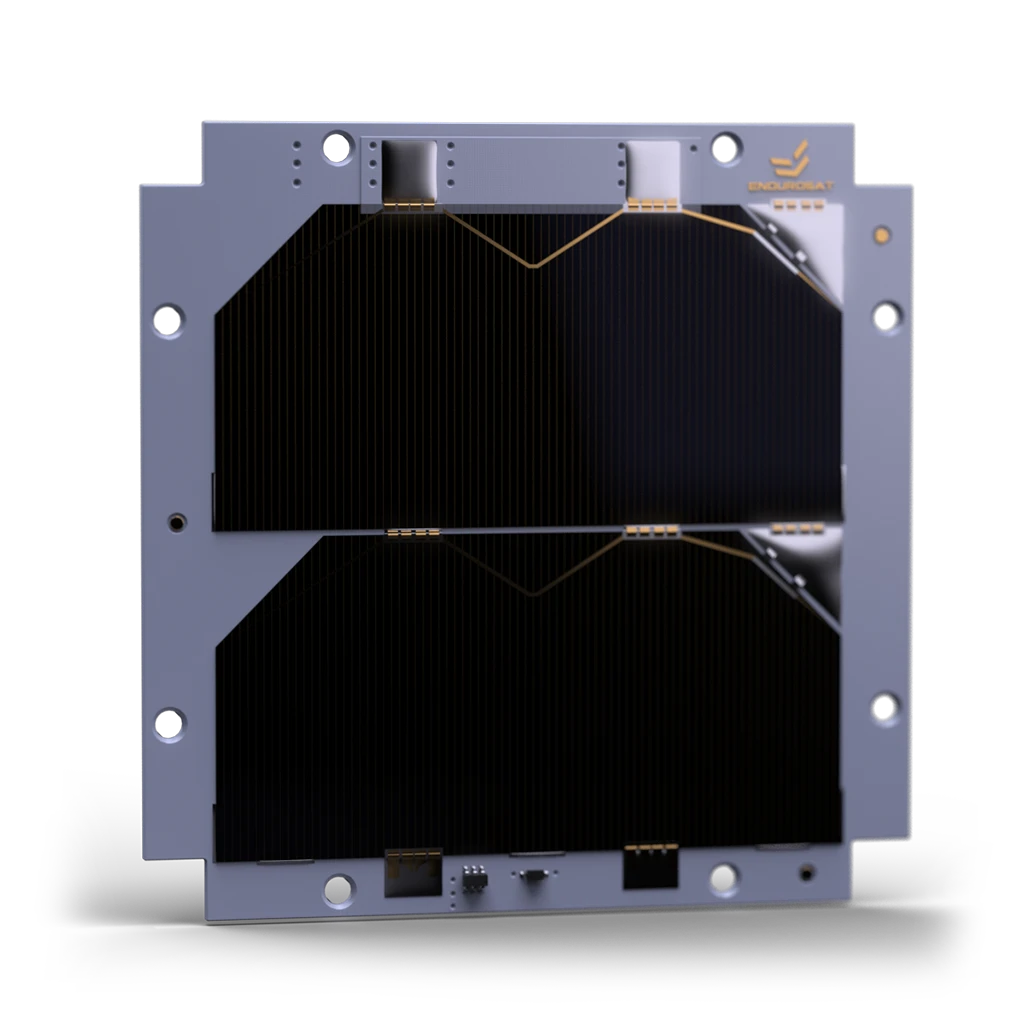

1U Solar Panel Z

Power In Space
Cad file & datasheet
Select Options
Select Options
state of the art report badge flight heritage badge
Download
Cad file & datasheet
Select Options
Select Options
29.5+%
TRIPLE JUNCTION SOLAR CELLS
ADCS
READY SENSORS
2.4+W
IN LEO

Flight-proven 1U Z Solar Panels

FEATURES
Power Efficiency At EOL
29+%
Max Power
2.4+W in LEO
Internal By-Pass Diode
reverse bias protection
Solar Cell Assembly (SCA) thickness
280-300 μm
Sensors
Temperature and Sun, optional Gyroscope
MTQ
Available with integrated magnetorquer
Mass
48 g (57.5 g with MTQ)
2-In-1
Compatible with EnduroSat UHF Antenna
Flexibility
Multiple panels can be connected in series or parallel
Max Voltage
6.0 V (for 2 cells)
Max Current
512 mA
PCB Thickness
1.6 mm

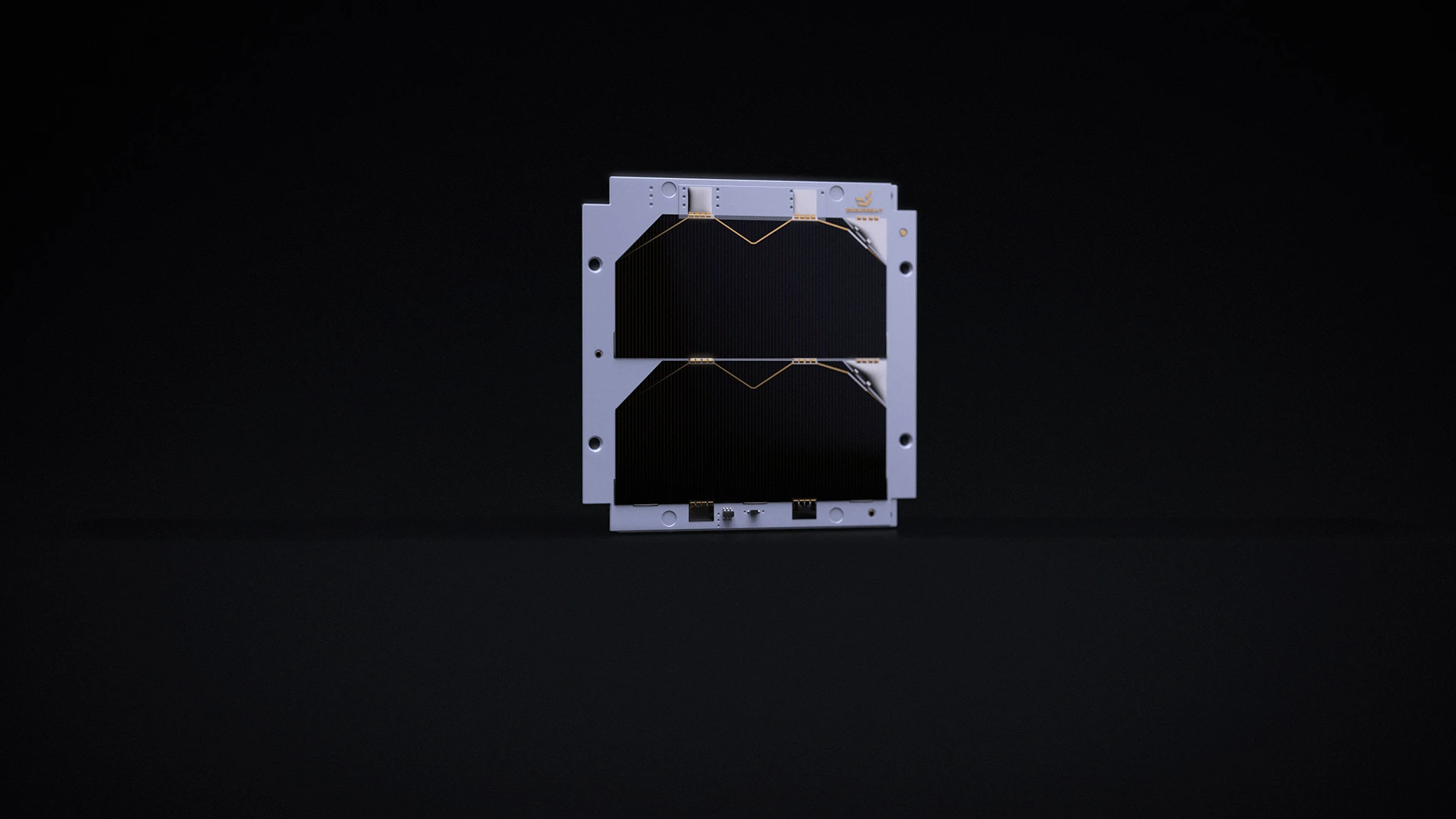

1U Solar Panel Z web render 1
Power In Space

Included

Complete User Manual
Power and data cables
1 hour engineering support
Delivery cost
Handling and administration costs
Flight-proven 1U Z Solar Panels

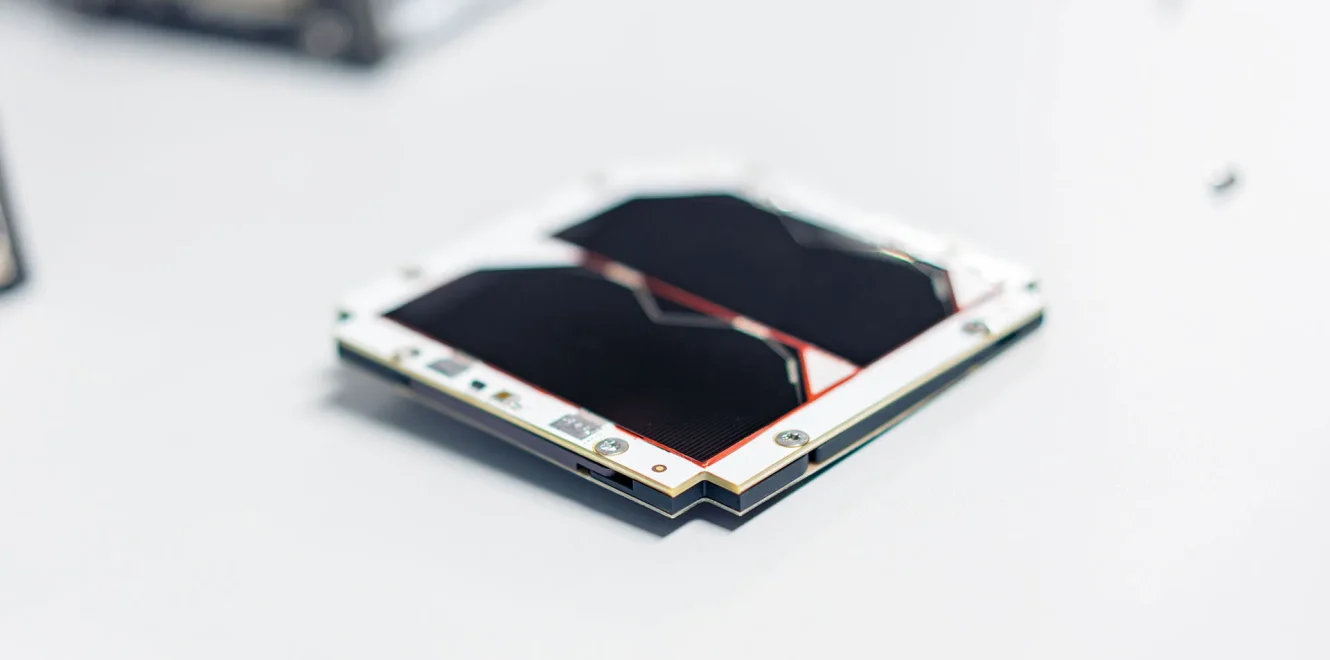

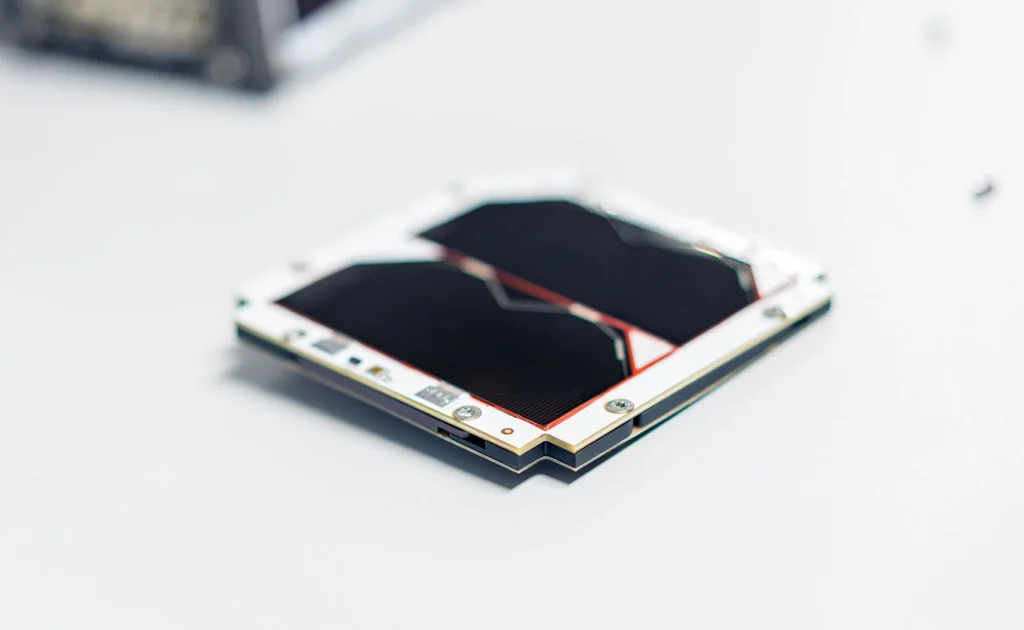

1U Solar Panel Z web 6

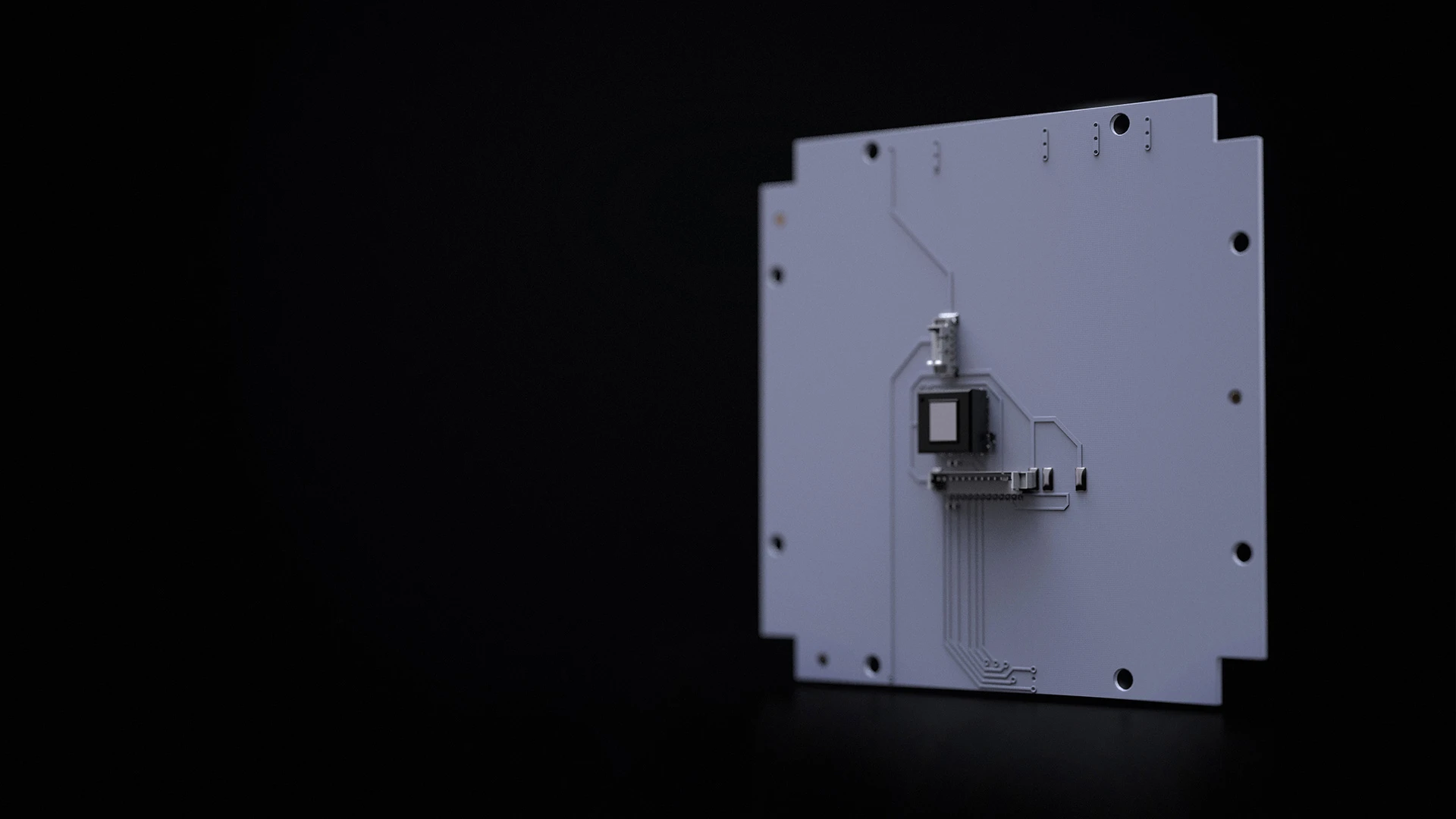

1U Solar Panel Z web render 3

Triple Junction Solar Cells with efficiency higher than 29.5%

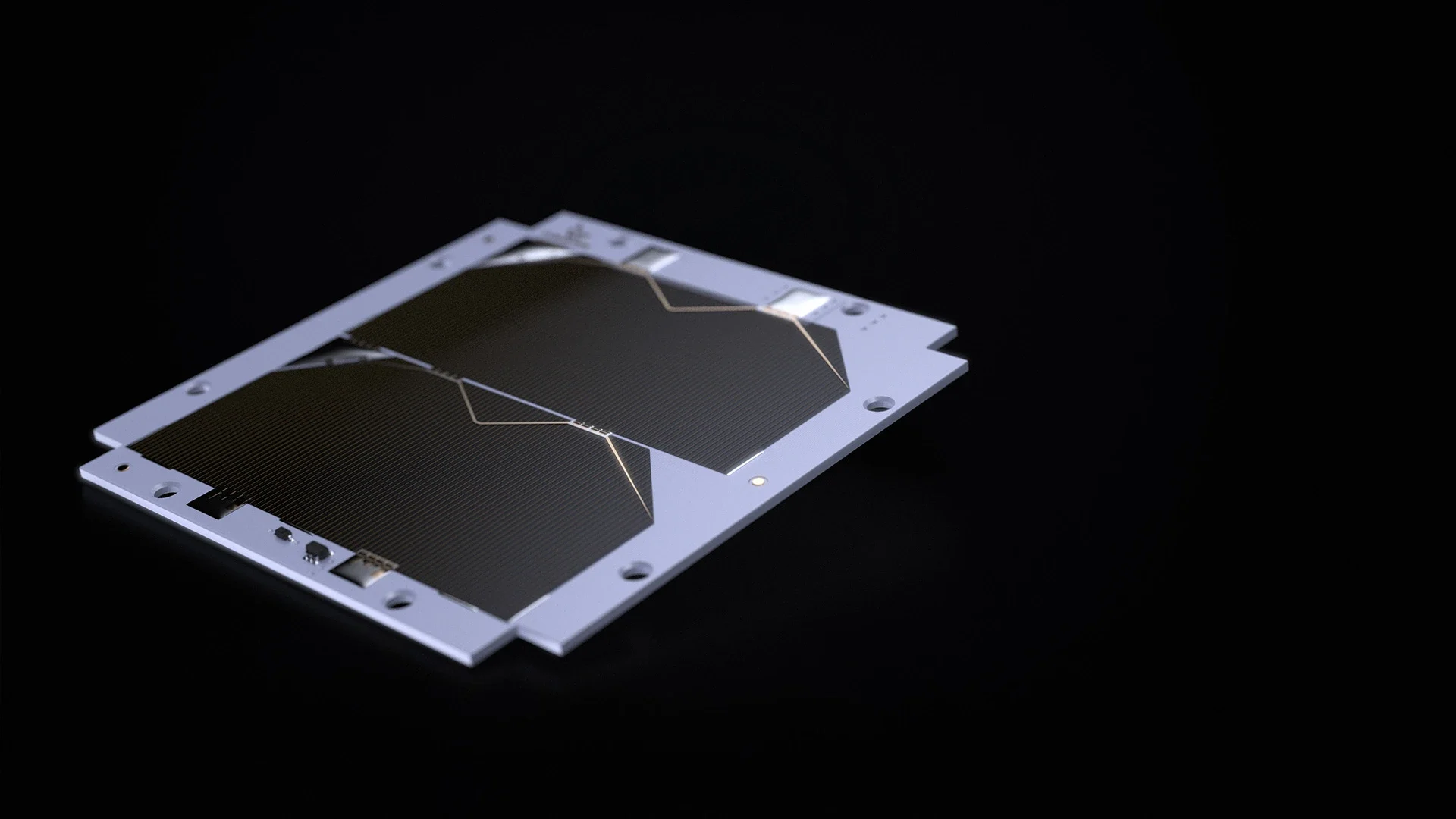

1U Solar Panel Z web render 2 e1711029358596

High radiation resilience

CELL EFFICIENCY REMAINS HIGHER THAN 29% FOR 5 YEARS IN LEO

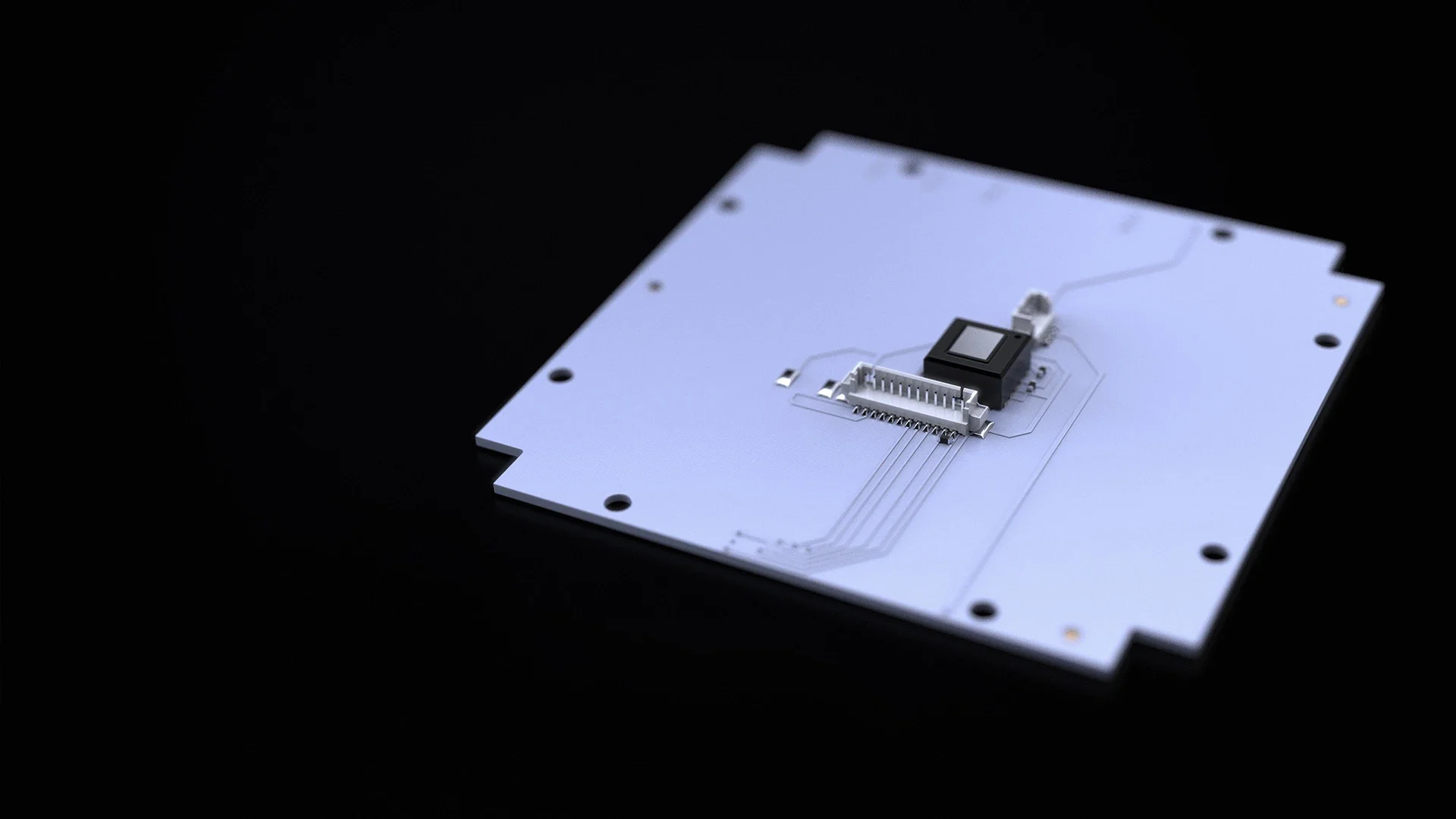

1U Solar Panel Z web render 4 e1711029385712

Integrated sun sensors & gyroscope + optional embedded magnetorquer

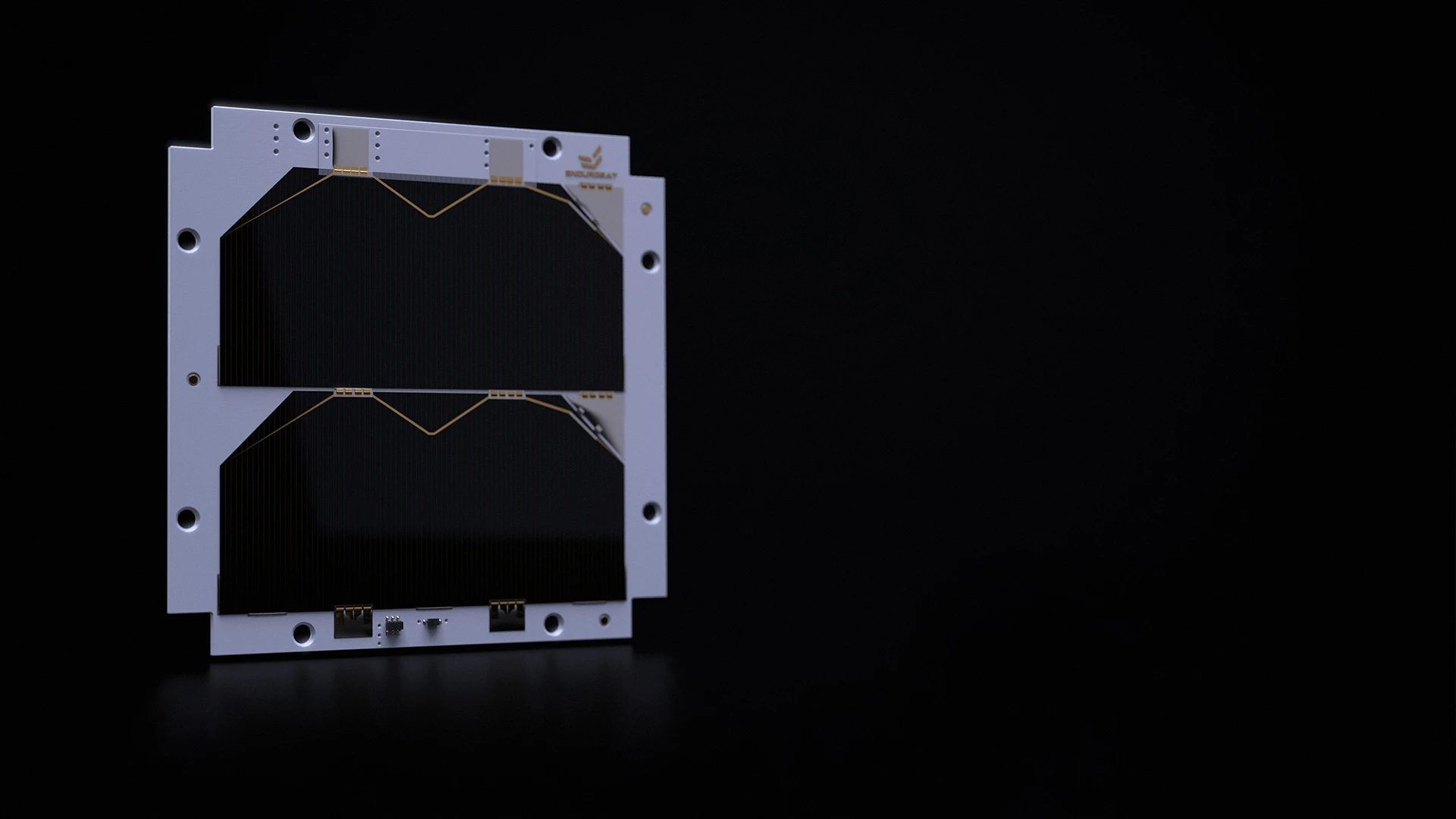

1U Solar Panel Z web render 5

2-in-1 antenna & power system with EnduroSat’s UHF Antenna
