1U SOLAR PANEL X/Y

Power In Space
Cad file & datasheet
Select Options
Select Options
state of the art report badge flight heritage badge
Download
Cad file & datasheet
Select Options
Select Options
29.5+%
TRIPLE JUNCTION SOLAR CELLS
ADCS
READY SENSORS
2.4+W
IN LEO

Flight-proven 1U Solar Panels

FEATURES
Power Efficiency At EOL
29+%
Max Power
2.4+W in LEO
Internal By-Pass Diode
reverse bias protection
Solar Cell Assembly (SCA) thickness
280-300 μm
Sensors
Temperature and Sun, optional Gyroscope
MTQ
Available with integrated magnetorquer
RBF
Available with Remove Before Flight pin
Mass
44 g (53 g with MTQ)
Flexibility
Multiple panels can be connected in series or parallel
Max Voltage
6.0 V (for 2 cells)
Max Current
512 mA
PCB Thickness
1.6 mm

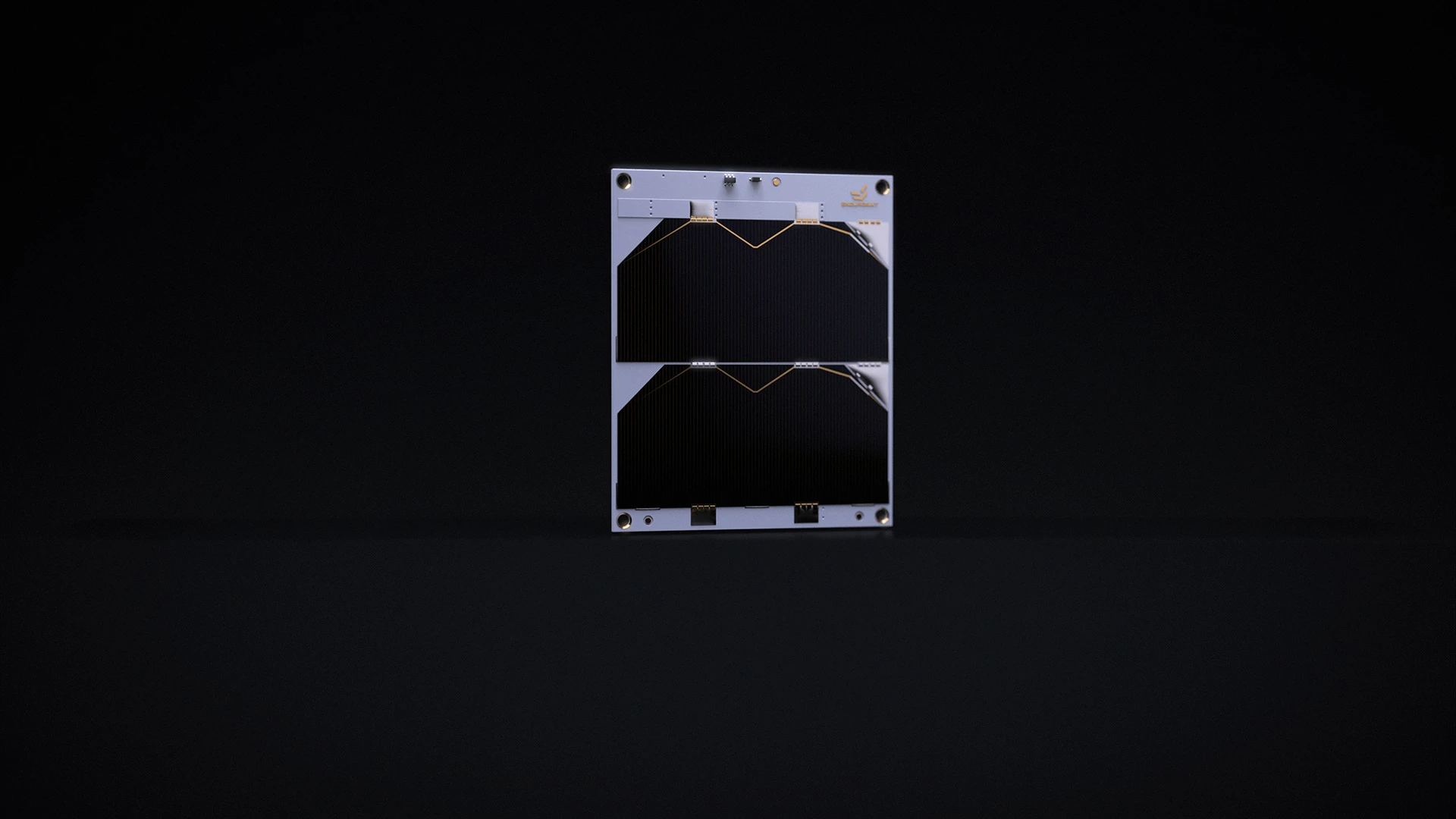

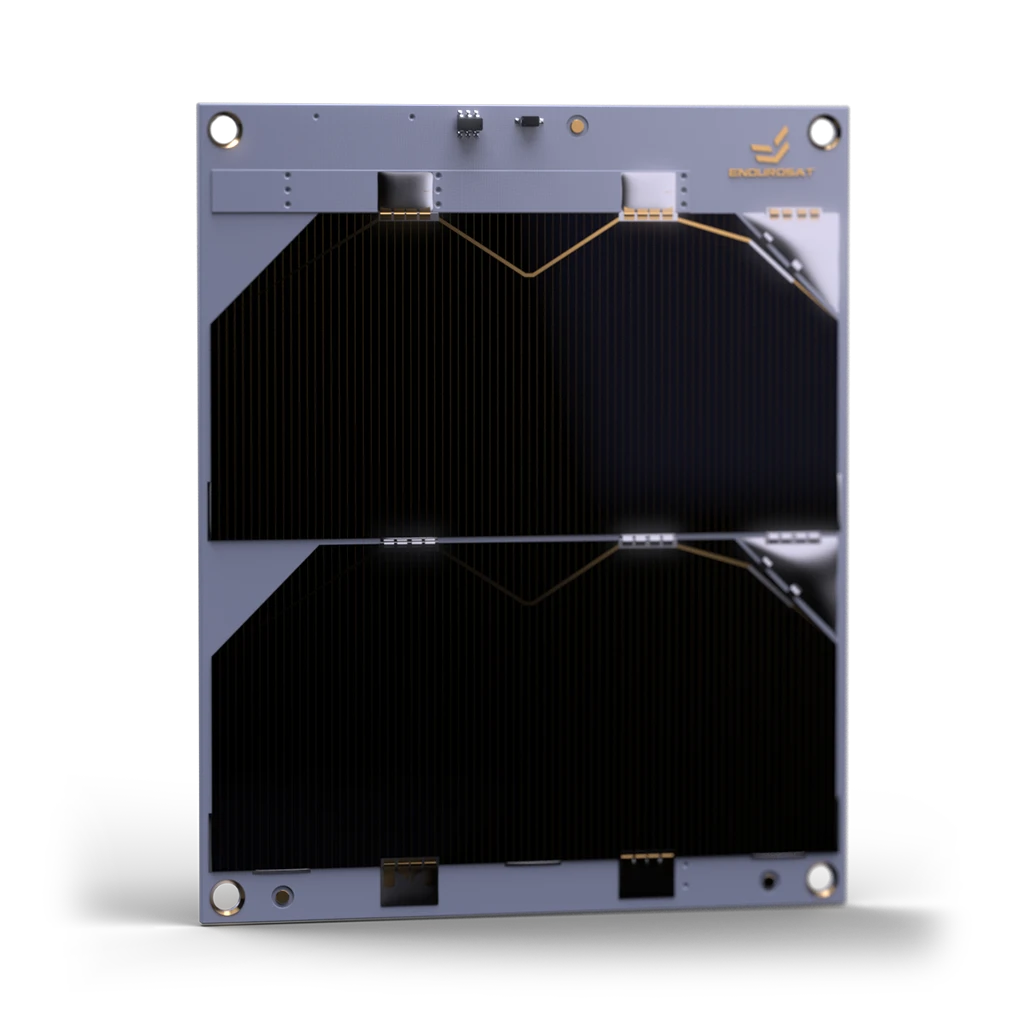

1U Solar Panel X Y web render 1
Power In Space

Included

Complete User Manual
Power and data cables
1 hour engineering support
Delivery cost
Handling and administration costs
Flight-proven 1U Solar Panels

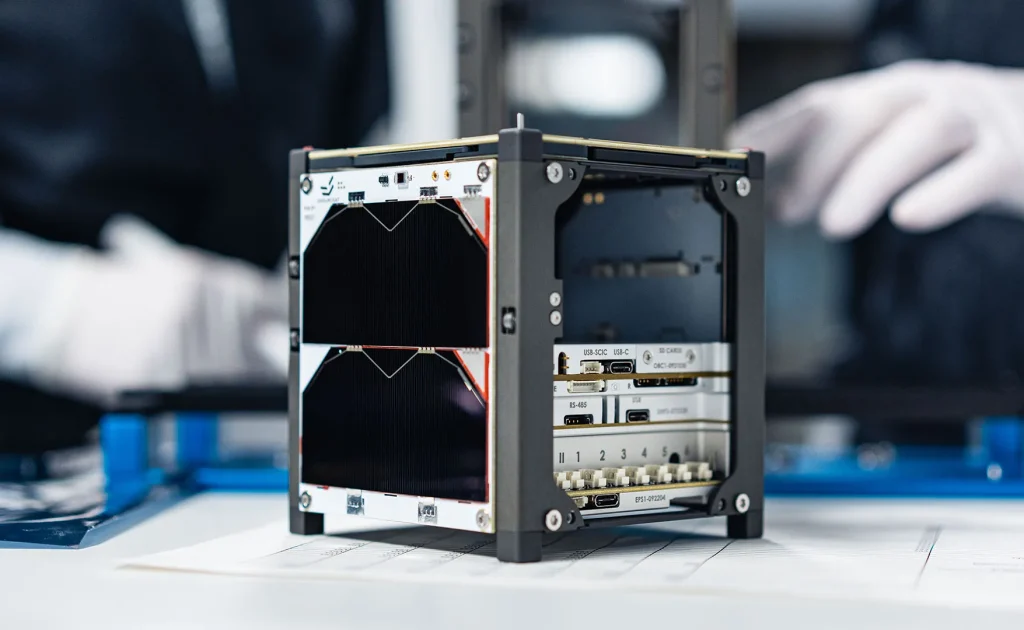

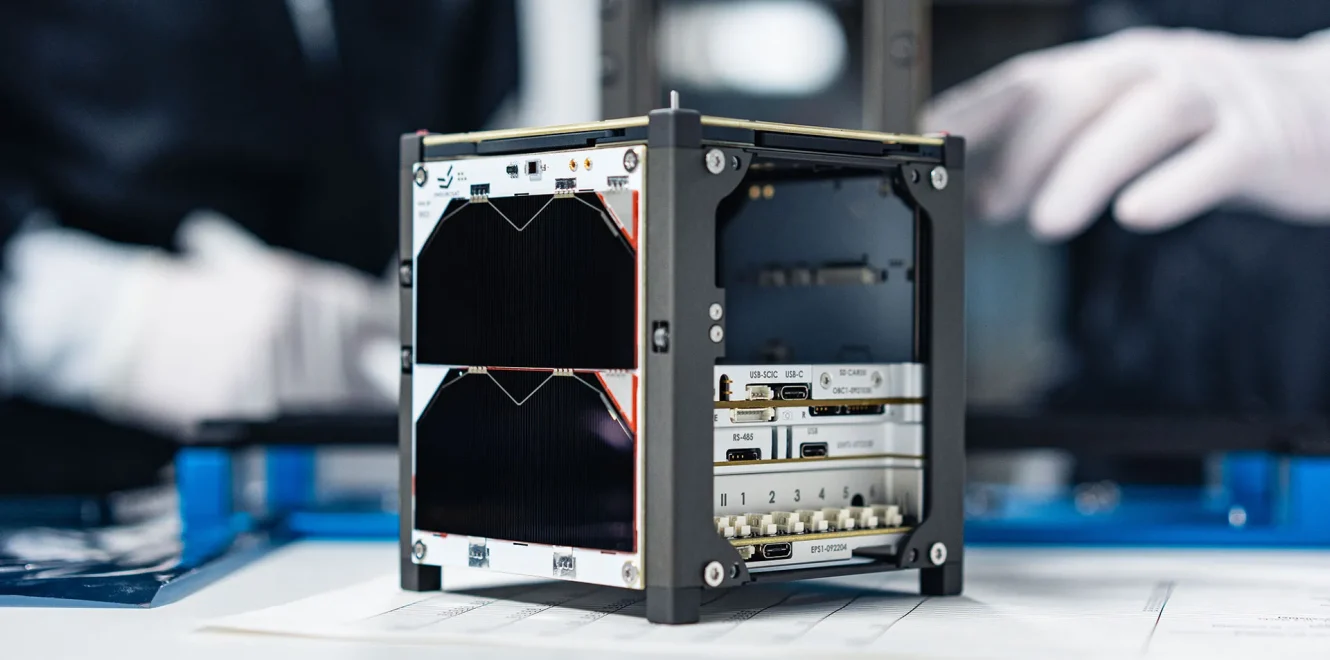

1U Solar Panel X Y web 4

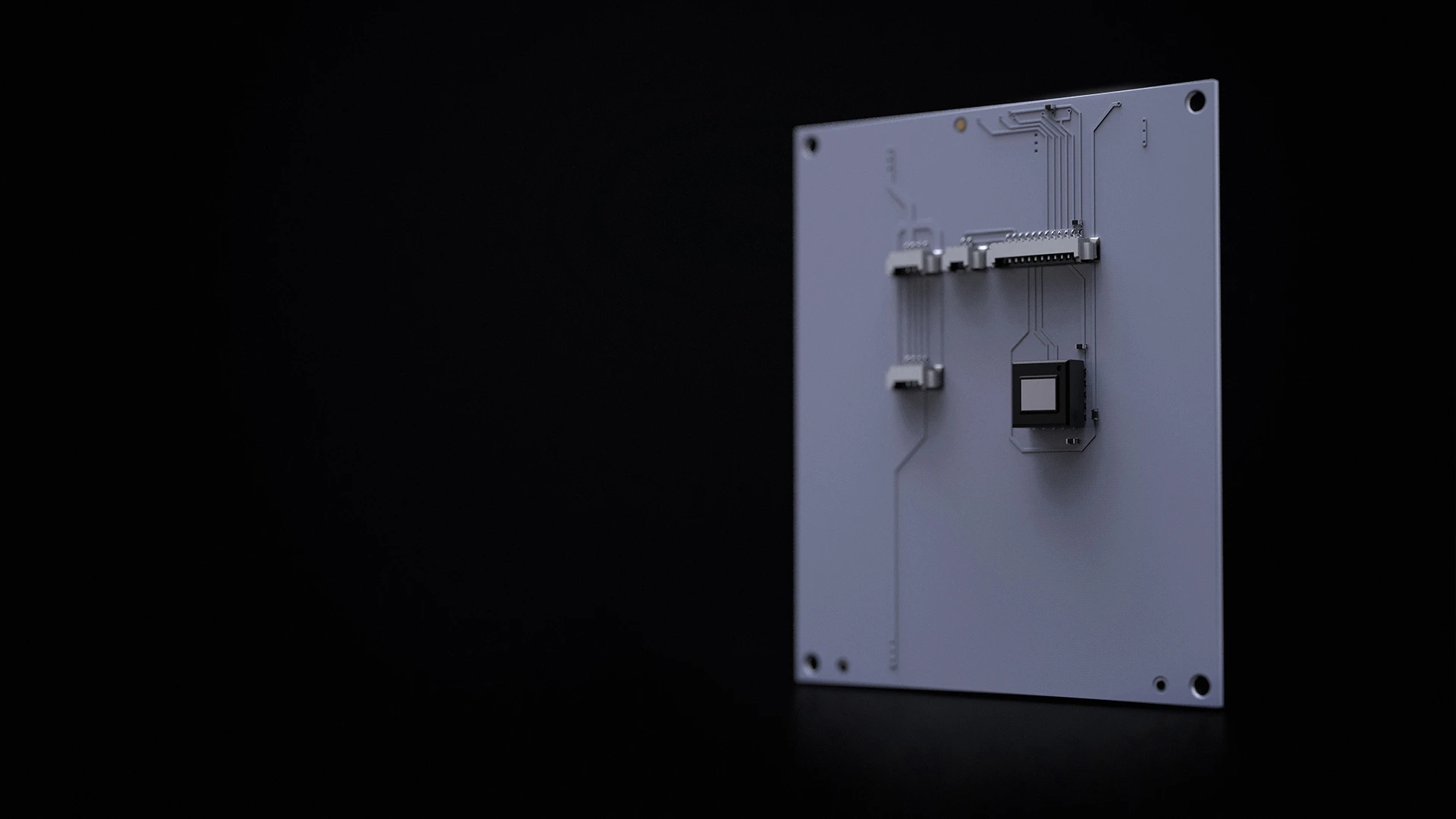

1U Solar Panel X Y web render 4

Triple Junction space-grade Solar Cells with efficiency higher than 29.5%

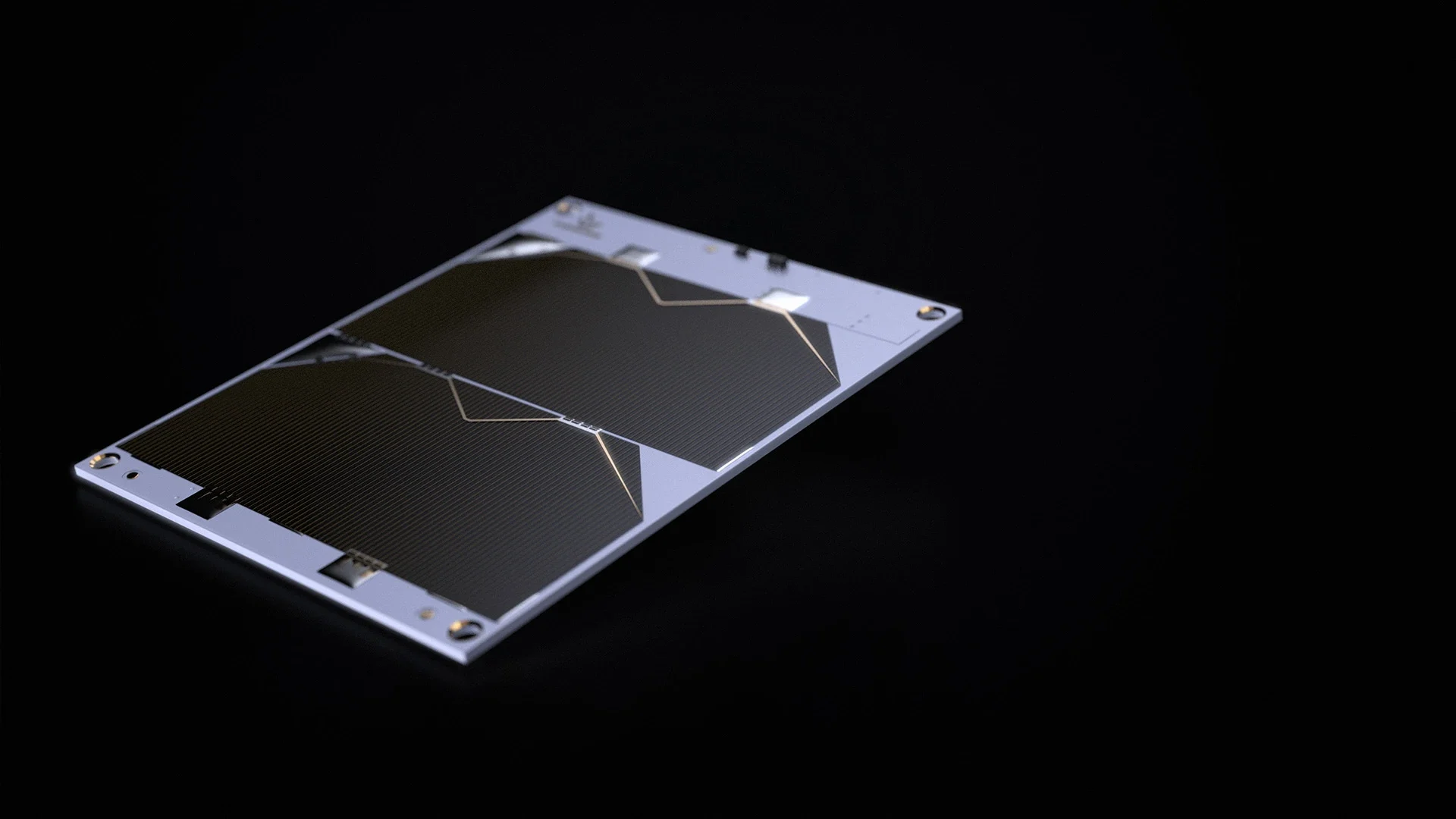

1U Solar Panel X Y web render 2 e1711028960664

High radiation resilience

CELL EFFICIENCY REMAINS HIGHER THAN 29% FOR 5 YEARS IN LEO

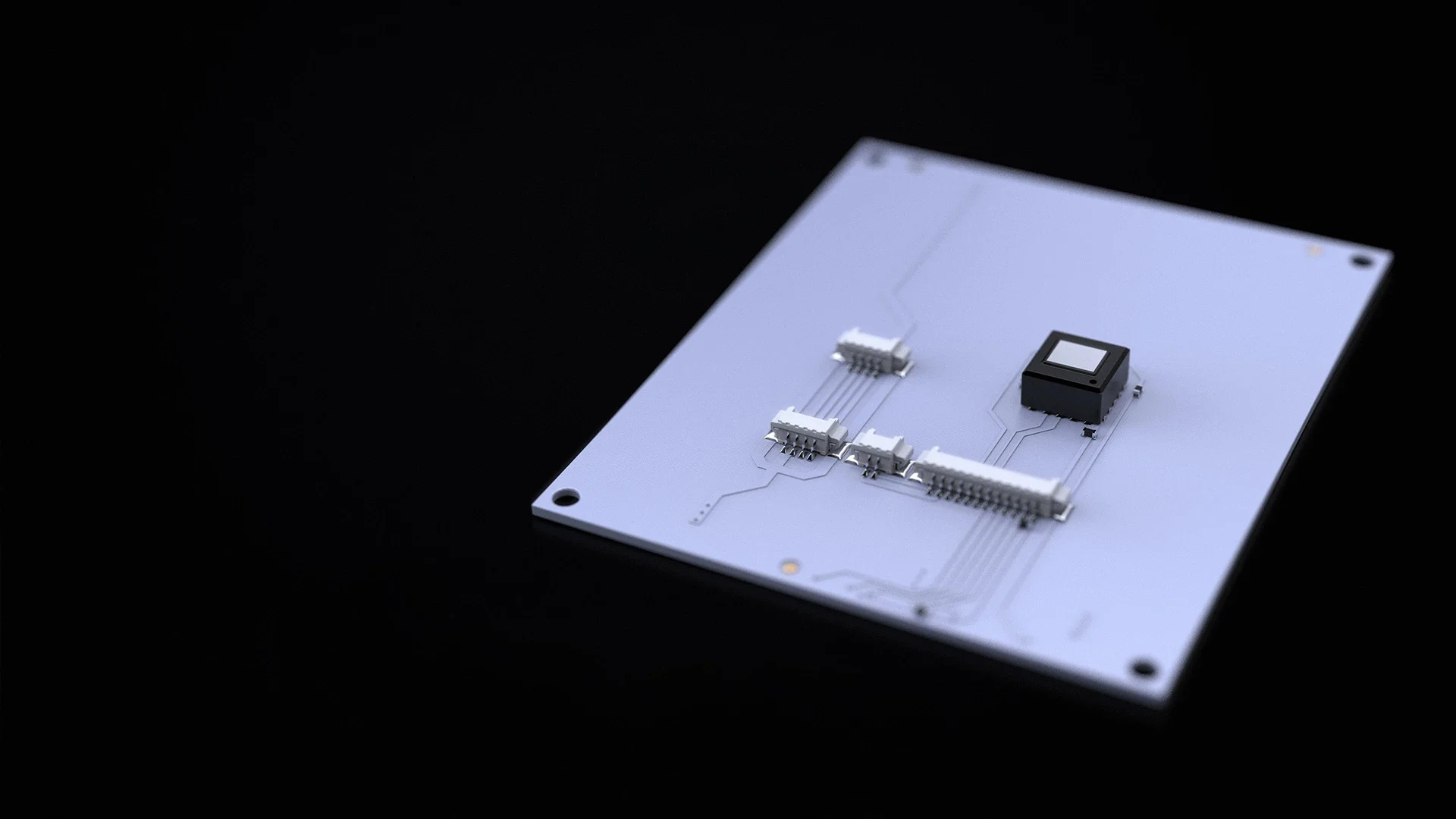

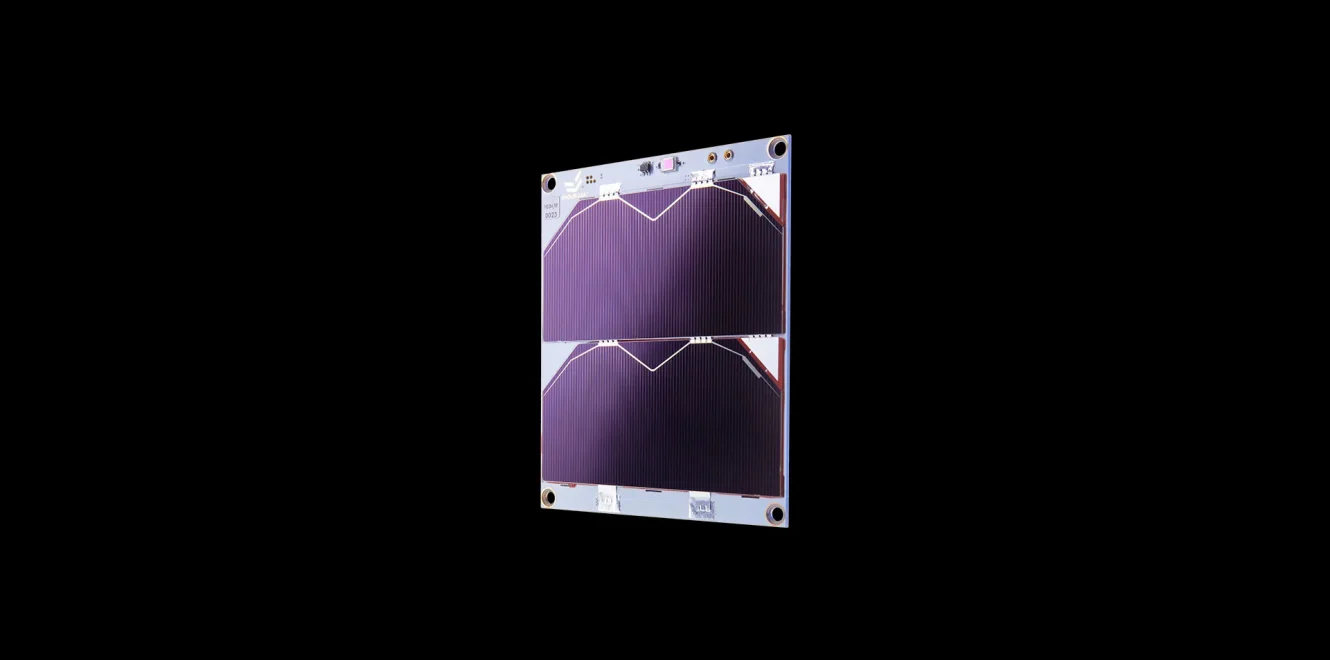

1U Solar Panel X Y web render 3 e1711028983816

Integrated sun sensors & gyroscope + optional magnetorquer

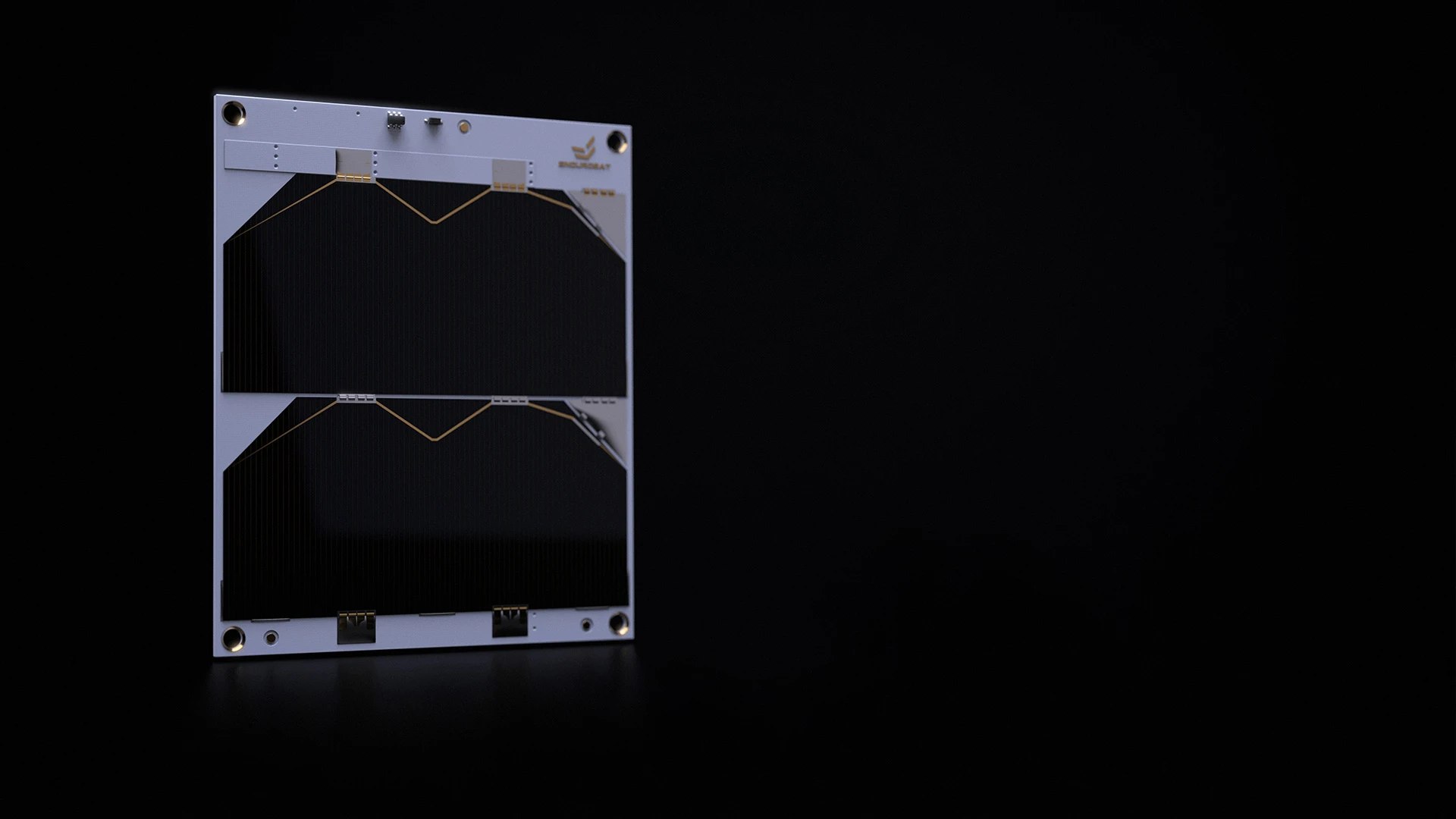

1U Solar Panel X Y web render 5

Series or parallel connection based on custom power system requirements
