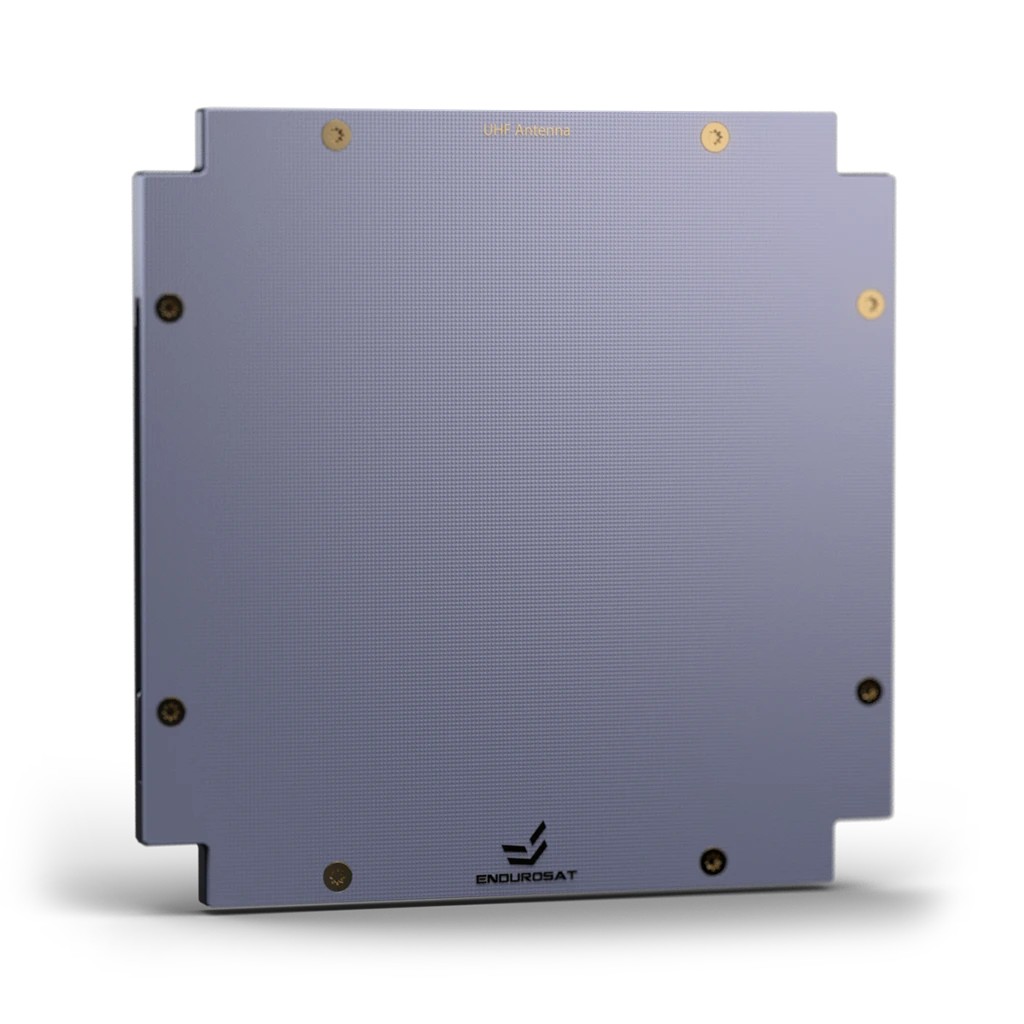

UHF ANTENNA III

Ultra High-speed Communication
Cad file & datasheet
buy
buy
flight heritage badge state of the art report badge
Download
Cad file & datasheet
buy
buy
3X
REDUNDANT BURNWIRE MECHANISM
0+
DBI GAIN
RH
CIRCULAR POLARIZATION

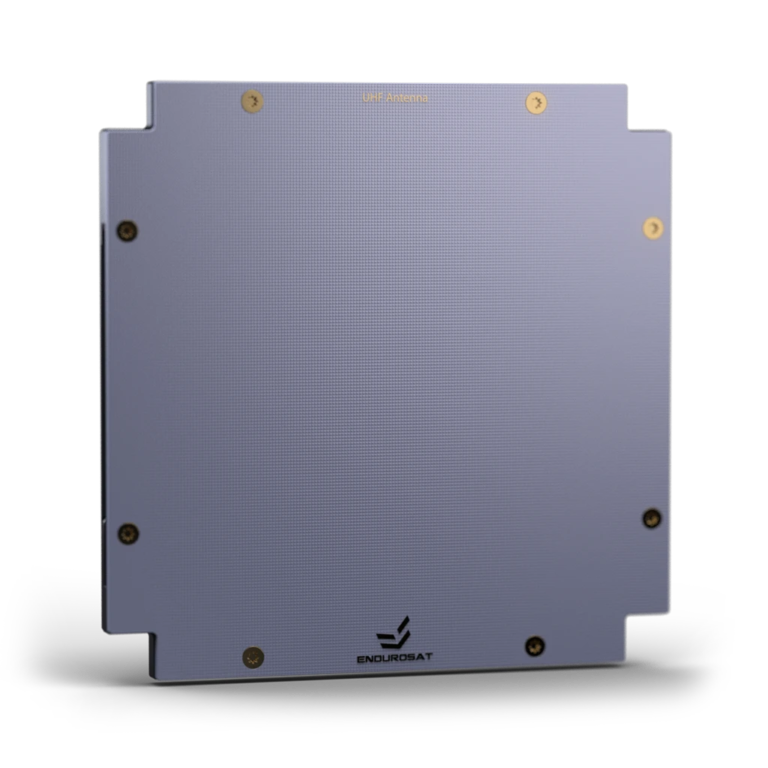

Flight-proven deployable UHF antenna

FEATURES
Frequency Range
435 - 438 MHz or 400 - 403 MHz (commercial)
Half Power Beam Width (HPBW)
Omnidirectional
Gain
> 0 dBi
Polarization
Circular
Mass
85 g
Monitoring And Control Interface
I2C
Direct Deployment
Two redundant channels with logical level

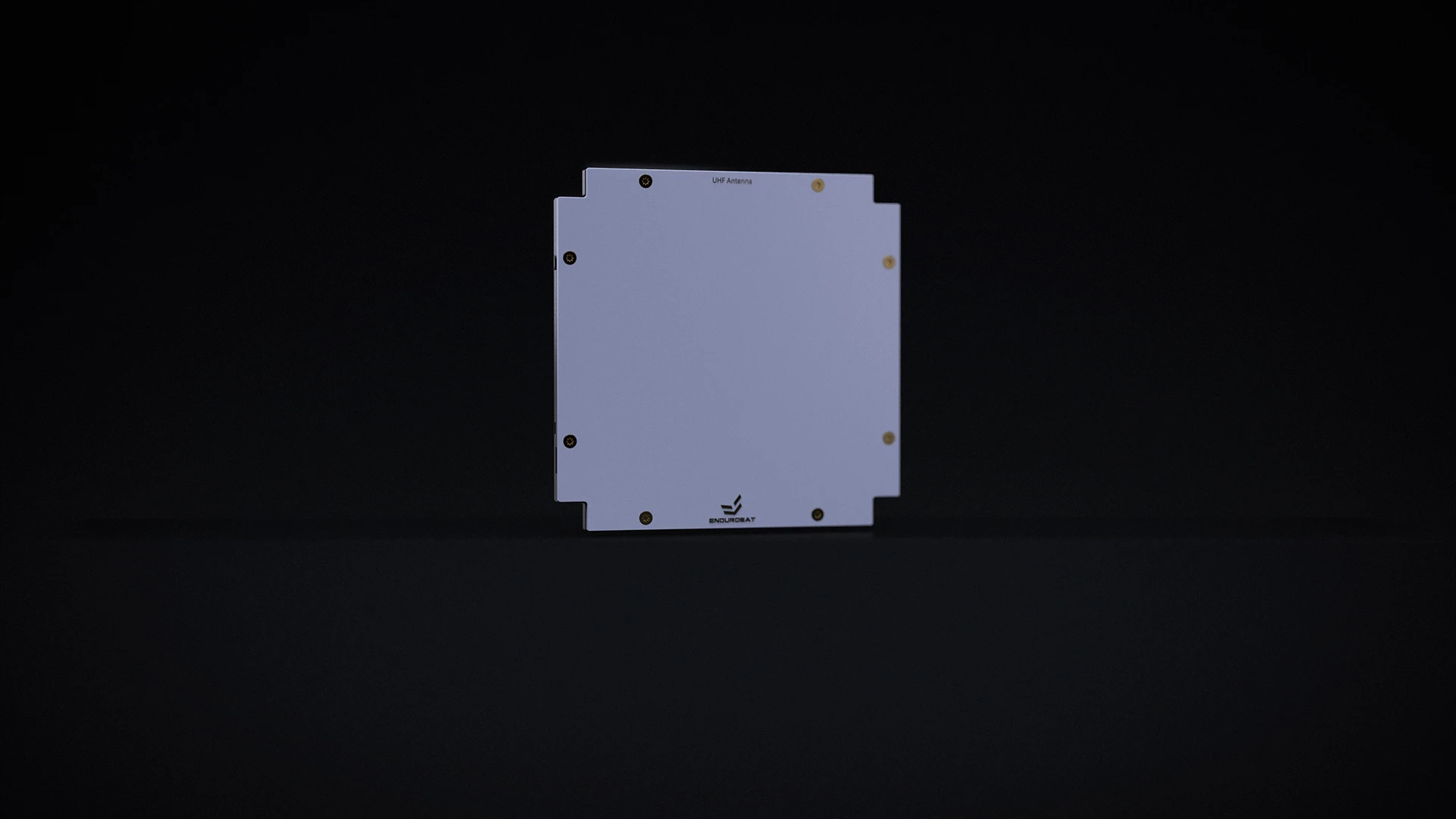

UHF Antenna III web render 1 4
Reliable Communication

Included

Complete User Manual
5h engineering support
Delivery cost
Handling and administration costs

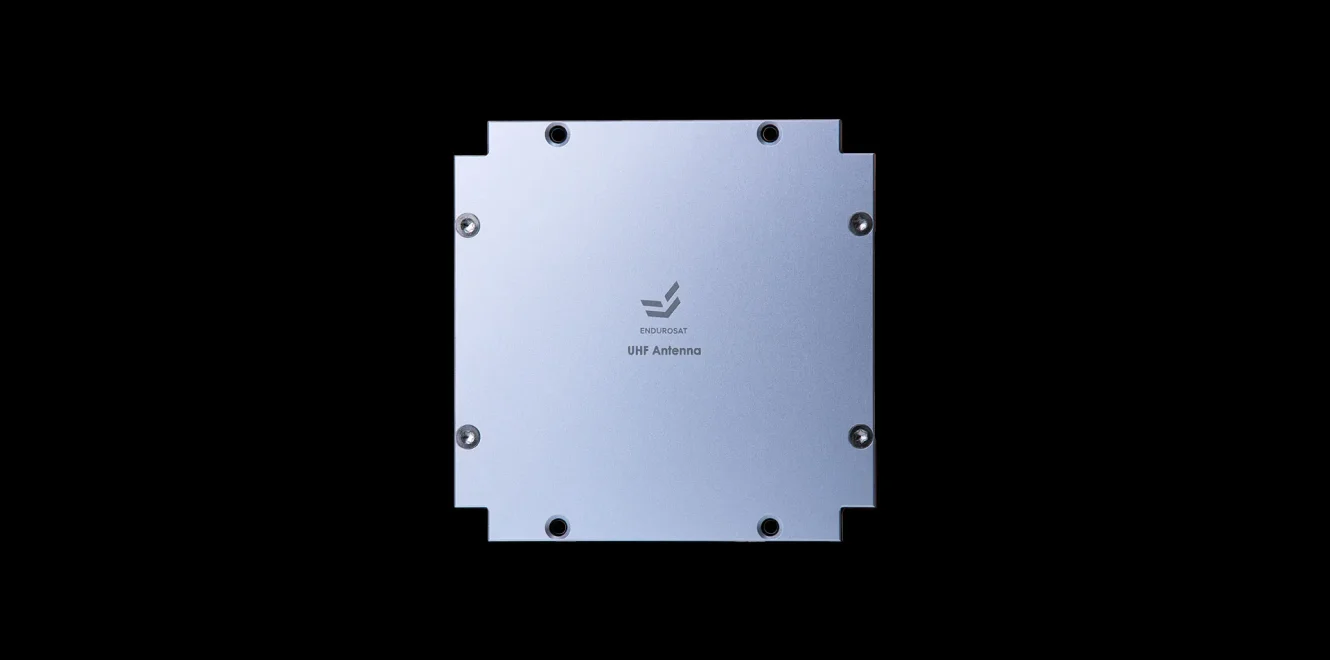

Flight-proven deployable UHF antenna

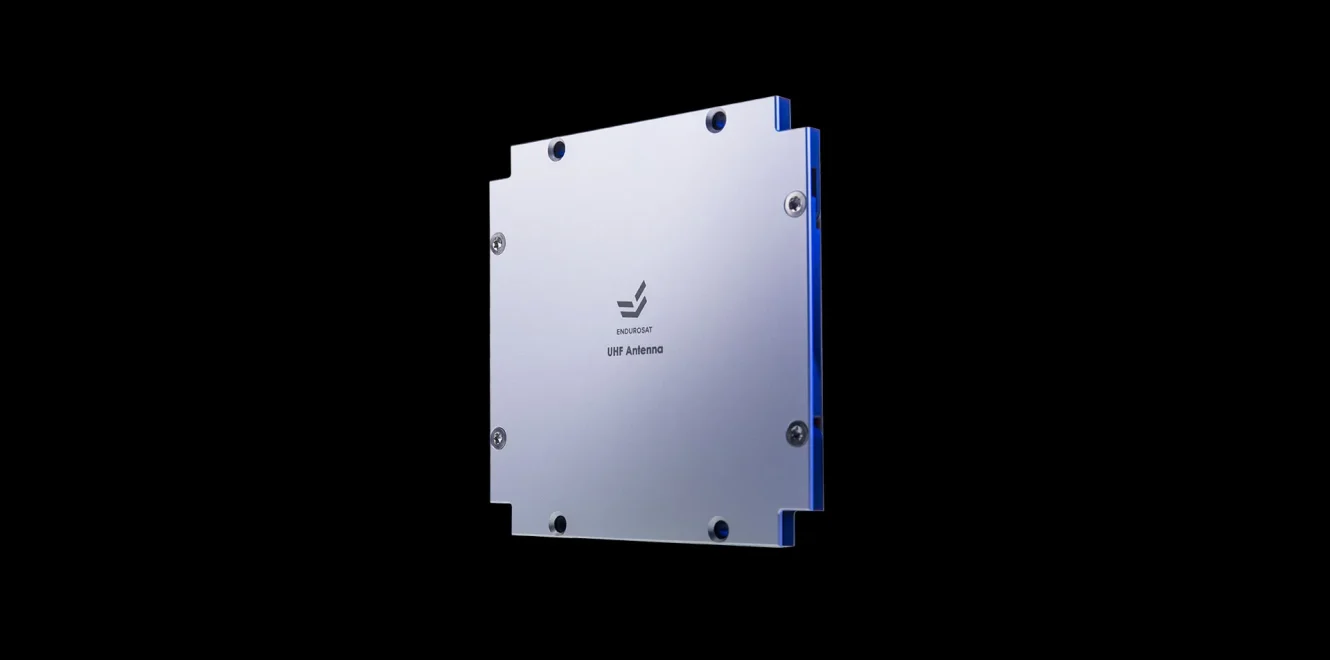

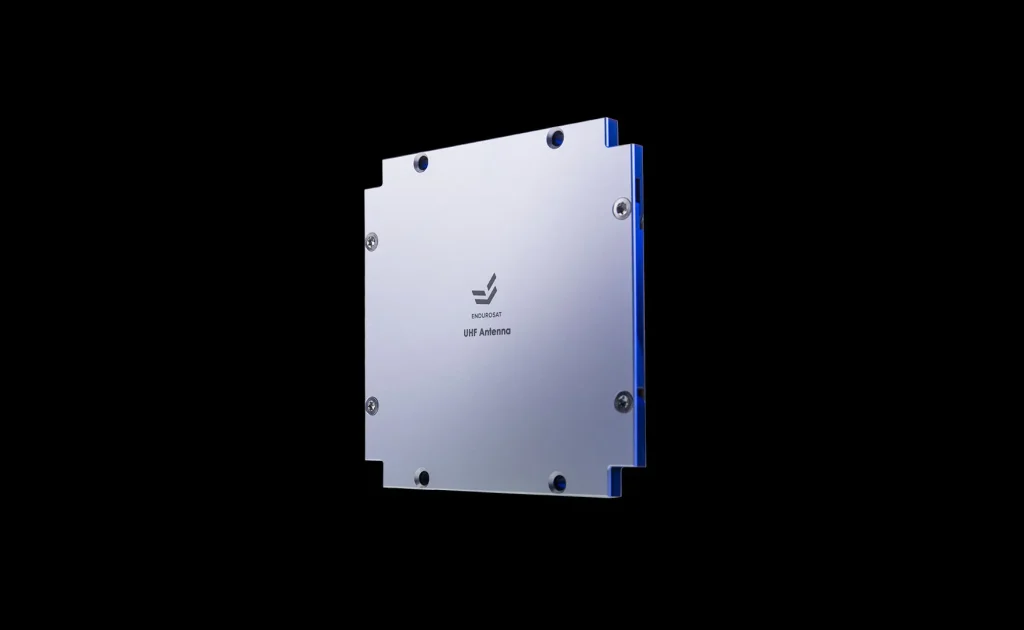

UHF Antenna III web 5

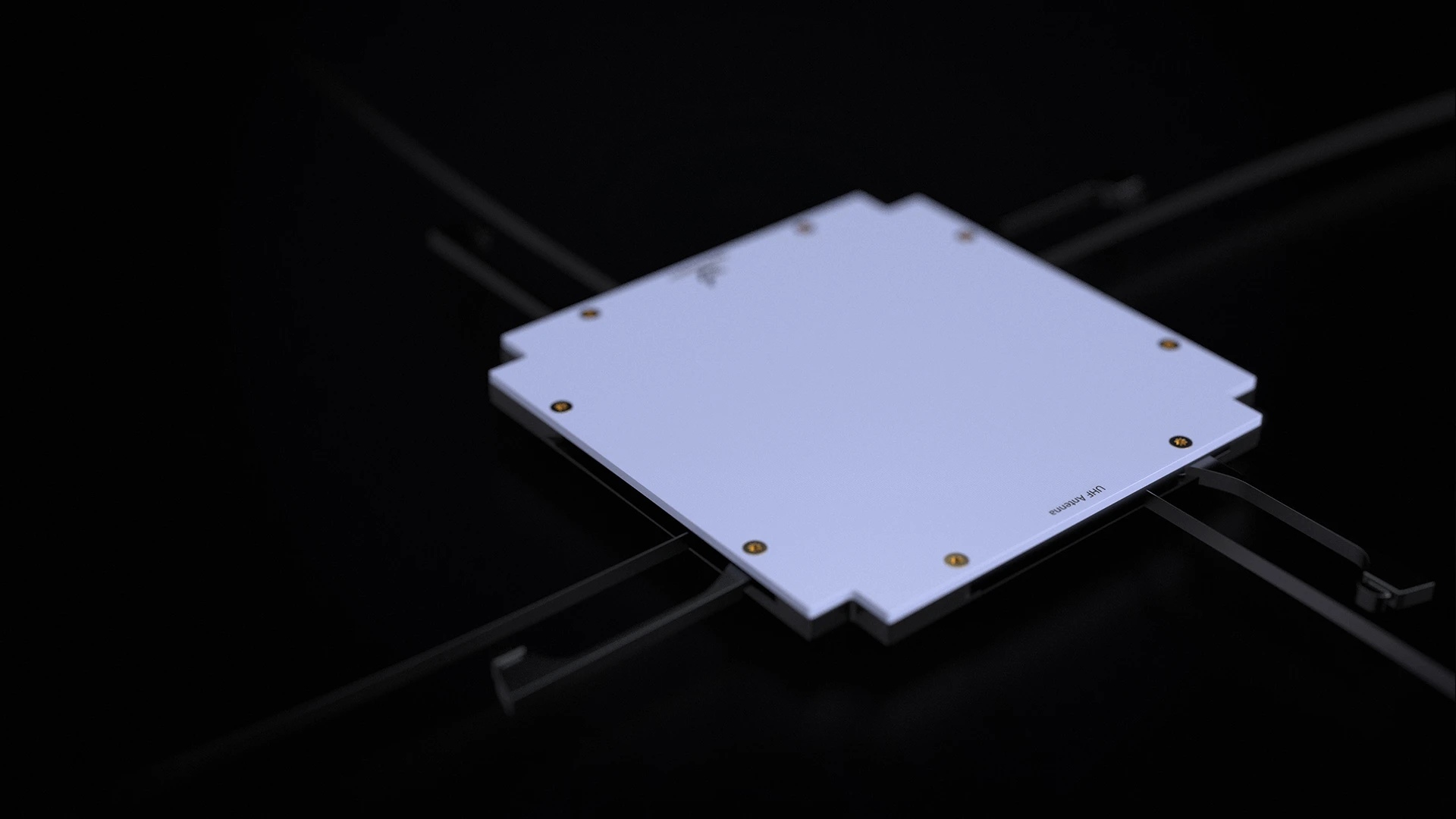

UHF Antenna III web render 1 2

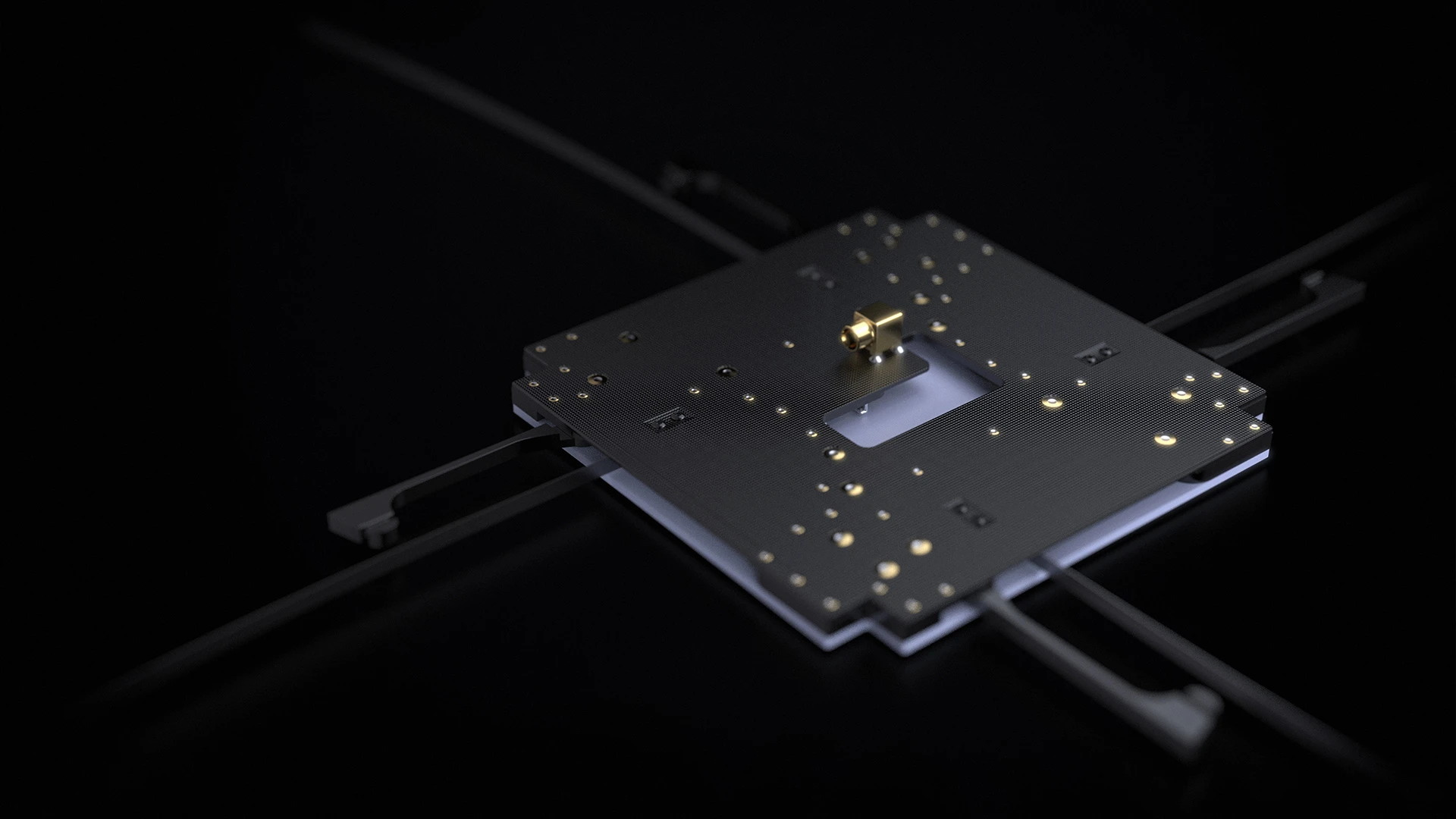

Proven in tens of successful missions. Triple redundant burnwire mechanism with feedback

UHF Antenna III web render 1 3

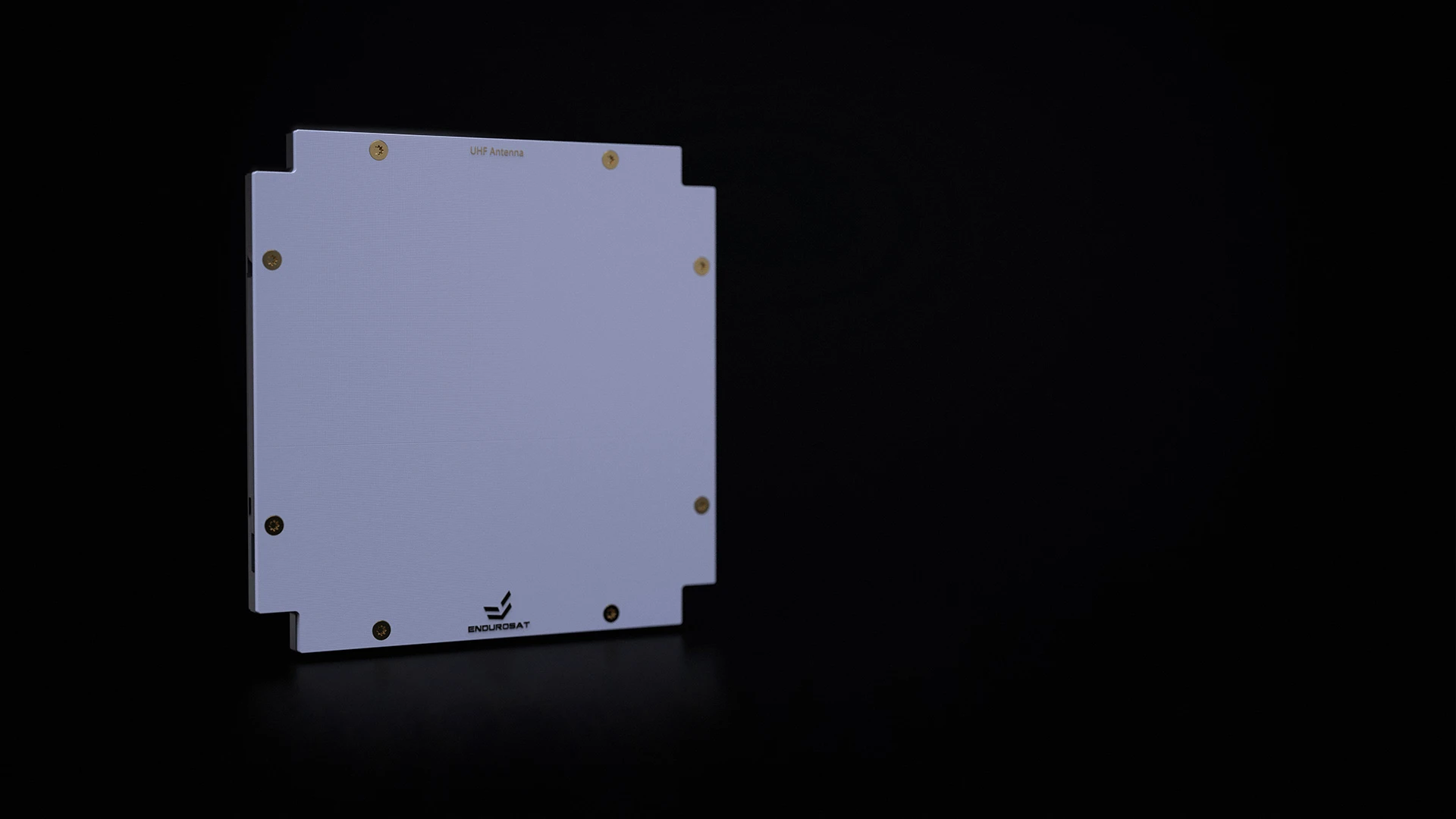

Circularly polarized for better reception

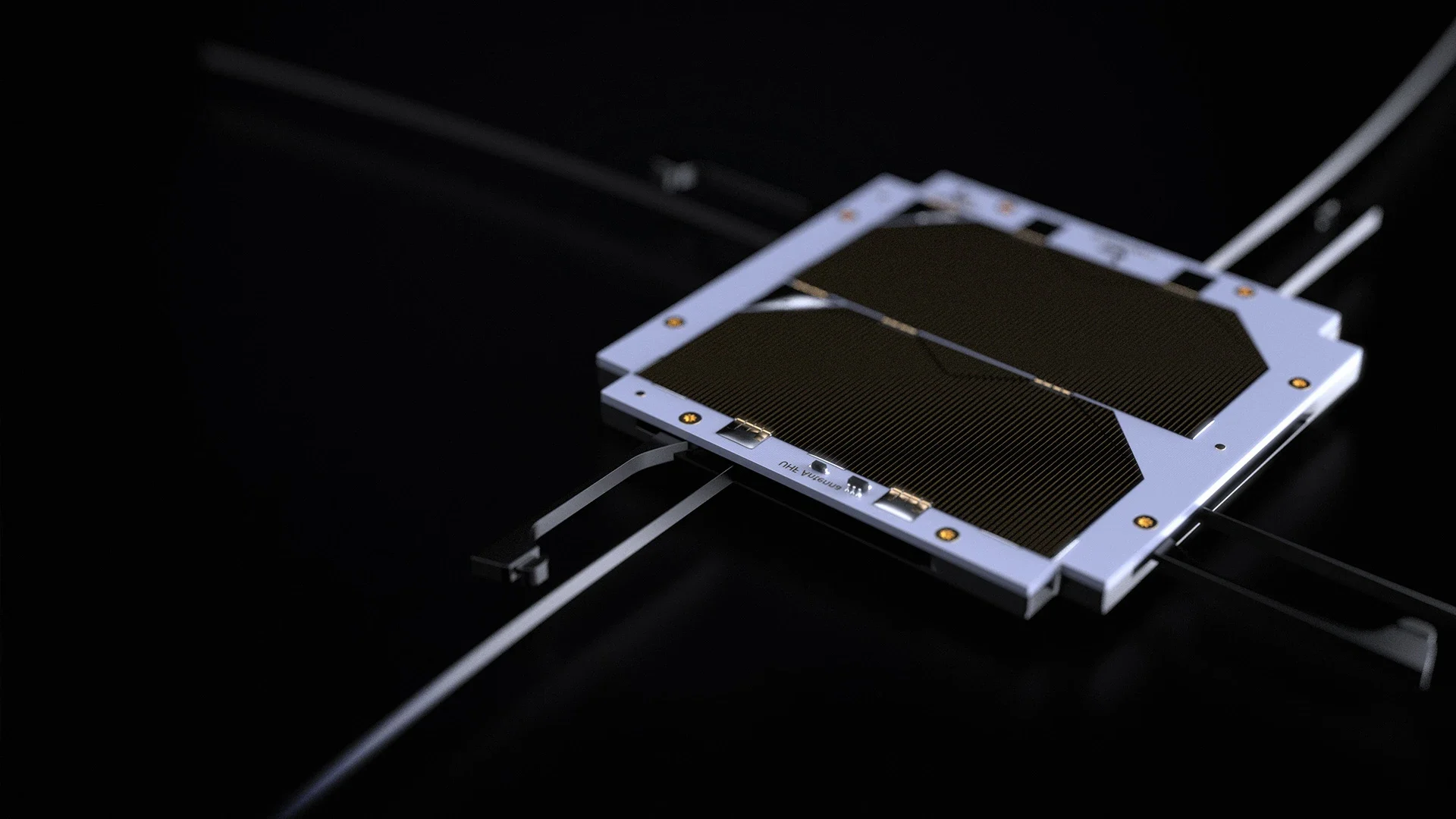

UHF Antenna III web render 1 1 e1711097937394

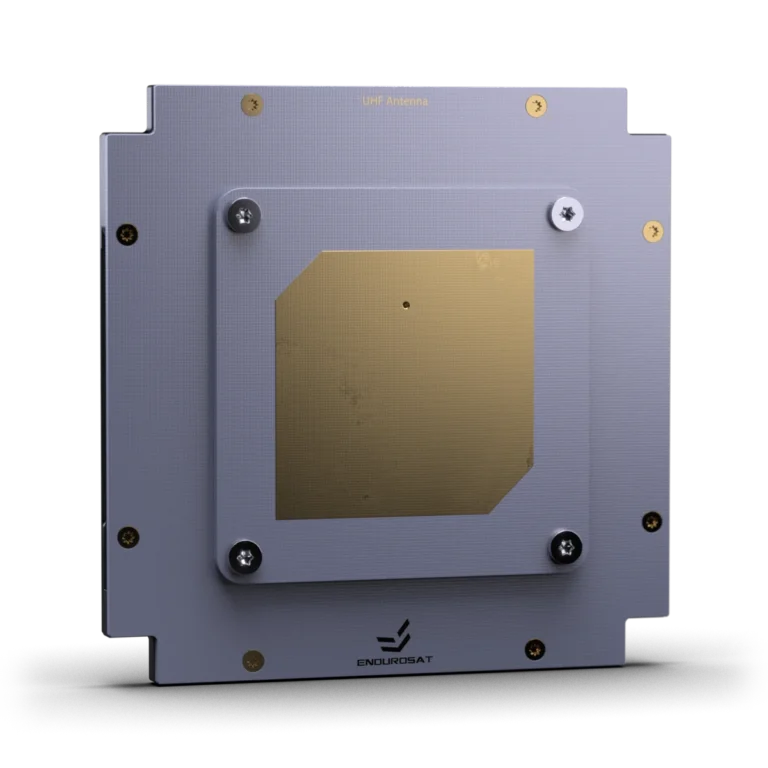

Configurable with a solar panel in the same form factor

UHF Antenna III web render 1

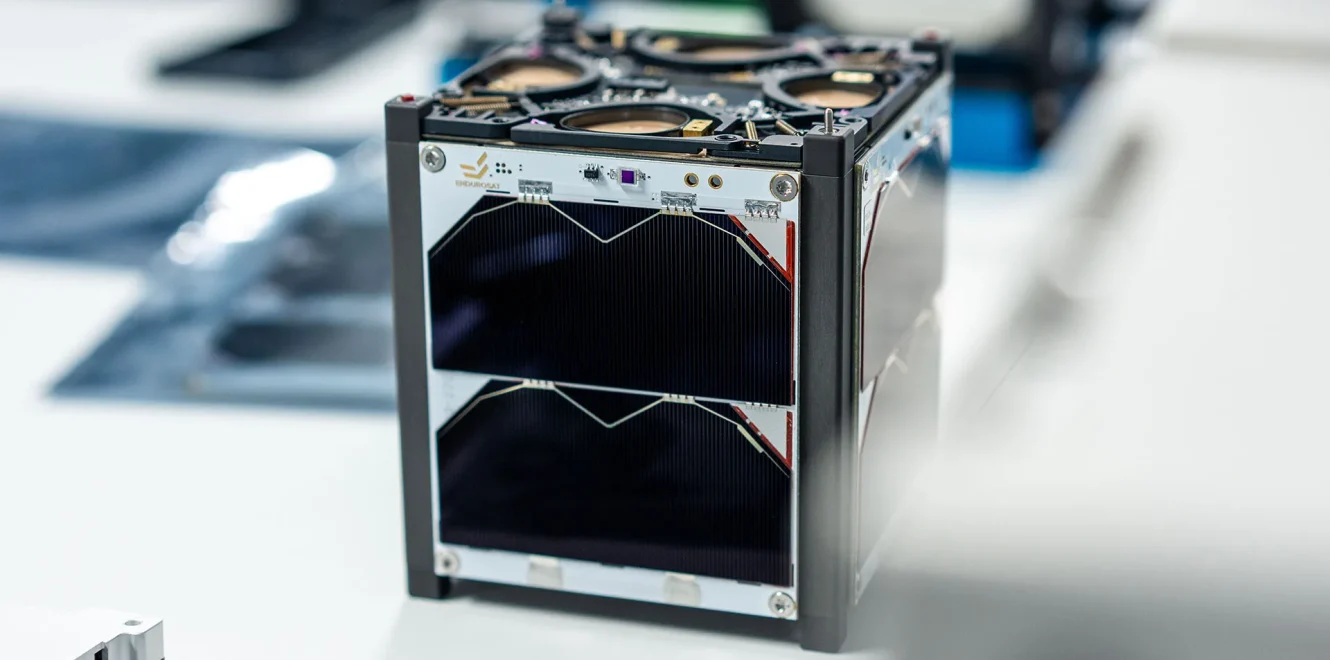

Compatible with a wide array of satellite structures
