Advanced avionics and data processing

EPS I

Power Efficiency
Cad file & datasheet
state of the art report badge flight heritage badge
Download
Cad file & datasheet
2X
MORE EFFICIENT
50+
YEARS OF FLIGHT HERITAGE
10.2
WH CAPACITY

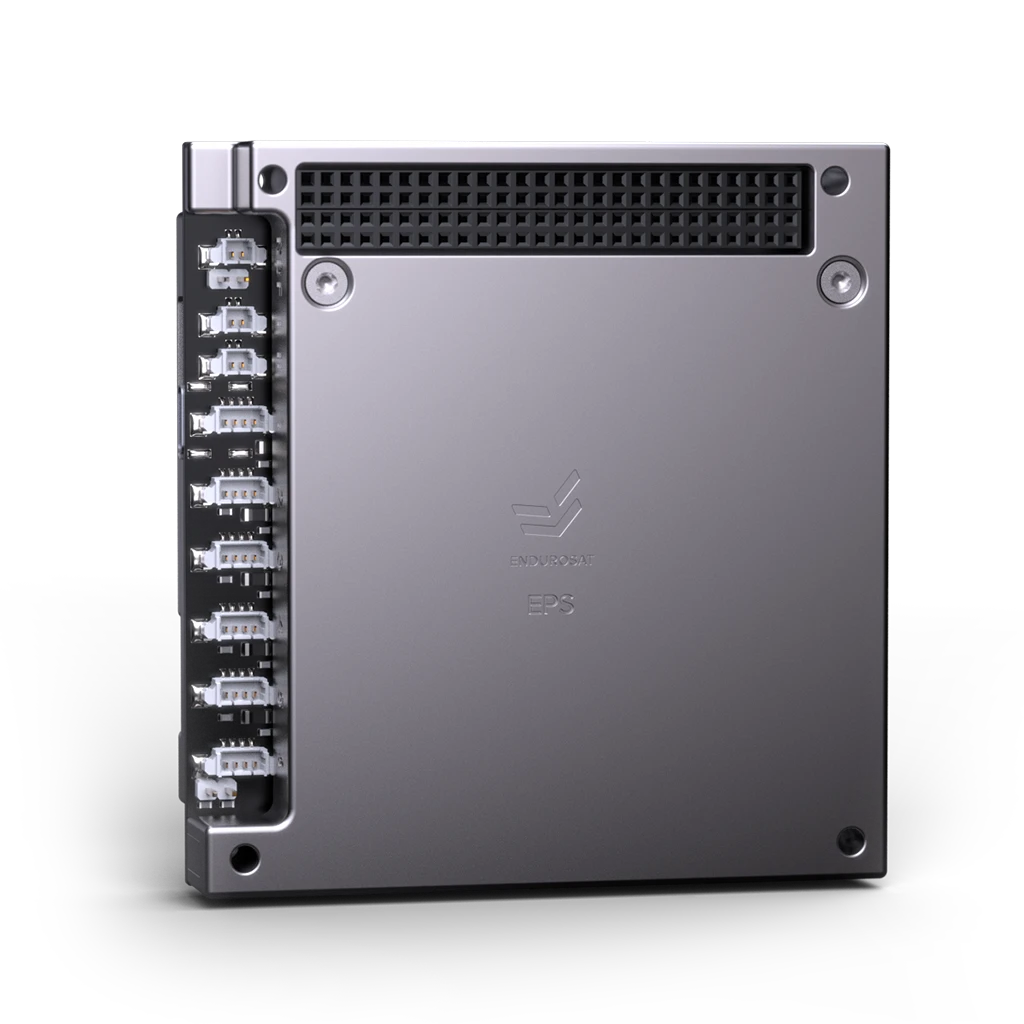

EPS: Flight-proven Electric Power System

FEATURES
Input Channels
3 (one for each CubeSat axis)
Input Voltage (Per Solar Panel Channel)
up to 5.5 V
Input Current (Per Solar Panel Channel)
up to 1.8 A
Integrated Blocking Diode
for each solar panel connector
Battery Pack Power
10.2 Wh (20.4 Wh with EPS I Plus)
Battery Pack Voltage
3.7 V nominal
Mass
230 g
Stackable Battery Packs
up to 8 A
Output Power Buses
3.3 V, 5 V, BCR (5 V max) and Battery raw
Interfaces
RS-485, USB-C
Switches
Two deployment and one Remove Before Flight (RBF)
Control
Six general purpose outputs for shutdown/reset of external modules

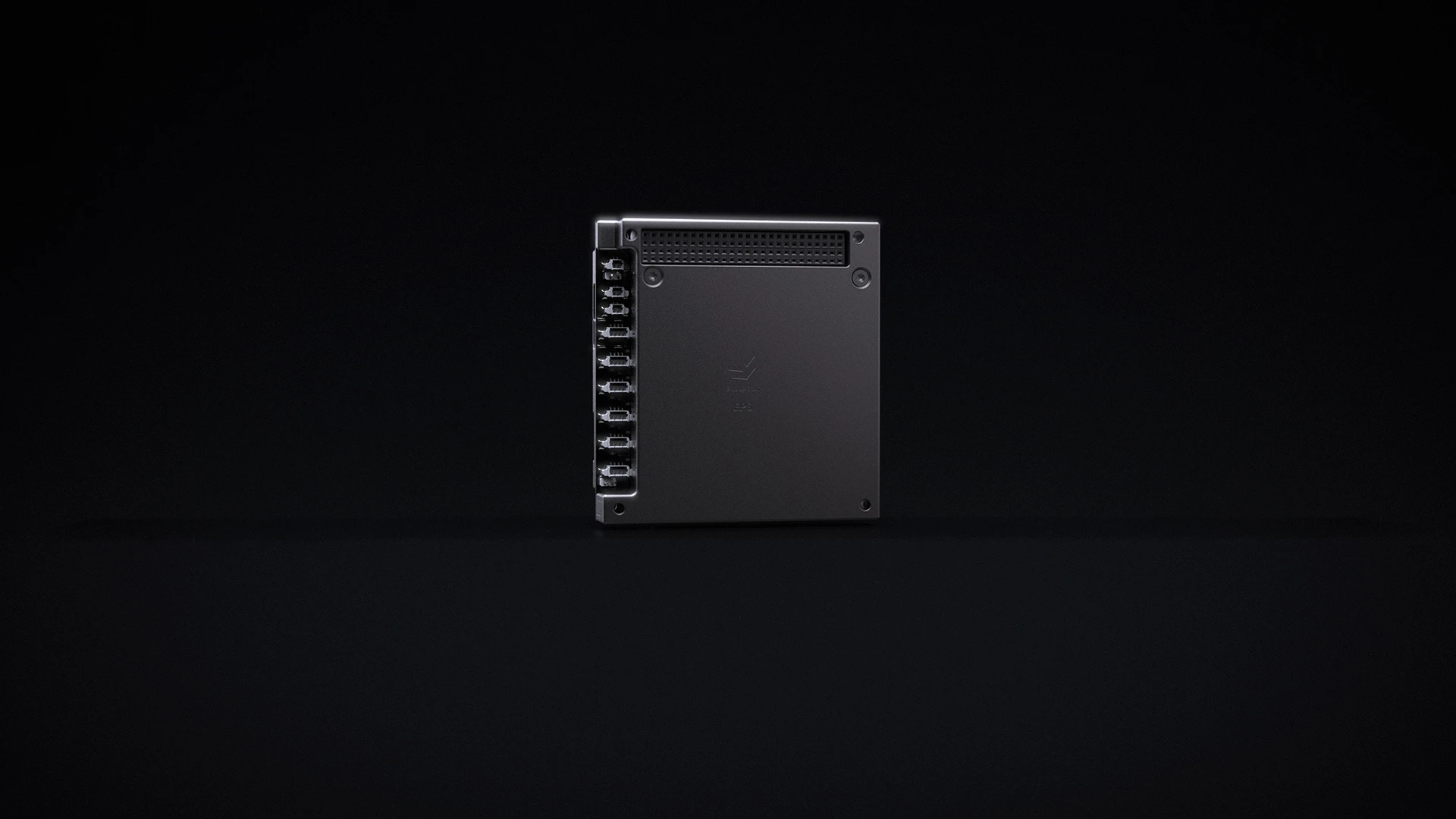

EPS I web render 5
Power Efficiency

Included

Complete User Manual
USB cable
5h engineering support
Delivery cost
Handling and administration costs
EPS: Flight-proven Electric Power System

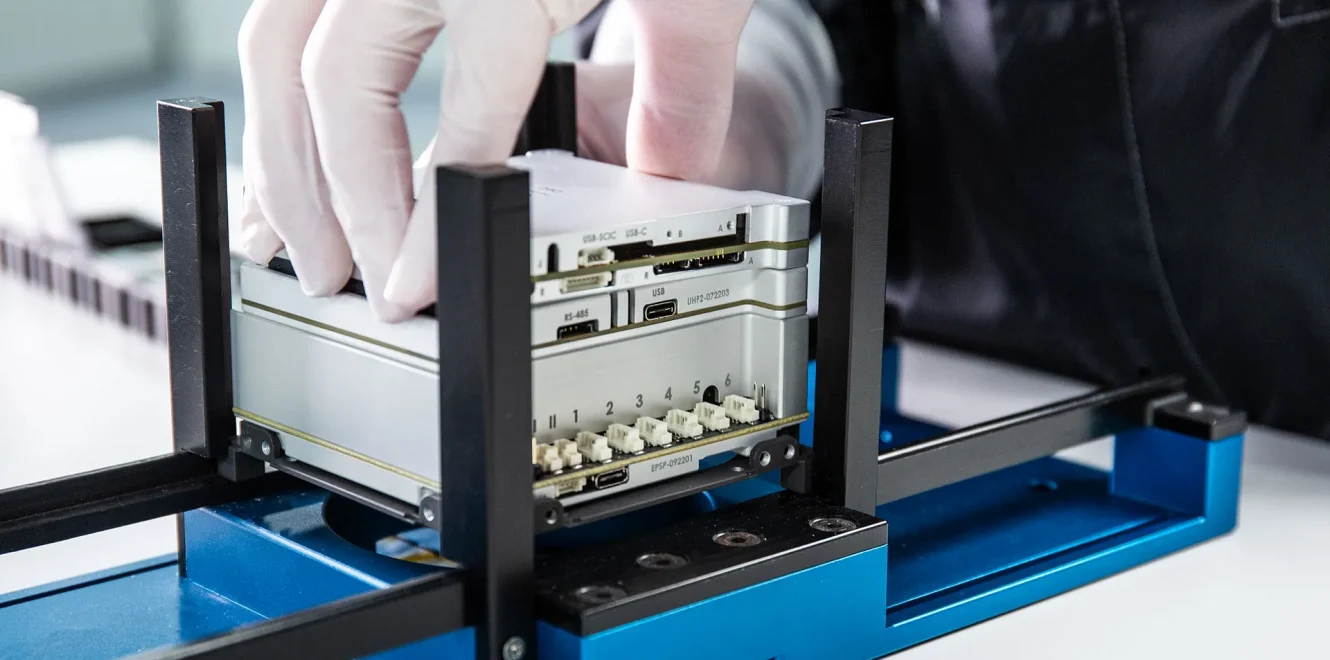

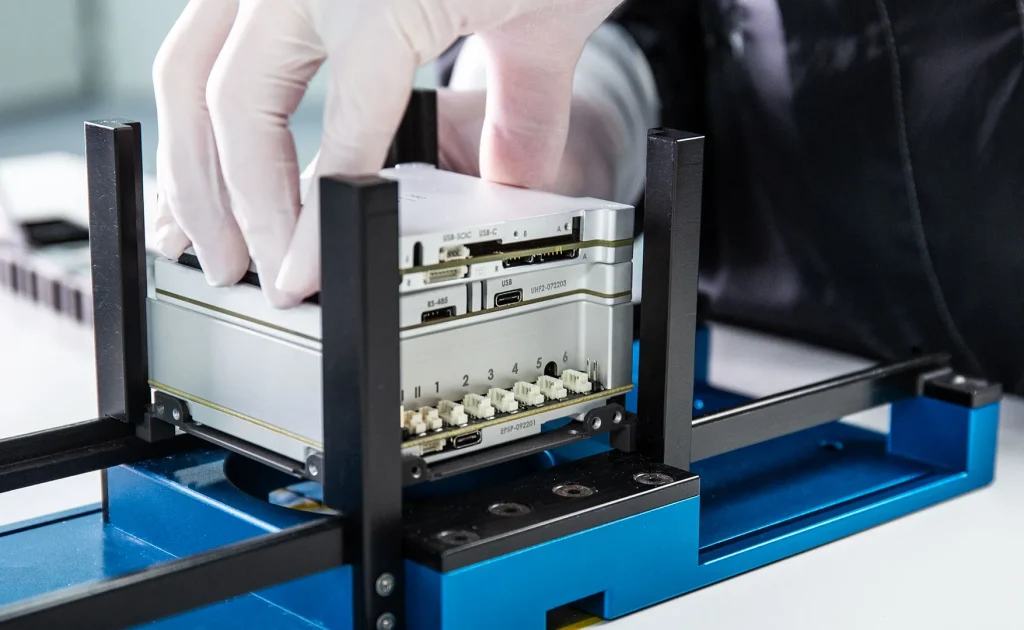

EPS I web 4

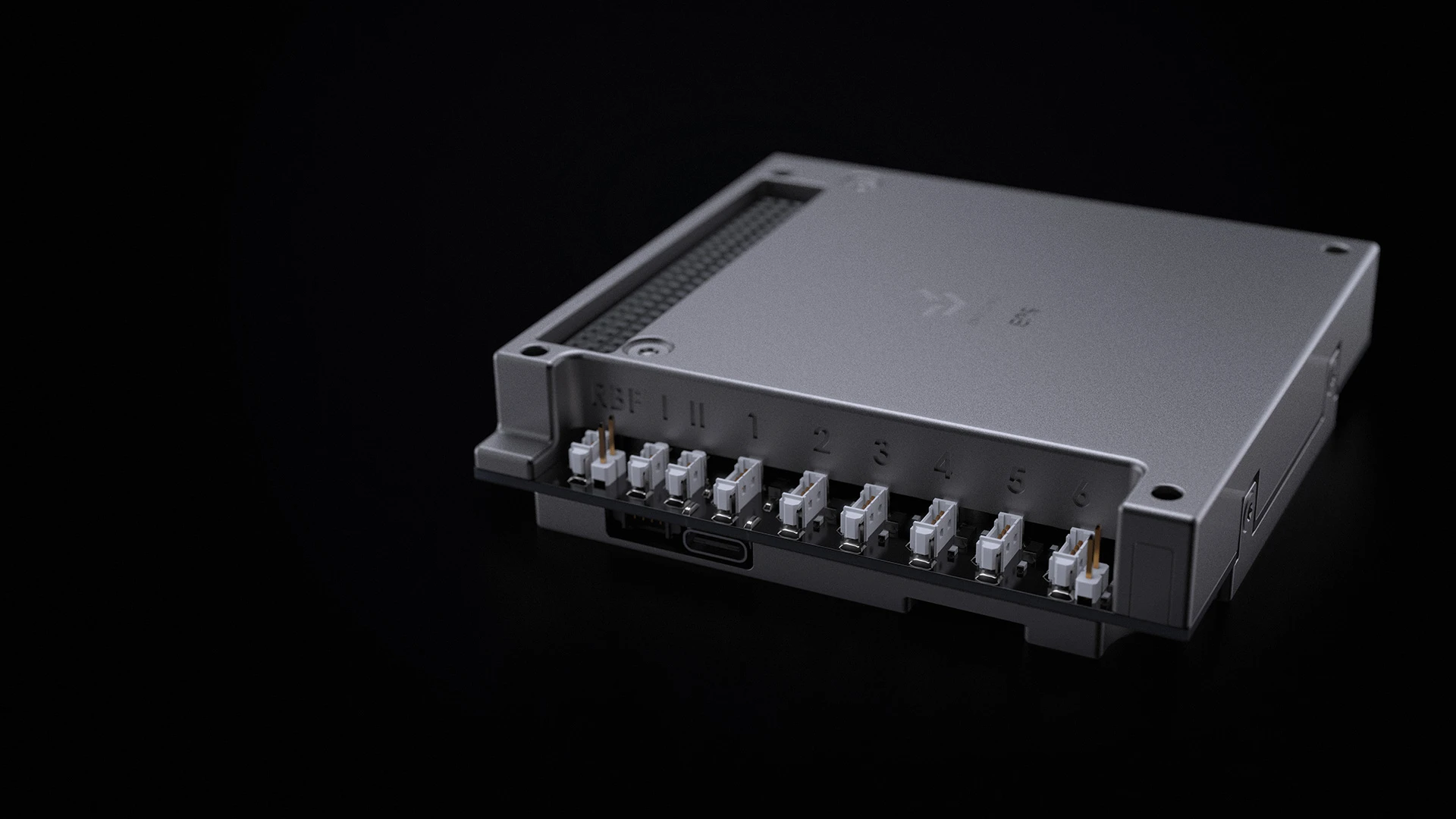

EPS I web render 4

2x lower power consumption than systems in the same class

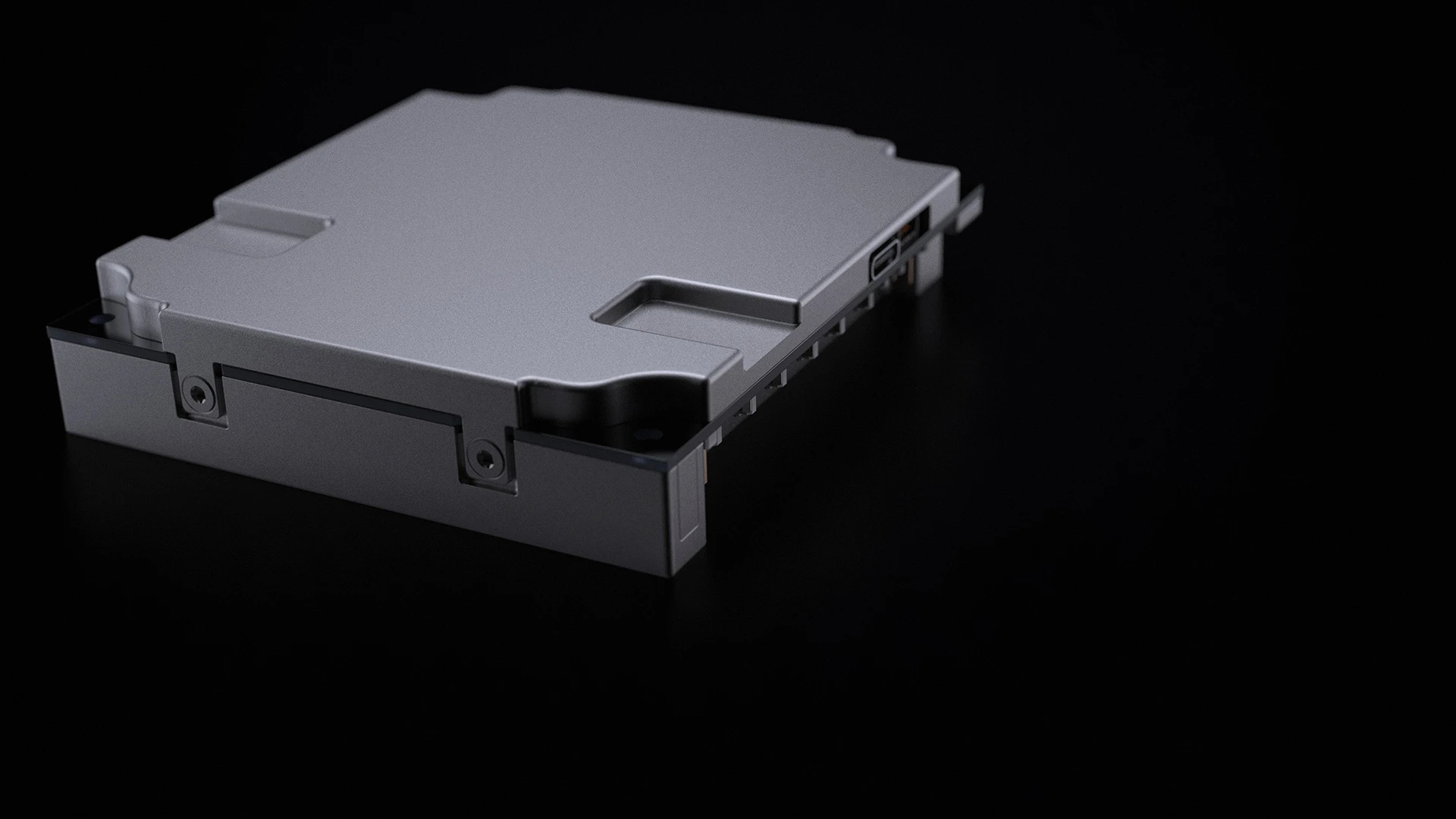

EPS I web render 2

Built-in redundant short-circuit & overvoltage protections

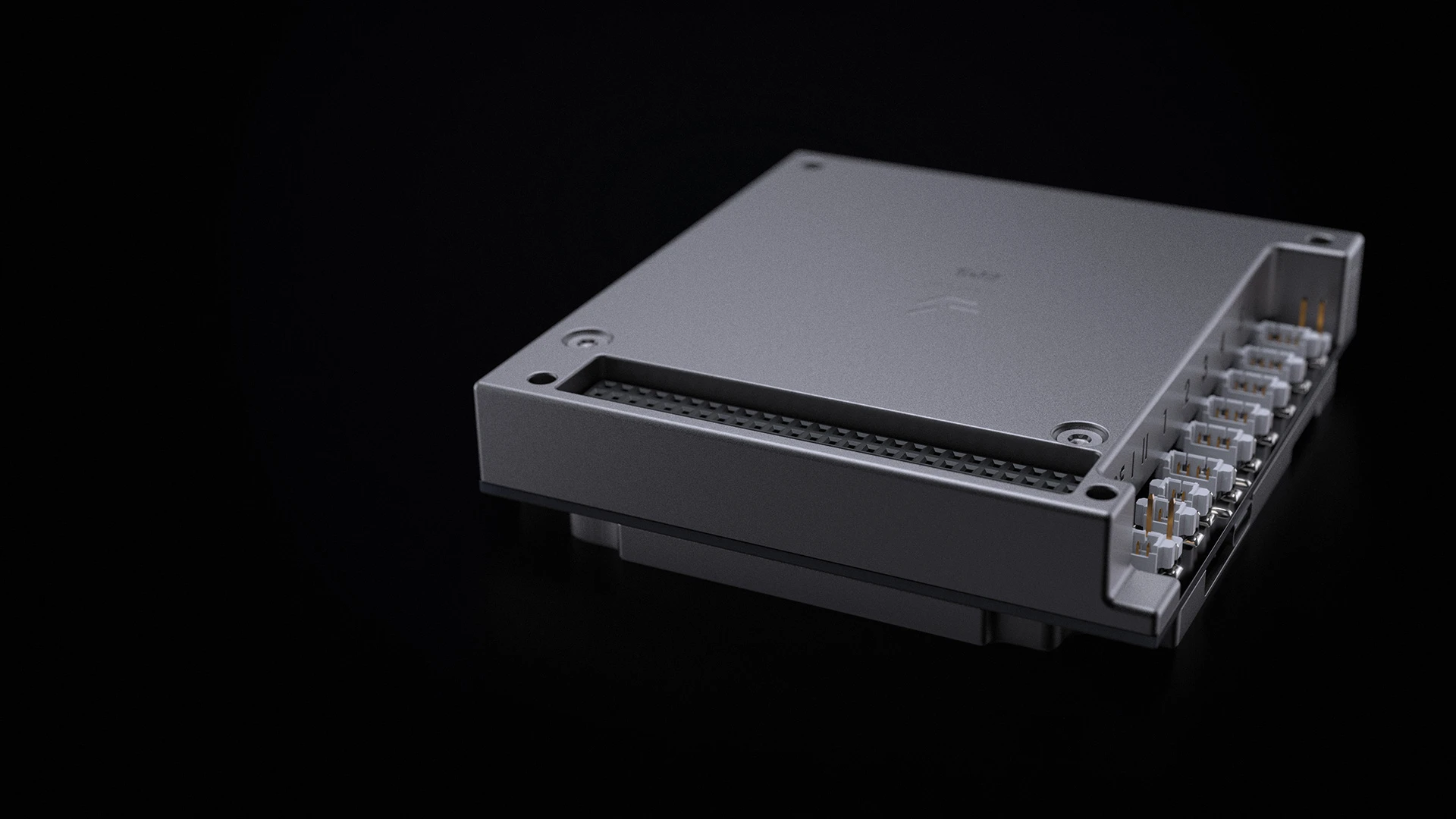

EPS I web render 3

Passive & active thermal management for optimal control of battery charging

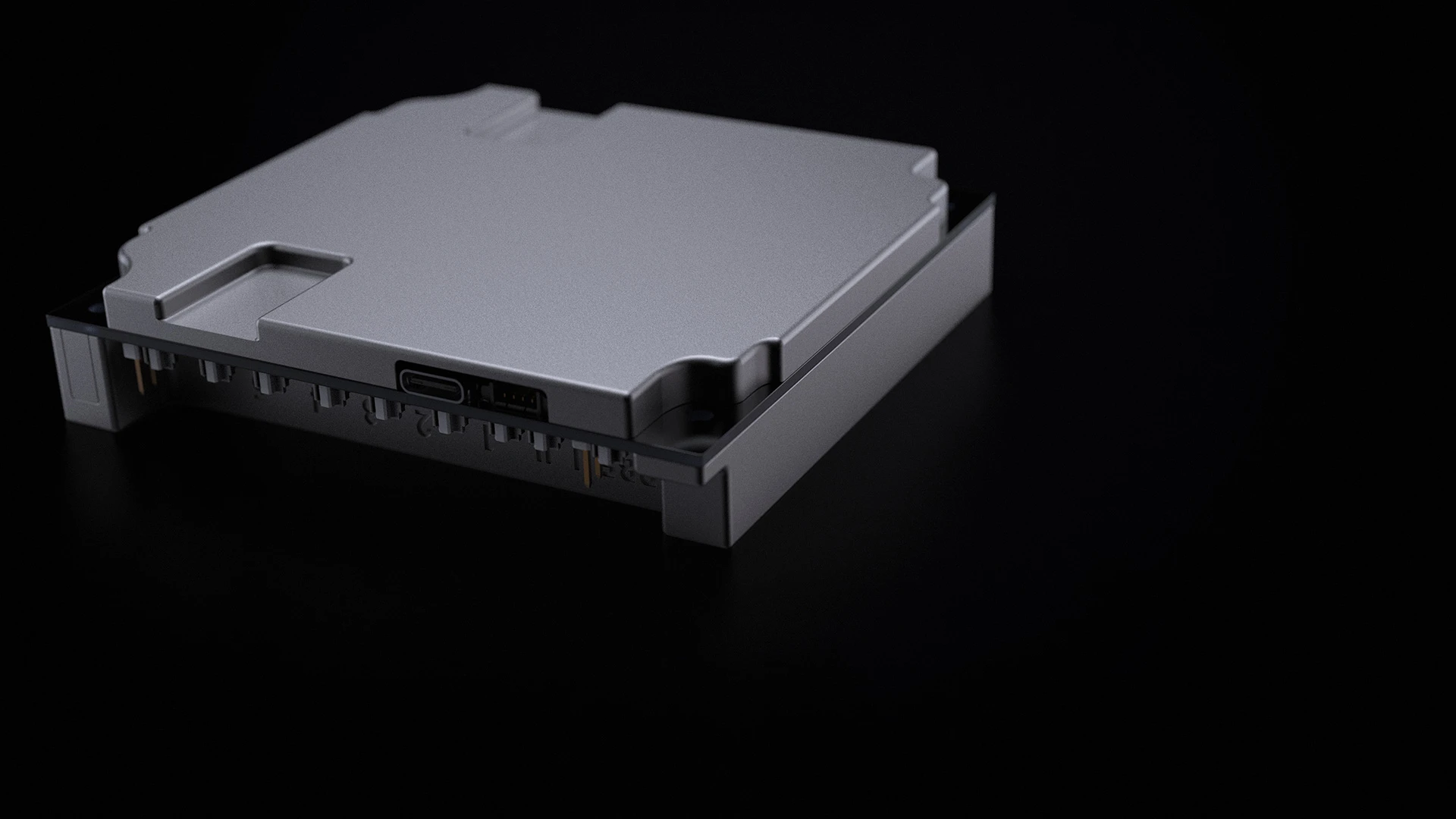

EPS I web render 1

Over forty years of flight heritage
