FRAME S

Download
Cad file & datasheet
START YOUR MISSION

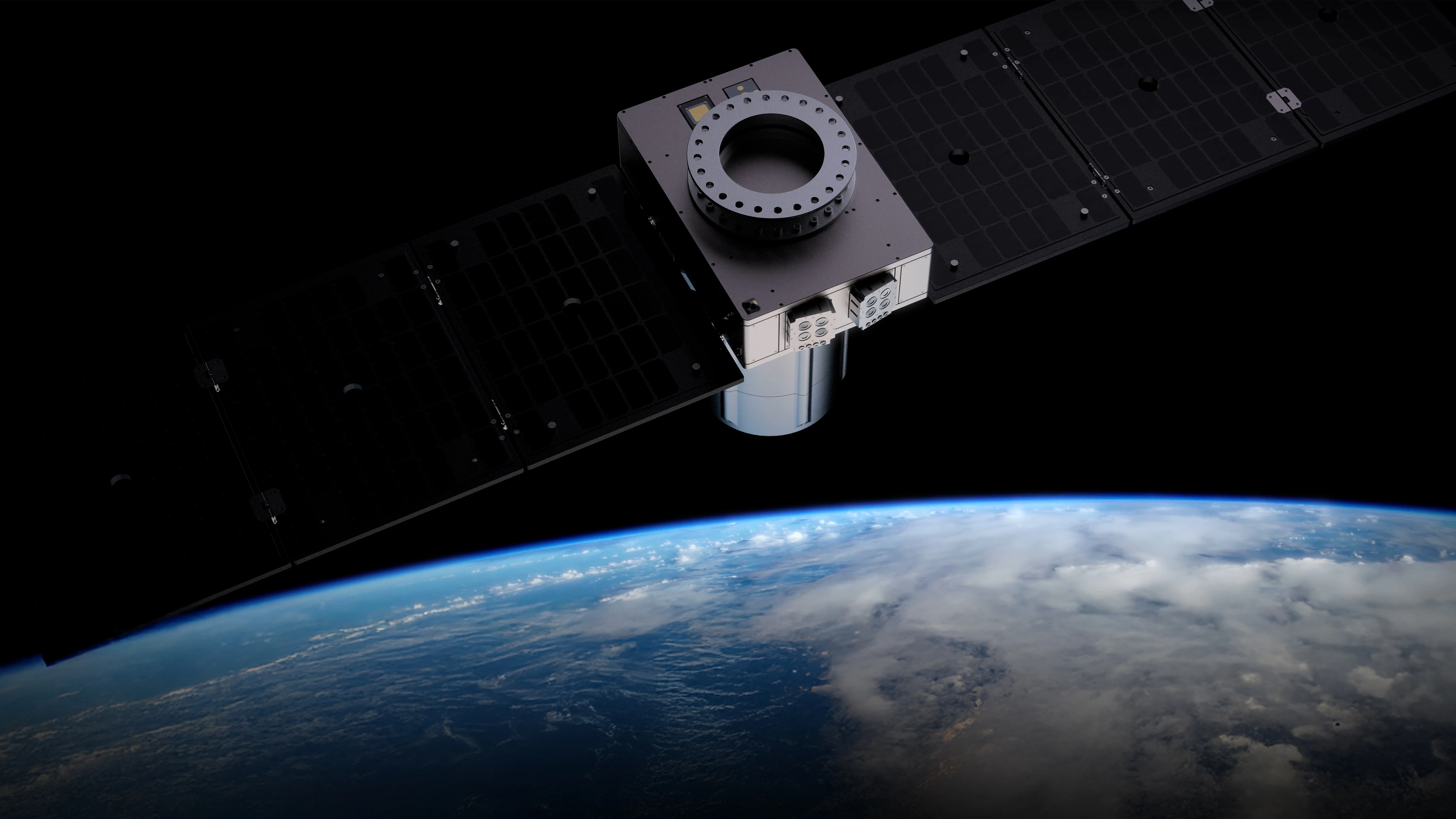

FRAME S

ESPA-class satellite · 200 kg total​ mass
Cad file & datasheet
START YOUR MISSION
70+ KG
AVAILABLE PAYLOAD MASS
3.4 KW
MAX CONTINUOUS POWER
2 GBPS
GROSS DATARATE
Applications

Built for advanced payloads

SAR
Synthetic Aperture Radar
Thermal
Broadband & Multispectral Imager
VNIR
Multispectral & Hyperspectral Imager
SIGINT
Signals Intelligence
AIS & ADS-B
Maritime & Aviation Domain Awareness
  • SAR
    Synthetic Aperture Radar
  • Thermal
    Broadband & Multispectral Imager
  • VNIR
    Multispectral & Hyperspectral Imager
  • SIGINT
    Signals Intelligence
  • AIS & ADS-B
    Maritime & Aviation Domain Awareness
Platform

Designed for serial production

0.3 m³ of payload volume
Standardized mechanical interfaces

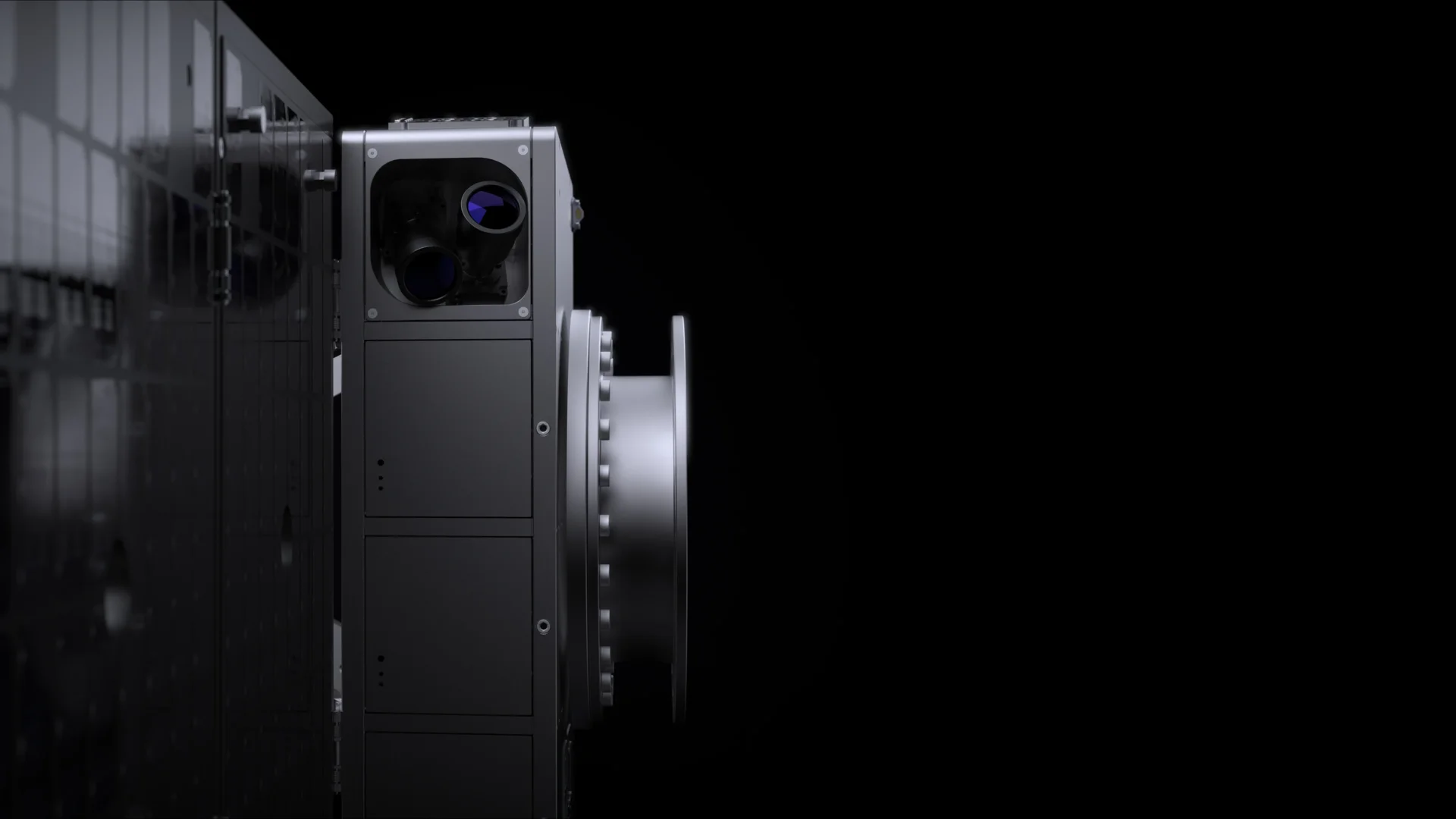

EnduroSat ESPA-Class Satellite Platform
Plug & play integration
Cableless, universal avionics
EnduroSat ESPA-Class Satellite Platform
Up to 400 m/s
Delta-V propulsion
Military-grade encryption
AES-256-GCM
EnduroSat ESPA-Class Satellite Platform
CAPACITY

Assembled in 8 hours. 700 per year

EnduroSat ESPA-Class Satellite Production Line
Built on a line that already delivers
100
Satellites deployed in orbit
200
Satellites delivered to customers
5000
Subsystems in orbit

Software-flexible

Any advanced payload.
No extra engineering
EnduroSat ESPA-Class Satellite Manufacturing Line
Specifications

Your satellite bus at a glance

PAYLOAD & MECHANICAL
Available payload mass
70+ kg
Available payload volume envelope
up to 500 x 1000 x 830 mm
Chassis size
15-inch ESPA class
Power & Performance
Peak solar input power
600 W
Orbit-averaged power generation
140-385 W
Max power to payload
3.4 kW
Available power buses
12V, 28V, 30-50V unreg.
Additional power buses (PPDU)
3.3V, 5V, 12V, up to 30V upon request
Pointing accuracy/ knowledge
0.04° / 0.007°​
Design lifetime
7 years in LEO
PRICING

Cost goes down as you scale

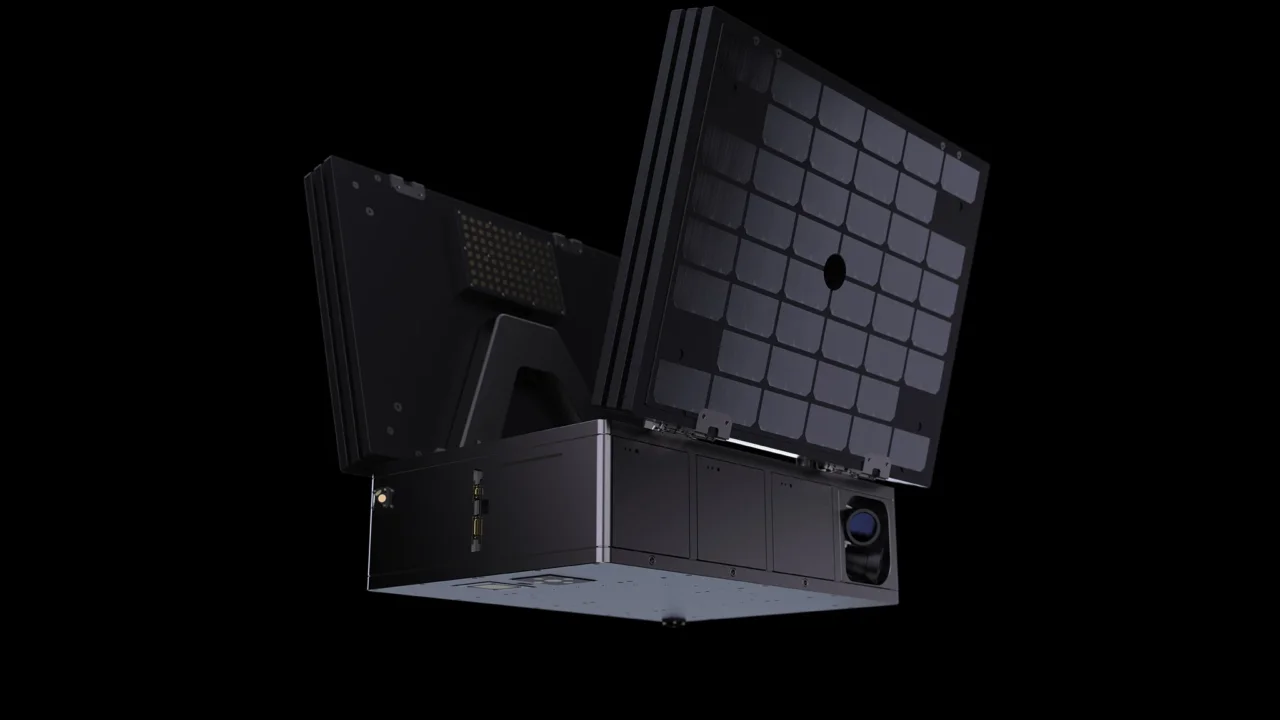

EnduroSat ESPA-Class Satellite Platform "FRAME S" front view with folded solar panels
Your fleet
1 1000+
BUS UNIT COST
10
Satellites
Design your mission
  • Software Development Kit (SDK)
  • SpaceDev 1-year subscription
  • 20h engineering support
  • Delivery cost
  • Handling & administration costs
  • Design review & consulting
Available payload mass
70 kg
300 kg
0.5–3T
Max continuous power
3.4 kW
7 kW
10 kW
Gross datarate
2 Gbps
4 Gbps
4 Gbps
Delta-V capacity
170–400 m/sec
400–1000 m/sec
200–500 m/sec
Bus mass
95–110 kg
200–250 kg
500 kg
QUALITY MATTERS

Full environmental and flight qualification

EnduroSat ESPA-Class Satellite Platform "FRAME S" qualification model testing
AVAILABLE WITH SPACE SERVICE

Risk and complexity eliminated

From idea to orbit in just 6 months
