Satellite assembly made easy

Rotary JIG

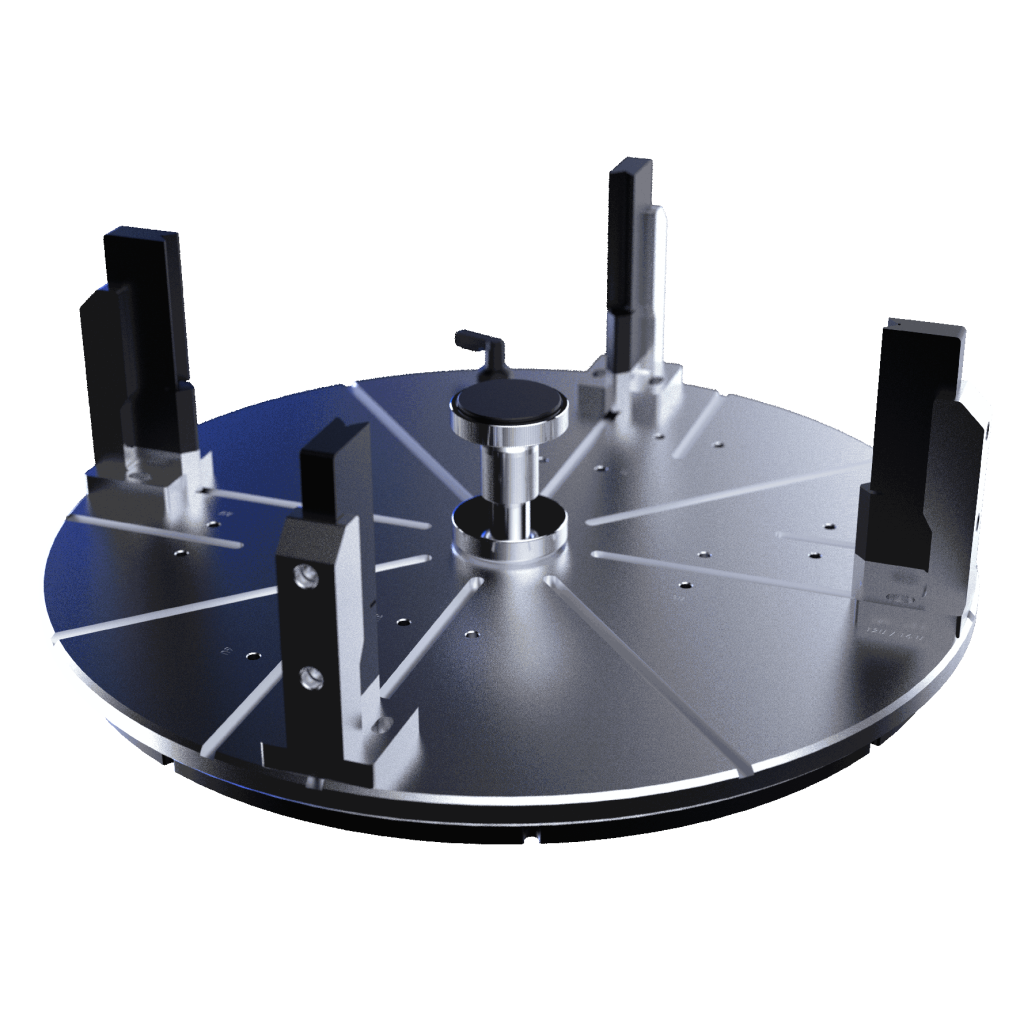

Simple and versatile mechanical support equipment

cubesat-assembly-rotary-jig

Simple and versatile mechanical support equipment

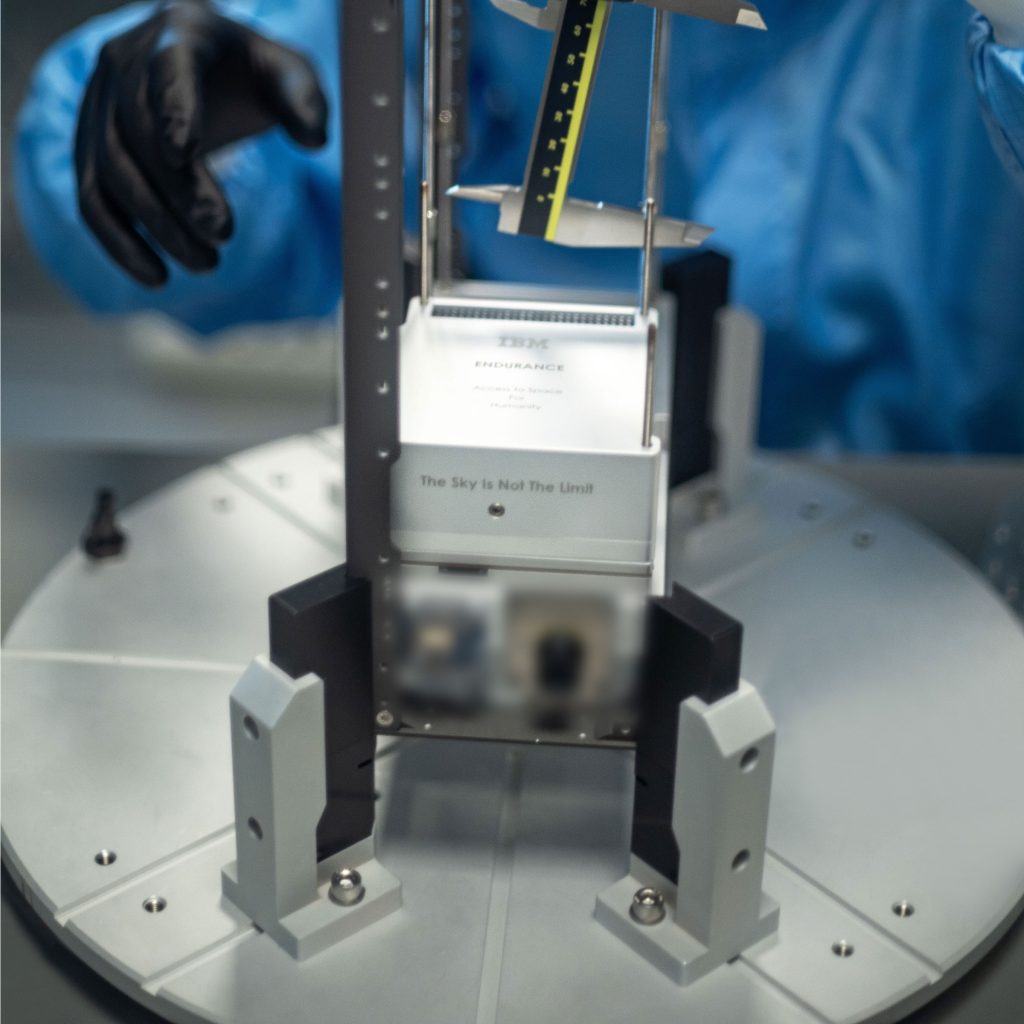

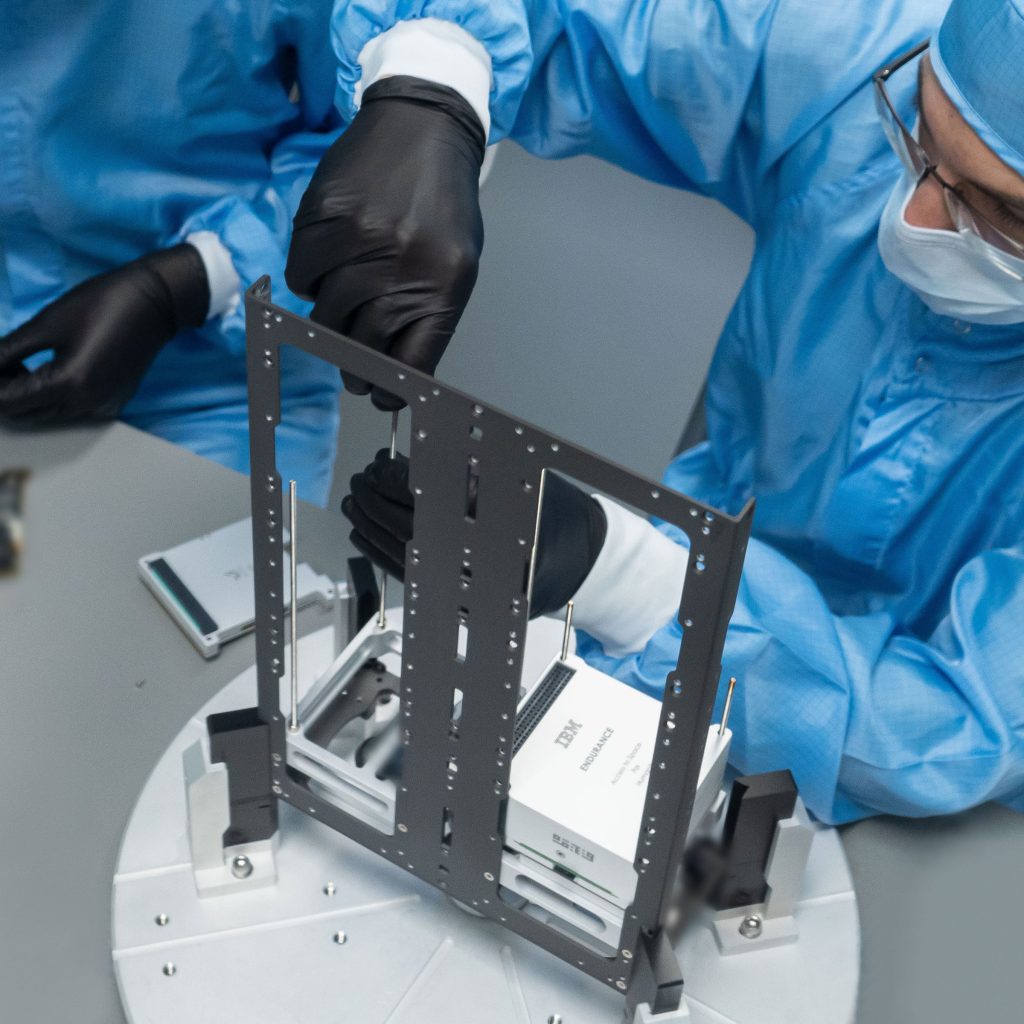

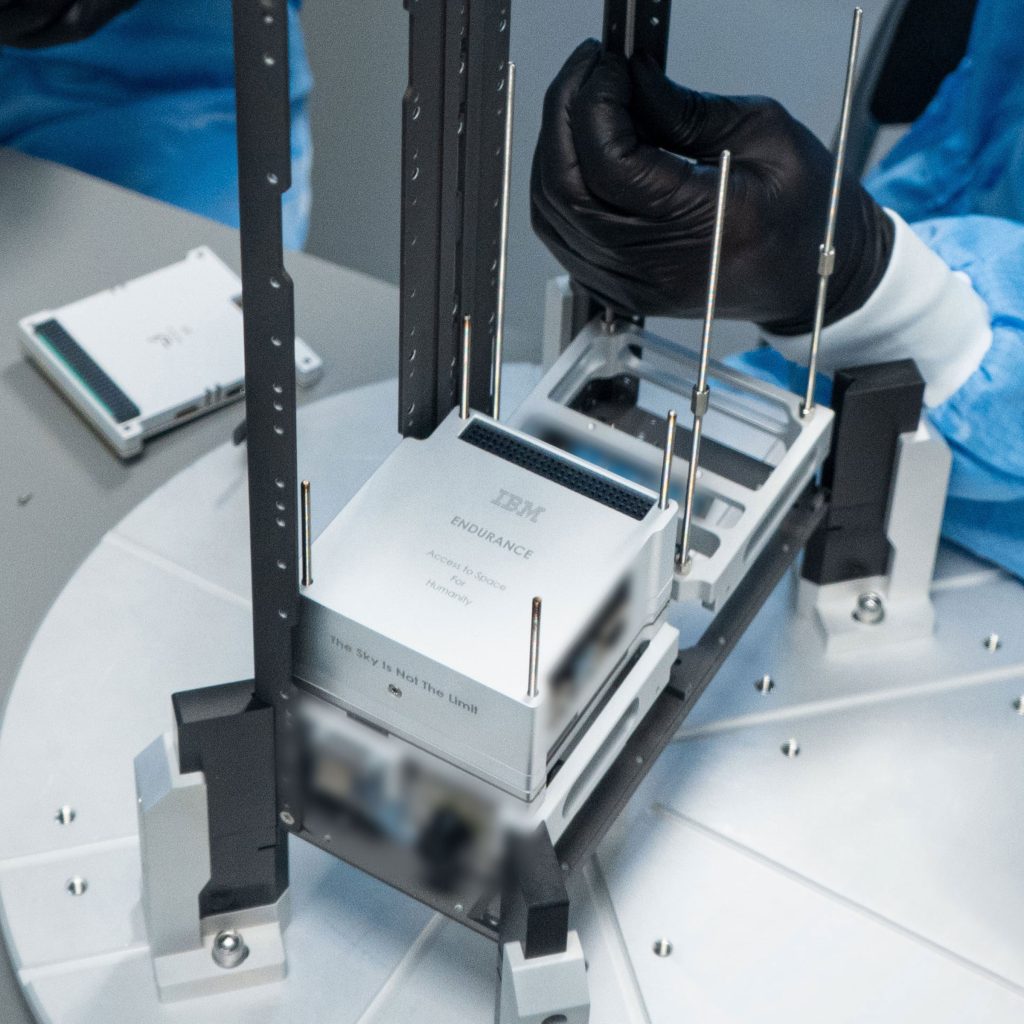

3-16UCubeSat assembly
360 degfull access
LabEquipment

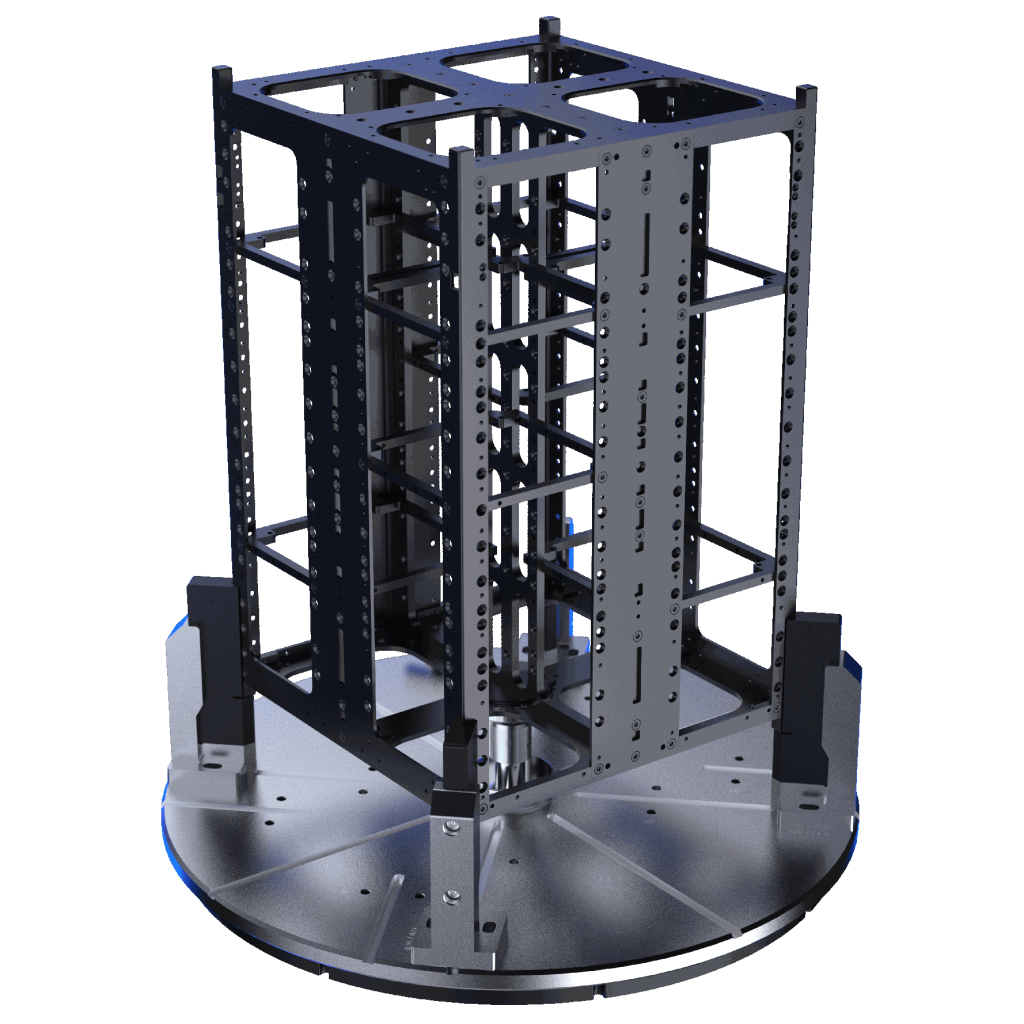

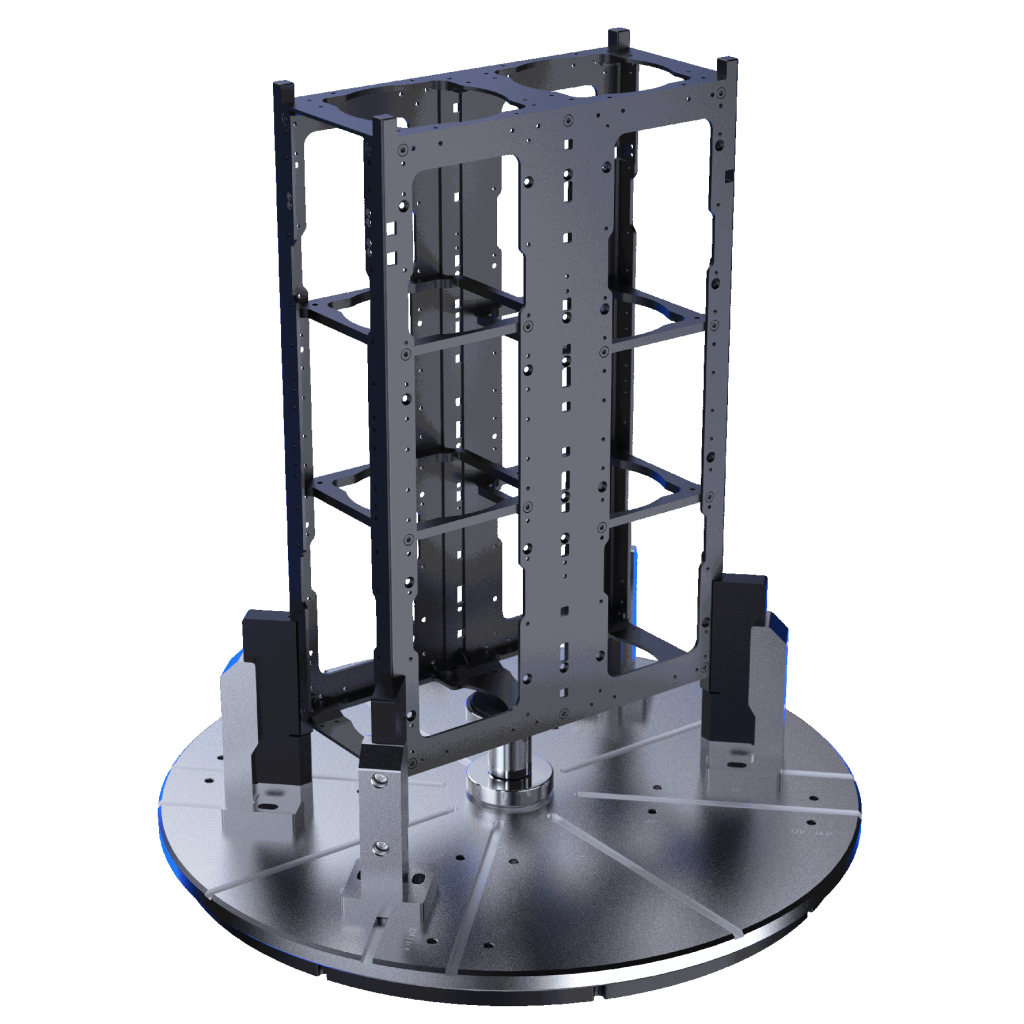

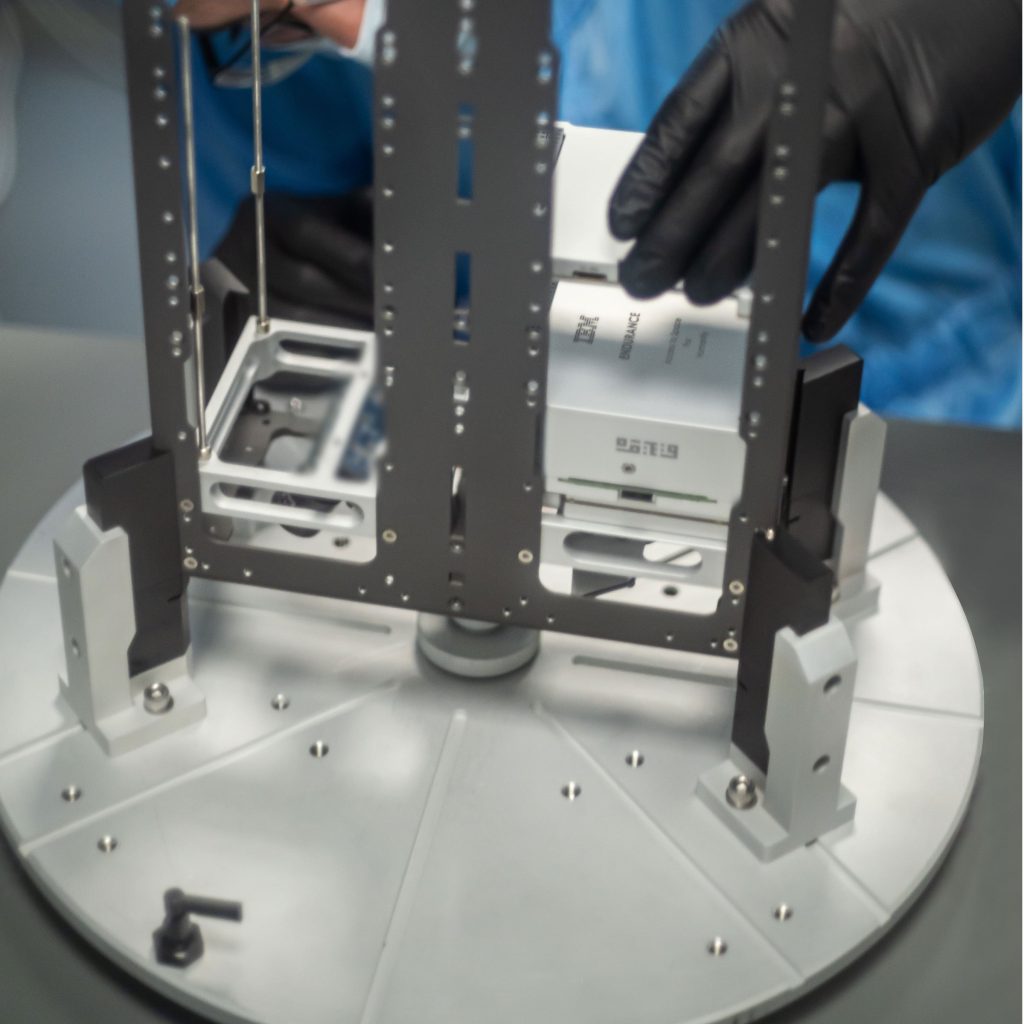

Versatile mounting for 3U, 6U, 12U or 16U assembly

cubesat-assembly-rotary-jig

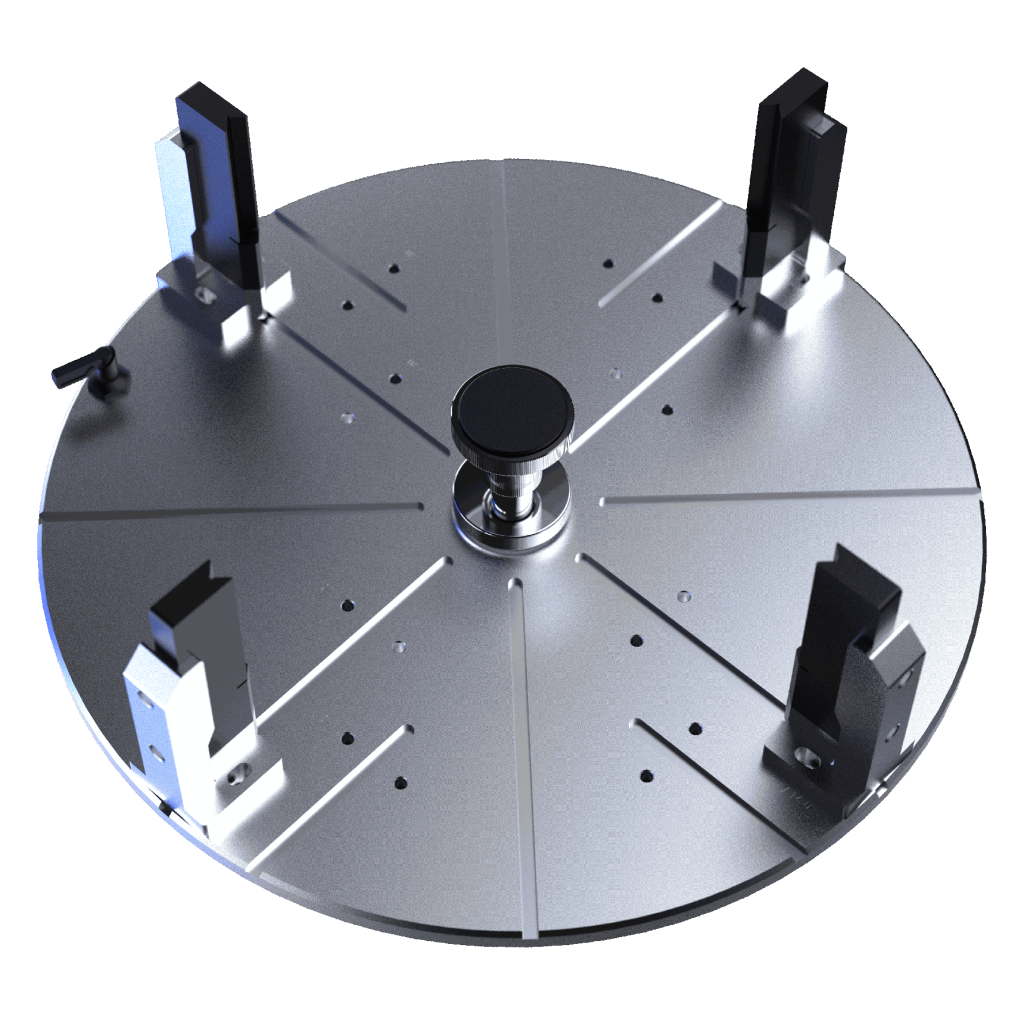

360 degrees rotation with different locking positions for complete access

cubesat-assembly-rotary-jig

Applications

Lab Equipment iconLab Equipment
3-16U CubeSat assembly icon3-16U CubeSat Assembly
CubeSat Transport iconCubeSat Transport

Anti-electrostatic cover

cubesat-assembly-rotary-jig

Features

Diameter 400 mm
Material EN AW-6082-DIN 3.2315 and POM-ELS

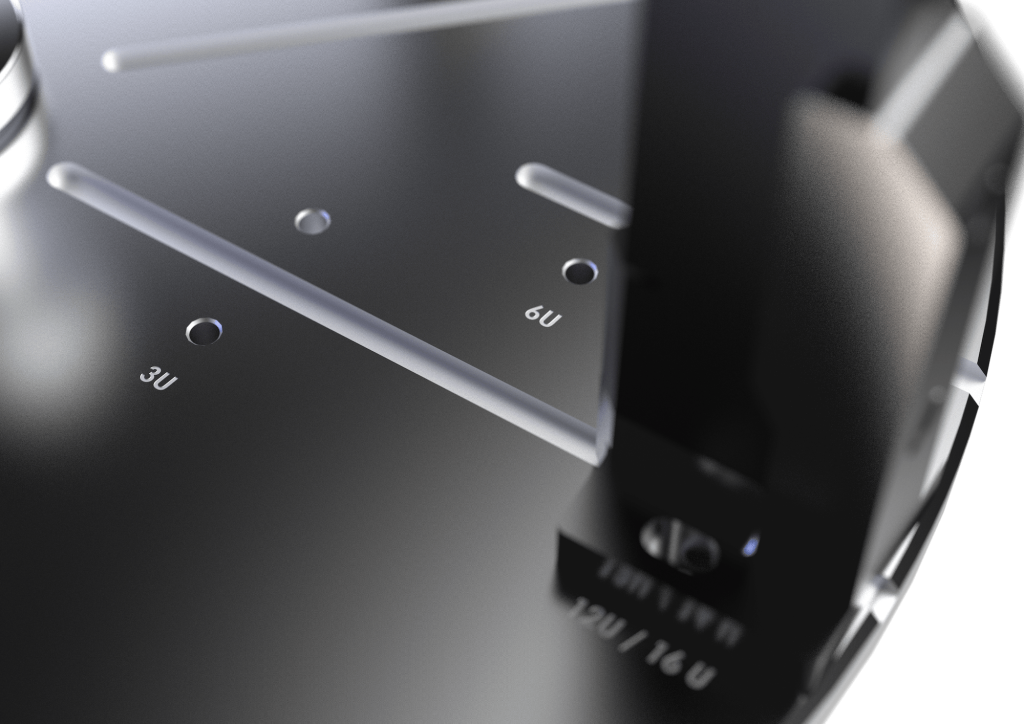

Configurations 3 configurations offering an assembly base for 3U to 16U CubeSats
Mass 8.5 kg

cubesat-assembly-rotary-jig

Included

user manual book icon Complete User Manual
customer support icon 1 hour engineering support
delivery cost icon Delivery cost
handling and administration costs icon Handling and administration costs
