DESKSAT

The FlatSat redefined
Cad file & datasheet
buy
buy
Cad file & datasheet
buy
buy
FLEXIBLE
TAILORED FOR YOUR MISSION
SCALABLE
RACK MOUNT COMPATIBILITY
ACCESSIBLE
FRONT MOUNT I/O PANEL

Configurable flat-sat for streamlined payload integration and development

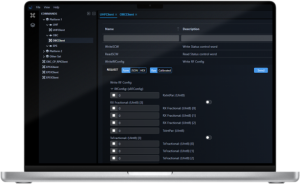

Laptop Mockup for Video
Develop, Configure & Test With Ease

SpaceDev

DISCOVER MORE
Laptop Mockup for Video

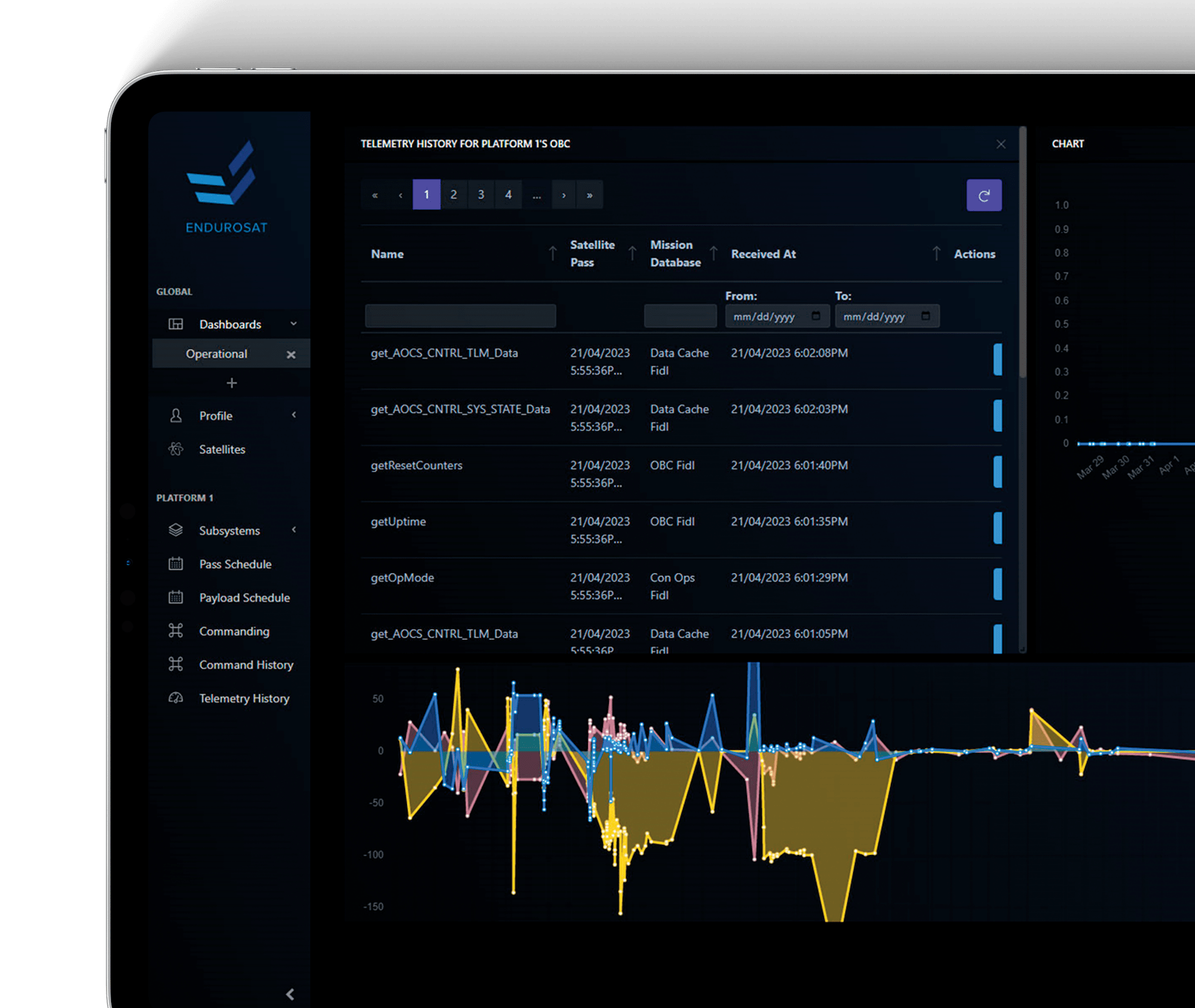

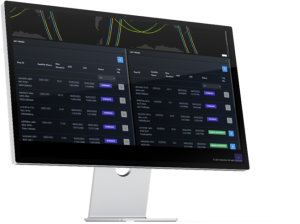

IN-ORBIT OPERATIONS SUITE

SpaceOps

DISCOVER MORE
FEATURES
Dimensions
449x386x135 mm
Material
Aluminum, Stainless Steel
Bus Features
OBC, UHF II Transceiver, S-Band TMTC Transceiver, X-band Transmitter, ADCS Computer
Power
Integrated power supply and external 100W Power Brick
Debugging
USB-C ports for monitoring of primary and secondary communication lines
Power Input/Output 3.3V, 5V, 12V
1 x 12-pin Harwin G-125 Connector
Communication RS-485 And CAN
1 x 4-pin Harwin M-80 Connector
General Purpose I/O
3 x 20-pin Harwin G-125 Connector
Antenna
2 x SMA Connector
Direct Module Connection
1x PC-104 Connector
System Bus
4 x USB-C Connectors
Mass
11.3 kg

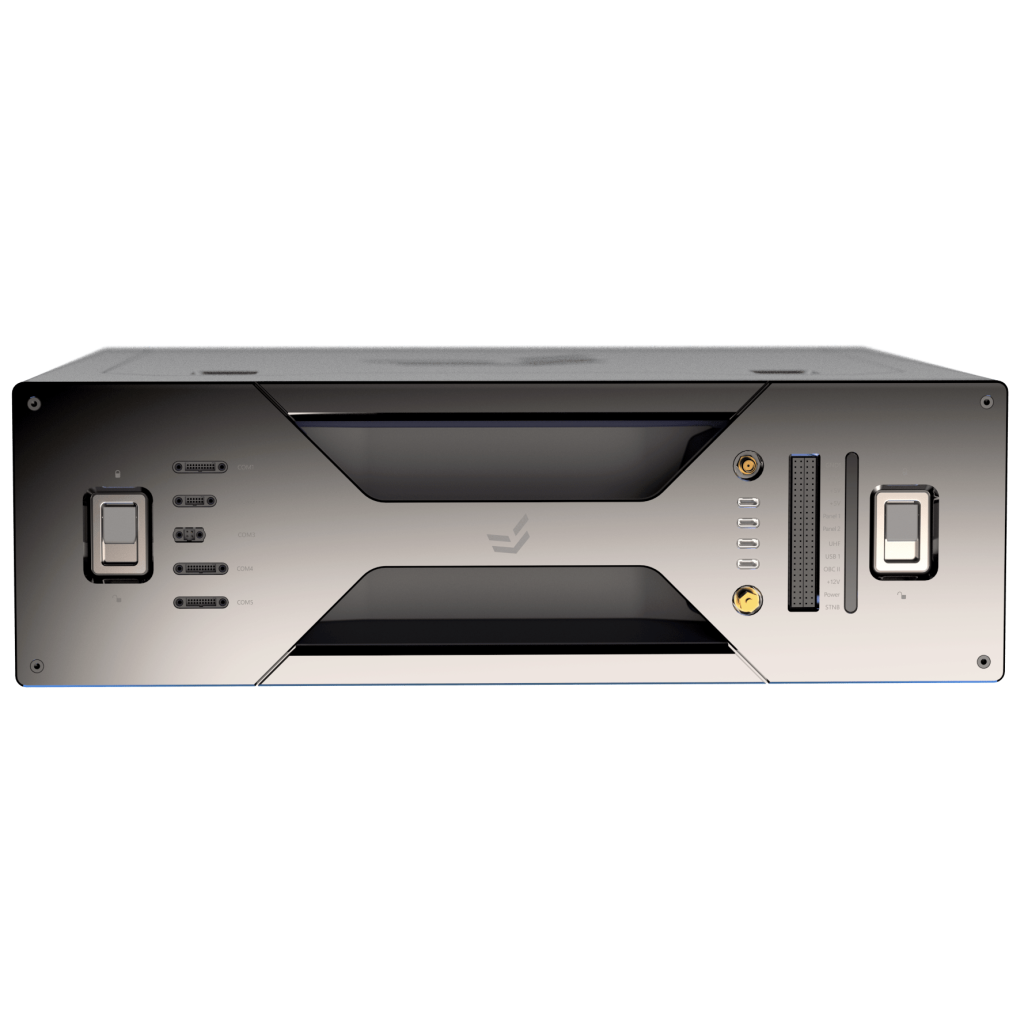

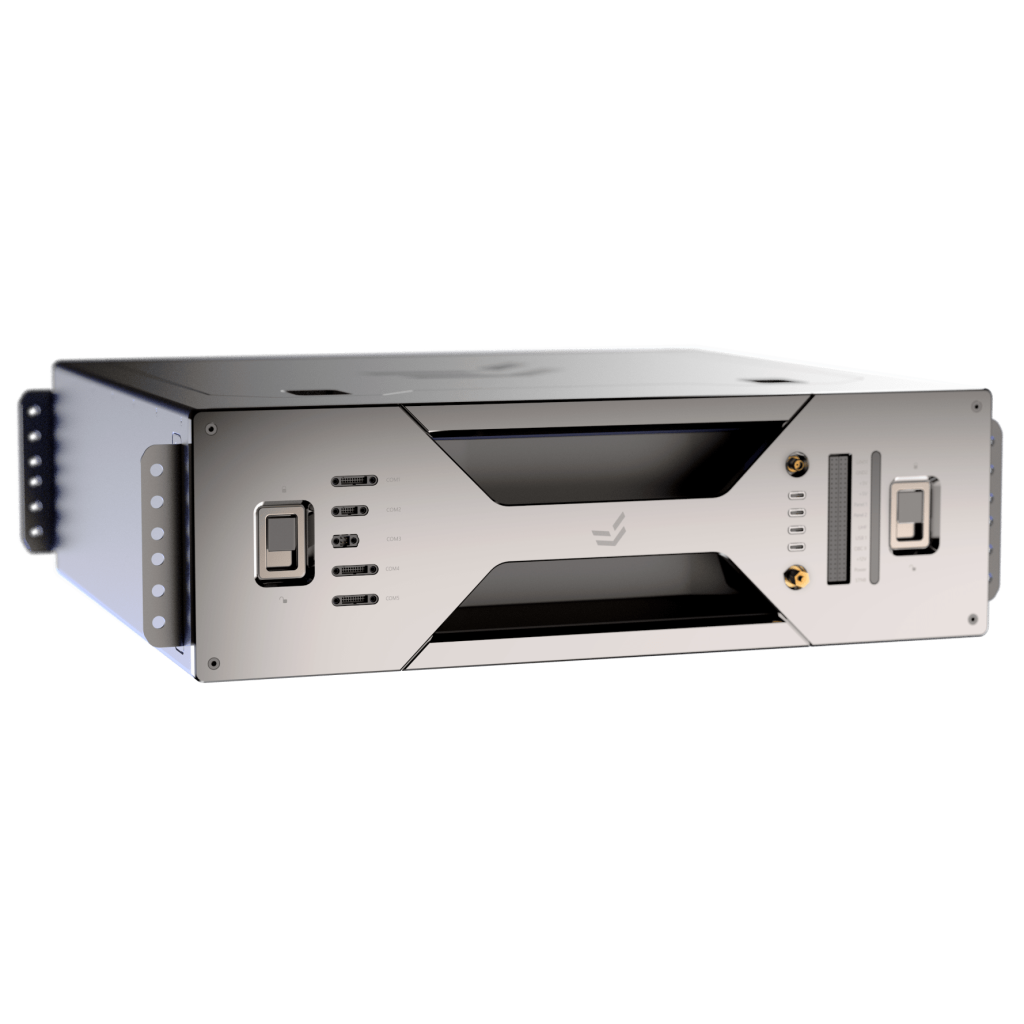

DeskSat web render 1 5

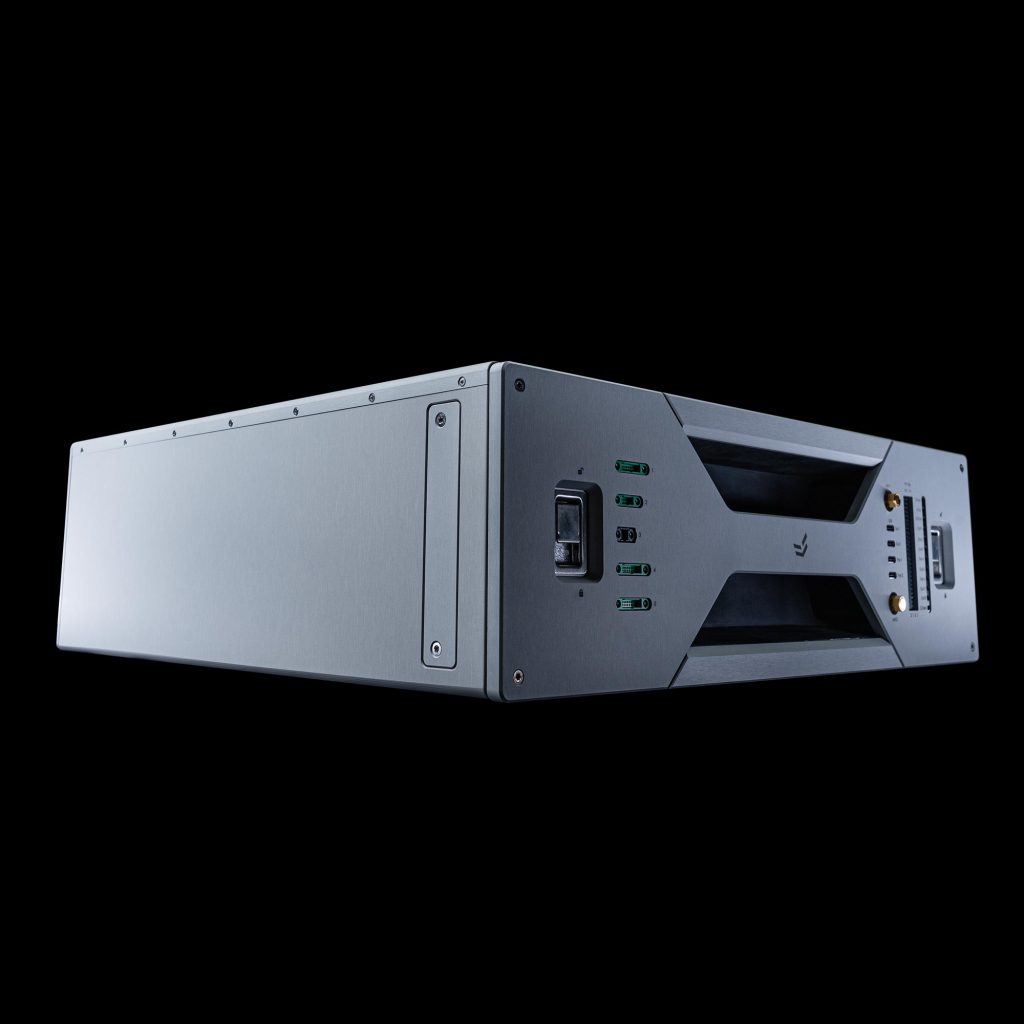

The FlatSat redefined

Included

Integration manual
Software Development Kit (SDK)
Complete set of bus cables
JTAG and debugging cables
10h engineering support
Delivery cost
Handling and administration costs
Design review and consulting
Configurable flat-sat for streamlined payload integration and development
DeskSat web 27
DeskSat web render 1 3

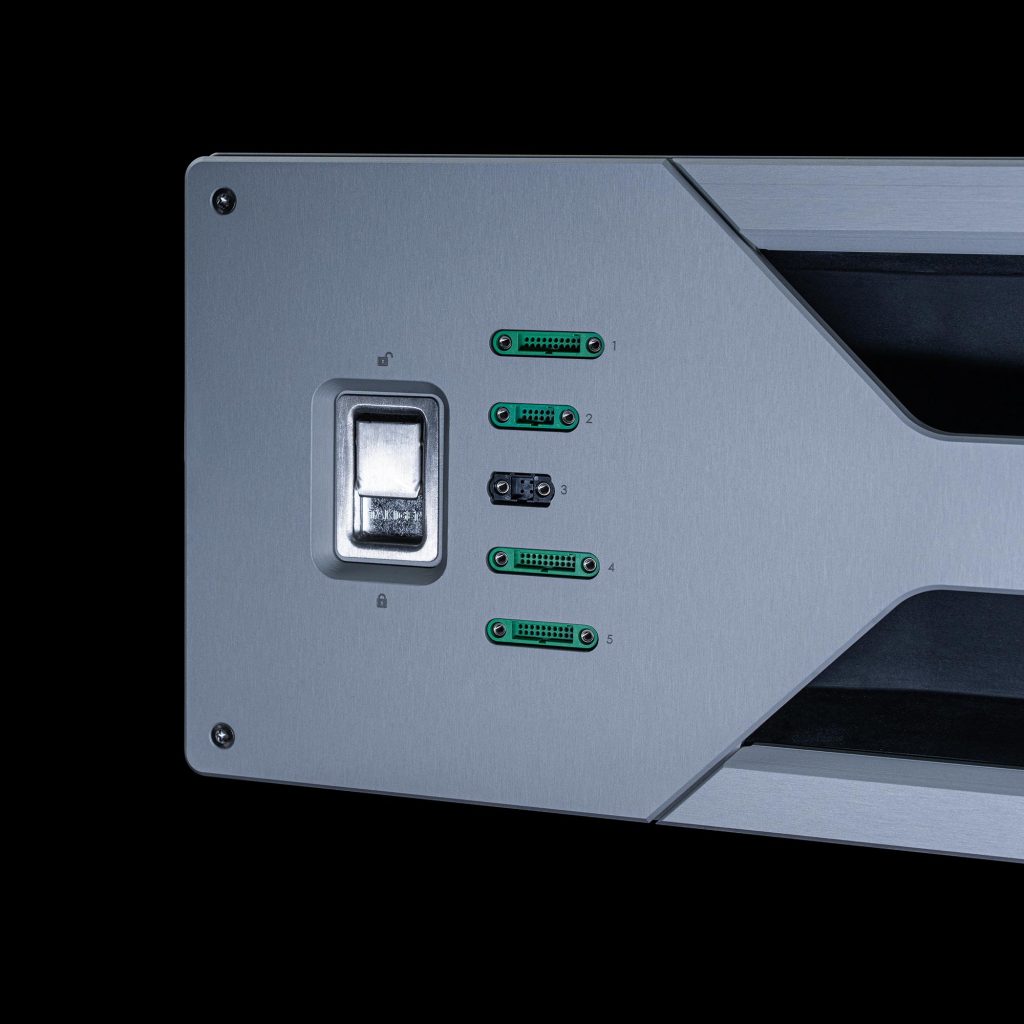

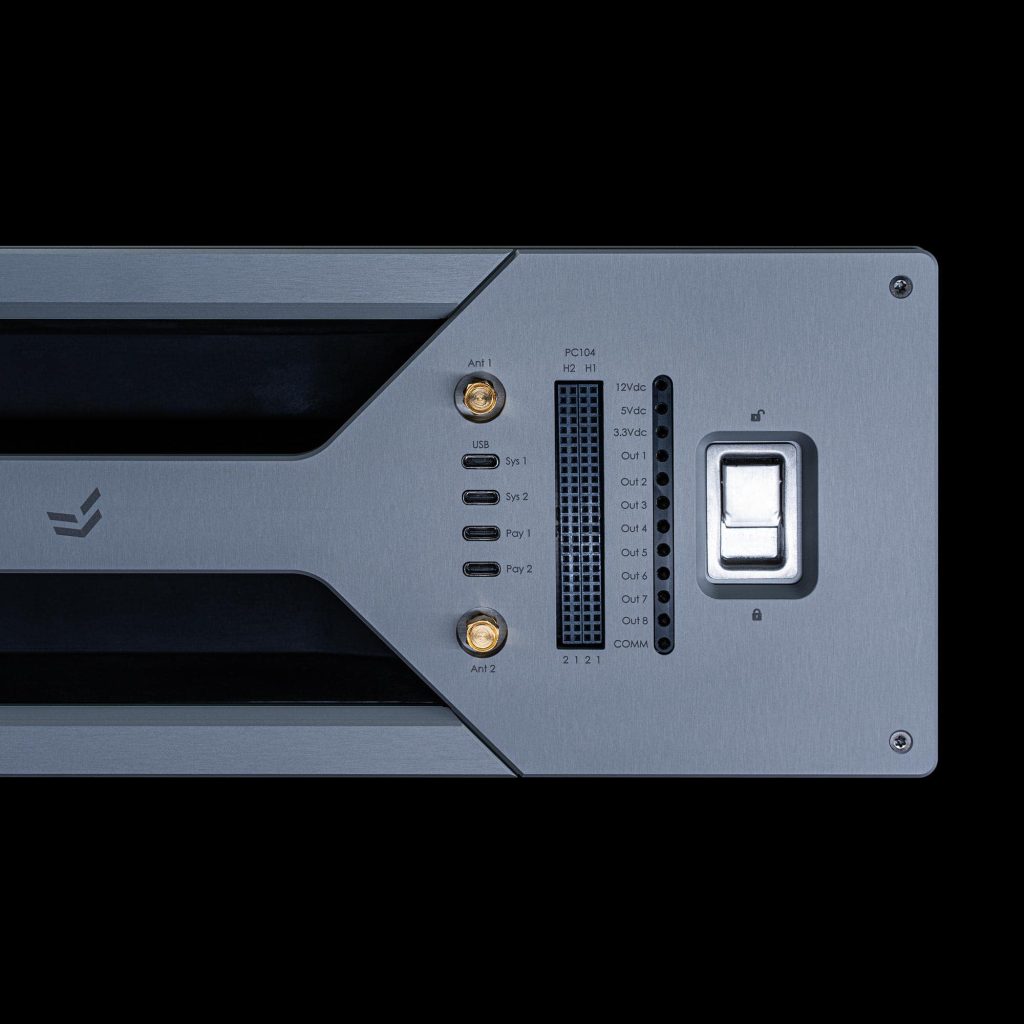

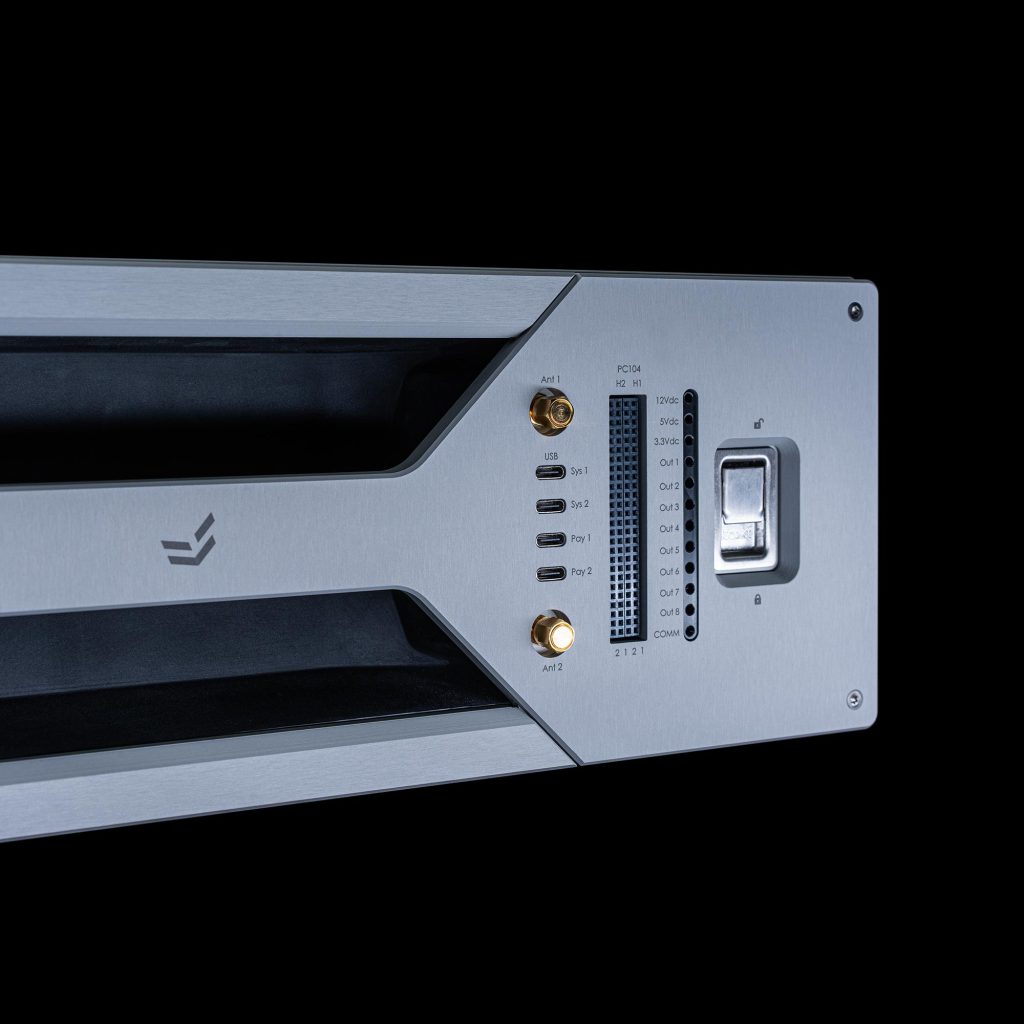

Front I/O with full system interface

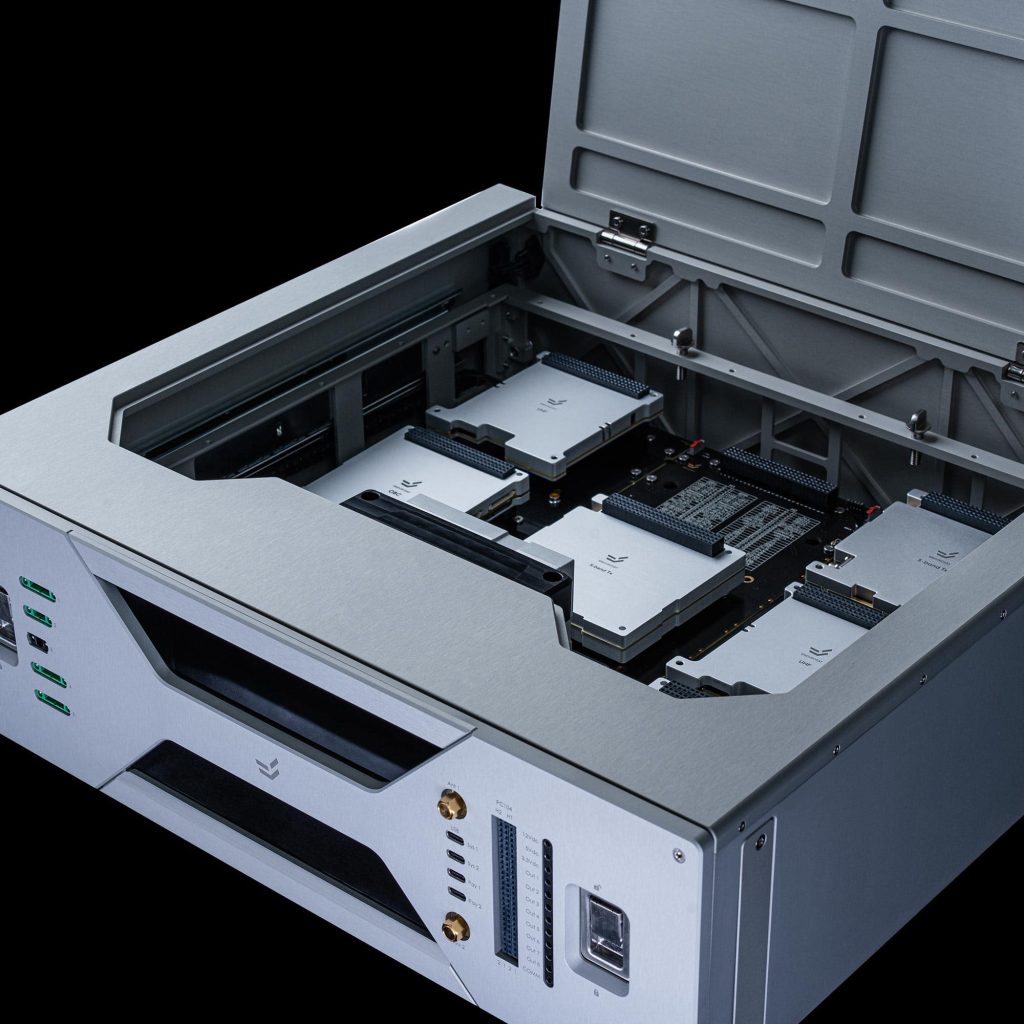

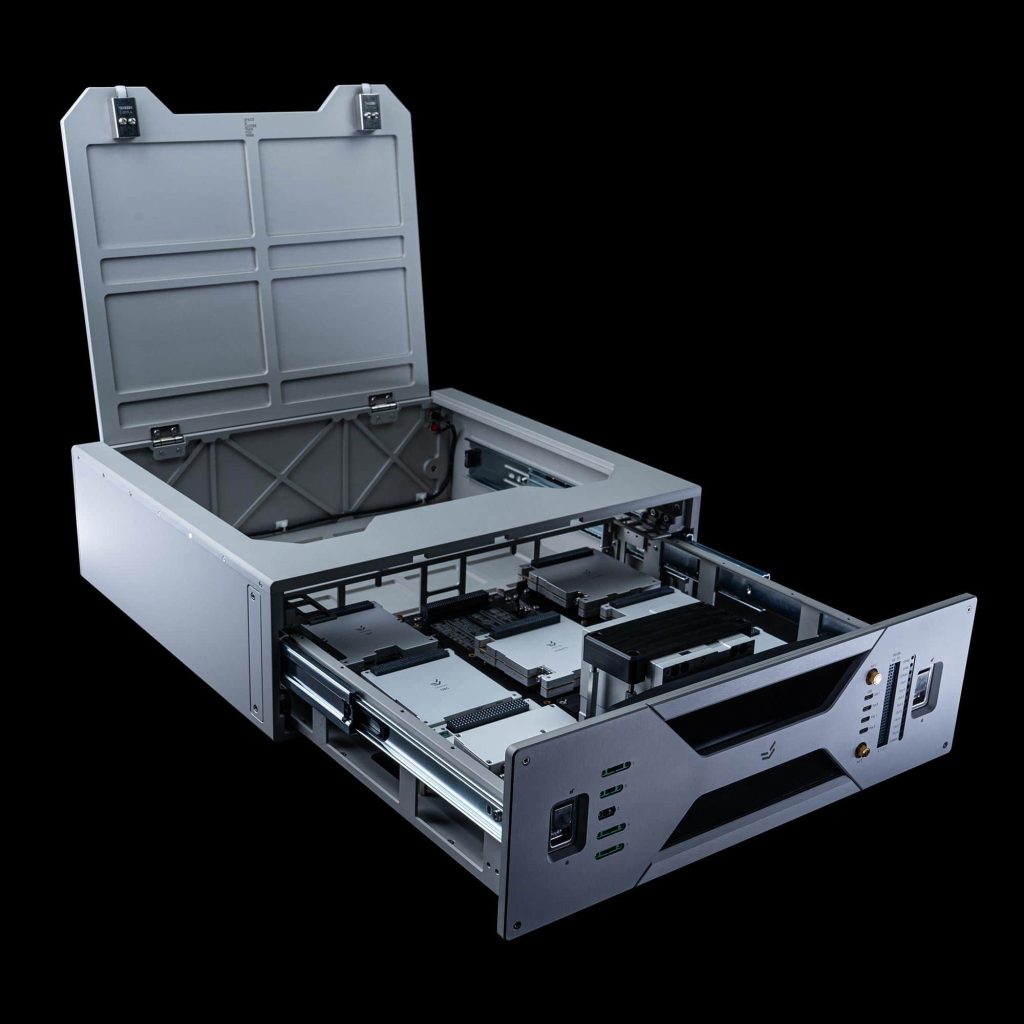

DeskSat web render 1 1

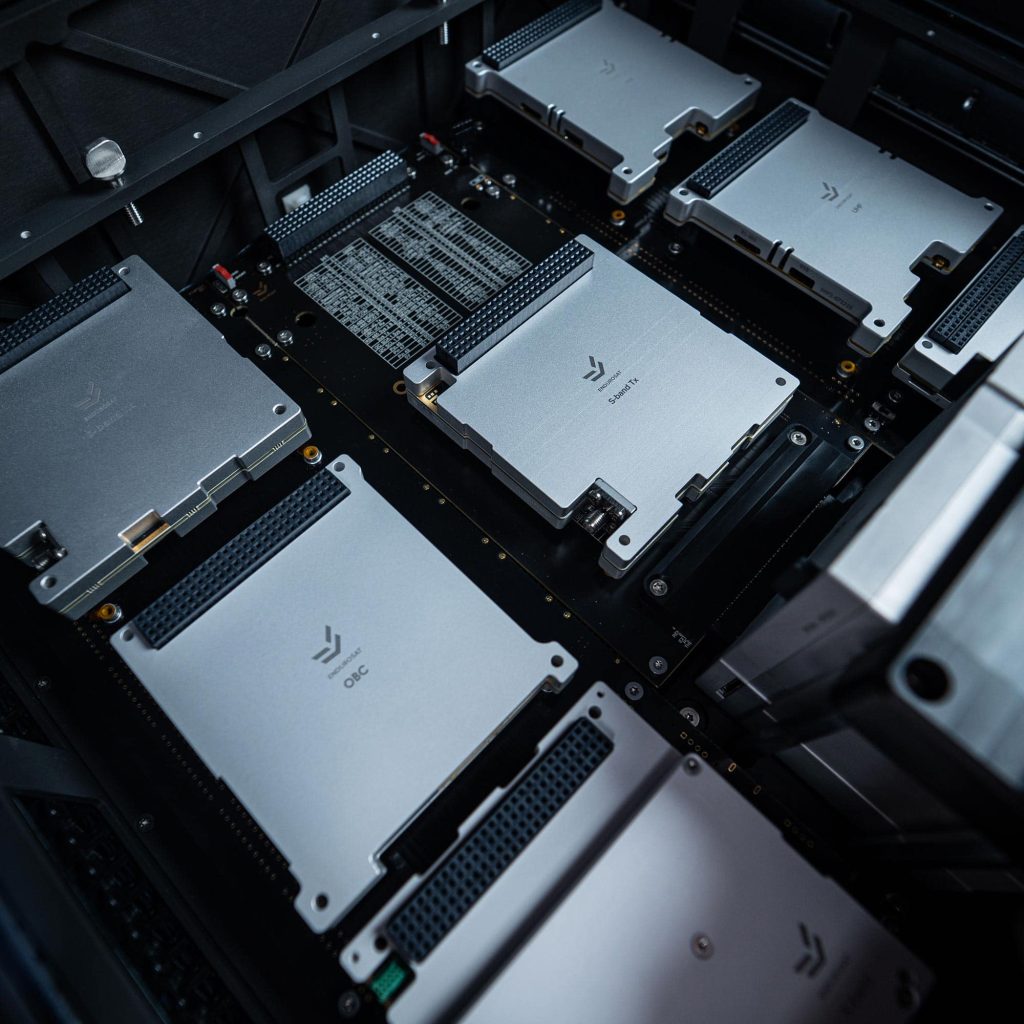

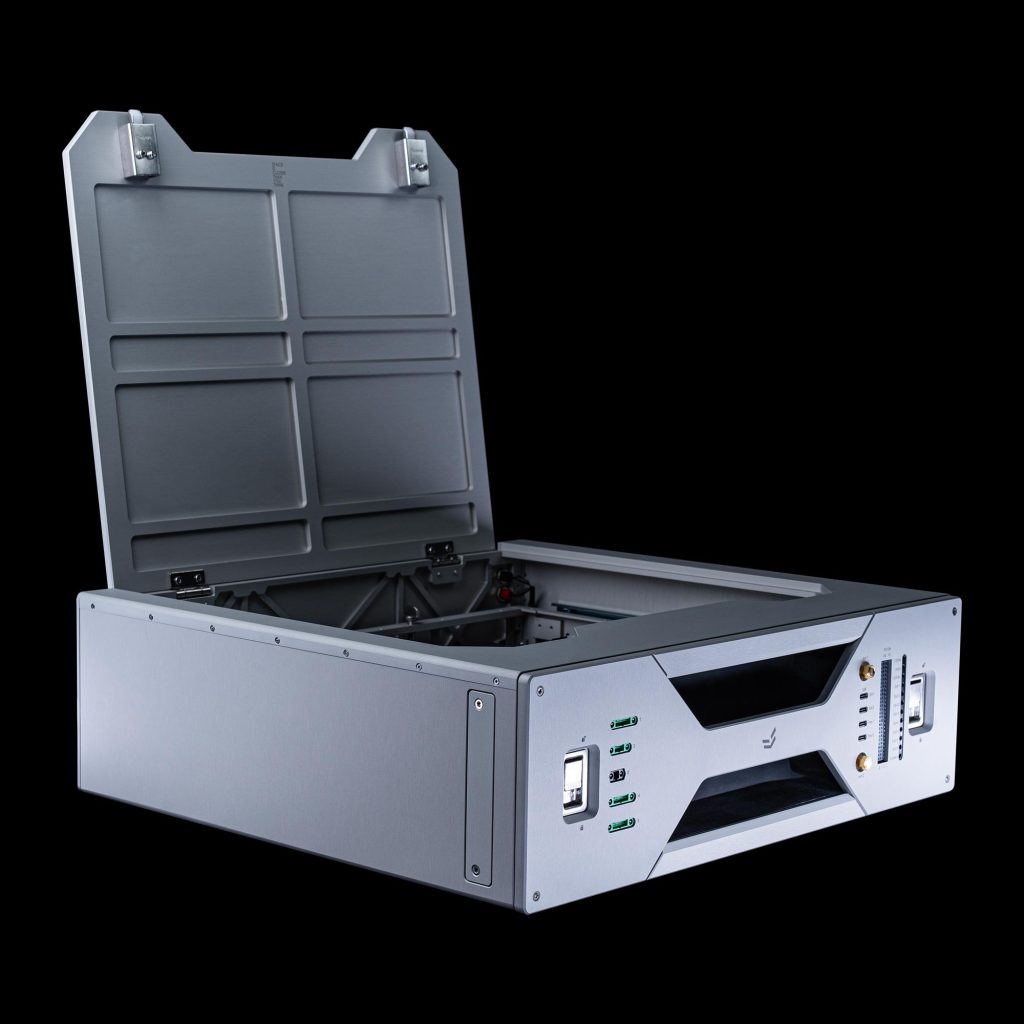

Easy Access to all DeskSat components

PRODUCT GALLERY
DeskSat web 18
DeskSat web 20
DeskSat web 10
DeskSat web 12
DeskSat web 31
DeskSat web 30
DeskSat web 29
DeskSat web 27
DeskSat web 26
DeskSat web 24
DeskSat web 19
DeskSat web 16
DeskSat web 11
DeskSat web 9
Rotaray JIG
Rotary JIG
Diameter
400 mm
Material
EN AW-6082-DIN 3.2315 and POM-ELS
Mass
8.5 kg
Discover
Assembly JIG
Assembly JIG
Dimensions
351.5x150x40 mm
Material
Aluminum 6061 and Polyacetal POM (black)
Mass
4010 g
Discover
6U test pod
6U Test Pod
Dimensions
144.3 x 269 x 431.7 mm
Material
Aluminum 6082
Mass
9.5 kg
Discover
2500
MODULES IN ORBIT
50
DELIVERED SATELLITES
200
TB DATA DOWNLINKED
All our products undergo Space Qualification, involving stringent testing under extreme conditions to ensure their robustness and high performance
