8U CUBESAT STRUCTURE

Simplicity and Precision
Cad file & datasheet
buy
buy
Cad file & datasheet
buy
buy
1.3 kg
LIGHTWEIGHT DESIGN
FINISH
HARD-ANODIZED SURFACE
1/2
KILL SWITCHES

Robust 8U structure

FEATURES
Dimensions
100 x 226.3 x 454 mm
Material
Aluminum 6082
Mass
1.3 kg (including fasteners, kill switches and 2 mounted rings)
Compliance
PC104 full compliance, CubeSat Standard
8U CubeSat Structure Web render 5
Simplicity And Precision

Included

Complete User Manual
1 hour engineering support
Delivery cost
Handling and administration costs

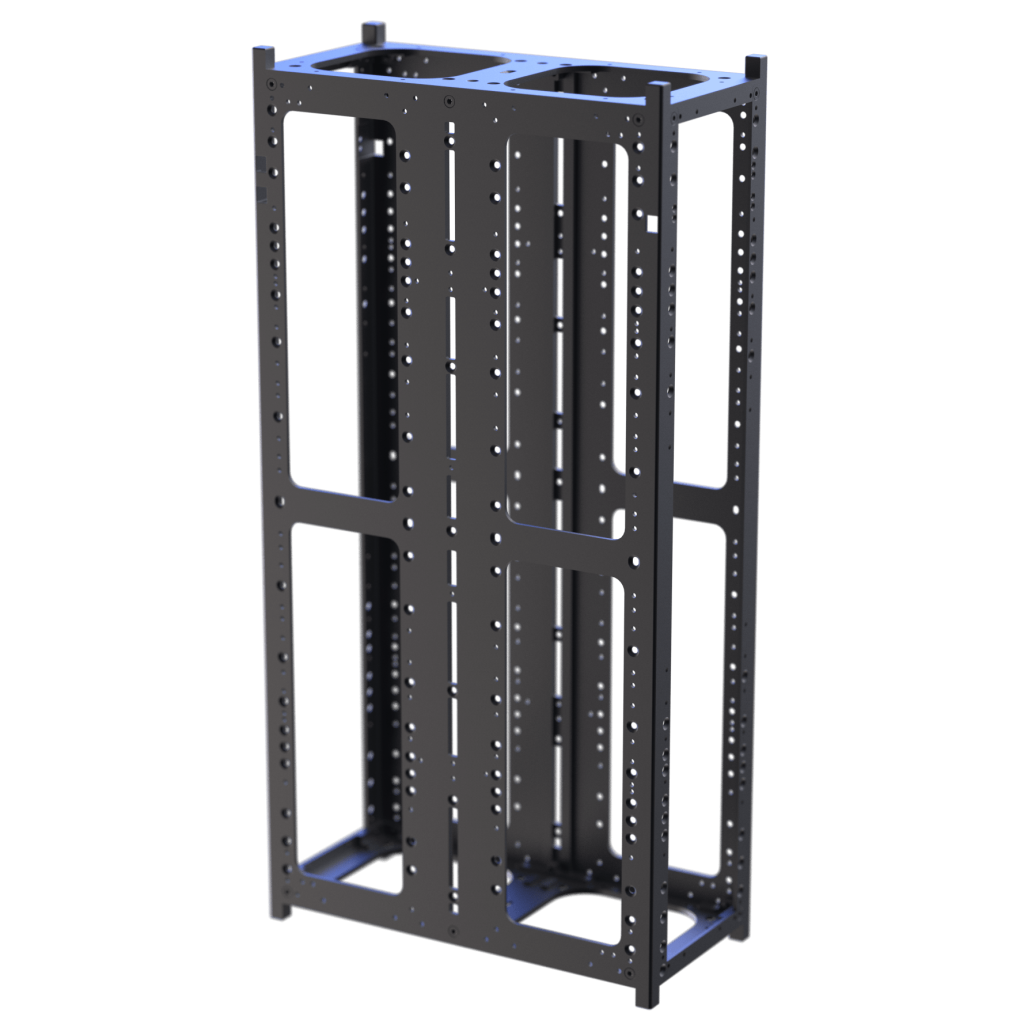

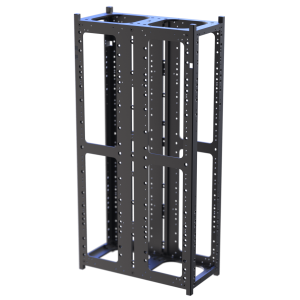

Robust 8U structure

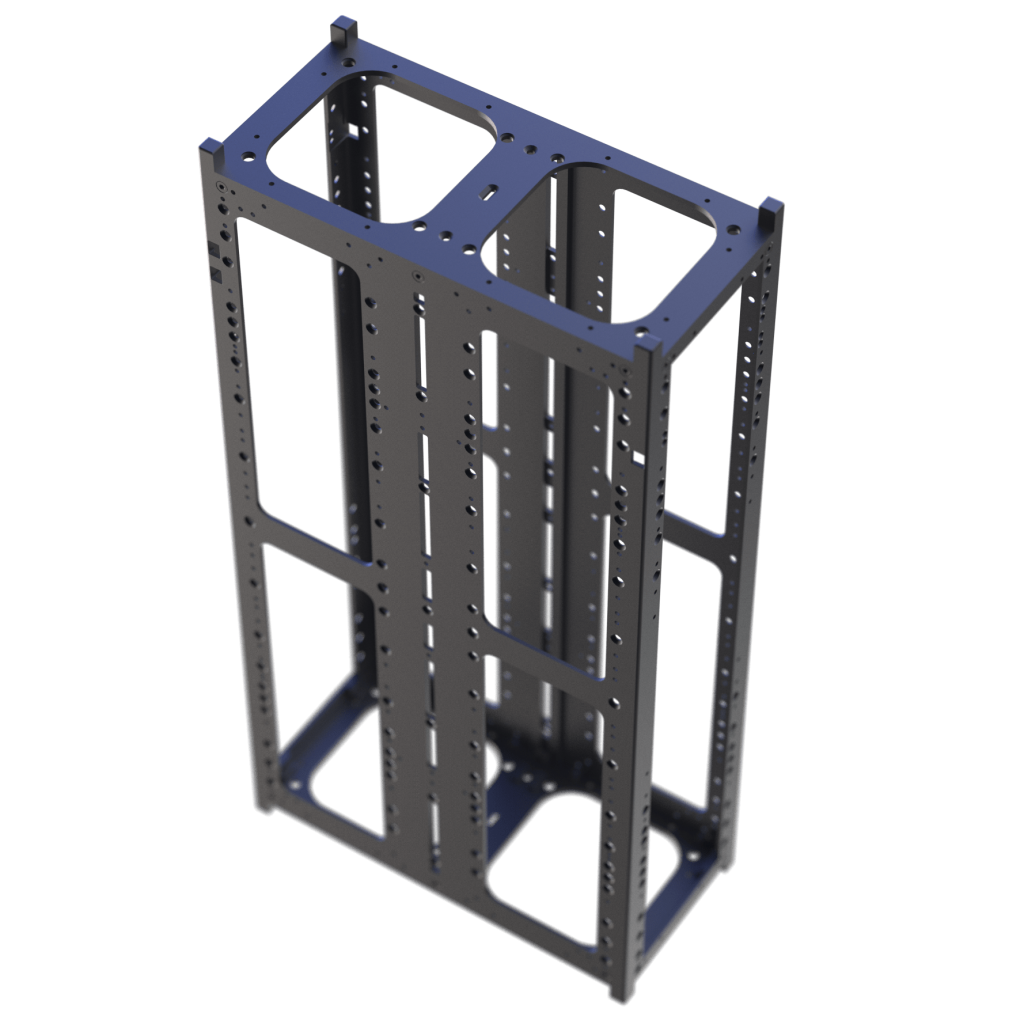

8U CubeSat Structure Web 5

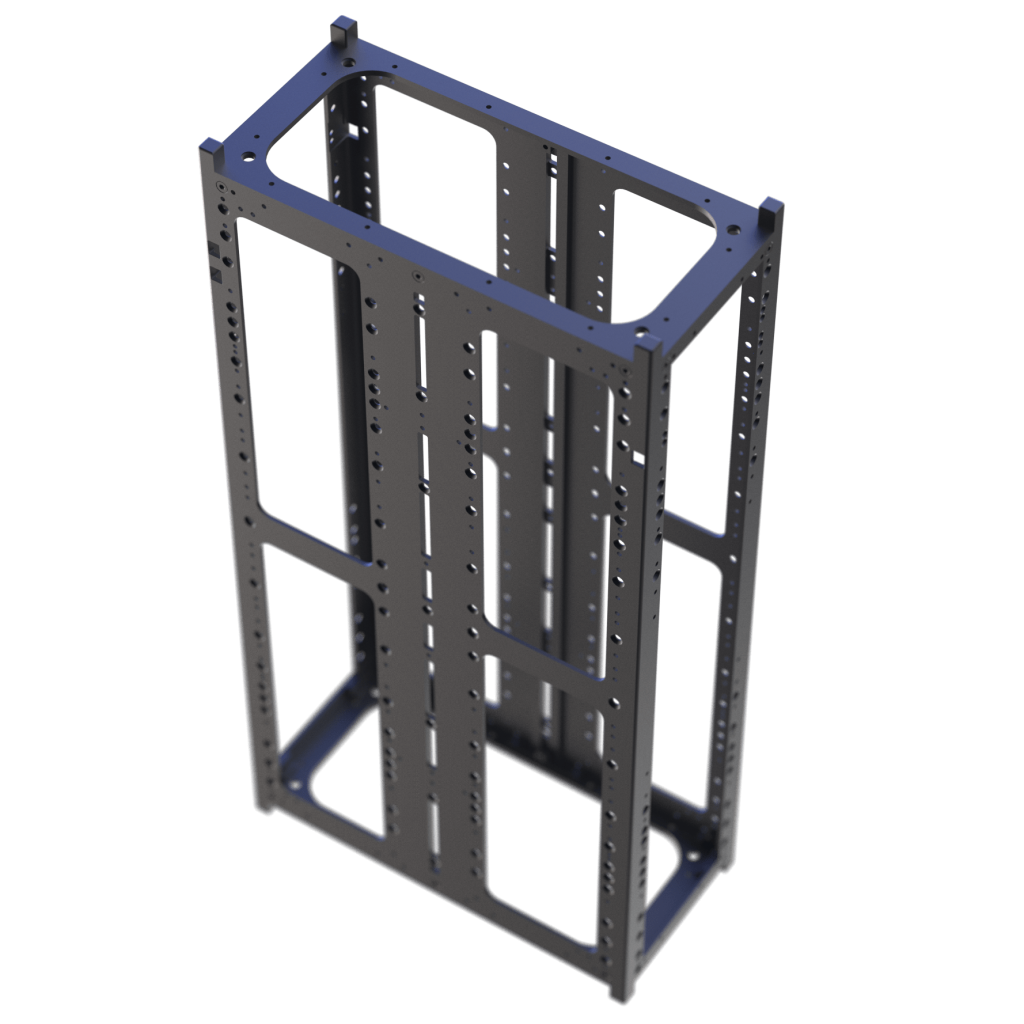

8U CubeSat Structure Web render 1

Simple modular design for easy assembly both vertically and horizontally

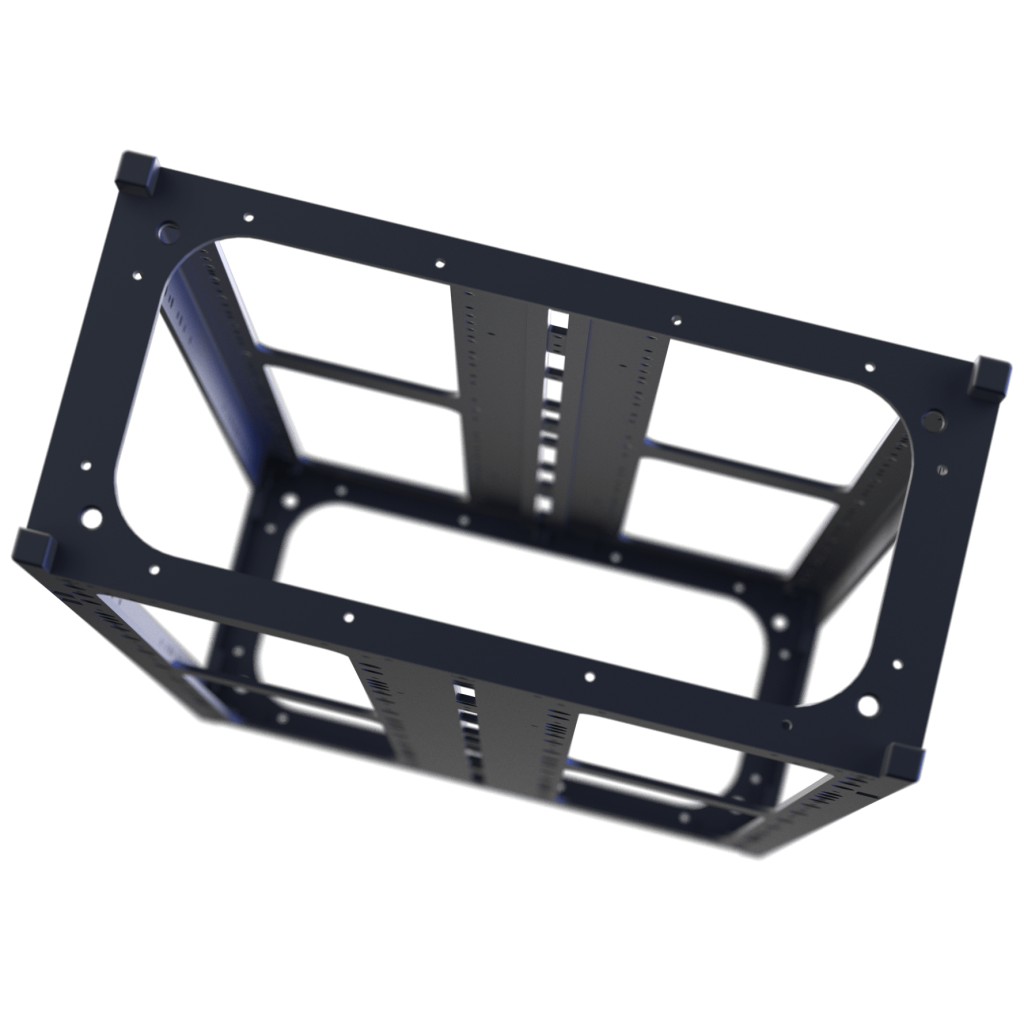

8U CubeSat Structure Web render 2 e1710934626223

Four kill switches option

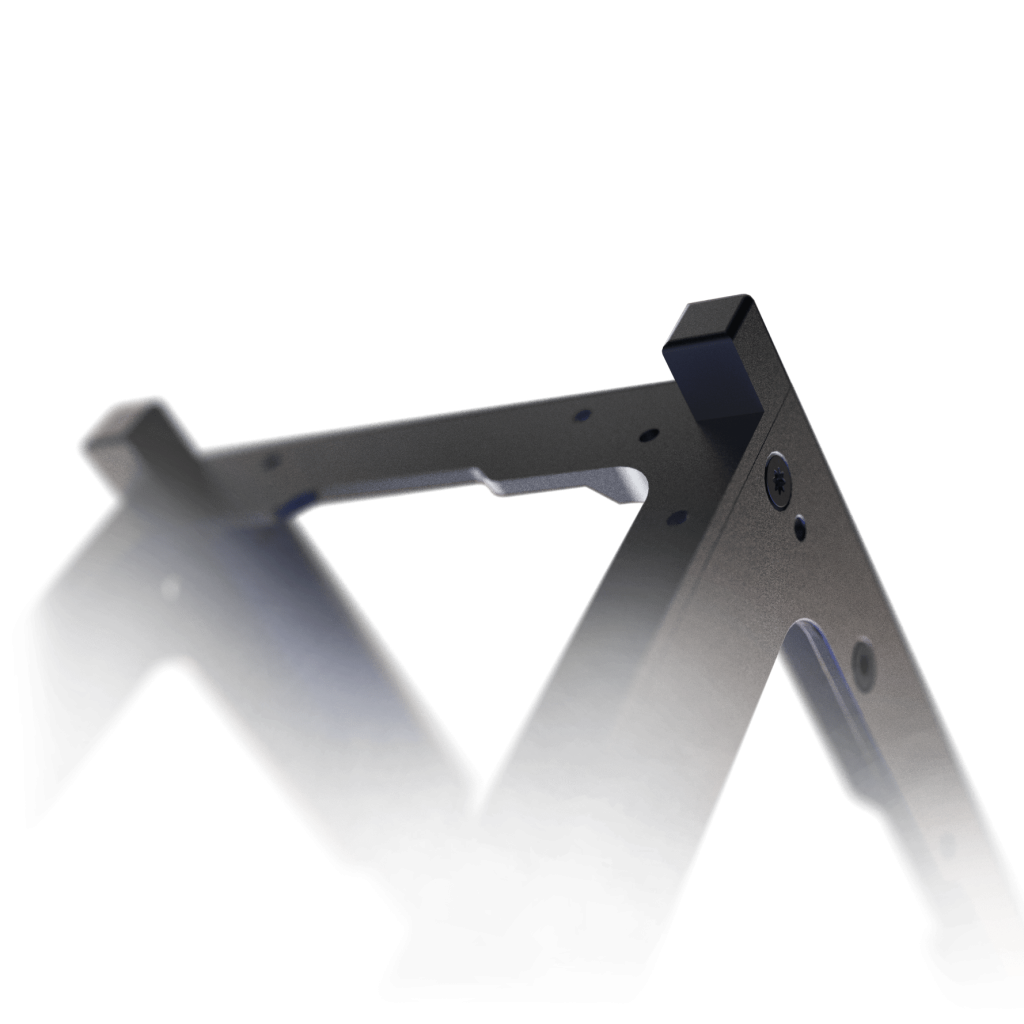

8U CubeSat Structure Web render 4

Pearl-finished & hard anodized

PRODUCT GALLERY
8U CubeSat Structure Web 15
8U CubeSat Structure Web 17
8U CubeSat Structure Web 14
8U CubeSat Structure Web 11
8U CubeSat Structure Web 10
8U CubeSat Structure Web 9
8U CubeSat Structure Web 6
8U CubeSat Structure Web 5
8U CubeSat Structure Web 4
8U CubeSat Structure Web 3
16U Structure
16U
Dimensions
226.3 x 226.3 x 454 mm
Material
Aluminum 6082
Mass
< 3 kg
Discover
12U Structure
12U
Dimensions
226.3 x 226.3 x 366 mm
Material
Aluminum 6082
Mass
2.44 kg
Discover
6U Structure
6U
Dimensions
100 x 226.3 x 366 mm
Material
Aluminum 6082
Mass
850 g
Discover
3U Structure
3U
Dimensions
100x100x340.5 mm
Material
Aluminum 6082
Mass
340 g
Discover
1.5U Structure
1.5U
Dimensions
100x100x170.2 mm
Material
Aluminum 6082
Mass
152 g
Discover
1U Structure
1U
Dimensions
100x100x113.5 mm
Material
Aluminum 6082
Mass
120 g
Discover
2500
MODULES IN ORBIT
50
DELIVERED SATELLITES
200
TB DATA DOWNLINKED
All our products undergo Space Qualification, involving stringent testing under extreme conditions to ensure their robustness and high performance
