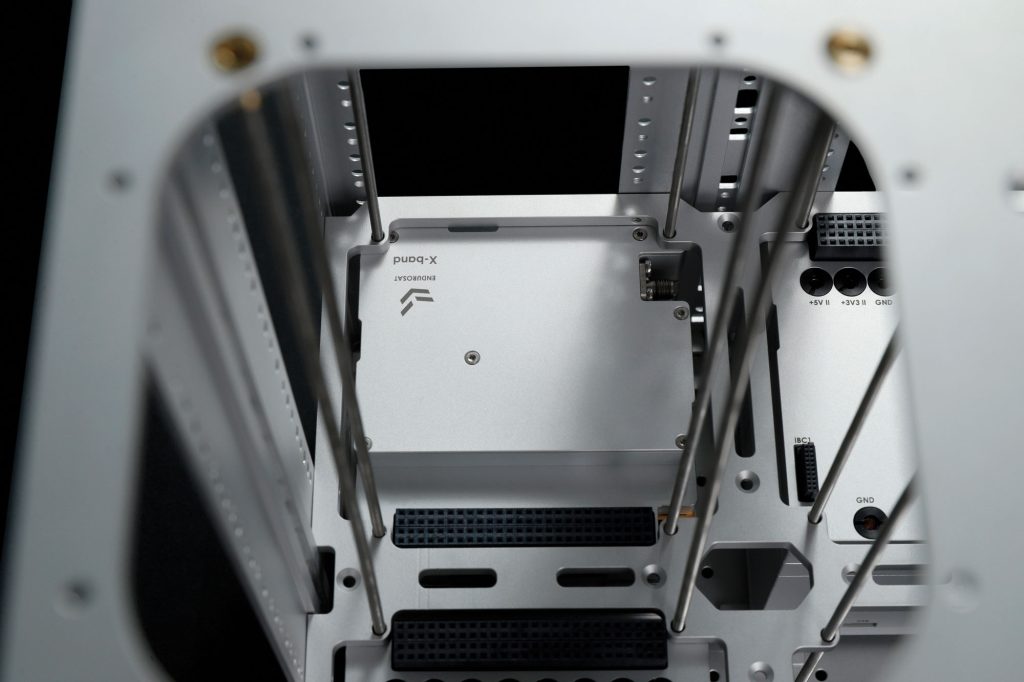

X-BAND TRANSMITTER

High-speed transmission for CubeSats and SmallSats
Cad file & datasheet
Add
Add
flight heritage badge state of the art report badge
Download
Cad file & datasheet
Add
Add
10X
PERFORMANCE/PRICE
DVB-S2
COMPLIANT
150 MBPS
MAXIMUM DATARATE

Space-qualified X-band transmitter for data-intensive payloads

FEATURES
Frequency Range
7900 to 8400 MHz
Modulations
QPSK, 8-PSK, 16-APSK, 32-APSK
Spurious Emissions
< -60 dBc
Frequency Stability
+/- 1.0 ppm
Maximum Gross Datarate
150 Mbps
Mass
270 g
Tx Power
0.5-2 W (in-flight configurable)
Firmware Updates
Local and remote (in-flight) secured application update
SD Card Slot
up to 32 GB
Wide Power Supply Range
12 to 24 V
Interfaces
UART/RS-485 for control and LVDS for data

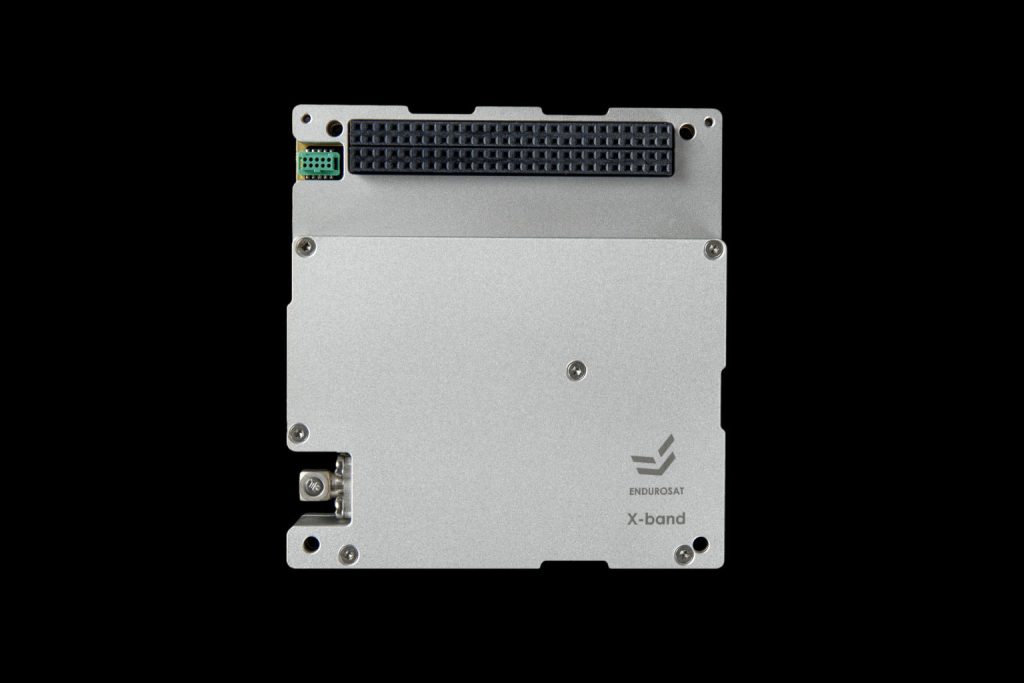

X Band Transmitter web render 5
High-speed transmission for CubeSats and SmallSats

Included

Complete User Manual
5h engineering support
Delivery cost
Handling and administration costs
Fully qualified X-band transmitter for data-intensive payloads
X Band Transmitter web 8

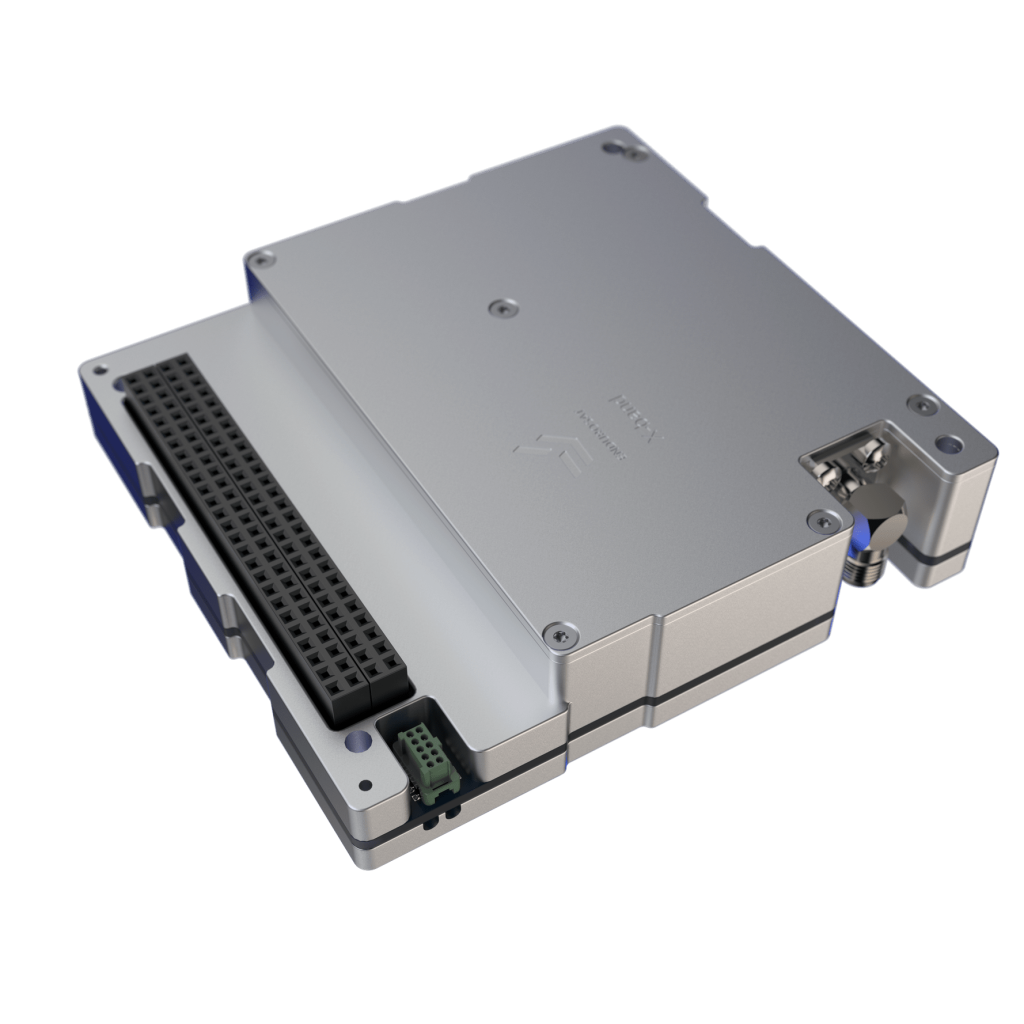

X Band Transmitter web render 3

High speed of transmission. 5x performance/price than the existing alternatives

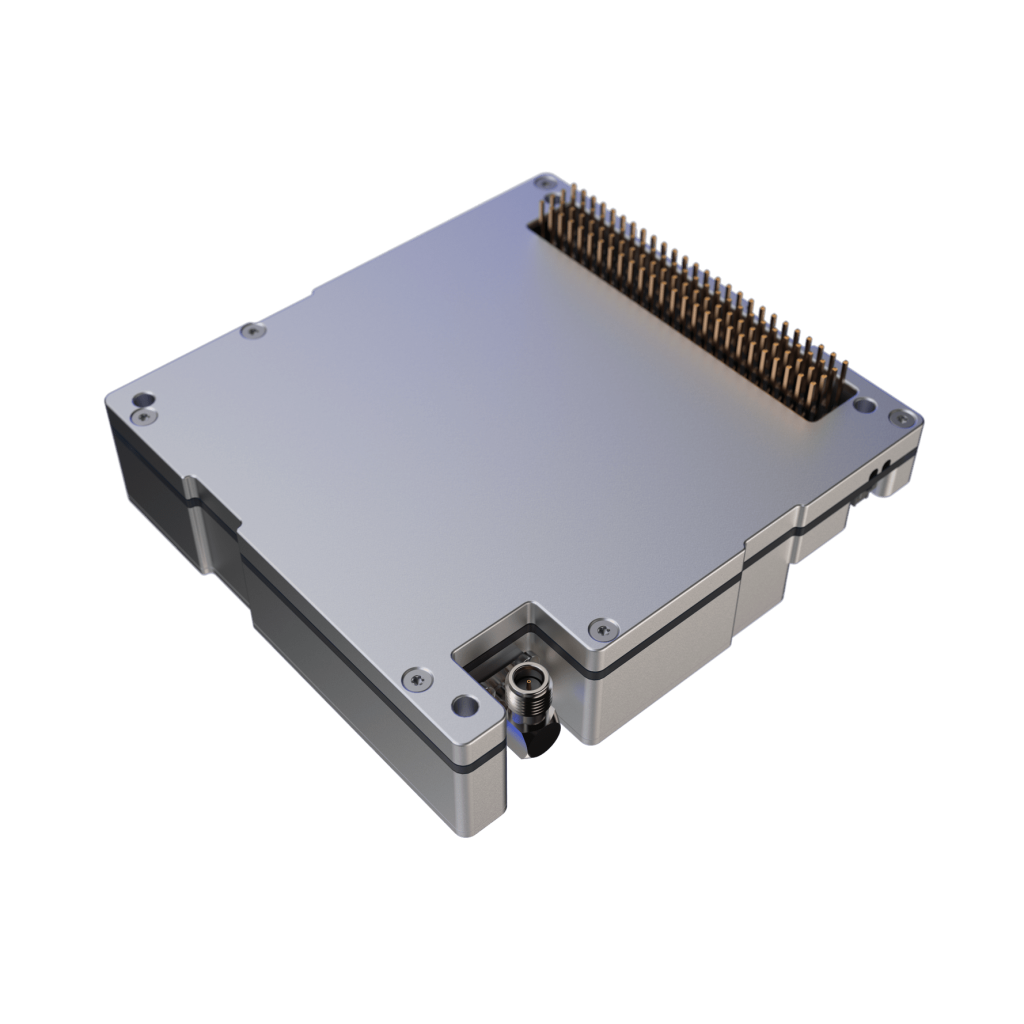

X Band Transmitter web render 1

Compact and robust design

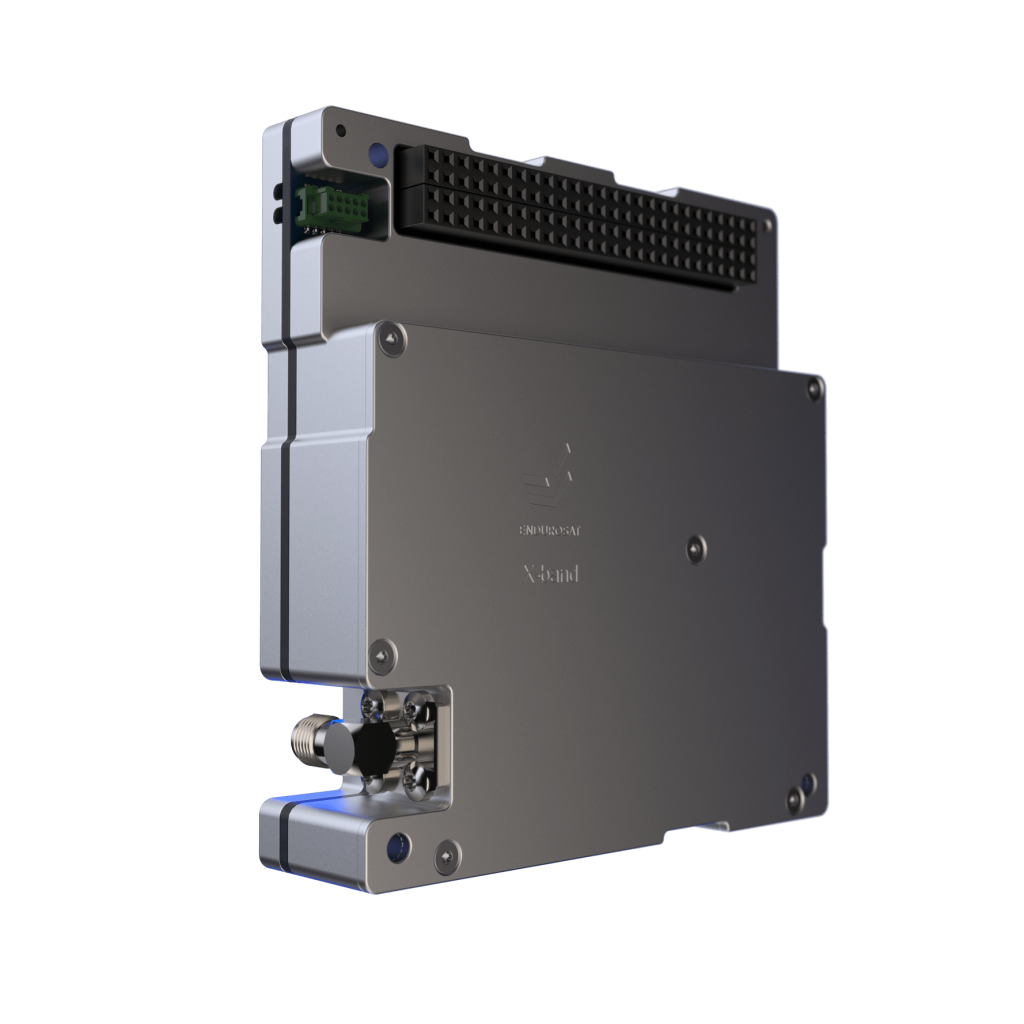

X Band Transmitter web render 4

Embedded Heat sinks control heating & ensure prolonged operations

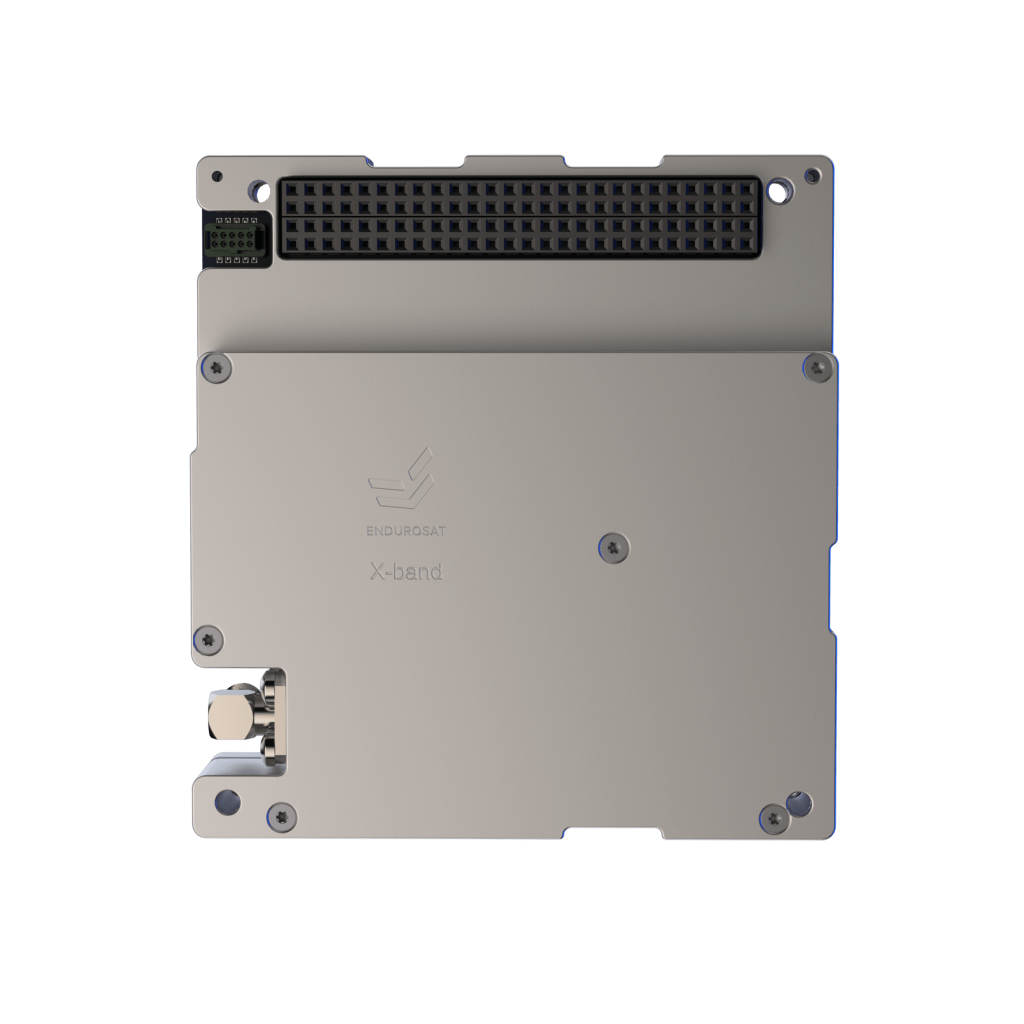

X Band Transmitter web render 2

In-flight reconfigurable SDR. Selectable modulation & transmission parameters and in-flight firmware updates
