Ultra High-speed communication

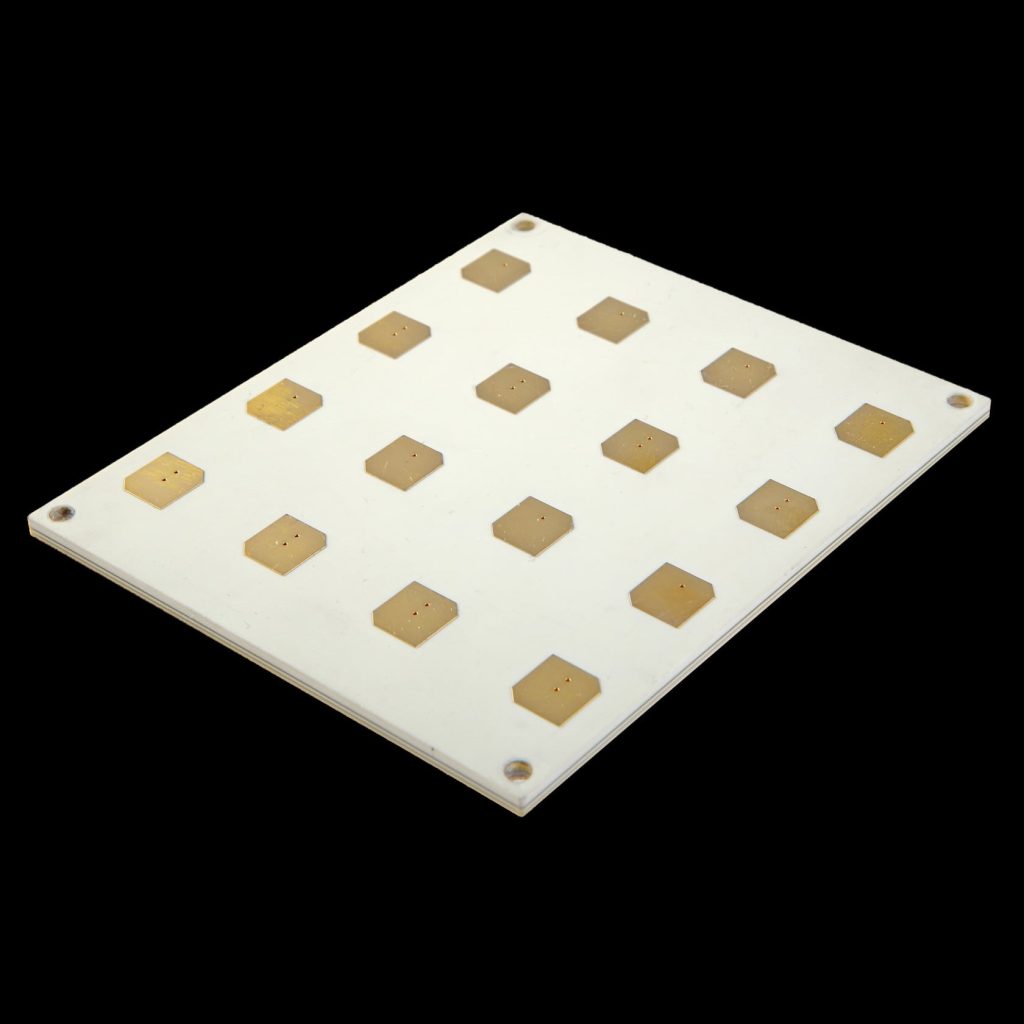

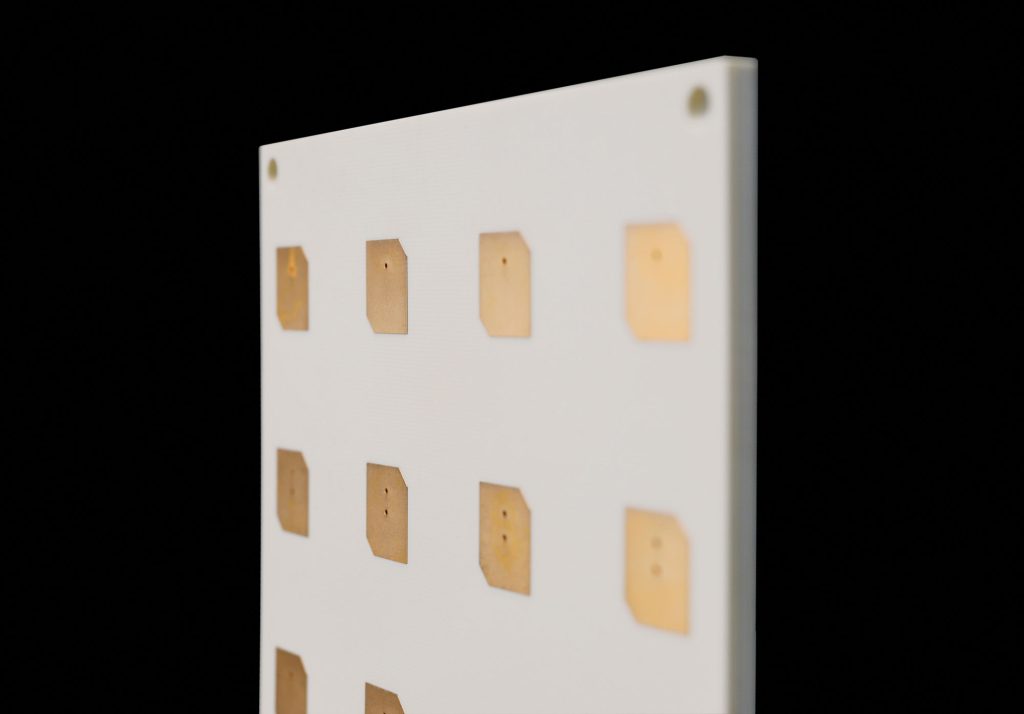

X-Band 4×4 Patch Array

Flight-proven X-band patch antenna

this cubesat module has flight heritage
this cubesat module is featured in NASA state of the art report
x-band-4x4-cubesat-endurosat

Flight-proven X-band patch antenna

40%smaller
footprint
16+dBi
Gain
RHCircular
Polarization

Industry-leading gain at a 40% smaller footprint

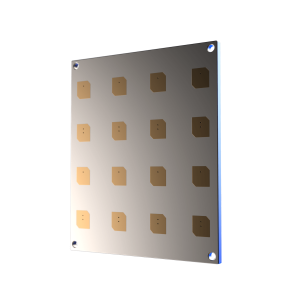

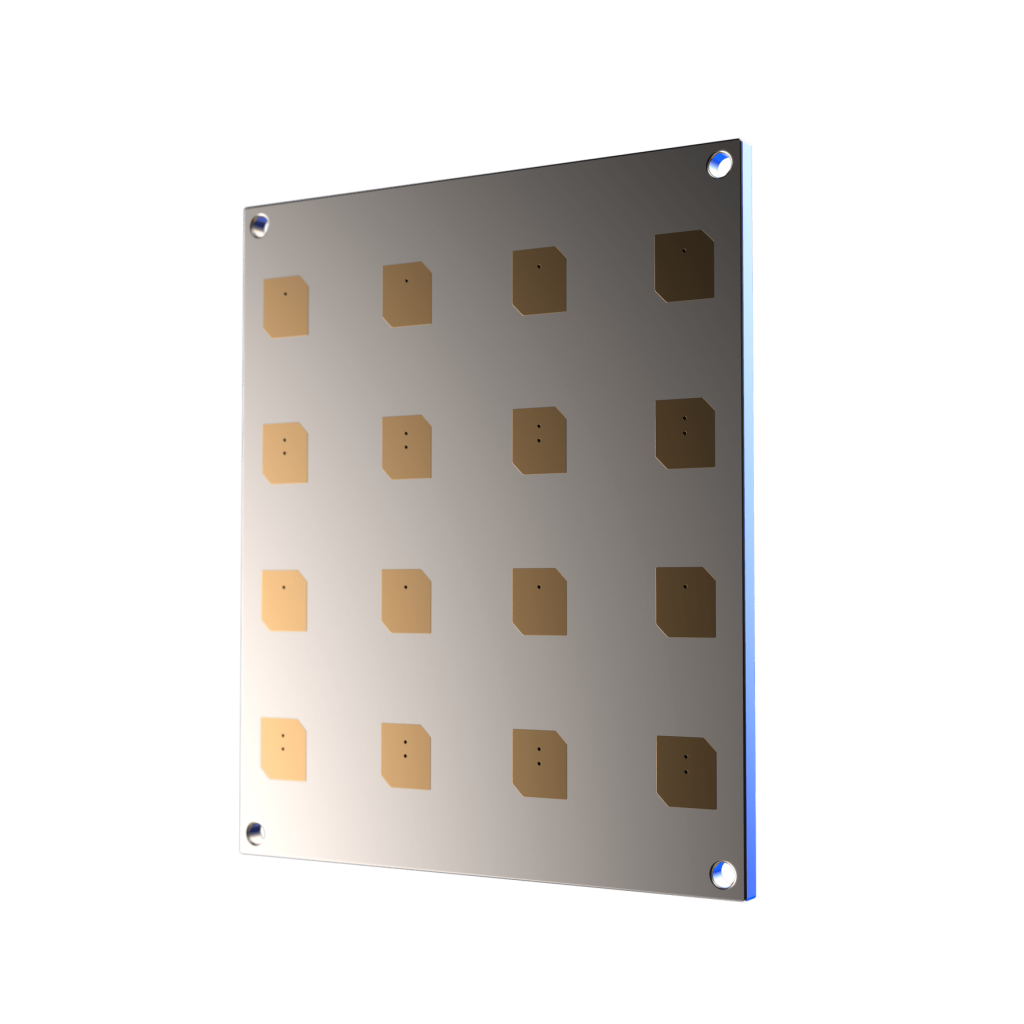

x-band-4x4-cubesat-antenna-endurosat

Gain/Footprint ratio

Our Antenna: 40% higher

Industry

Circularly polarized for better reception

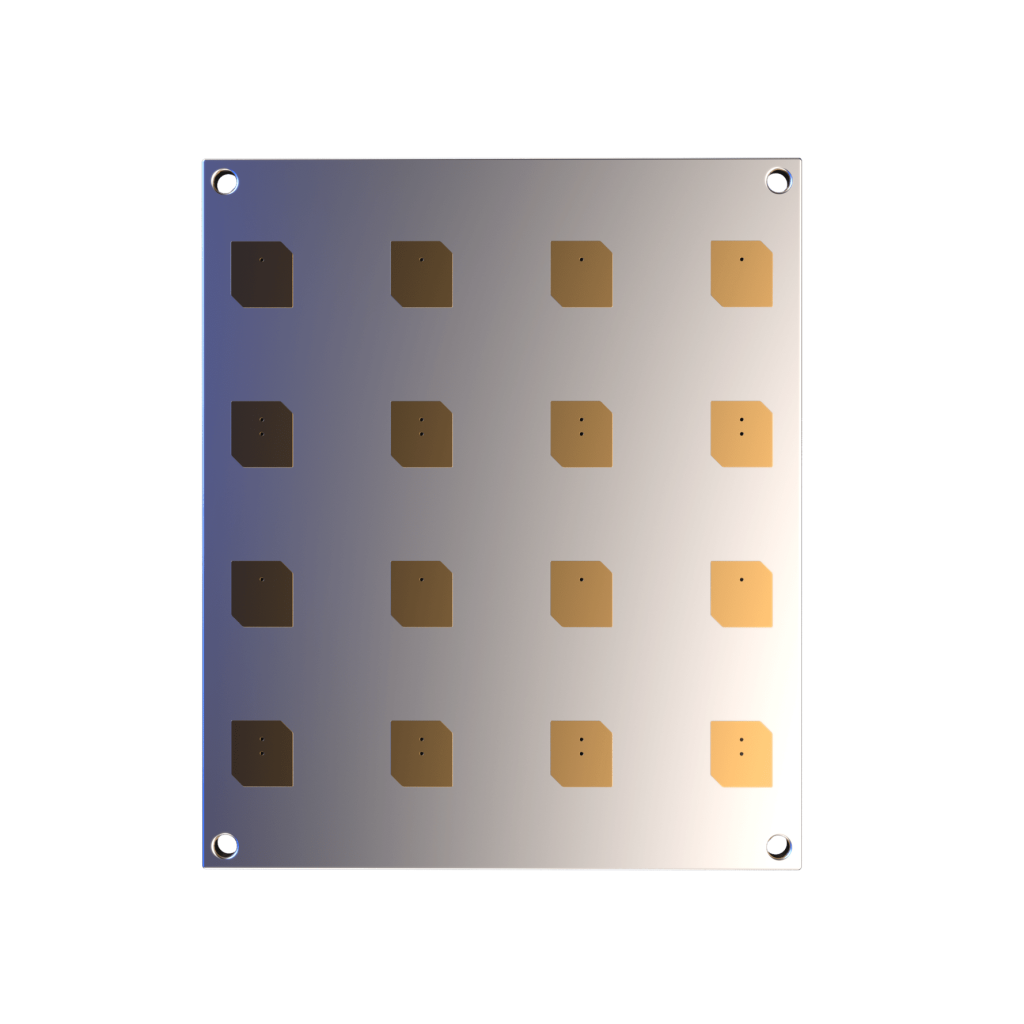

x-band-4x4-cubesat-antenna-endurosat front view

Applications

Intersatellite communications iconInter-satellite Communications
Images and video downlink iconImages and Video Downlink
High datarate payloads iconHigh Datarate Payloads

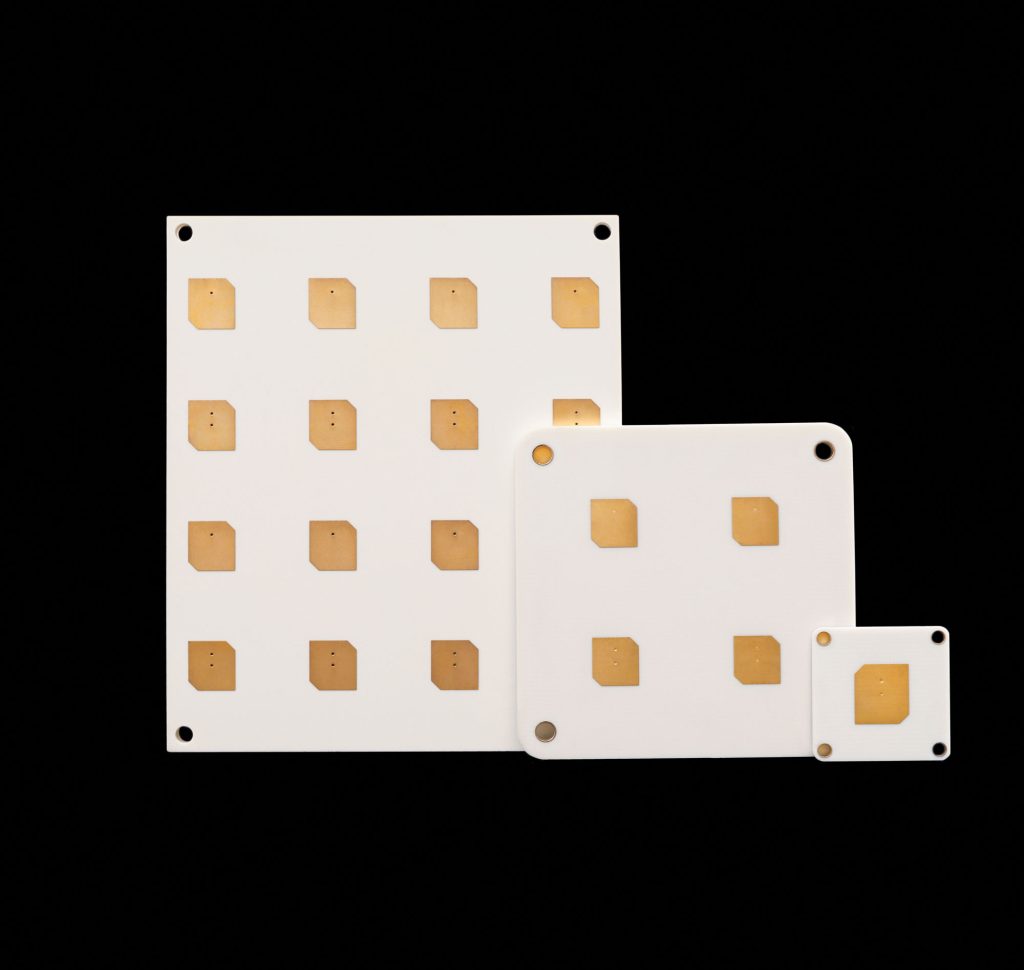

Flexible design. Available in a single, 2x2 and 4x4 configurations

x-band-cubesat-antenna-endurosat type of antennas

Features

Frequency range 8025 - 8400 MHz
Half Power Beam Width (HPBW) 18 deg
Gain 16+ dBi over operational bandwidth
Polarization Right Hand Circular
Mass 53 g
RF Power Handling up to 4 W

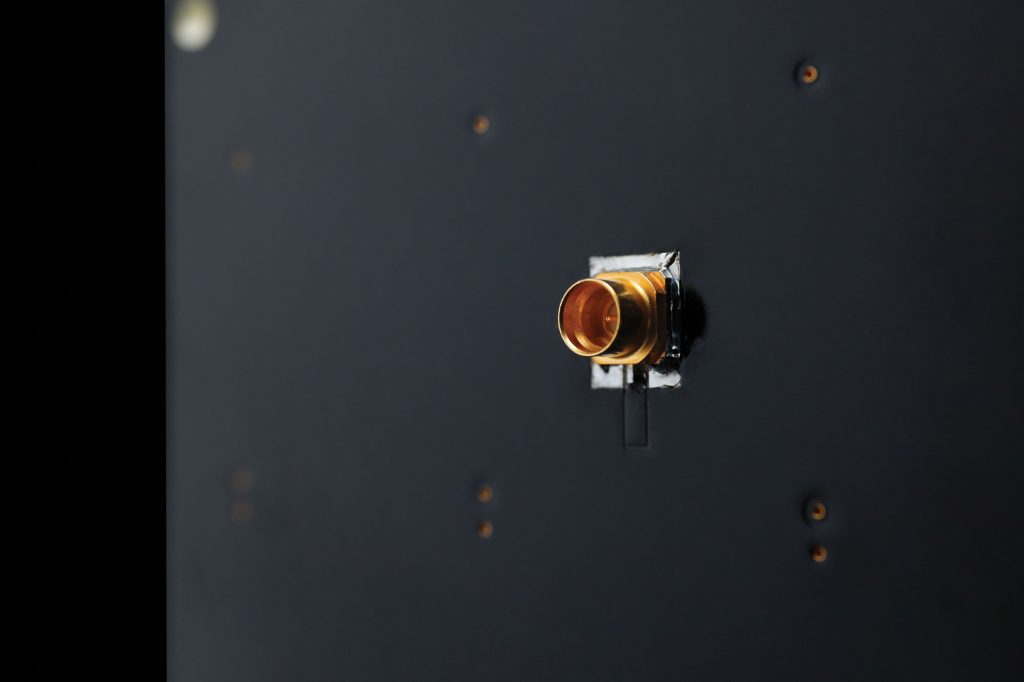

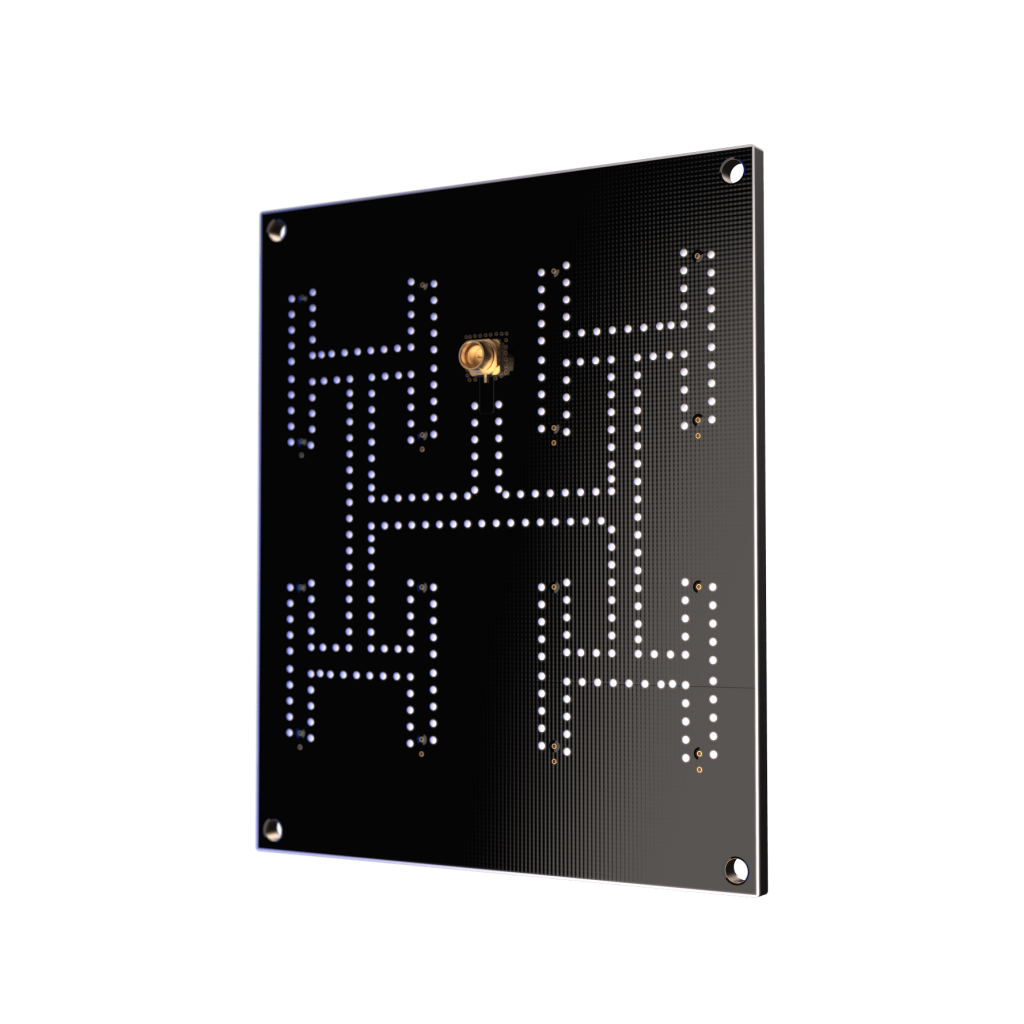

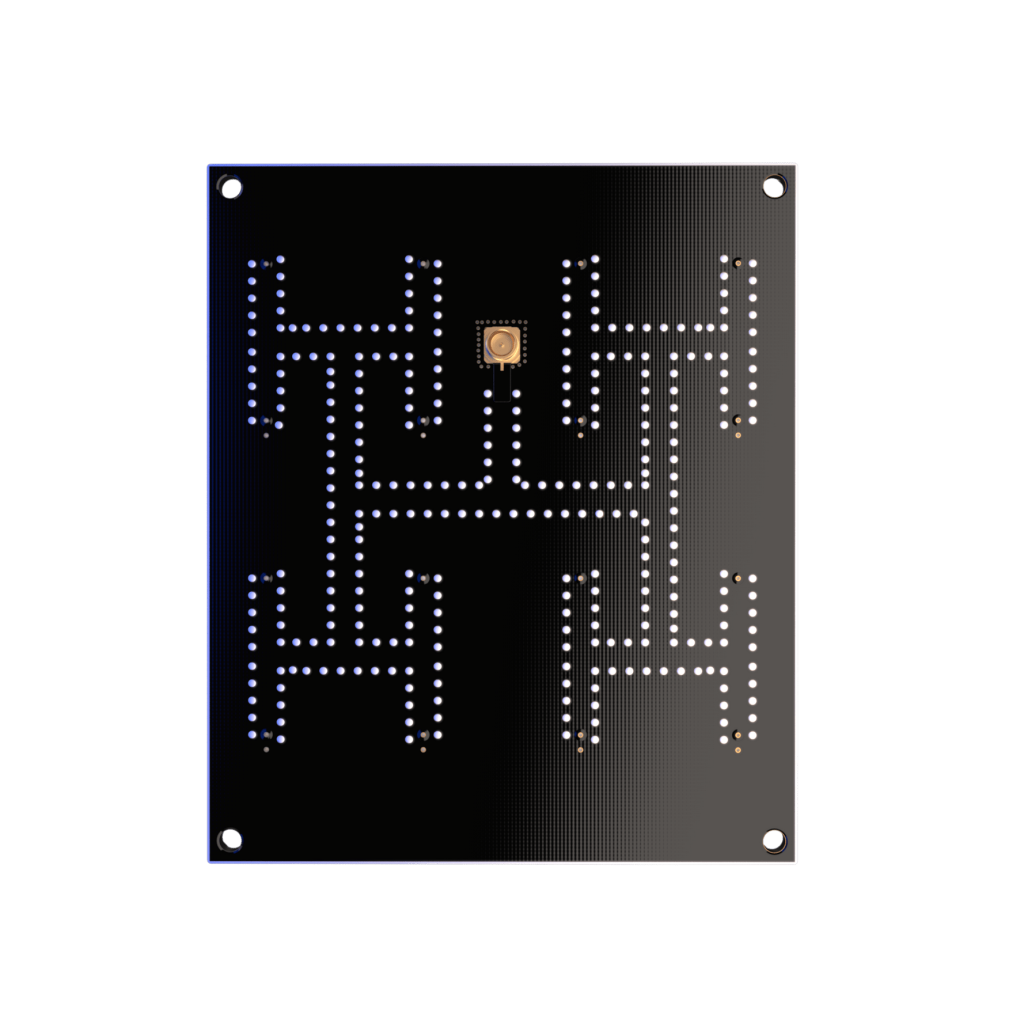

x-band-4x4-cubesat-endurosat back view

Included

user manual book icon Complete User Manual
included cables icon RF Cable
customer support icon 5h engineering support
delivery cost icon Delivery cost
handling and administration costs icon Handling and administration costs
