High-speed communication

S-Band Antenna ISM

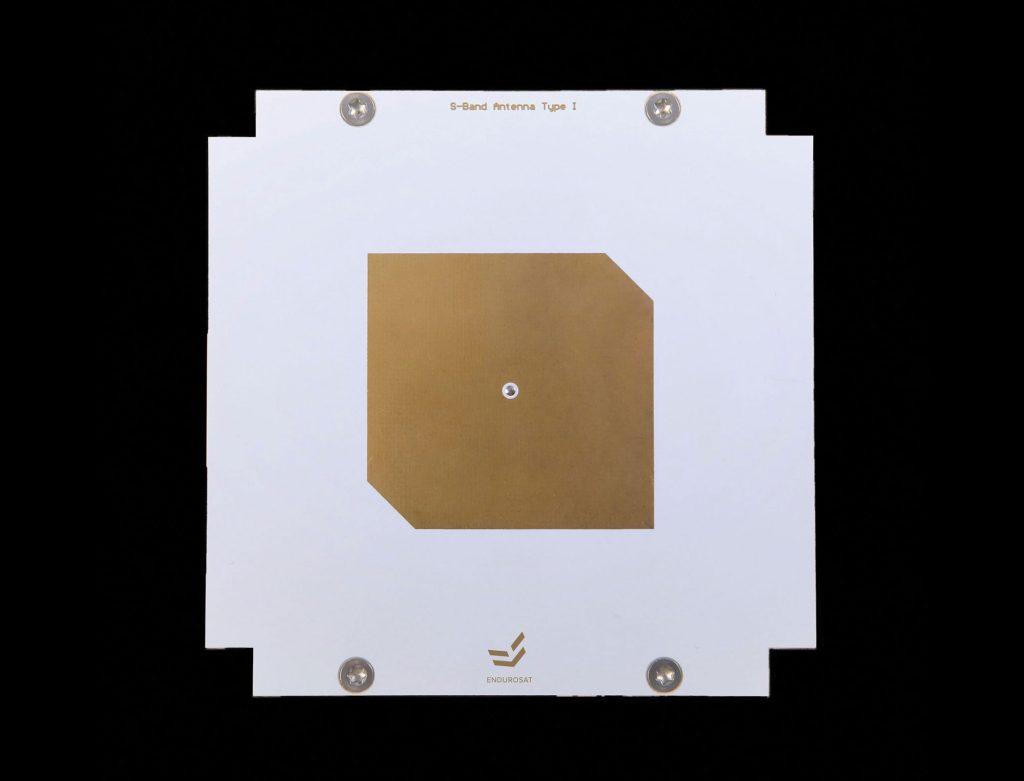

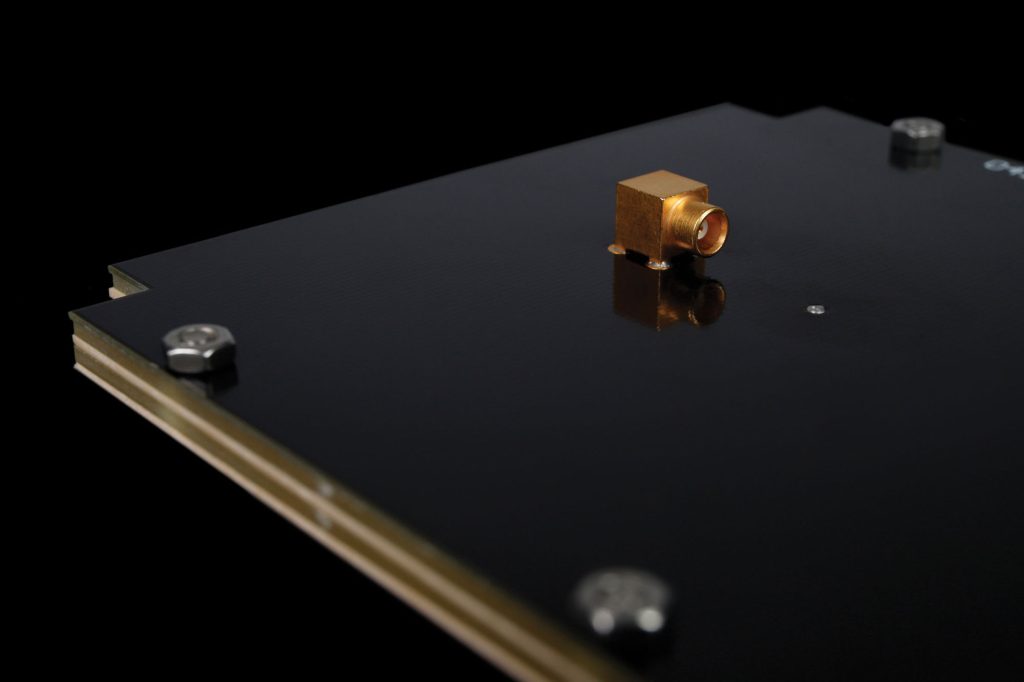

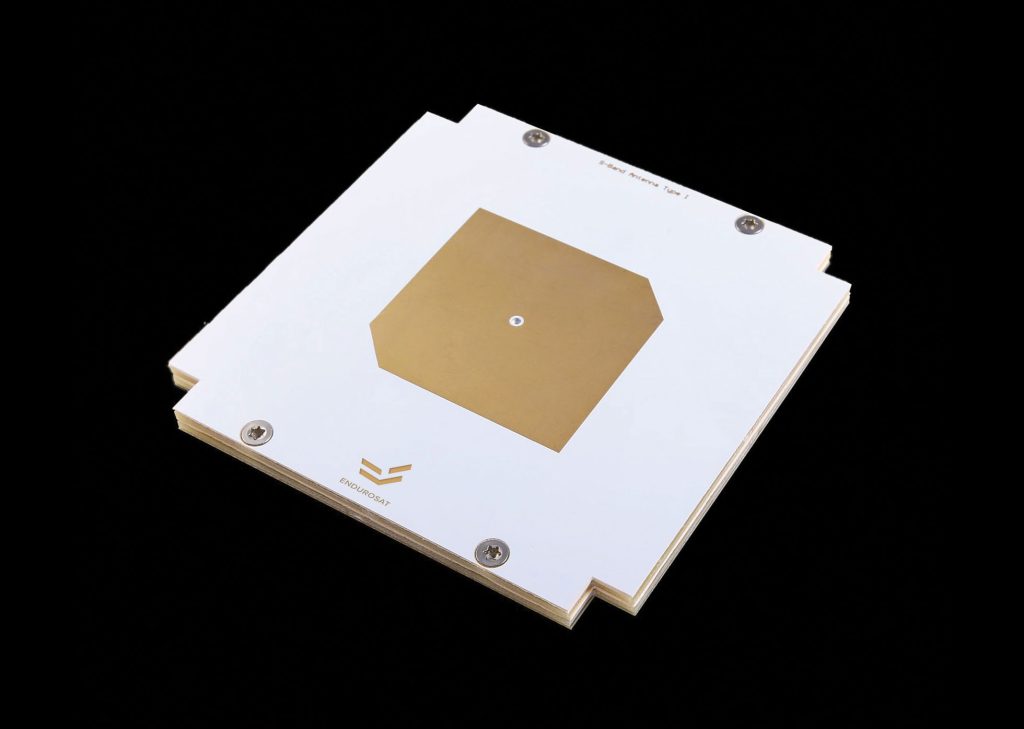

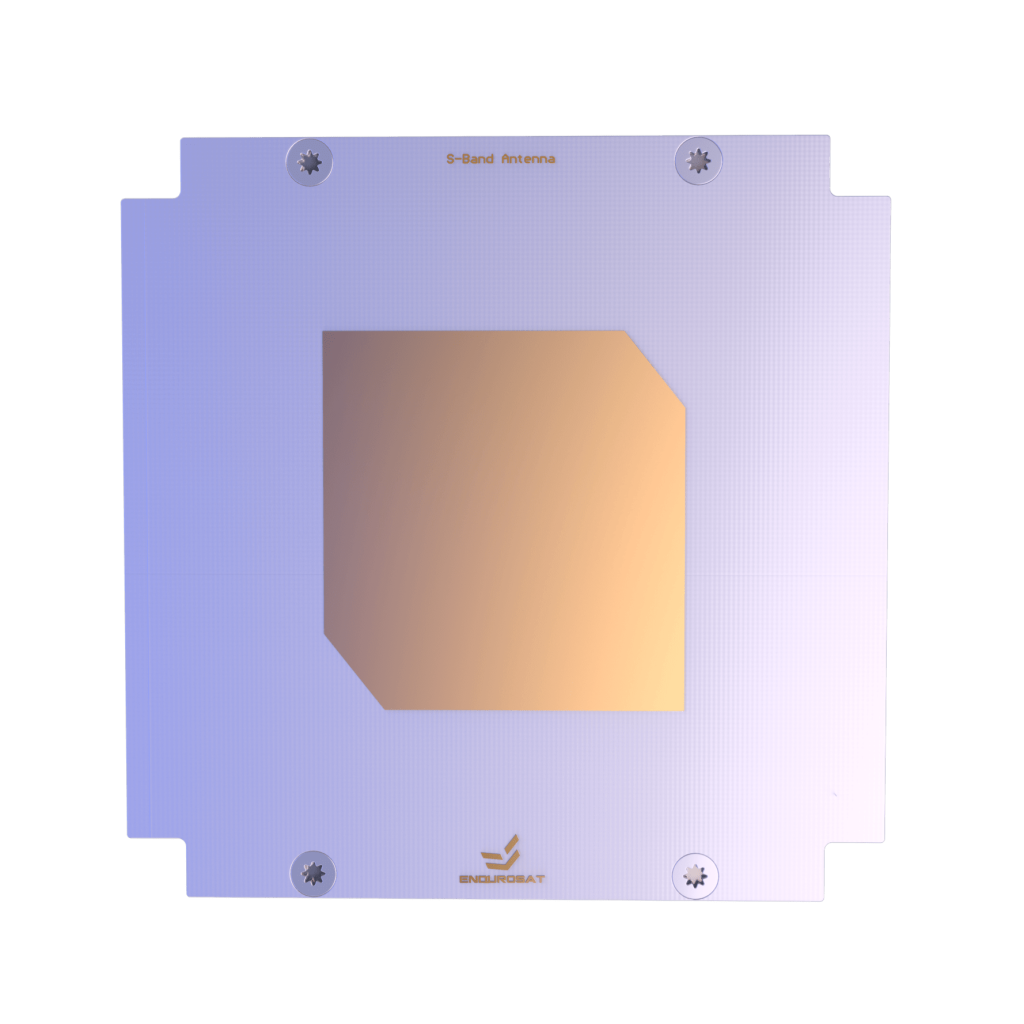

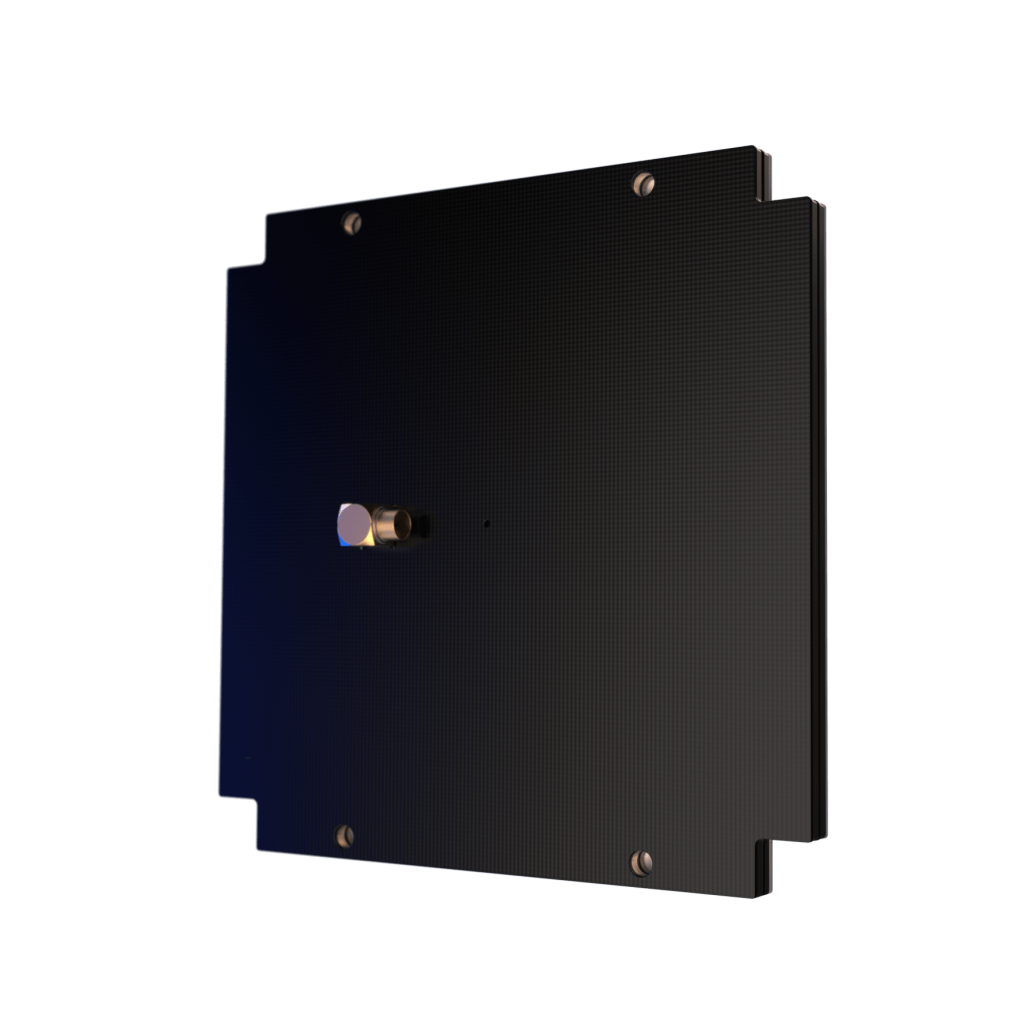

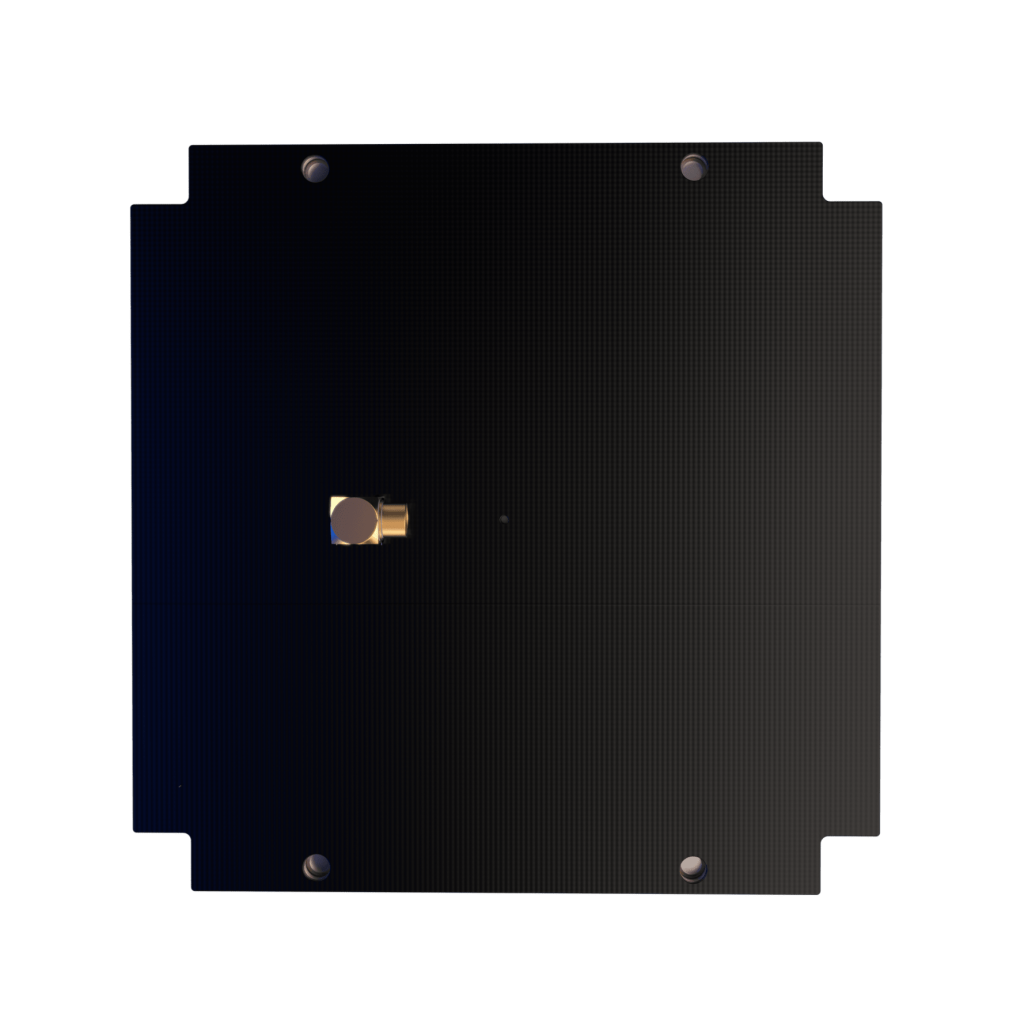

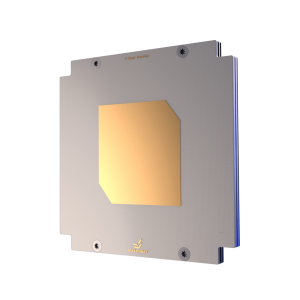

Flight-proven S-band patch antenna

this cubesat module has flight heritage
this cubesat module is featured in NASA state of the art report
s-band-antenna-ism-cubesat-endurosat

Flight-proven S-band patch antenna

30%higher
gain
LHCircular
polarization
8.3dBi
Gain

30% higher gain than previous generation

s-band-antenna-ism-cubesat-endurosat

Gain

Current generation: 8.3 dBi

Previous generation: 5.8 dBi

Circularly polarized for better reception

s-band-antenna-ism-cubesat-endurosat

Applications

Payload downlink iconPayload Downlink
Telemetry and telecommanding (TMTC) iconTelemetry and Telecommands (TMTC)
Intersatellite communications iconInter-satellite Communications

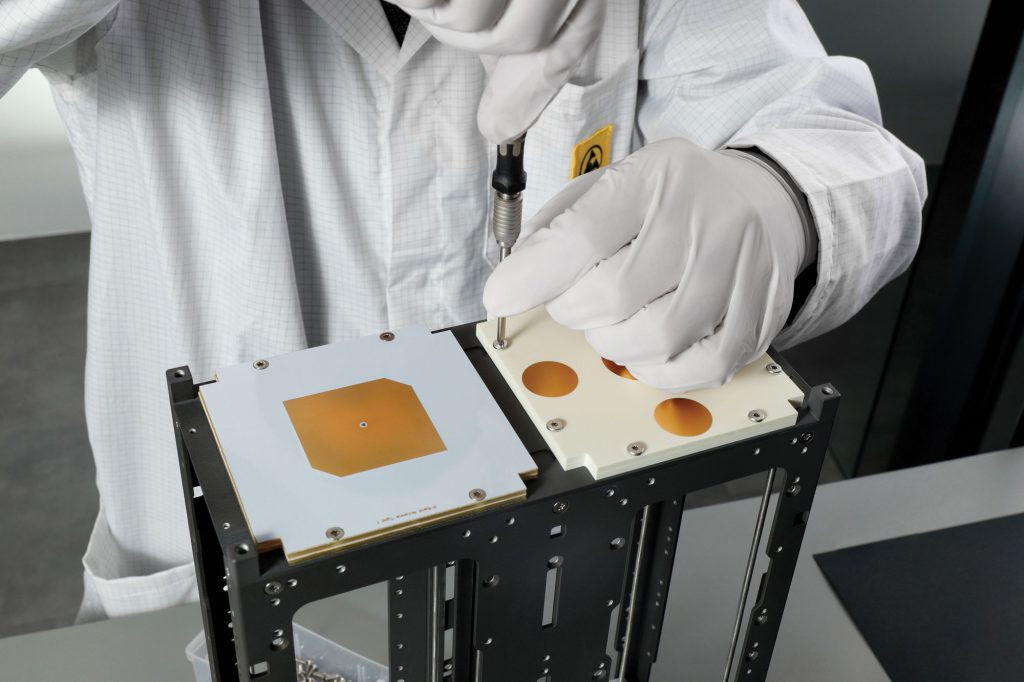

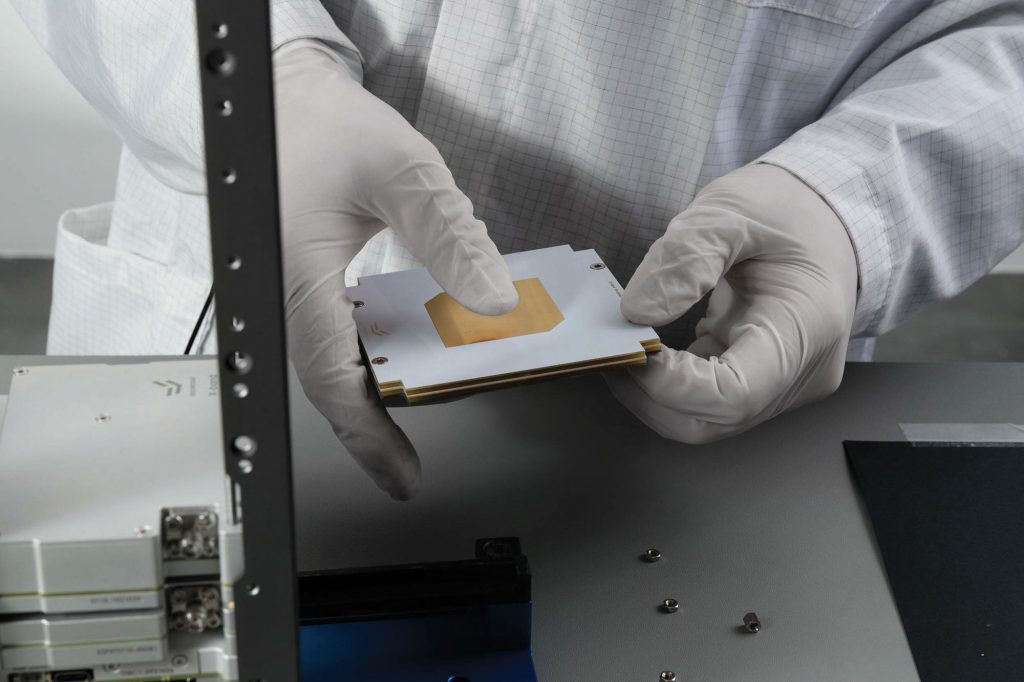

Customizable for easy mount, X/Y or Z

s-band-antenna-ism-cubesat-endurosat

Features

Frequency range 2400 - 2450 MHz
Half Power Beam Width (HPBW) 71 deg
Gain 8.3 dBi
Polarization Left Hand Circular
Mass 64 g
Custom Mounting X/Y or Z CubeSat mounting
RF Power Handling up to 4 W

s-band-antenna-ism-cubesat-endurosat

Included

user manual book icon Complete User Manual
included cables icon RF Cable
customer support icon 5h engineering support
delivery cost icon Delivery cost
handling and administration costs icon Handling and administration costs
