GNSS PATCH ANTENNA

Secure Navigation In Space
Cad file & datasheet
buy
buy
Cad file & datasheet
buy
buy
L1/E1
BAND
3.6
DBI PATCH GAIN
88 DEG
BEAMWIDTH

Space-qualified GNSS patch antenna

FEATURES
Operating Frequency
L1/E1 band
Half Power Beam Width (HPBW)
88 deg
Patch Gain
3.6+ dBi
Polarization
Right Hand Circular
Noise Figure
<1.4dB
LNA Gain
34dB
Mass
17 g (passive), 79 g (active)

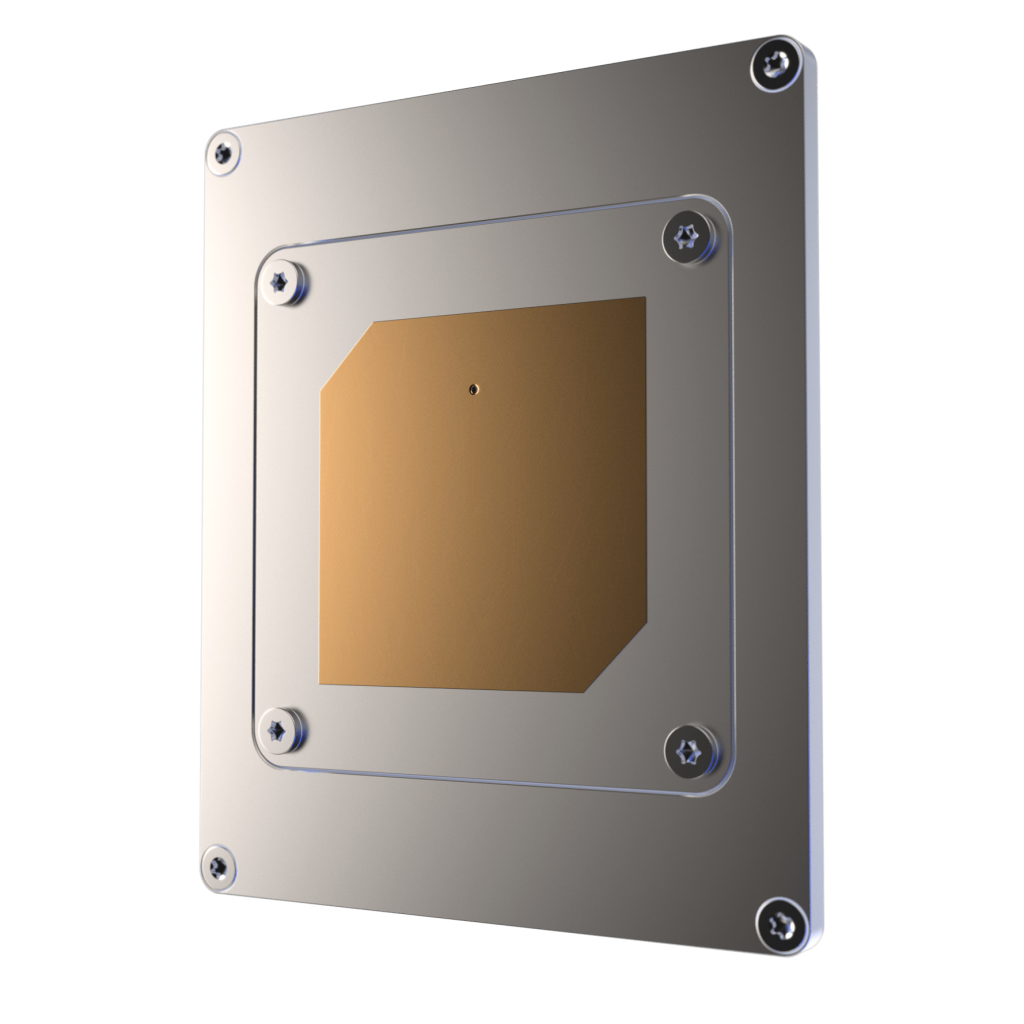

GNSS Patch Antenna web render 1 3
Secure Navigation In Space

Included

Complete User Manual
5h engineering support
Delivery cost
Handling and administration costs
Space-qualified GNSS patch antenna
GNSS Patch Antenna web 2
GNSS Patch Antenna web render 1 1

Industry-leading form factor

GNSS Patch Antenna web render 1 4

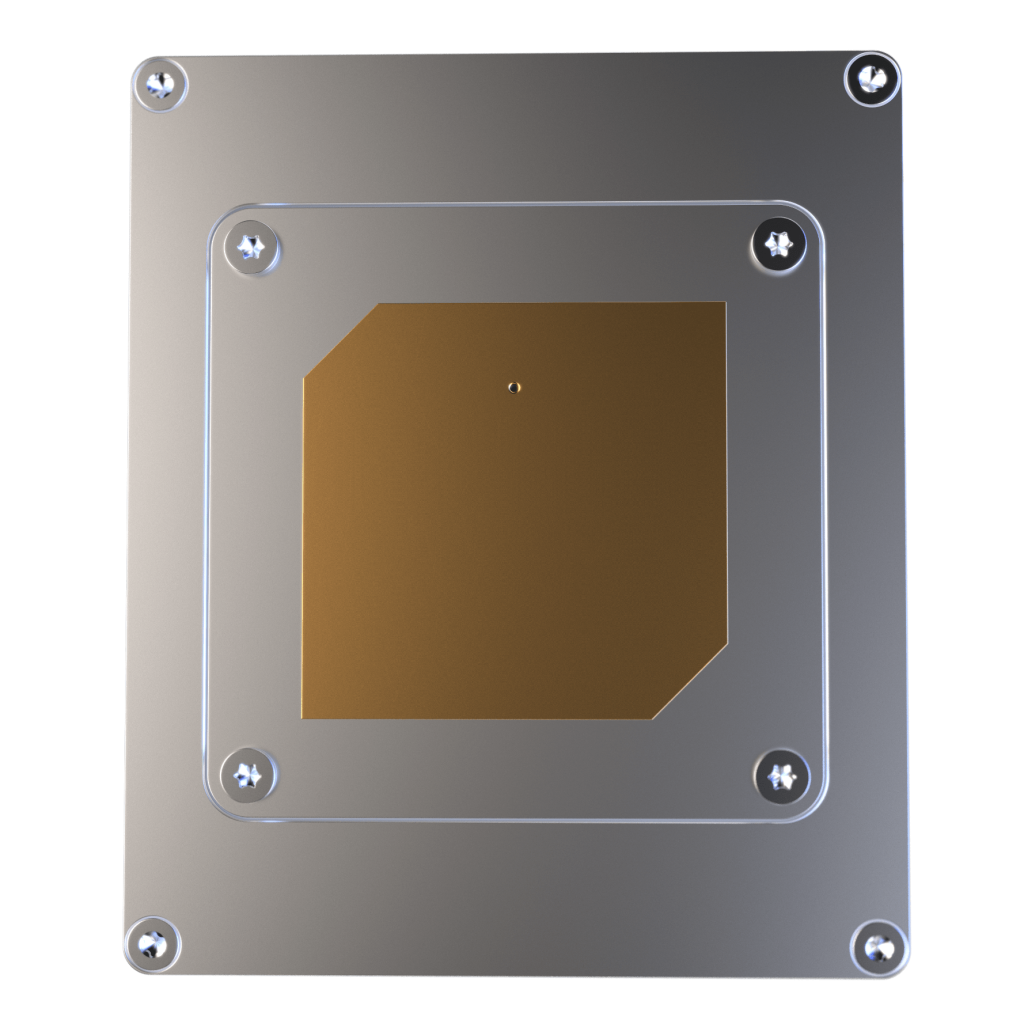

Circularly polarized for better reception

GNSS Patch Antenna web render 1 2

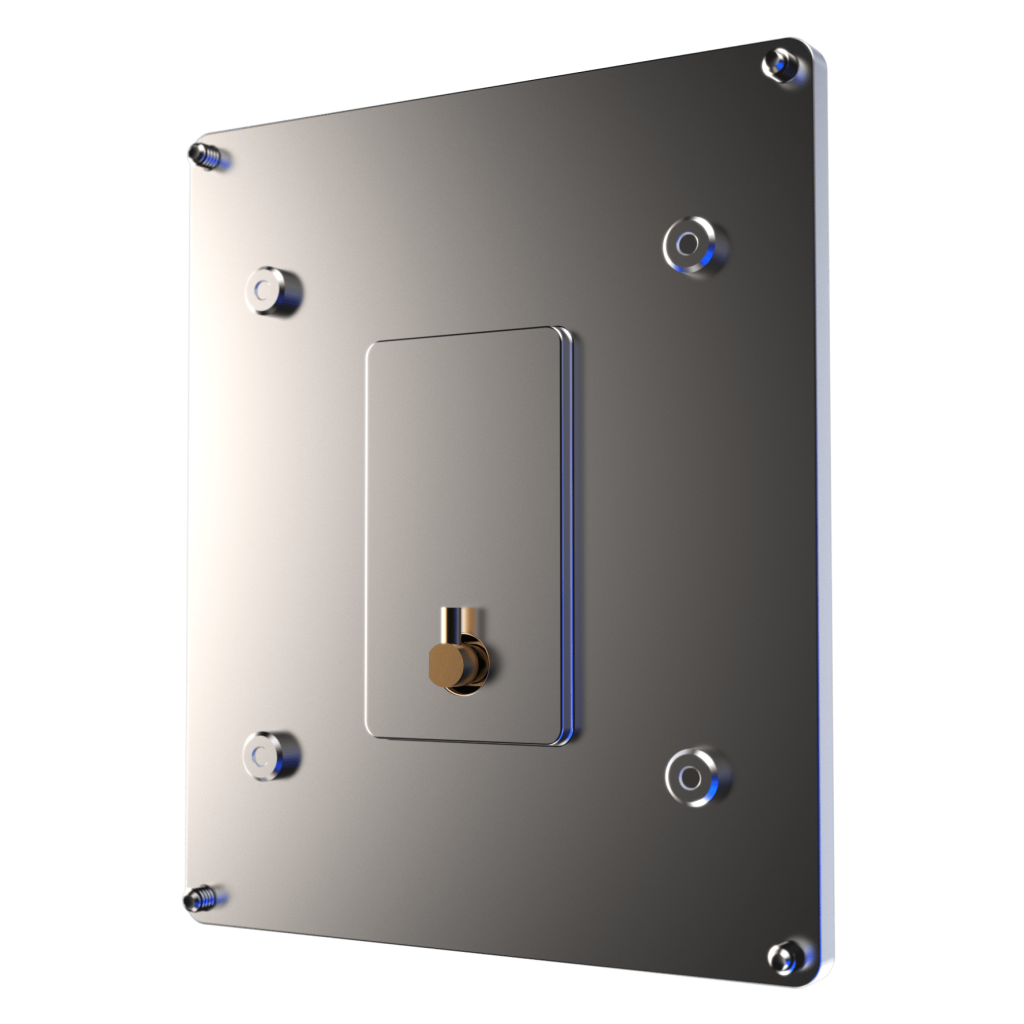

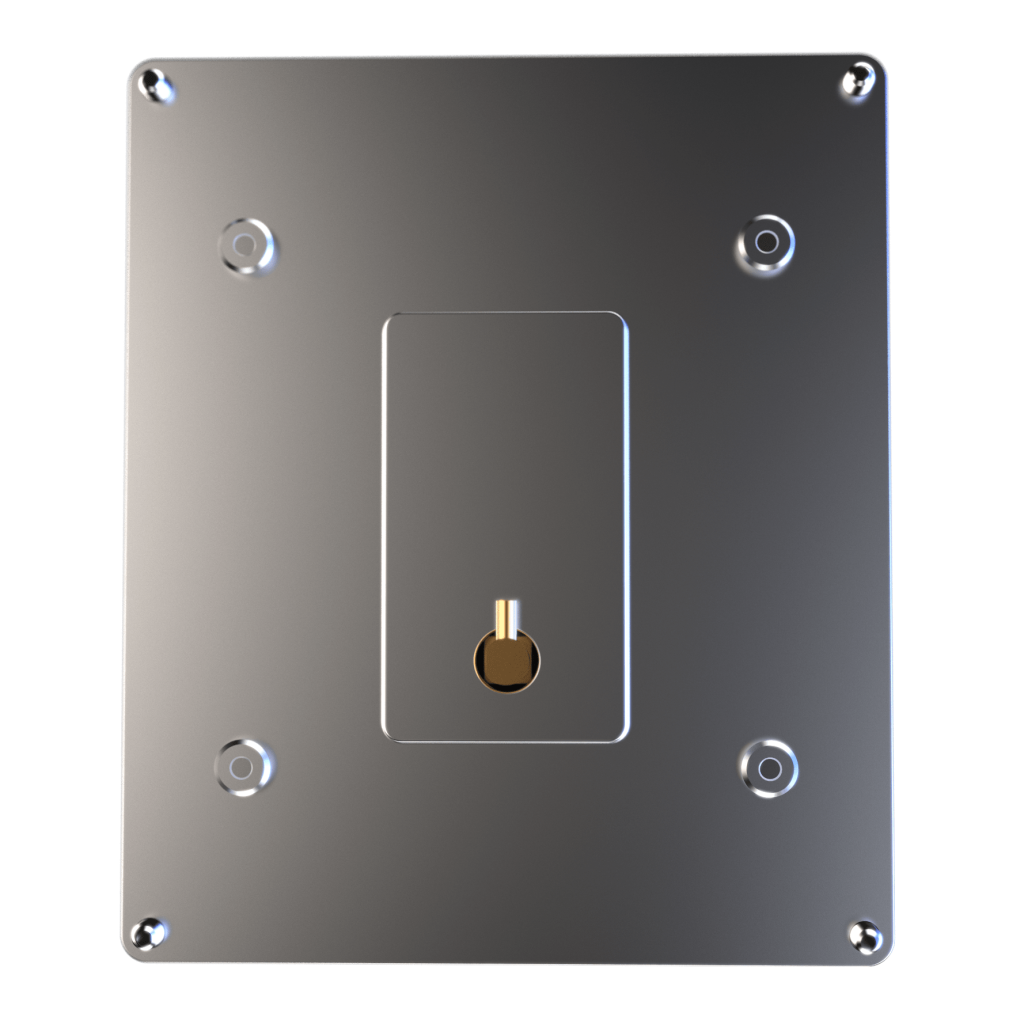

Available with SMP connector

PRODUCT GALLERY
GNSS Patch Antenna web 5
GNSS Patch Antenna web 3
GNSS Patch Antenna web 1
GNSS Patch Antenna web 6
GNSS Patch Antenna web 4
GNSS Patch Antenna web 2
X Band Patch Antenna
X-Band Patch Antenna
Frequency Range
8025 - 8400 MHz
Polarization
Right Hand Circular
RF Power Handling
up to 4 W
Discover
X Band 2×2 Patch Array
X-Band 2×2 Patch Array
Frequency Range
8025 - 8400 MHz
Polarization
Right Hand Circular
RF Power Handling
up to 4 W
Discover
X Band 4×4 Patch Array
X-Band 4×4 Patch Array
Frequency Range
8025 - 8400 MHz
Polarization
Right Hand Circular
RF Power Handling
up to 4 W
Discover
V W band Patch Antenna
V/W-Band Patch Antenna
Discover
K Band 4x4 Patch Array
K-Band 4×4 Patch Array
Frequency Range
17.7 - 20.2 GHz
Polarization
Right/Left Hand Circular
RF Power Handling
up to 4 W
Discover
S Band Antenna Commercial
S-Band Antenna Commercial
Frequency Range
2025 - 2110 MHz
Polarization
Selectable Circular
RF Power Handling
up to 4 W
Discover
S Band Antenna Wideband
S-Band Antenna Wideband
Frequency Range
2025-2110 MHz and 2200-2290 MHz
Polarization
Right Hand Circular
RF Power Handling
up to 4 W
Discover
S Band Antenna ISM
S-Band Antenna ISM
Frequency Range
2400 - 2450 MHz
Polarization
Left Hand Circular
RF Power Handling
up to 4 W
Discover
UHF Antenna III
UHF Antenna III
Frequency Range
435 - 438 MHz or 400 - 403 MHz
Polarization
Circular
Gain
> 0 dBi
Discover
UHF Antenna 2U
UHF Antenna 2U
Frequency Range
144 - 438 MHz
Polarization
Linear
RF Power Handling
2W
Discover
2500
MODULES IN ORBIT
50
DELIVERED SATELLITES
200
TB DATA DOWNLINKED
