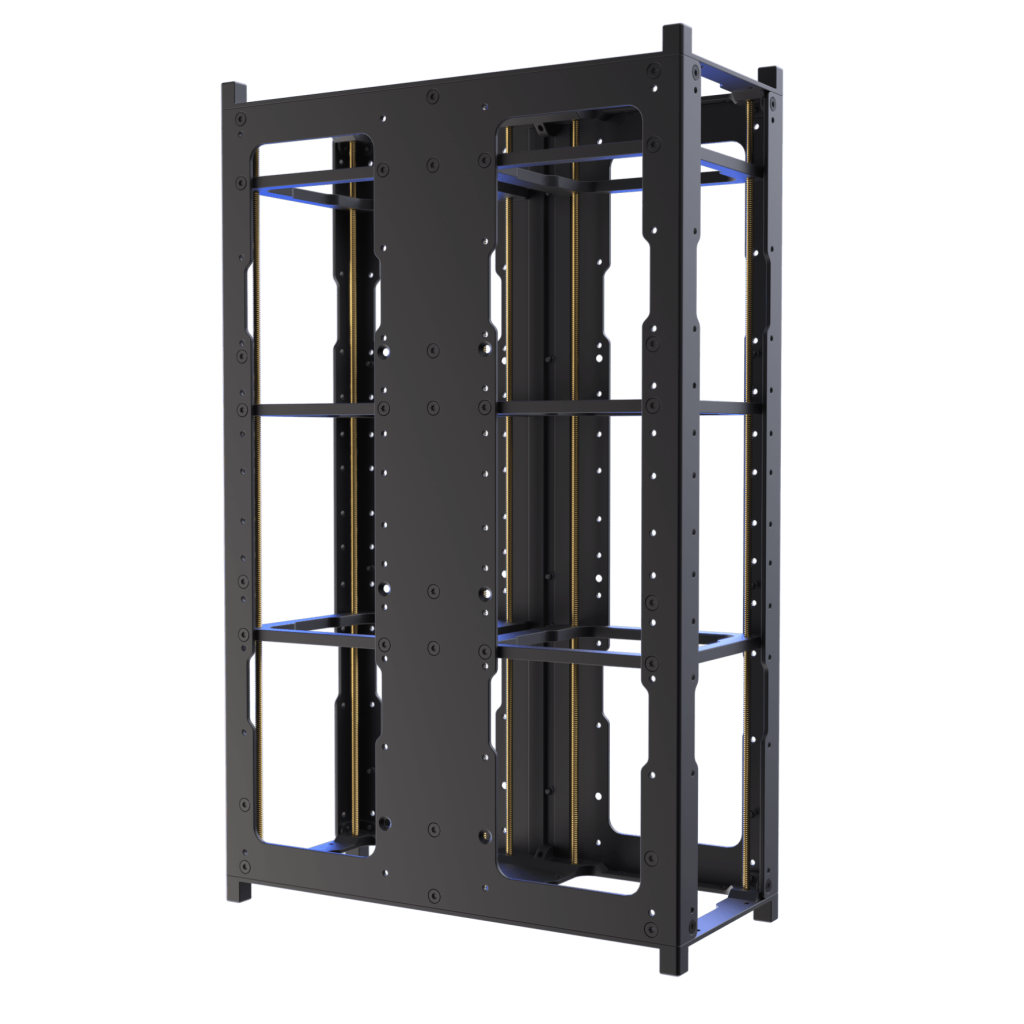

6U XL CUBESAT STRUCTURE

Simplicity and Precision
Cad file & datasheet
€ 6,400
buy
buy
flight heritage badge state of the art report badge
Cad file & datasheet
€ 6,400
buy
buy
<1 kg
LIGHTWEIGHT DESIGN
FINISH
HARD-ANODIZED SURFACE
1/2
KILL SWITCHES

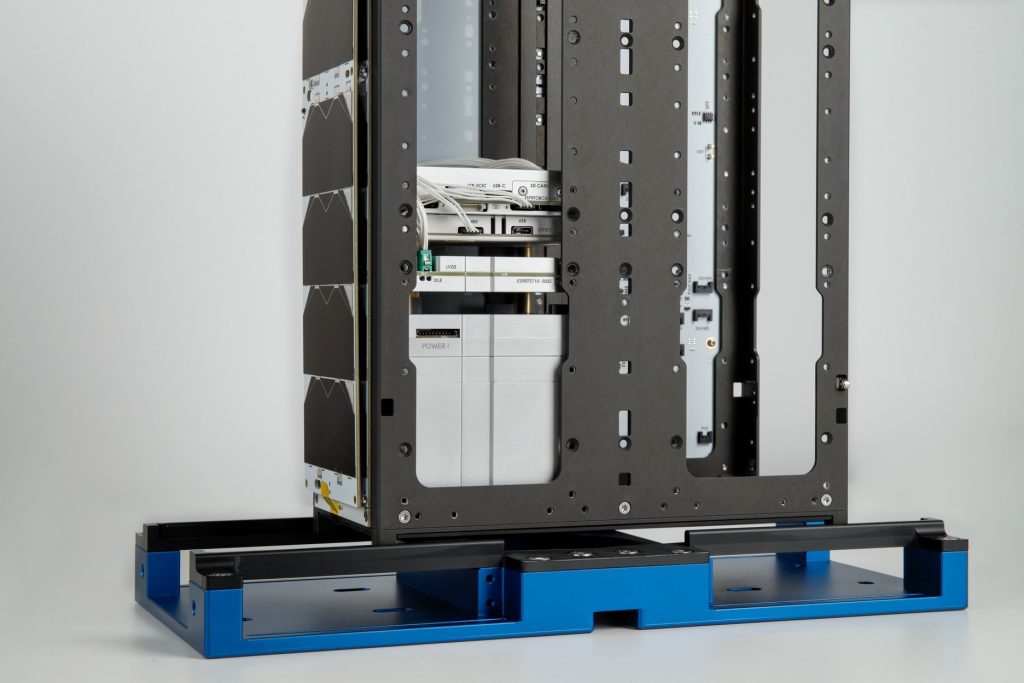

Flight-proven 6U structure

FEATURES
Dimensions
100 x 226.3 x 366 mm
Material
Aluminum 6082
Mass
850 g (including fasteners, kill switches and 2 mounted rings)
Compliance
PC104 full compliance, CubeSat Standard
6U CubeSat Structure Web render 4
Simplicity and Precision

Included

Complete User Manual
1 hour engineering support
Delivery cost
Handling and administration costs
Flight-proven robust 6U structure
6U CubeSat Structure Web 18

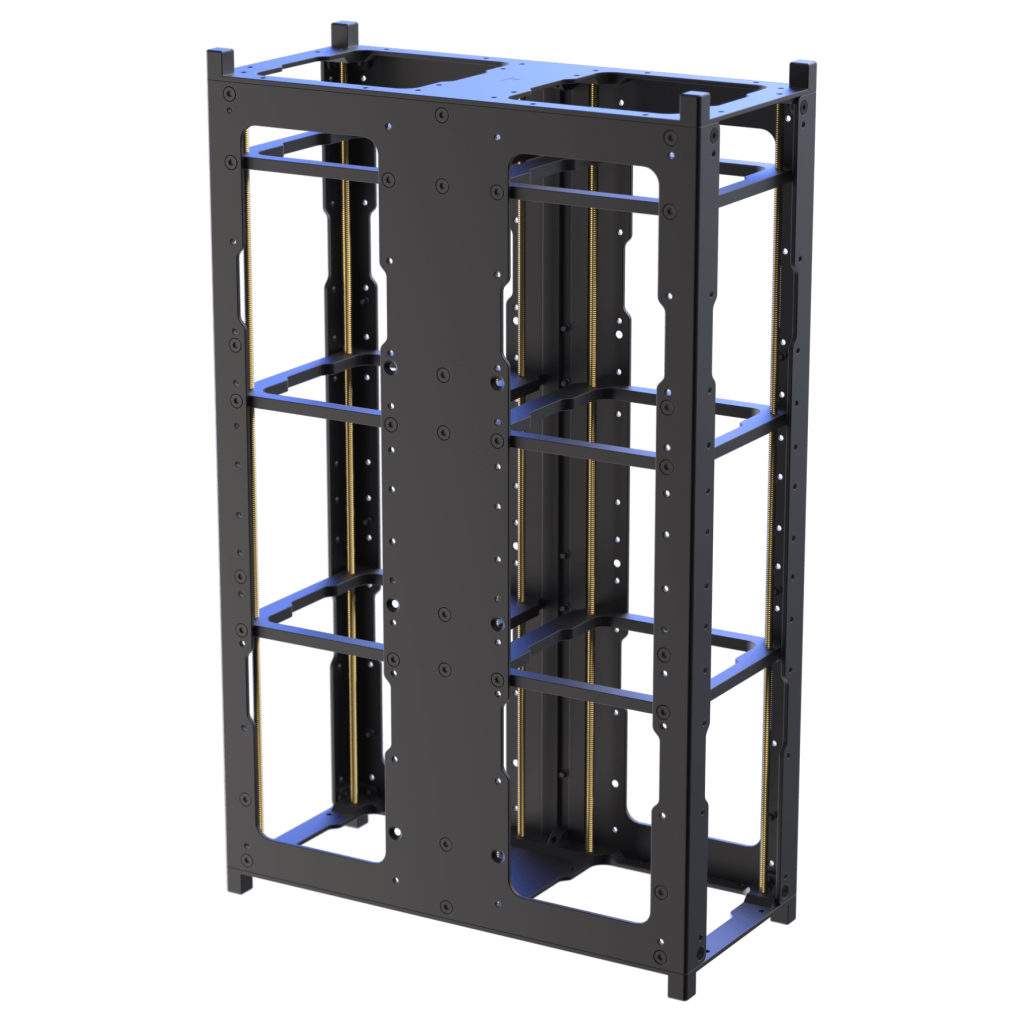

6U CubeSat Structure Web render 1

Simple modular design for easy assembly both vertically and horizontally

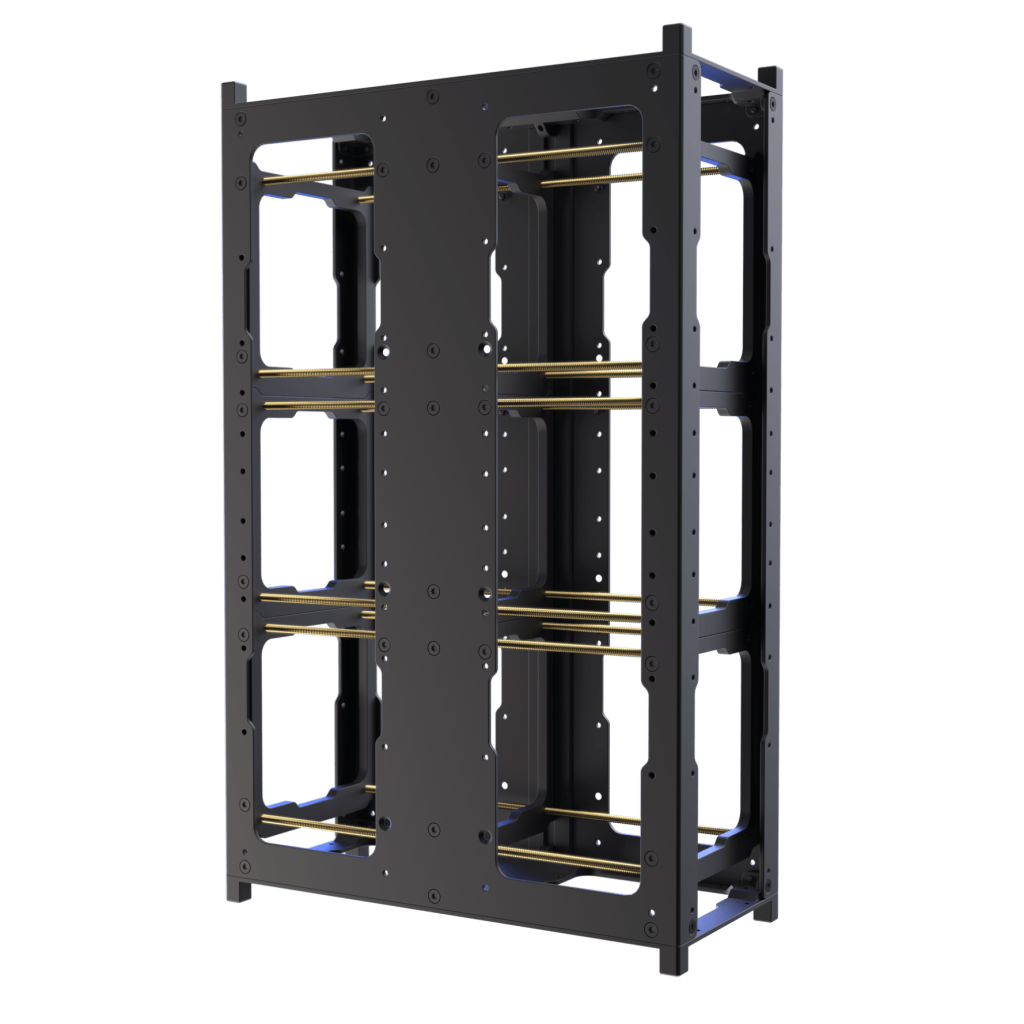

6U CubeSat Structure Web render 2

Four kill switches option

6U CubeSat Structure Web render 5 e1710935410664

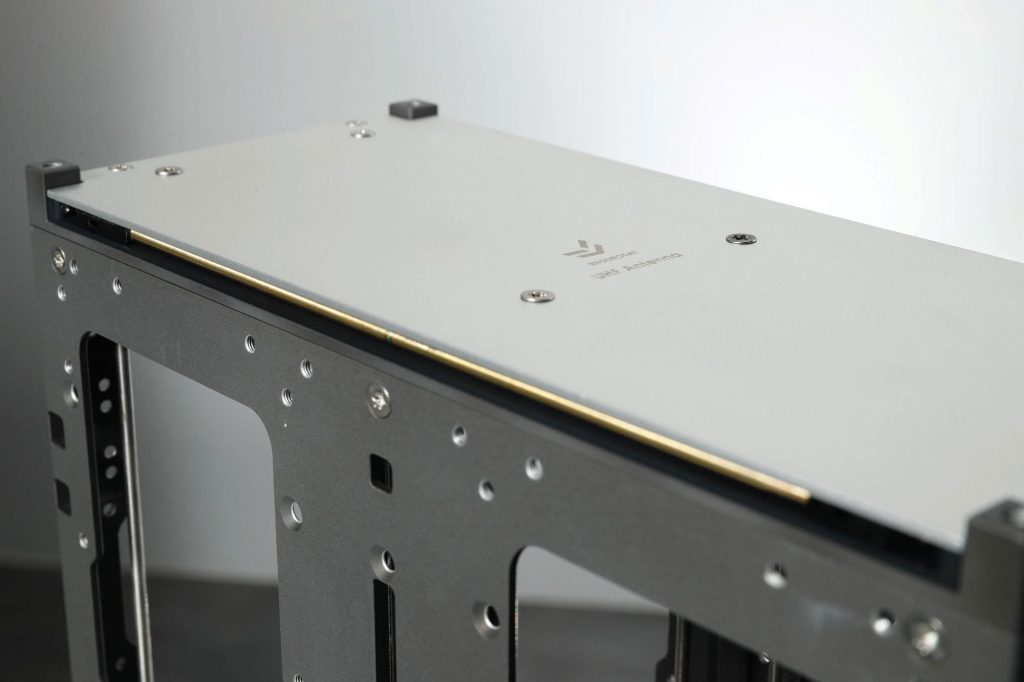

Pearl-finished & hard anodized

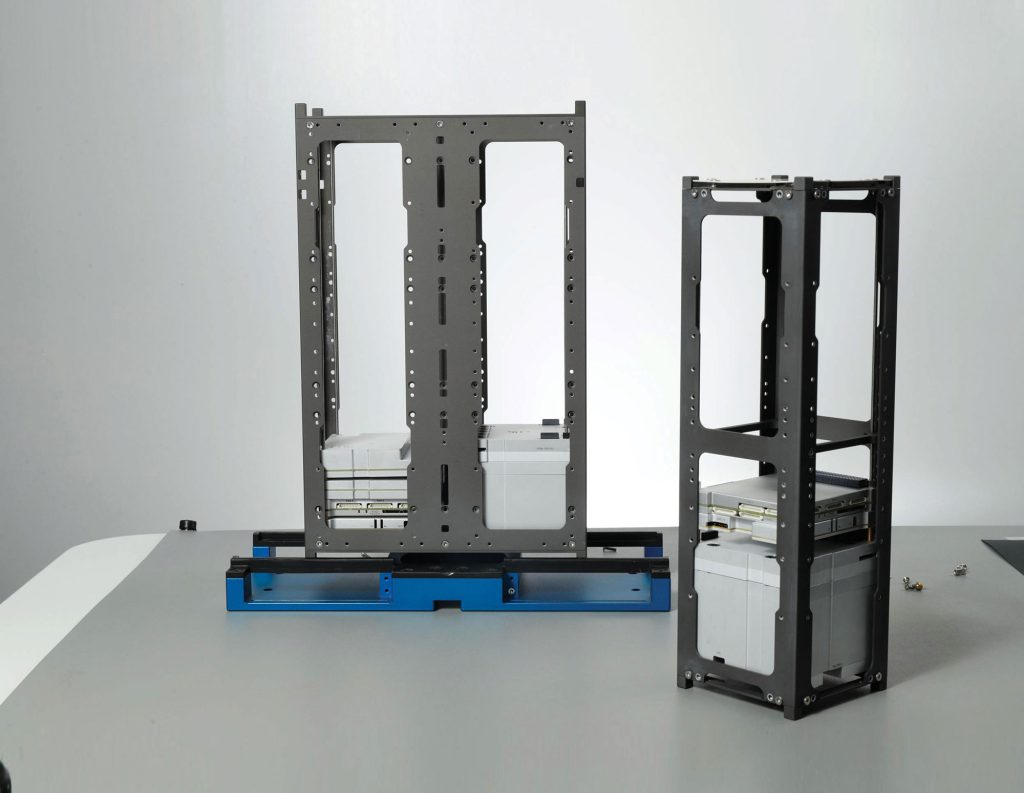

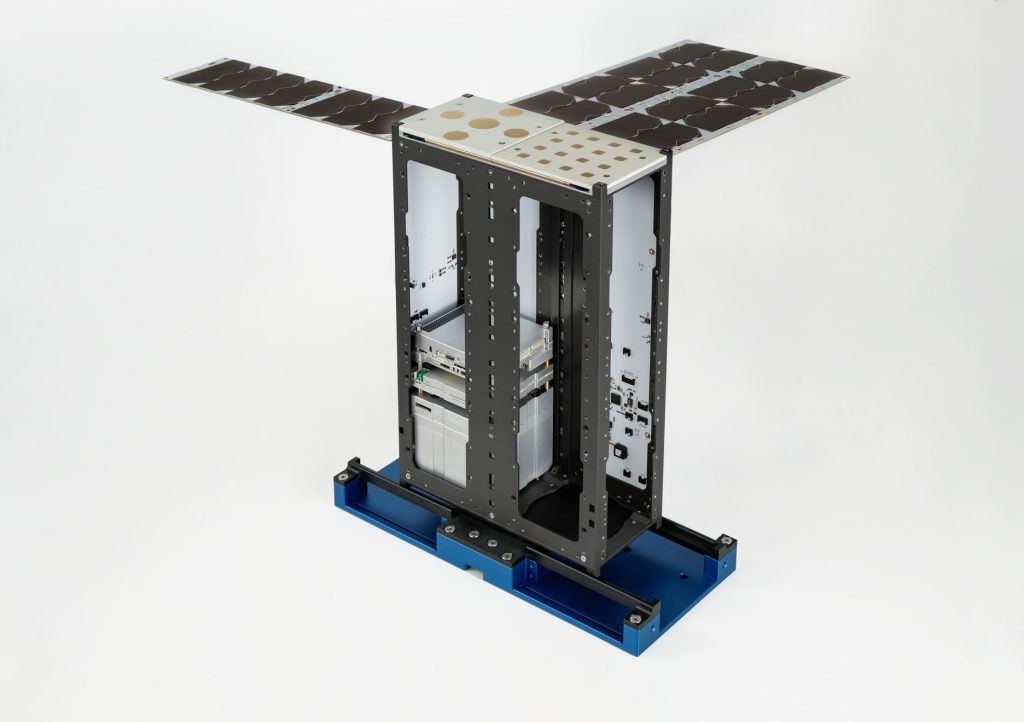

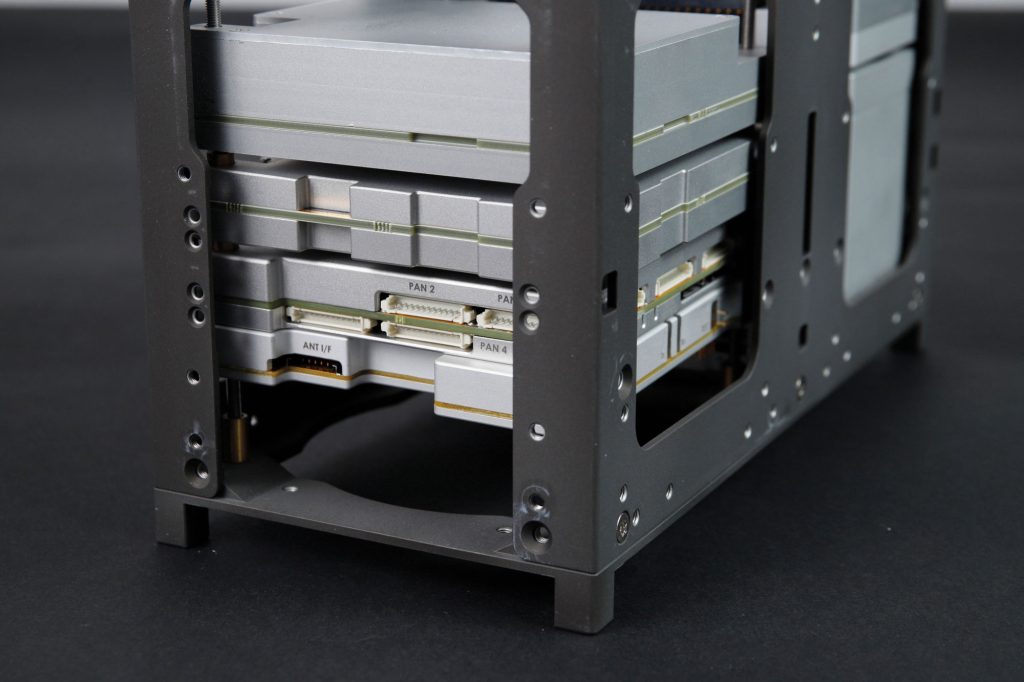

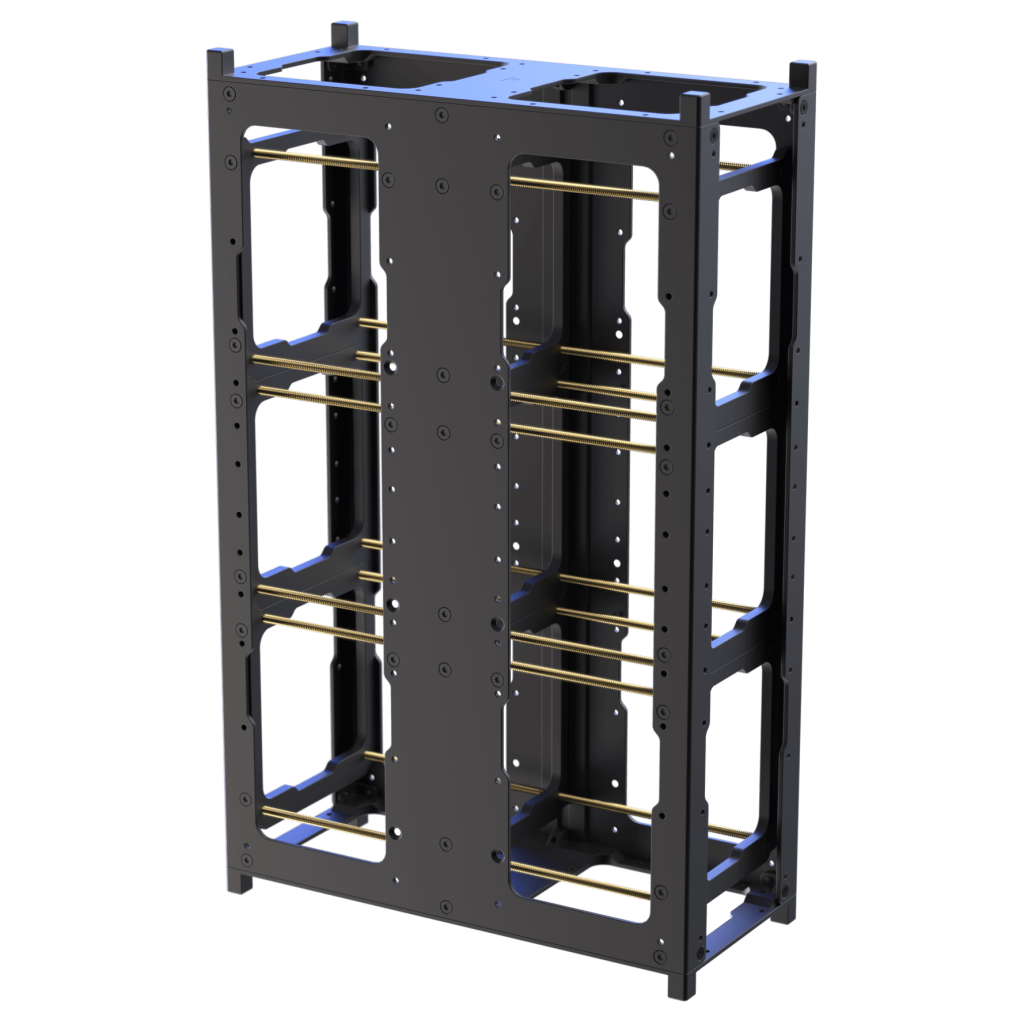

PRODUCT GALLERY
6U CubeSat Structure Web 4
6U CubeSat Structure Web 2
6U CubeSat Structure Web 5
6U CubeSat Structure Web 18
6U CubeSat Structure Web 17
6U CubeSat Structure Web 10
6U CubeSat Structure Web 14
6U CubeSat Structure Web 13
6U CubeSat Structure Web 16
6U CubeSat Structure Web 6
16U Structure
16U
Dimensions
226.3 x 226.3 x 454 mm
Material
Aluminum 6082
Mass
< 3 kg
Discover
12U Structure
12U
Dimensions
226.3 x 226.3 x 366 mm
Material
Aluminum 6082
Mass
2.44 kg
Discover
8U Structure
8U
Dimensions
100 x 226.3 x 454 mm
Material
Aluminum 6082
Mass
1.3 kg
Discover
3U Structure
3U
Dimensions
100x100x340.5 mm
Material
Aluminum 6082
Mass
340 g
Discover
1.5U Structure
1.5U
Dimensions
100x100x170.2 mm
Material
Aluminum 6082
Mass
152 g
Discover
1U Structure
1U
Dimensions
100x100x113.5 mm
Material
Aluminum 6082
Mass
120 g
Discover
