Reliable communication

UHF Antenna 2U

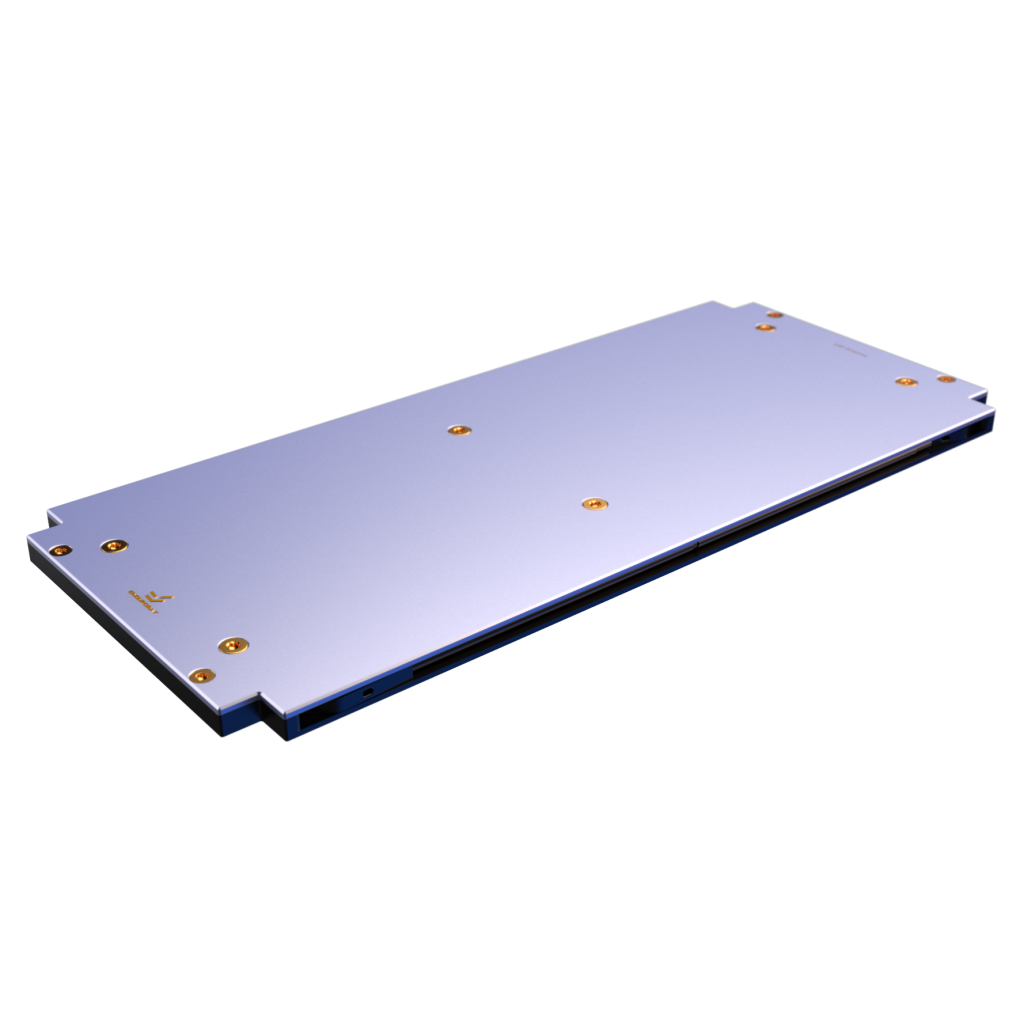

Deployable 2U UHF antenna fully compliant with the 6U CubeSat standard

endurosat-2u-uhf-cubesat-antenna-1-22

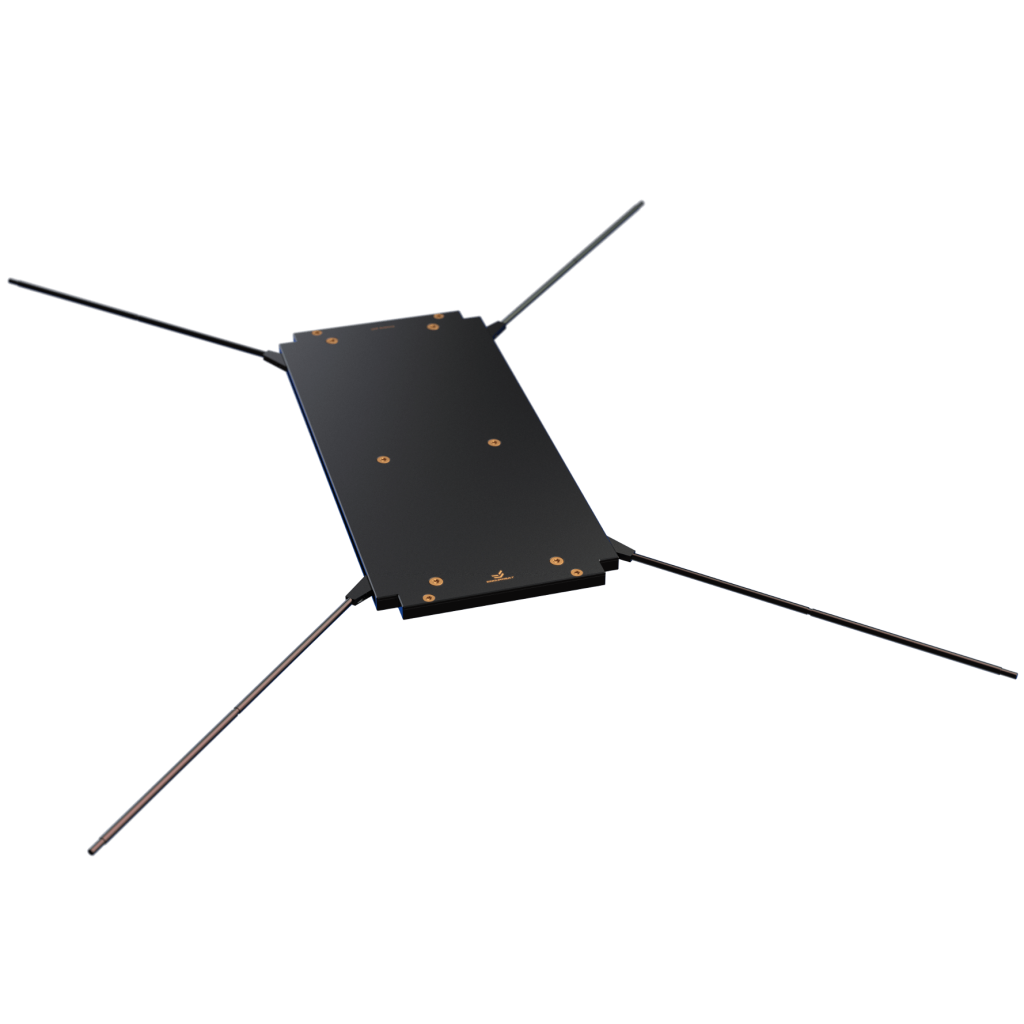

Deployable 2U UHF antenna fully compliant with the 6U CubeSat standard

3Xredundant burnwire
mechanism
H/VLinear
polarization
0+dBi
gain

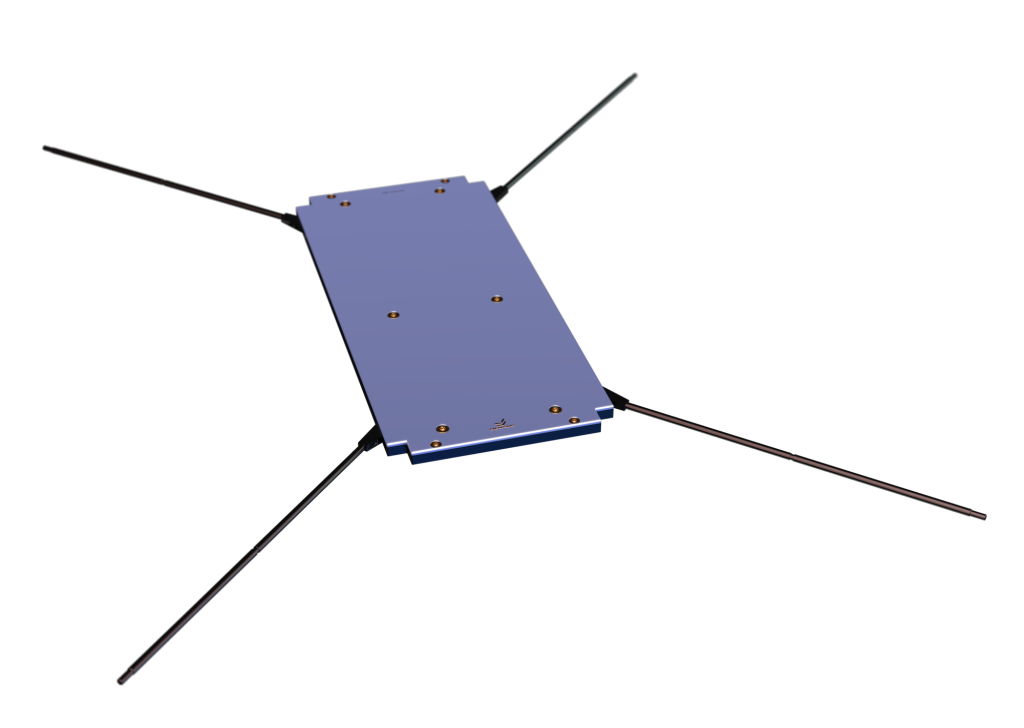

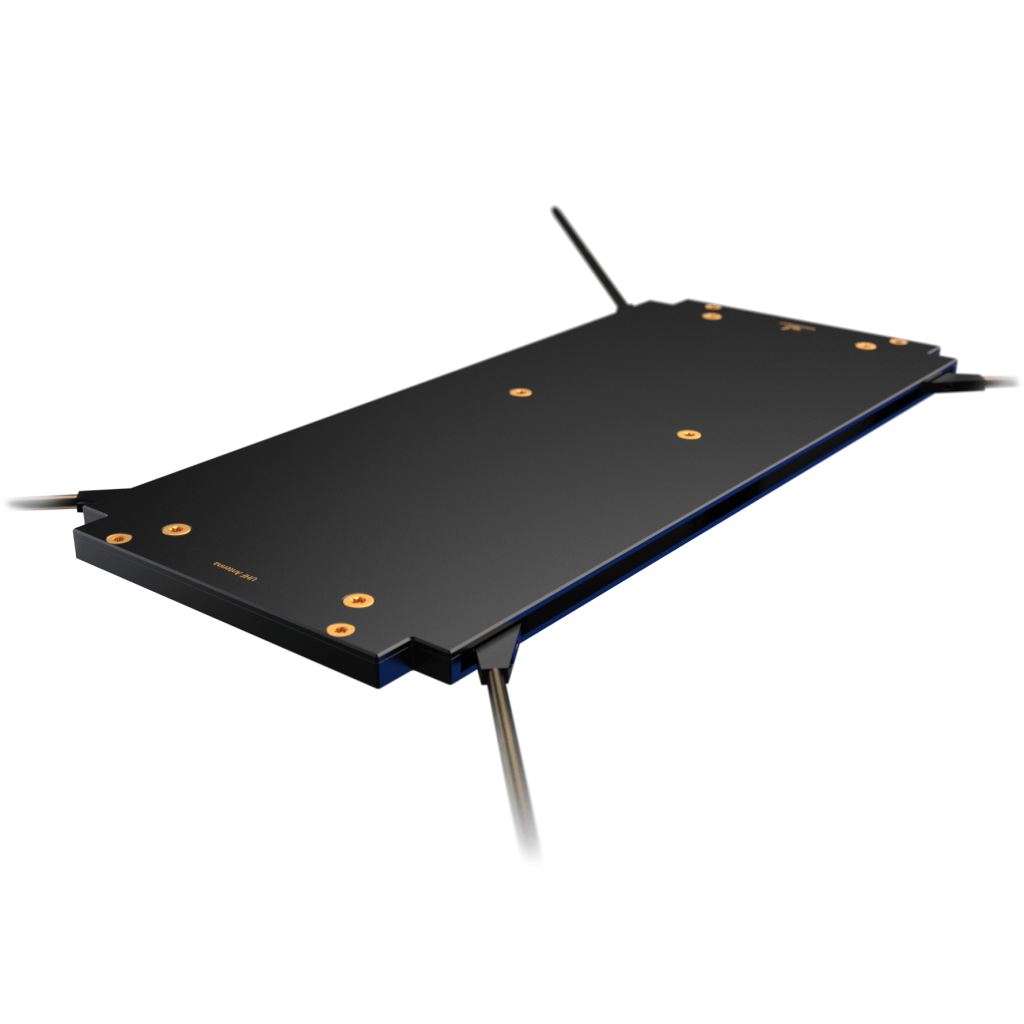

Triple redundant burnwire mechanism with feedback - based on flight-proven technology

endurosat-2u-uhf-cubesat-antenna-2-22

Deployment redundancy

Our Antenna: Tripple

Industry: Double

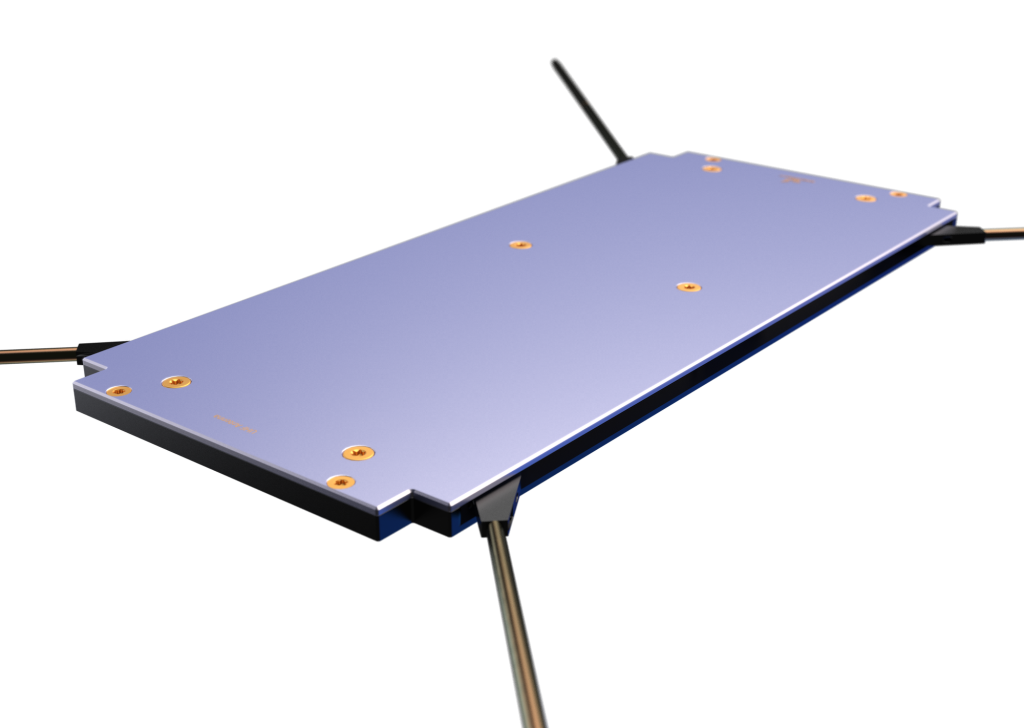

Circularly polarized for better reception

endurosat-2u-uhf-cubesat-antenna-3-22

Applications

Telemetry and telecommanding (TMTC) iconTelemetry and Telecommands (TMTC)
Communications backup iconCommunications Backup
Ground Station setup iconGround Station Setup

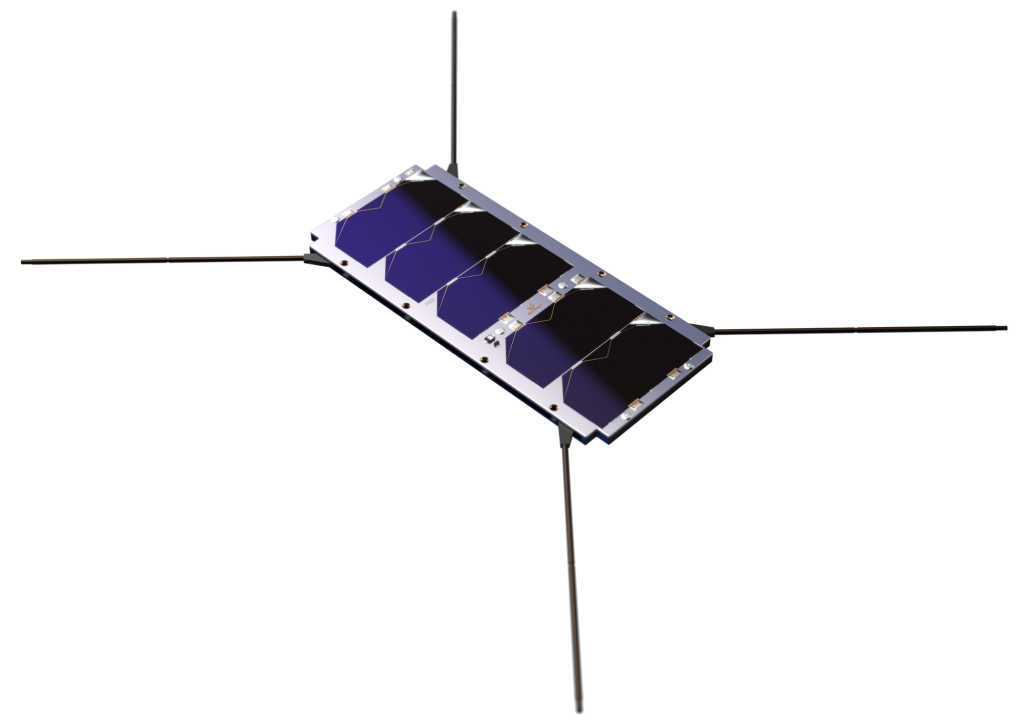

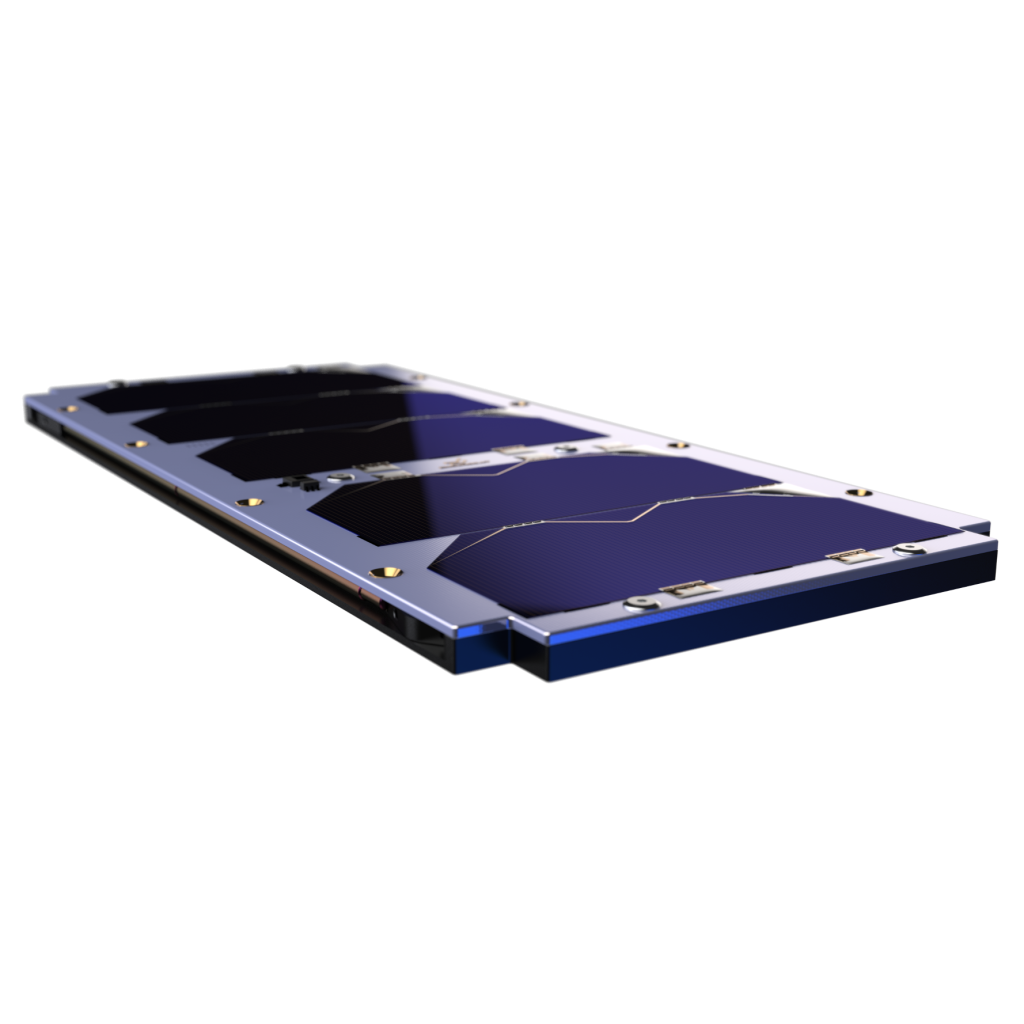

2-in-1 antenna and power system with EnduroSat’s solar panel

endurosat-2u-uhf-cubesat-antenna-4-22

Features

Amateur UHF frequency range 435-438 MHz
Commercial UHF frequency range 400-403 MHz
VHF frequency range 144-148 MHz
Type Omnidirectional
Gain > 0 dBi
Polarization Linear
RF Power Handling 2W
Mass 210 g
Monitoring and control interfaces RS-485, I2C, UART

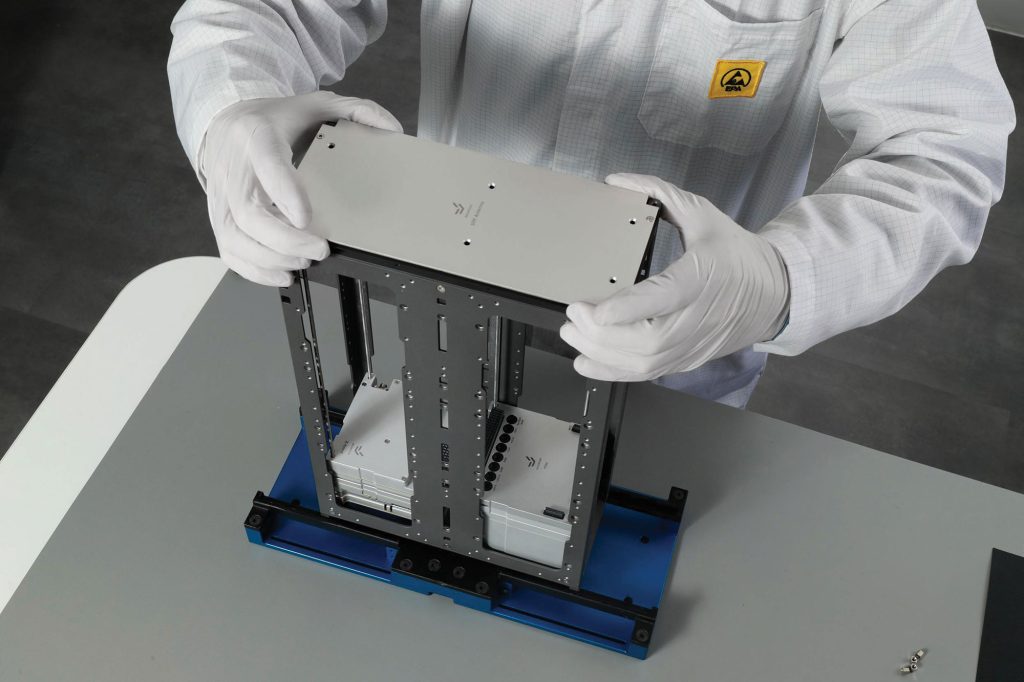

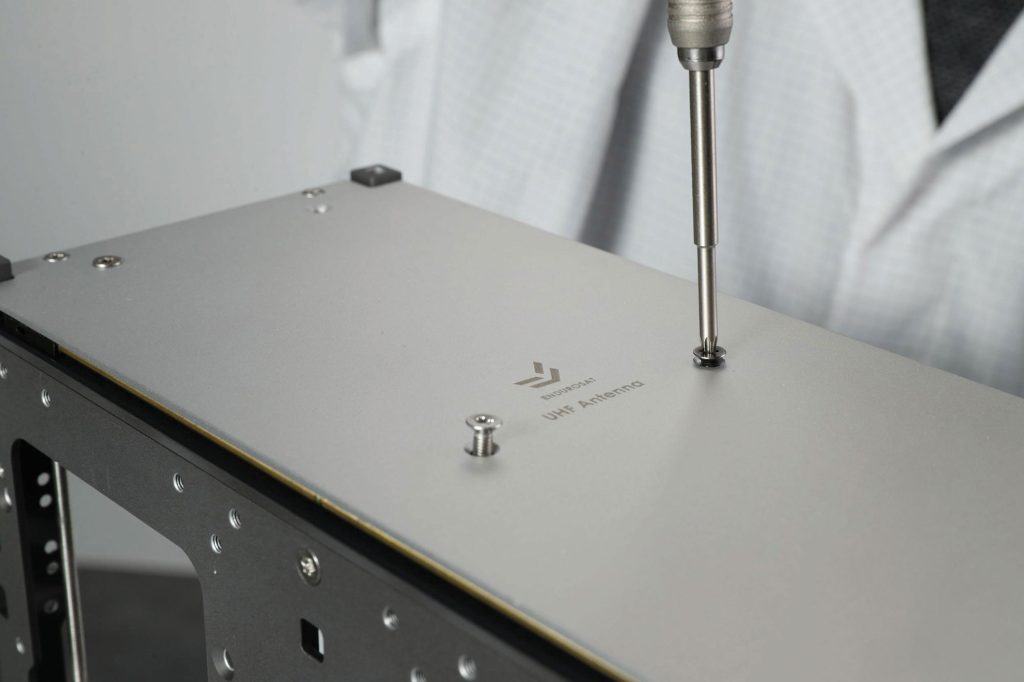

Mechanical compatibility with 6U CubeSat structures

endurosat-2u-uhf-cubesat-antenna-5-22

Included

user manual book icon Complete User Manual
included cables icon Complete set of cables
customer support icon 5h engineering support
delivery cost icon Delivery cost
handling and administration costs icon Handling and administration costs
