Payload integration made simple

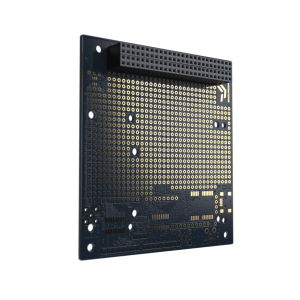

CubeSat Protoboard
A flight-proven protoboard
A flight-proven protoboard
Highcompatibility
Easyto integrate
Customconnectors

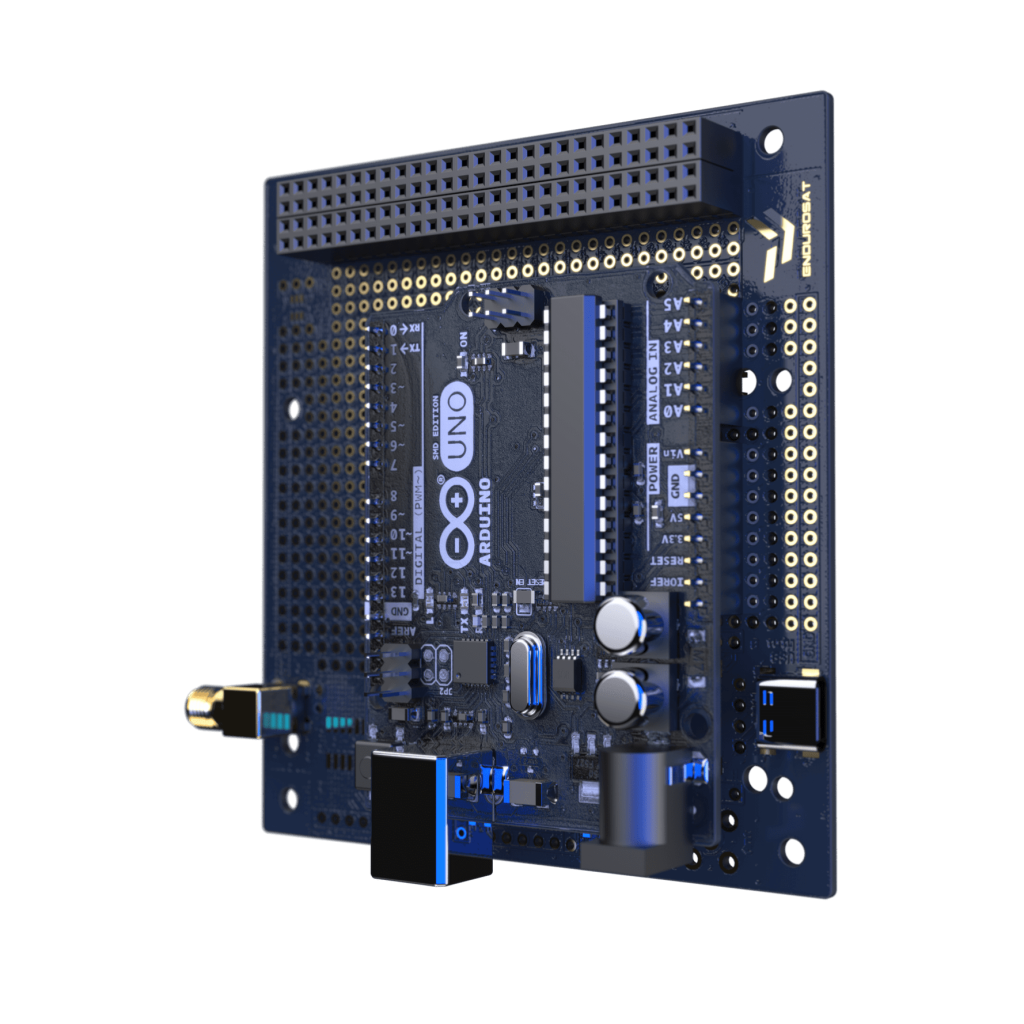

Universal footprints compatible with different RaspberryPI and Arduino versions
Available with custom RF and data connectors
Applications
Quick PrototypingRapid Payload IntegrationInterconnection BoardExtremely lightweight and robust
Features
| Compatibility | PC104 form-factor |
| Prototype area | standard spacing of 2.54 mm (100 mils) |
| Power | 3.3 V, 5 V and GND pins |
| Mass | 28 g |
| PC104 type | 104 Pins CubeSat Kit Connector |
| Other options | Available with machine-soldered 104 Pins Samtec connectors |
CubeSat standard compliant
Included
PC104 pinout scheme
