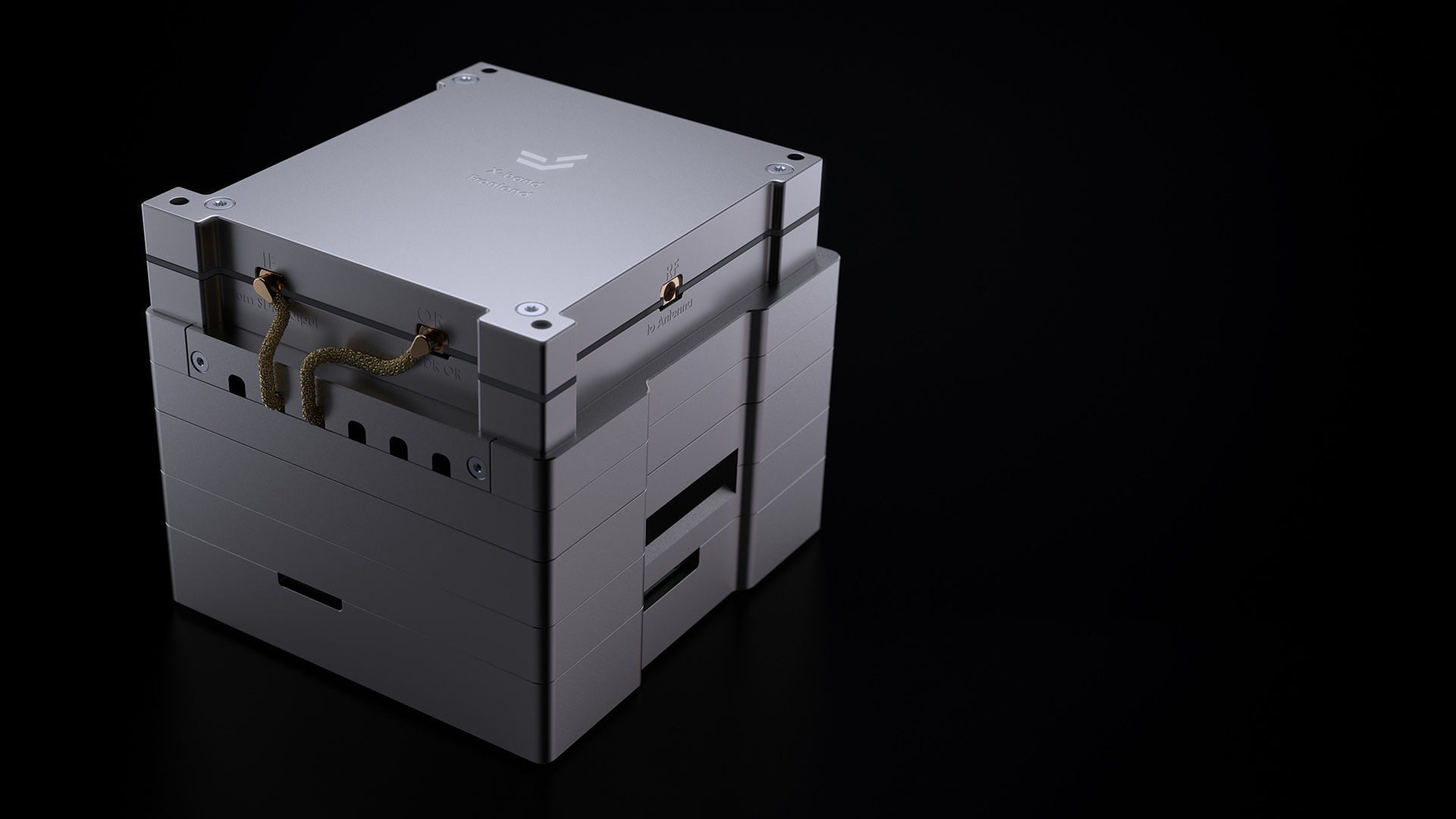

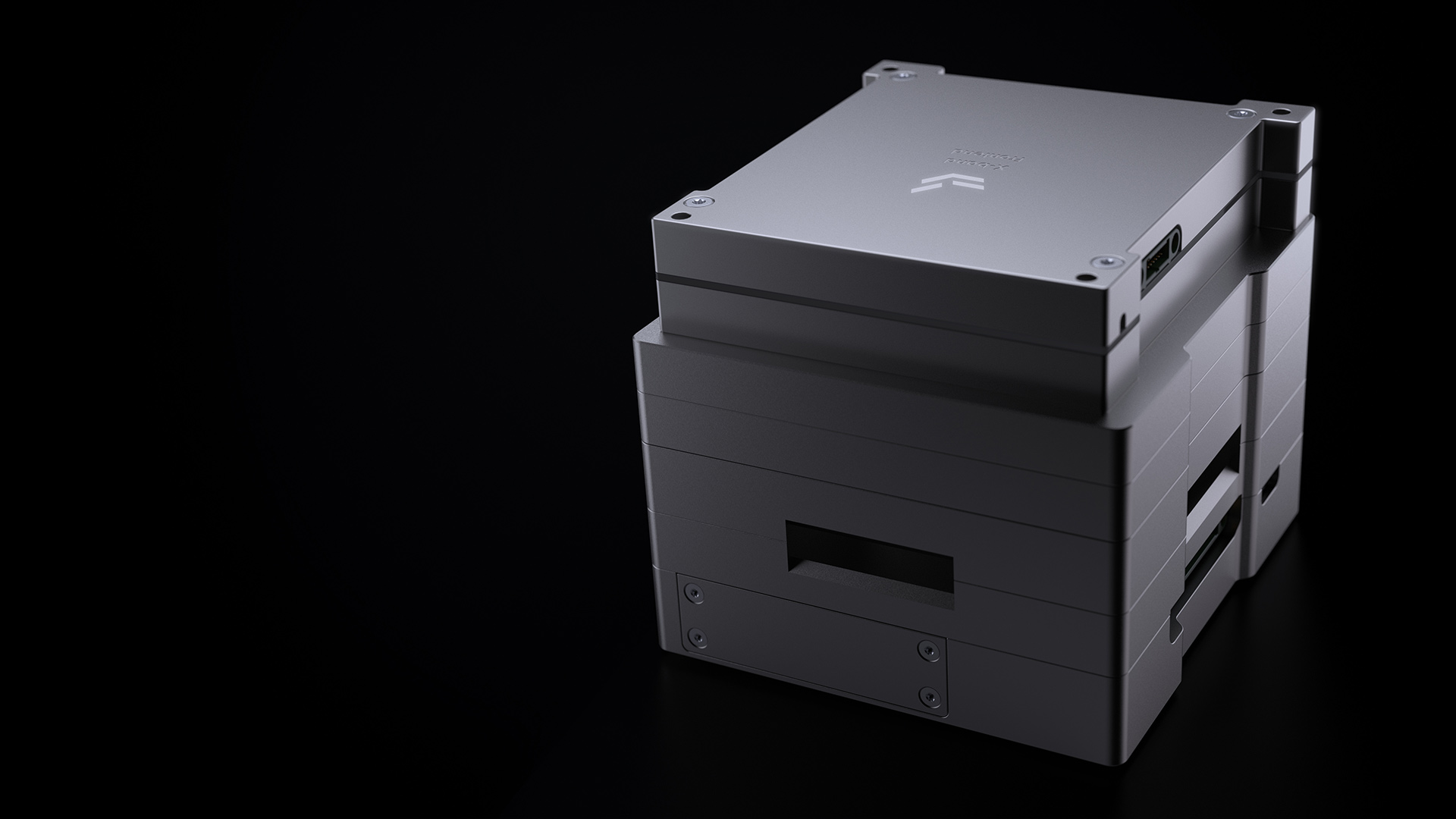

X-Band Software Defined Radio

High-speed transmitter for CubeSats and SmallSats
Cad file & datasheet
Add
Add

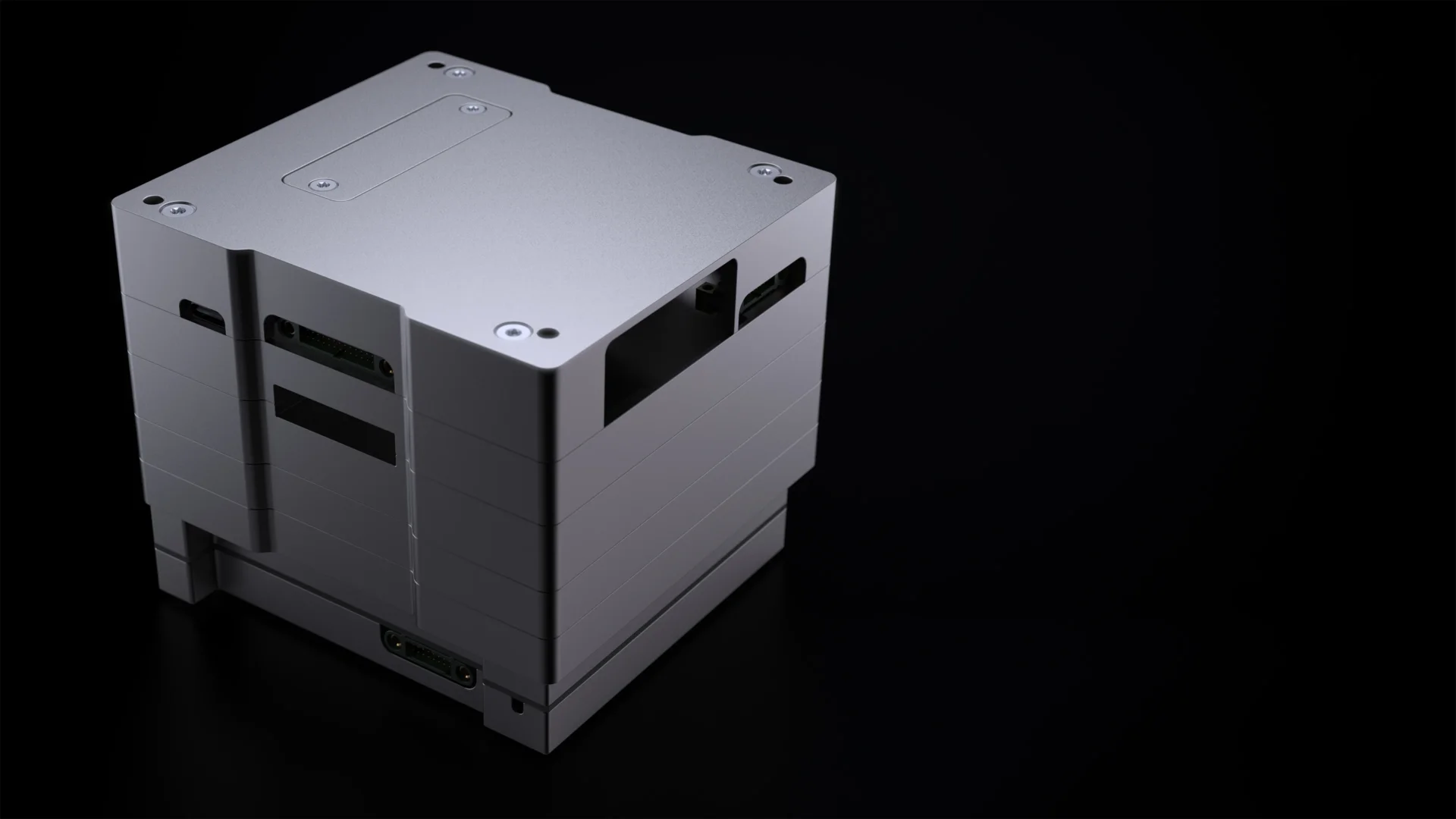

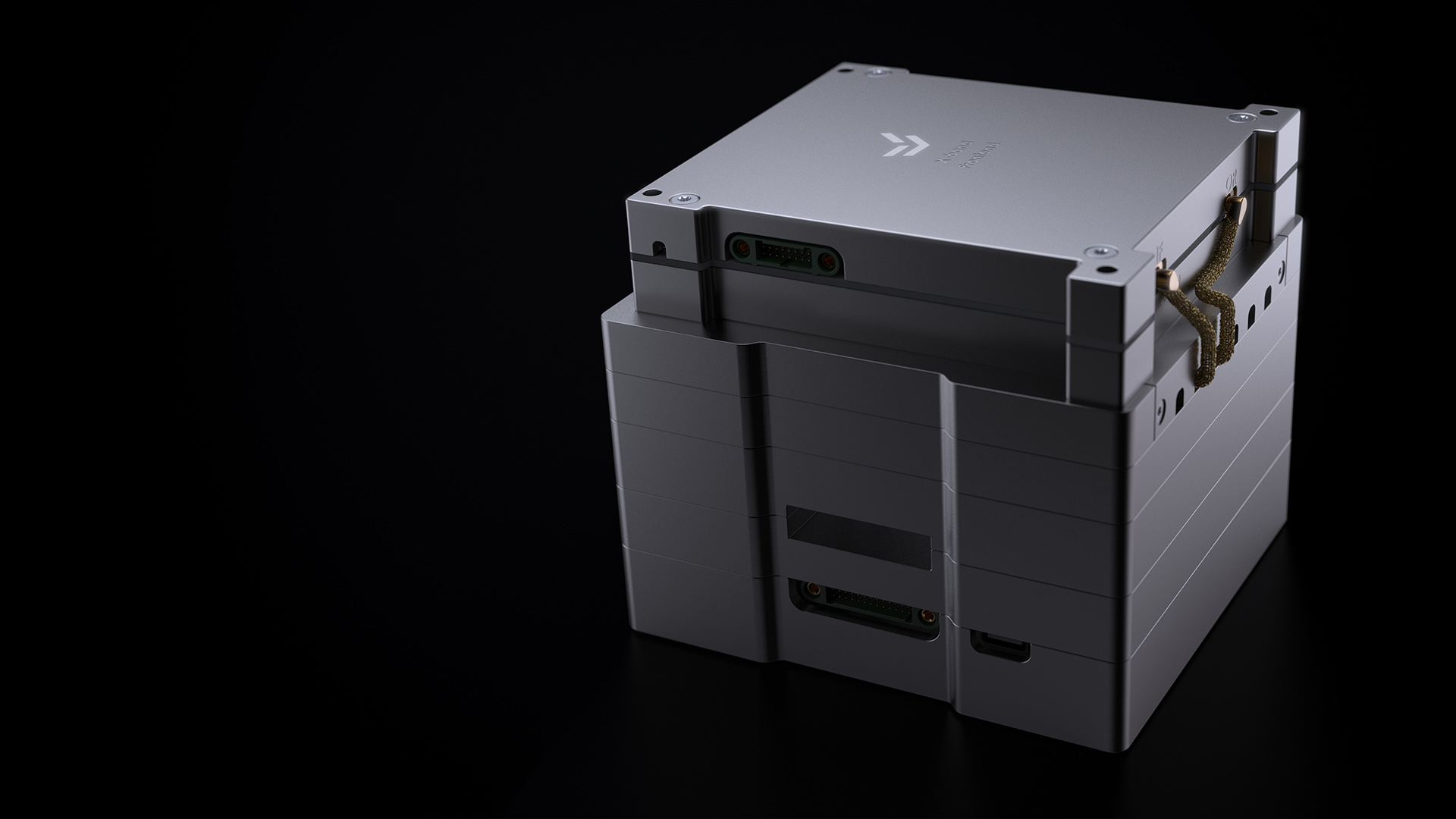

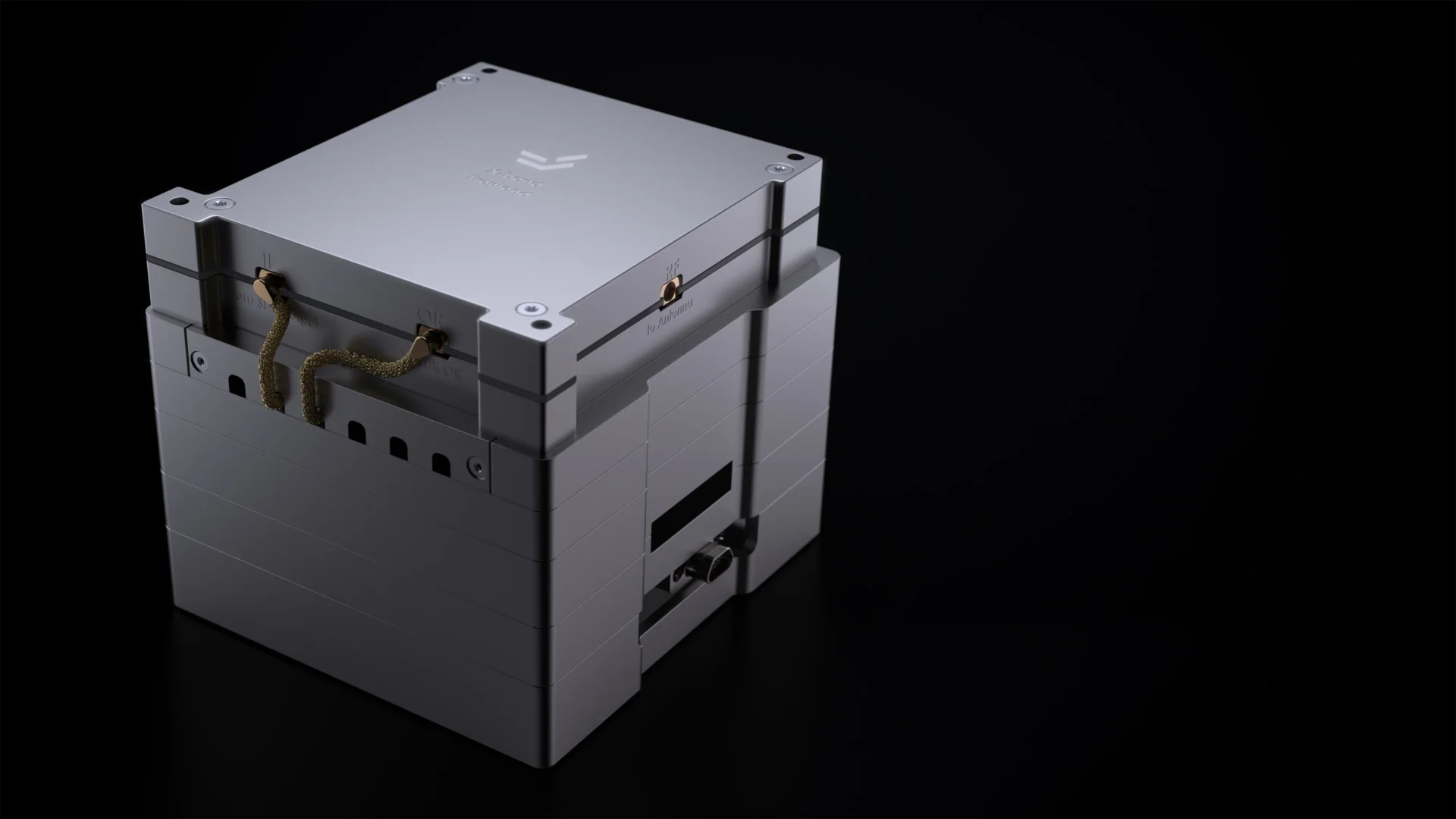

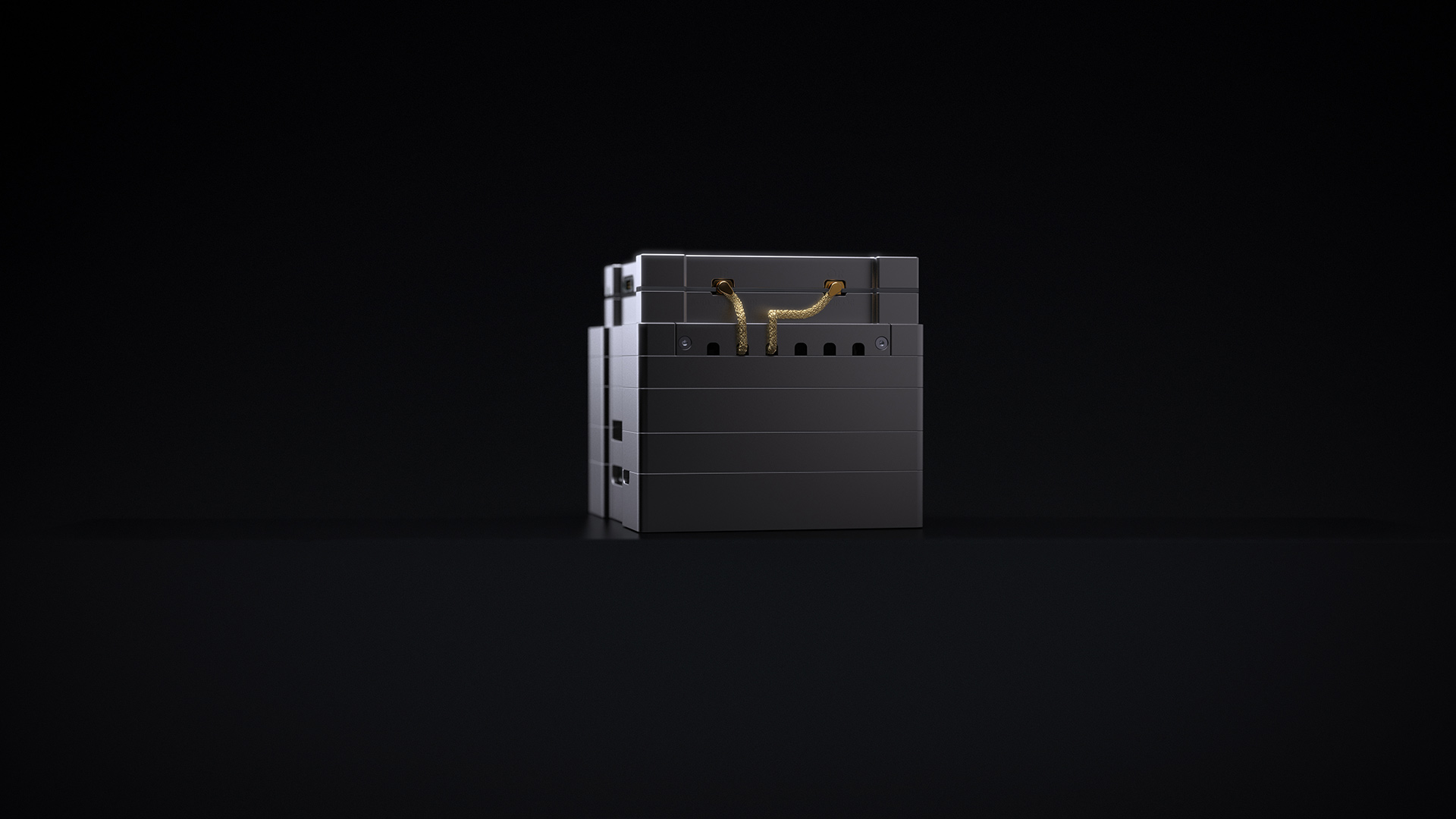

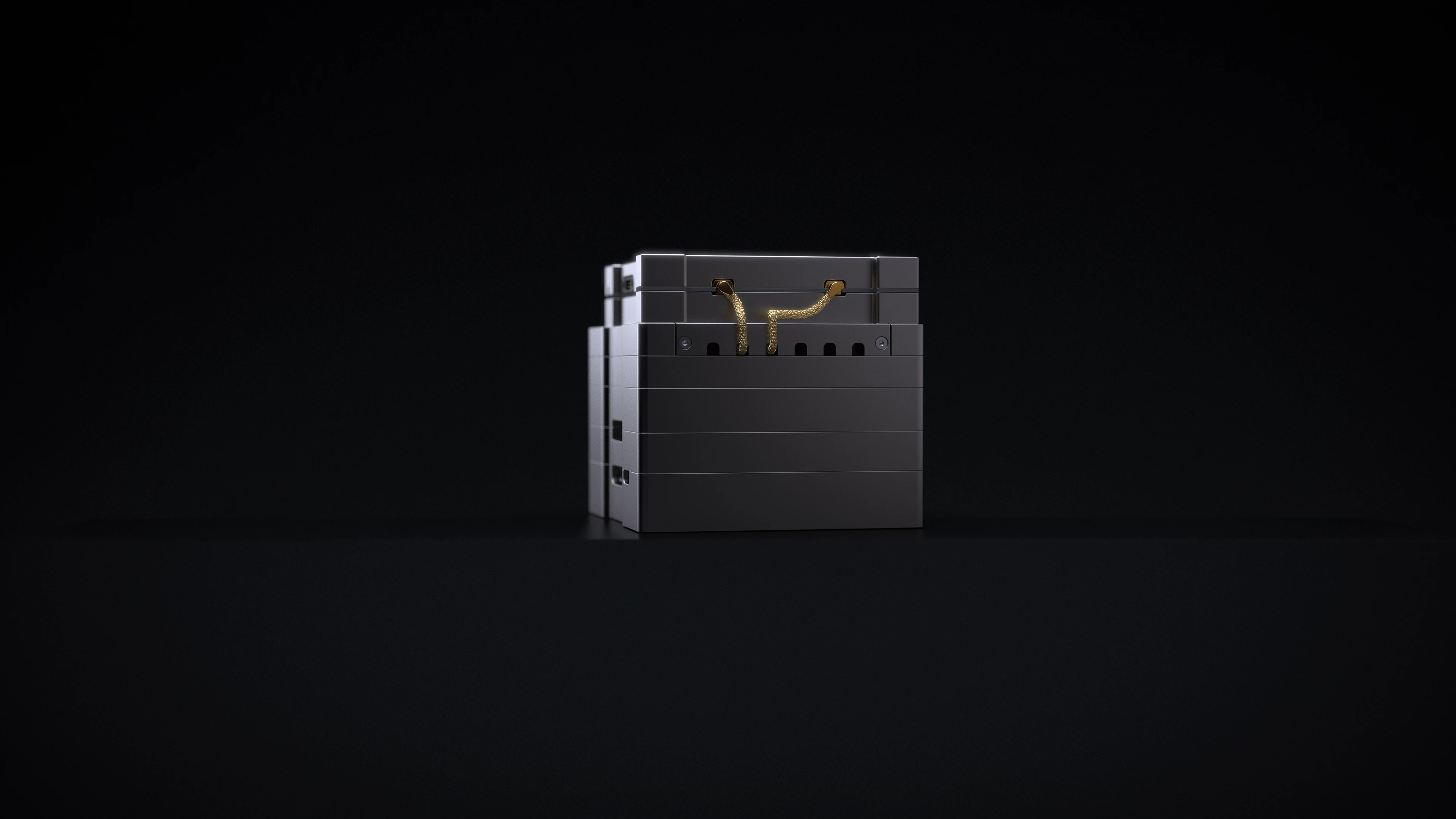

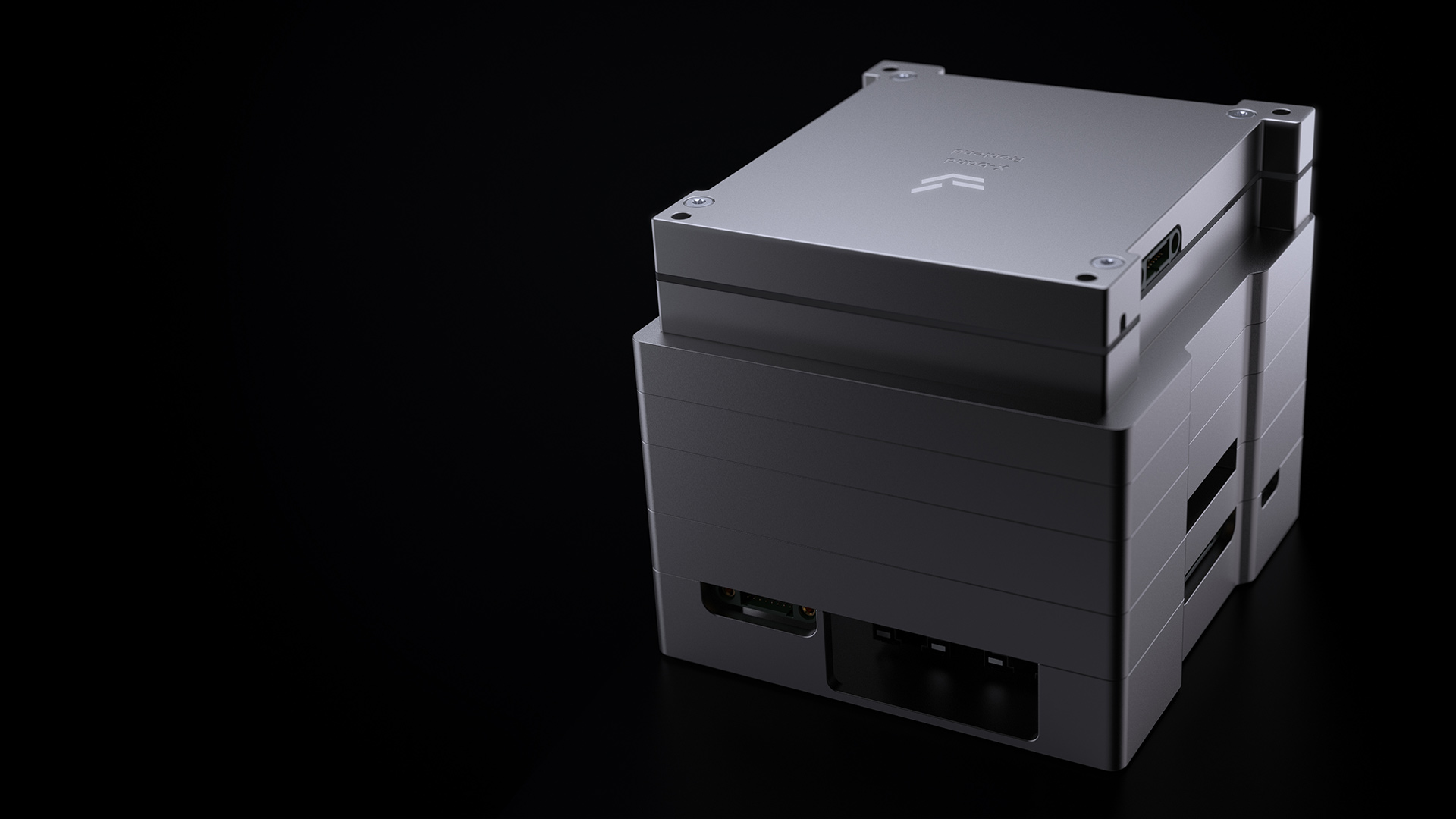

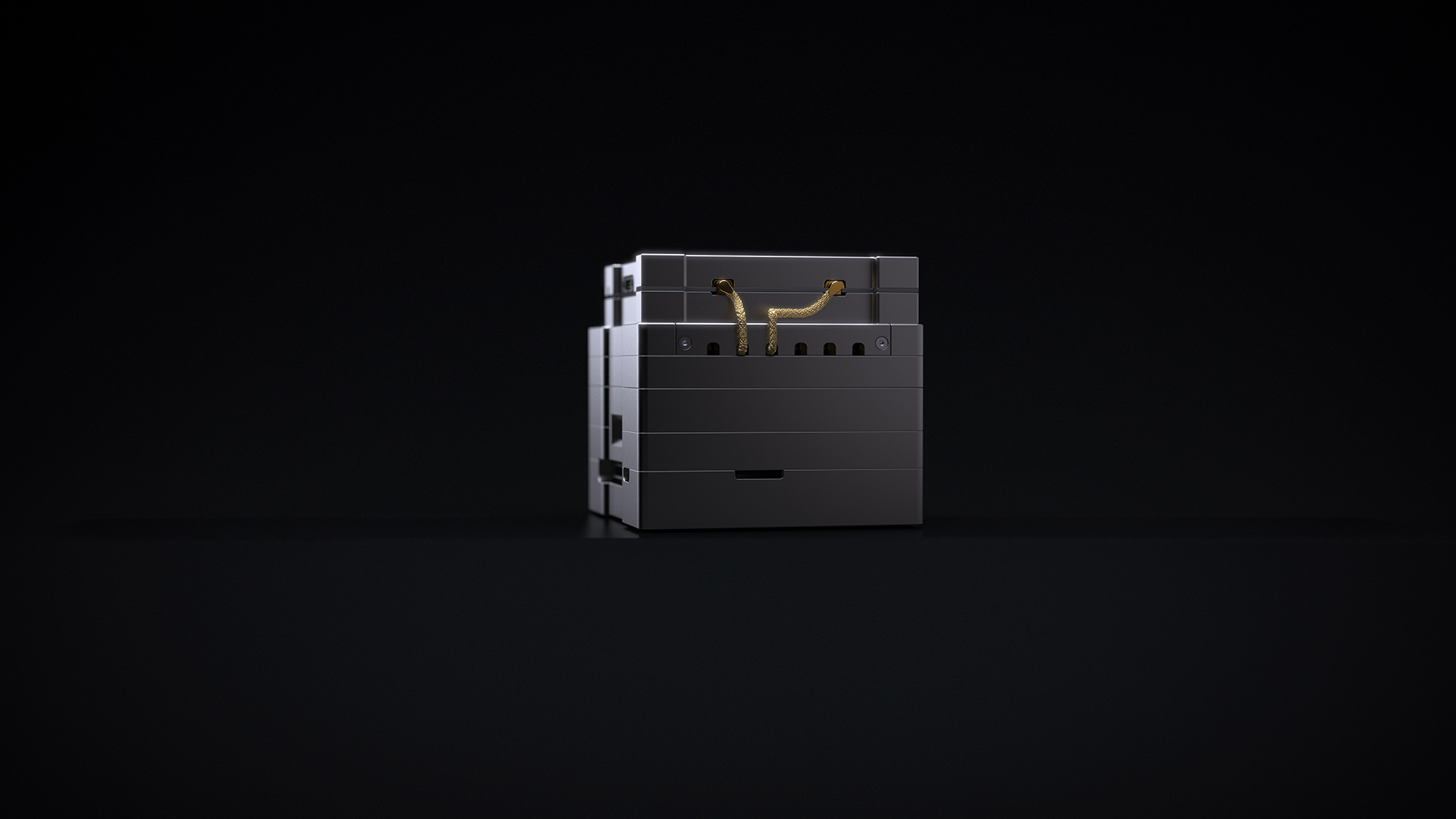

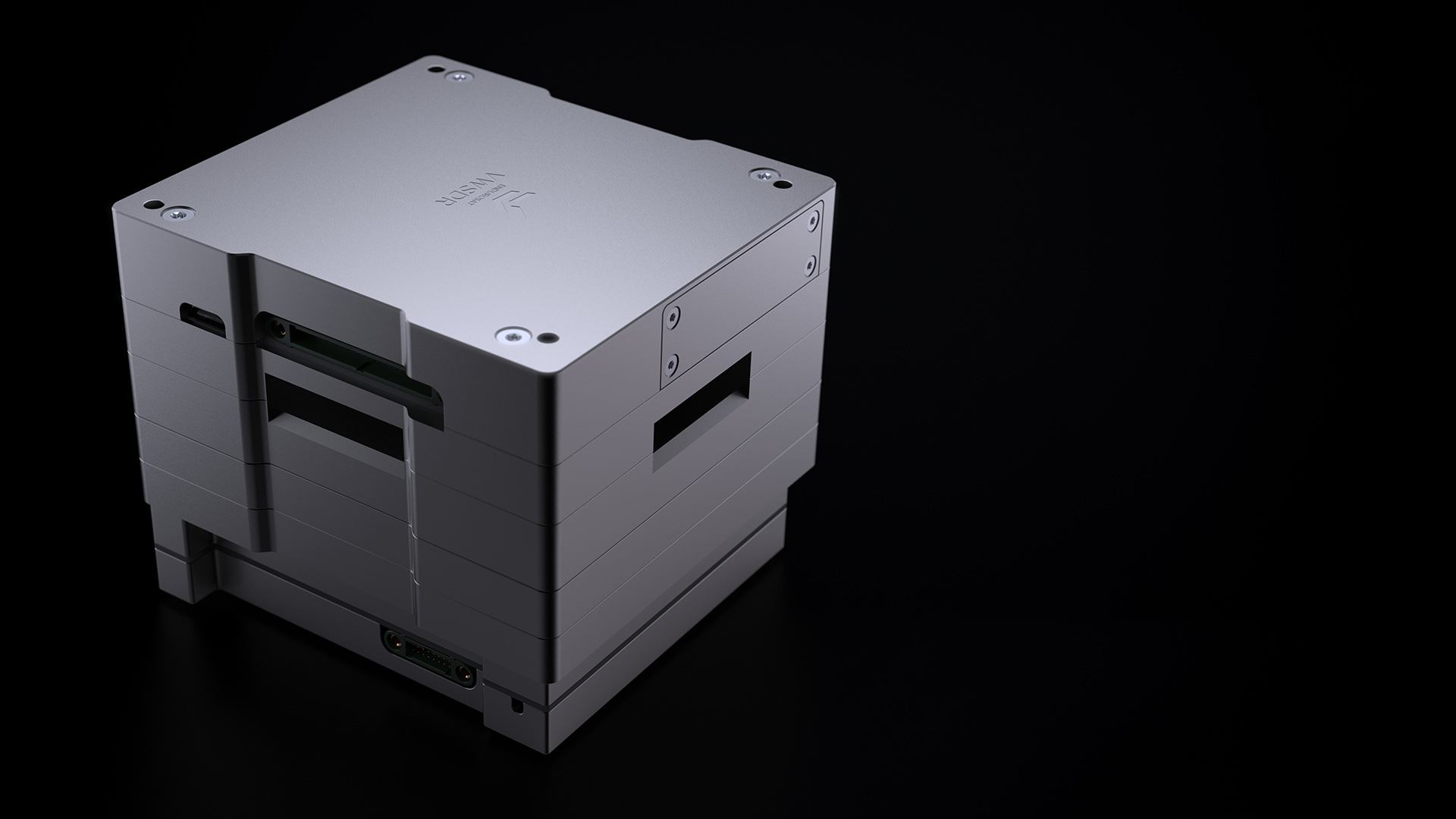

X-Band Software Defined Radio

Download
Cad file & datasheet
Add
Add
1+ GBPS
GROSS DATA RATE
DVB-S2X
ENCODING
122 MSPS
SYMBOL RATE

Adjust data rates & output power for varying operational environments

Space-qualified X-band transmitter for data-intensive payloads

TECHINCAL SPECS
Frequency Range
75 to 6000 MHz
Tx Modulations (DVB-S2X)
(DVB-S2X): up to 256-APSK + VLSNR MODCODs
Rx Demodulations
CCSDS compliant
Maximum Gross Datarate
1+ Gbps
Modulation Interfaces
3 dBm (carrier)
RAM
4 GB DDR4 + ECC
Non-Volatile Memory
QSPI NOR Flash
Mass Storage
up to 160 GB eSSD with ECC and CRC
Wide Power Supply Range
12 to 28 V
Control Interfaces
CSP 2.0 over CAN, Gigabit Ethernet
Data Interfaces
Gigabit Ethernet, SpaceWire over LVDS
Other Interfaces
UART, RS-485, SPI, I2C
X-Band SDR integrates seamlessly with all EnduroSat systems

Included

Complete User Manual
Sample applications in python3 / C
Linux API for command & control
Complete set of cables
5h engineering support
Delivery cost
Handling and administration costs
X-Band Transmitter with two full-duplex channels

Supports up to 256-APSK + VLSNR MODCODs

Digital pre-distorition support to ensure link margin

Up to 160 GB of non-volatile memory for file storage

SpaceWire, Ethernet and LVDS as streaming interfaces

Related Products
S-Band Transceiver
Frequency Range (Tx)
2200 to 2290 MHz (commercial
Configurable Data Rate
0.1-125 kbps
Tx Power
26-33 dBm configurable
Discover
UHF Transceiver
Frequency Range (Tx/Rx)
400 to 403 MHz or 435 to 438 MHz
Configurable Data Rate
up to 19.2 kbps
Tx Power
1 W (up to 2 W upon request)
Discover
3000
MODULES IN ORBIT
120
DELIVERED SATELLITES
200
TB DATA DOWNLINKED
All our products undergo Space Qualification, involving stringent testing under extreme conditions to ensure robustness and high performance
