X-BAND PATCH ANTENNA

High-speed connectivity for CubeSats and SmallSats
Cad file & datasheet
Select Options
Select Options
flight heritage badge state of the art report badge
Download
Cad file & datasheet
Select Options
Select Options
25%
SMALLER FOOTPRINT
6+
DBI GAIN
RH/LH
CIRCULAR POLARIZATION

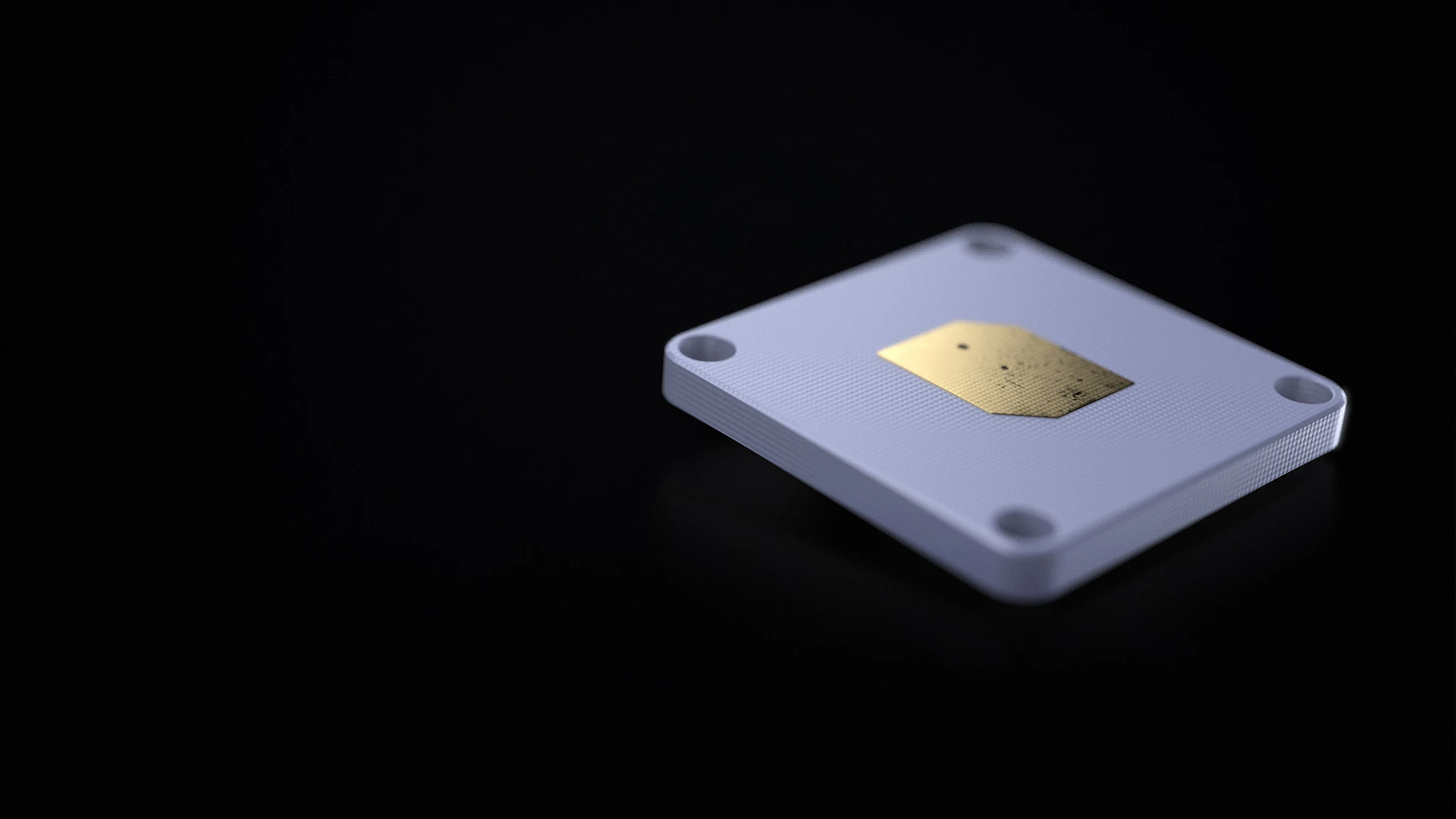

Space-qualified X-band patch antenna

PRODUCT OPTIONS

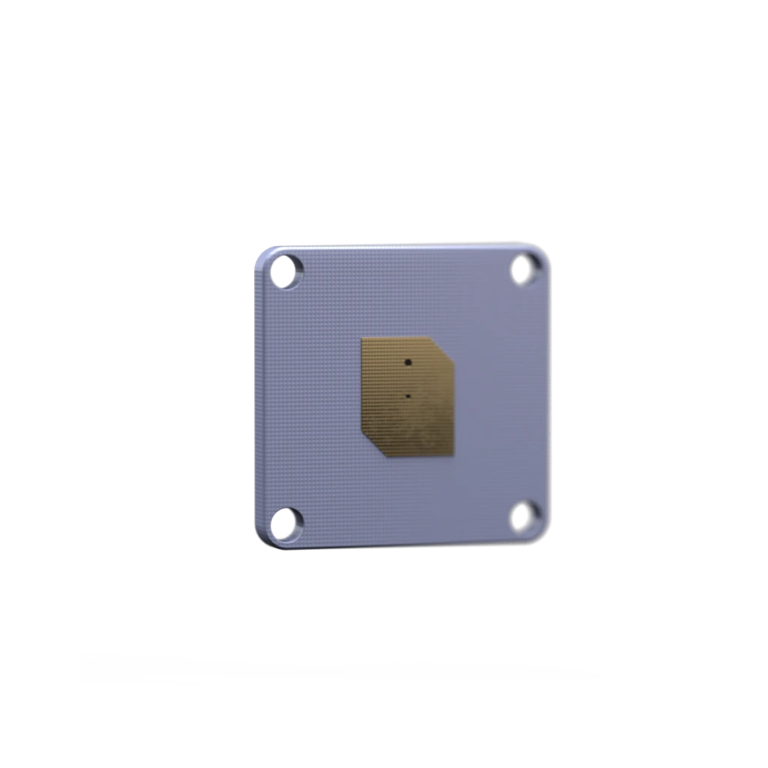

X-Band Patch Antenna
X-Band Patch Antenna
  • 6 dBi
  • 74° HPBW
  • 24 mm x 24 mm x 5.62 mm
  • 2.2 g
X-Band 2x2 Patch Array
X-Band 2x2 Patch Array
  • 12 dBi
  • 40° HPBW
  • 60 mm x 60 mm x 7.04 mm
  • 23.15 g

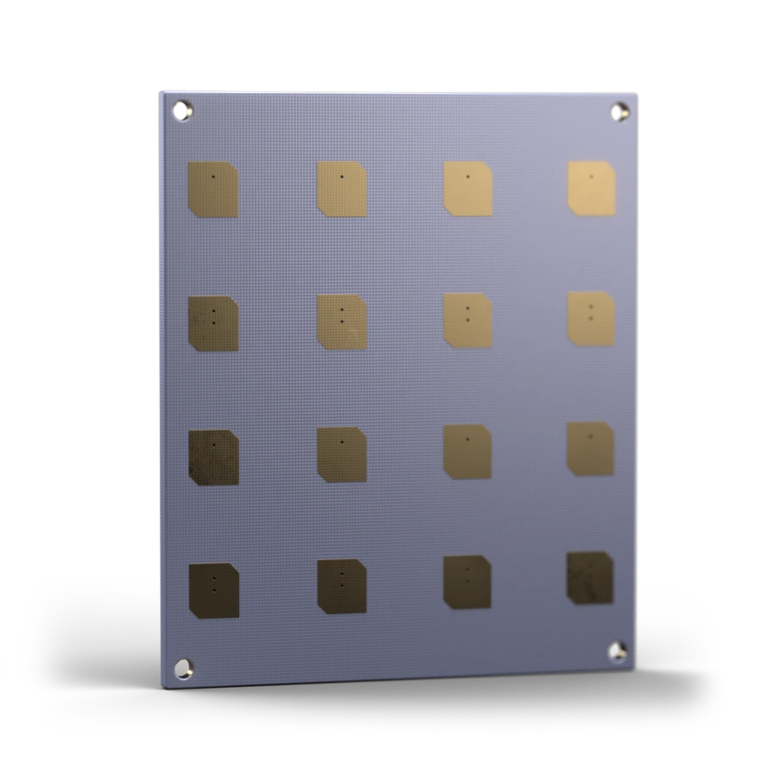

X-Band 4x4 Patch Array
X-Band 4x4 Patch Array
  • 16 dBi
  • 18° HPBW
  • 82.6 mm x 98 mm x 7 mm
  • 52.85 g
TECHNICAL SPECS
Frequency Range
8025 - 8400 MHz
RF Connector
SMP (SMA for 8x12 Array)
Mounting
X/Y or Z
Polarization
Circular with selectable rotation direction
RF Power Handling
up to 4 W
X Band Patch Antenna web render 1 4 1
High-speed connectivity for CubeSats and SmallSats

Included

Complete User Manual
5h engineering support
Delivery cost
Handling and administration costs
Space-qualified X-band patch antenna

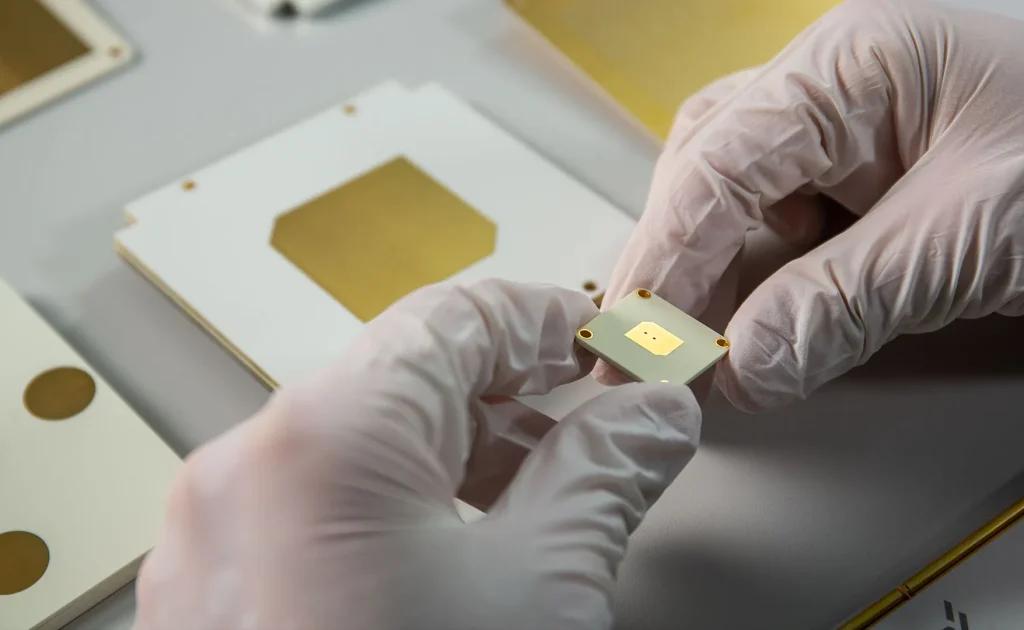

X Band Patch Antena web 4 1

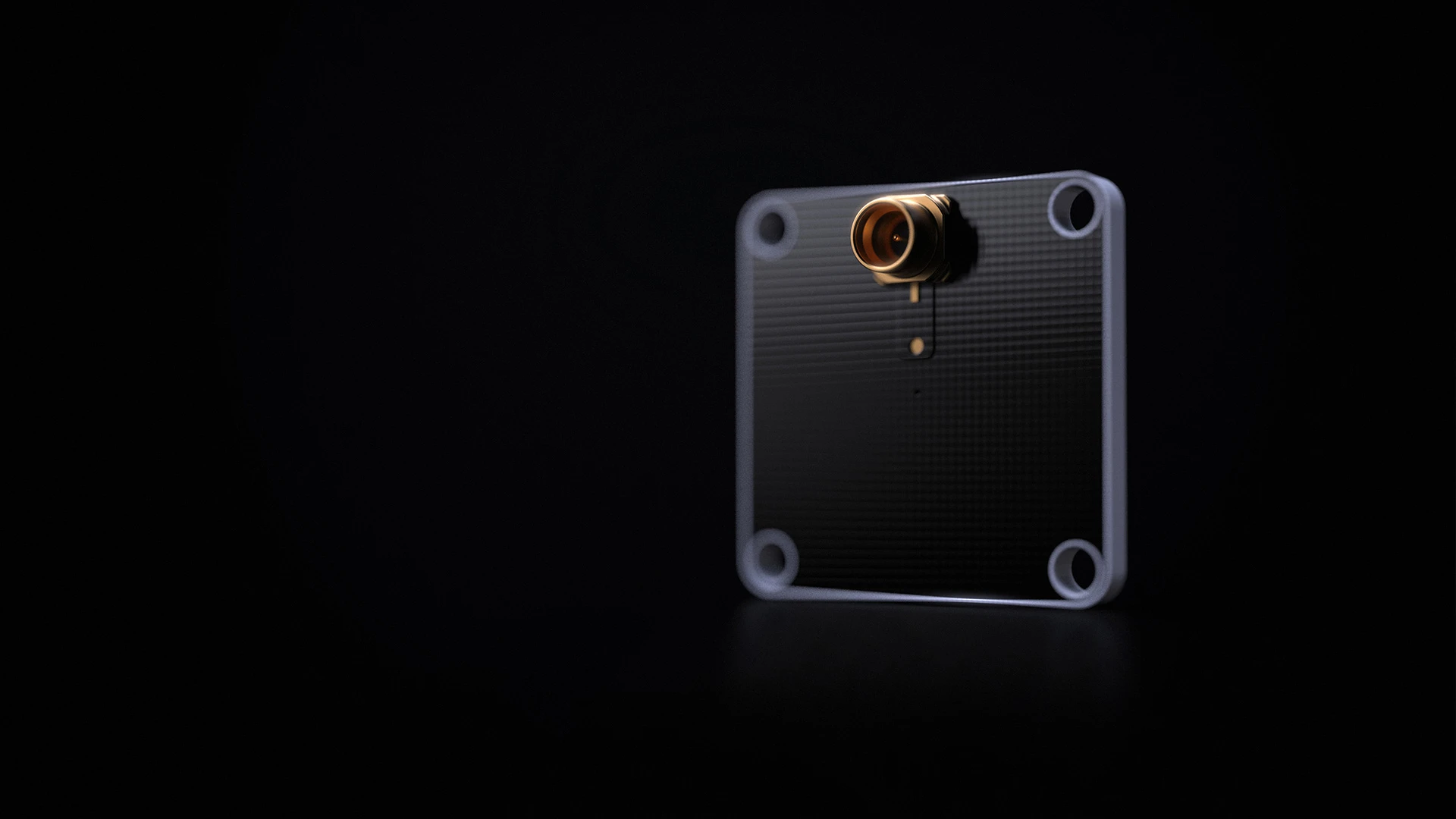

X Band Patch Antenna web render 1 2

Industry-leading gain at a 25% smaller footprint

EnduroSat antenna: 25% higher than the industry alternatives

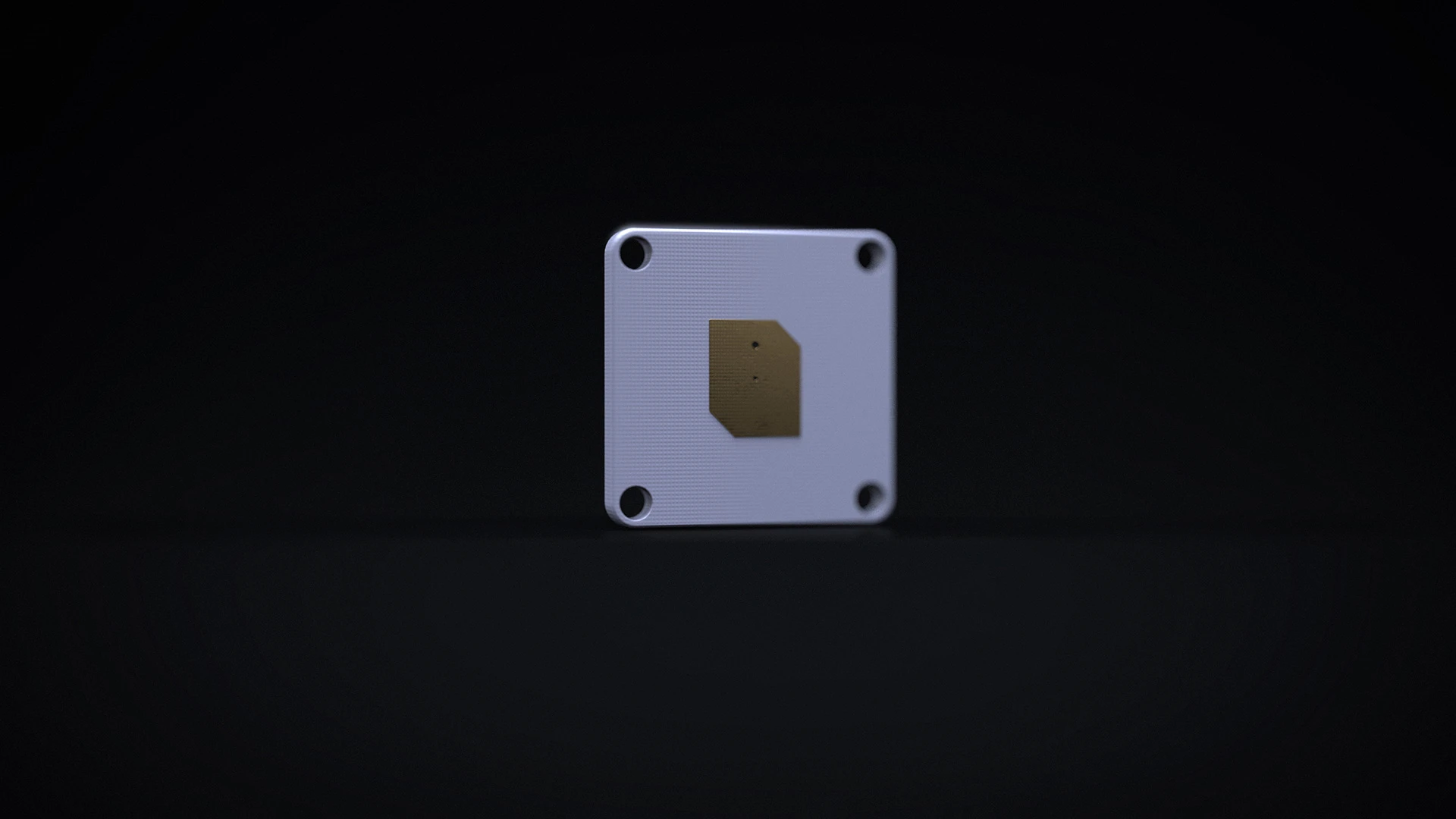

X Band Patch Antenna web render 1 3

Circularly polarized for better reception

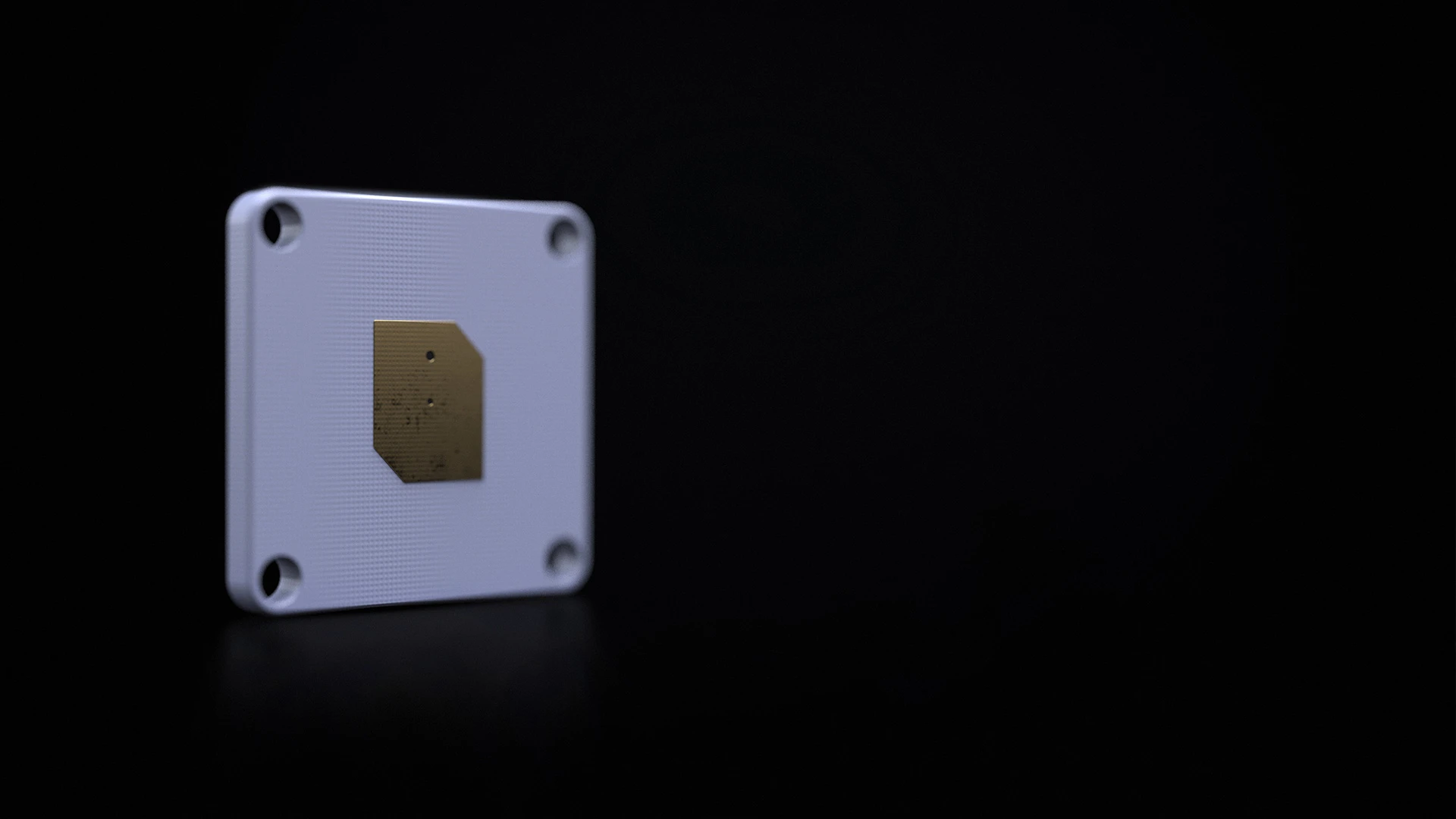

X Band Patch Antenna web render 1

Flexible design. Available in a single, 2x2, 4x4, and 8x12 configurations

PRODUCT GALLERY

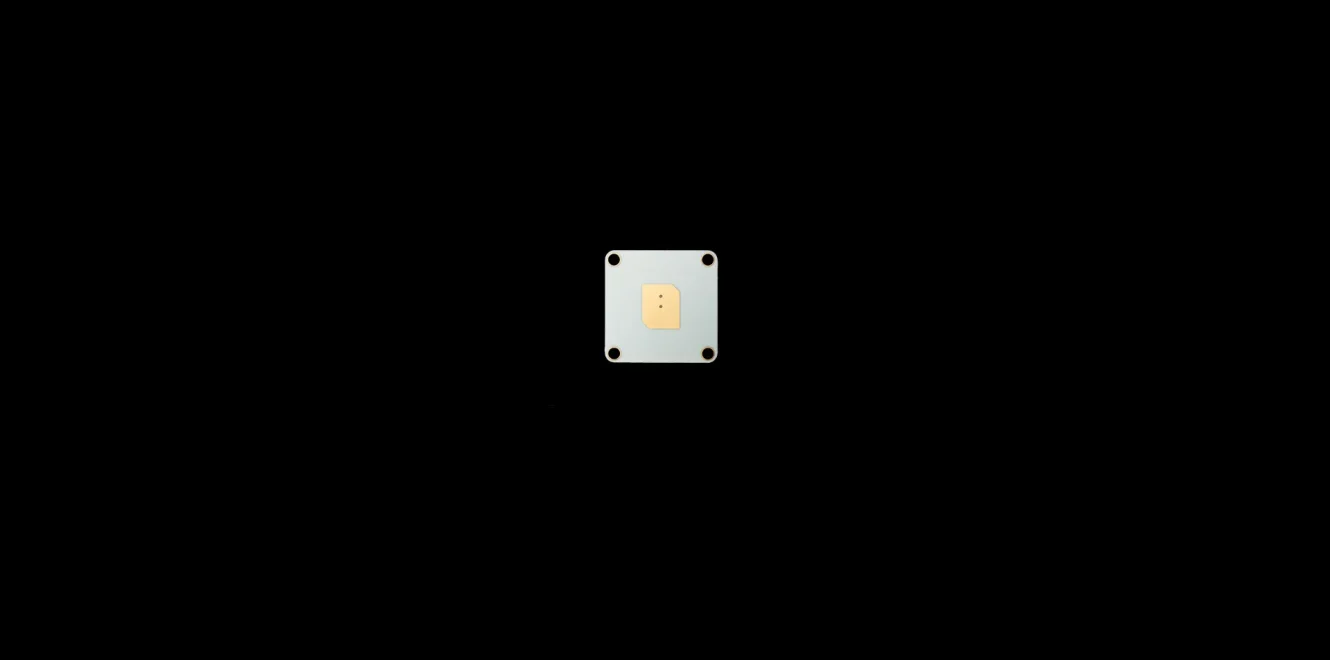

X Band Patch Antena web 2
X Band Patch Antena web 3

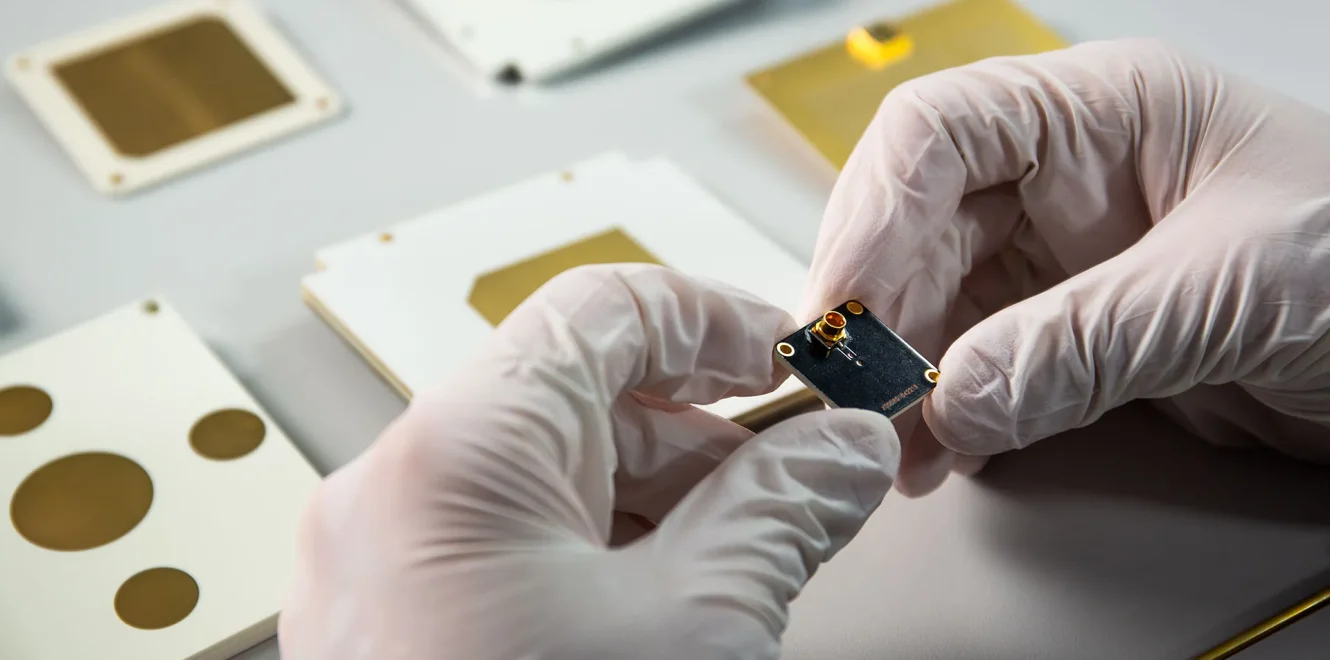

X Band Patch Antena web 1

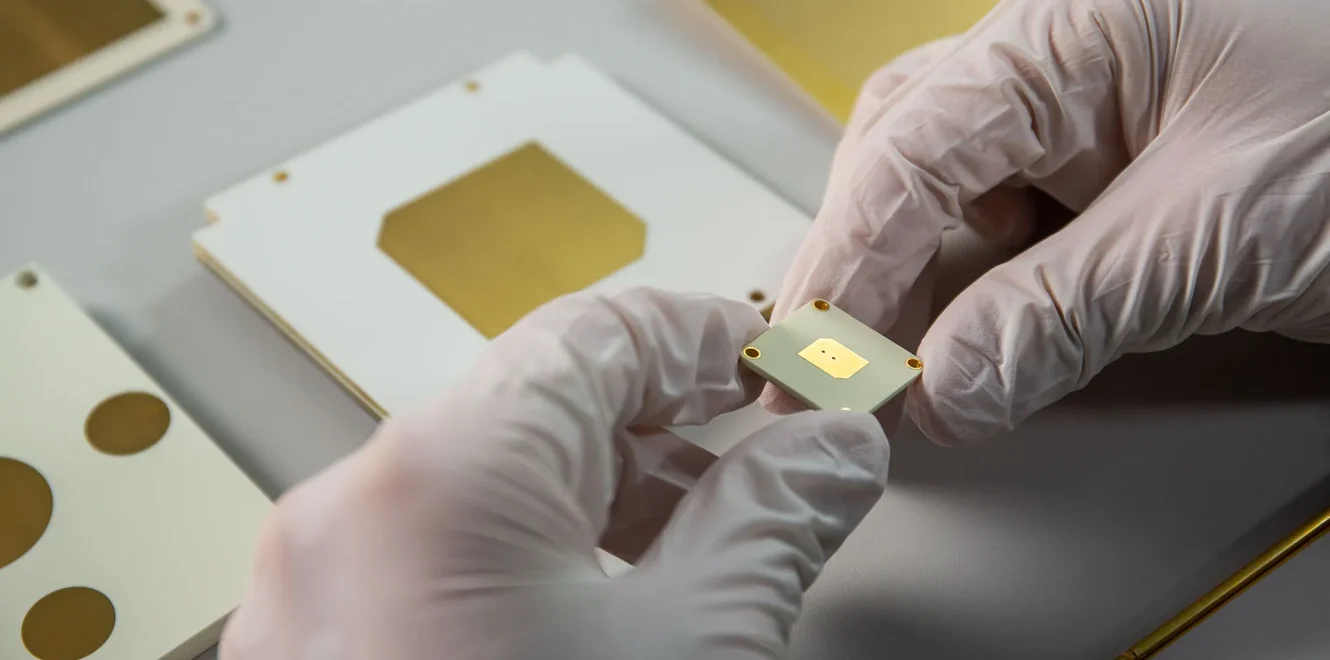

X Band Patch Antena web 4
Related Products
K Band 4x4 Patch Array
K-Band 4×4 Patch Array
Frequency Range
17.7 - 20.2 GHz
Polarization
Right Hand Circular
RF Power Handling
up to 4 W
Discover
GNSS Patch Antenna
GNSS Patch Antenna L1+L2
Operating Frequency
L1+L2 band
Patch Gain
3.3-4.0 dBi
HPBW
100-105 deg
Discover
GNSS Patch Antenna
GNSS Patch Antenna L1/E1
Operating Frequency
L1/E1 band
Patch Gain
3.6-4.0 dBi
Beamwidth
88 deg
Discover
S-Band Atenna Wideband
S-Band Antenna Wideband
Frequency Range
2025-2110 MHz and 2200-2290 MHz
Polarization
Selectable Circular
RF Power Handling
up to 4 W
Discover
S-Band Atenna Commercial
S-Band Antenna Commercial
Frequency Range
2025 - 2110 MHz
Polarization
Selectable Circular
RF Power Handling
up to 4 W
Discover
S-Band Atenna ISM
S-Band Antenna ISM
Frequency Range
2400 - 2450 MHz
Polarization
Selectable Circular
RF Power Handling
up to 4 W
Discover
UHF Antenna 1U
UHF Antenna 1U
Frequency Range
435 - 438 MHz or 400 - 403 MHz
Polarization
Selectable Circular
Gain
> 0 dBi
Discover
UHF Antenna 2U
UHF Antenna 2U
Frequency Range
144 - 438 MHz
Polarization
Linear
RF Power Handling
2W
Discover
