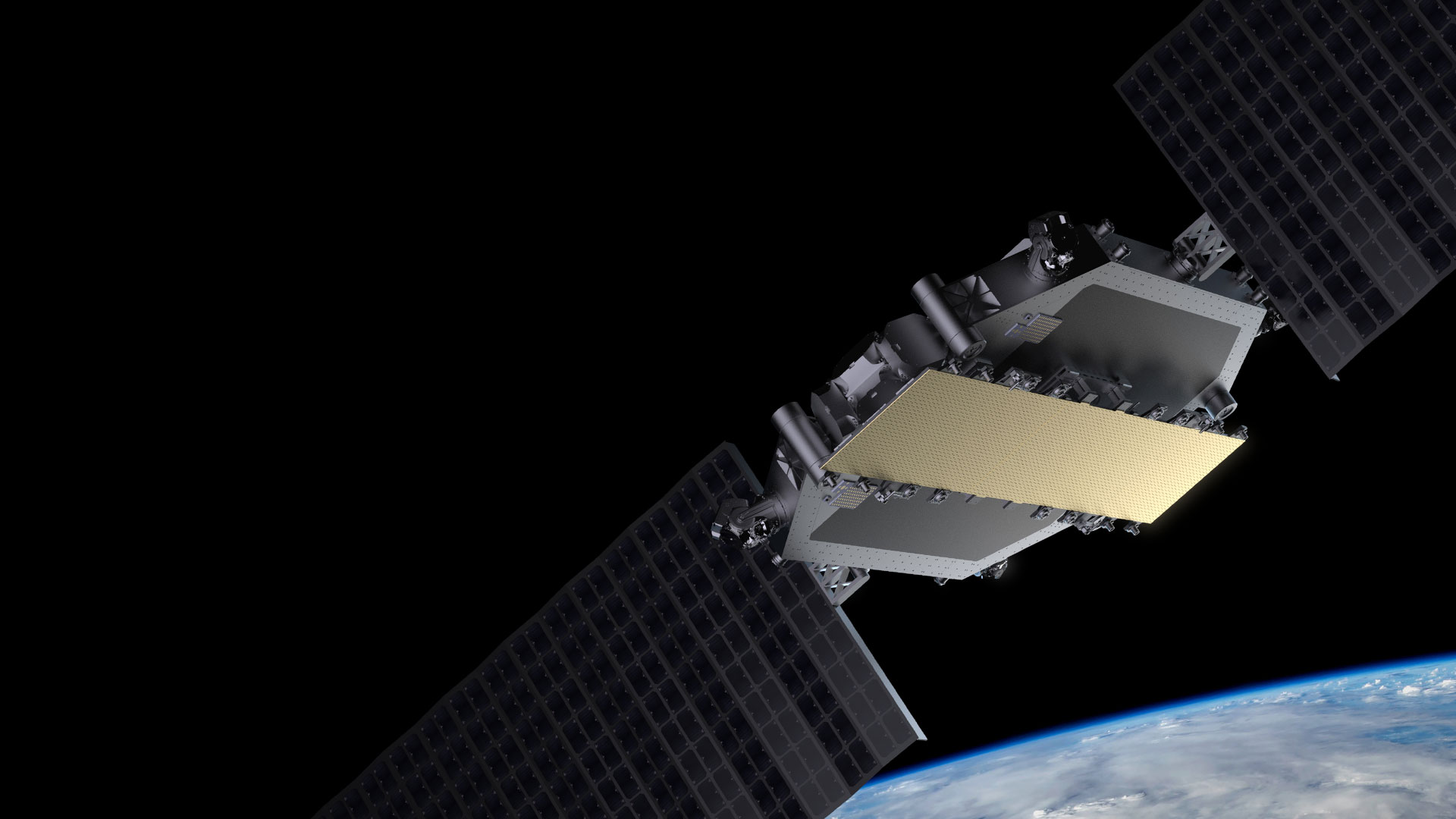

FRAME Max

Name: FRAME Max
Brand: EnduroSat
Price: 9500000 USD
Availability: InStock

Satellite bus for orbital computing and D2D broadband

Cad file & datasheet

Add

0.5-3T

AVAILABLE PAYLOAD MASS

10 kW

MAX CONTINUOUS POWER

4 GBPS

GROSS DATARATE

FRAME Max

Download

Cad file & datasheet

Add

Pricing

All prices in USD

Quantity	Unit Price
1	$9.5M
10	$8.1M
100	$6.7M
1,000+	$4.2M

Enabling Profitability

Cost per Watt

$750/W LEADING PRICE/PERFORMANCE TODAY

$30/W TARGET 2030

500 m/sec

DELTA-V PROPULSION

Military-grade Encryption

AES-256-GCM

Stacked Deployment

Compatible with Starlink V2, Starship, and New Glenn

Built for Advanced Payloads

Broadband connectivity
Space Data Centers
Radars and Sounders

Modular Architecture

Rapid scaling to 10+ kW class spacecraft with the same avionics

Plug & Play Integration

Designed for manufacturing and rapid payload integration

8 Hours

Full assembly, integration & testing

High-Speed Data Handling

100G Ethernet, SpaceWire & SpaceFibre Interfaces

Develop, Configure & Test With Ease

SpaceDev

DISCOVER MORE

IN-ORBIT OPERATIONS SUITE

SpaceOps

DISCOVER MORE

FEATURES

Bus mass

500 kg (base configuration)

Deployment mechanism

Starlink V2 Mini Dispenser 4-point interface

Available payload mass

500-3000 kg (configuration dependent)

Available payload volume envelope

starting at 2.9 x 2.0 x 0.3 m

Peak input power

9+ kW

Orbit-averaged power available to payload

5+ kW

Max power available to payload

10+ kW

Available power buses

28V regulated, 30-50V Battery Raw

Additional power buses (PPCU)

3.3V, 5V, 12V and other regulated values up to 30V upon request

Pointing accuracy (nadir)

<0.2 deg (3σ)

Pointing knowledge (nadir)

<0.007 deg (3σ)

Payload gross data rate

up to 4 Gbps

Off-the-shelf compatible with

K-sat, LeafSpace, AWS, RBC Signals and Atlas GSaS networks

Delta-V capacity (configuration-dependent)

200-500 m/sec

Your Constellation, Now at the Speed of Serial Production

Included

Software Development Kit (SDK)

SpaceDev 1-year subscription

20h engineering support

Delivery cost

Handling and administration costs

Design review and consulting

Satellite Bus Designed for 7-Year Lifespan

Built for High Power Applications

Scalable solar array for up to 50 kW power generation

Extendable Payload Volume

Scalable 4-point cupcone interface height to accommodate different sized payloads and up to 5 ton total mass

Robust Data Handling

Automated Mission Database Import, Embedded Operational Modes and onboard scripting

3500

MODULES IN ORBIT

200

DELIVERED SATELLITES

500

TB DATA DOWNLINKED

All our products undergo Space Qualification, involving stringent testing under extreme conditions to ensure robustness and high performance
