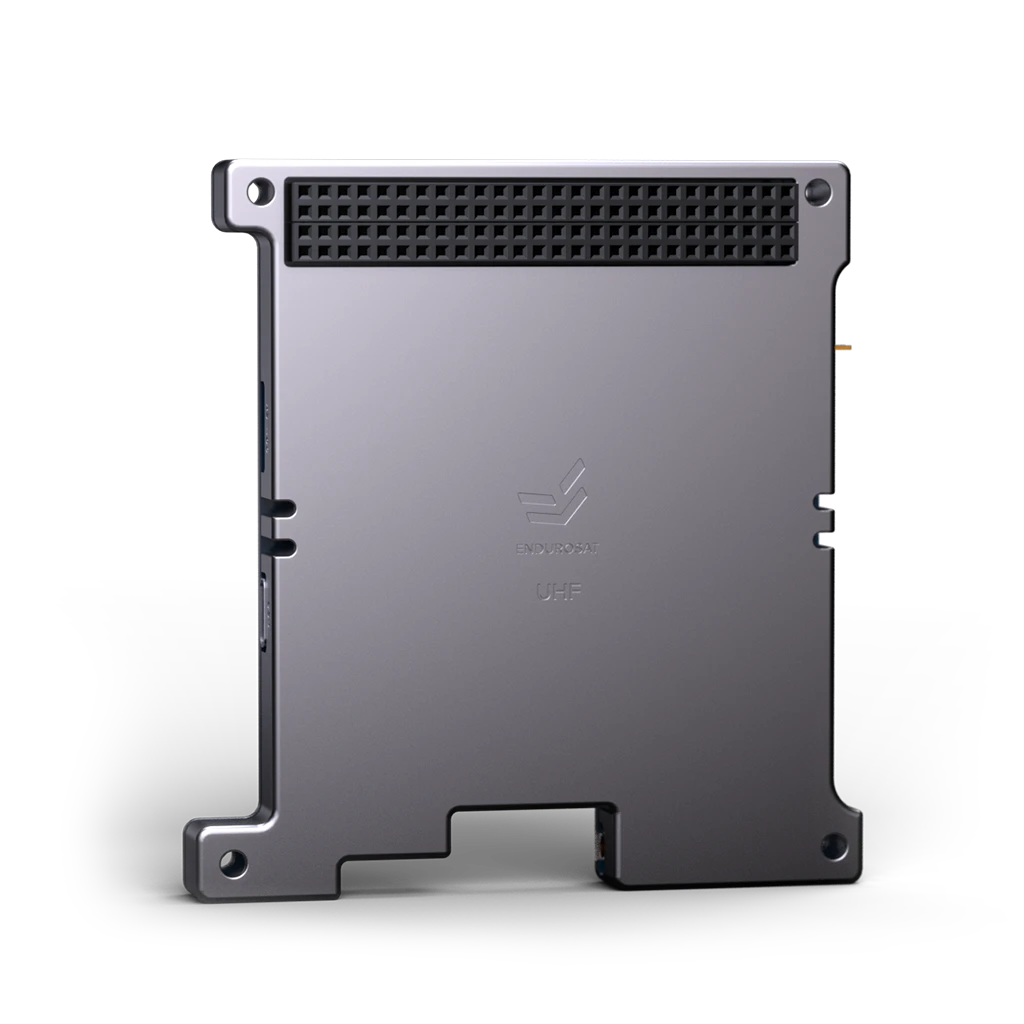

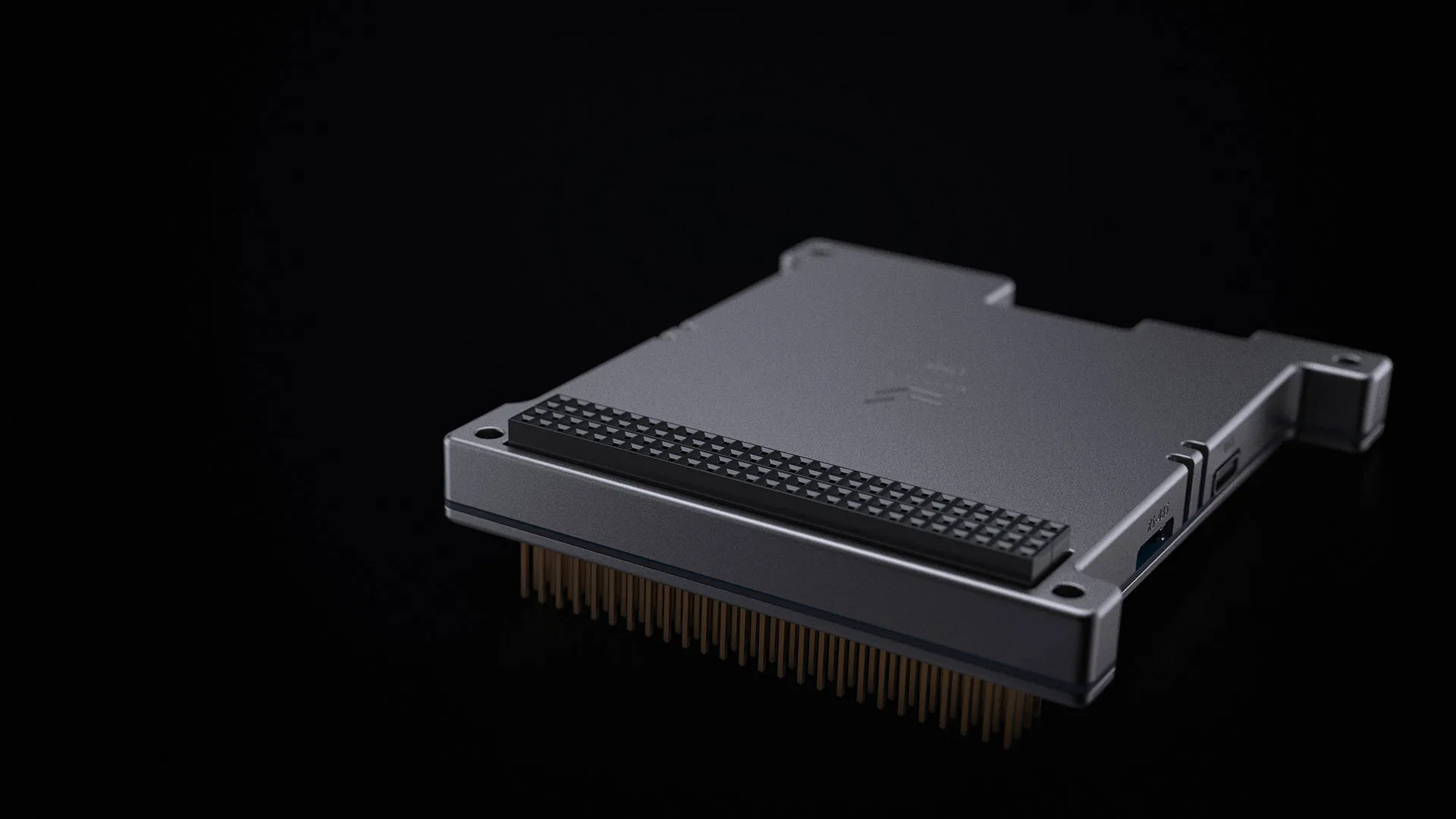

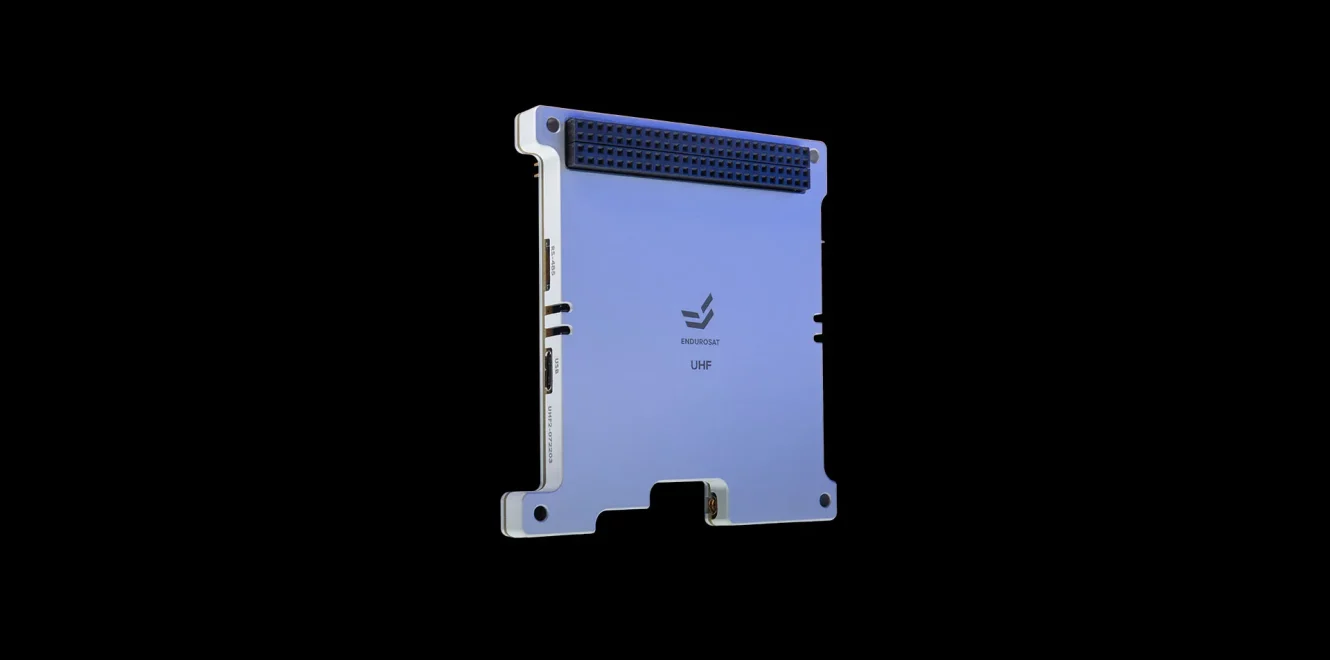

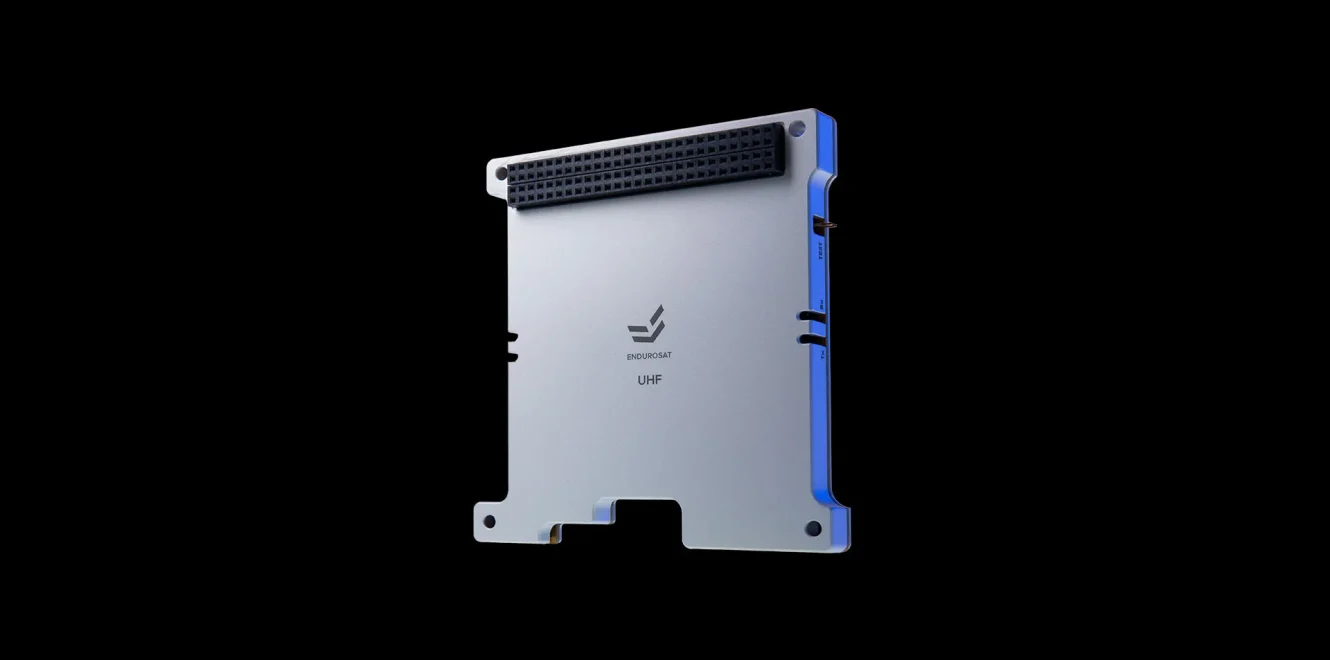

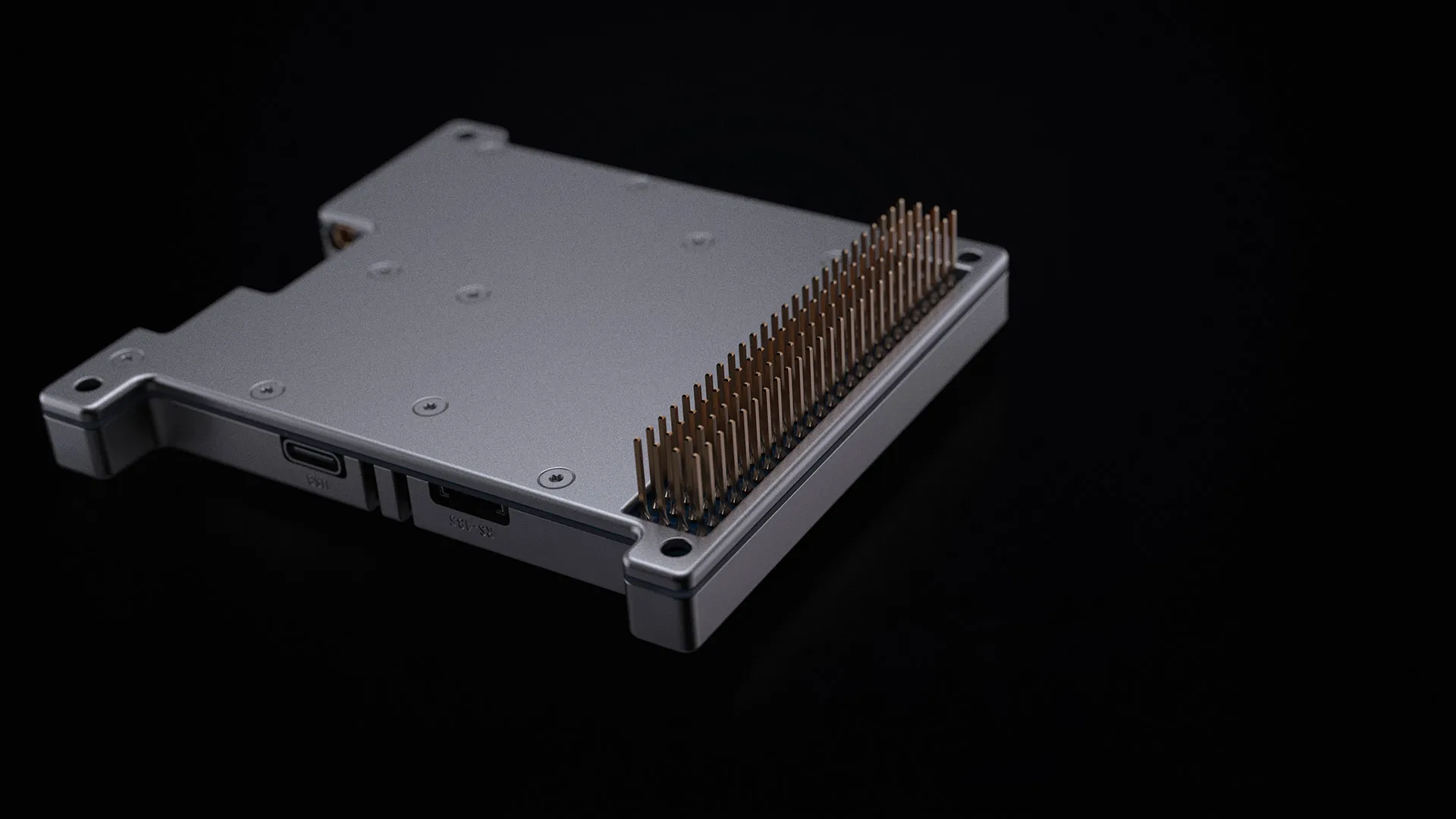

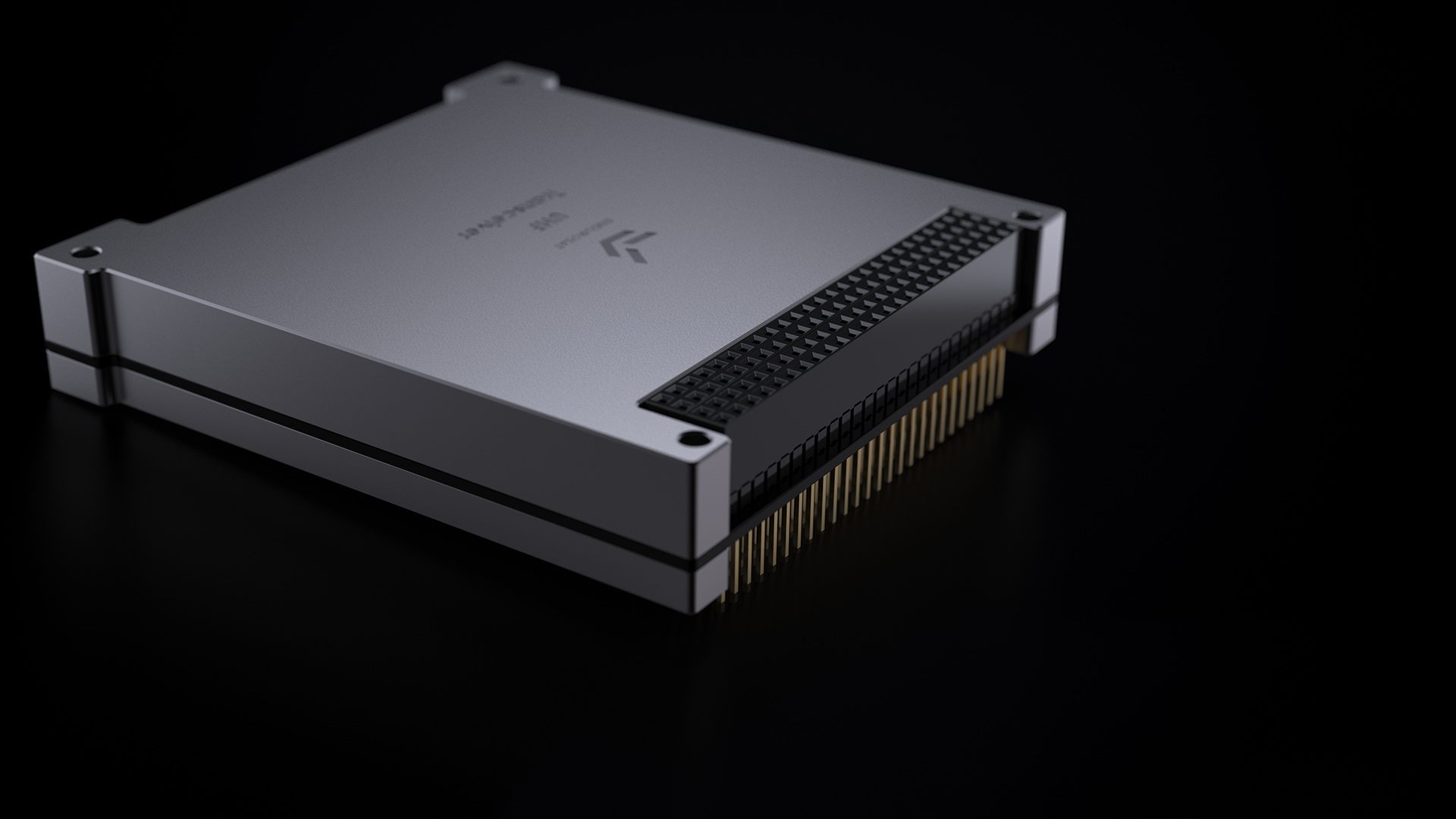

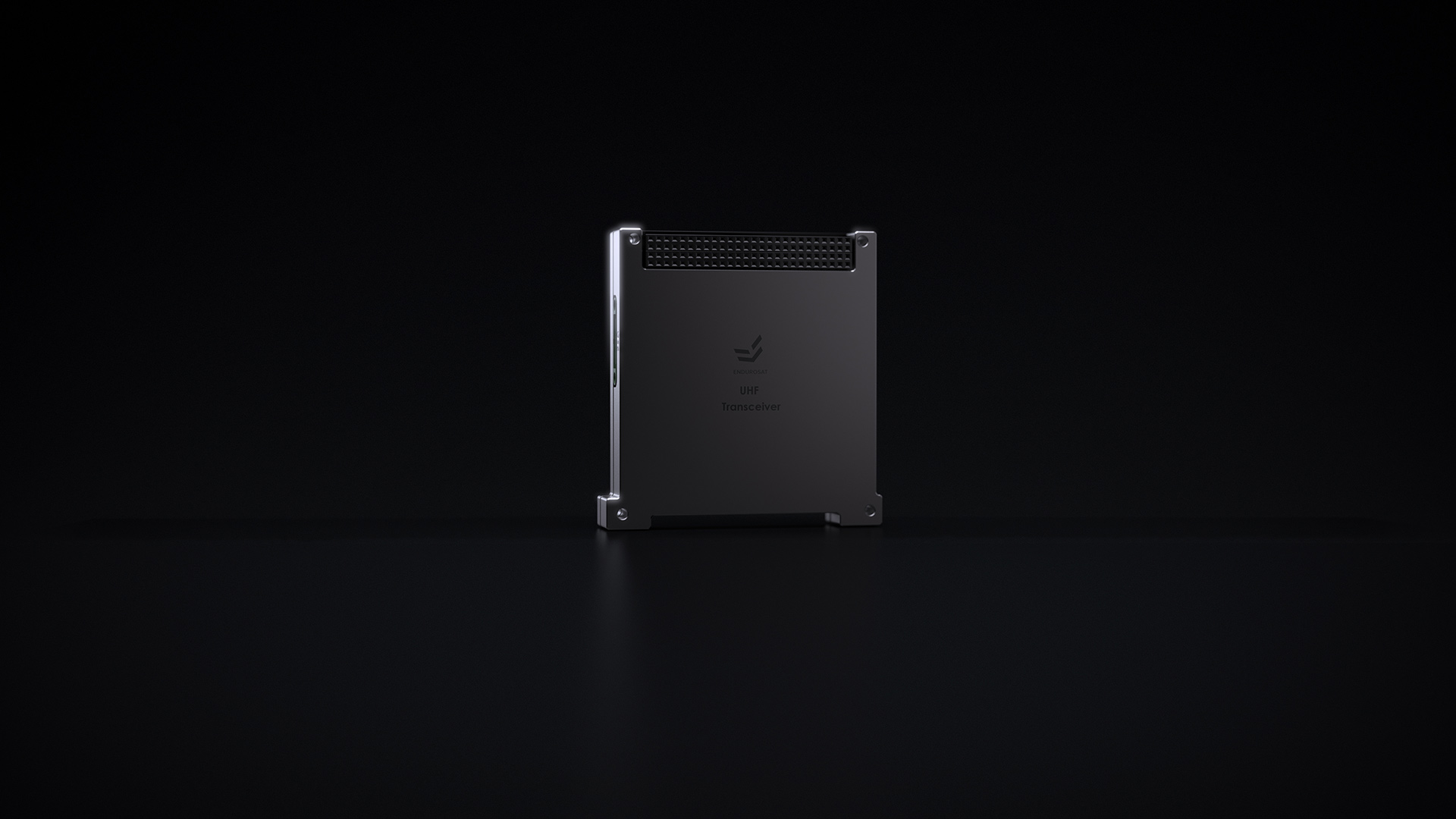

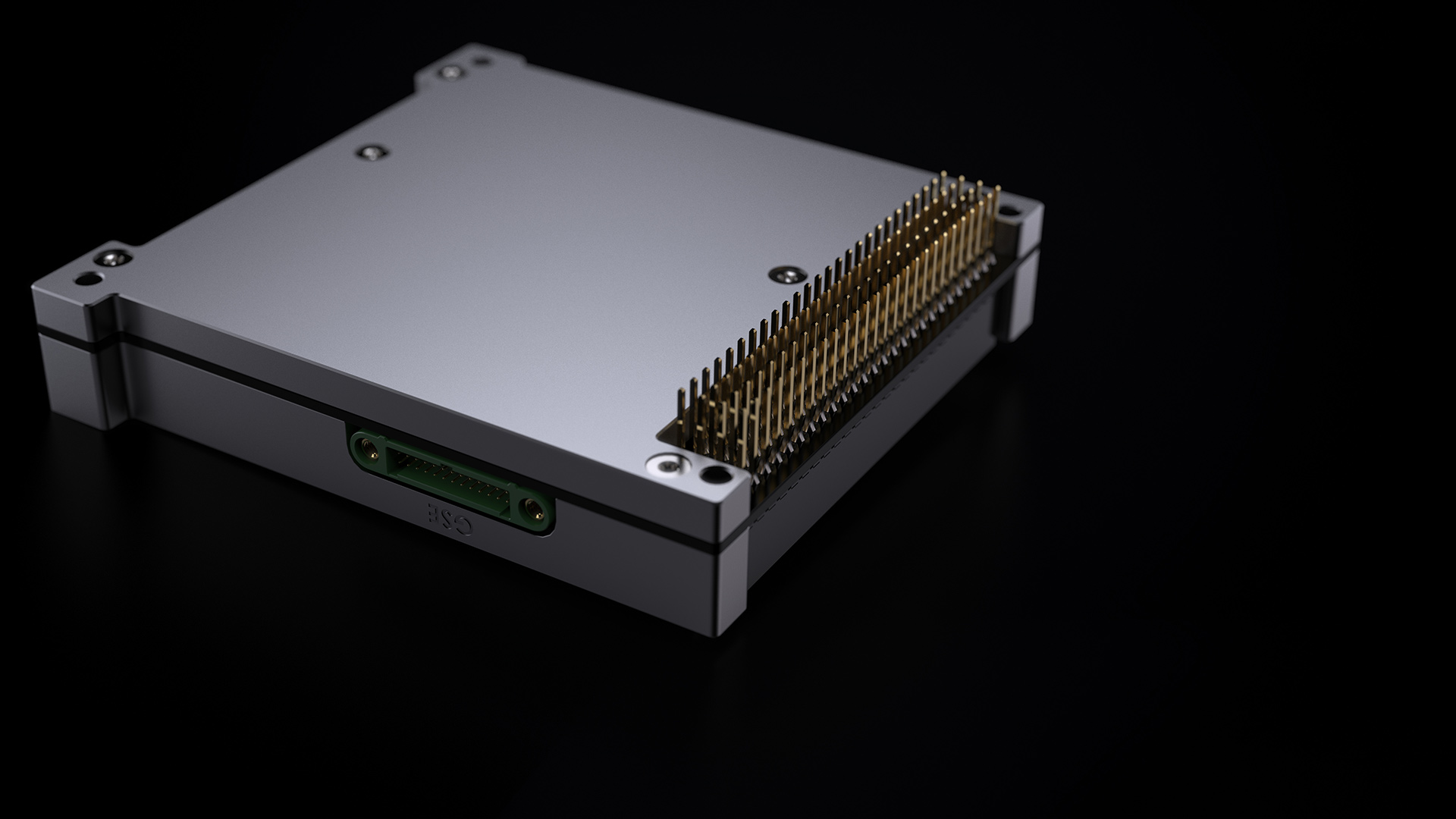

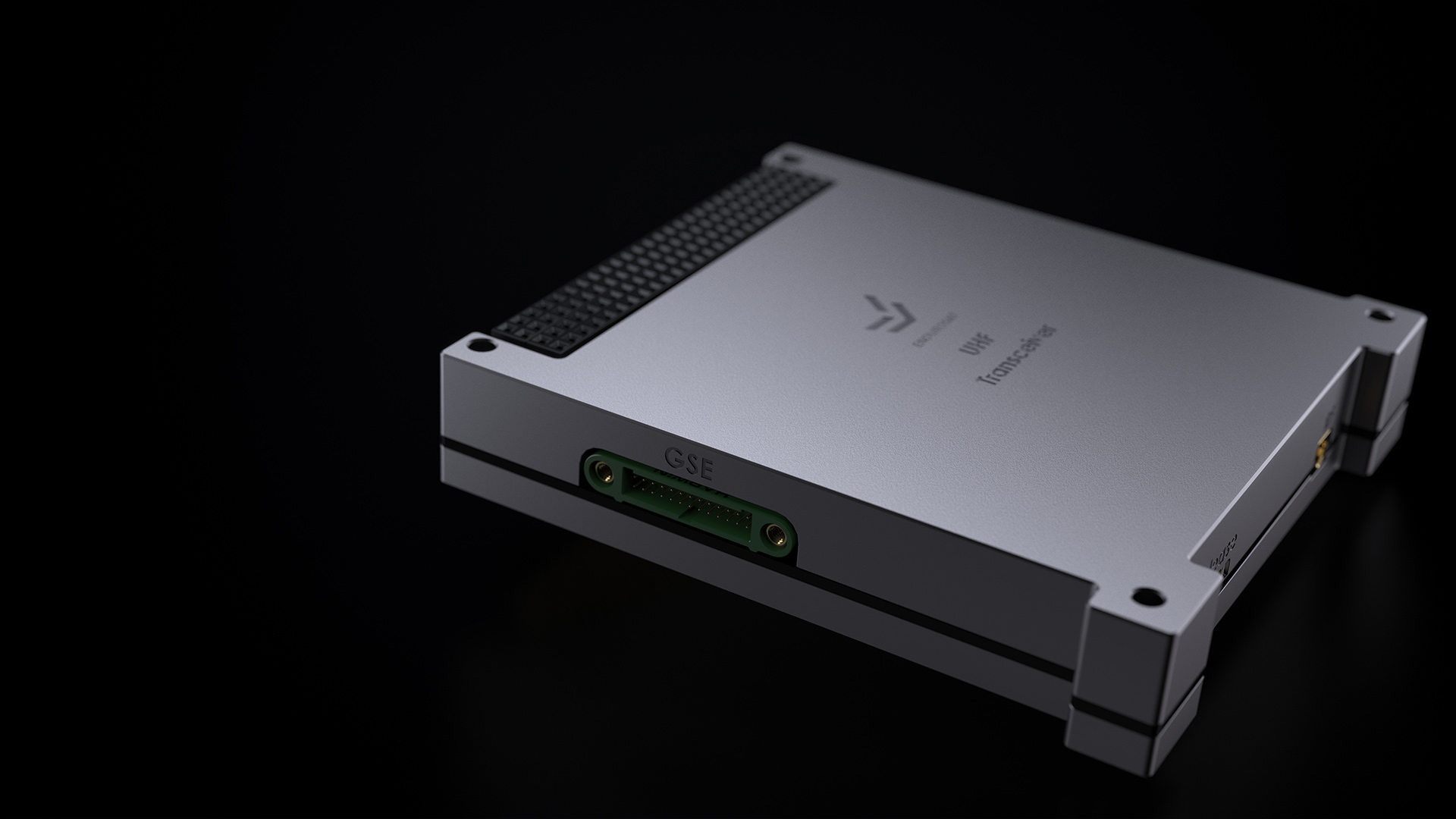

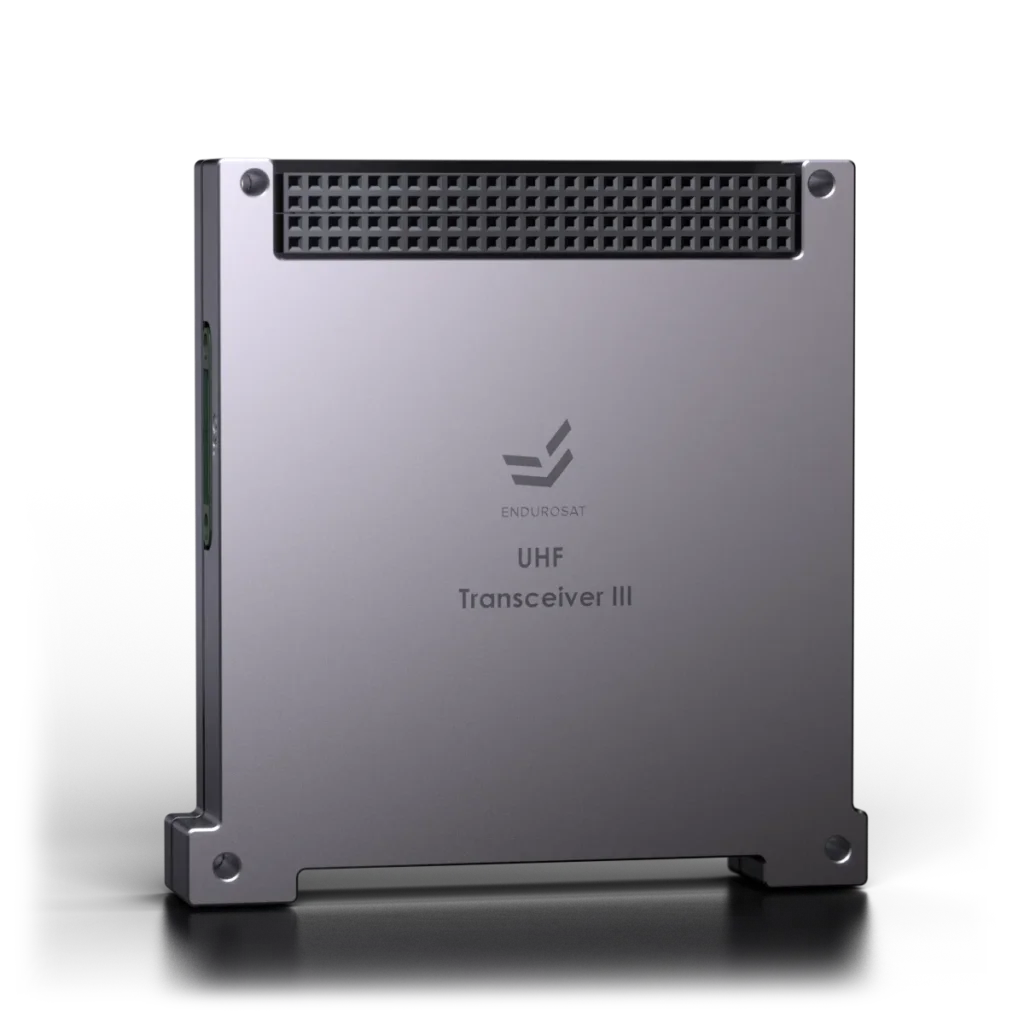

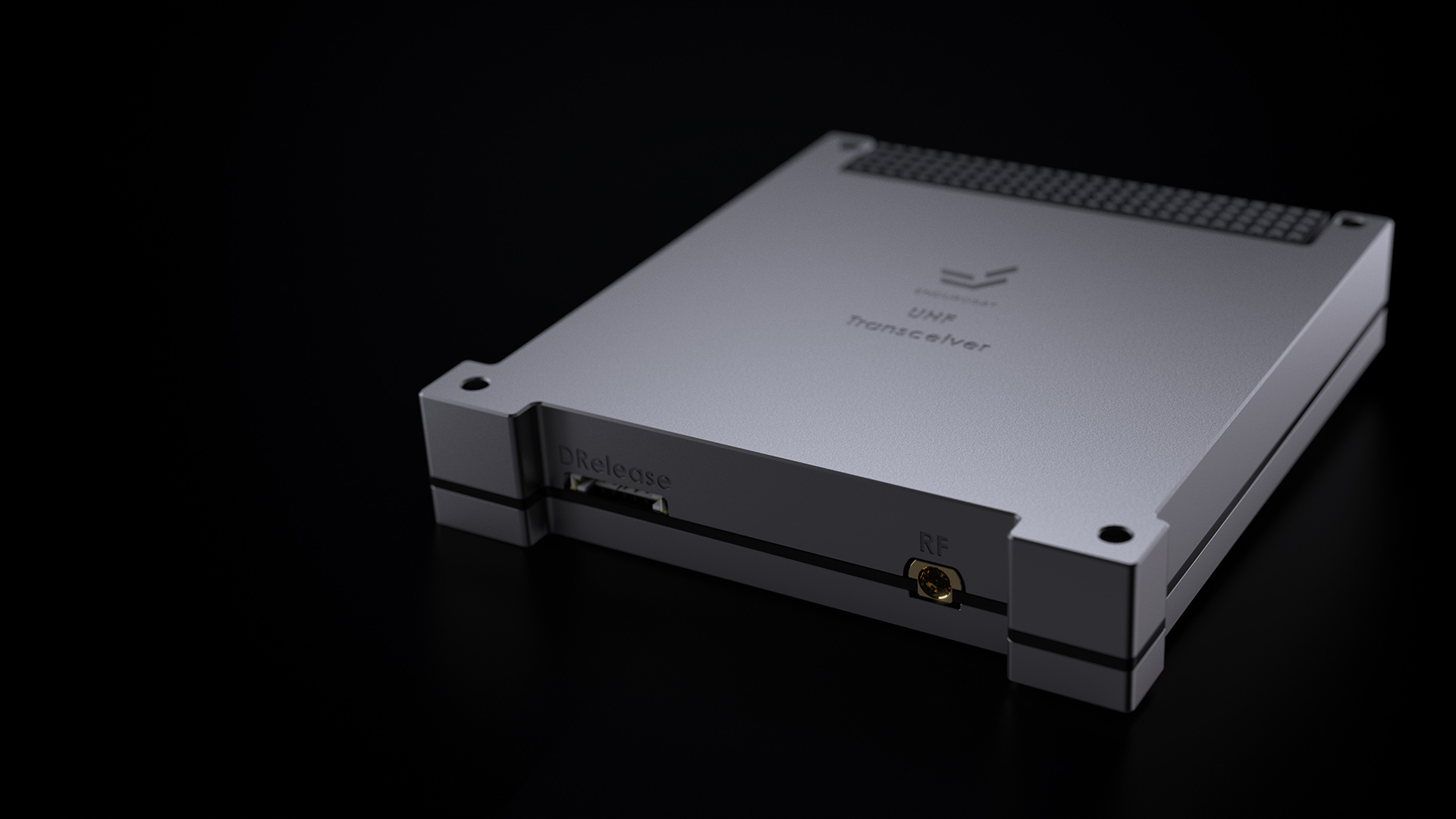

UHF TRANSCEIVER

Name: UHF TRANSCEIVER
Brand: EnduroSat
Price: 7900 USD
Availability: InStock

Reliable telemetry & commanding for CubeSats and SmallSats

Cad file & datasheet

Add

UHF TRANSCEIVER

Download

Cad file & datasheet

Add

19.2 KBPS

MAXIMUM DATA RATE

IN-ORBIT

CONFIGURABLE RF SETTINGS

AES-256

ENCRYPTED COMMUNICATION

Adjust data rates & output power for varying operational environments

Next level of communication security with AES-256 encryption

TECHNICAL SPECS

Frequency Range (Tx/Rx)

400 to 403 MHz or 435 to 438 MHz

Default Modulation

2GFSK

Additional Supported Modulations

GMSK

Mass

200 g

Telemetry Beacon

configurable AX.25

Typical Tx Power

8 W

Typical IDLE (Rx Only Power)

0.5 W

Voltage supply

5 V

Configurable Data Rate

1.2 to 19.6 kbps

Firmware Updates

Local and remote (in-flight) secured application update

Output Power Range

up to 33dBm (in-orbit configurable)

Rx Protection

for signals above 5 dBm

RF Connector

Full Detent SMP

Control Interfaces

2x CAN-FD with 1Mbps Data Rate (CSP 2.0 over CAN)

Additional Data Interface

1x UART (transparent)

Available interface

for powering, debugging and programming

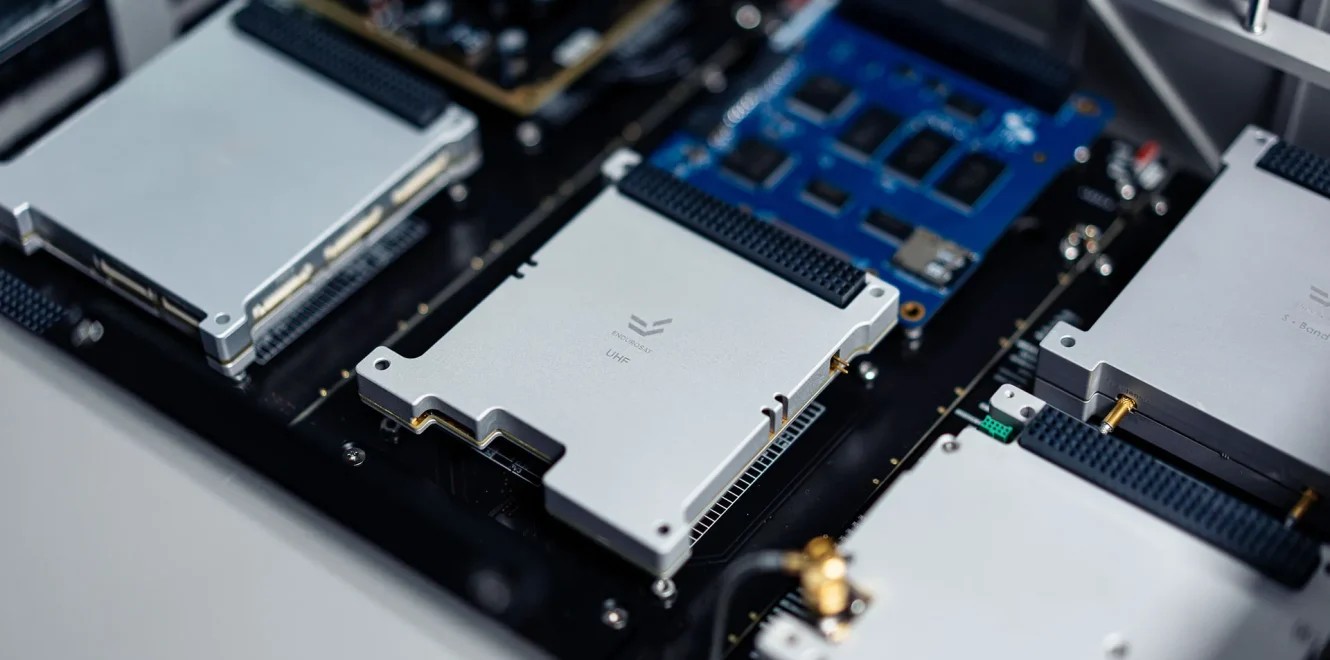

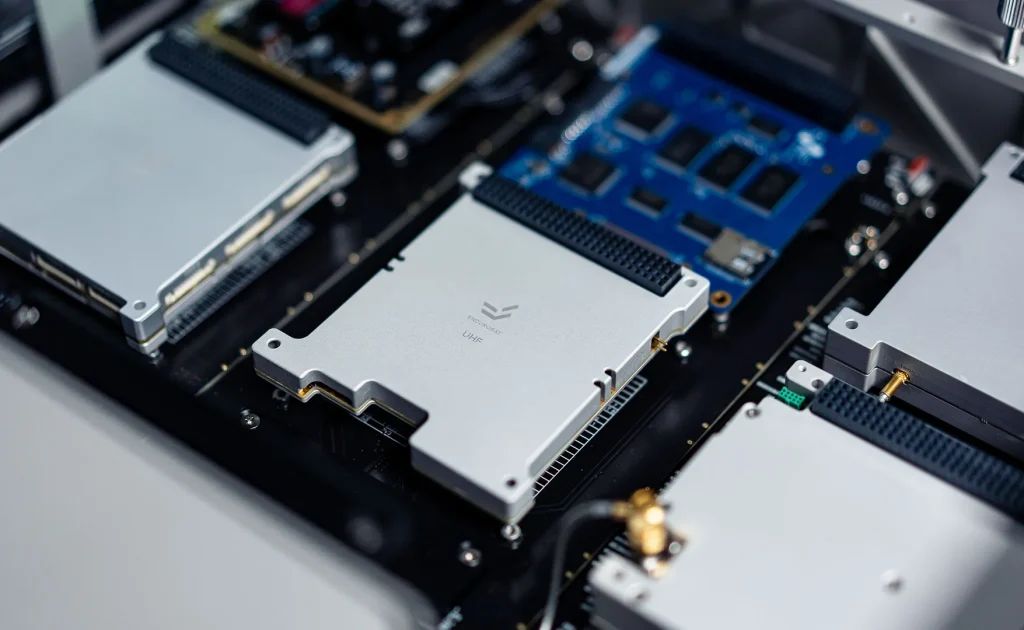

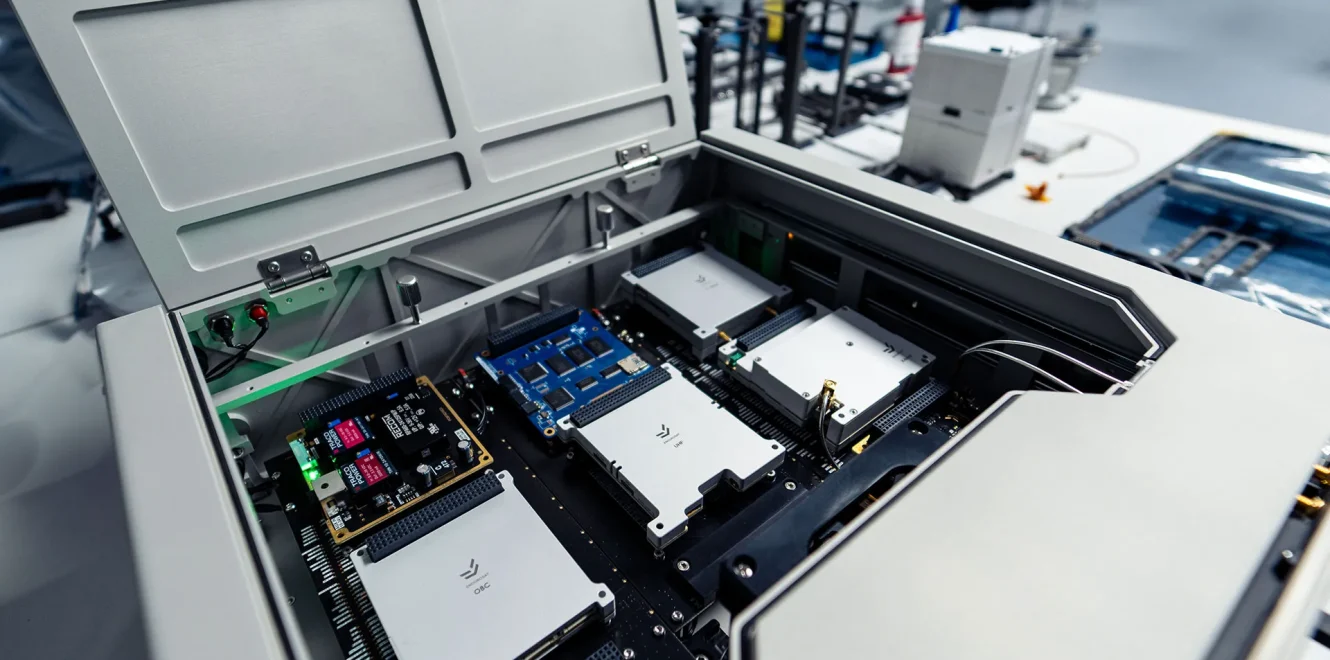

UHF Transceiver integrates seamlessly with all EnduroSat systems

Included

Complete User Manual

5h engineering support

Delivery cost

Handling and administration costs

Half-duplex UHF radio with integrated Rx and Tx

Lightweight design makes it compatible with CubeSats with low form factor

High-efficiency amplifiers with integrated electrical and temperature protections

Direct connector for antenna deployment for reduced complexity

Built-in unfervoltage, overvoltage, reverse polarity and short circuit protection
