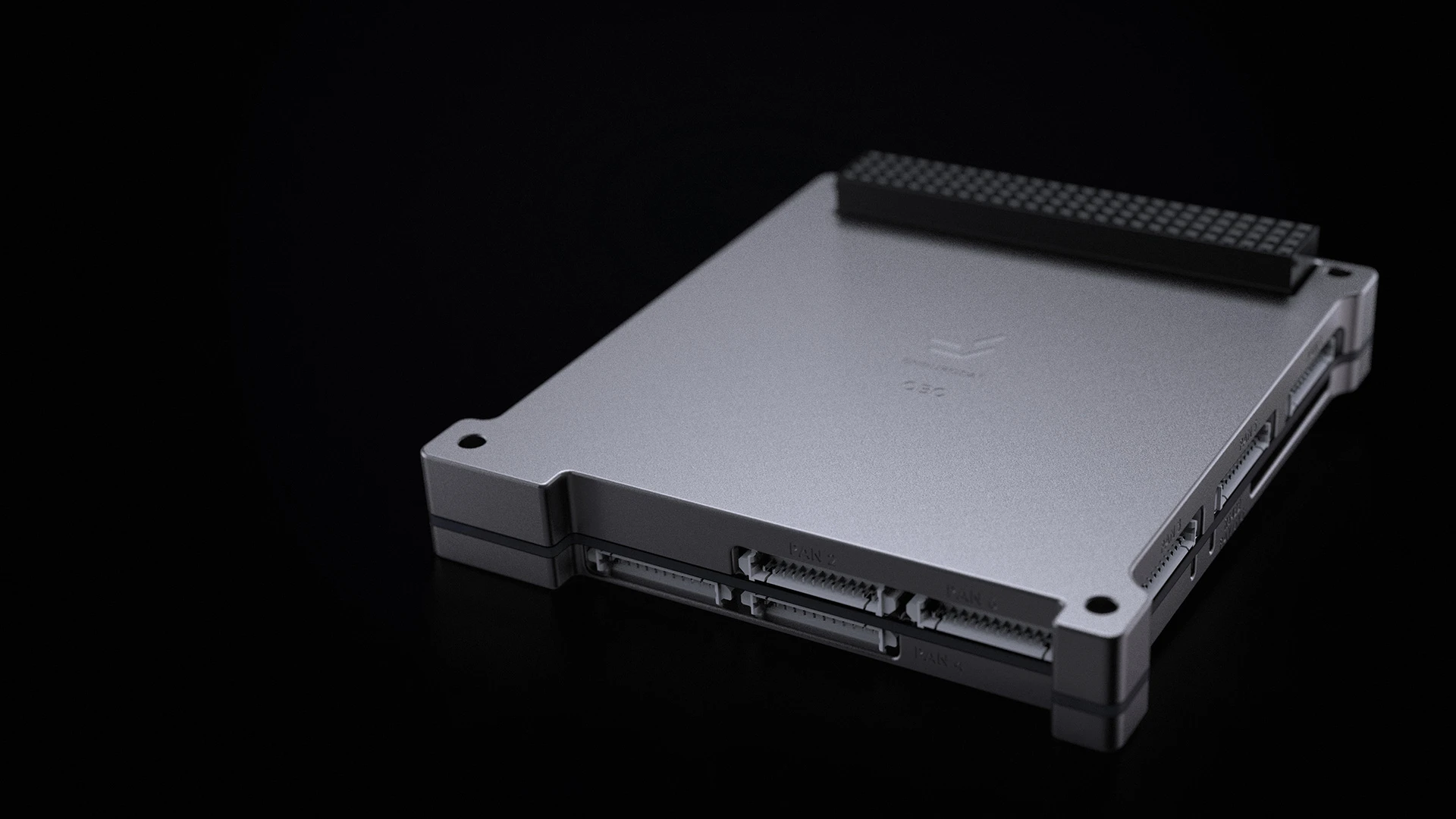

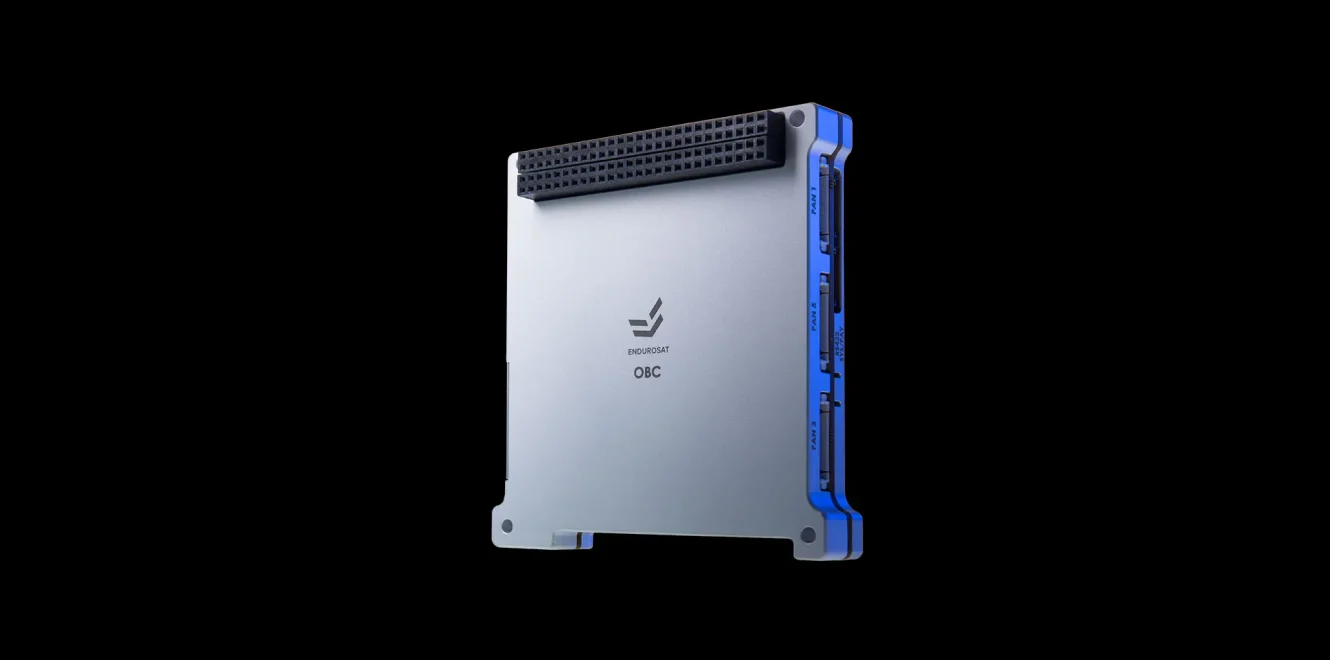

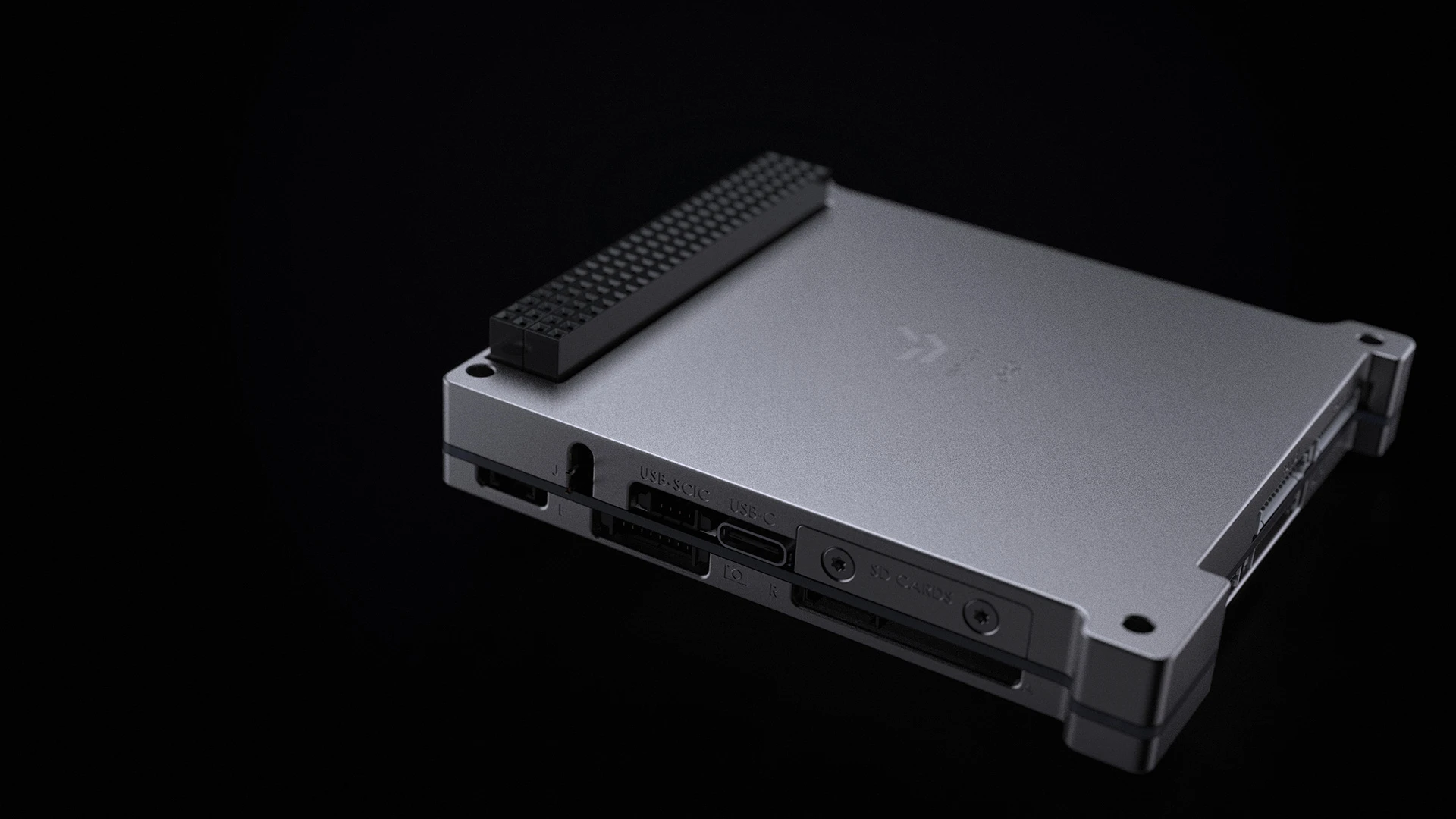

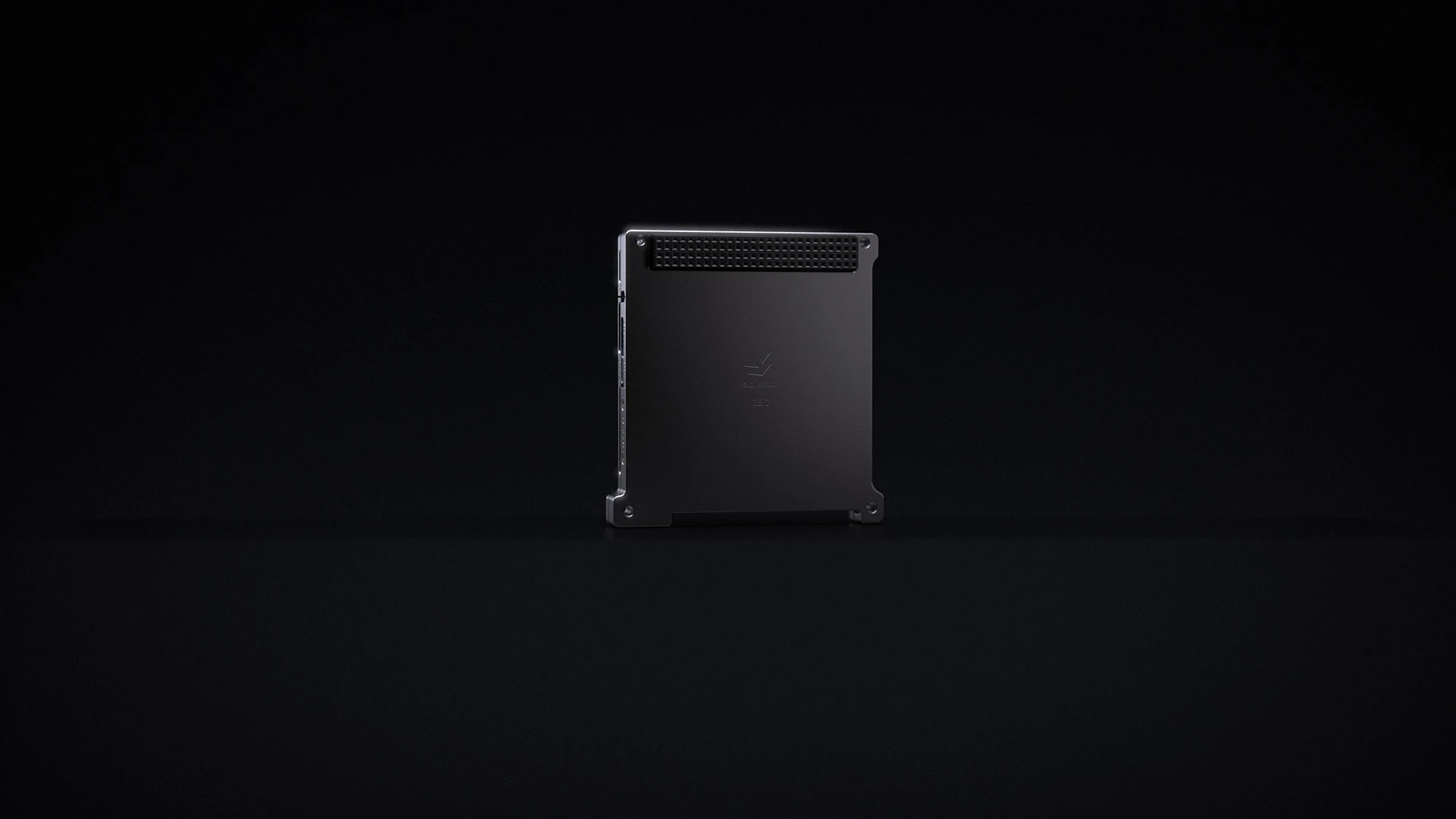

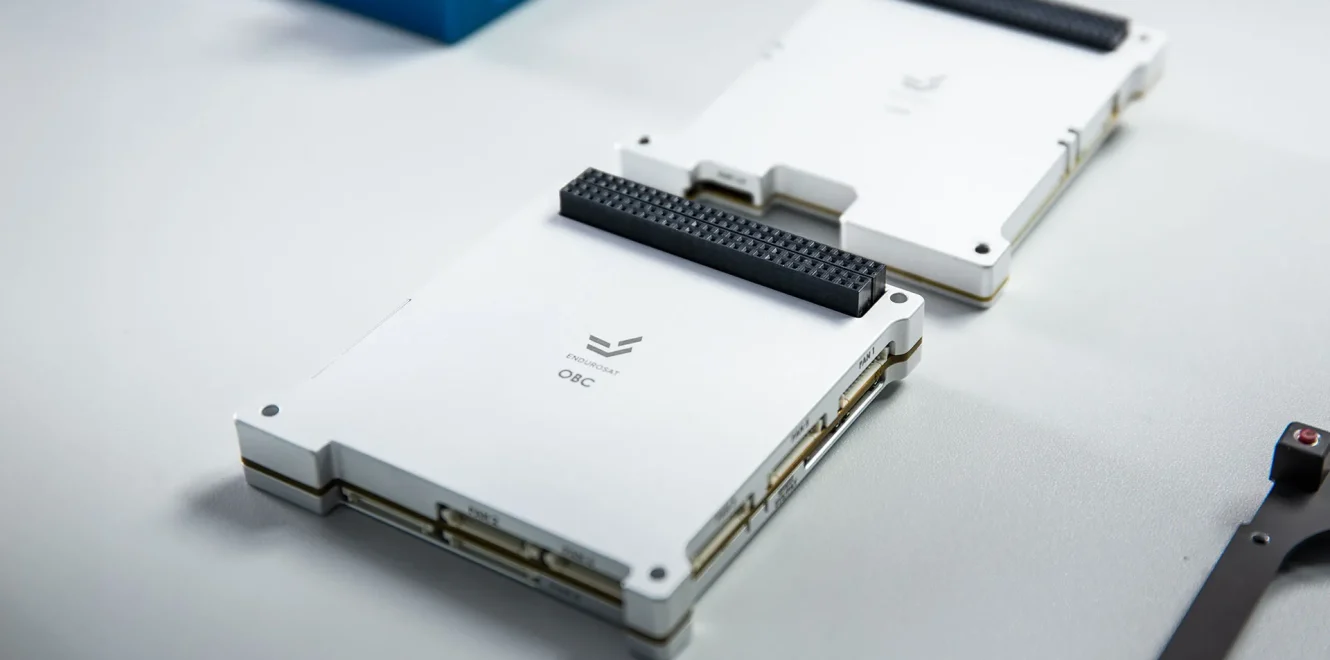

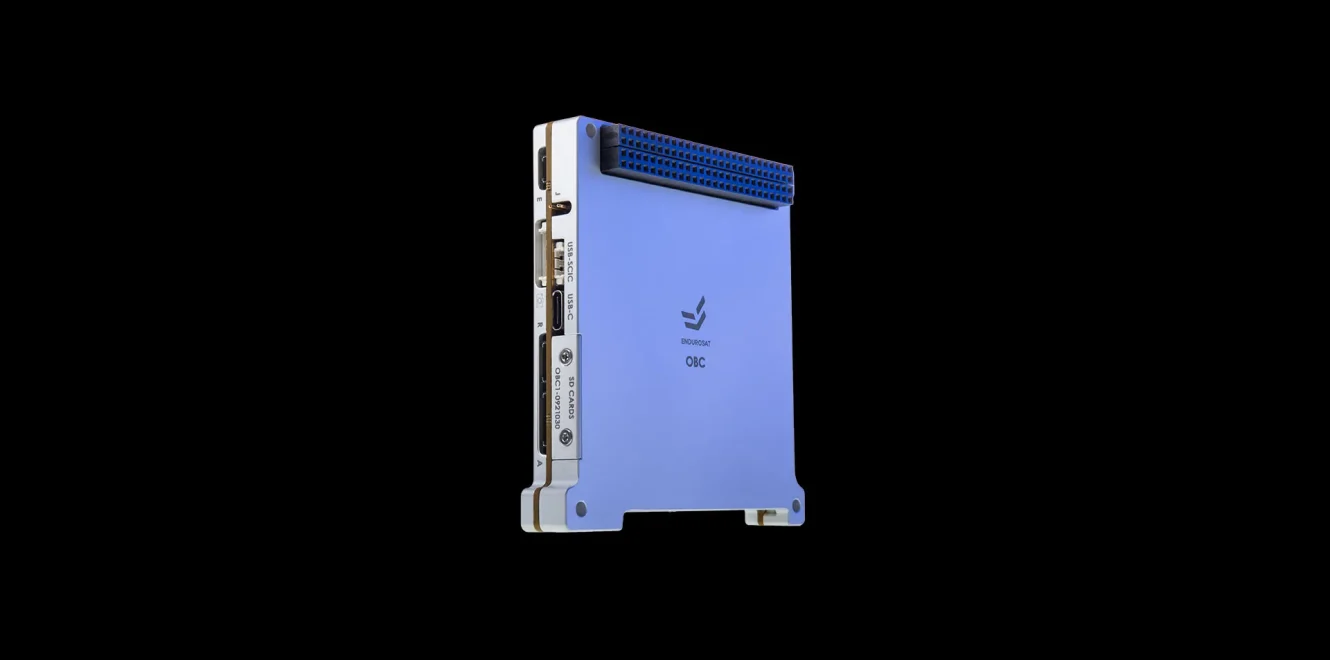

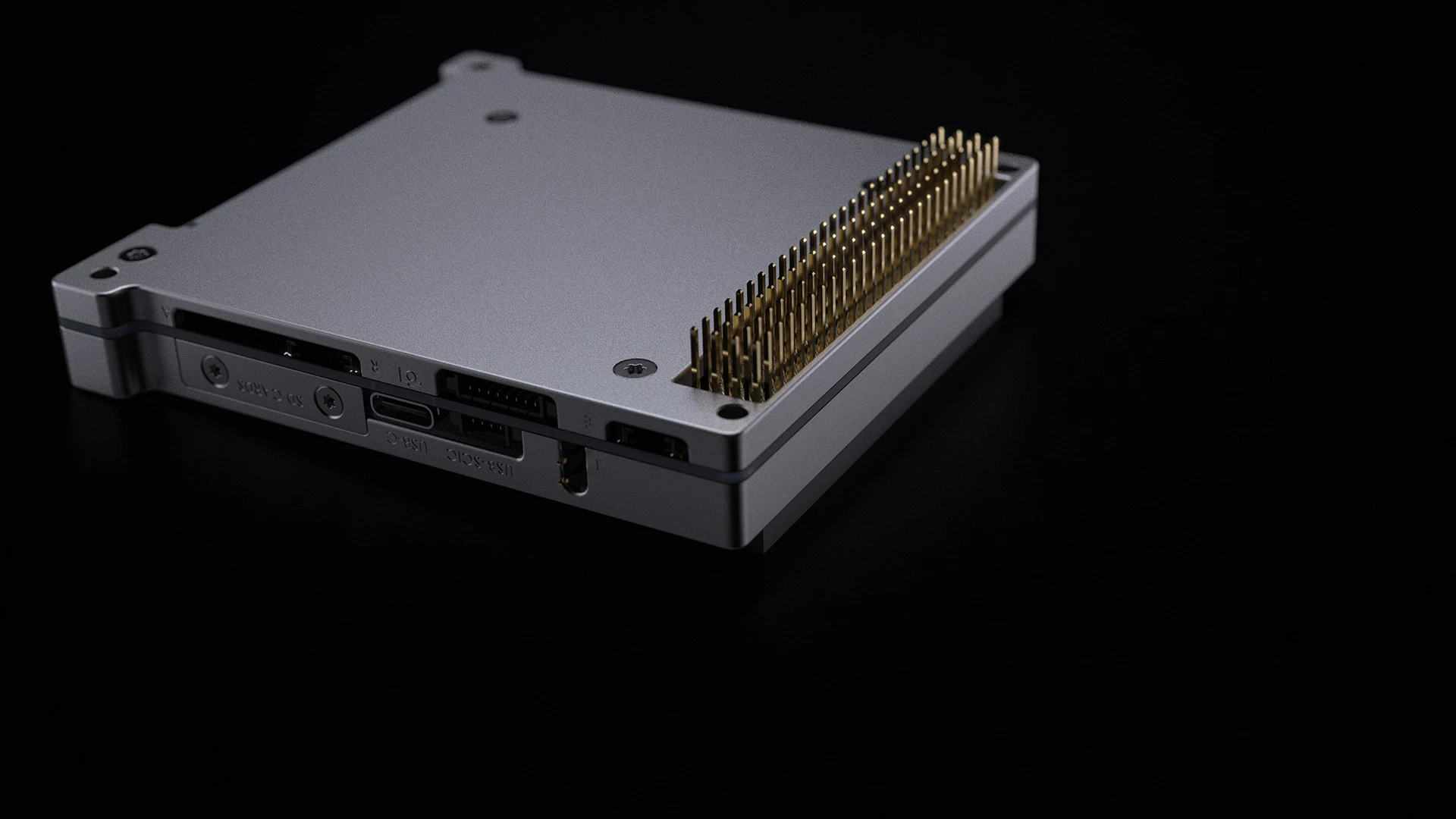

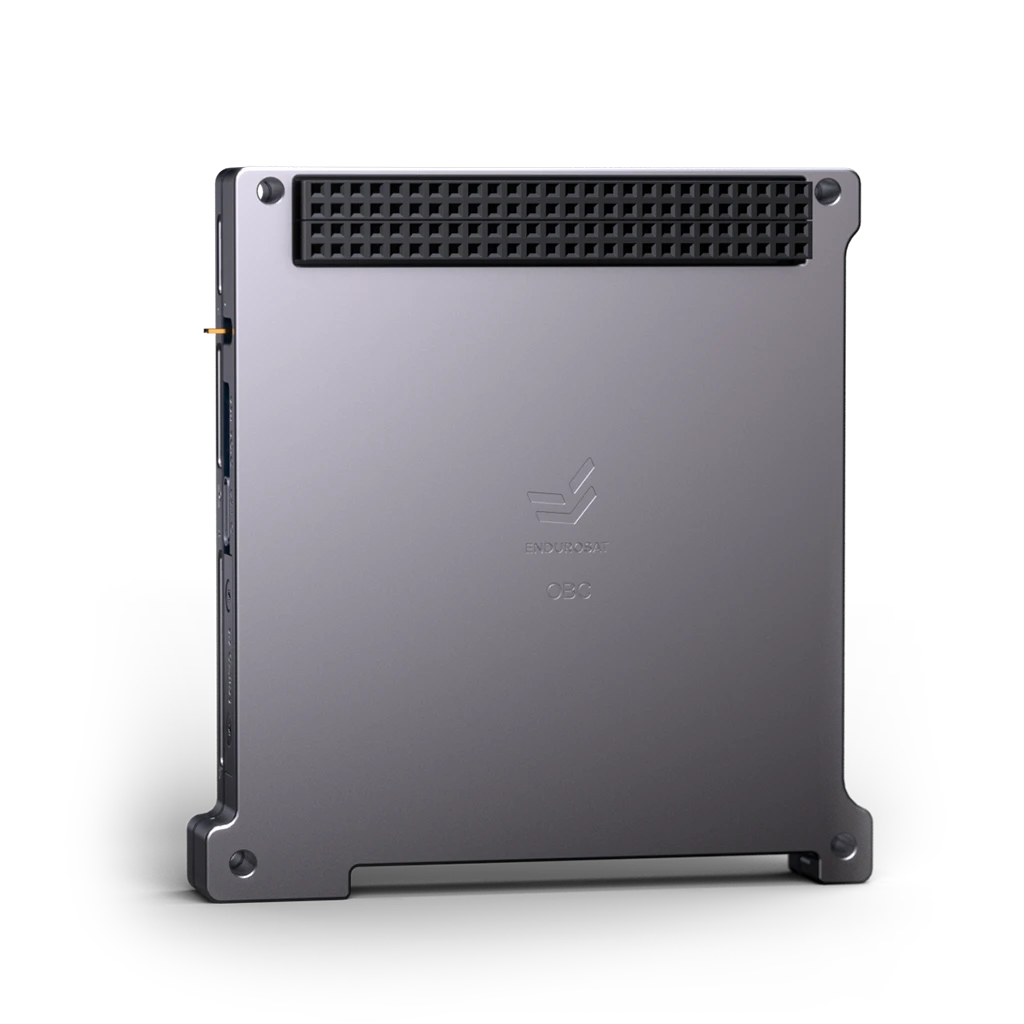

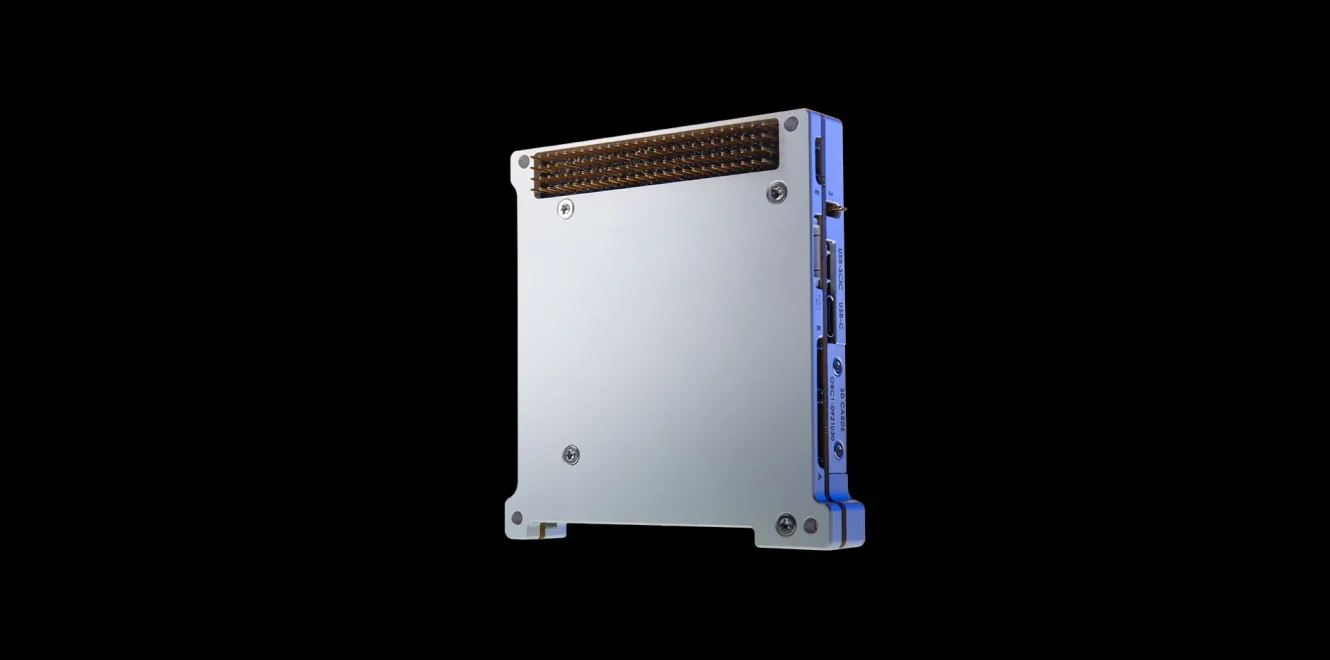

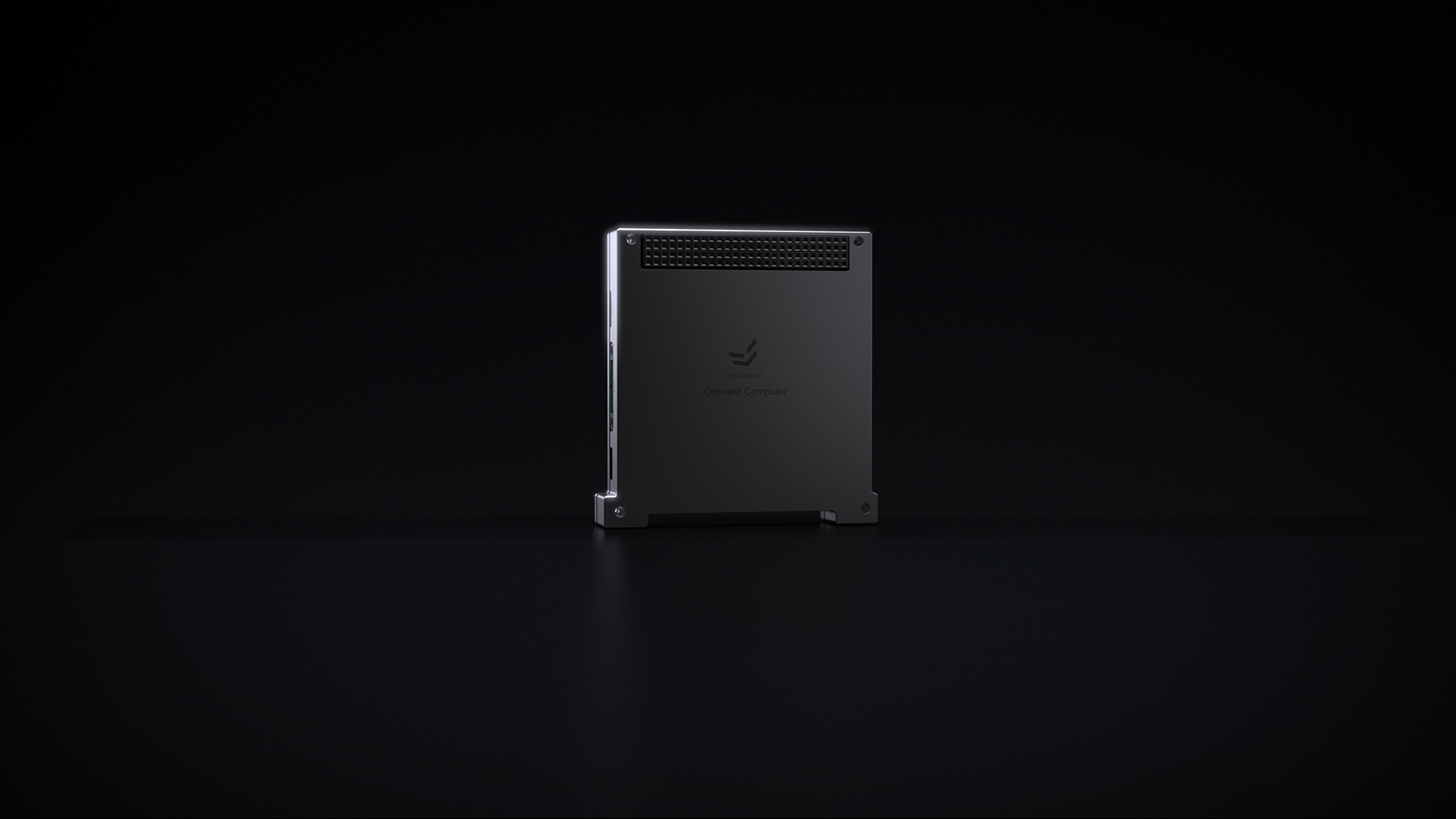

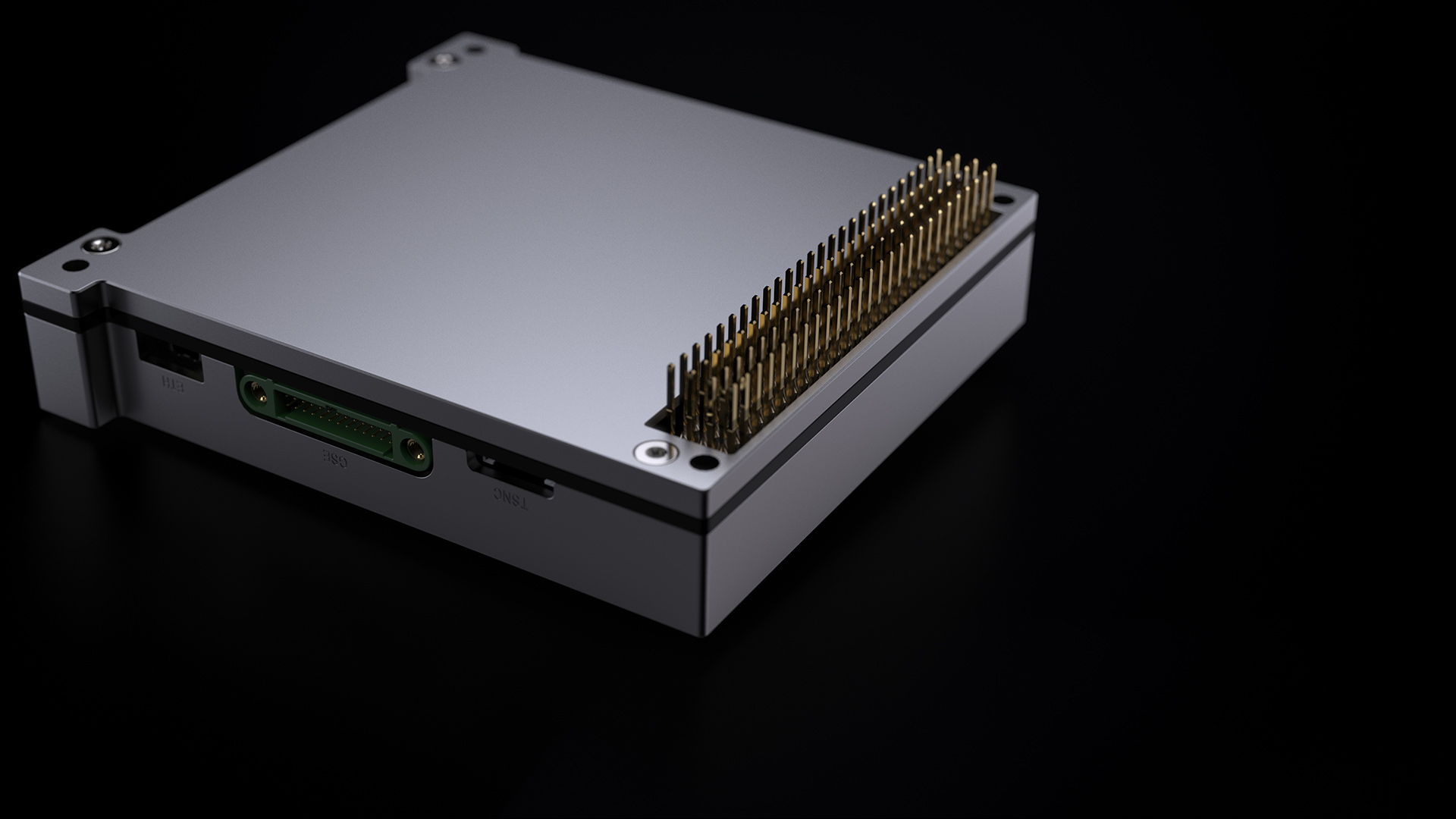

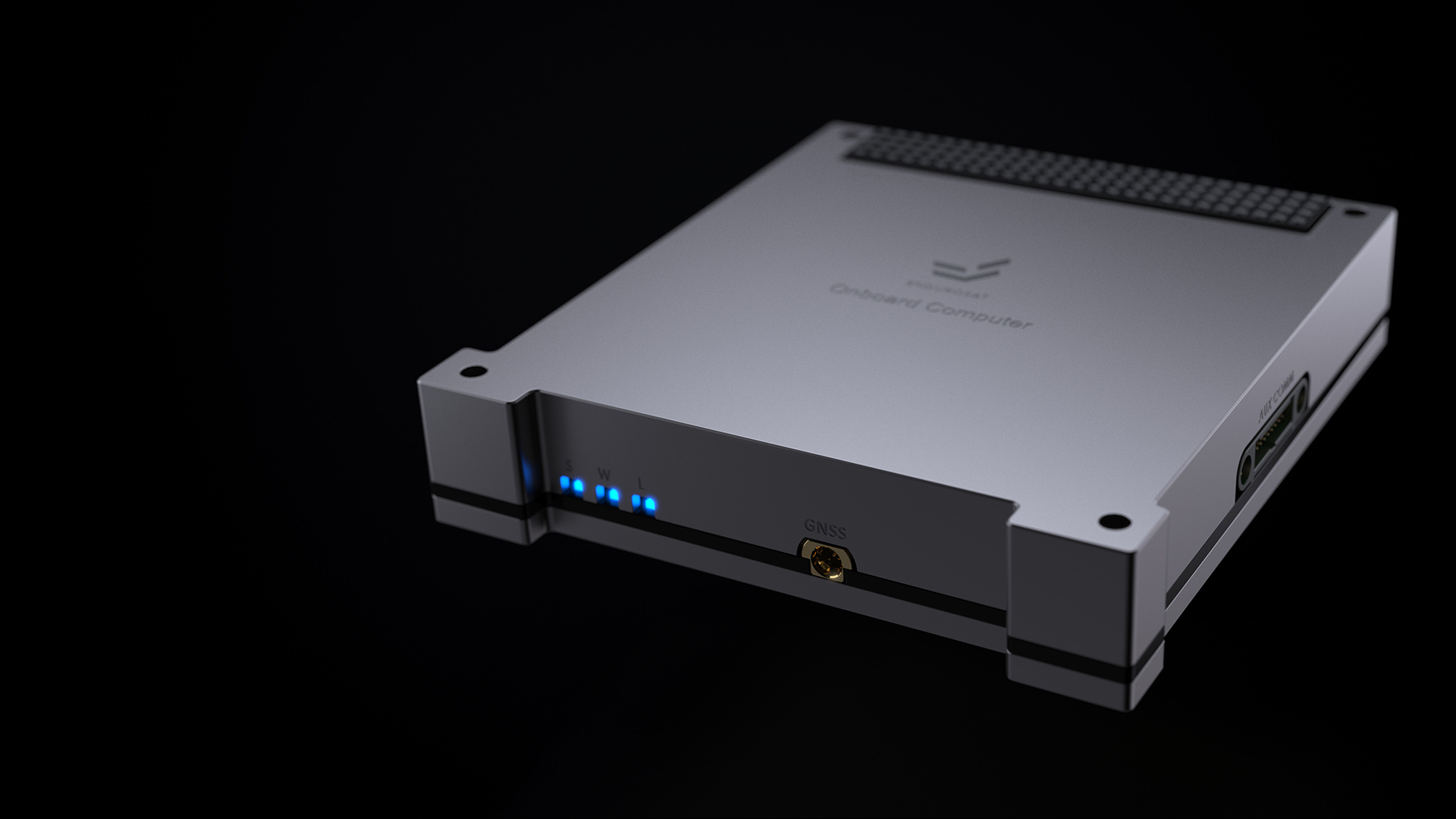

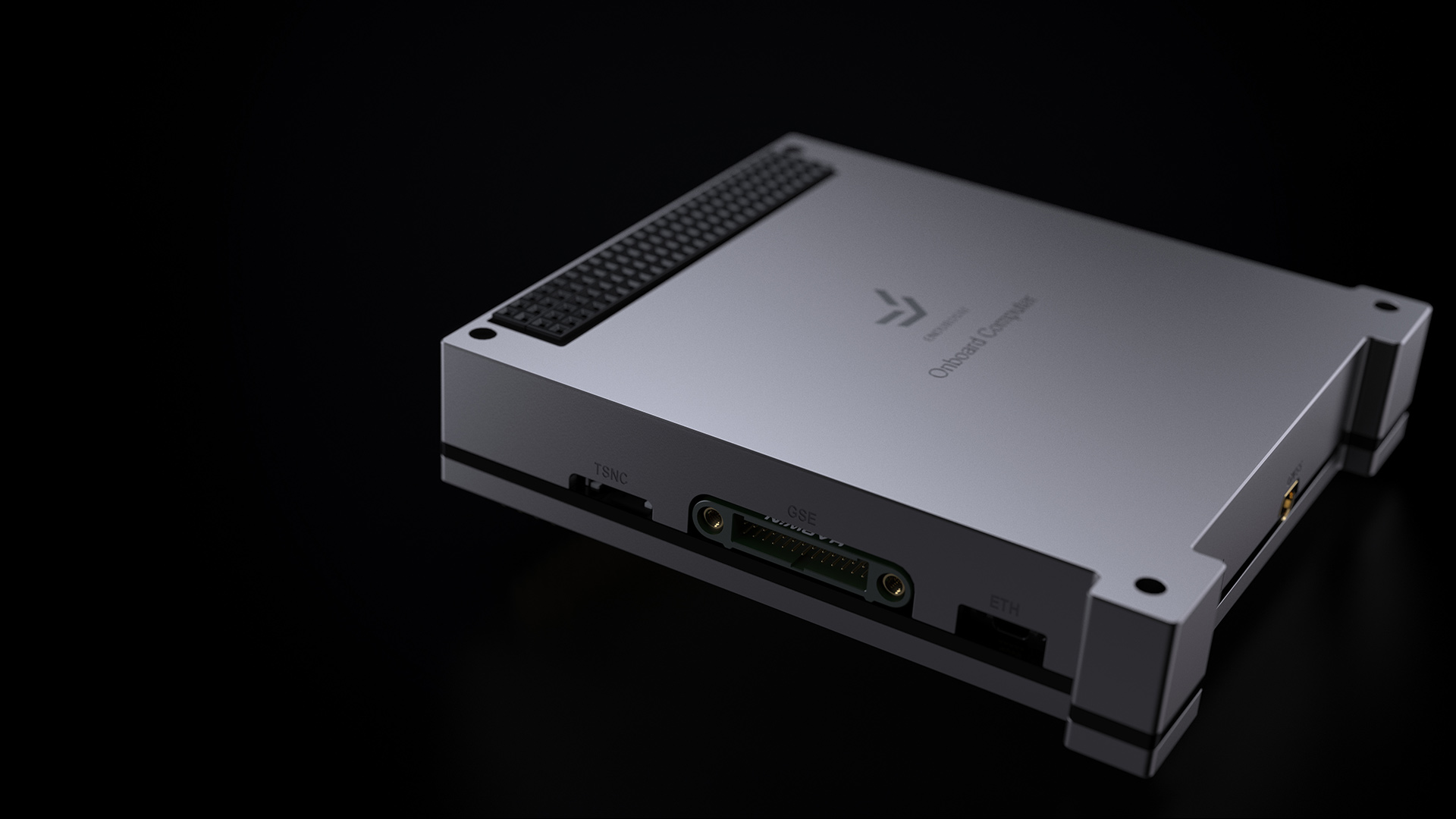

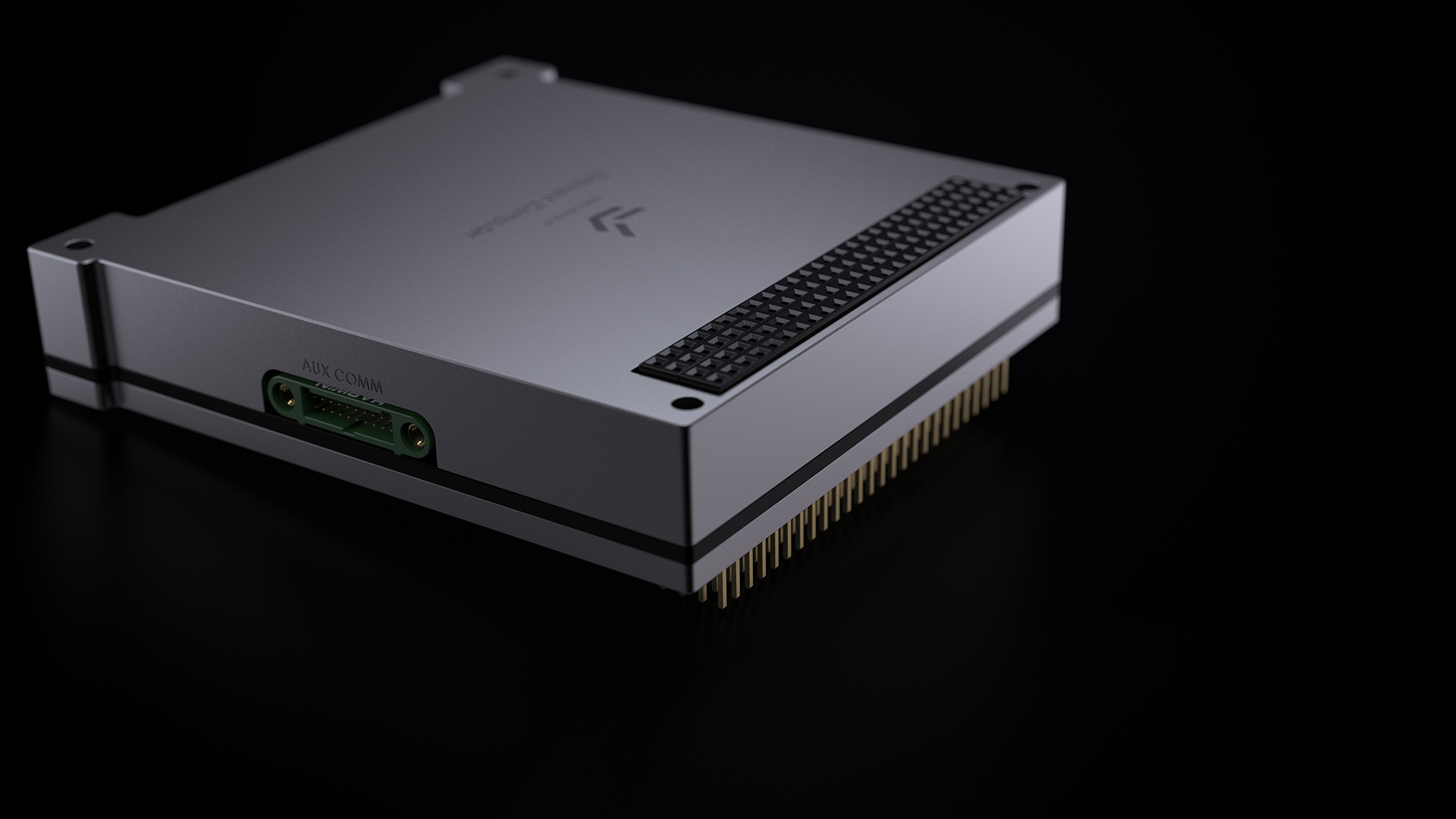

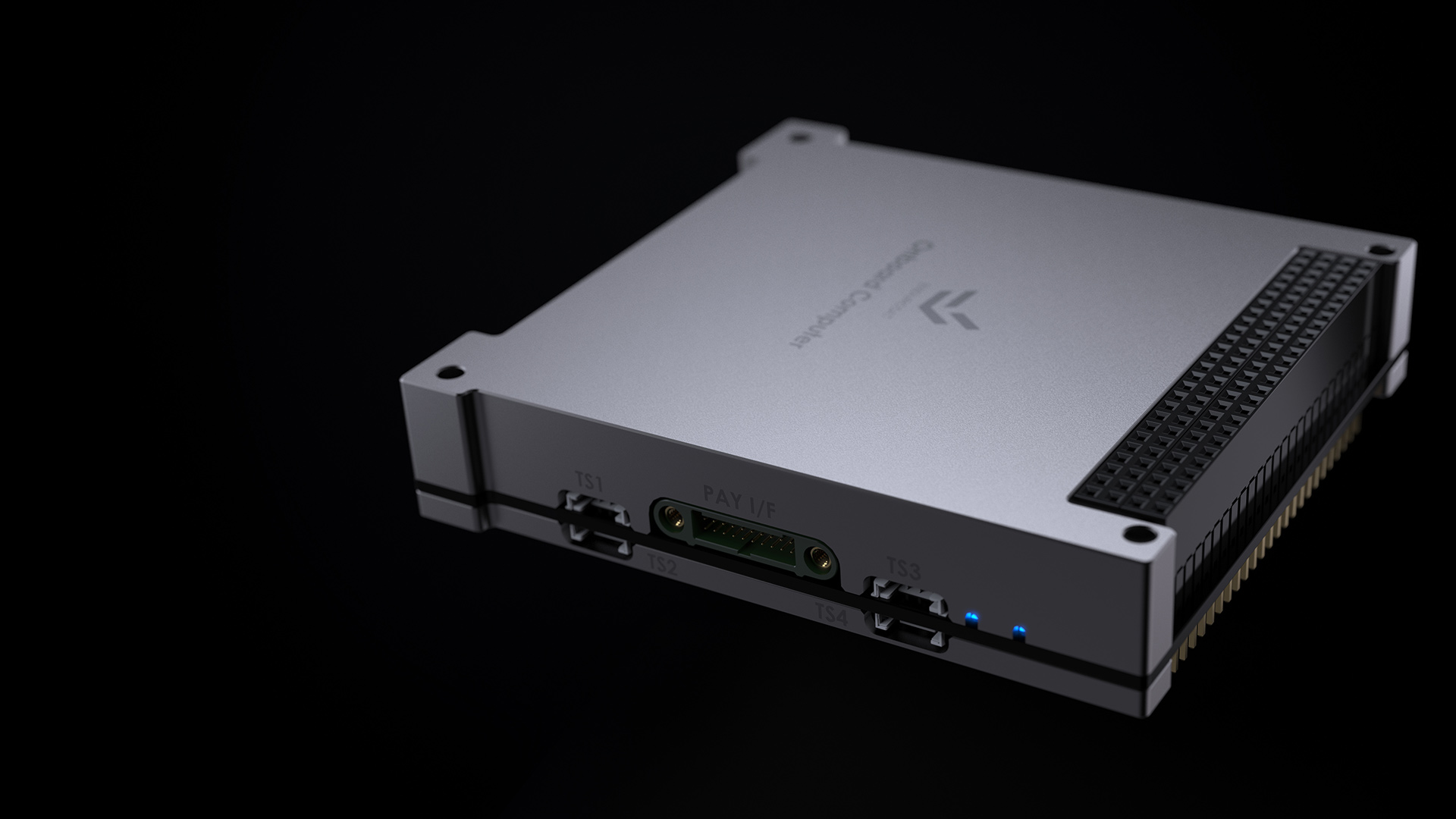

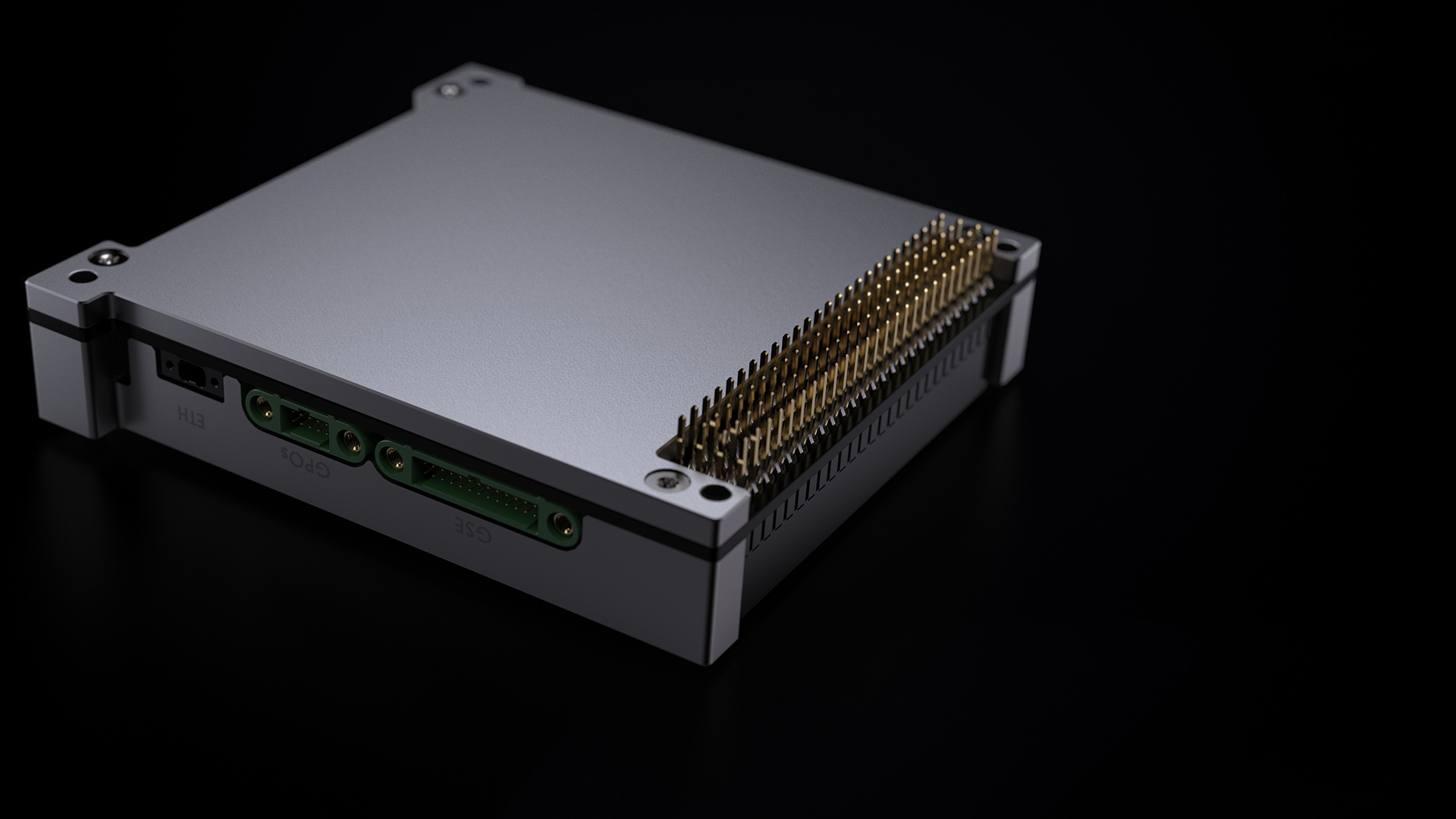

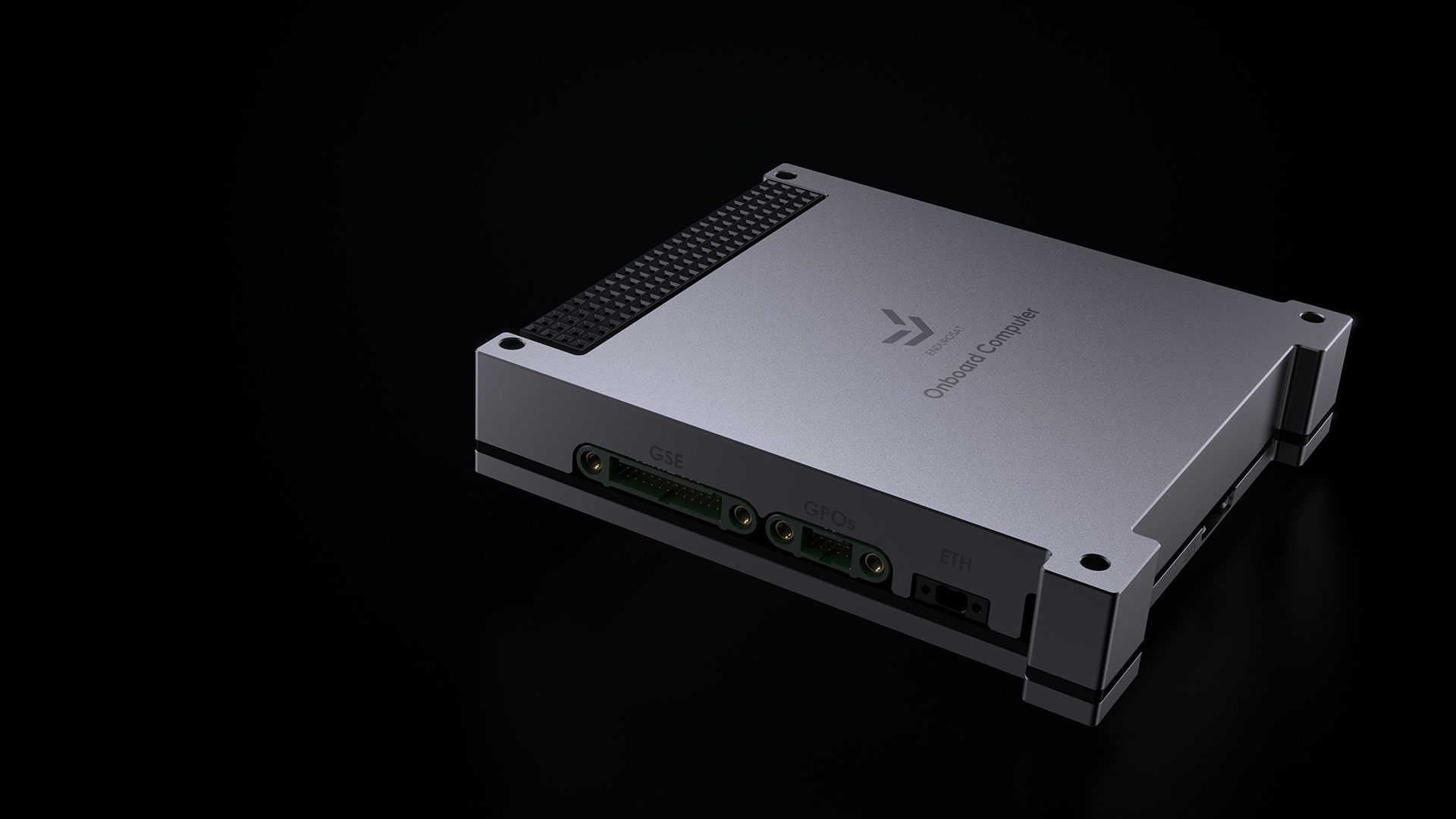

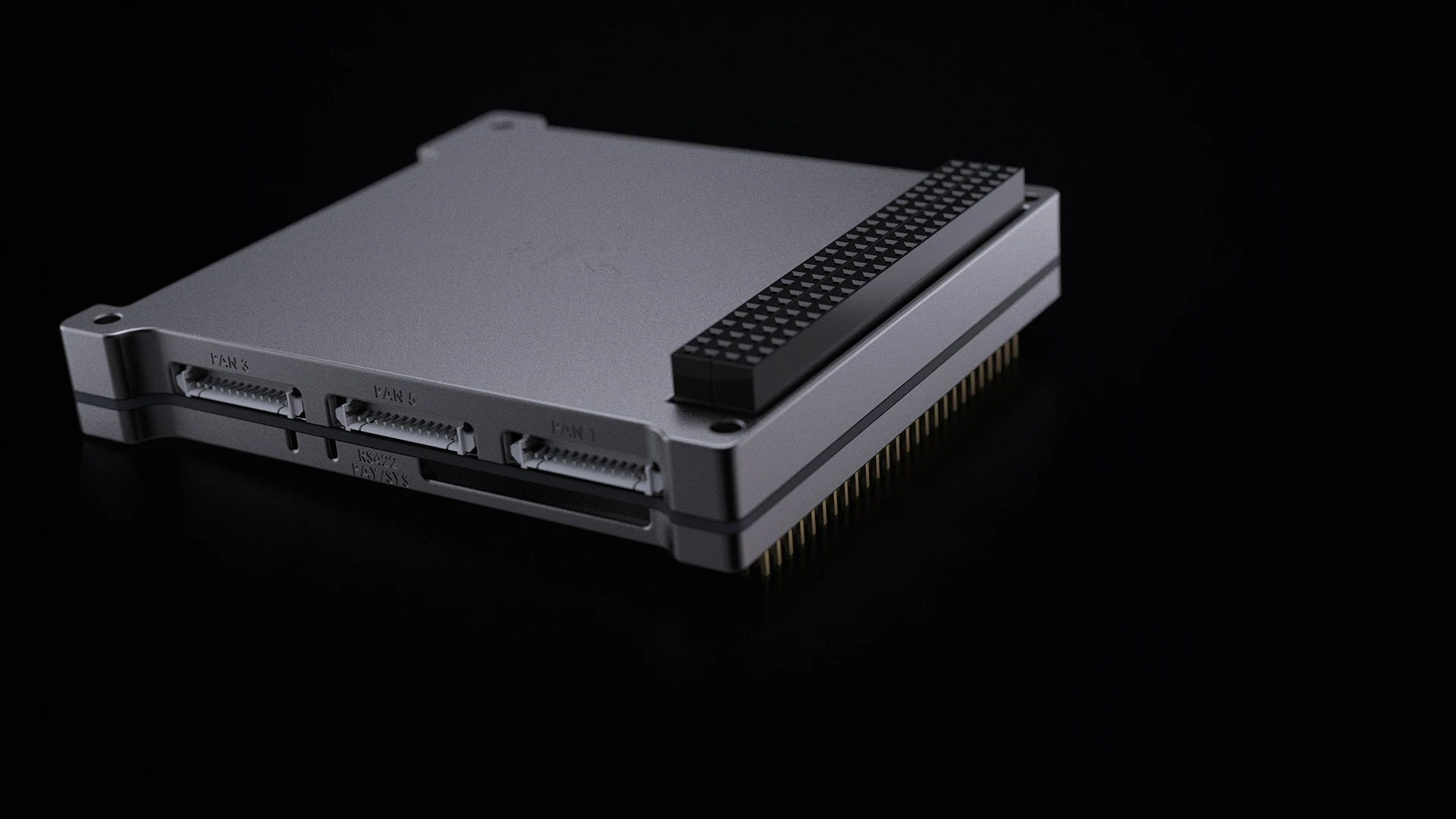

ONBOARD COMPUTER

Name: ONBOARD COMPUTER
Brand: EnduroSat
Price: 16000 USD
Availability: InStock

Advanced command and control for CubeSats and SmallSats

Cad file & datasheet

Select Options

ONBOARD COMPUTER

Download

Cad file & datasheet

Select Options

LOW

POWER CONSUMPTION

SDK

FREERTOS DEVELOPMENT ENVIRONMENT

GNSS

OPTIONAL INTEGRATED SYSTEM

Automate time-based tasks beyond ground contact with MicroPython scripting

Optional integrated GNSS receiver for a wider range of applications

CONFIGURATION OPTIONS

OBC

ARM Cortex M7
2x 16 GB mass storage
No GNSS receiver

OBC WITH GNSS

ARM Cortex M7
2x 16 GB mass storage
NovAtel OEM 719 GNSS receiver

TECHNICAL SPECS

Processor

ARM Cortex M7

Program Memory Size

2 MB Flash Memory

Mass Storage

2x 16 GB Embedded SD NAND Flash Memory

External FRAM Memory

2x 2MB FRAM with ECC capability

Compatibility

Full set of drivers for EnduroSat modules

Clock Type

Real Time Clock

Reading Temperature Interfaces

4x Digital and 4x Analog

PPS Signal

Single-Ended

GPIO Signals

16x Payload Enable / Disable / Feedback

Control Interfaces

2x CAN-FD with 1 Mbps Data Rate (CSP 2.0 over CAN)

Payload Interfaces

1x CAN-FD, 1x RS-422, 1x RS-485, 1x SPI, 1x UART, 1x 100BASE-TX Ethernet

Voltage Supply

12 V

Mass

123g / 173g (with GNSS Receiver)

Optional GNSS Receiver

NovAtel OEM 719

- Signal Tracking

from GPS L1, Galileo E1

- PPS Signal Error

±0.5 ppm

- Position accuracy (single frequency)

<20 m RMS

- Velocity Accuracy (single frequency)

<0.5 m RMS

- Time Accuracy

20 ns

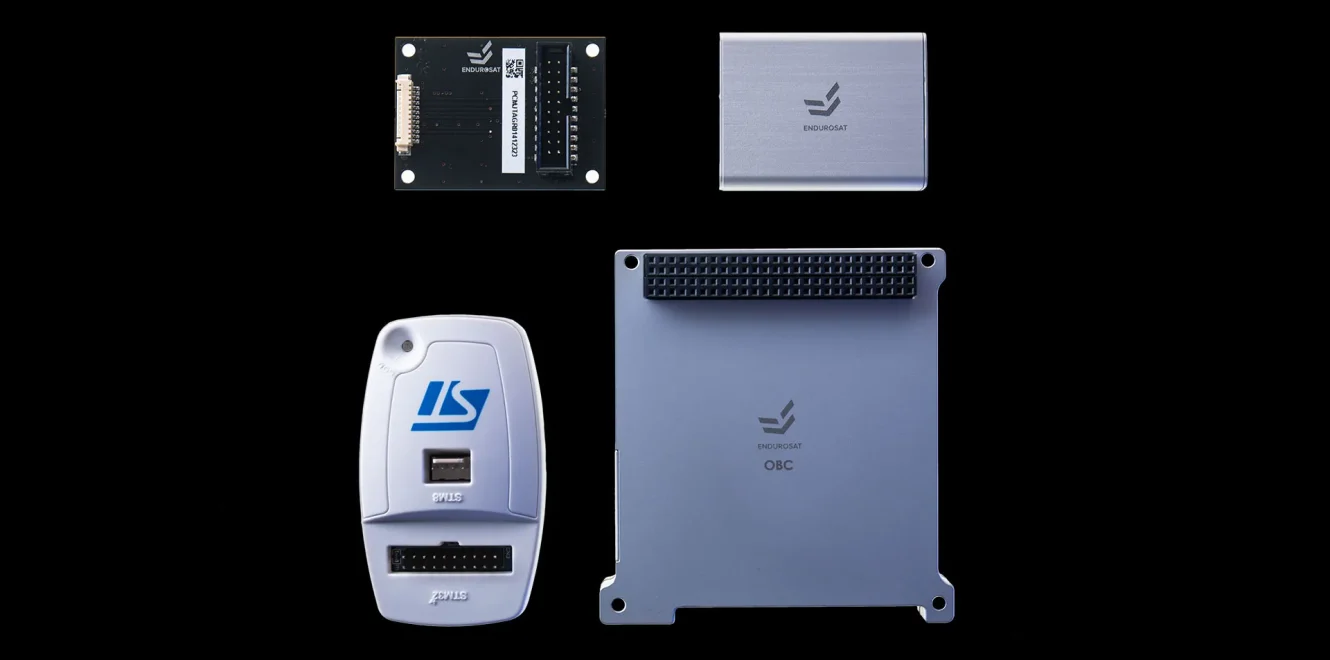

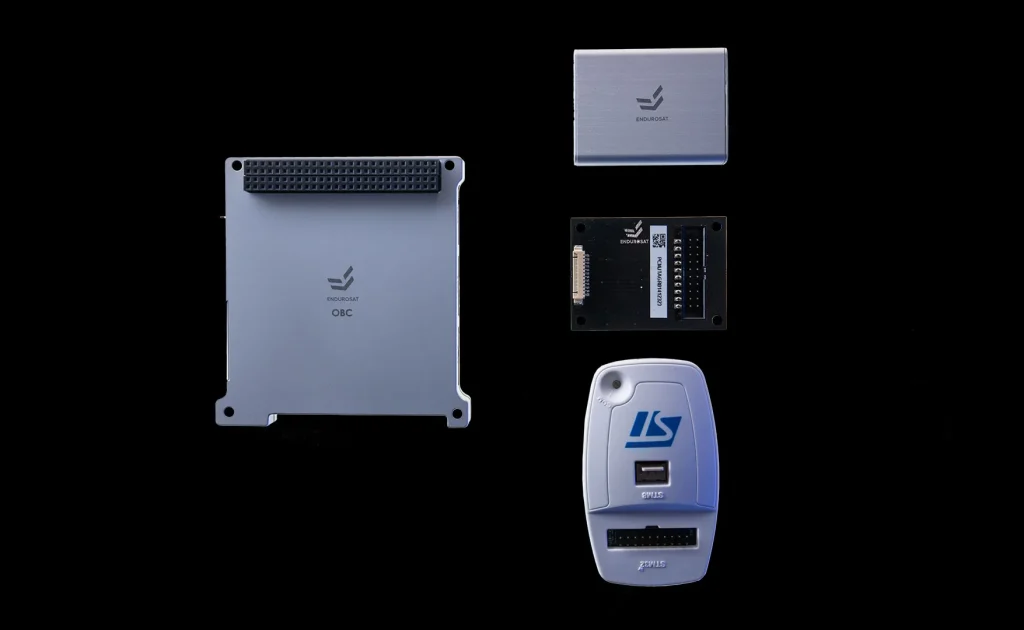

Included

Complete User Manual

USB cable

JTAG and debugging cables (with SDK)

5h engineering support

Delivery cost

Handling and administration costs

Flight computer featuring space-ready 2x 16 GB Embedded SD NAND Flash Memory

Encryption, compression and archiving included in the Flight Management System module

In-orbit firmware updates capability

Housekeeping data, logging, scheduling, tasking for smooth operations in-flight

Support for external digital and analogue temperature readings

3000

MODULES IN ORBIT

120

DELIVERED SATELLITES

200

TB DATA DOWNLINKED

All our products undergo Space Qualification, involving stringent testing under extreme conditions to ensure robustness and high performance

LEARN MORE

Datasheet & CAD File

Datasheet & CAD File*

Datasheet

CAD File

Full name*

Company Email*

Organization*

Phone Number*

Country*

Select one or more modules*

Project description*

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

CAPTCHA

This field is hidden when viewing the form

Automatic Assignment

Onboard Computer (OBC)

Full Name*

Company Email*

Organization*

Country*

Message*

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

CAPTCHA

ONBOARD COMPUTER

Unit Price

ONBOARD COMPUTER Options

Standard

+ GNSS Receiver

Total

Add

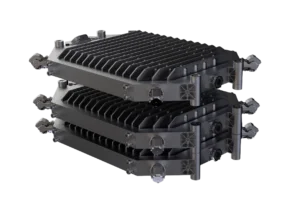

FRAME SmallSat
