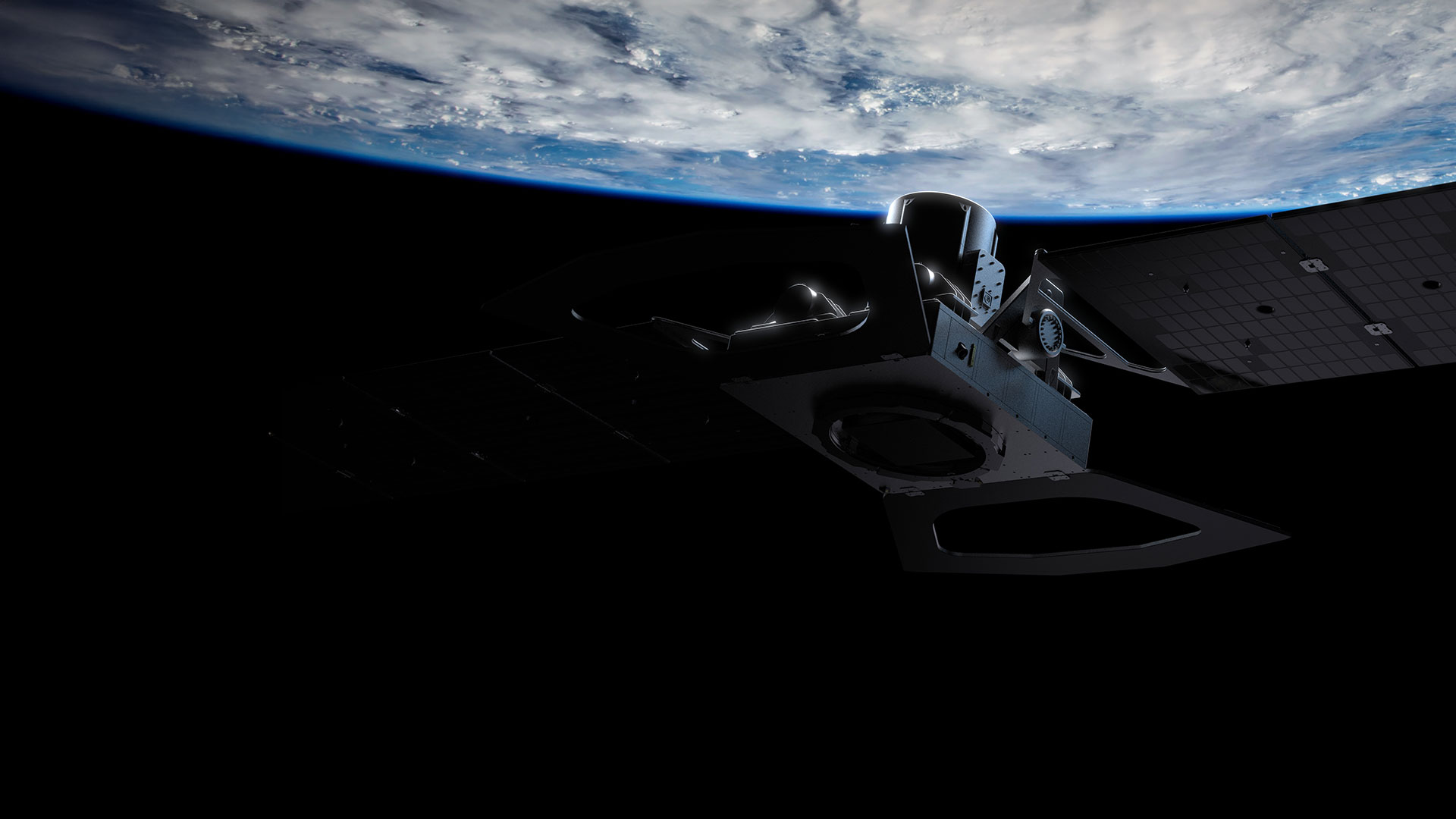

FRAME-24

Name: FRAME-24
Brand: EnduroSat
Price: 4000000 USD
Availability: InStock

Designed for Your Most Advanced Payloads

Cad file & datasheet

Add

300 KG

AVAILABLE PAYLOAD MASS

7 kW

MAX CONTINUOUS POWER

2 GBPS

GROSS DATARATE

FRAME-24

Download

Cad file & datasheet

Add

400 M/SEC

DELTA-V PROPULSION

Military-grade Encryption

Built for Demanding Payloads

Synthetic Aperture Radar (SAR)
Hyperspectral Imager (HSI)
Very High Resolution (VHR)
High-Throughput Satellite (HTS)

Universal Avionics Assembly

Cableless Design

Plug and Play Integration

Modular

Reconfigurable
even post-AIT

Designed for In-Orbit
Serviceability

Develop, Configure & Test With Ease

SpaceDev

DISCOVER MORE

IN-ORBIT OPERATIONS SUITE

SpaceOps

DISCOVER MORE

FEATURES

Spacecraft bus mass

200-250 kg (configuration dependent)

Chassis size

24-inch ESPA class

Available payload mass

up to 300 kg

Available payload volume envelope

up to 1000 x 1000 x 1000 mm (SpaceX full plate)

Peak input power

up to 4 kW

Average payload power available (LTAN-dependent)

1 kW (with SADR)

Available power buses

123 A @ 28 V regulated or 215 A @ 30-50 V unregulated

Additional power buses (PPCU)

3.3V, 5V, 12V and other regulated values up to 30V upon request

Pointing accuracy

<0.1 deg (3σ)

Pointing knowledge

<0.006 deg (3σ)

Payload gross data rate

up to 2 Gbps

Standardized for

KSAT, LeafSpace and AWS GSaS networks

Delta-V capacity (configuration-dependent)

40-400 m/sec

Your Constellation, Now at the Speed of Serial Production

Included

Software Development Kit (SDK)

SpaceDev 1-year subscription

20h engineering support

Delivery cost

Handling and administration costs

Design review and consulting

ESPA-Class Micro Satellite Engineered for Advanced Missions

Built for Responsive Space Fastest Assembly Process to Date

1.0 m³ Volume with Standardized Mechanical & Hardware Interfaces

High-Speed Data Handling with 100G Ethernet, SpaceWire & SpaceFibre Interfaces

3000

MODULES IN ORBIT

120

DELIVERED SATELLITES

200

TB DATA DOWNLINKED

All our products undergo Space Qualification, involving stringent testing under extreme conditions to ensure robustness and high performance
