8U SOLAR PANEL

Power in Space for CubeSats
Cad file & datasheet
Add
Add
Download
Cad file & datasheet
Add
Add
30+%
EFFICIENT SOLAR CELLS
24 W
OF POWER IN LEO
SENSORS
CONFIGURABILITY UPON REQUEST

High power output and radiation resistance with 29+% effeciency at EOL

Space-qualified CubeSat solar panel

TECHNICAL SPECS
Power Efficiency at BOL
30+%
Power Efficiency at EOL
29+%
Number of Cells
20
Max Power in LEO
24 W
Reverse Bias Protection
Internal bypass diode
Solar Cell Assembly (SCA) Thickness
280-300 μm
Integrated Sensors
Photodiodes (up to 4)
Mass
545 g
Max Voltage
49.8V (20S1P)
Max Current
2.5 A (4S5P)
Optional
External magnetorquer connector, low-Power MCU, up to 2 photodiodes, up to 3 temperature sensors
8U Solar Panel integrates seamlessly with all EnduroSat systems

Included

Complete User Manual
1 hour engineering support
Delivery cost
Handling and administration costs

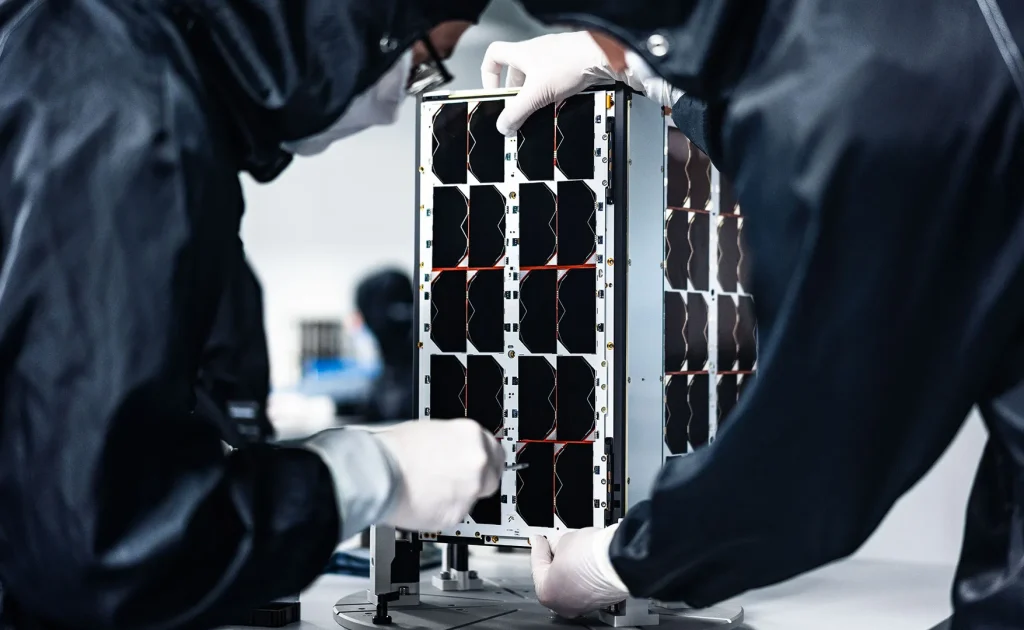

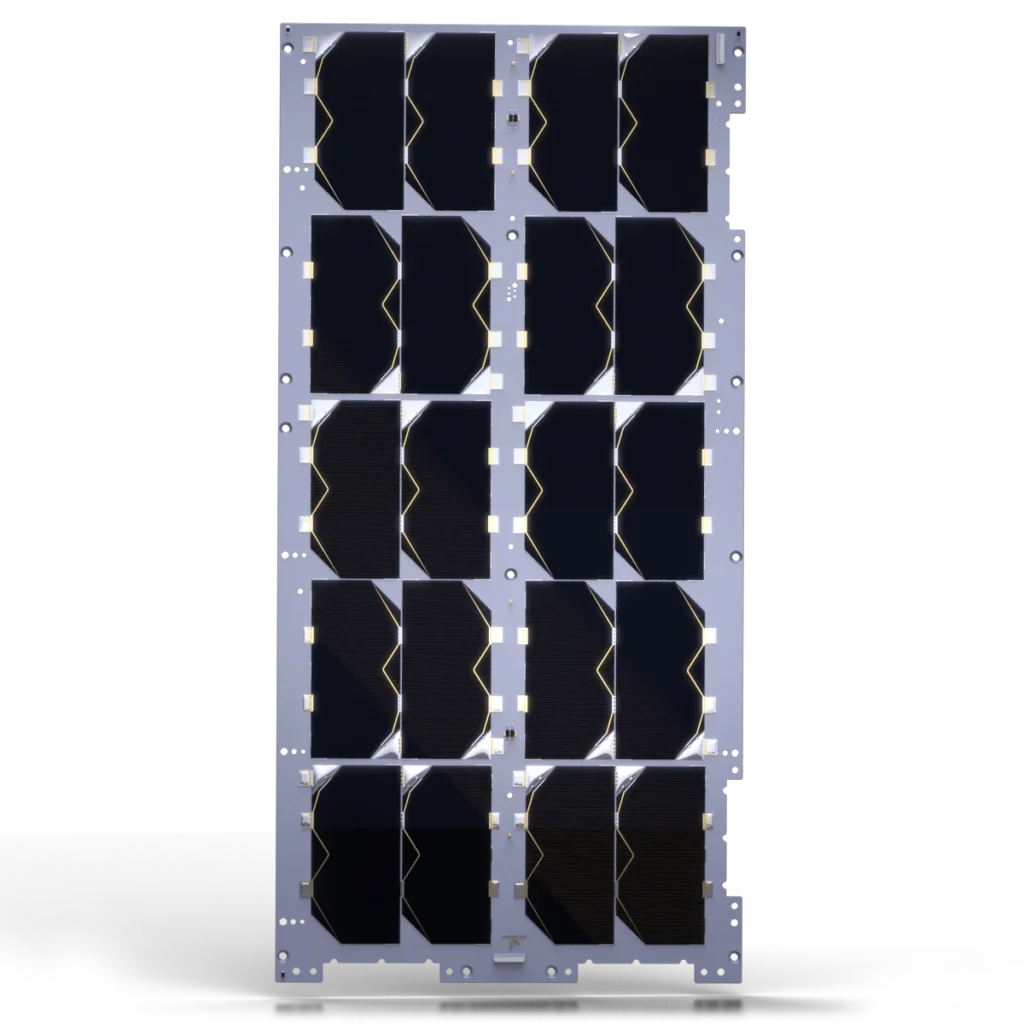

CubeSat 8U Stationary solar panel with triple-junction photovoltaic solar cells
8U Solar Panel web 22

Designed for a 5-year mission lifetime

Includes photodiodes and accessible RBF inhibition mechanism

Optional sun and thermal sensors + a gyroscope for maximized power generation

Supports parallel connections for custom power needs

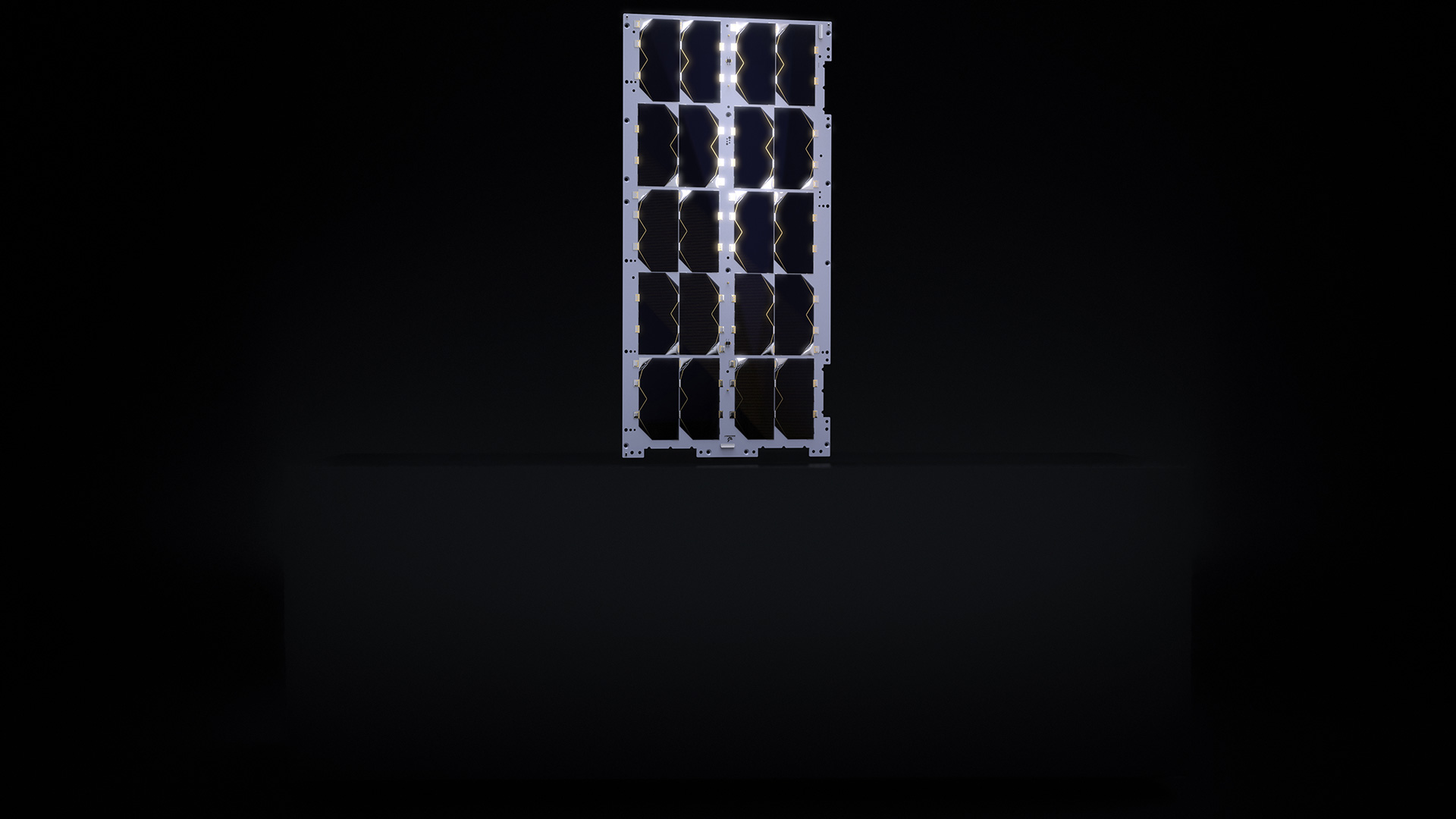

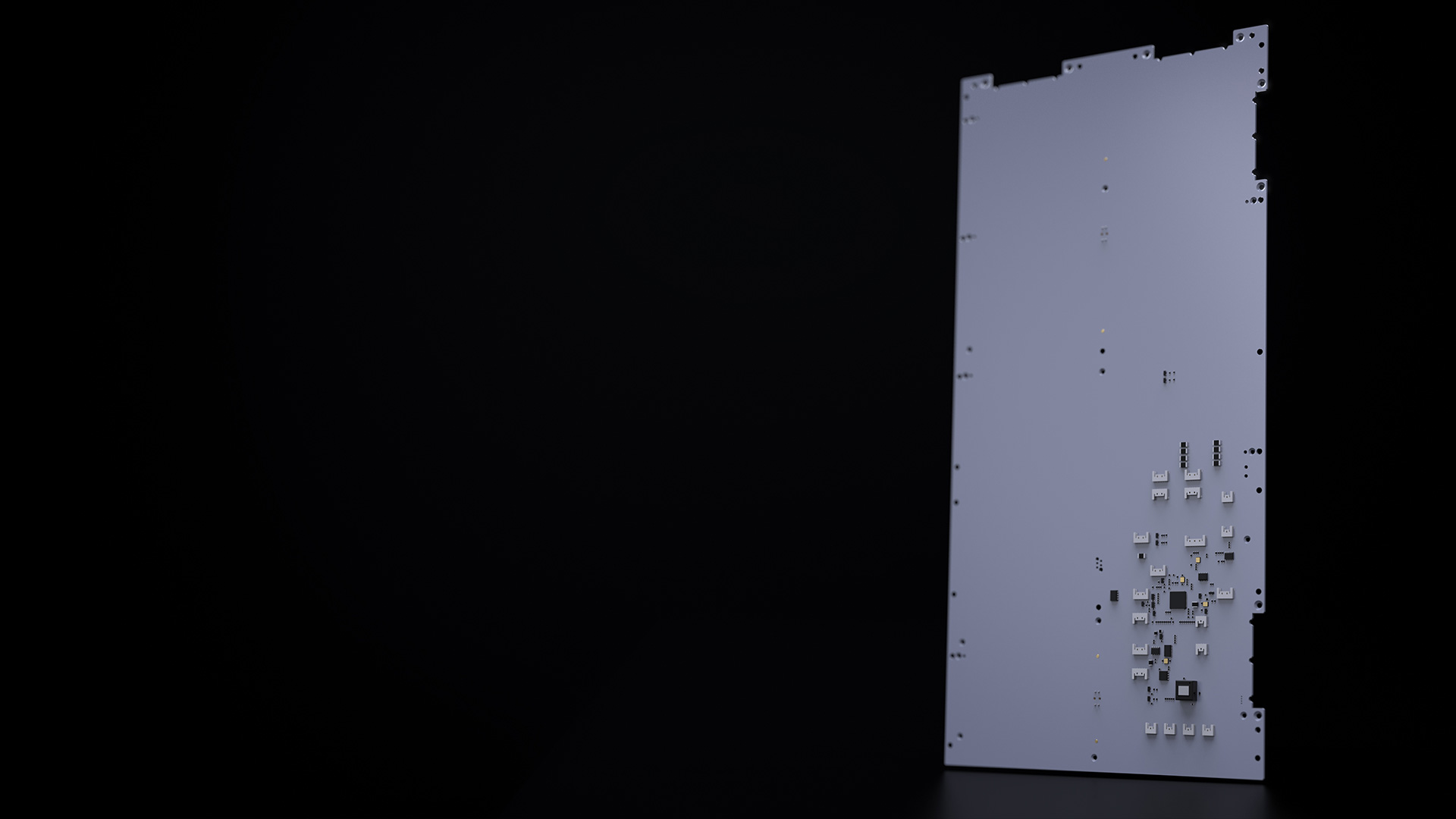

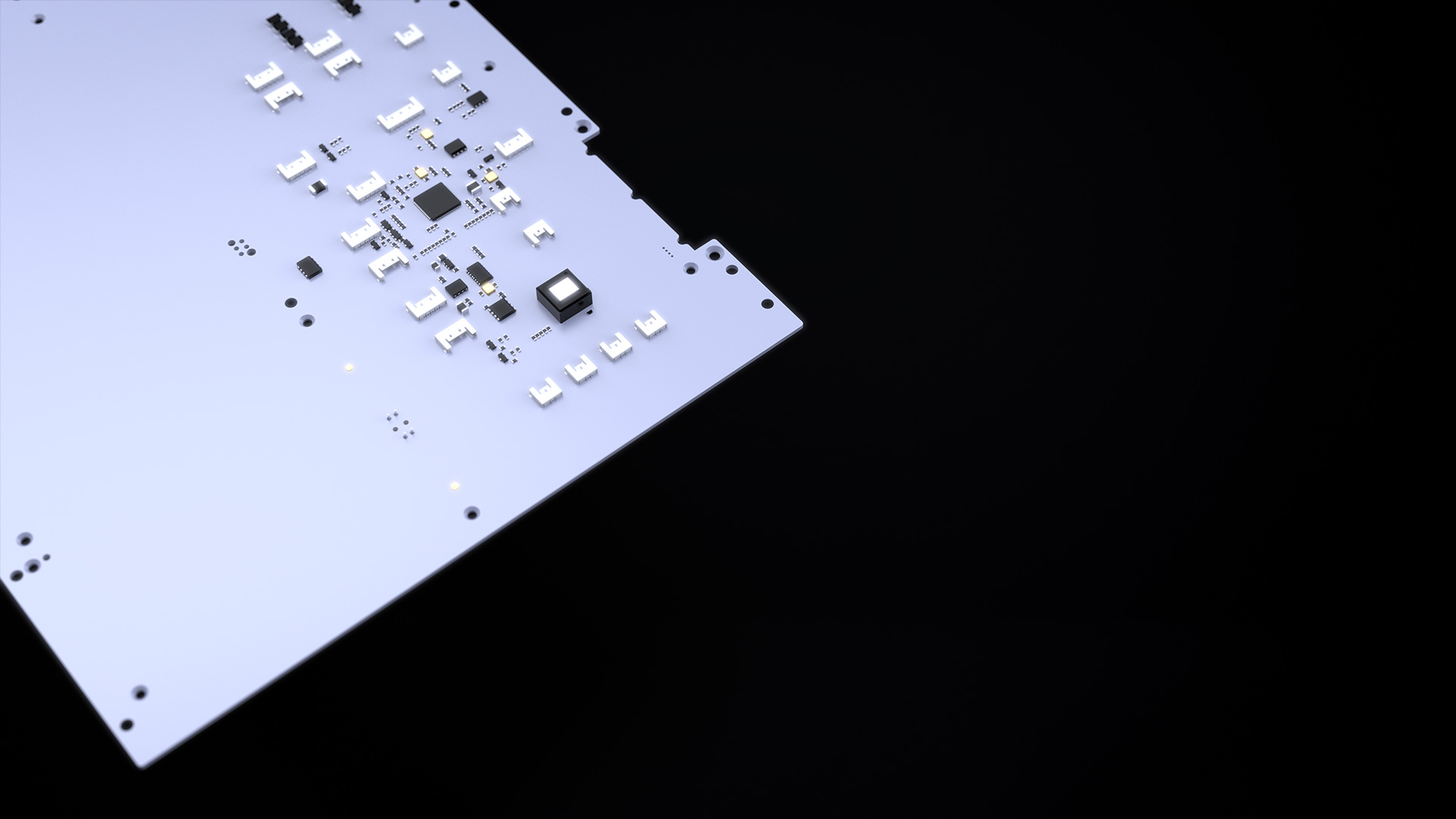

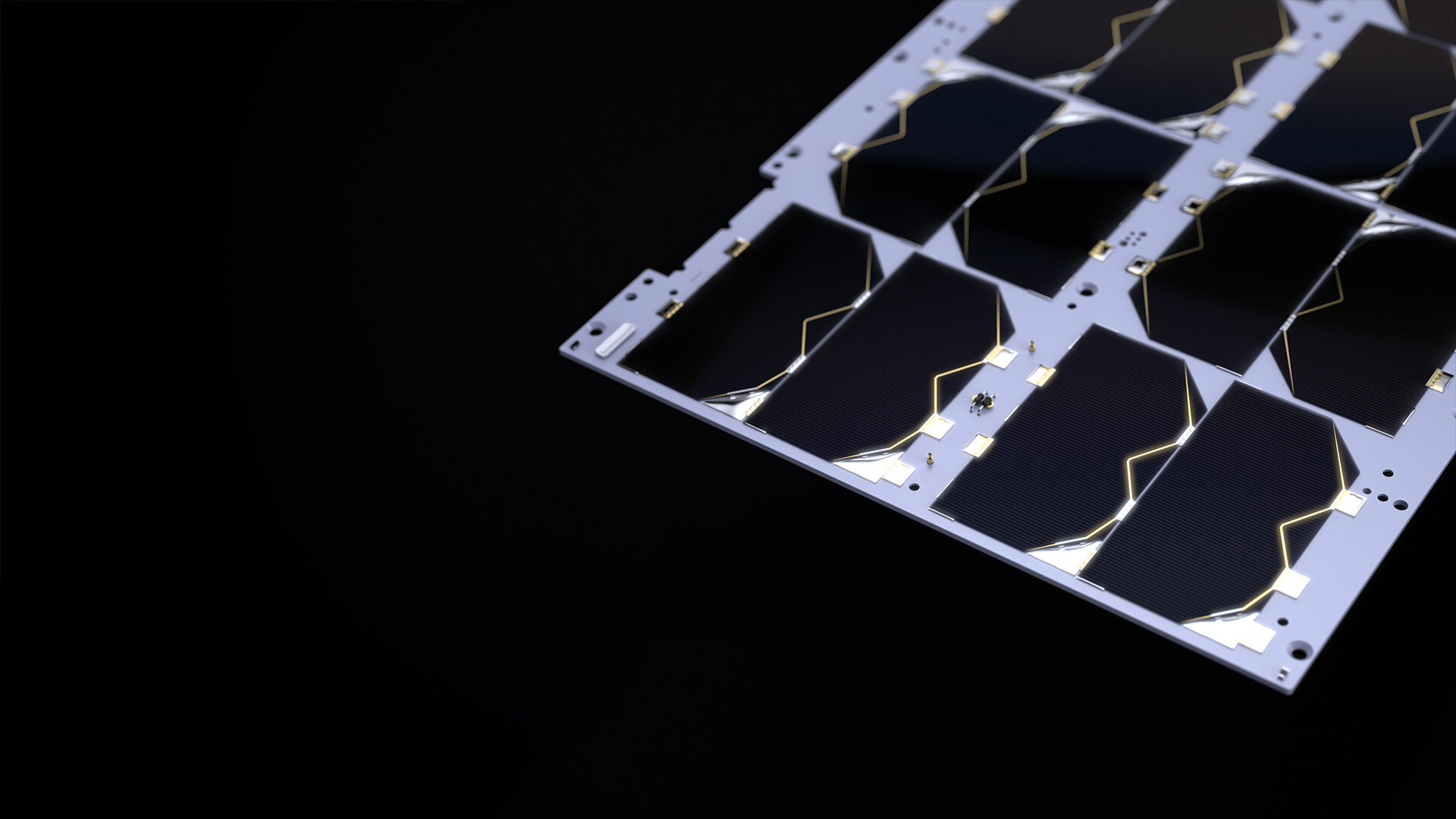

PRODUCT GALLERY
8U Solar Panel web 23
8U Solar Panel web 2

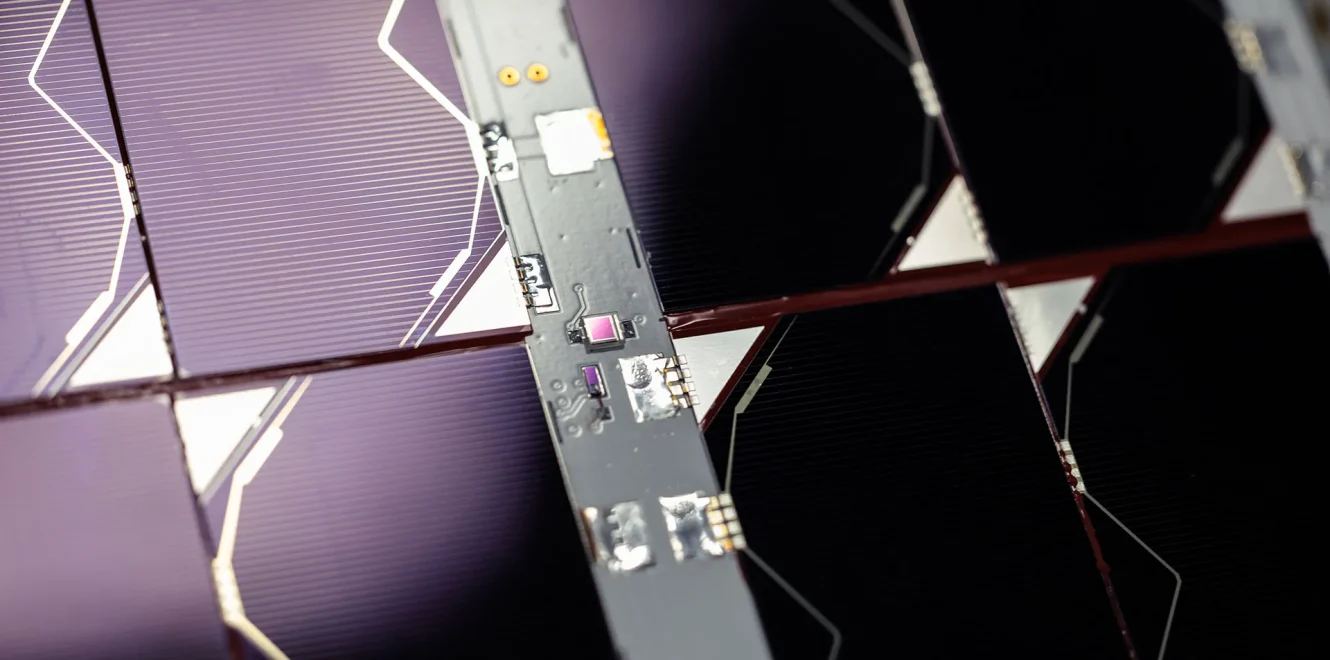

8U Solar Panel web 19
8U Solar Panel web 17

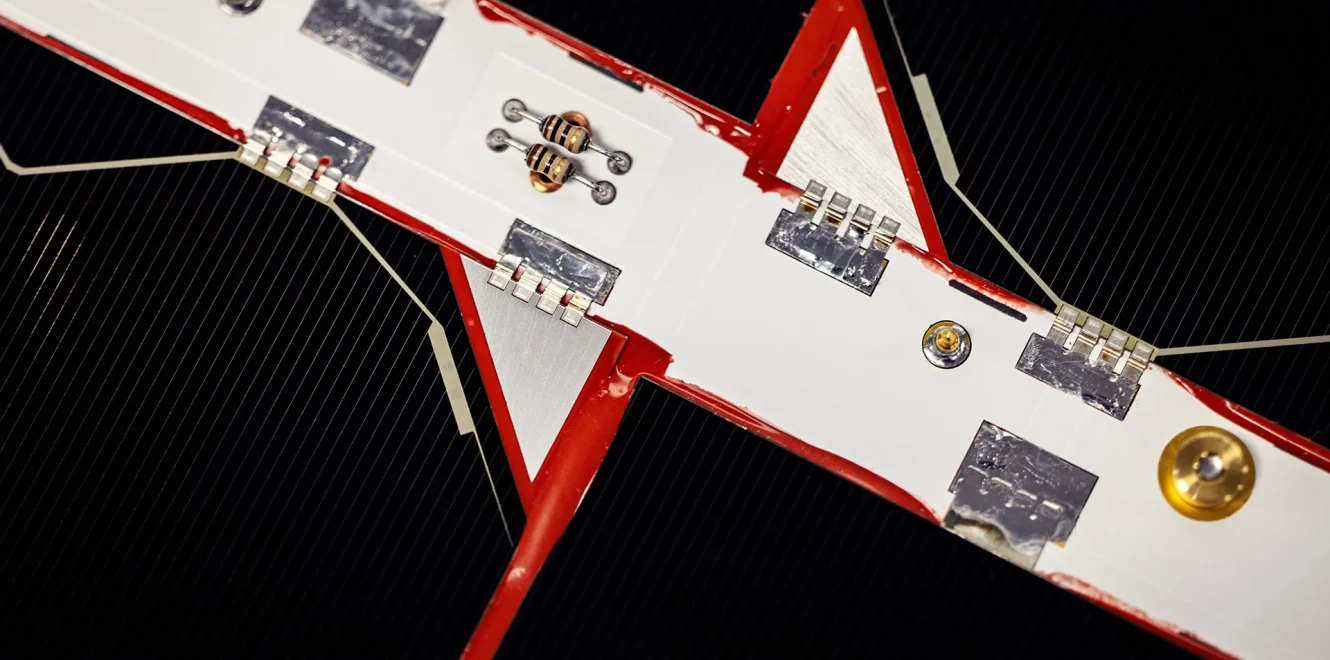

8U Solar Panel web 16

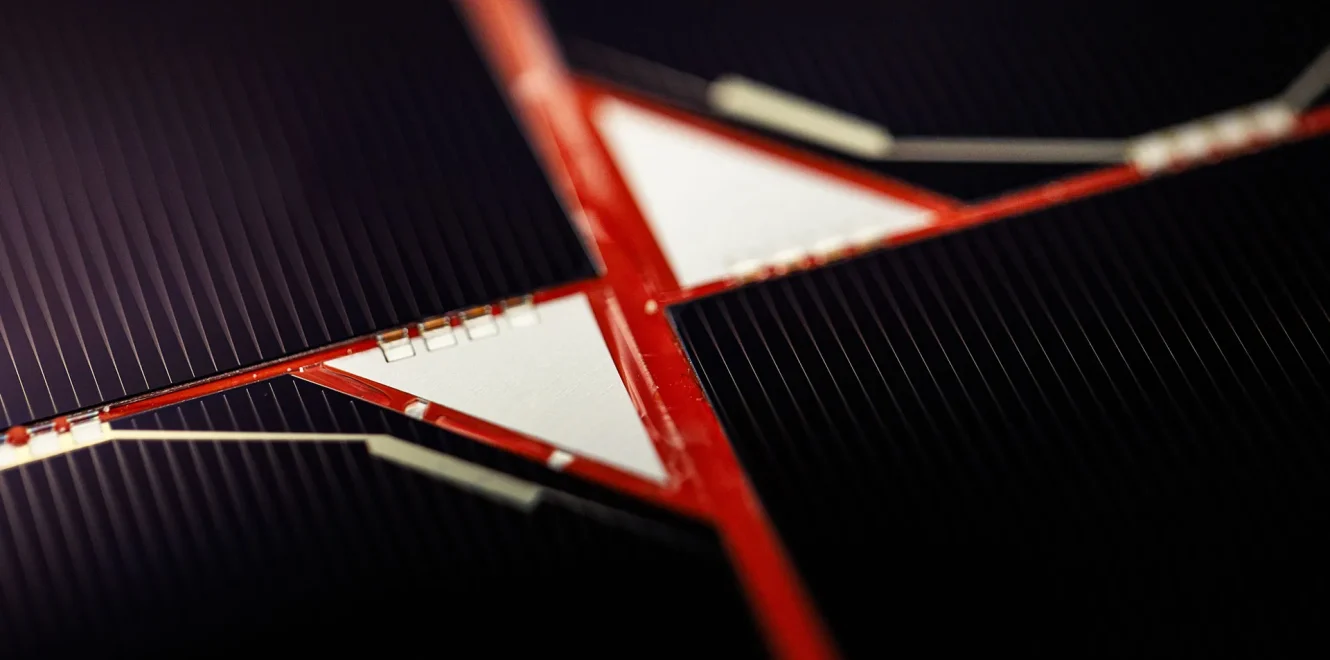

8U Solar Panel web 14
8U Solar Panel web 10
8U Solar Panel web 6

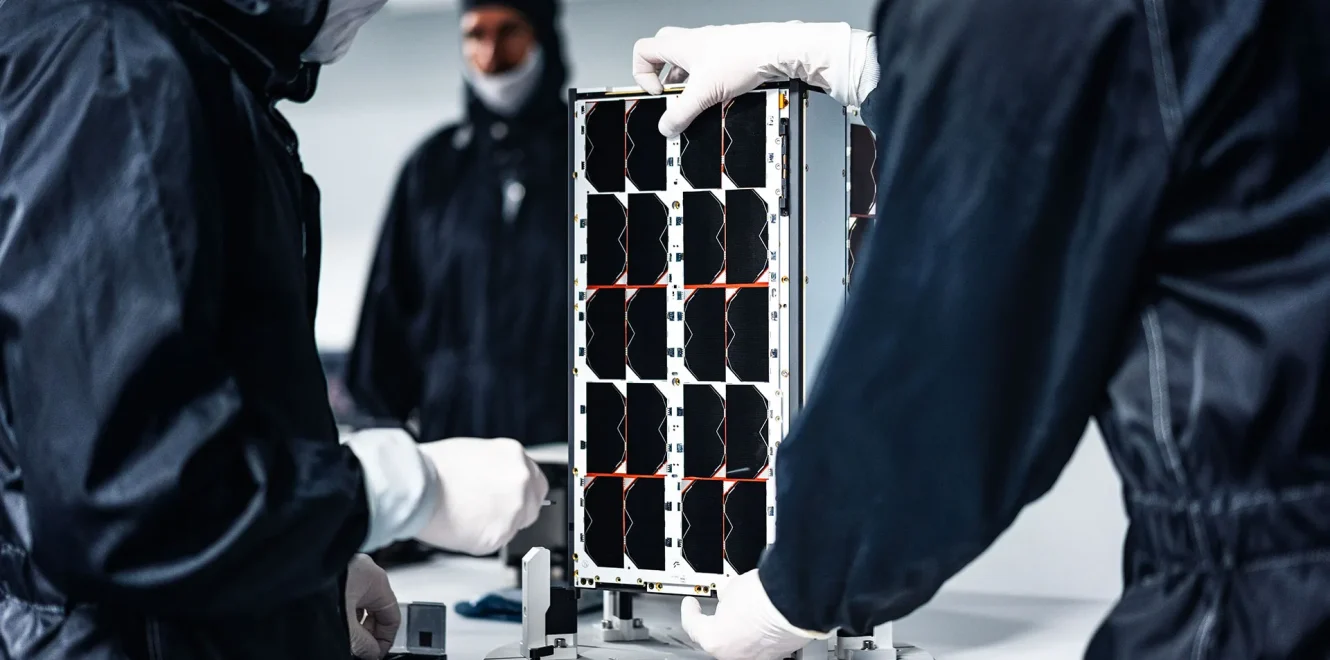

8U Solar Panel web 1
