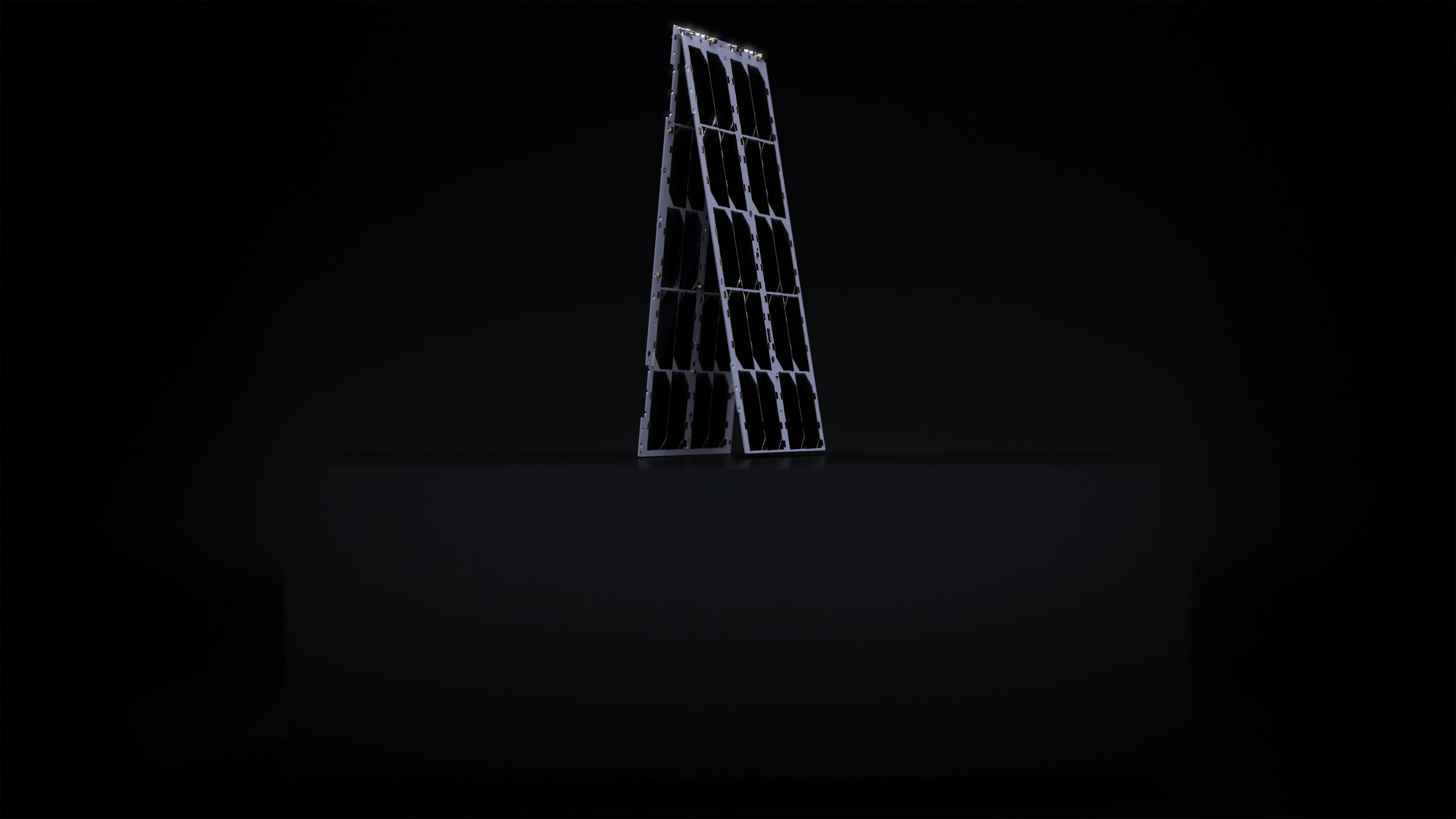

8U SOLAR ARRAY

Deployable solar panels for CubeSats
Cad file & datasheet
Select Options
Select Options
Download
Cad file & datasheet
Select Options
Select Options
30+%
EFFICIENT SOLAR CELLS
24 W
OF POWER IN LEO PER SIDE
BURN-WIRE
RELEASE MECHANISM

High power output and radiation resistance with 29+% effeciency at EOL

Designed for a 5-year mission lifetime

TECHNICAL SPECS
Power Efficiency at BOL
30+%
Power Efficiency at EOL
29+%
Number of Cells
40
Max Power in LEO
48 W
Reverse Bias Protection
Internal bypass diode
Solar Cell Assembly (SCA) Thickness
280-300 μm
Integrated Sensors
Photodiodes (up to 4)
Mass
930 - 1035 g
Max Voltage
49.8V (20S1P)
Max Current
2.5 A (4S5P)
Optional
External magnetorquer connector, low-power MCU, up to 2 photodiodes, up to 3 temperature sensors
8U Solar Array integrates seamlessly with all EnduroSat systems

Included

Complete User Manual
1 hour engineering support
Delivery cost
Handling and administration costs

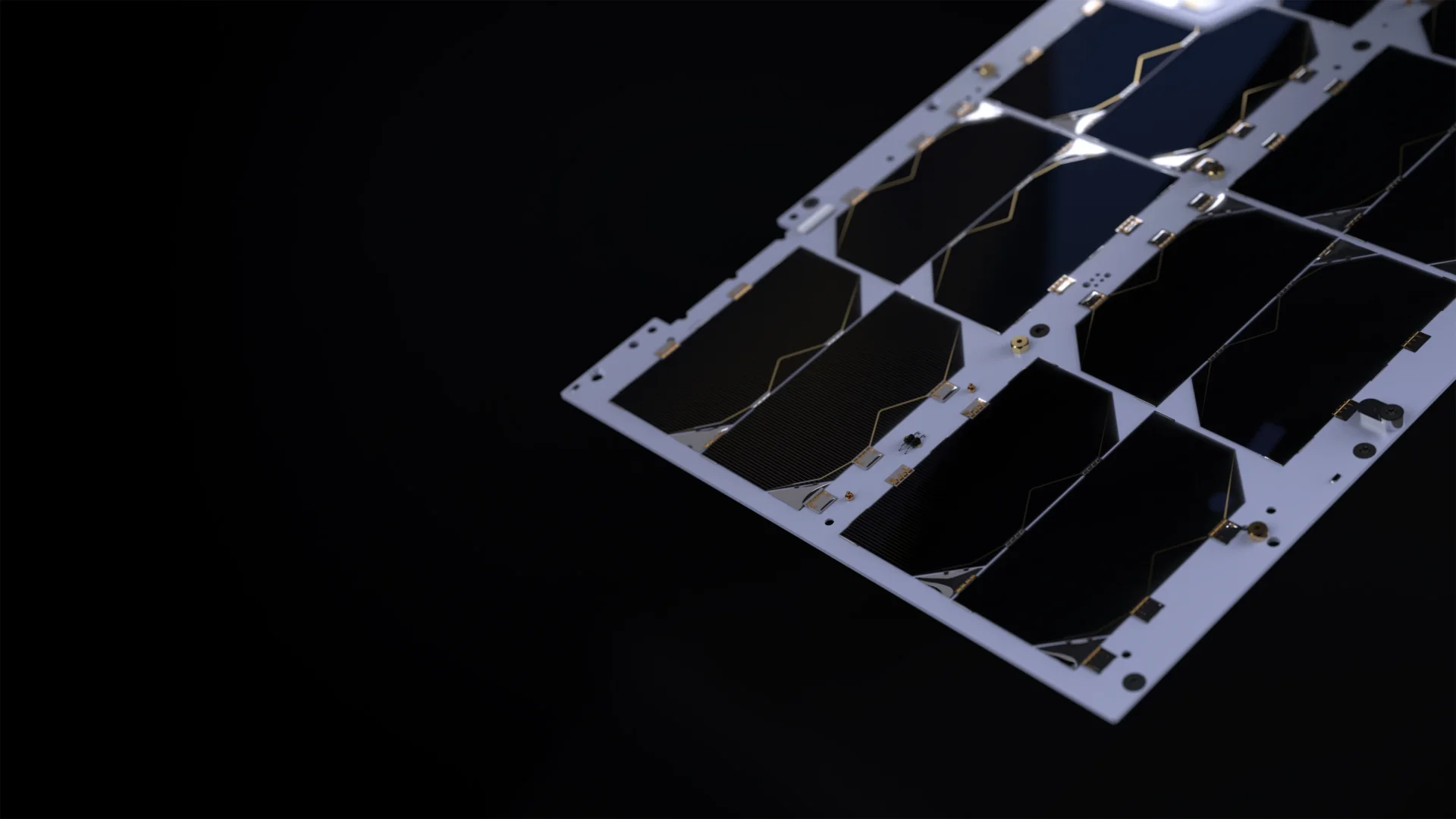

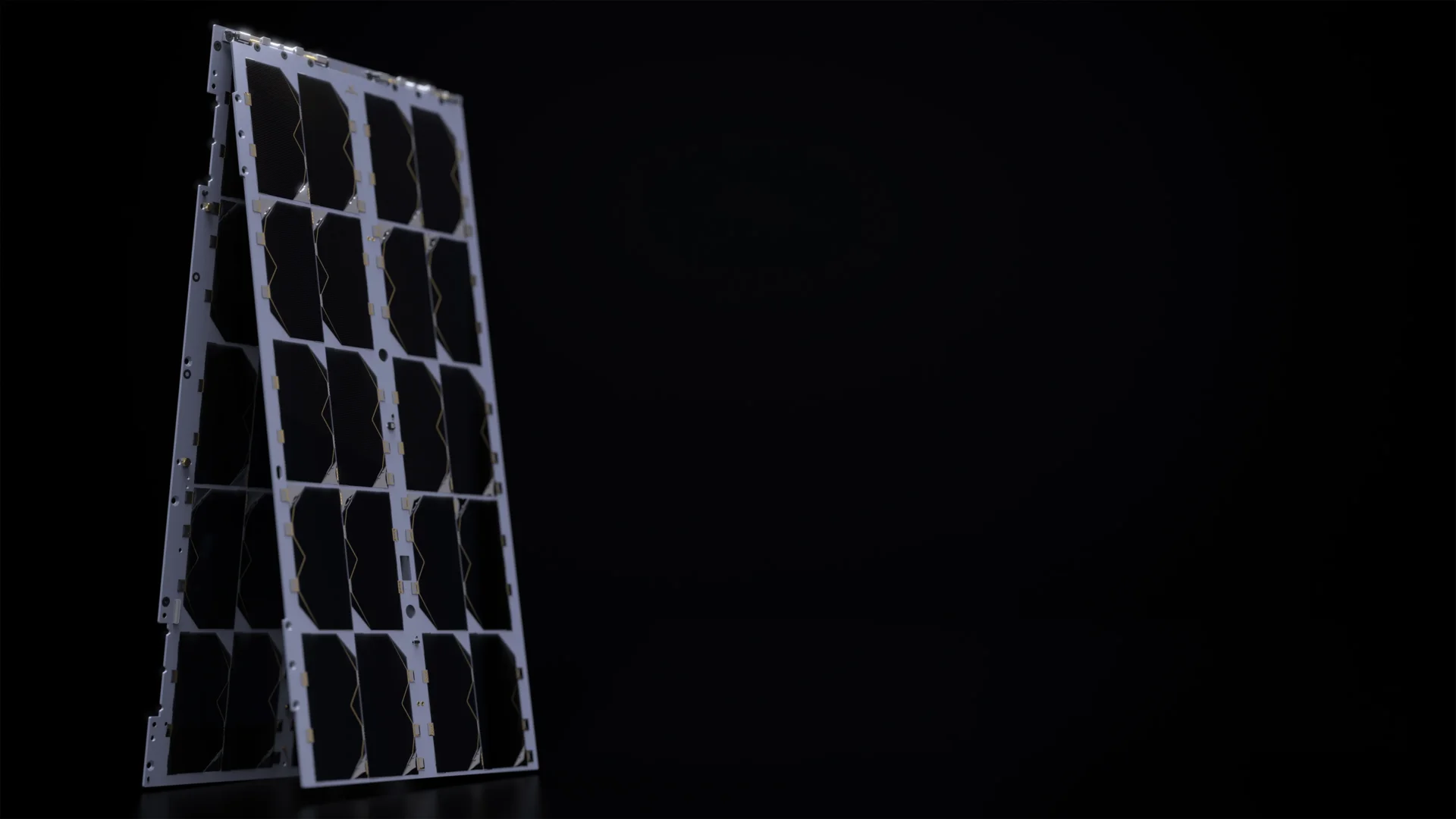

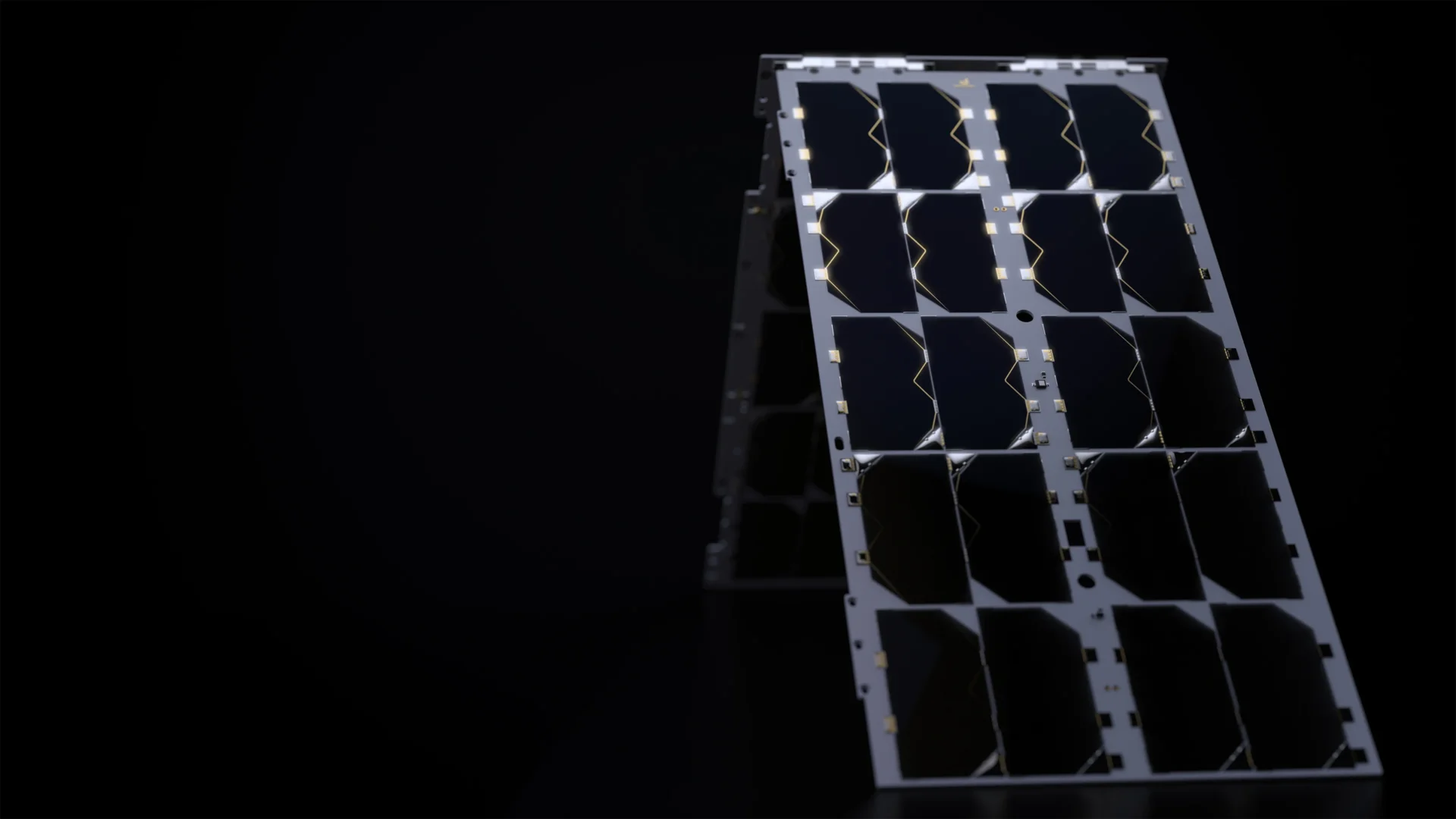

CubeSat 8U Deployable solar panels with triple-junction photovoltaic solar cells
8U Solar Panel web 22

Supports parallel array connections for custom power needs

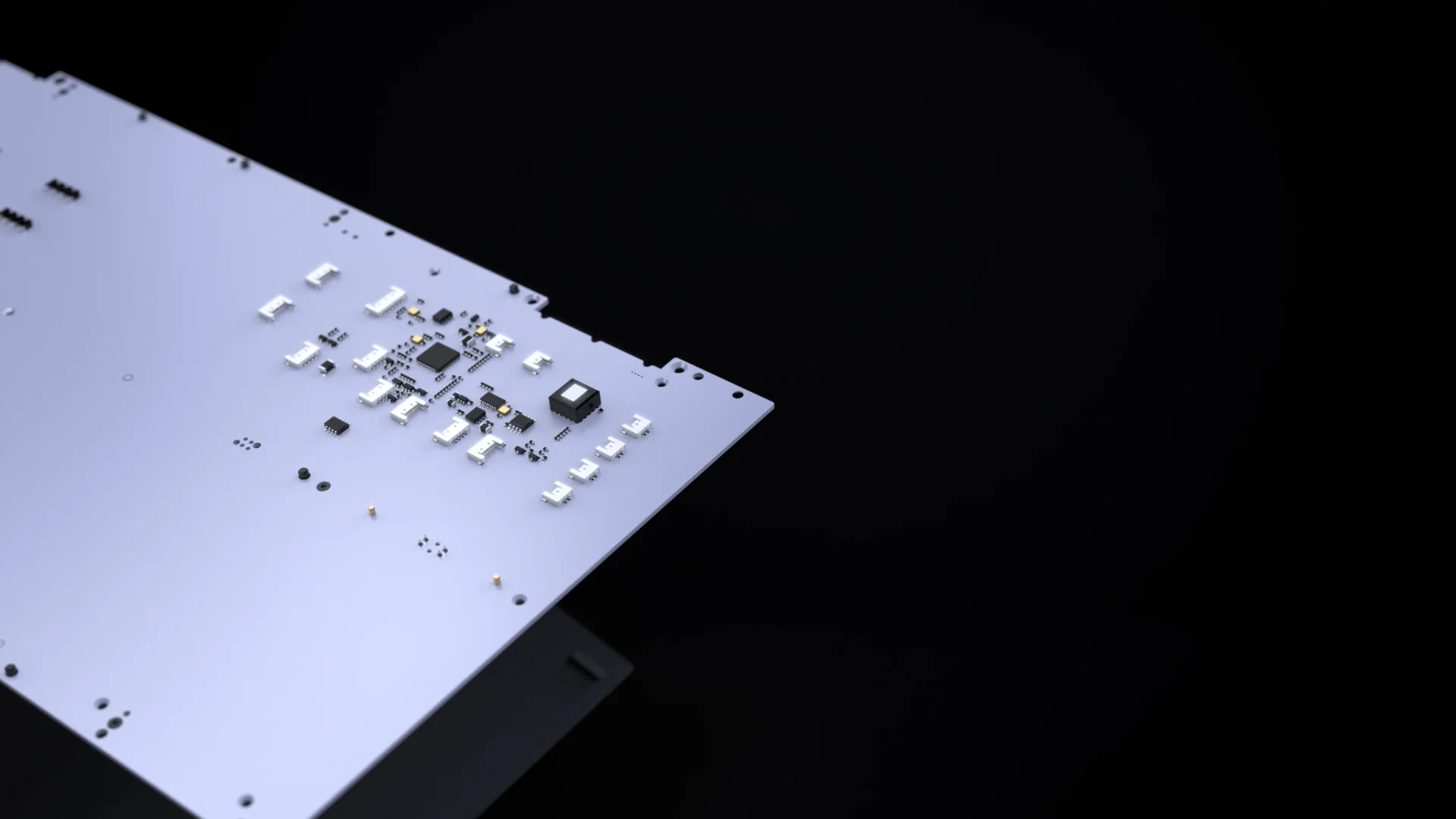

Includes photodiodes and accessible RBF inhibition mechanism

Flexible installation with adjustable Z and X/Y hinge options

Single 5V power supply needed for operation
