6U CUBESAT

High-performance NanoSat for scalable missions
Cad file & datasheet
Add
Add
flight heritage badge
Download
Cad file & datasheet
Add
Add
4U
AVAILABLE VOLUME
Secure
TMTC & fast downlink capability
Easy
Payload integration

All Satellites include 1 year Subscription for SpaceDev

Laptop Mockup for Video
Develop, Configure & Test With Ease

SpaceDev

DISCOVER MORE
Laptop Mockup for Video
IN-ORBIT OPERATIONS SUITE

SpaceOps

DISCOVER MORE
FEATURES
Bus Mass
6.6-7.4 kg (configuration dependent)
Available Payload Mass
8.5-8.7 kg (configuration dependent)
Available Payload Volume
up to 93 x 152 x 221 mm3
Average Payload Power Available
11-38 W (configuration dependent)
Available Power Buses
3.3 V, 5 V, customizable 12 V and Battery raw
Telemetry Data Rate
up to 125 kbps
Payload Data Rate
up to 150 Mbps
Payload Control Interfaces
RS-422/485, CAN, UART

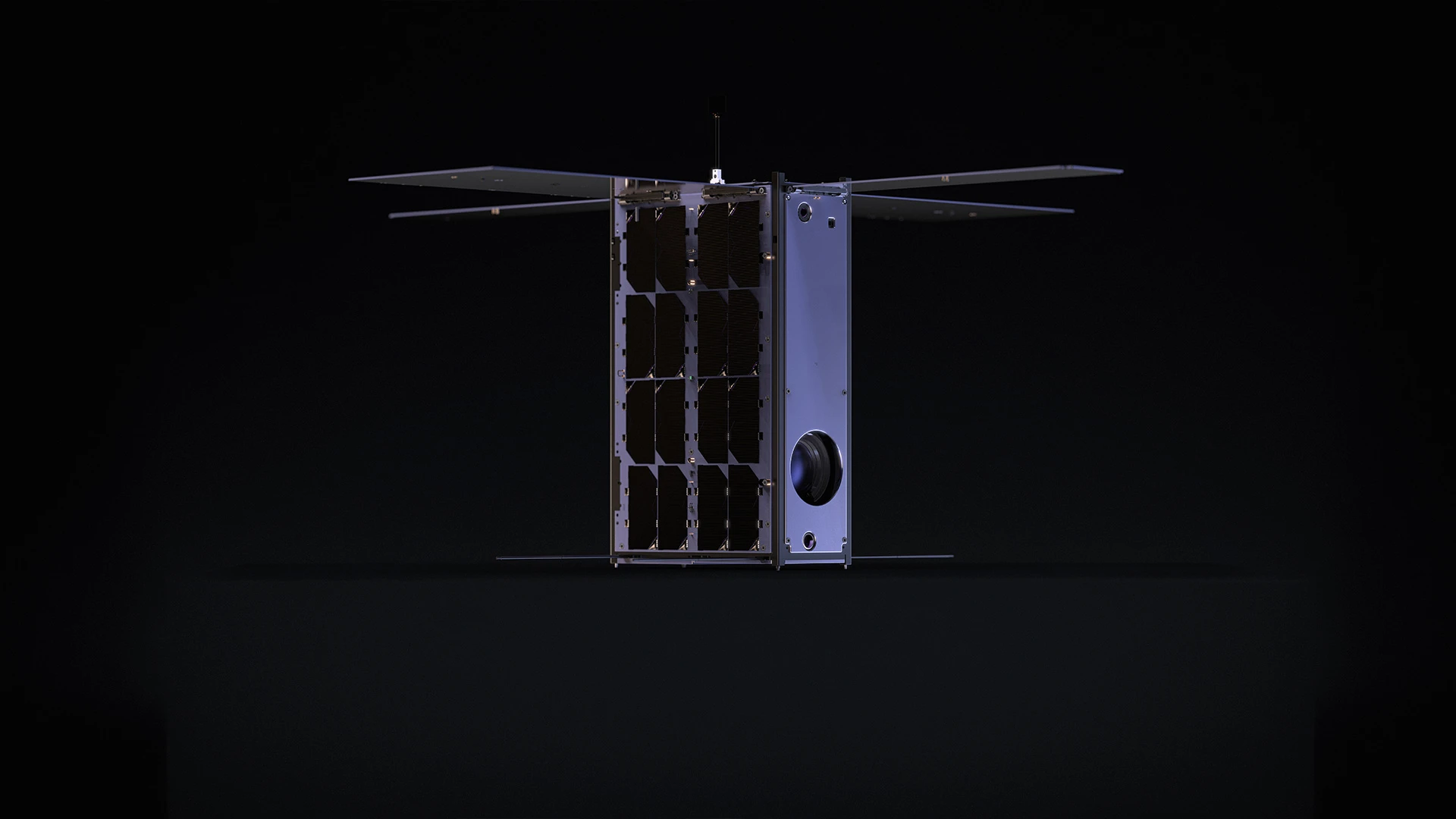

6U Platform web render 1
High-performance NanoSat for scalable missions

Included

Integration manual
Software Development Kit (SDK)
SpaceDev 1-year subscription
Complete set of bus cables
JTAG and debugging cables
10h engineering support
Delivery cost
Handling and administration costs
Design review and consulting
High-performance CubeSat, easily adaptable to handle complex Earth Observation, IoT, science, and exploration missions

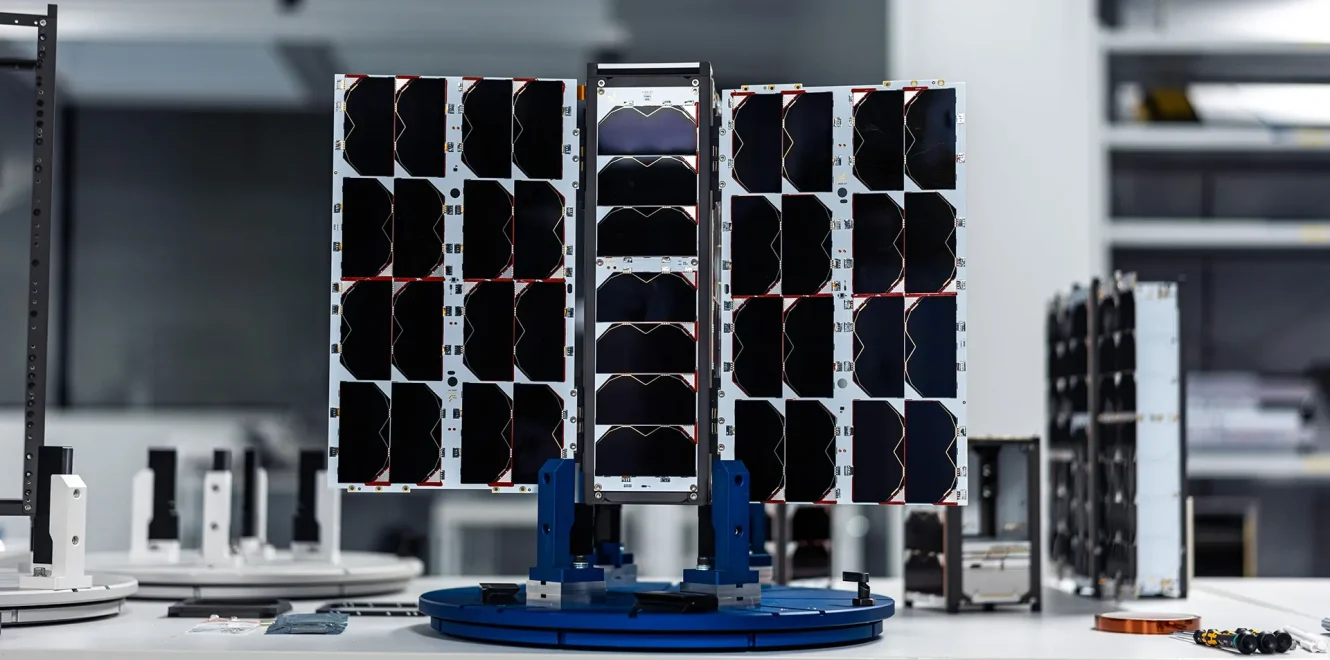

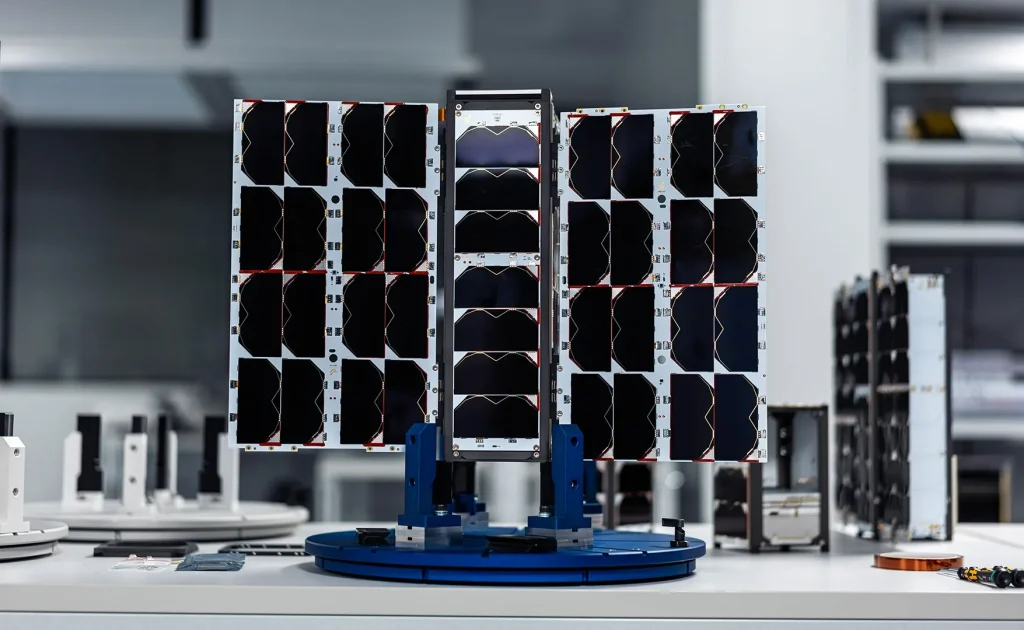

6U Platform web 28

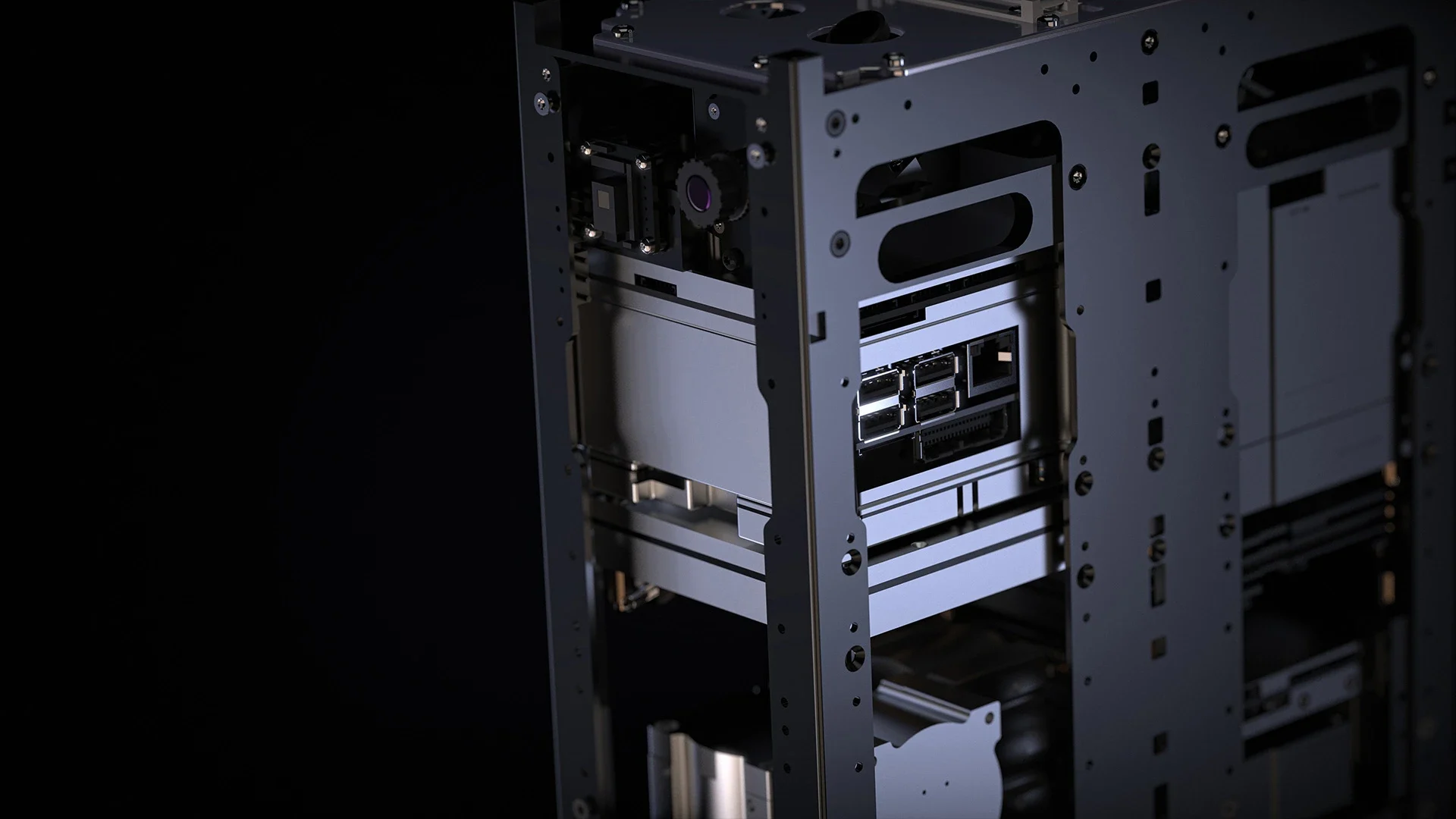

6U Platform web render 2 e1710777794942

EnduroSat’s redundant architecture supports multiple payloads on a single bus

MISSION LIFE: 3-5 YEARS (ORBIT DEPENDENT)

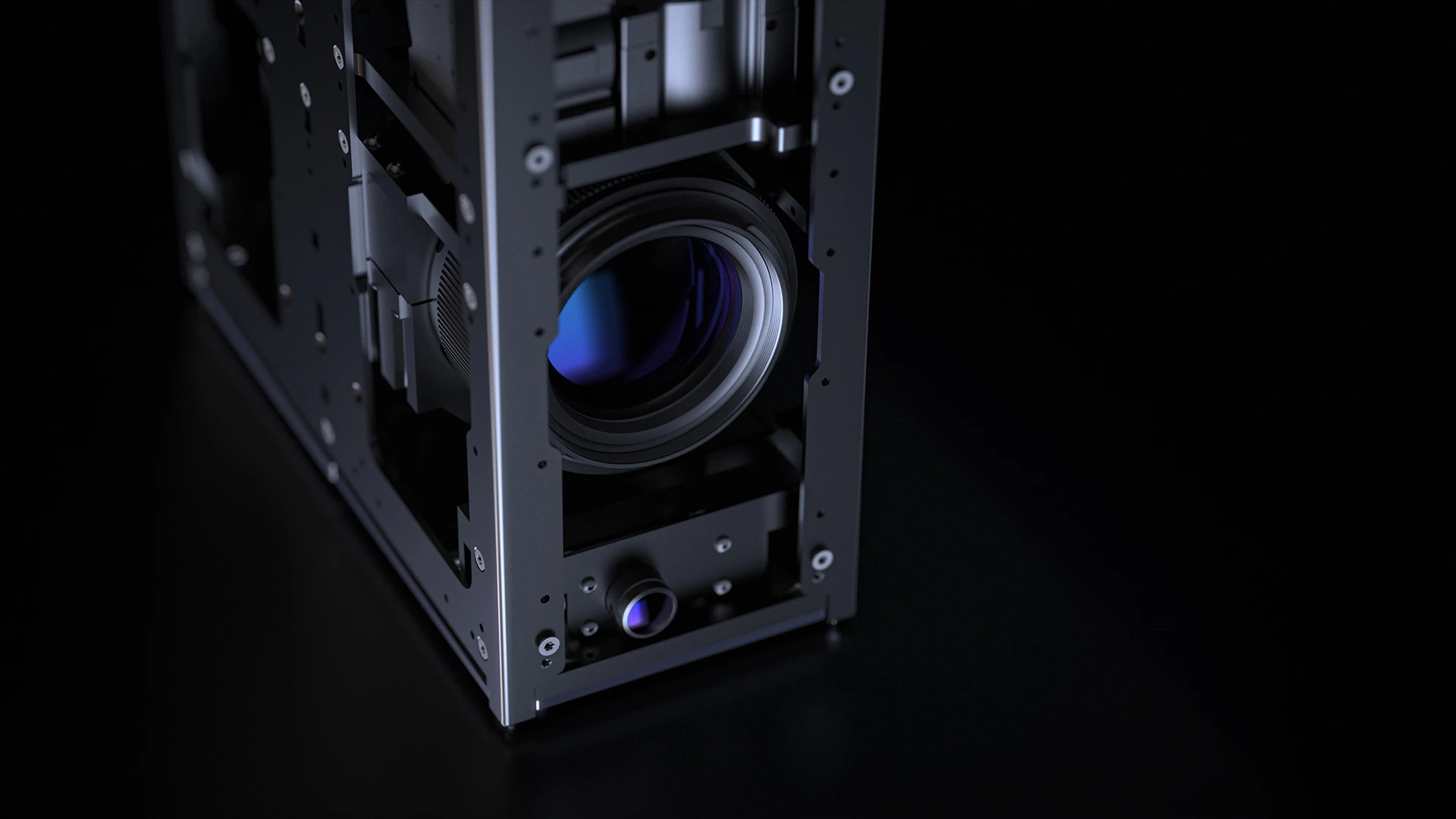

6U Platform web render 3

Robust data handling of diverse payloads. Comes standard with SpaceDev and SpaceOps

MISSION LIFE: 3-5 YEARS (ORBIT DEPENDENT)

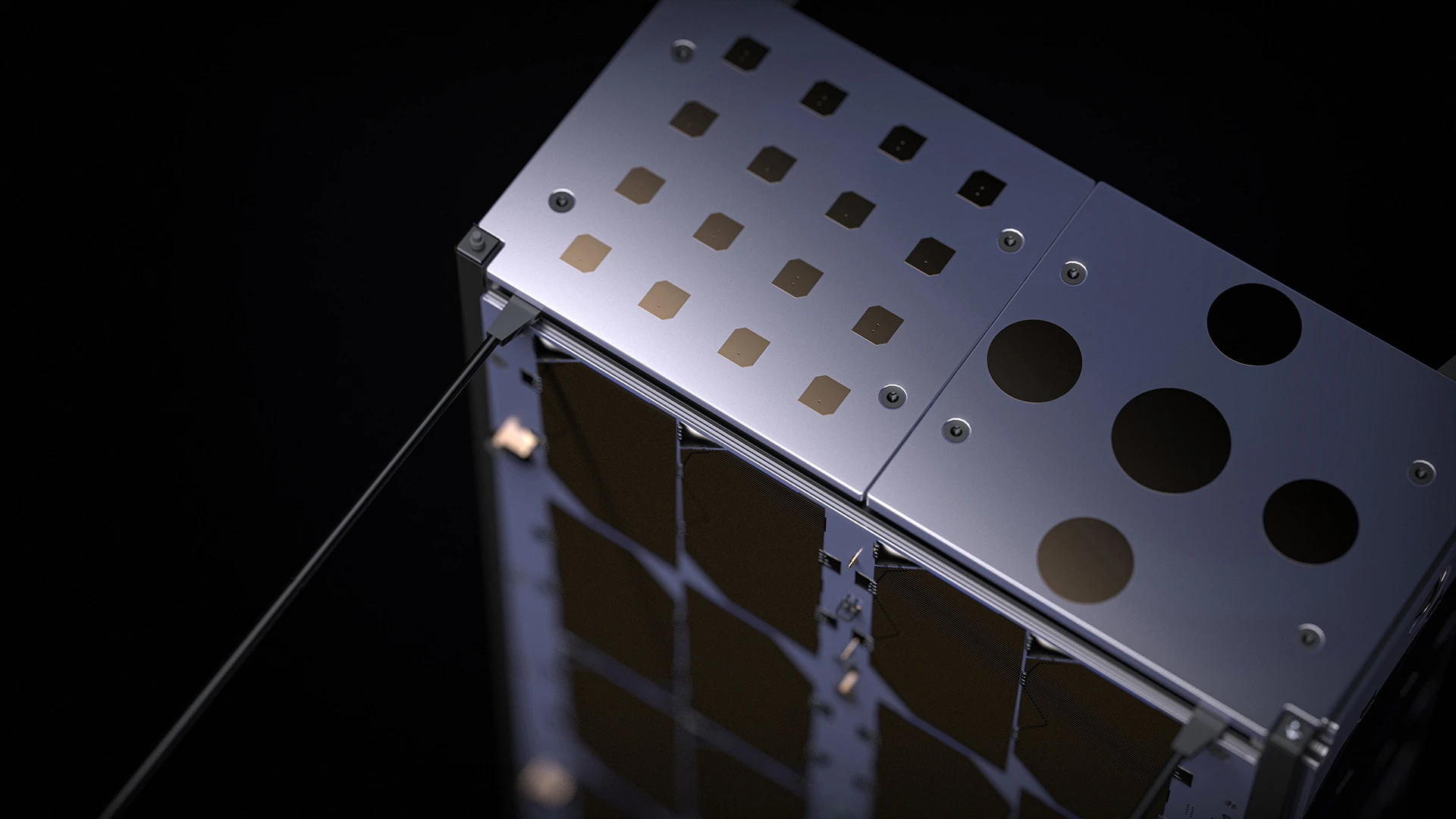

6U Platform web render 4

Secure communication for telemetry, telecommands, & payload data

UHF TMTC AND HIGH-SPEED S-BAND & X-BAND COMMUNICATION

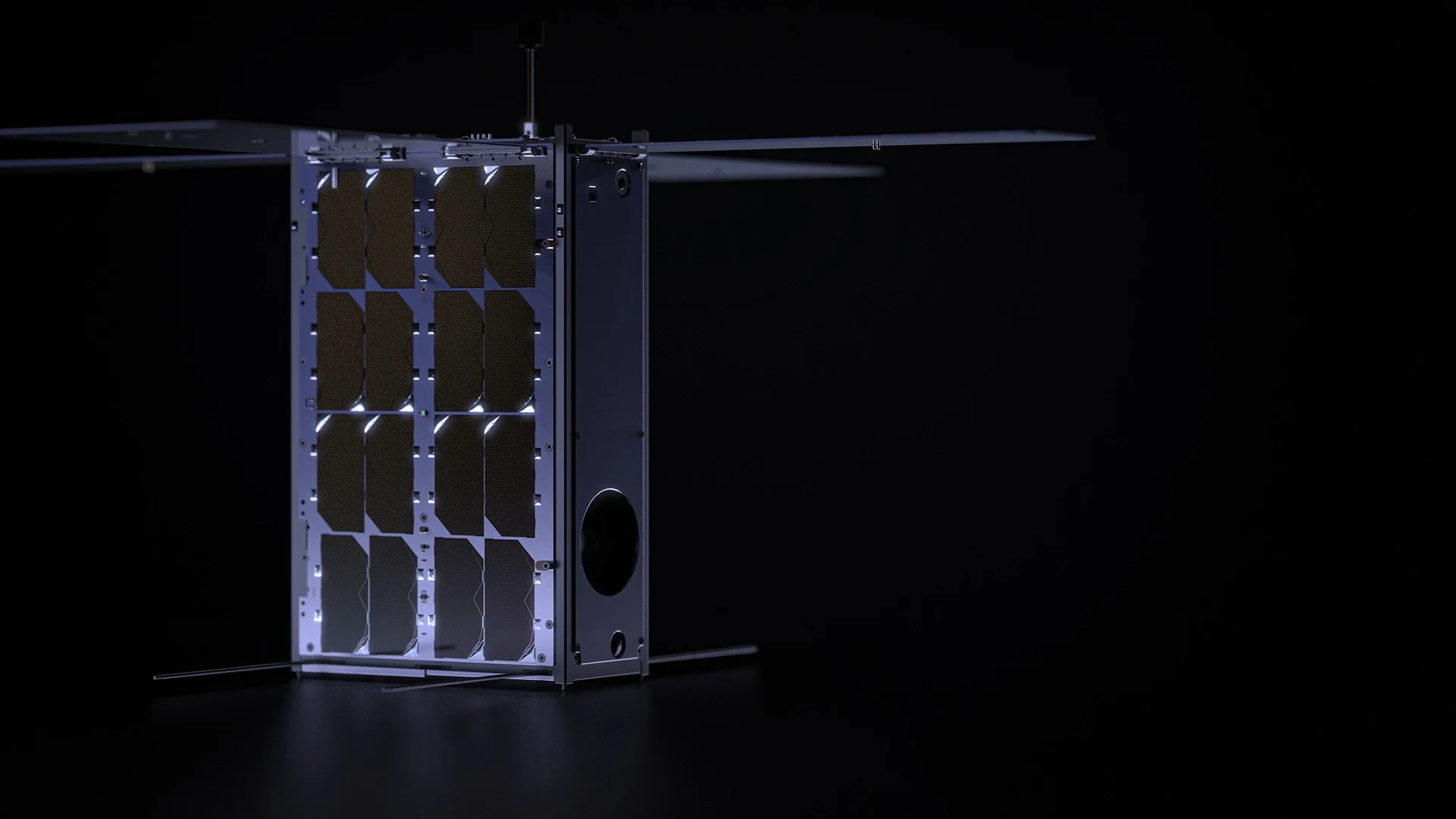

6U Platform web render 5 e1710777814861

Available with advanced three-axis reaction wheels attitude control system

Configurable FlatSat for your mission success
DEVELOP & TEST WITH EASE
Discover DeskSat
PRODUCT GALLERY

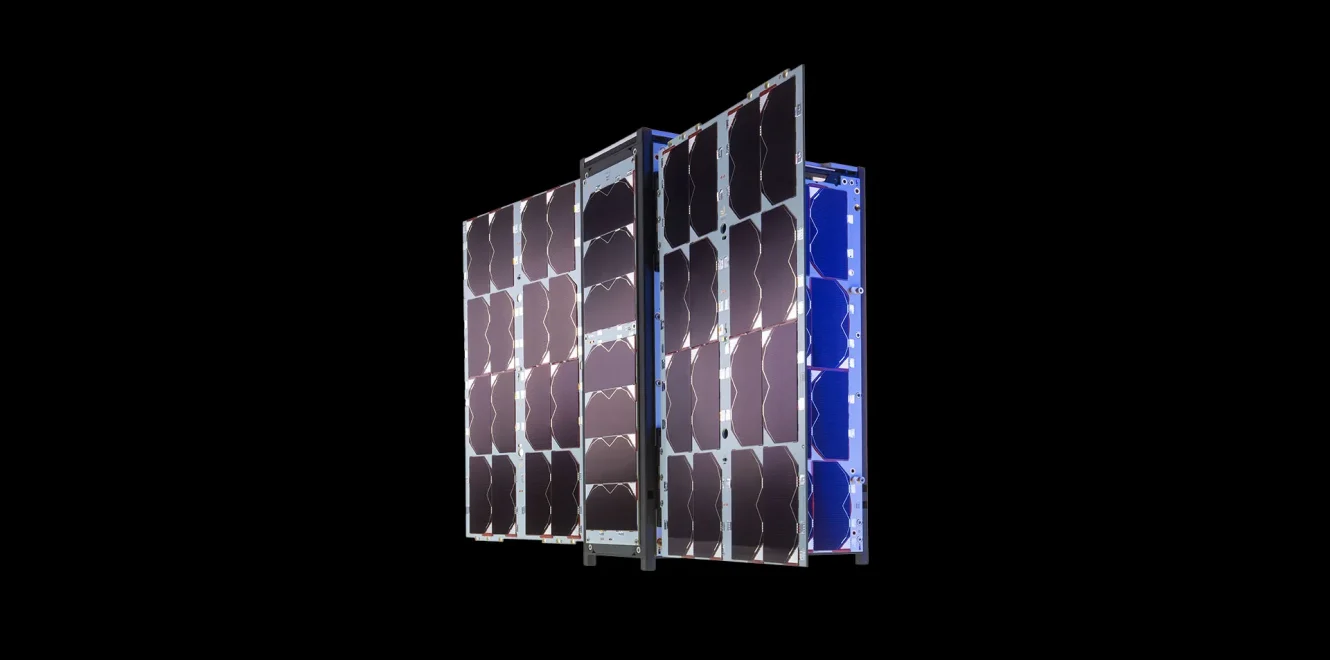

6U Platform web 36

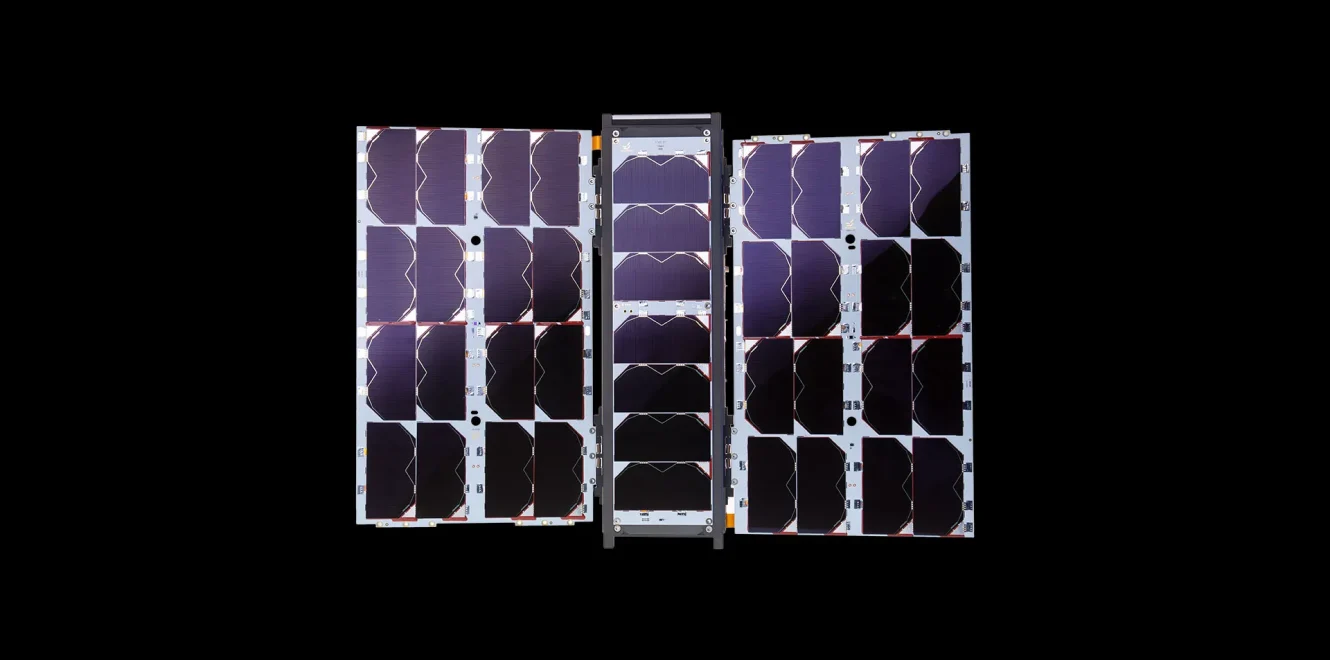

6U Platform web 2

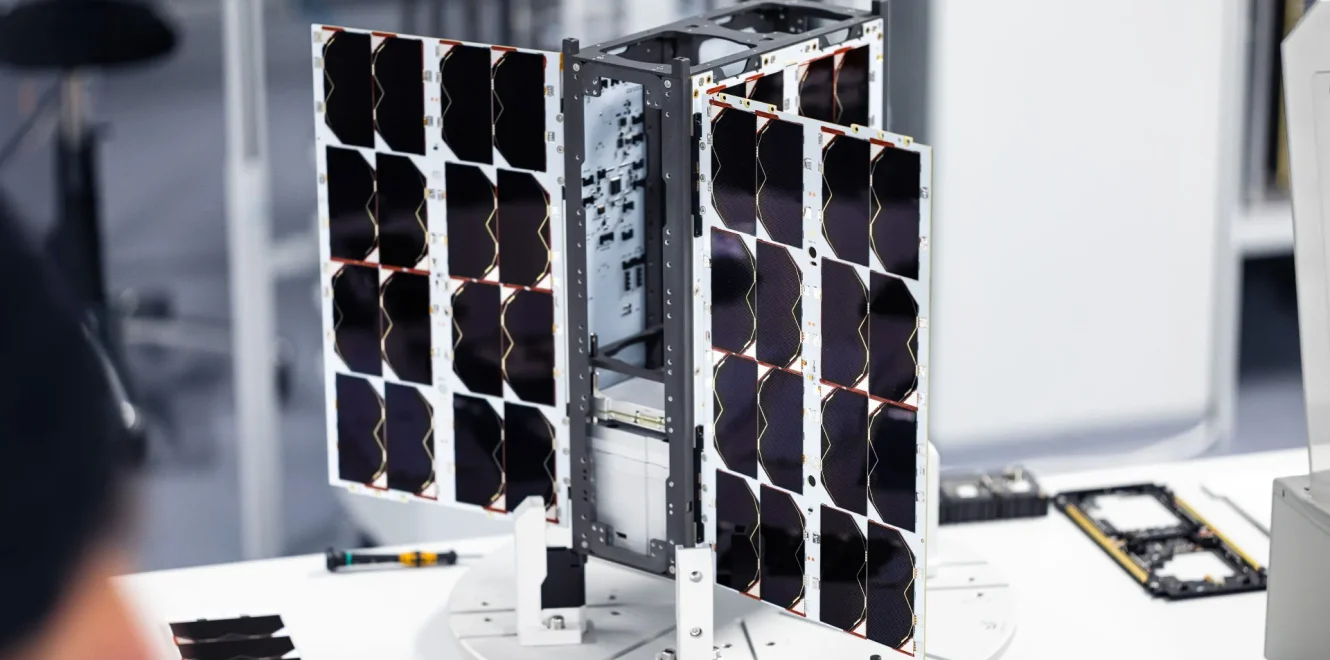

6U Platform web 35

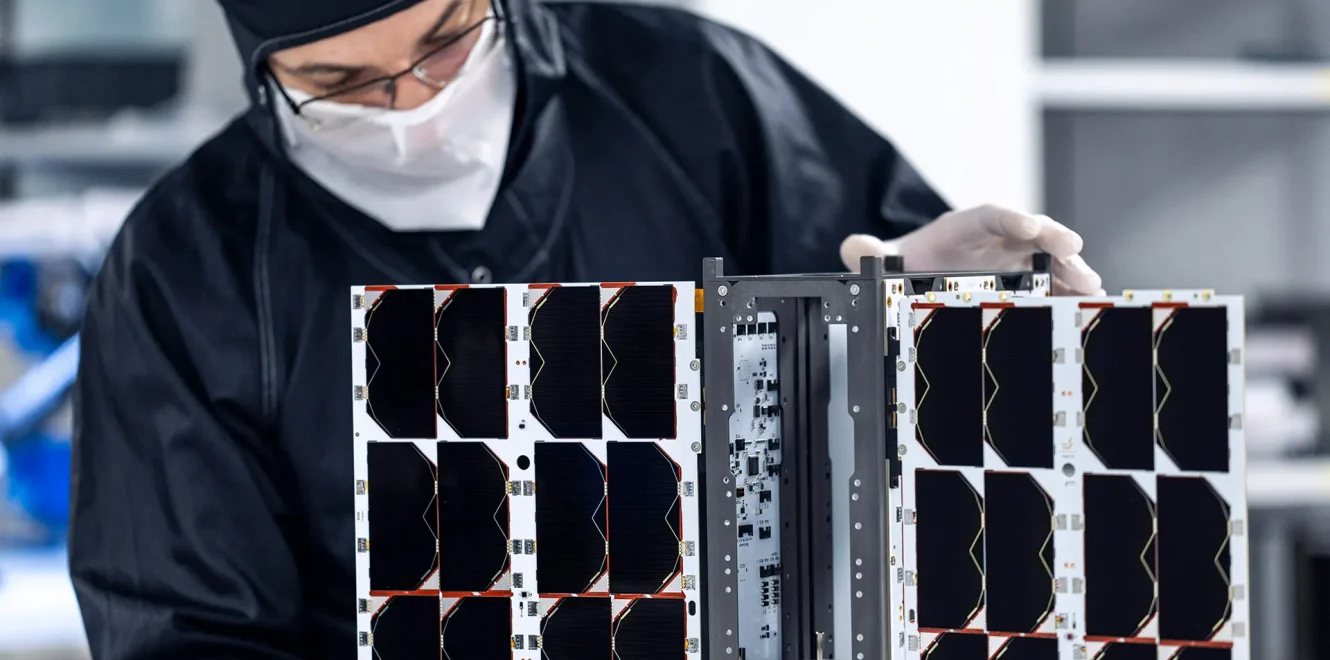

6U Platform web 33

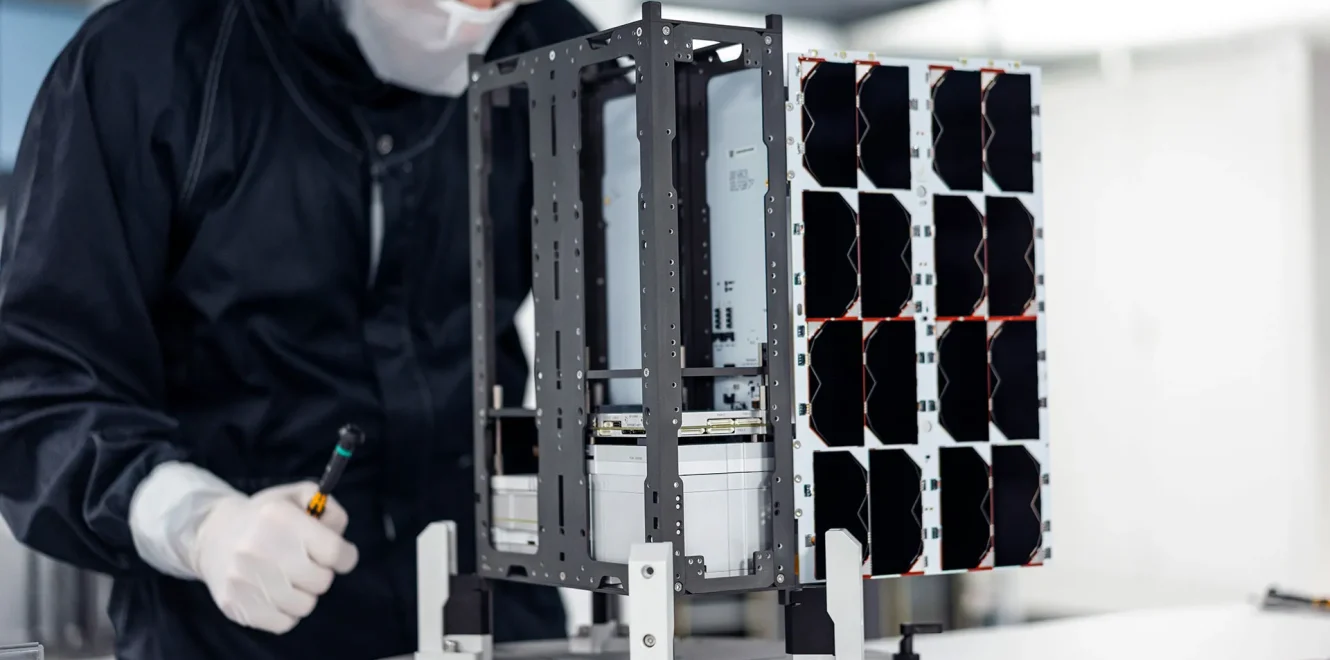

6U Platform web 32
6U Platform web 28

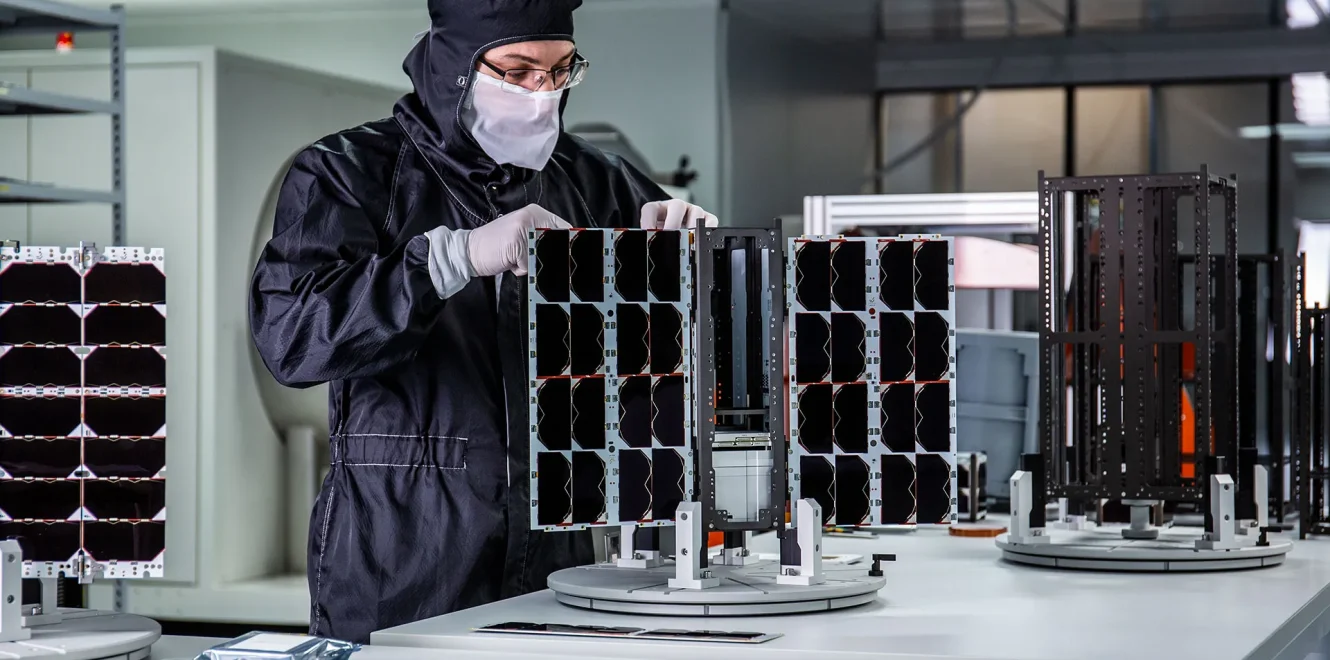

6U Platform web 22

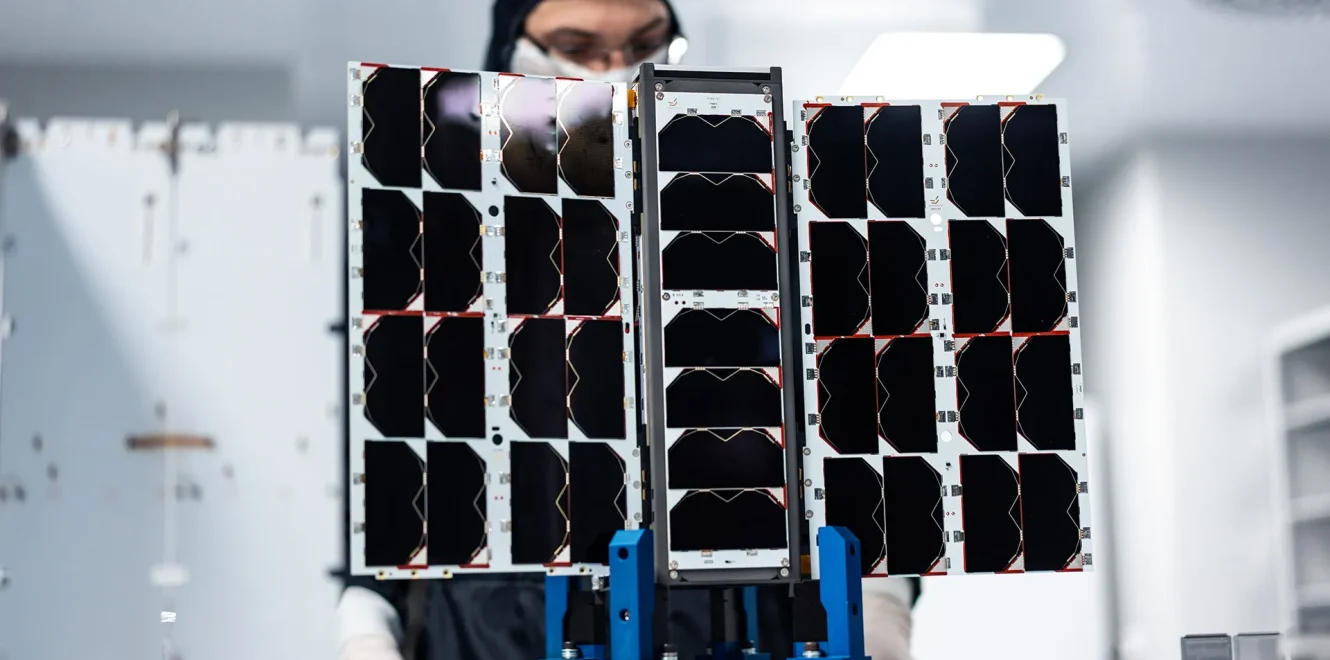

6U Platform web 17

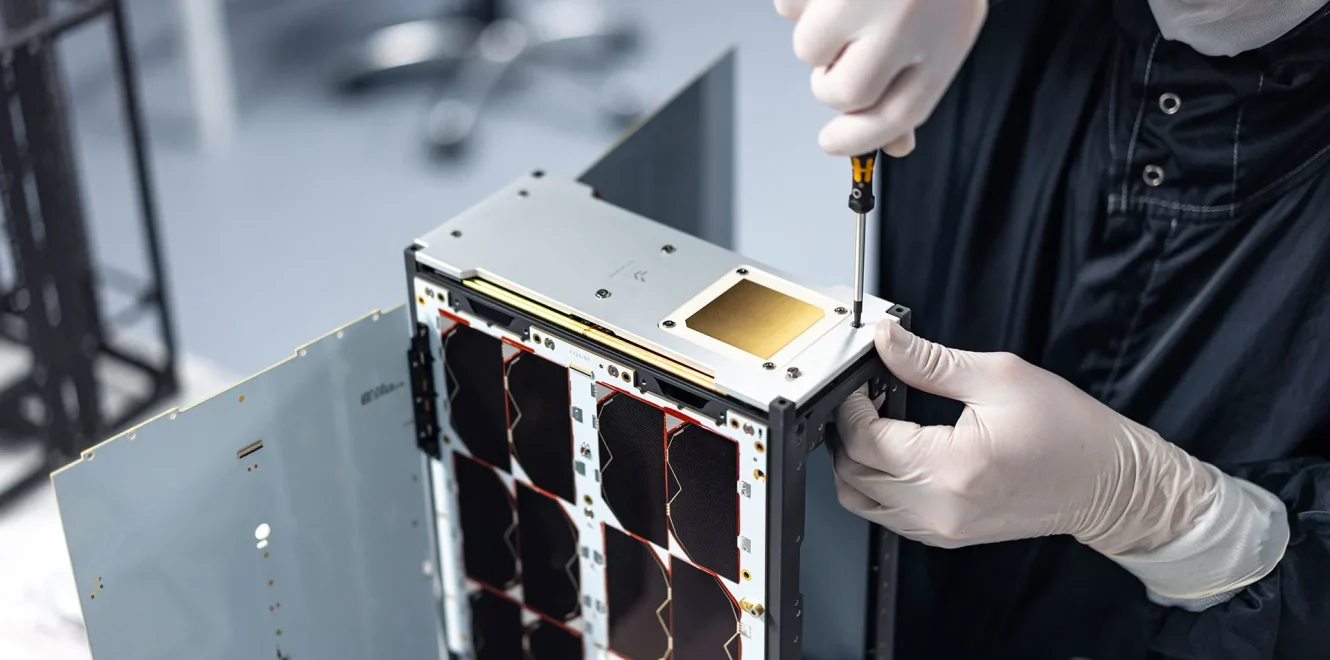

6U Platform web 13

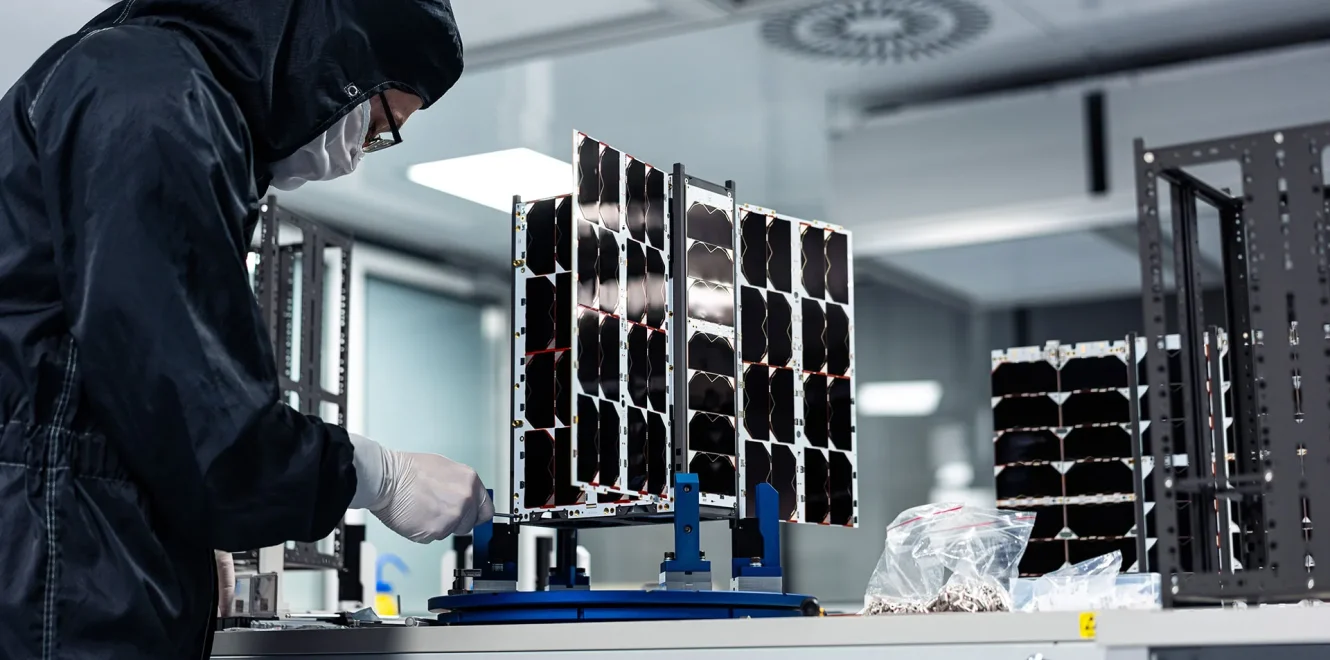

6U Platform web 11
EXPLORE OUR LARGER SATELLITES
8U Platform endurosat featured image nanosat 4024
8U
Bus Mass
6.9-8.2 kg
Payload Mass
7.8-8.4 kg
Payload Data Rate
up to 150 Mbps
Discover
16U Platform endurosat featured image nanosat 4024
16U
Bus Mass
11.2-12.3 kg
Payload Mass
23.6-24.8 kg
Payload Data Rate
up to 350 Mbps
Discover
FRAME SmallSat
70 kg
AVAILABLE PAYLOAD MASS
3.4 kW
PEAK POWER
2 Gbps
GROSS DATARATE
Discover
3000
MODULES IN ORBIT
120
DELIVERED SATELLITES
200
TB DATA DOWNLINKED
All our products undergo Space Qualification, involving stringent testing under extreme conditions to ensure robustness and high performance
LEARN MORE
Laptop Mockup for Video
Develop, Configure & Test With Ease

SpaceDev

DISCOVER MORE
Laptop Mockup for Video
IN-ORBIT OPERATIONS SUITE

SpaceOps

DISCOVER MORE

Datasheet & CAD File

Datasheet & CAD File*

Awesome, I want to receive news and product updates (optional)
I give my consent to EnduroSat EAD to store and administrate my personal data with the purpose of responding to my request.*

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

This field is hidden when viewing the form
Automatic Assignment

6U CubeSat

Awesome, I want to receive news and product updates (optional)
I give my consent to EnduroSat EAD to store and administrate my personal data with the purpose of responding to my request.*

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

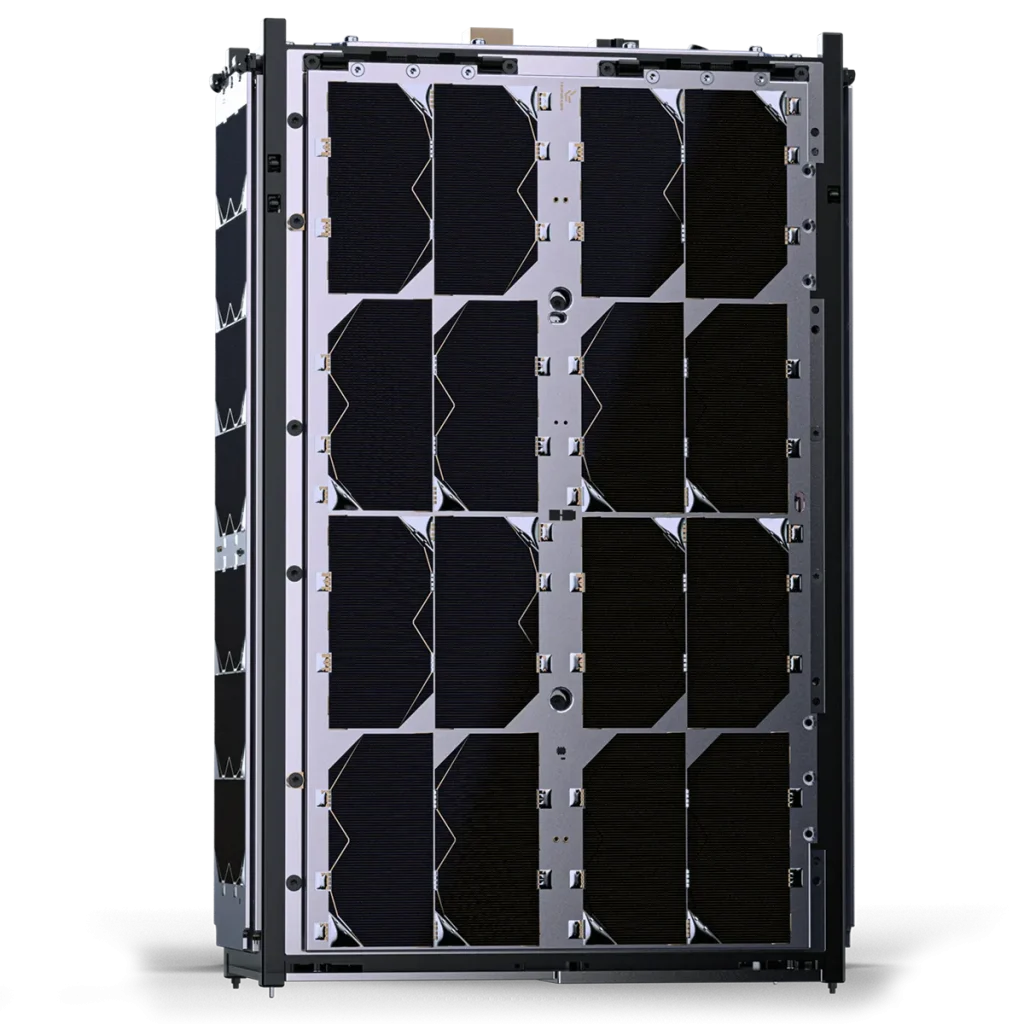

6U Platform endurosat featured image nanosat 4024
