16U CUBESAT

Next-gen MicroSat bus for advanced space missions
Cad file & datasheet
Add
Add
Download
Cad file & datasheet
Add
Add
12U
AVAILABLE VOLUME
Secure
TMTC & Fast Data Downlink
Performance
Advanced missions

All Satellites include 1 year Subscription for SpaceDev

Laptop Mockup for Video
Develop, Configure & Test With Ease

SpaceDev

DISCOVER MORE
Laptop Mockup for Video
IN-ORBIT OPERATIONS SUITE

SpaceOps

DISCOVER MORE
FEATURES
Bus Mass
10-14 kg (configuration dependent)
Available Payload Mass
18-22 kg (configuration dependent)
Available Payload Volume
197 x 197 x 350 mm3
Average Payload Power Available
27-50 W (configuration dependent)
Available Power Buses
3.3 V, 5 V, 12 V and Battery raw (16.8V)
Telemetry Data Rate
up to 125 kbps
Payload Data Rate
up to 1 Gbps
Payload Control Interfaces
RS-422/485, CAN, SPI, UART, Ethernet, LVDS

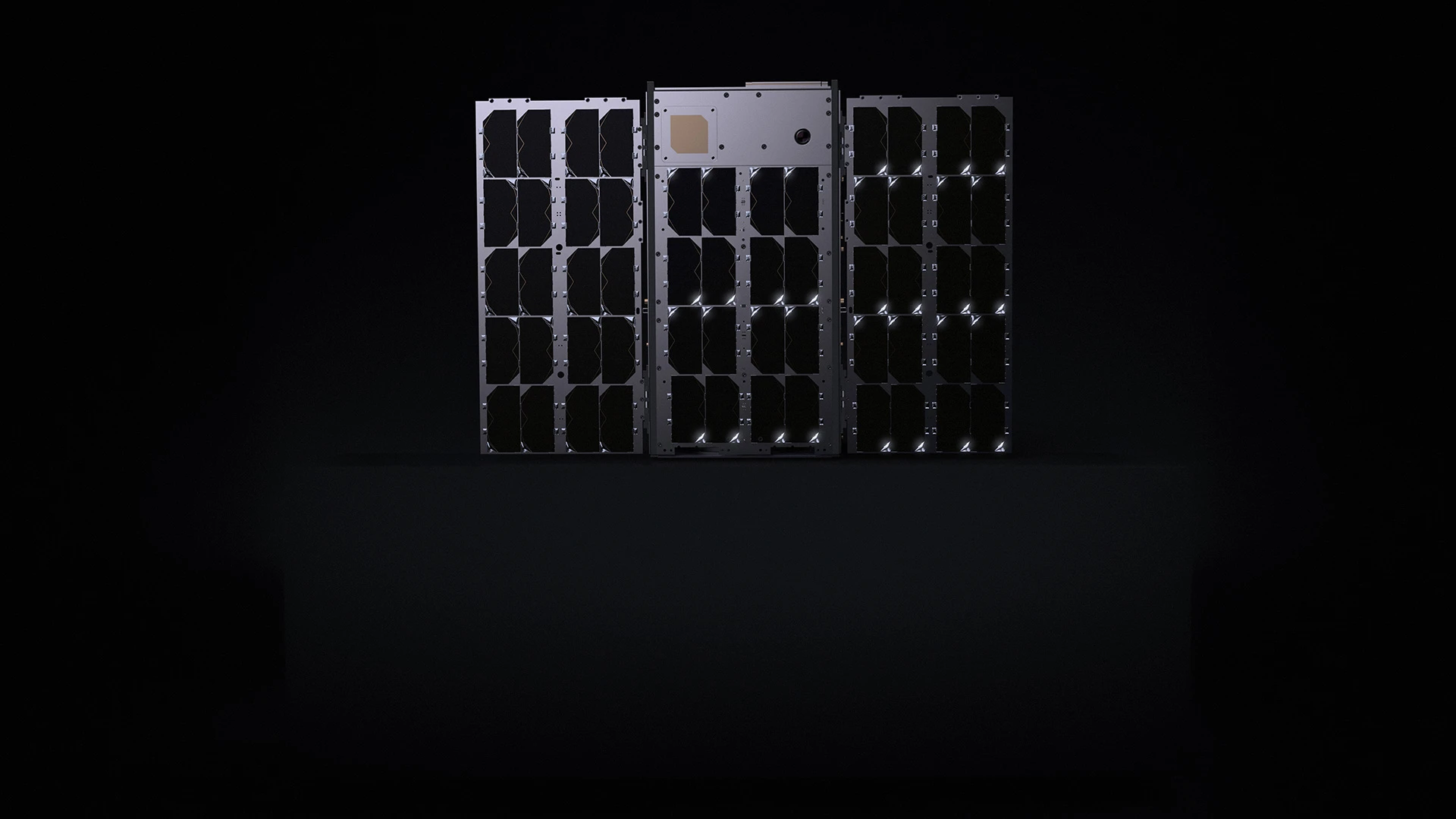

16U Platform web render 4
Next-gen MicroSat bus for advanced space missions

Included

Integration manual
Software Development Kit (SDK)
SpaceDev 1-year subscription
Complete set of bus cables
JTAG and debugging cables
10h engineering support
Delivery cost
Handling and administration costs
Design review and consulting
High-performance CubeSat, capable to handle complex missions

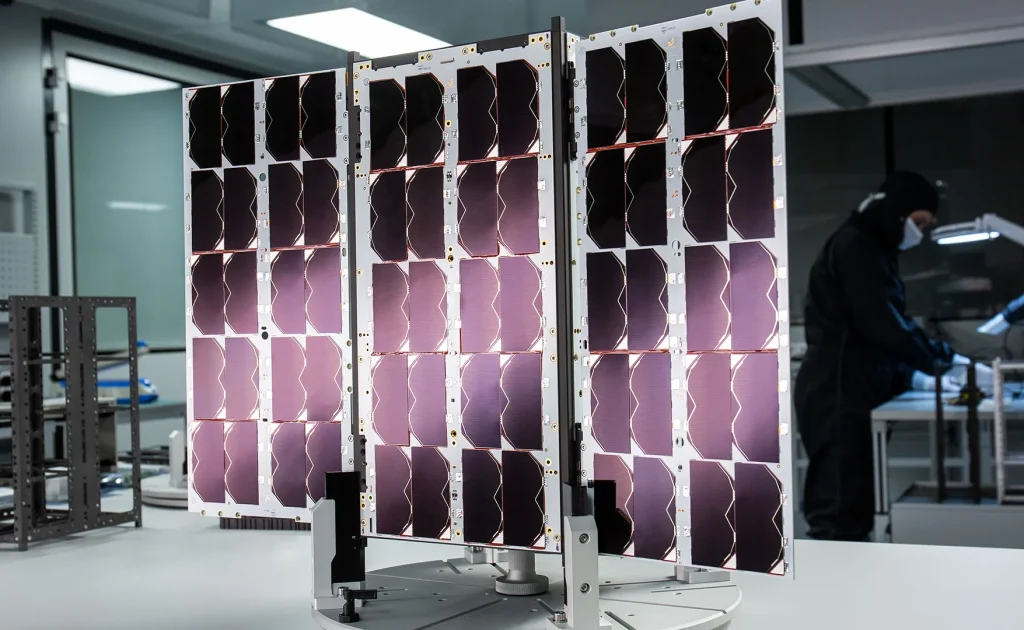

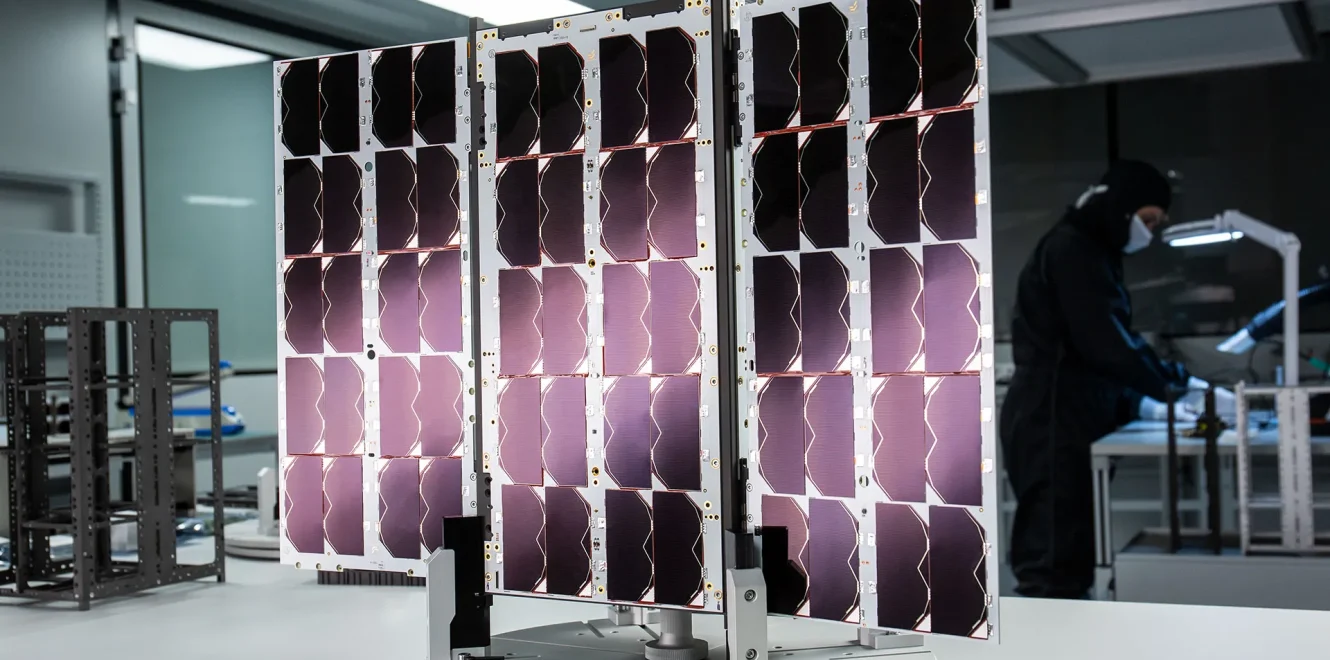

16U Platform web 17

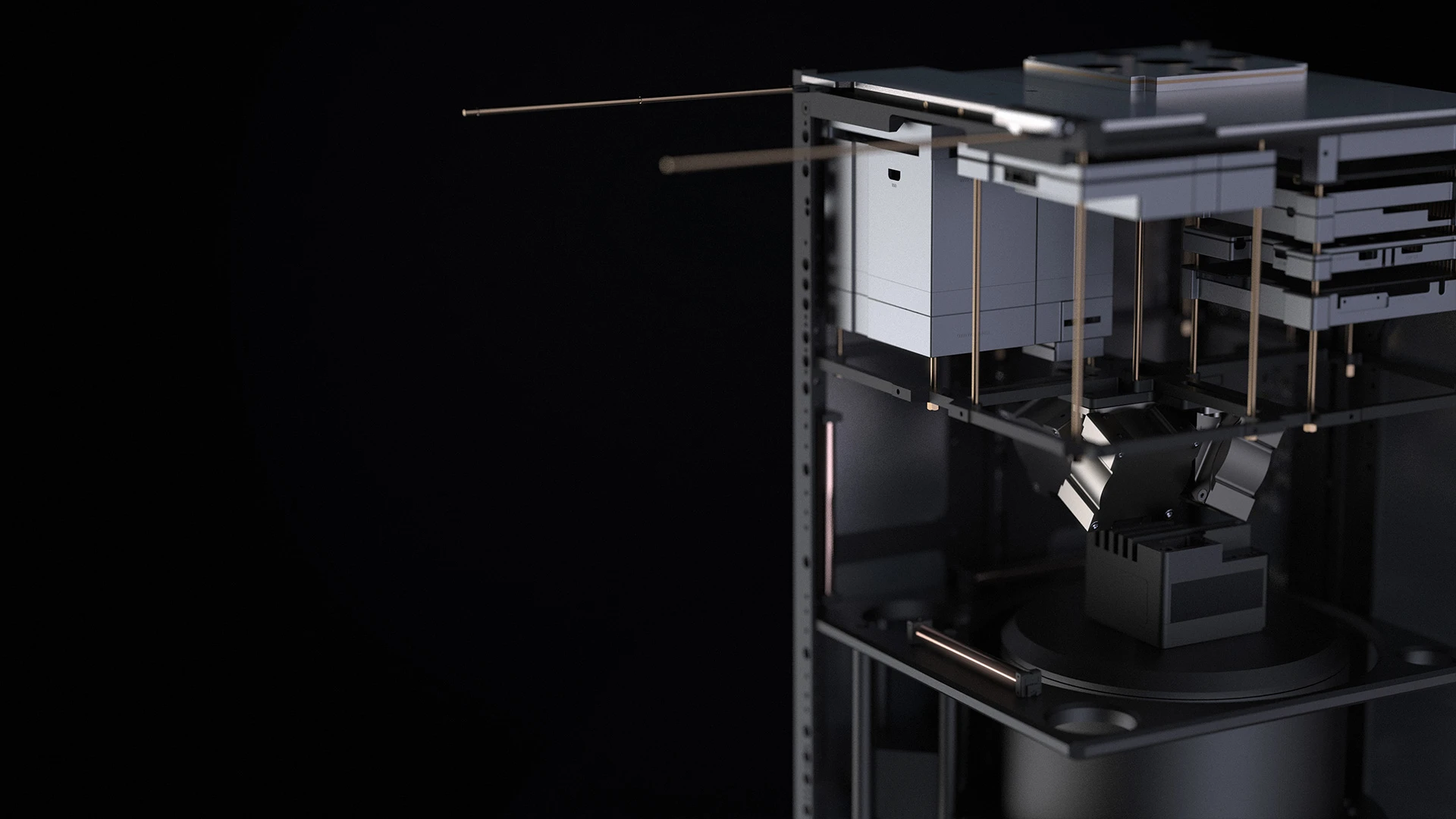

16U Platform web render 1

Robust data handling of payloads. Embedded operational modes framework

MISSION LIFE: 5 YEARS (ORBIT DEPENDENT)

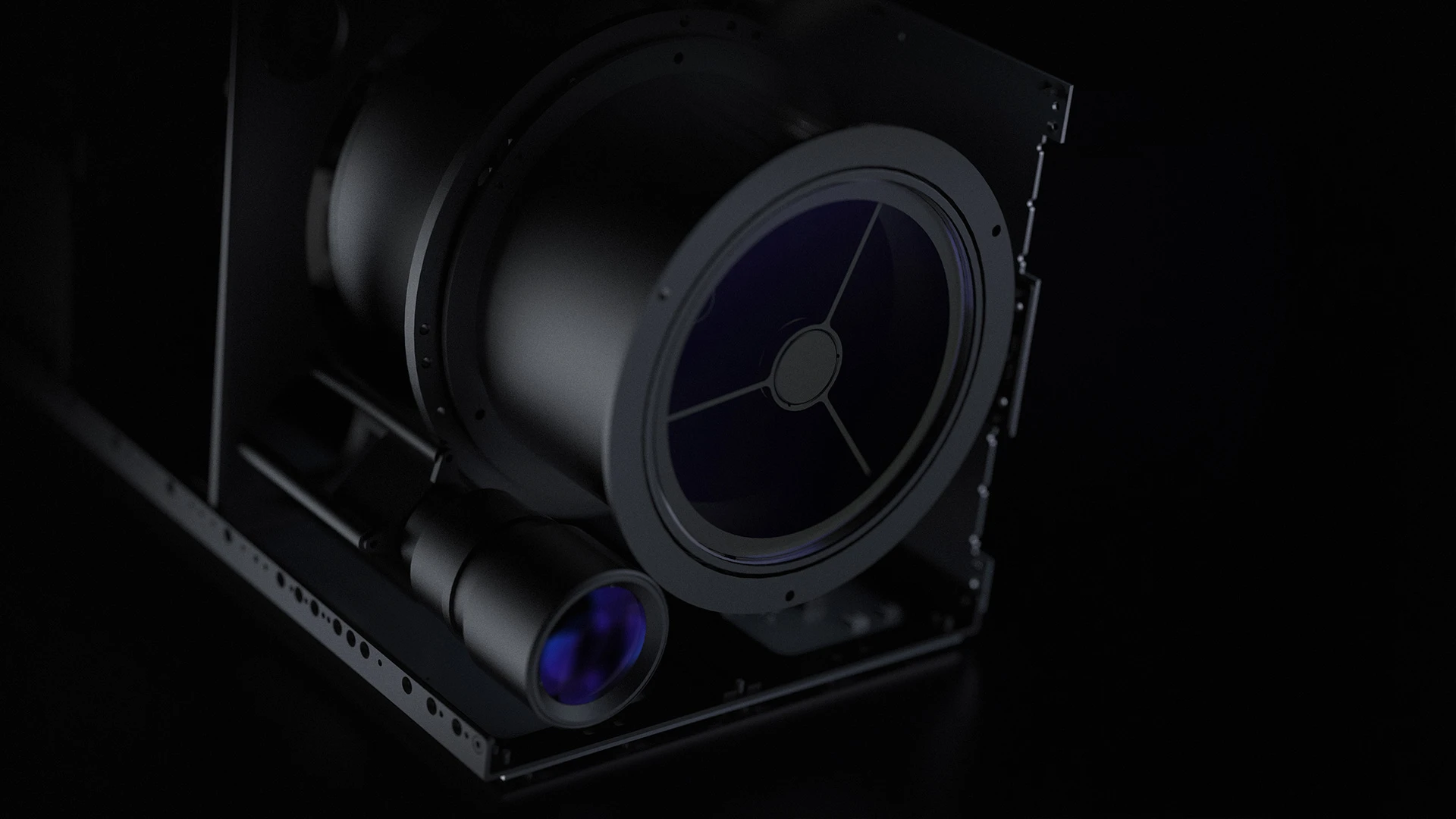

16U Platform web render 5

Class-leading internal volume with diverse mounting options

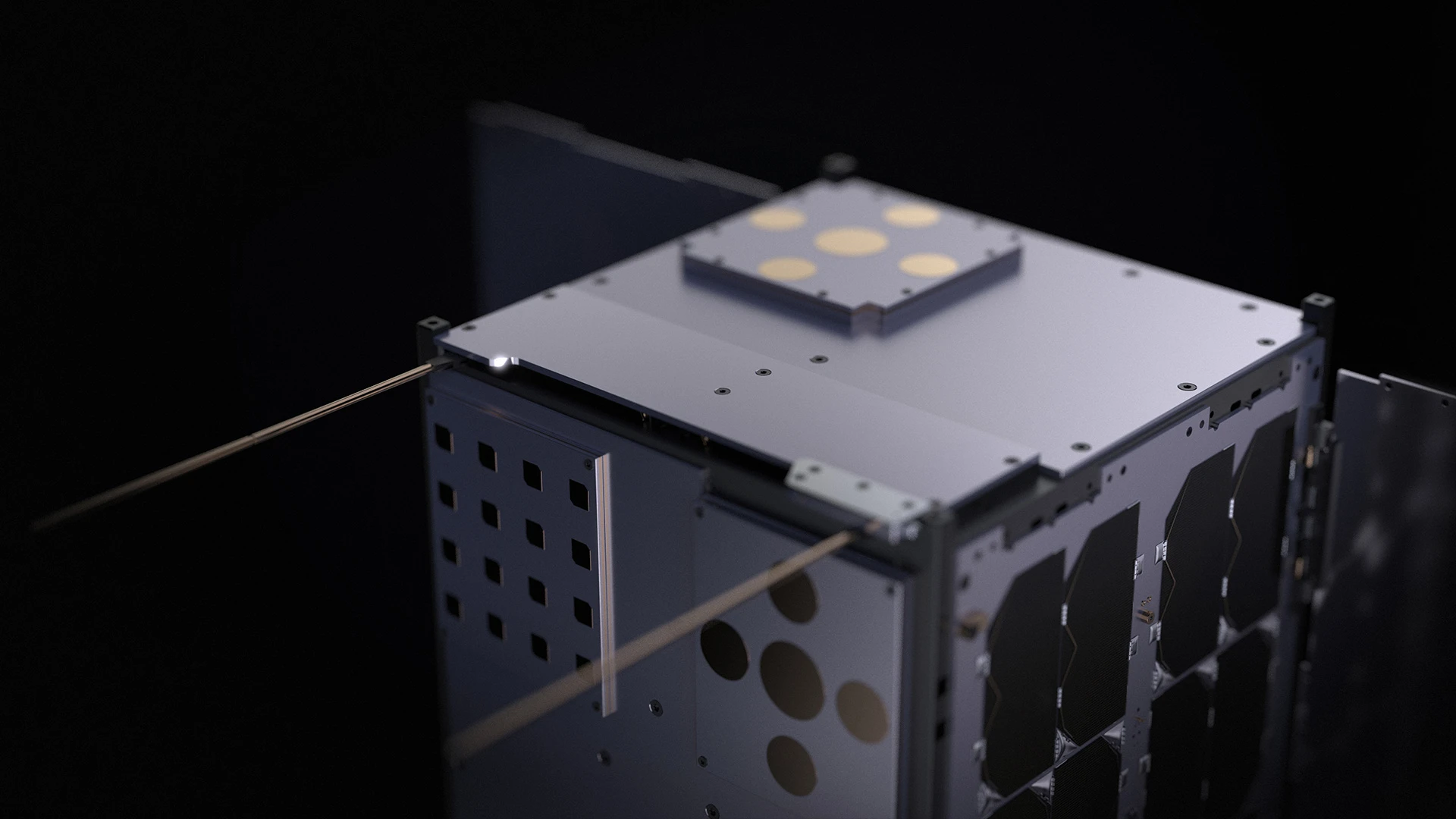

16U Platform web render 2

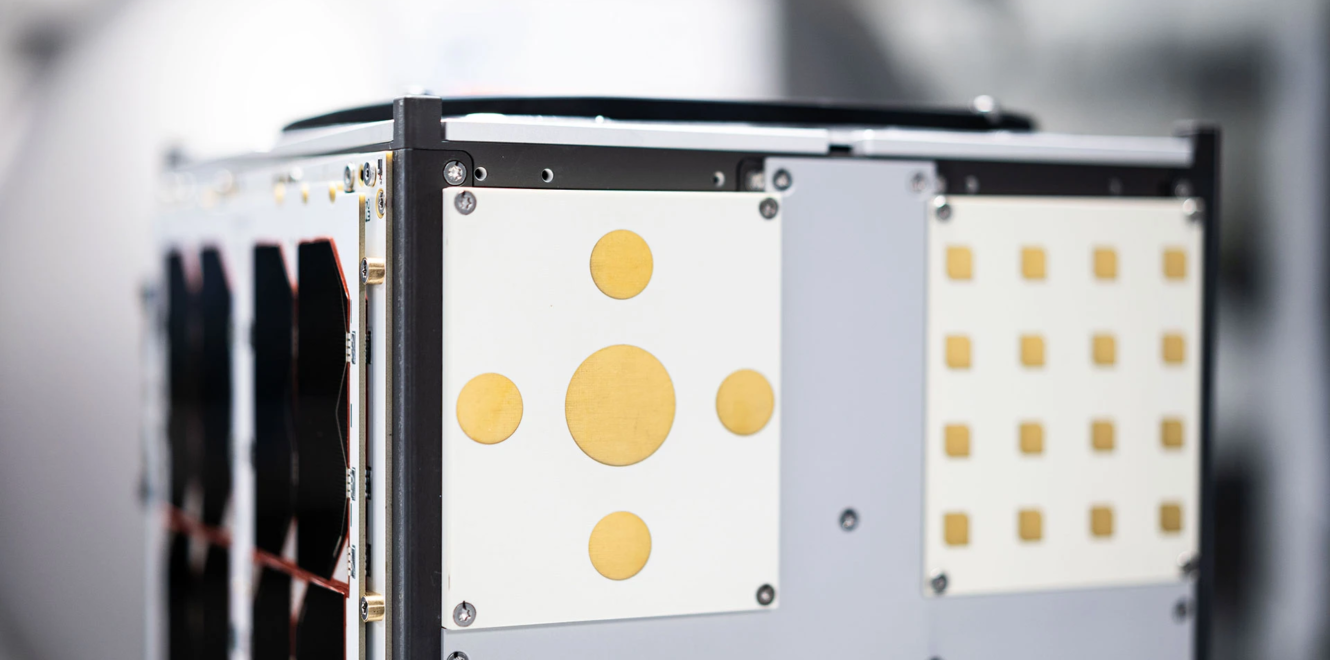

Secure communication for telemetry, telecommands, and payload data

S-BAND TMTC, HIGH-SPEED X-BAND & K-BAND payload COMMUNICATION

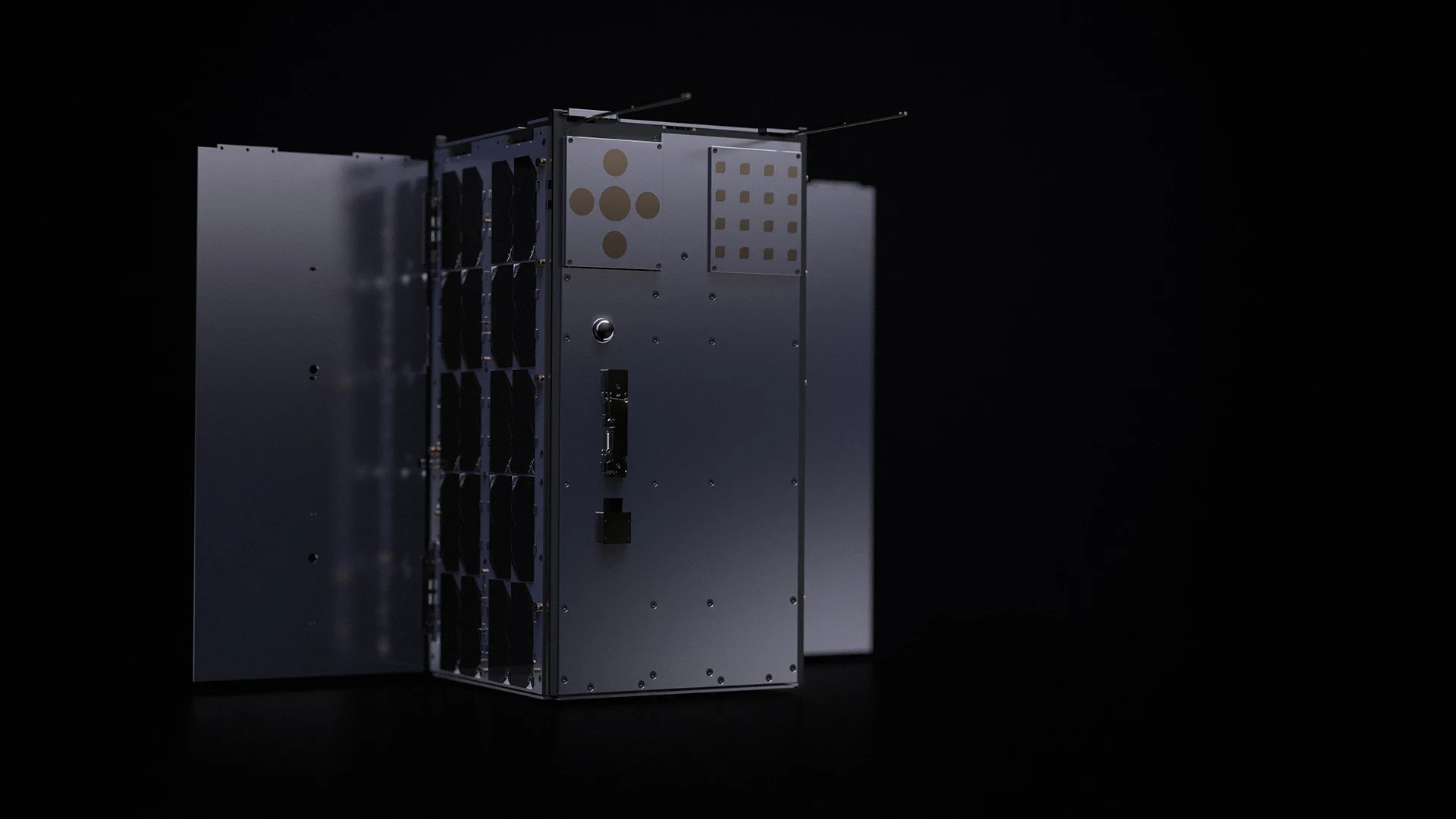

16U Platform web render 3 e1711013647633

Available with advanced three-axis reaction wheels attitude control system

PRODUCT GALLERY

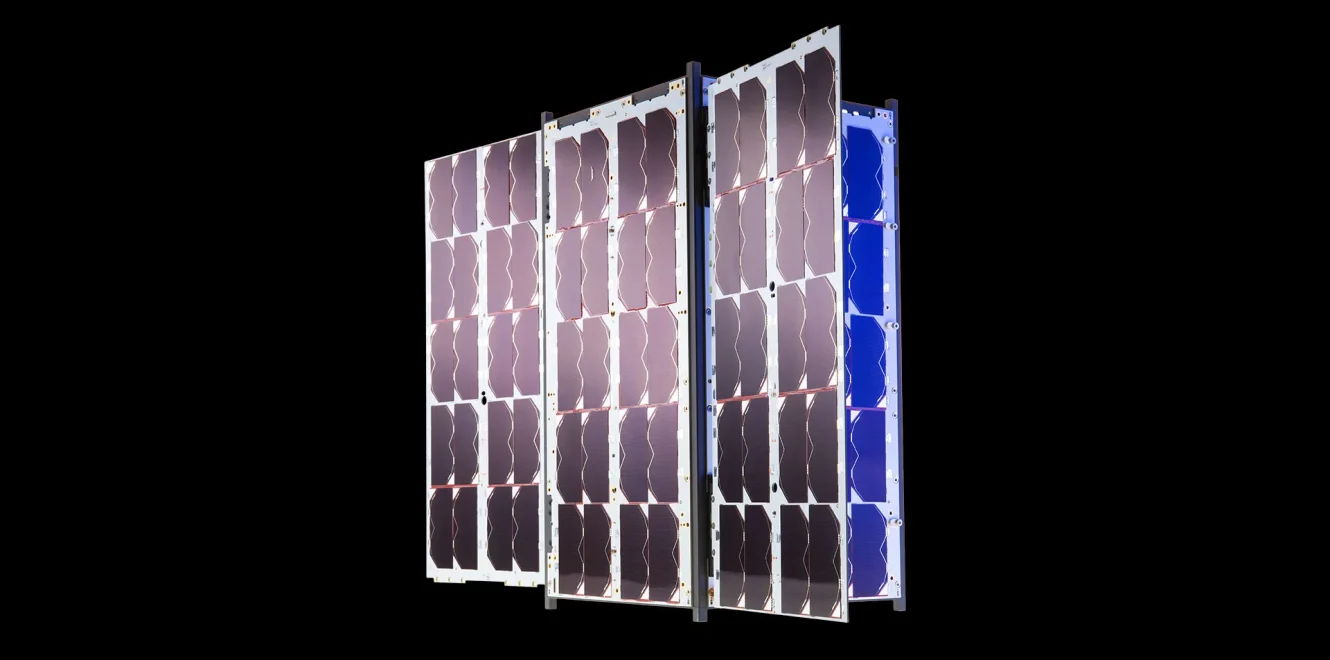

16U Platform web 25

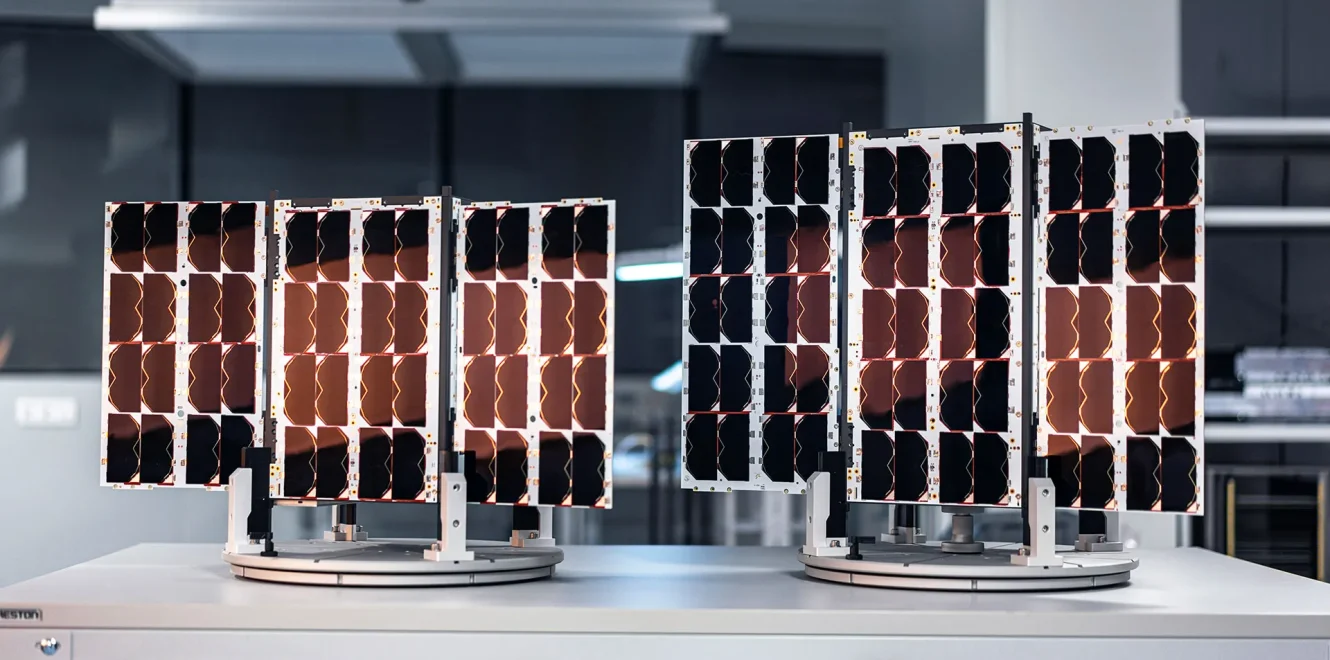

16U Platform web 7

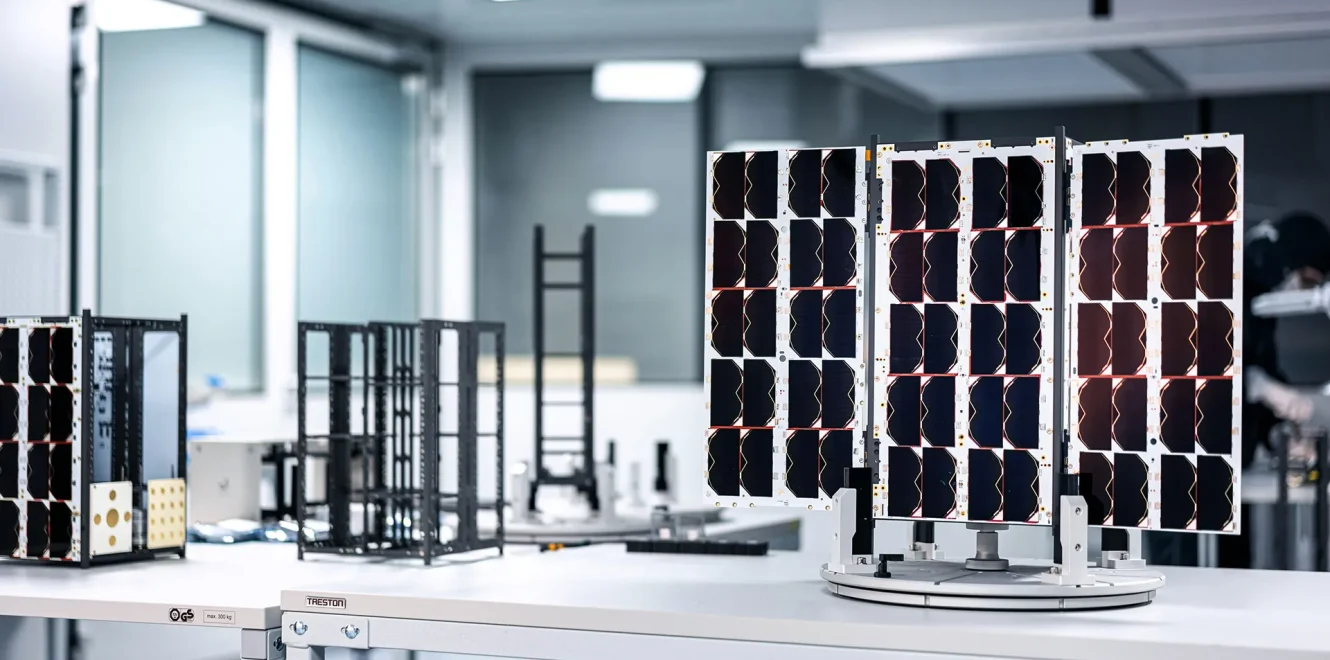

16U Platform web 6
16U Platform web 17

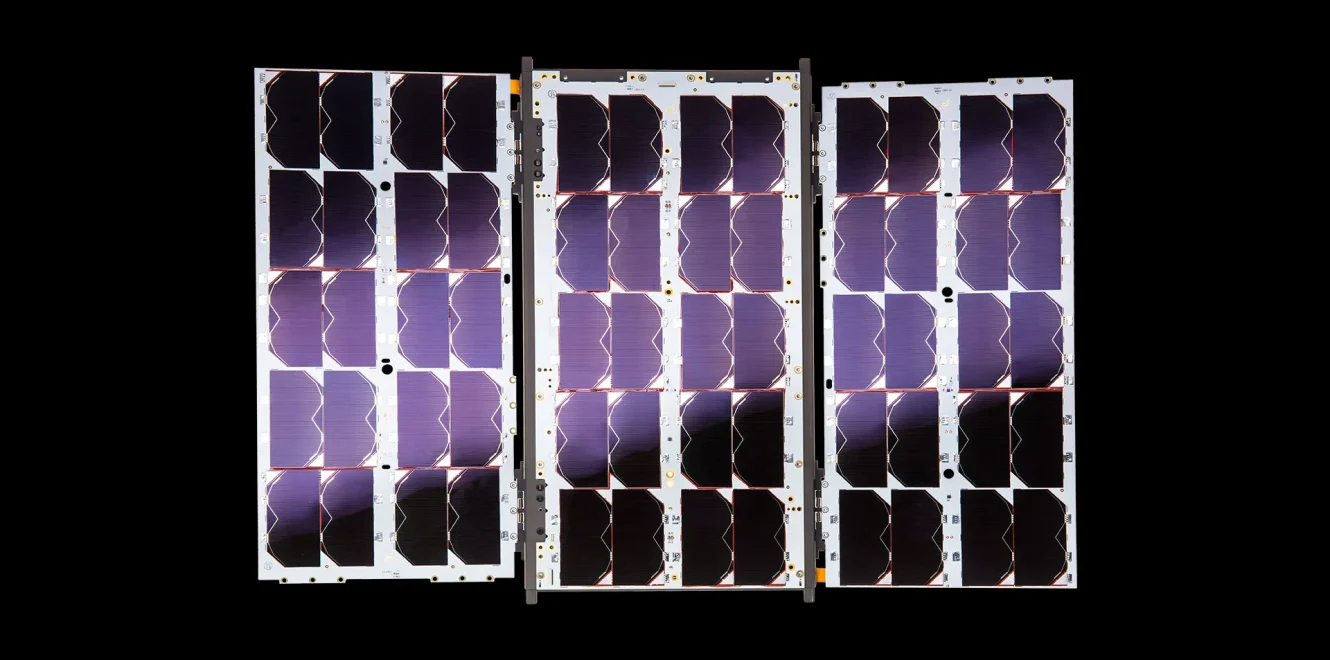

16U Platform web 24

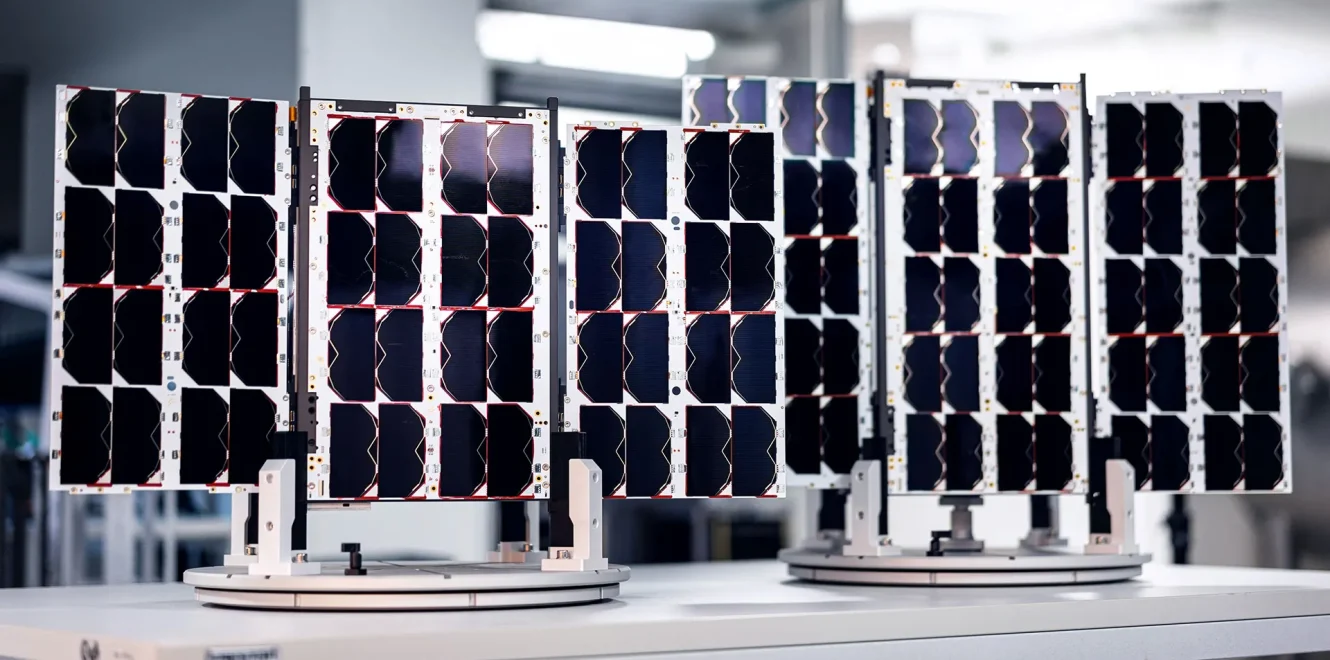

16U Platform web 16
EXPLORE OUR LARGER SATELLITES
ENDURANCE
80 kg
AVAILABLE PAYLOAD MASS
3.5 kW
PEAK POWER
2 Gbps
GROSS DATARATE
Discover
2500
MODULES IN ORBIT
60
DELIVERED SATELLITES
200
TB DATA DOWNLINKED
All our products undergo Space Qualification, involving stringent testing under extreme conditions to ensure robustness and high performance
LEARN MORE

Datasheet & CAD File

Datasheet & CAD File*

Awesome, I want to receive news and product updates (optional)
I give my consent to EnduroSat EAD to store and administrate my personal data with the purpose of responding to my request.*

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

This field is hidden when viewing the form
Automatic Assignment

16U CubeSat

Awesome, I want to receive news and product updates (optional)
I give my consent to EnduroSat EAD to store and administrate my personal data with the purpose of responding to my request.*

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

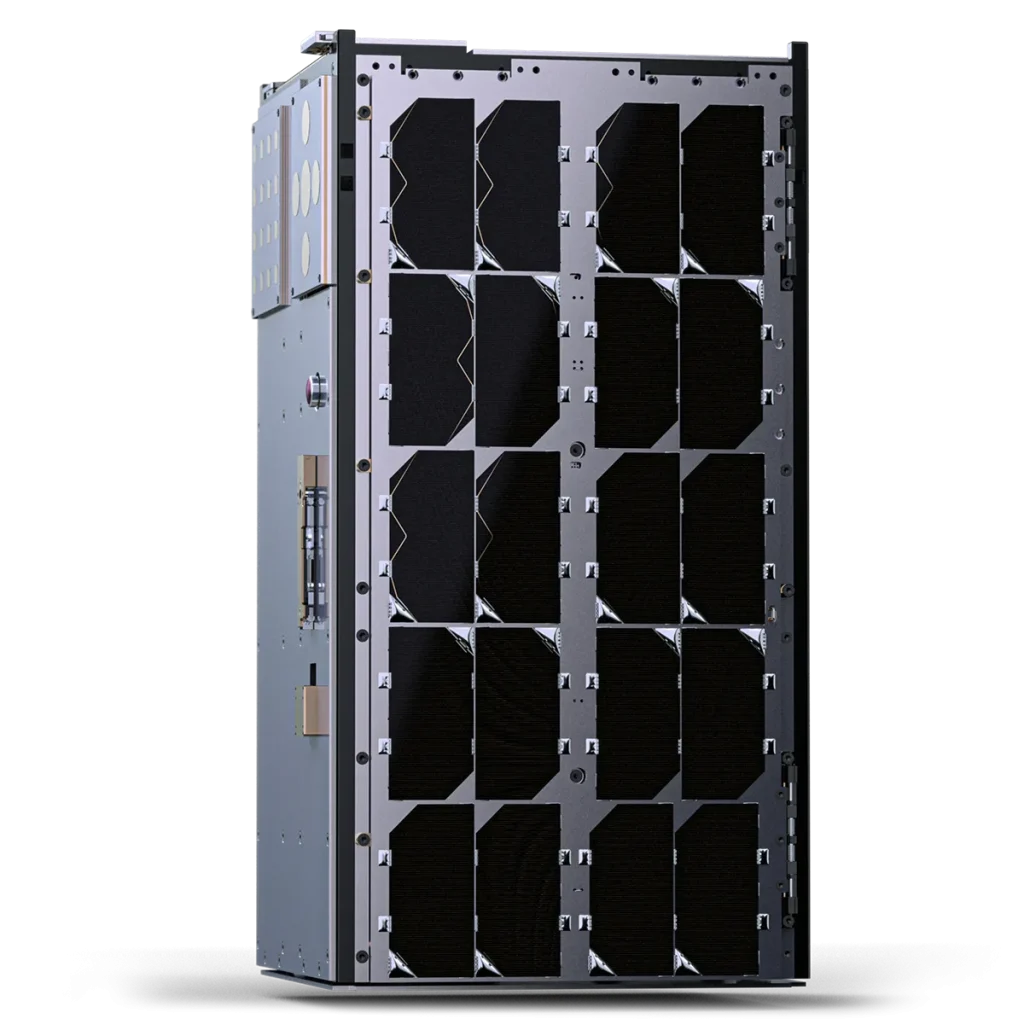

16U Platform endurosat featured image nanosat 4024
