More power for your mission

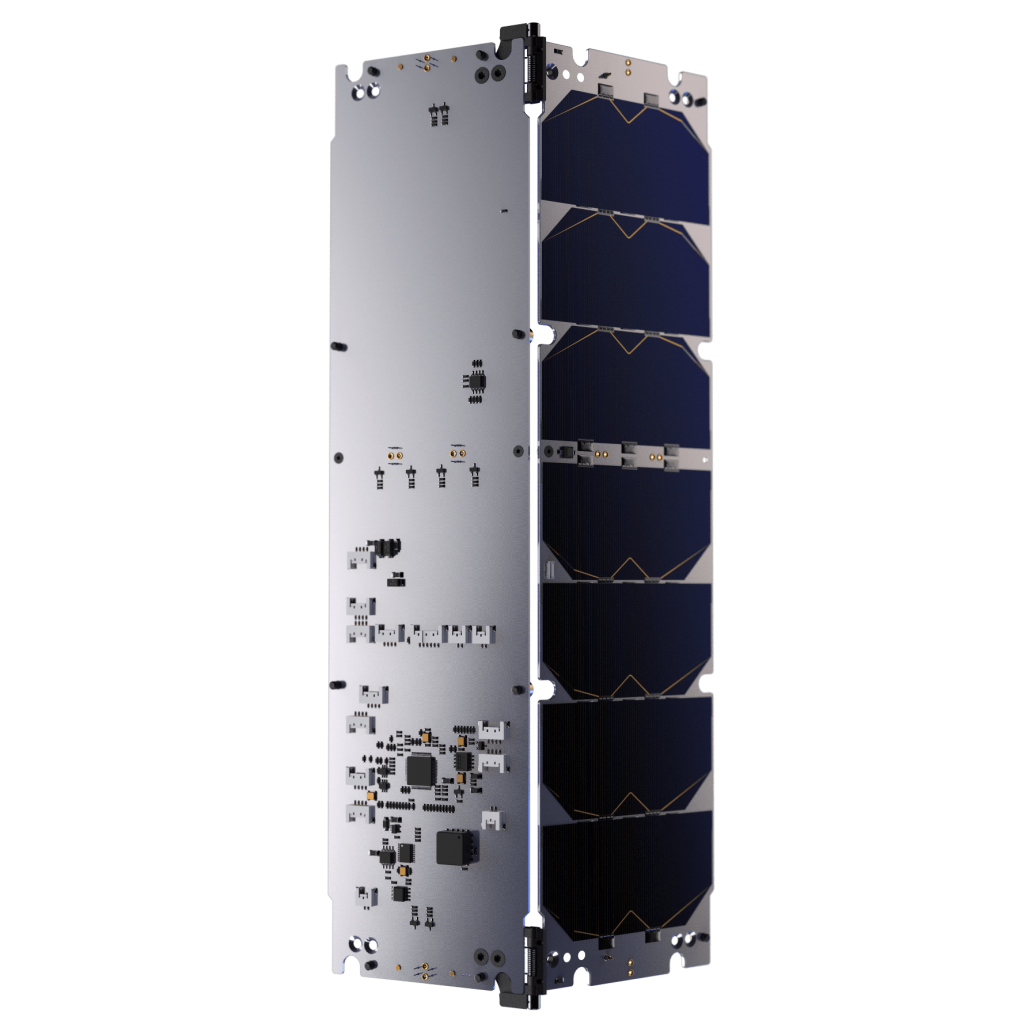

3U X/Y Deployable Solar Array

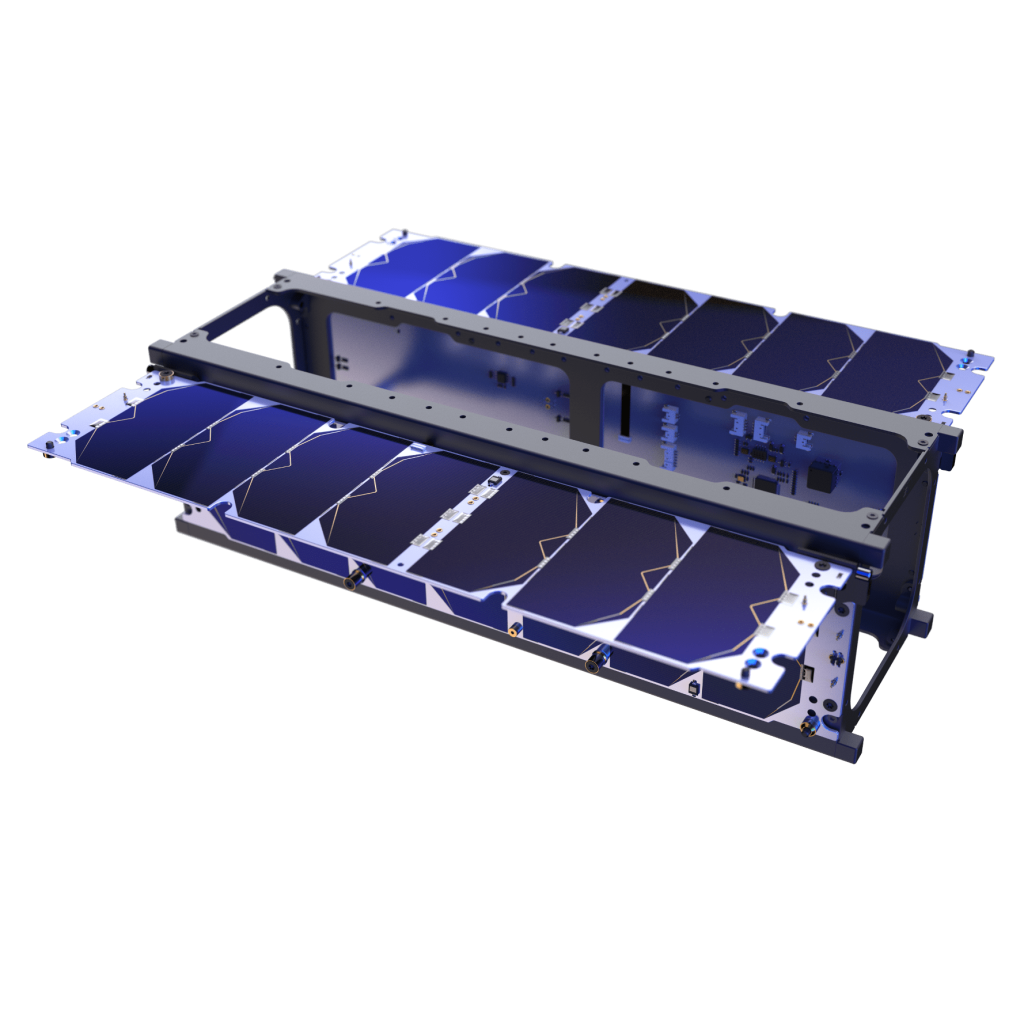

Fully qualified deployable Solar Array

this cubesat module is featured in NASA state of the art report
3U X-Y cubesat Deployable Solar Array endurosat

Fully qualified deployable Solar Array

29.5%triple junction
solar cells

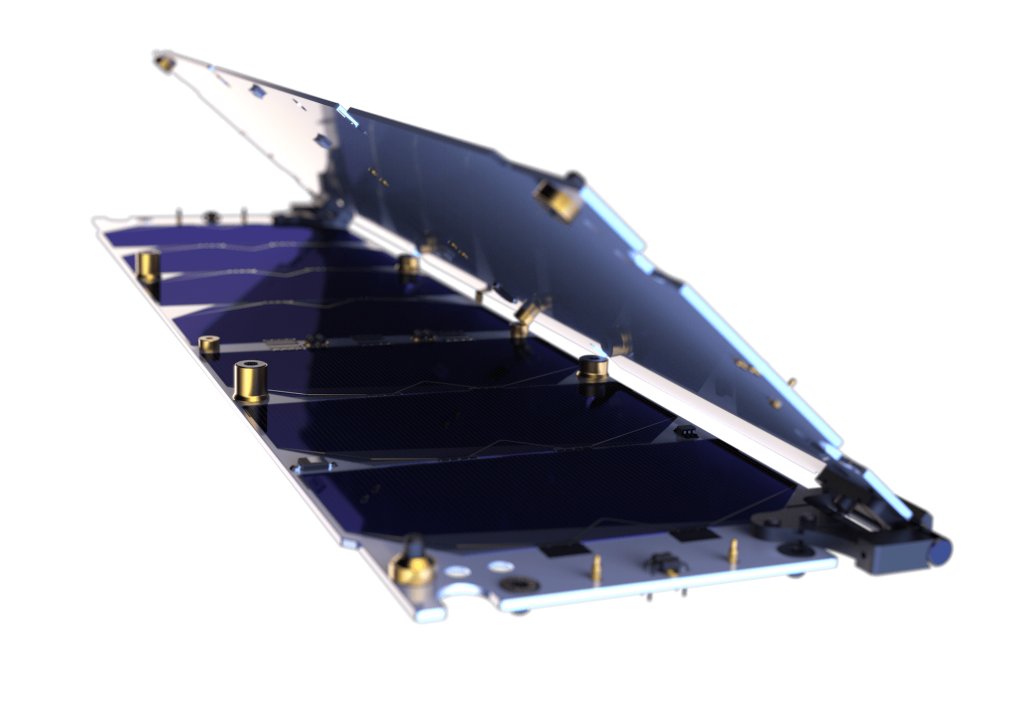

X/Yhinge
mounting
8.4 Win LEO
per side

Triple Junction Solar Cells for Space Applications with efficiency higher than 29.5%

3U X-Y cubesat Deployable Solar Array endurosat

High radiation resilience

Cell efficiency higher than 29% even after 5 years in LEO

3U X-Y cubesat Deployable Solar Array endurosat

Applications

science and research iconScience and Research
Earth Observation iconEarth Observation
IoT and communications iconIoT and Communications
In-orbit demonstration and verification iconIOD/IOV

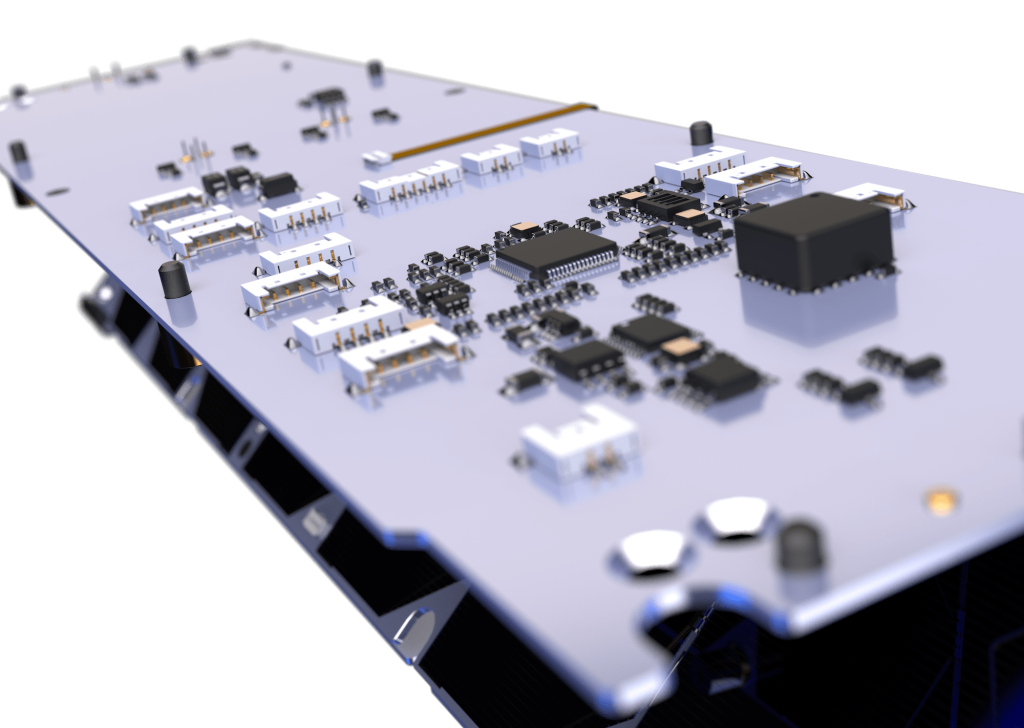

Integrated sun sensors and gyroscope option - backbone for ADCS

3U X-Y cubesat Deployable Solar Array endurosat

Features

Power efficiency at EOL 29+%
Max Power Up to 8.4 W in LEO per side
Internal By-pass diode reverse bias protection
Solar cells thickness 150 μm ± 20 μm
Sensors Temperature and Sun, optional Gyroscope
MTQ Connector for external magnetorquer
RBF Available with Remove Before Flight pin
Mass 270 g
Customisation Multiple panels can be connected in series or parallel
Max Voltage 16.8 V (for 7 cells)
Max Current 504 mA
PCB Thickness 1.6 mm

Series or parallel connection based on client power system requirements

3U X-Y cubesat Deployable Solar Array endurosat

Included

user manual book icon Complete User Manual
included cables icon Power and data cables
customer support icon 1 hour engineering support
delivery cost icon Delivery cost
handling and administration costs icon Handling and administration costs
