S-BAND ANTENNA WIDEBAND

High-speed Communication
Cad file & datasheet
$ 5,800
buy
buy
Cad file & datasheet
$ 5,800
buy
buy
2
OPERATING BANDWIDTHS
5+
DBI GAIN
RH
CIRCULAR POLARIZATION

Wide frequency range in S-band

FEATURES
Frequency Range
2025-2110 MHz and 2200-2290 MHz
Half Power Beam Width (HPBW)
70 deg
Gain
5+ dBi
Polarization
Right Hand Circular
Mass
115 g
Configurable Mounting
X/Y or Z CubeSat mounting
RF Power Handling
up to 4 W

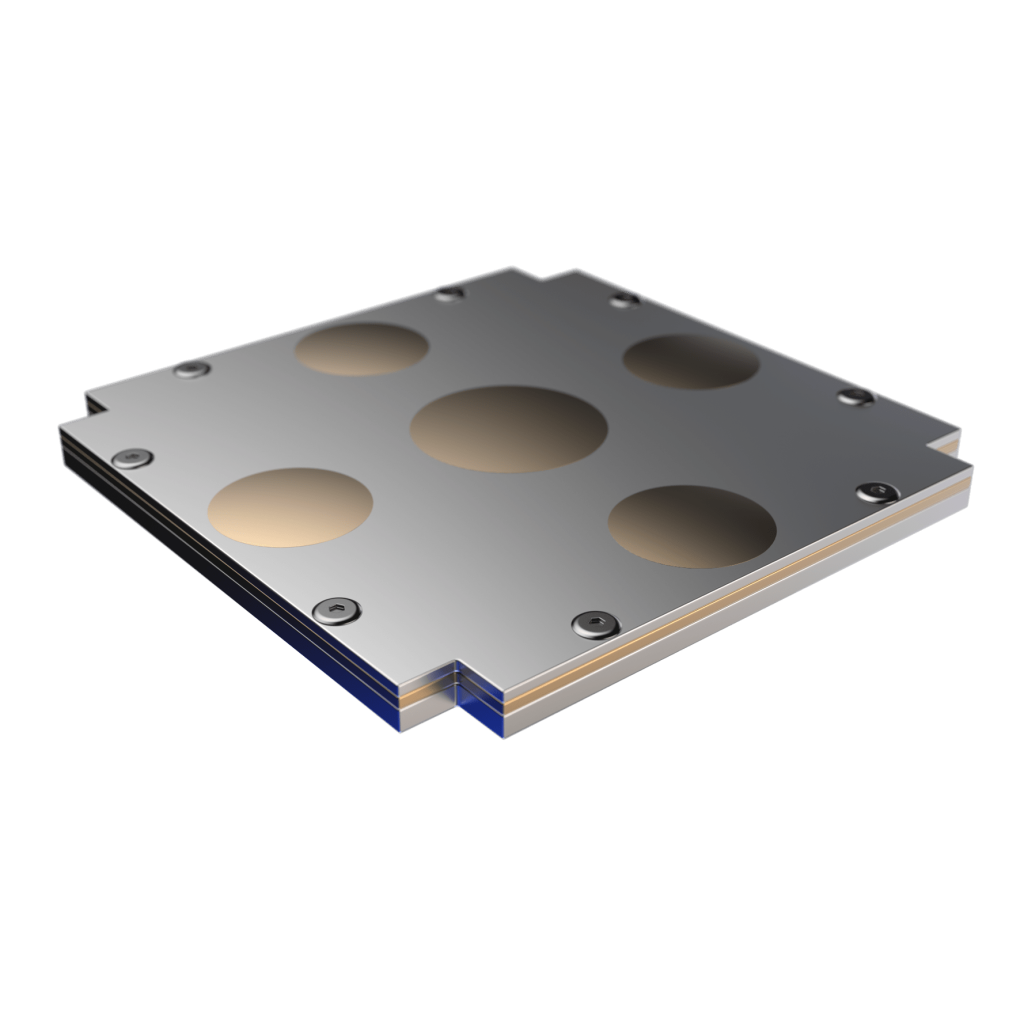

S Band Antenna Wideband web render 1 4
High-speed Communication

Included

Complete User Manual
5h engineering support
Delivery cost
Handling and administration costs
Wide frequency range in S-band
S Band Antenna Wideband web 7

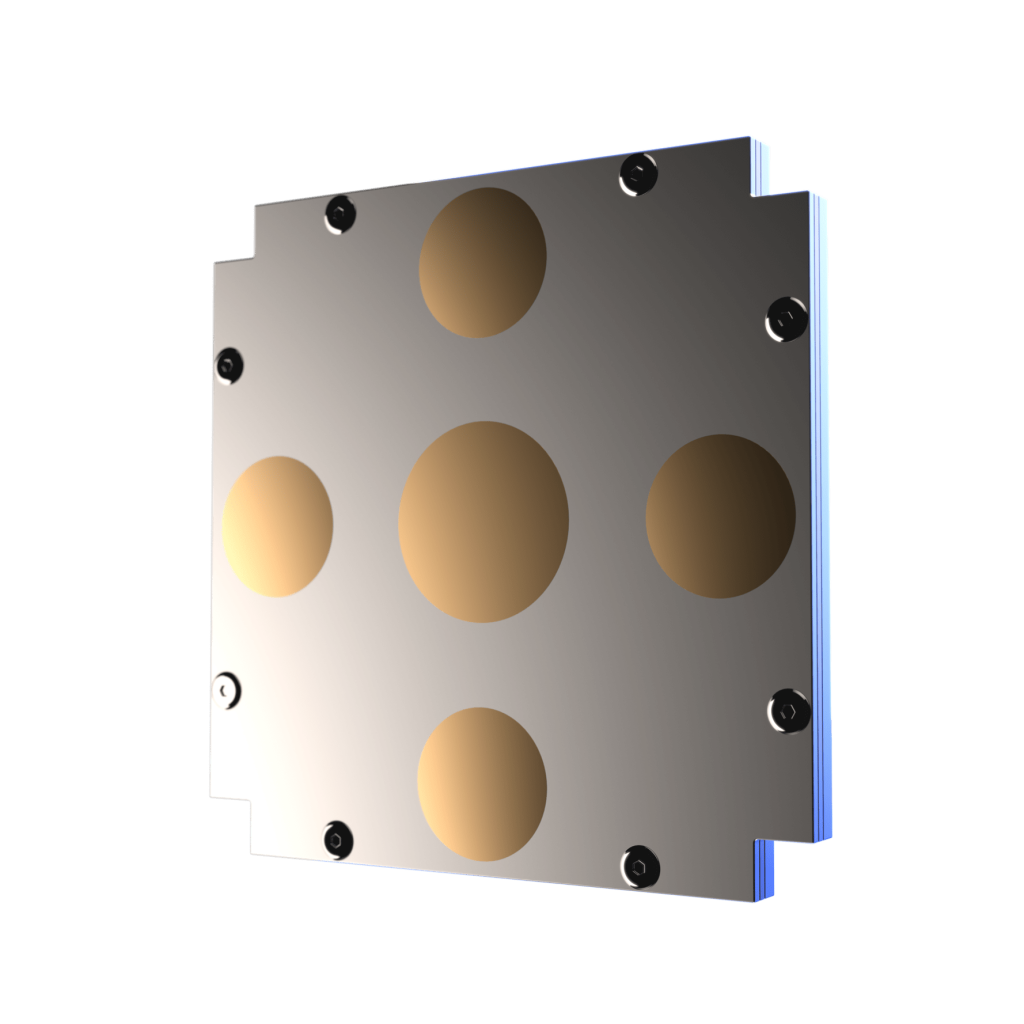

S Band Antenna Wideband web render 1 2

Two frequency bands at high gain

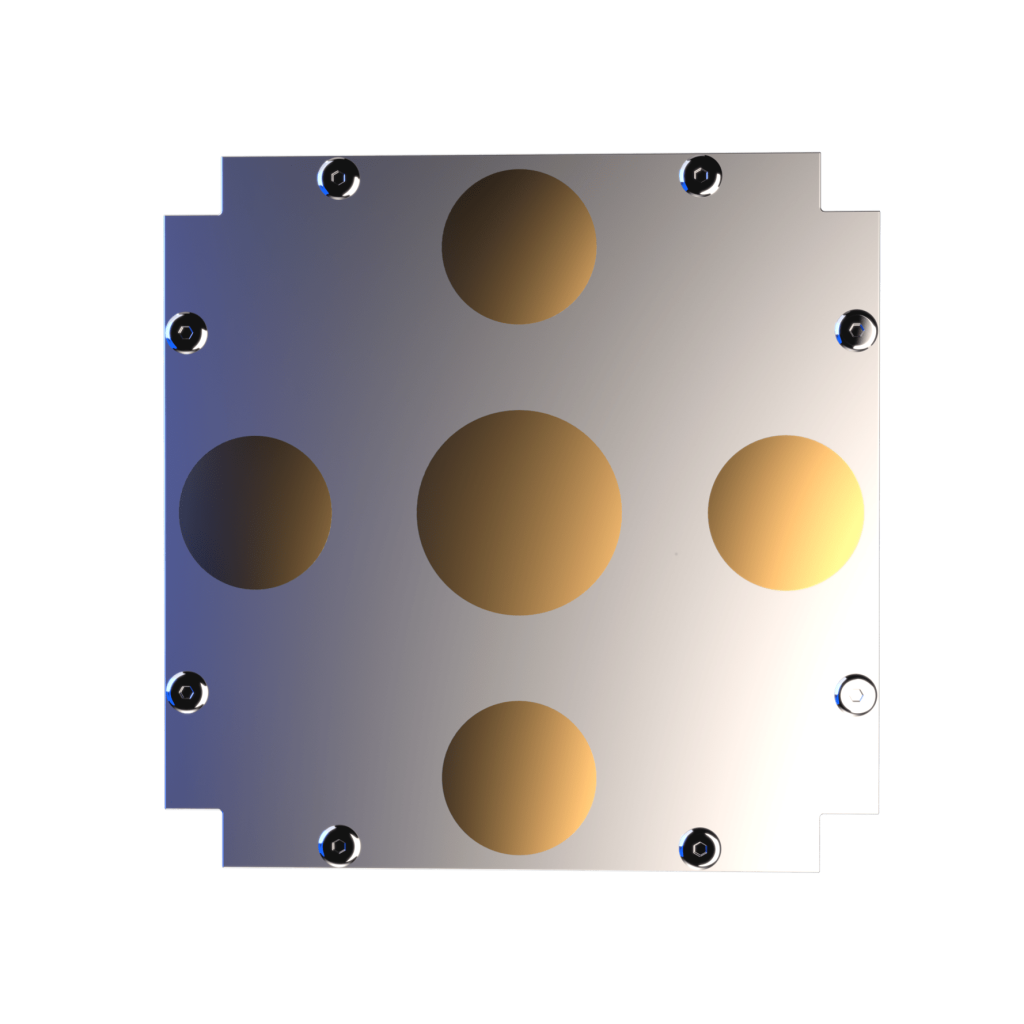

S Band Antenna Wideband web render 1 3

Circularly polarized for better reception

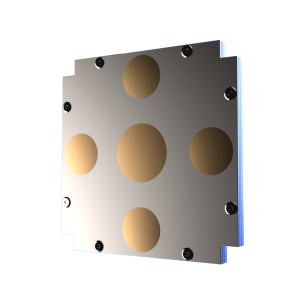

S Band Antenna Wideband web render 1 1 e1711099207669

Customizable for easy mount, X/Y or Z

PRODUCT GALLERY

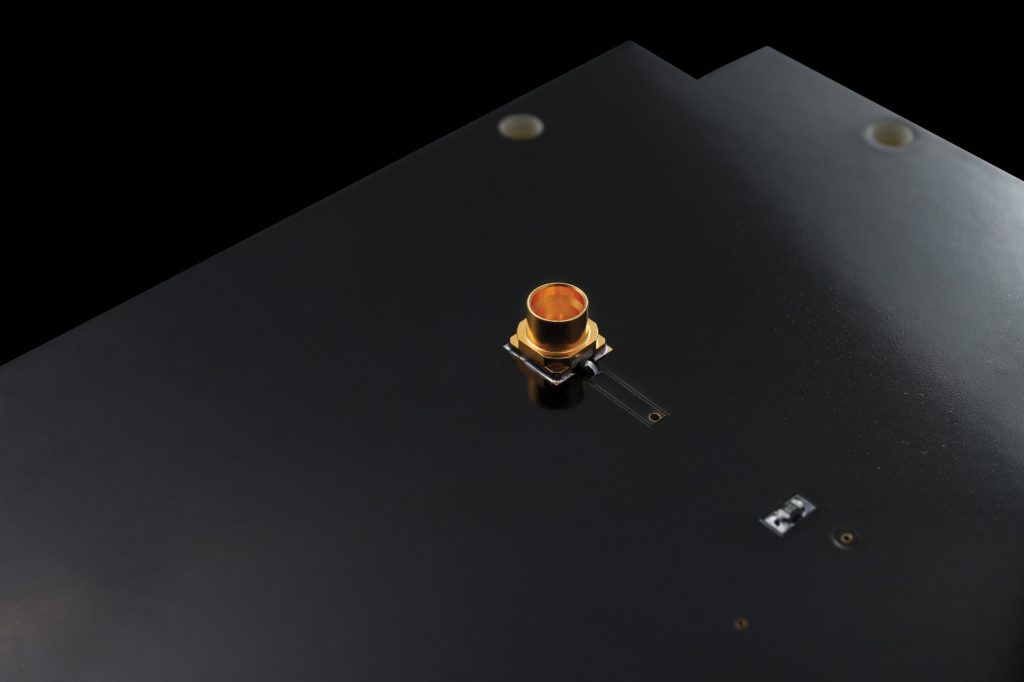

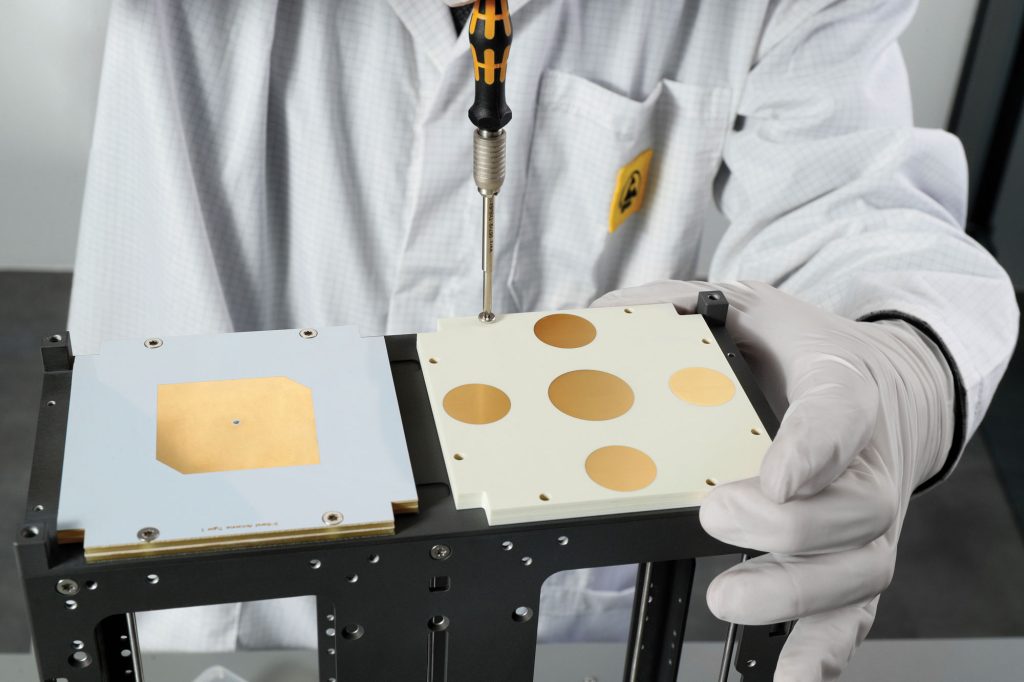

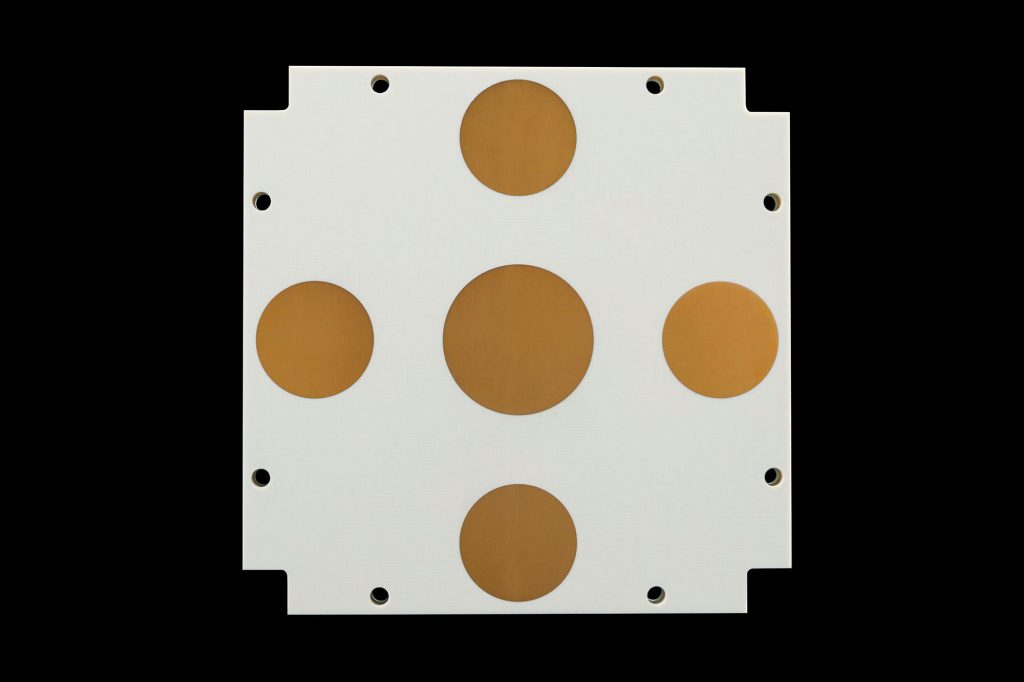

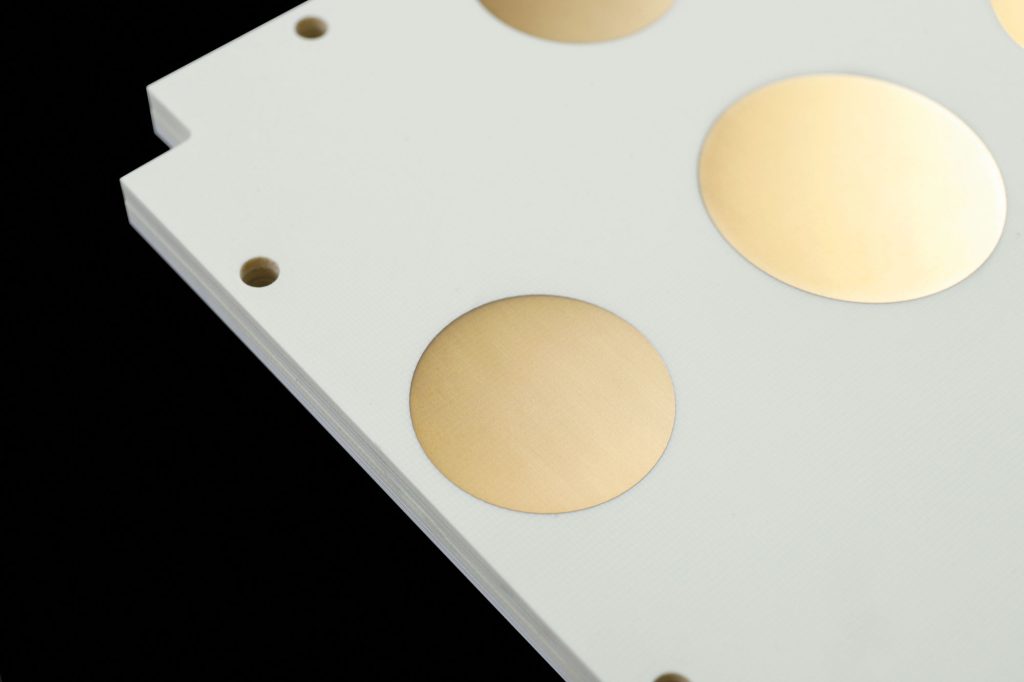

S Band Antenna Wideband web 19
S Band Antenna Wideband web 18
S Band Antenna Wideband web 13
S Band Antenna Wideband web 9
S Band Antenna Wideband web 4
S Band Antenna Wideband web 8
X Band Patch Antenna
X-Band Patch Antenna
Frequency Range
8025 - 8400 MHz
Polarization
Right Hand Circular
RF Power Handling
up to 4 W
Discover
X Band 2×2 Patch Array
X-Band 2×2 Patch Array
Frequency Range
8025 - 8400 MHz
Polarization
Right Hand Circular
RF Power Handling
up to 4 W
Discover
X Band 4×4 Patch Array
X-Band 4×4 Patch Array
Frequency Range
8025 - 8400 MHz
Polarization
Right Hand Circular
RF Power Handling
up to 4 W
Discover
GNSS Patch Antenna
GNSS Patch Antenna
Operating Frequency
L1/E1 band
Polarization
Right Hand Circular
LNA Gain
34dB
Discover
V W band Patch Antenna
V/W-Band Patch Antenna
Discover
K Band 4x4 Patch Array
K-Band 4×4 Patch Array
Frequency Range
17.7 - 20.2 GHz
Polarization
Right/Left Hand Circular
RF Power Handling
up to 4 W
Discover
S Band Antenna Commercial
S-Band Antenna Commercial
Frequency Range
2025 - 2110 MHz
Polarization
Selectable Circular
RF Power Handling
up to 4 W
Discover
S Band Antenna ISM
S-Band Antenna ISM
Frequency Range
2400 - 2450 MHz
Polarization
Left Hand Circular
RF Power Handling
up to 4 W
Discover
UHF Antenna III
UHF Antenna III
Frequency Range
435 - 438 MHz or 400 - 403 MHz
Polarization
Circular
Gain
> 0 dBi
Discover
UHF Antenna 2U
UHF Antenna 2U
Frequency Range
144 - 438 MHz
Polarization
Linear
RF Power Handling
2W
Discover
2500
MODULES IN ORBIT
50
DELIVERED SATELLITES
200
TB DATA DOWNLINKED
All our products undergo Space Qualification, involving stringent testing under extreme conditions to ensure their robustness and high performance
LEARN MORE

Datasheet & CAD File

S-Band Antenna Wideband
