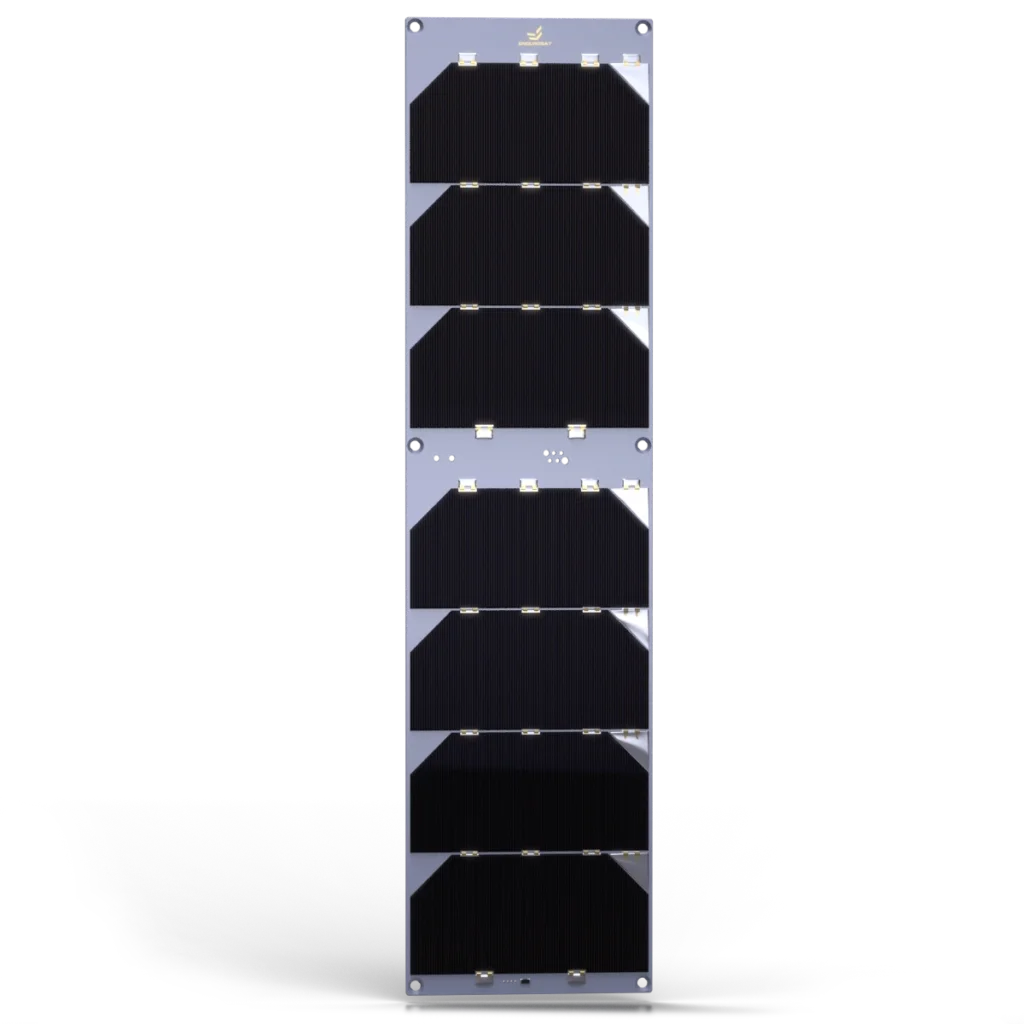

3U SOLAR PANEL

Power in space for CubeSats
Cad file & datasheet
Add
Add
Download
Cad file & datasheet
Add
Add
30+%
EFFICIENT SOLAR CELLS
8.4 W
OF POWER IN LEO
SENSORS
CONFIGURABILITY UPON REQUEST

High power output and radiation resistance with 29+% effeciency at EOL

Space-qualified CubeSat solar panel

FEATURES
Power Efficiency at BOL
30+%
Power Efficiency at EOL
29+%
Number of Cells
7
Max Power in LEO
8.4 W
Reverse Bias Protection
Internal bypass diode
Sensors
Temperature and Sun, optional Gyroscope
Solar Cell Assembly (SCA) thickness
280-300 μm
Integrated Sensors
Photodiodes (up to 3)
Optional
Connector for external magnetorquer, low-power MCU, up to 2 photodiodes, temperature sensor
Mass
147 g
Max Voltage
17.5V (for 7 cells)
Max Current
512 mA
3U Solar Panel integrates seamlessly with all EnduroSat systems

Included

Complete User Manual
1 hour engineering support
Delivery cost
Handling and administration costs

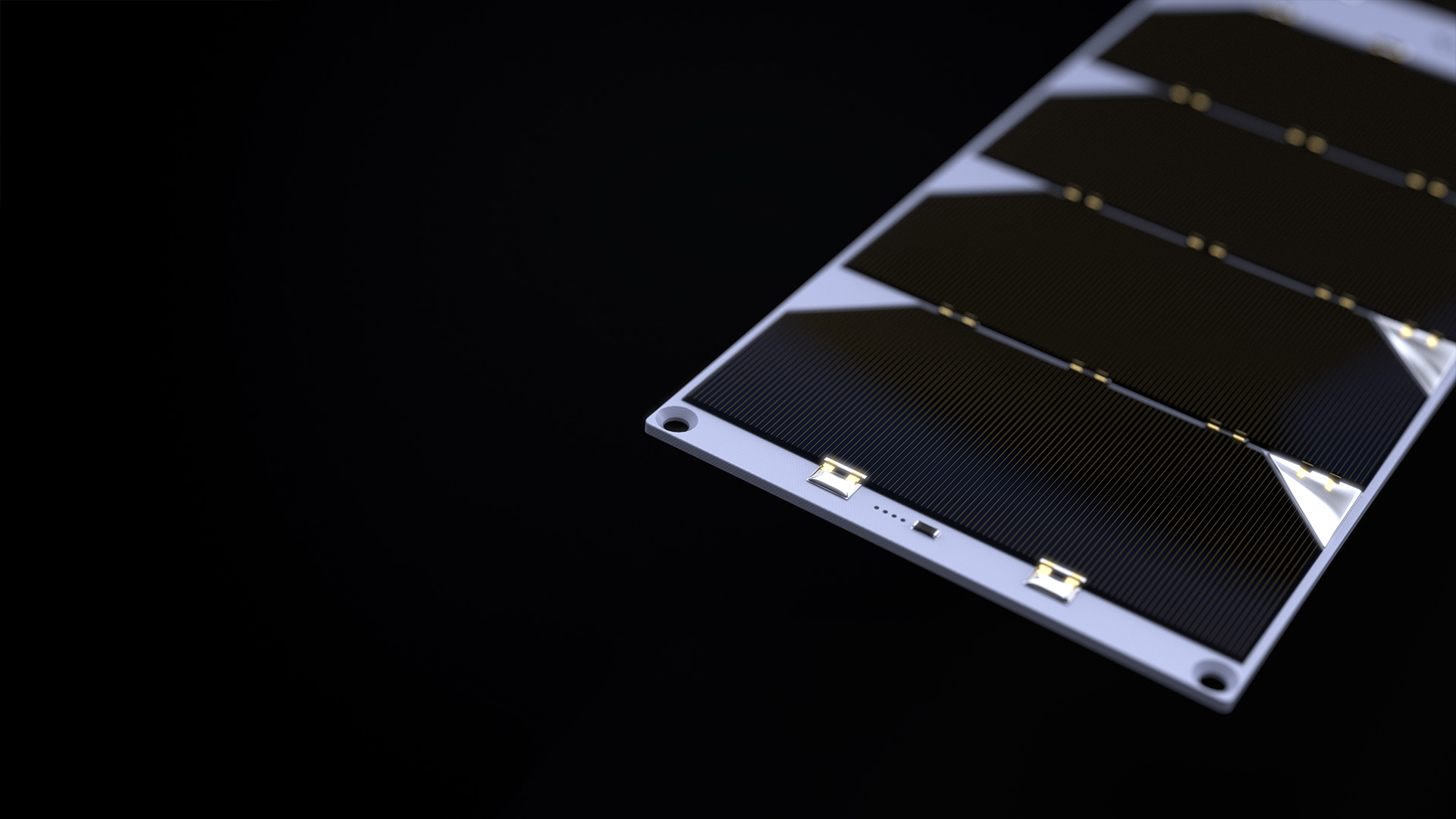

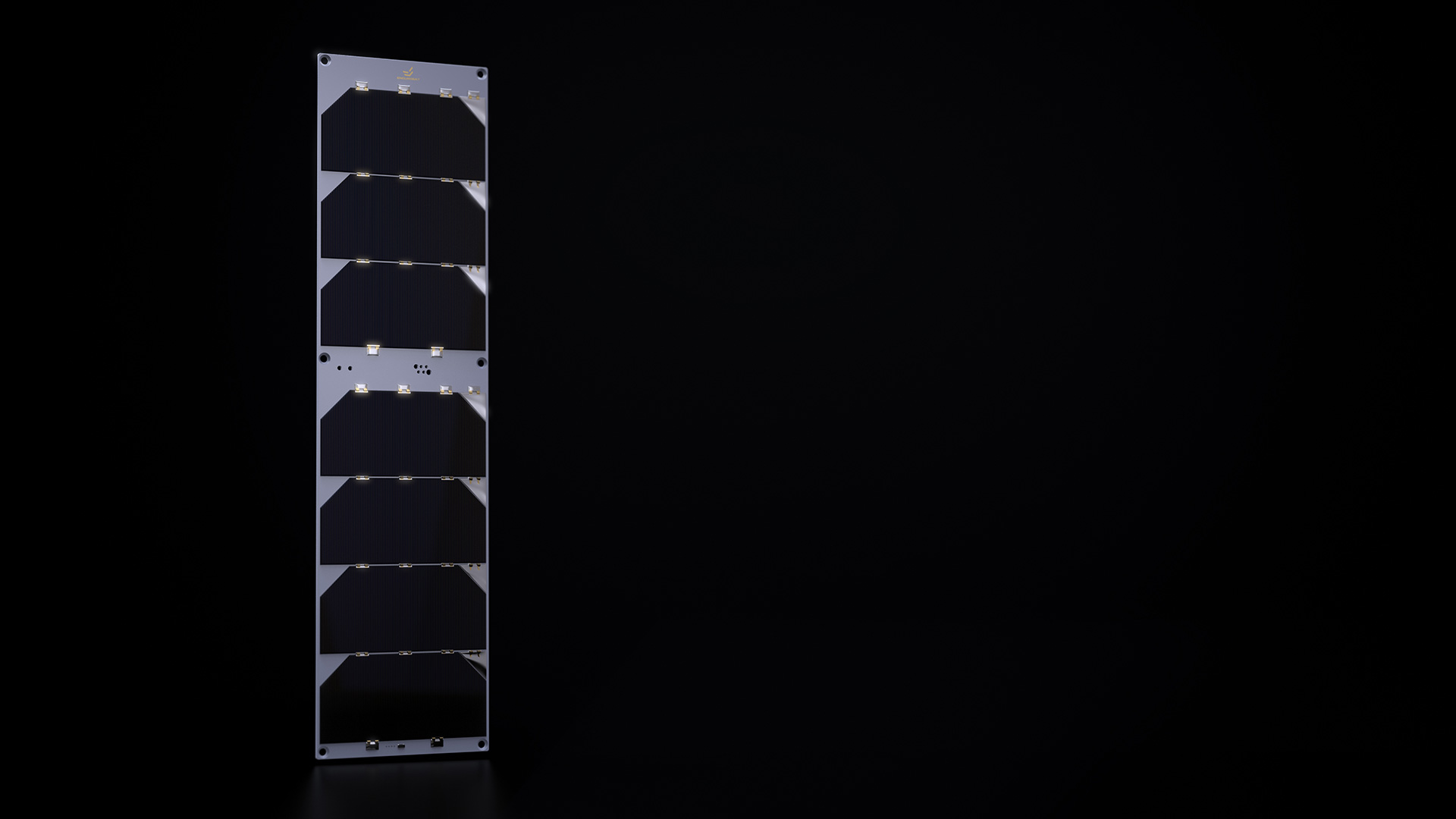

CubeSat 3U Stationary solar panel with triple-junction photovoltaic solar cells

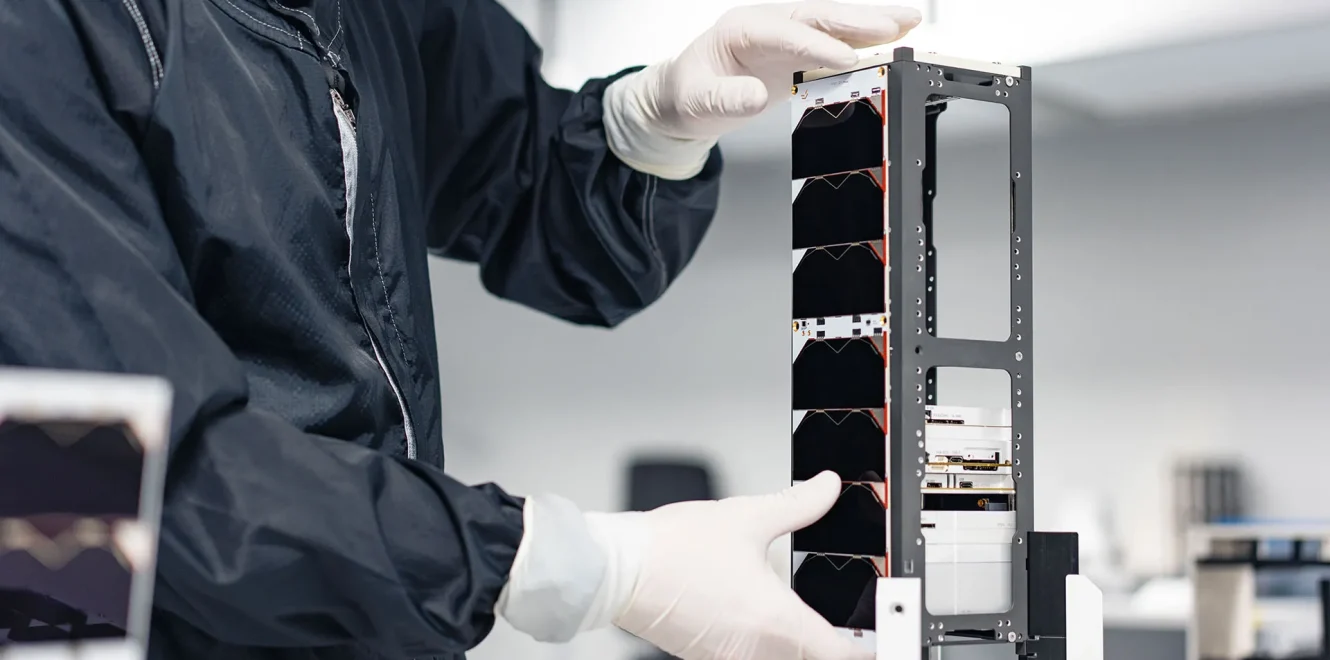

3U Solar panels web 4

Designed for a 5-year mission lifetime

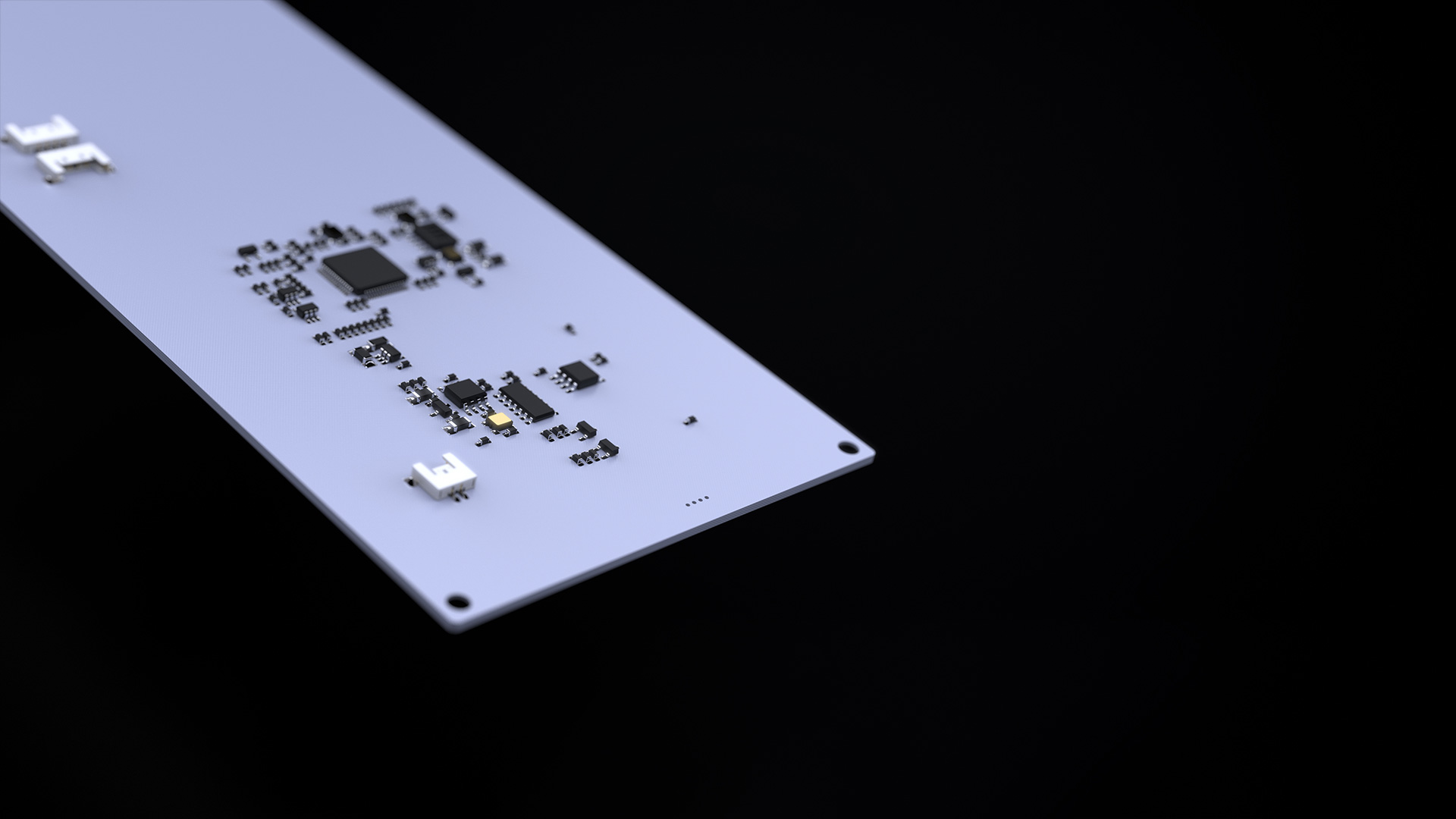

Includes photodiodes and accessible RBF inhibition mechanism

Optional sun sensor, thermal sensor, and a gyroscope for maximized power generation

Supports parallel connections for custom power needs

PRODUCT GALLERY

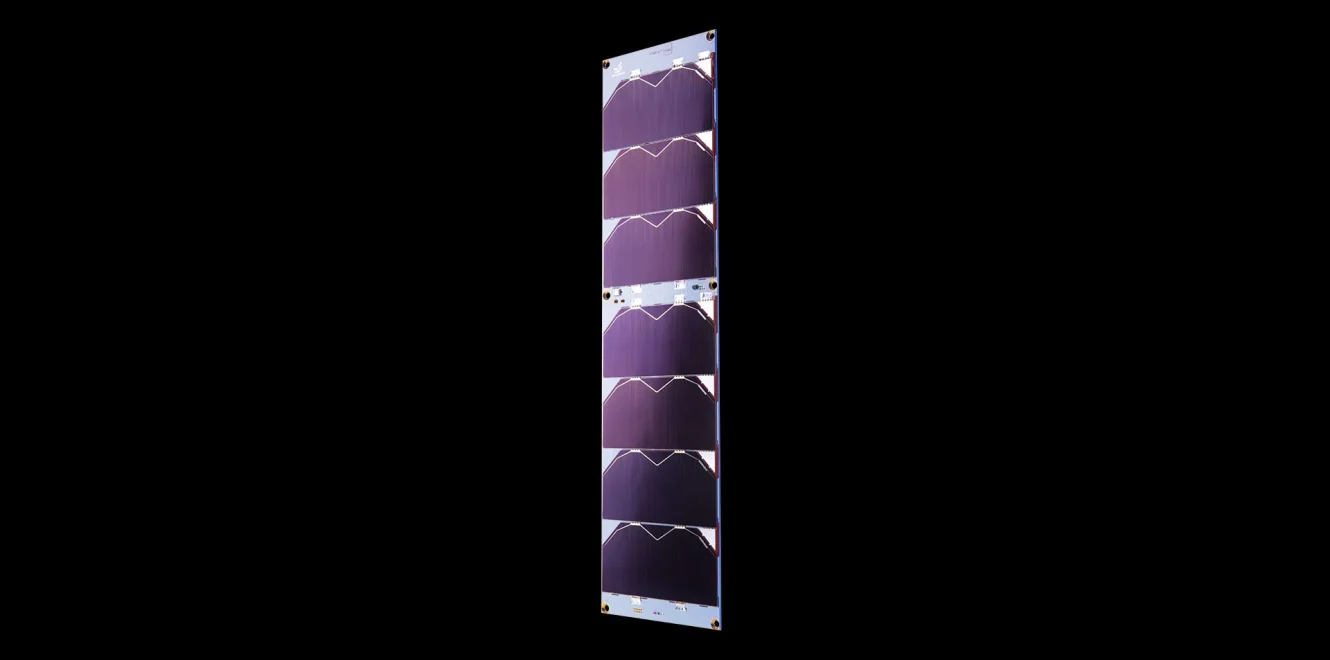

3U Solar panels web 2

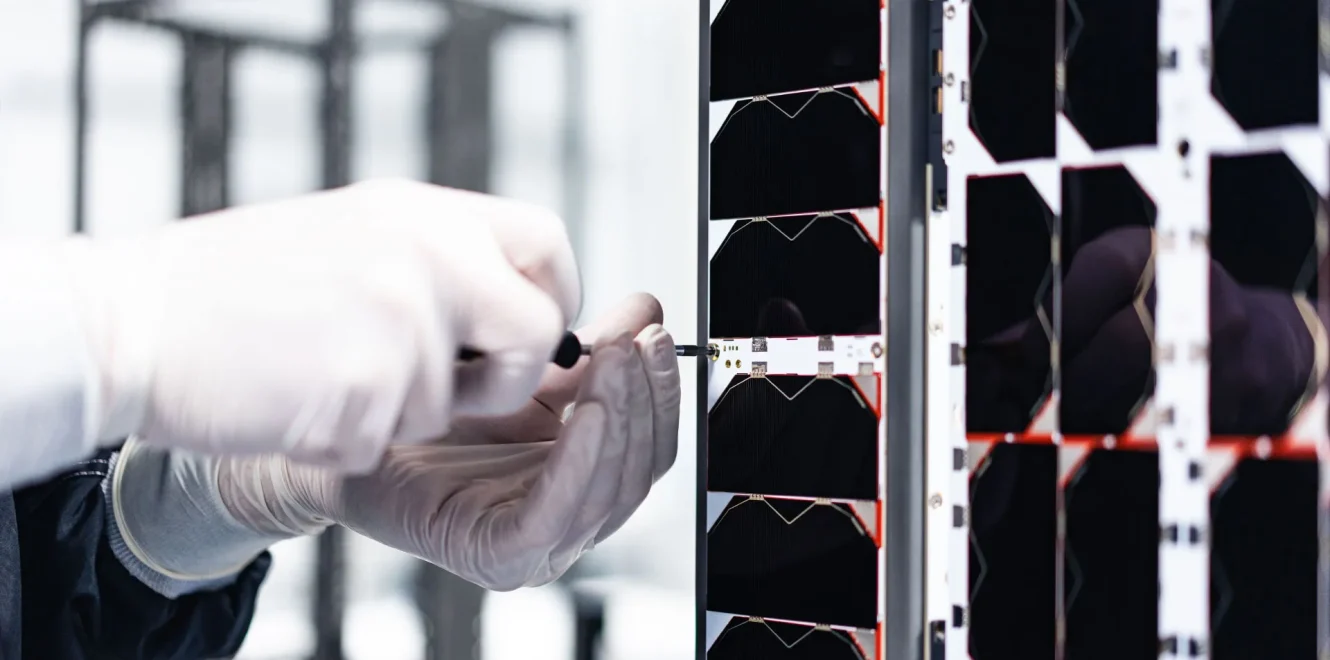

3U Solar panels web 9

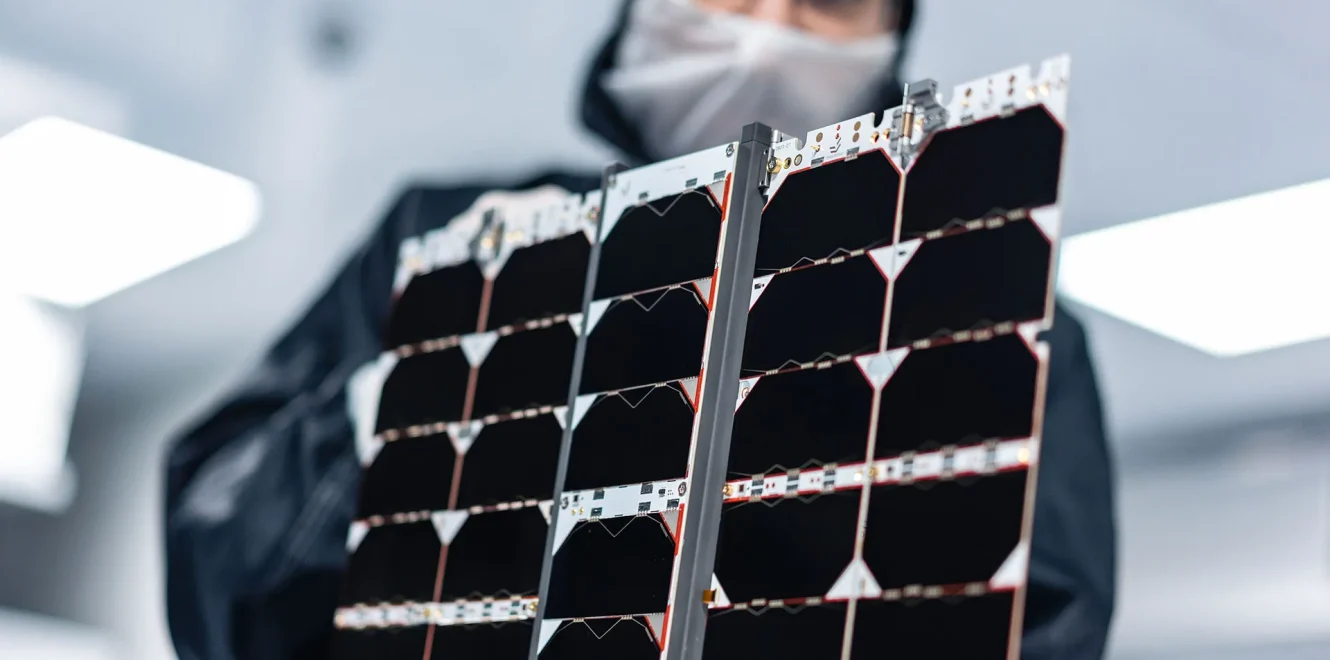

3U Solar panels web 7

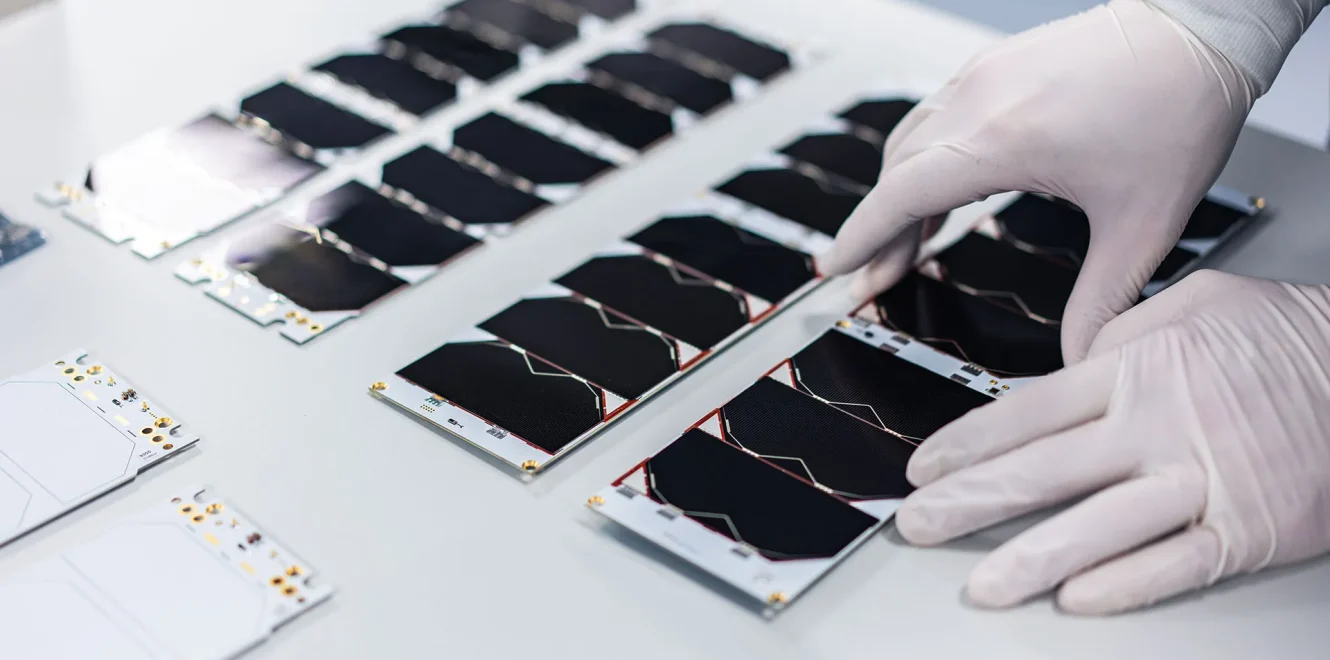

3U Solar panels web 5
3U Solar panels web 4

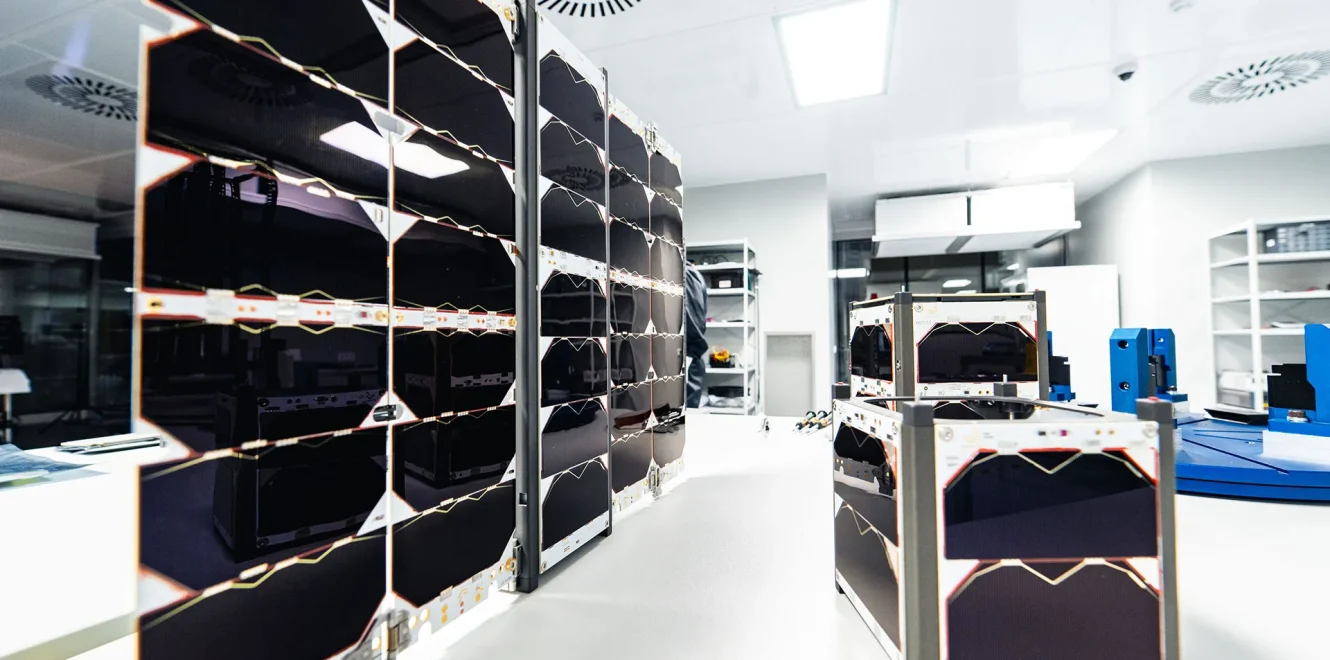

3U Solar panels web 1
