S-BAND ANTENNA ISM

High-speed CubeSat communication
Cad file & datasheet
Add
Add
Download
Cad file & datasheet
Add
Add
30%
HIGHER GAIN
8.3
DBI GAIN
RH/LH
CIRCULAR POLARIZATION

Flight-proven S-band patch antenna

FEATURES
Frequency Range
2400 - 2450 MHz
Half Power Beam Width (HPBW)
71 deg
Gain
8.3 dBi
Polarization
Circular with selectable rotation direction
Mass
71 g
Configurable Mounting
X/Y or Z CubeSat mounting
RF Power Handling
up to 4 W

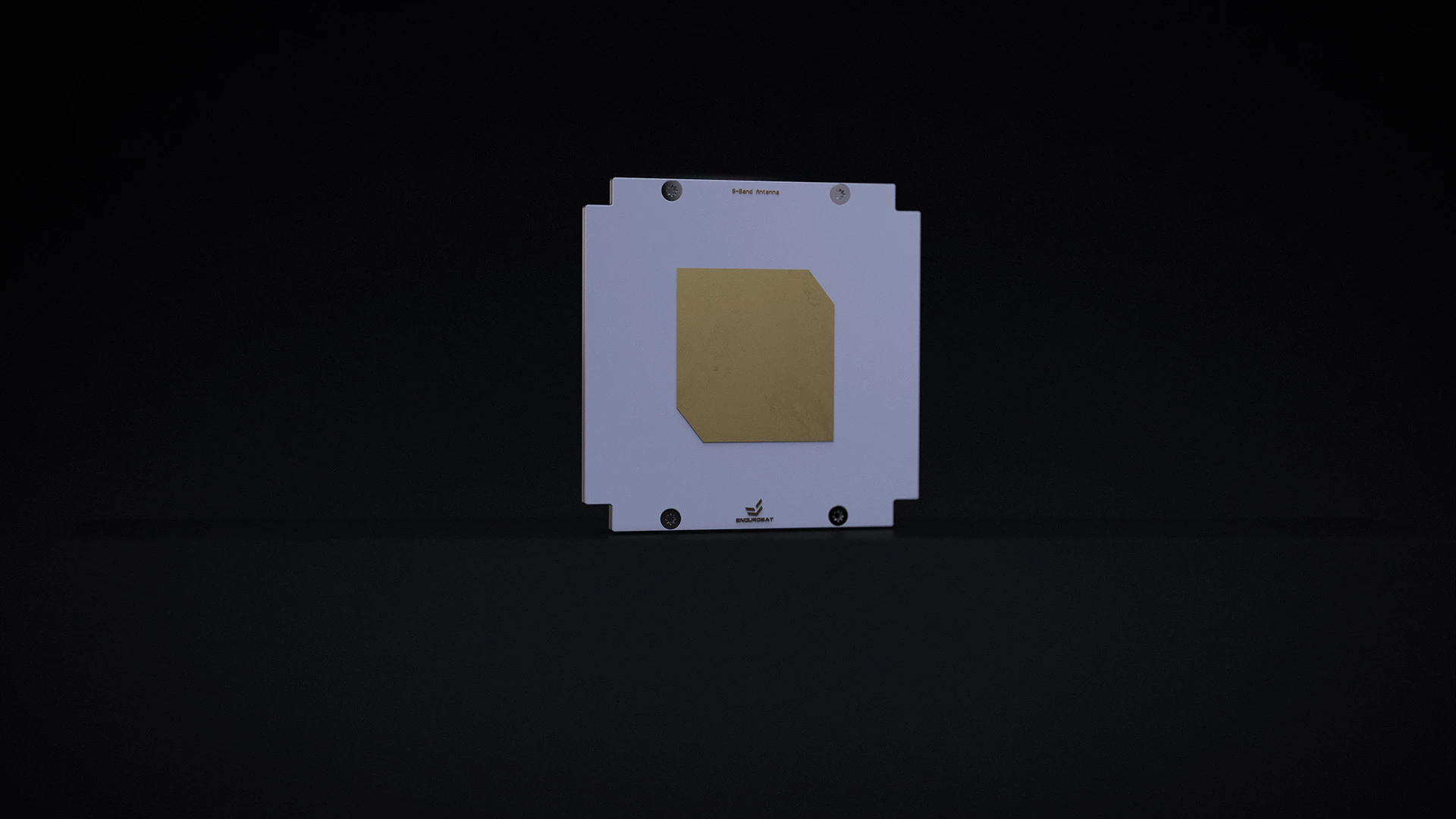

S Band ISM web render 1 4
High-speed CubeSat communication

Included

Complete User Manual
5h engineering support
Delivery cost
Handling and administration costs
Flight-proven S-band patch antenna

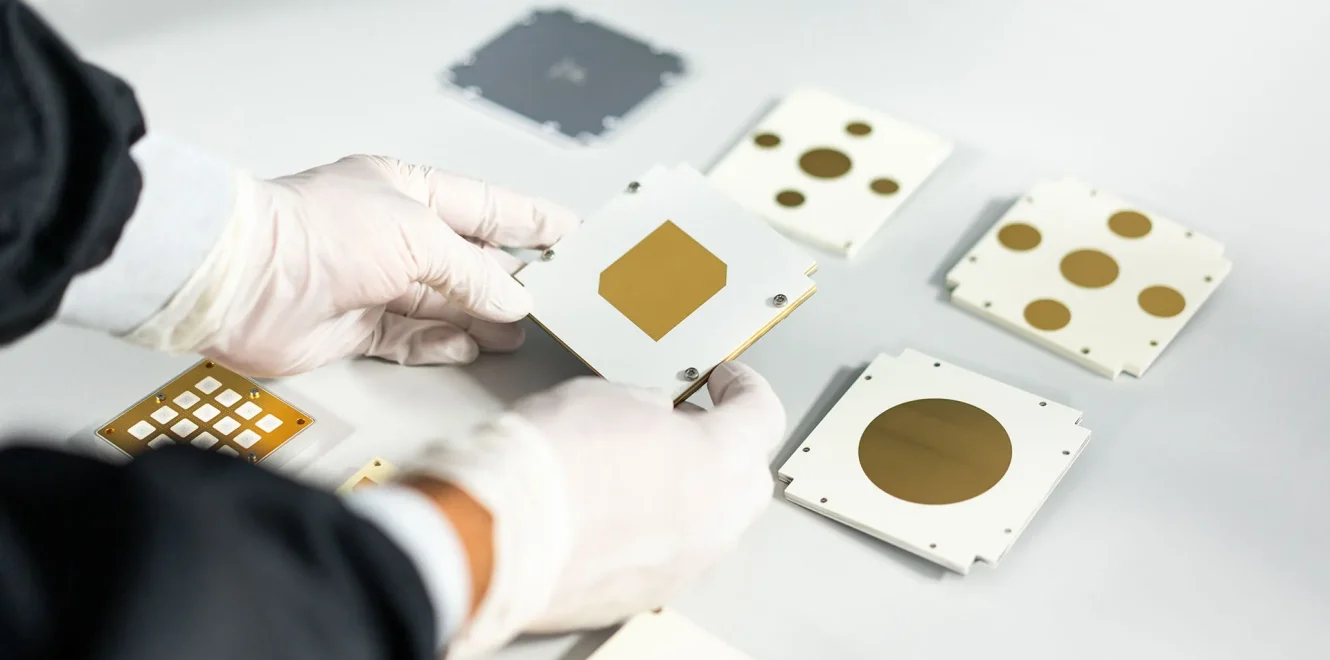

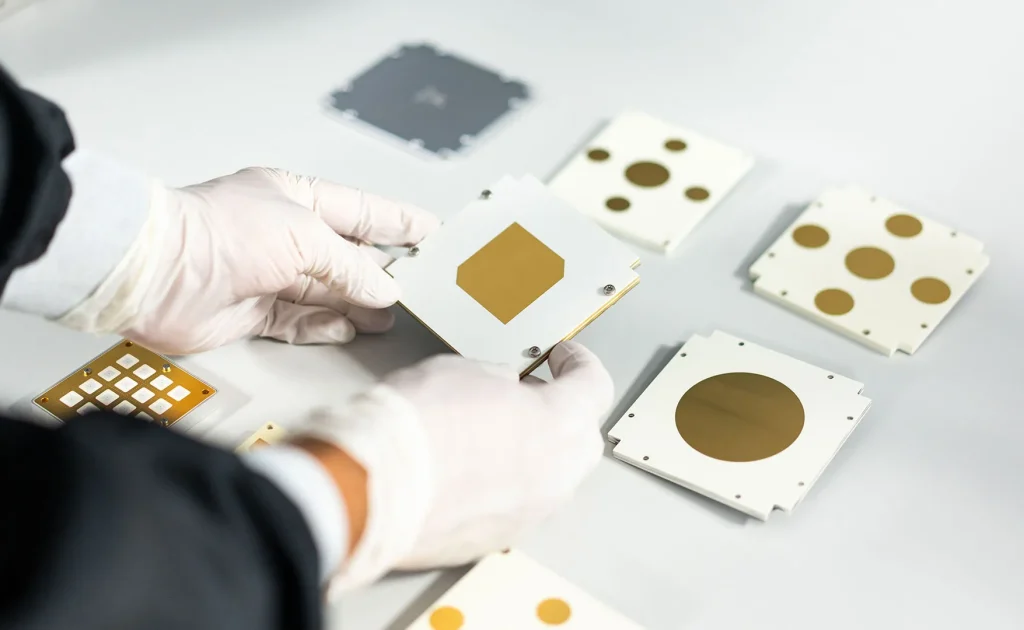

S Band ISM web 1

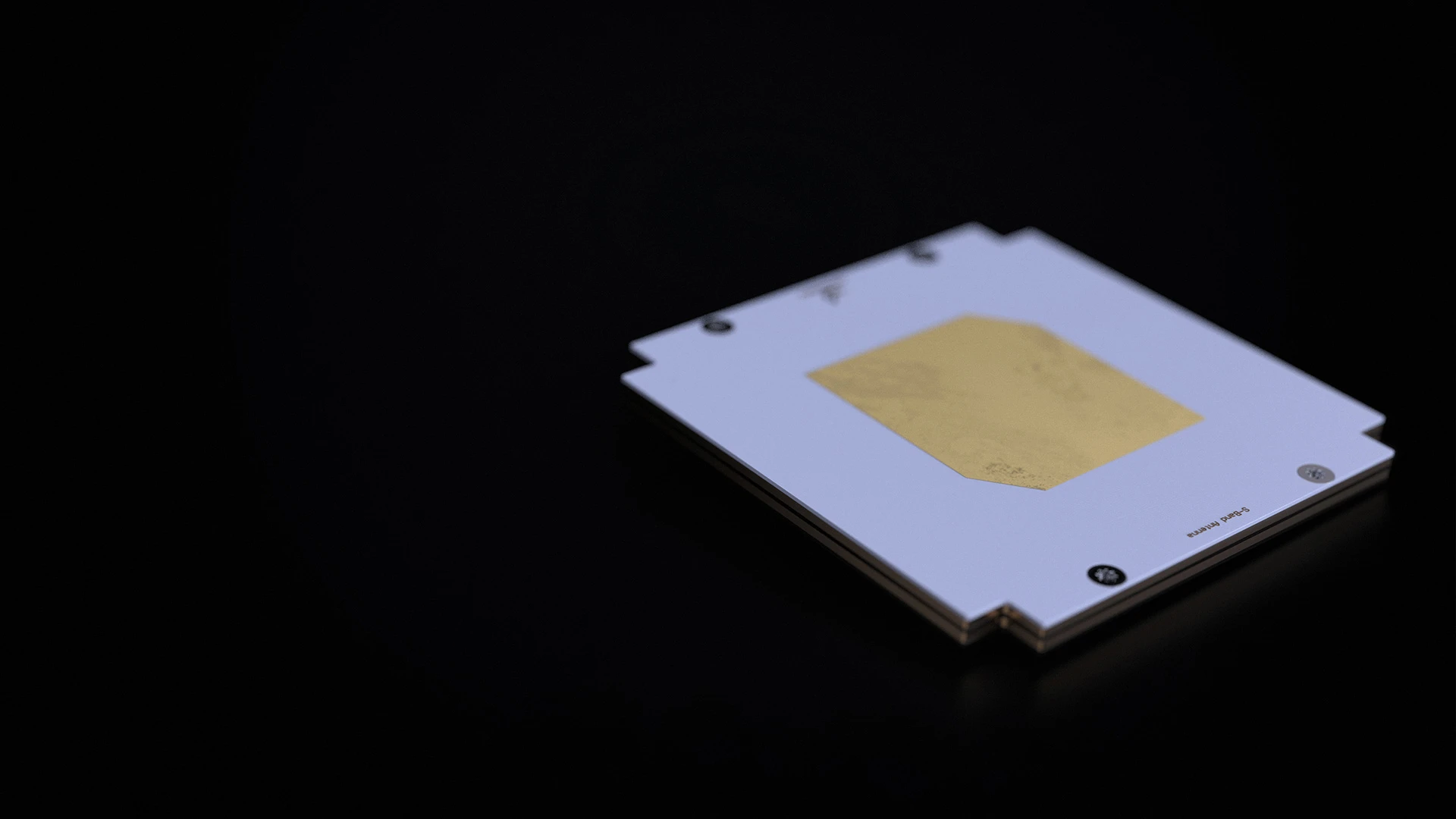

S Band ISM web render 1 2

30% higher gain than previous generation

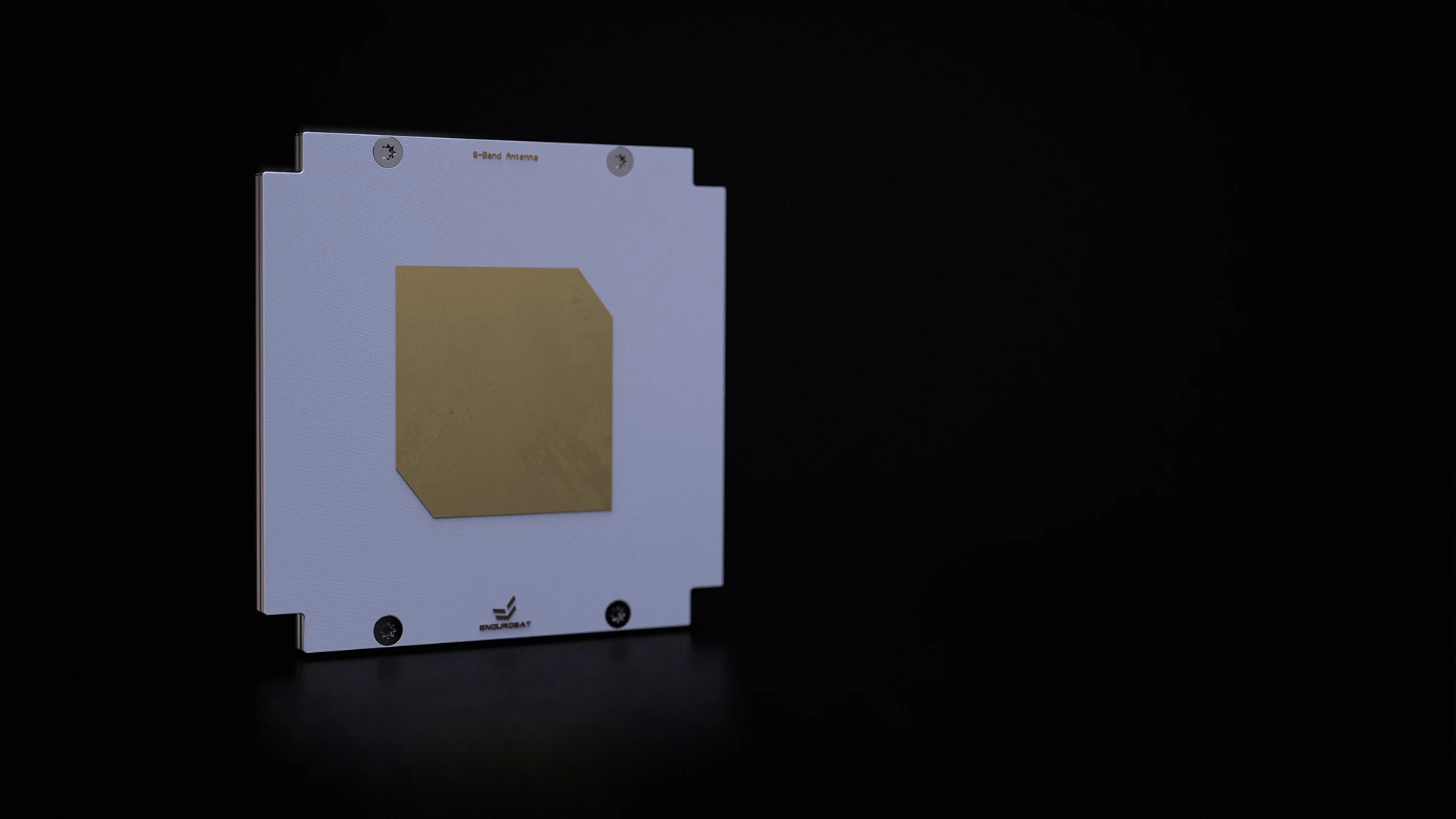

S Band ISM web render 1 3

Circularly polarized for better reception

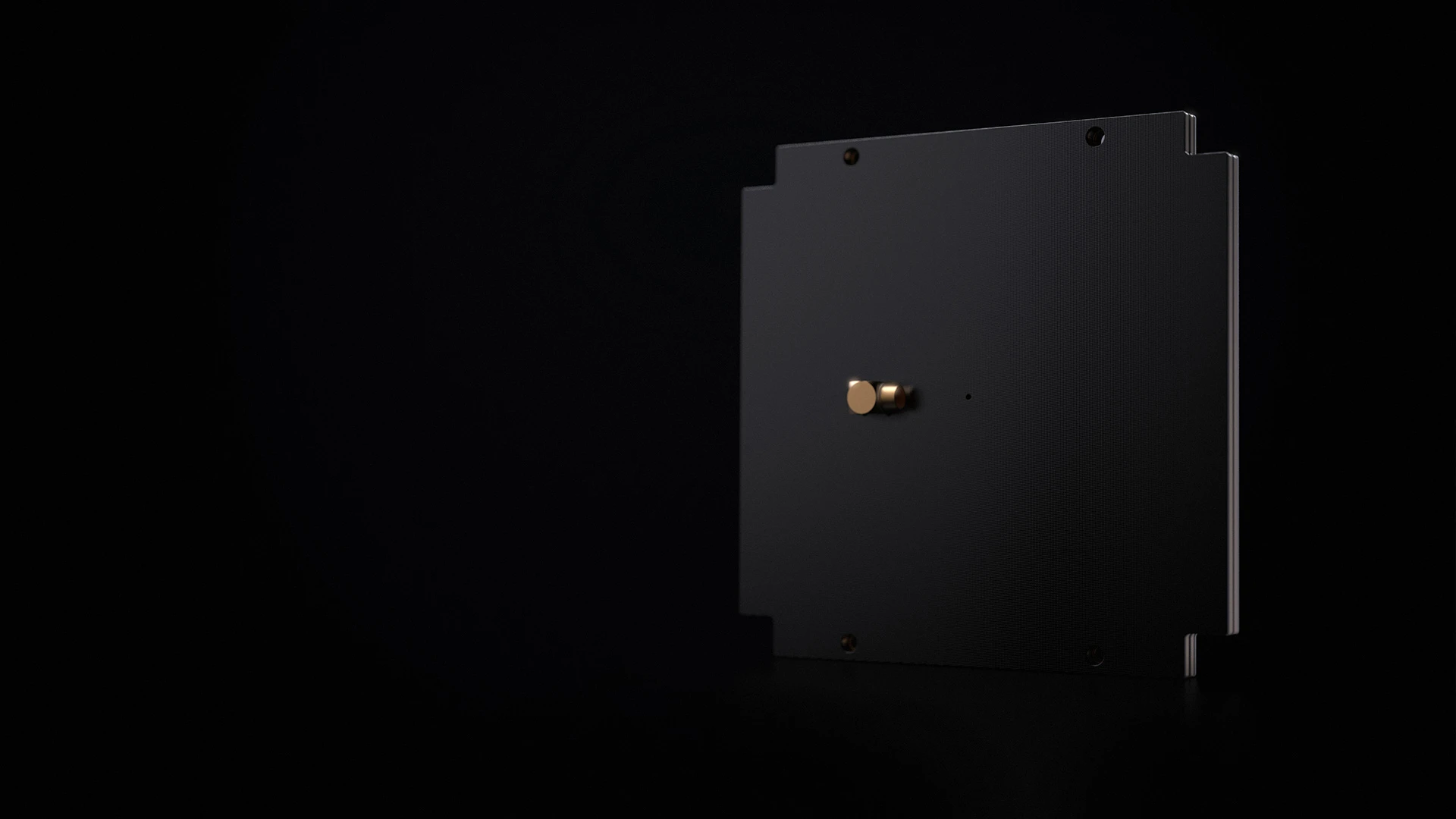

S Band ISM web render 1 1

Customizable for easy mount, X/Y or Z

PRODUCT GALLERY

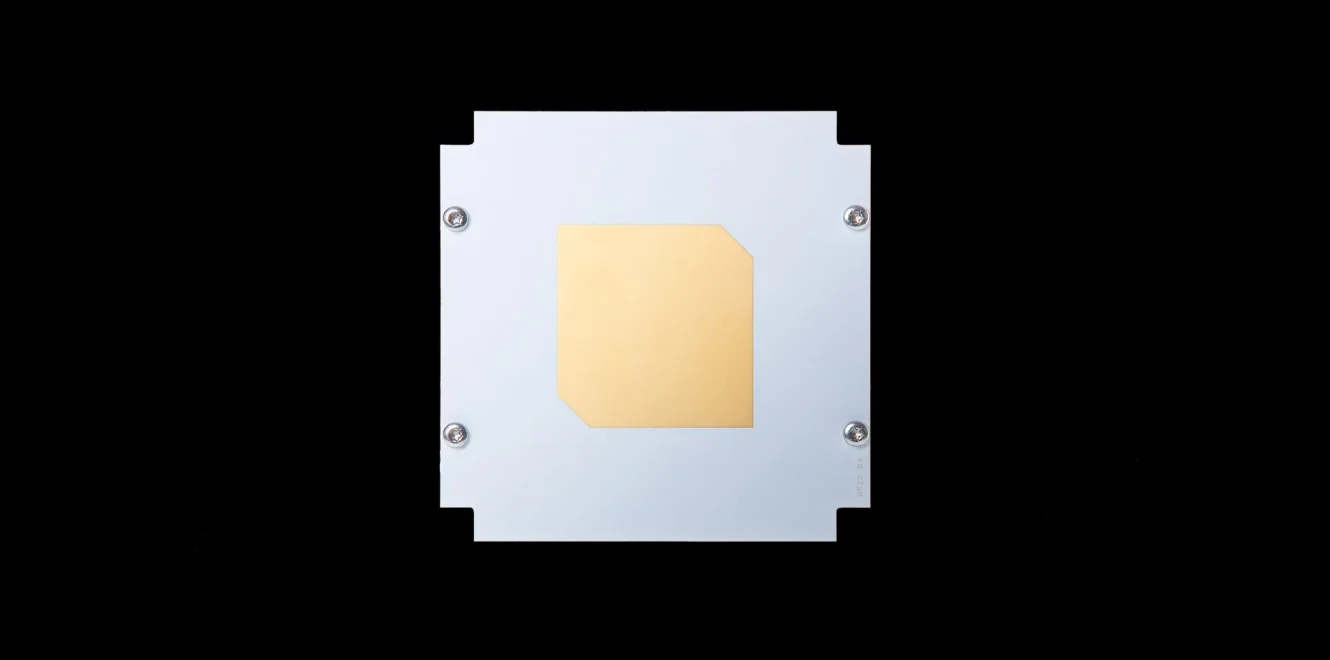

S Band ISM web 3

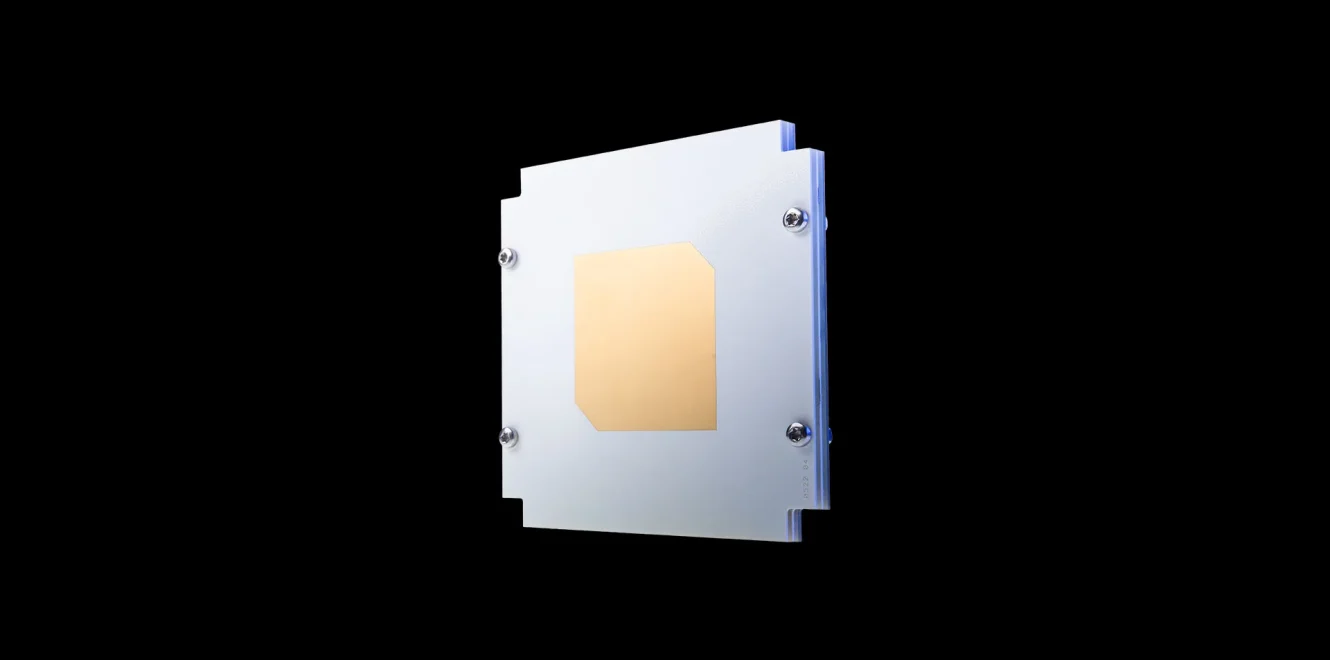

S Band ISM web 4

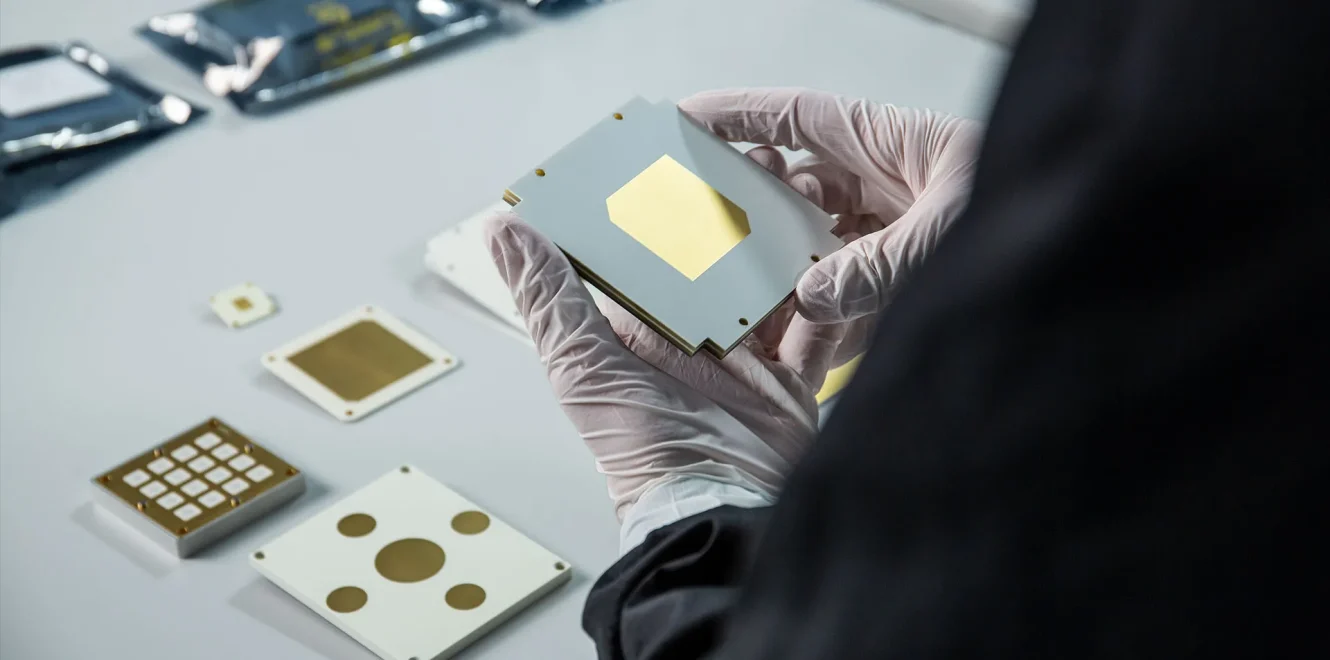

S Band ISM web 2
S Band ISM web 1

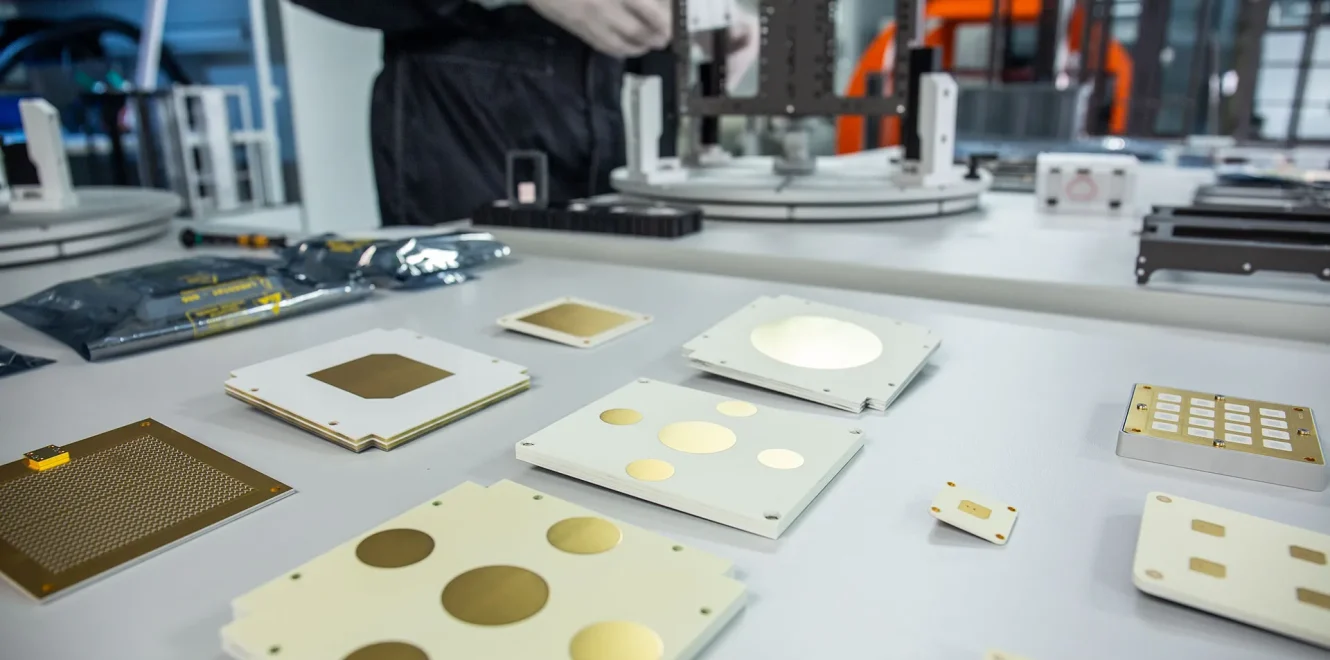

S Band ISM web 5
