FRAME
Our Most Advanced ESPA-Class Satellite
70 KG
AVAILABLE PAYLOAD MASS
3.4 kW
MAX CONTINUOUS POWER
2 GBPS
GROSS DATARATE
400 M/SEC
DELTA-V PROPULSION
Military-grade Encryption
Built for Advanced Payloads
- Synthetic Aperture Radar (SAR)
- Hyperspectral Imager (HSI)
- Very High Resolution (VHR)
- High-Throughput Satellite (HTS)

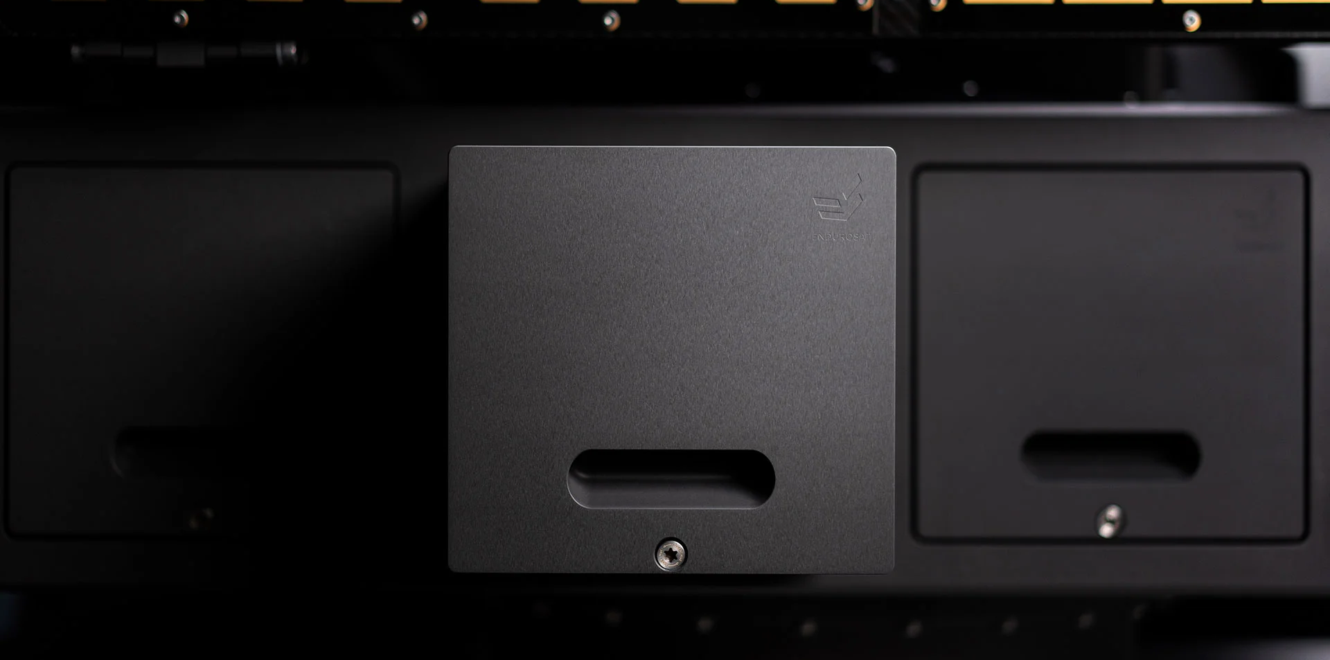

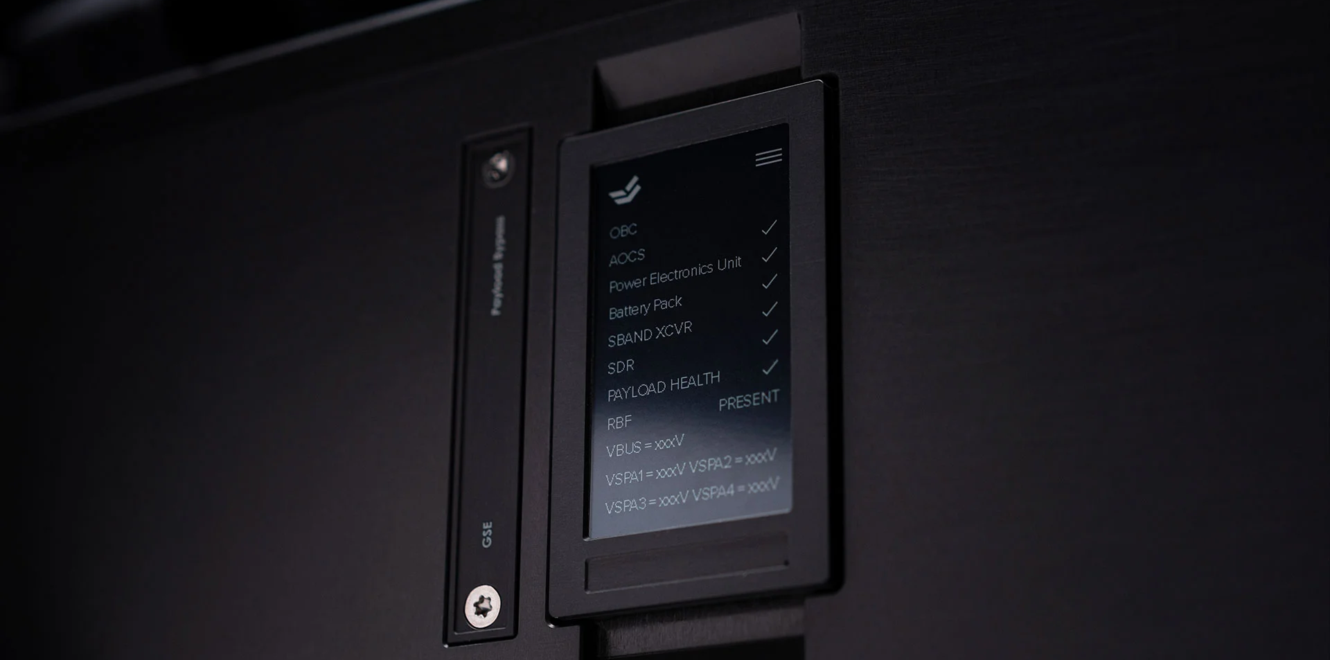

Universal Avionics Assembly
Cableless Design
Plug and Play Integration
Modular
Reconfigurable
even post-AIT
Designed for In-Orbit
Serviceability
FEATURES
Bus mass
80-90 kg
Available payload mass
up to 70 kg
Available payload volume envelope
up to 500 x 1100 x 850 mm (SpaceX half-plate XL)
Peak input power
600 W
Average payload power available (LTAN-dependent)
115-440 W
Available power buses
28V regulated, 30-50V Battery Raw
Additional power buses (PPCU)
3.3V, 5V, 12V and other regulated values up to 30V upon request
Pointing accuracy
<0.1 deg (3σ)
Pointing knowledge
<0.006 deg (3σ)
Payload gross data rate
up to 2 Gbps
Standardized for
K-sat, LeafSpace and AWS GSaS networks
Delta-V capacity (configuration-dependent)
40-400 m/sec
Next-Gen ESPA-class Satellite
Included
Software Development Kit (SDK)
SpaceDev 1-year subscription
20h engineering support
Delivery cost
Handling and administration costs
Design review and consulting
Our Most Advanced Satellite Engineered for Advanced Missions
Built for Responsive Space Fastest Assembly Process to Date
0.3 m³ Payload Volume Standardized Mechanical & Hardware Interfaces
Robust Data Handling Automated Mission Database Import. Embedded Operational Modes

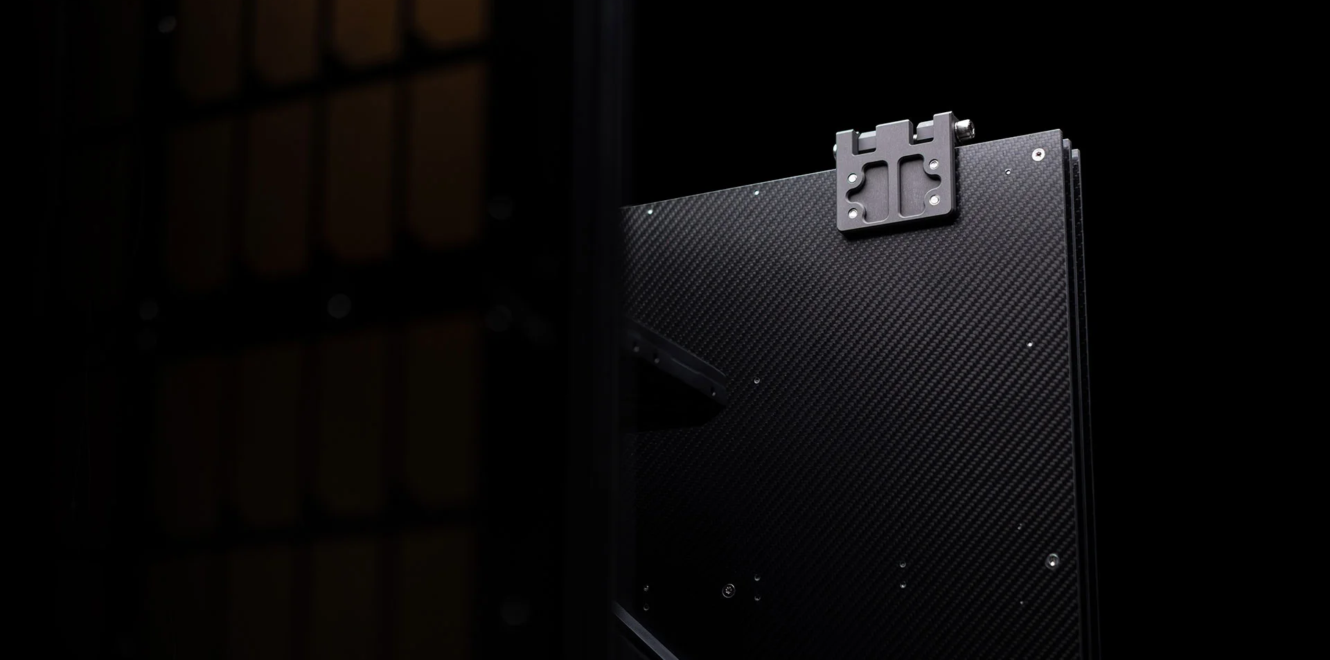

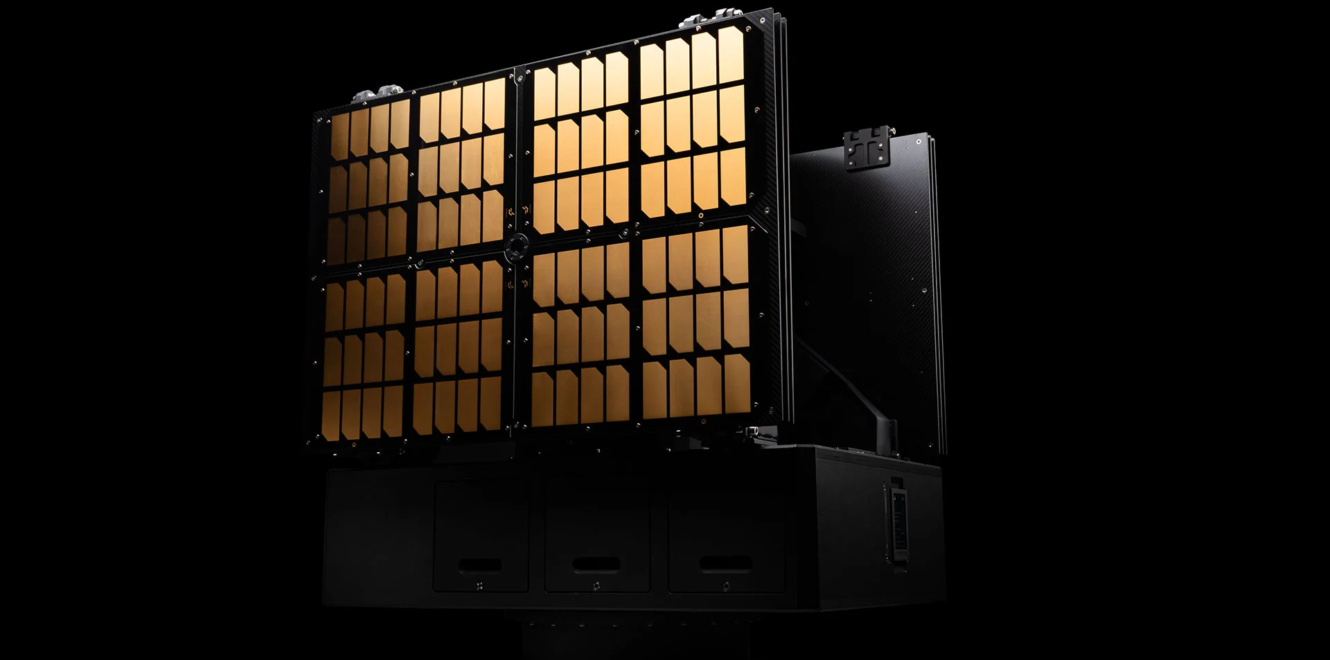

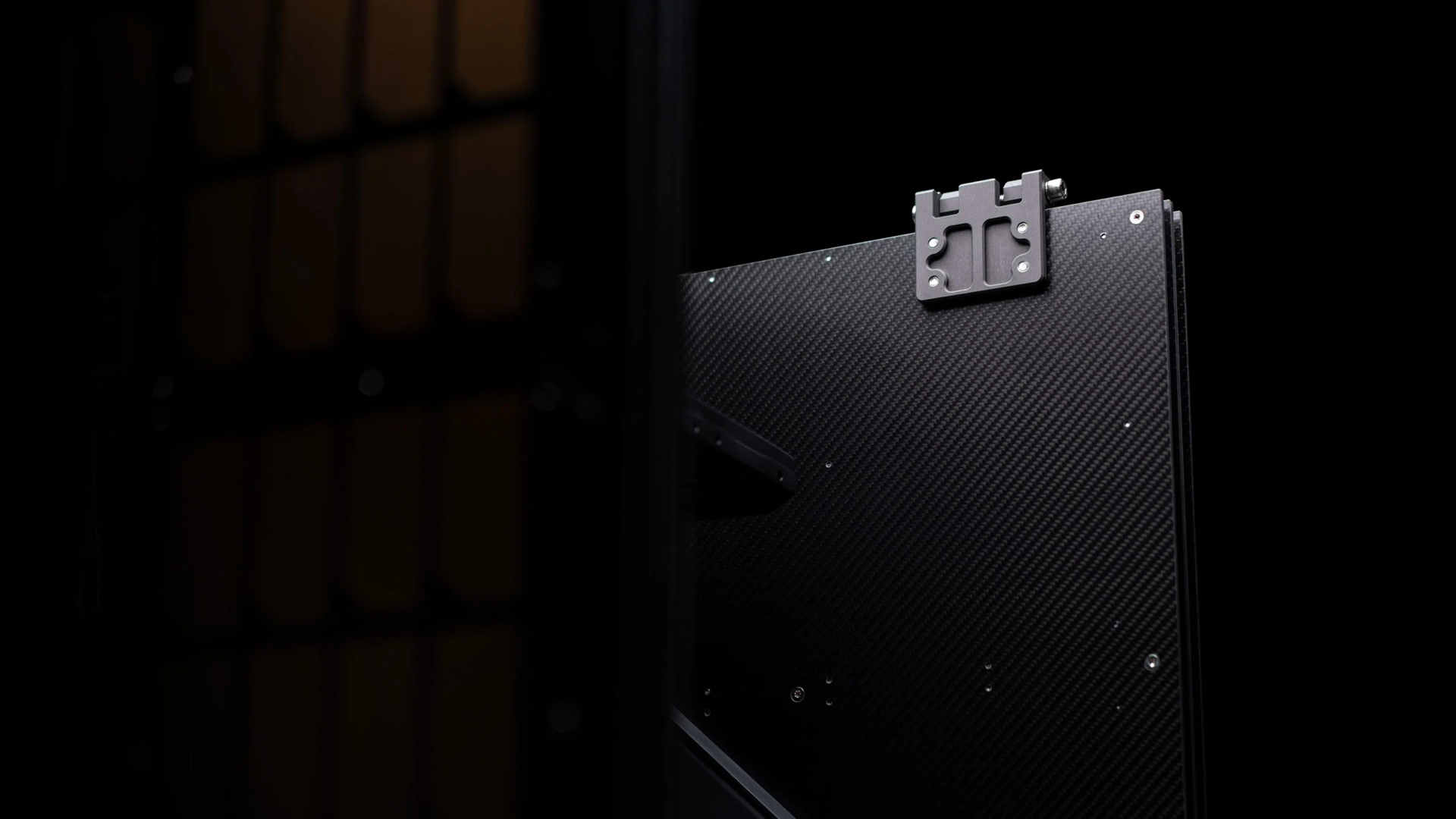

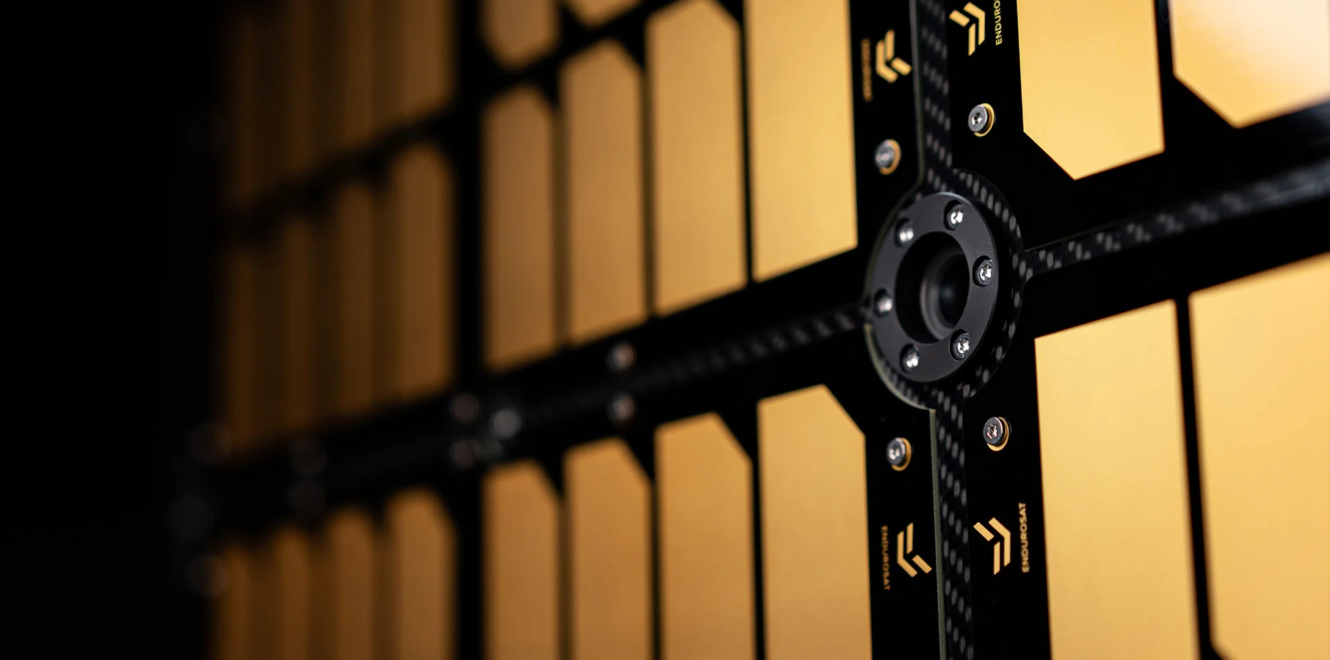

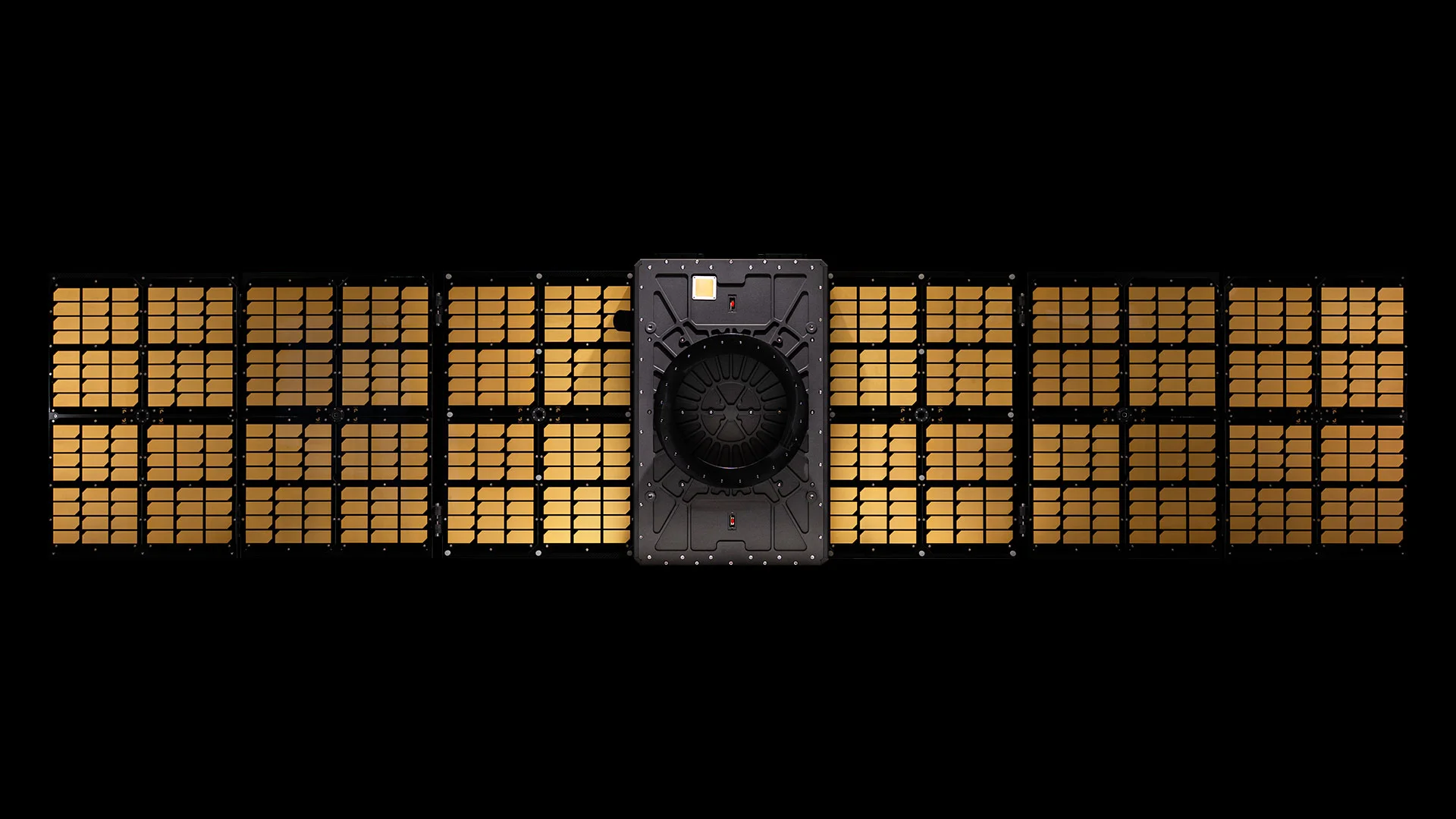

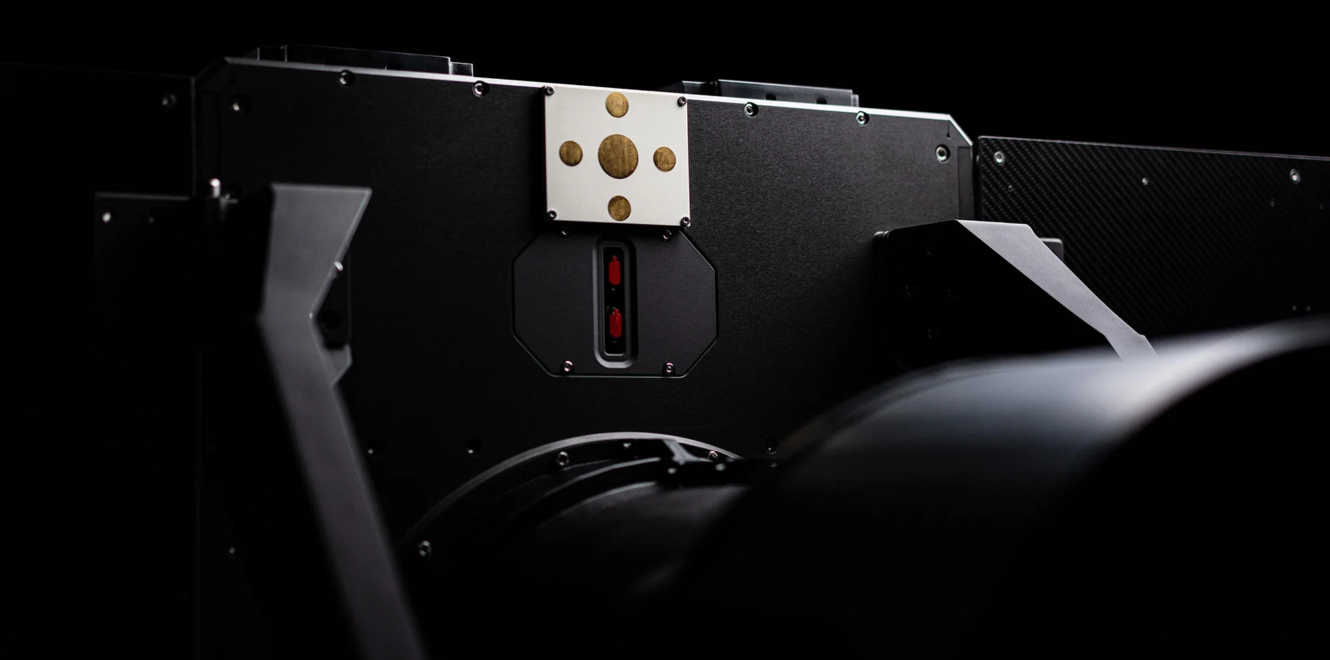

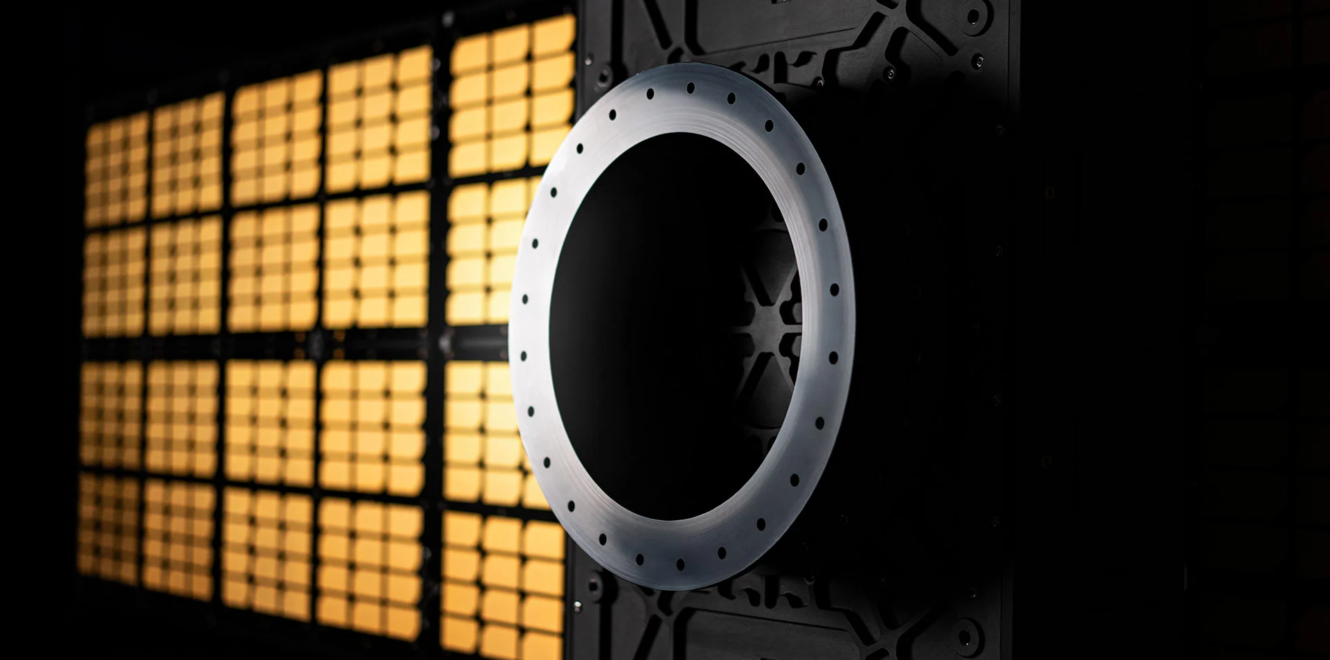

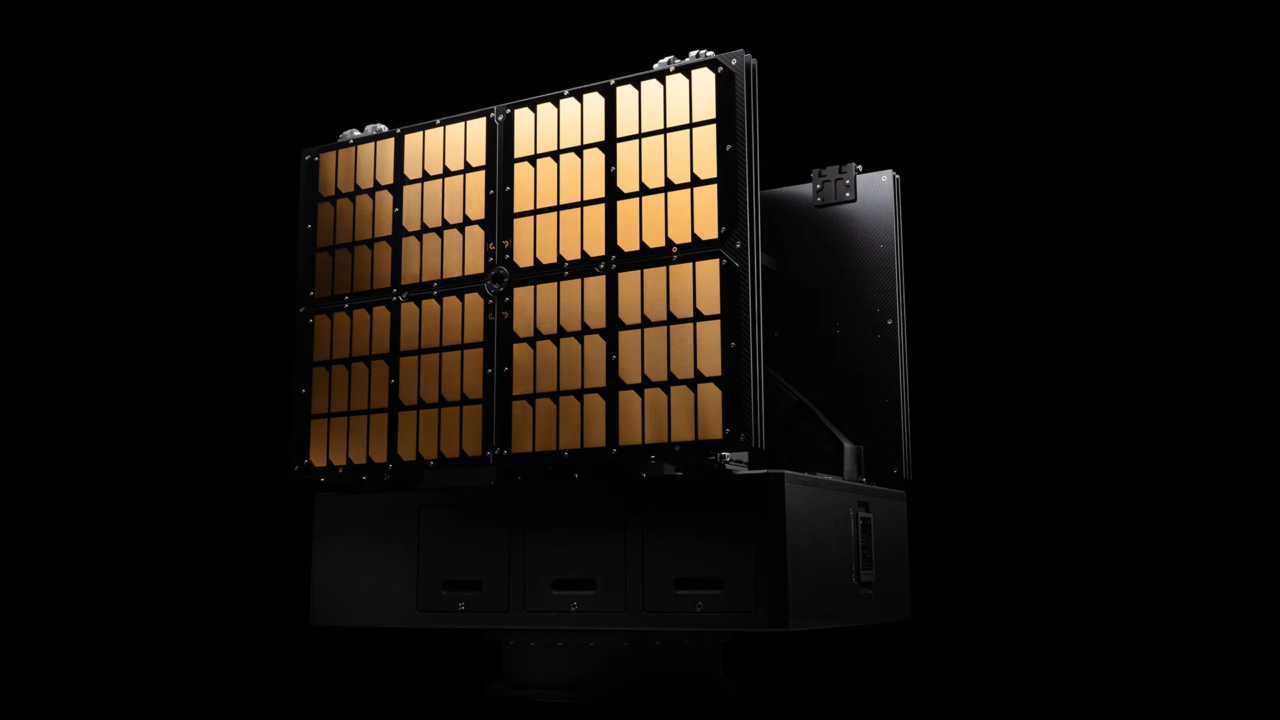

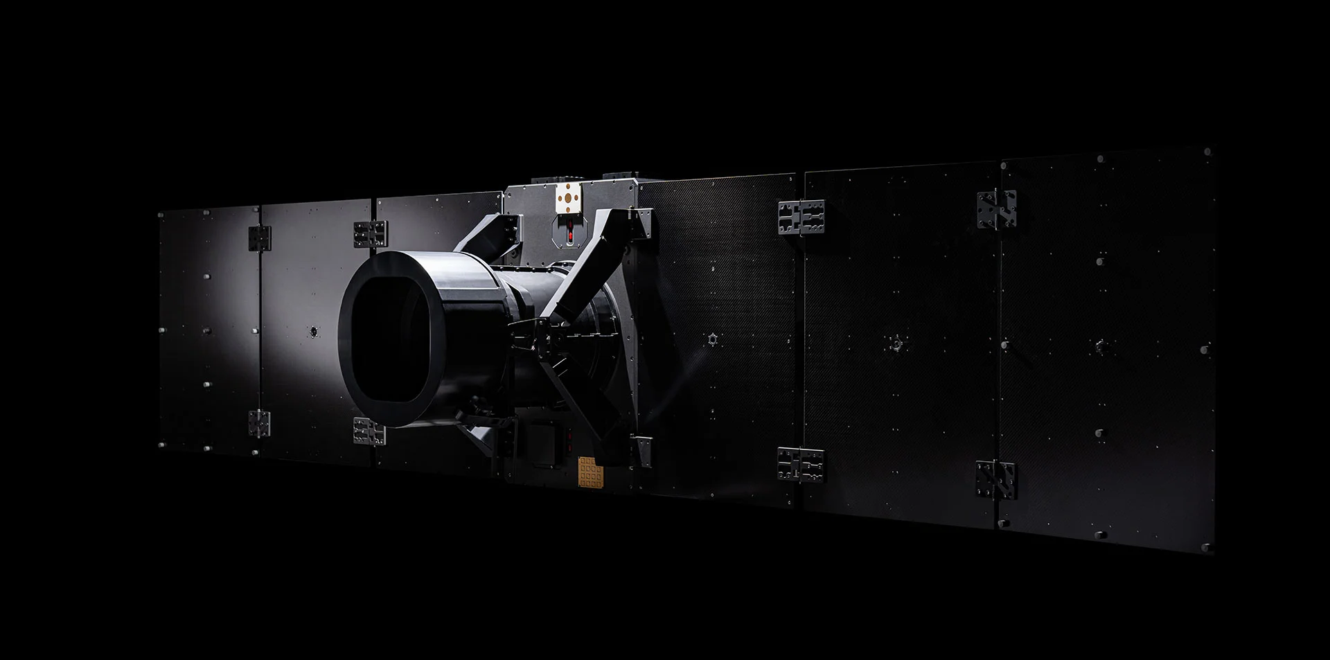

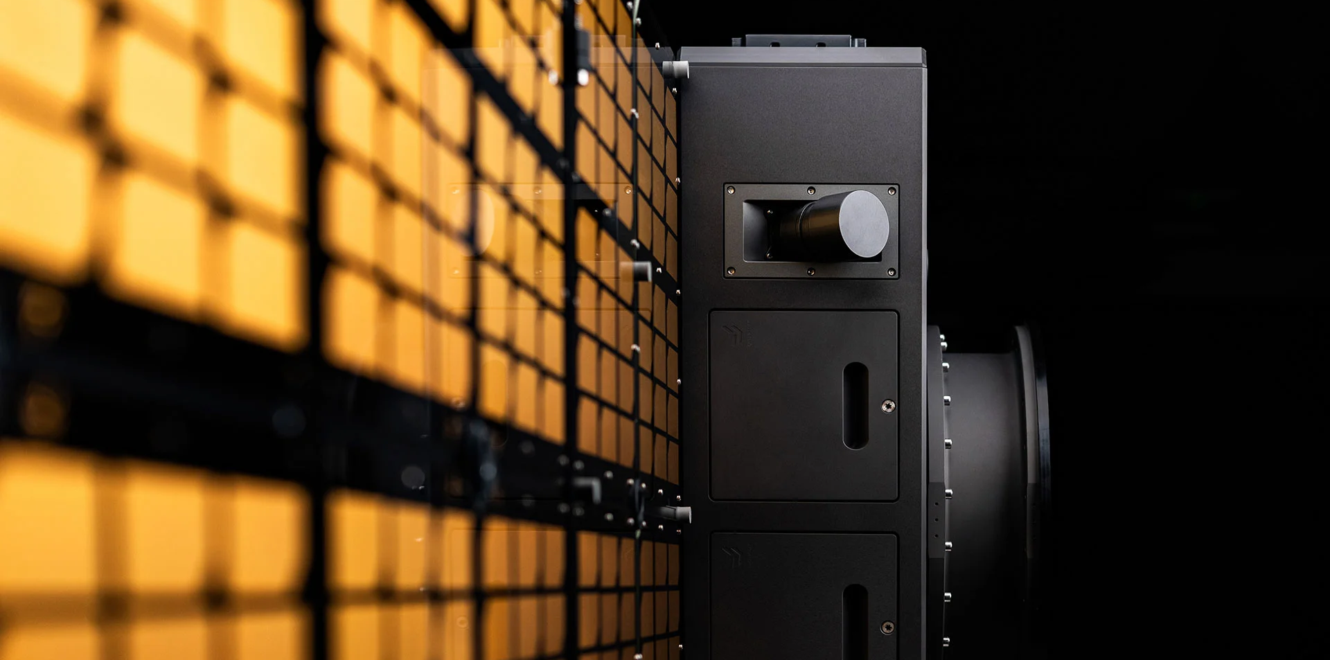

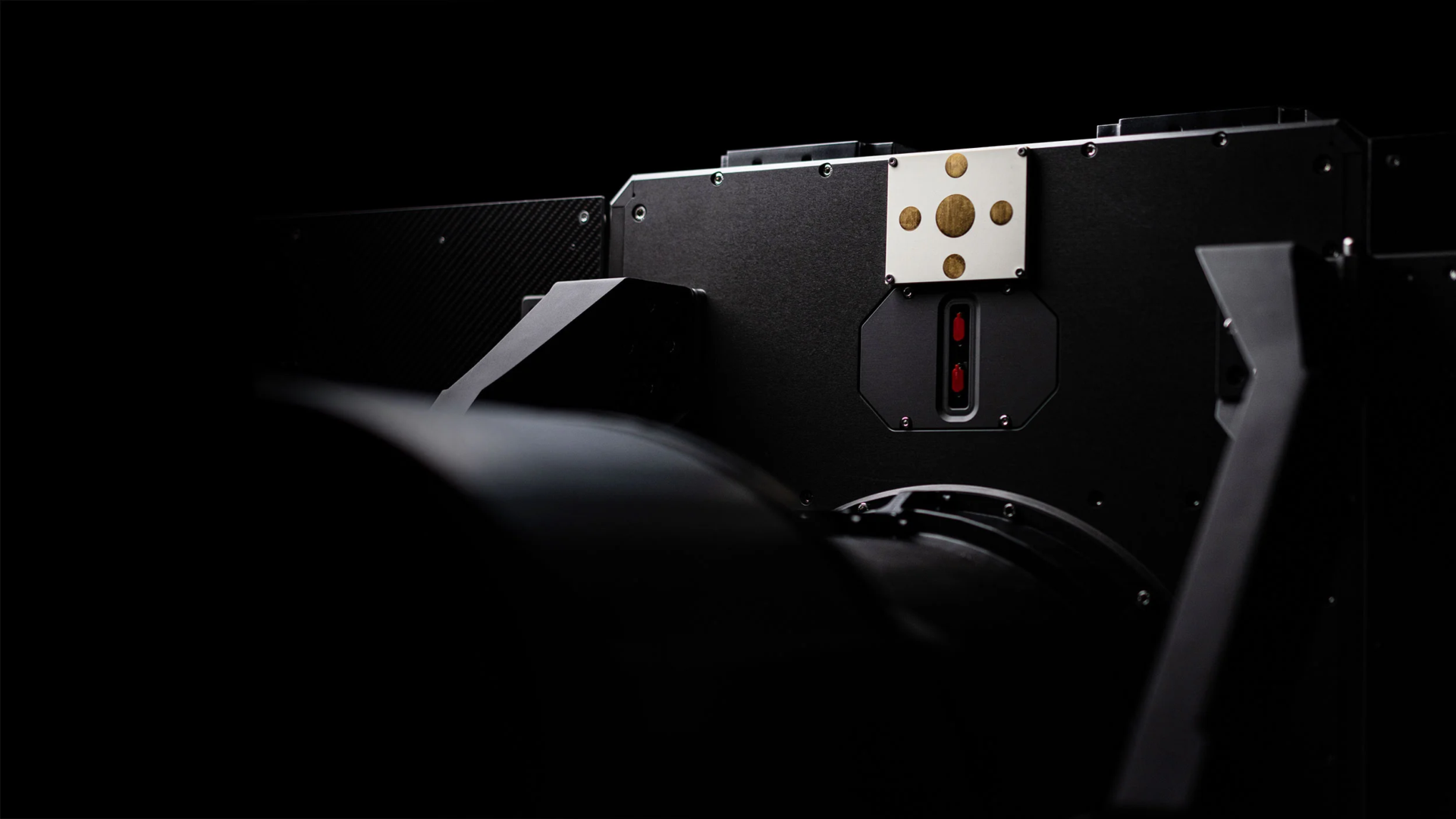

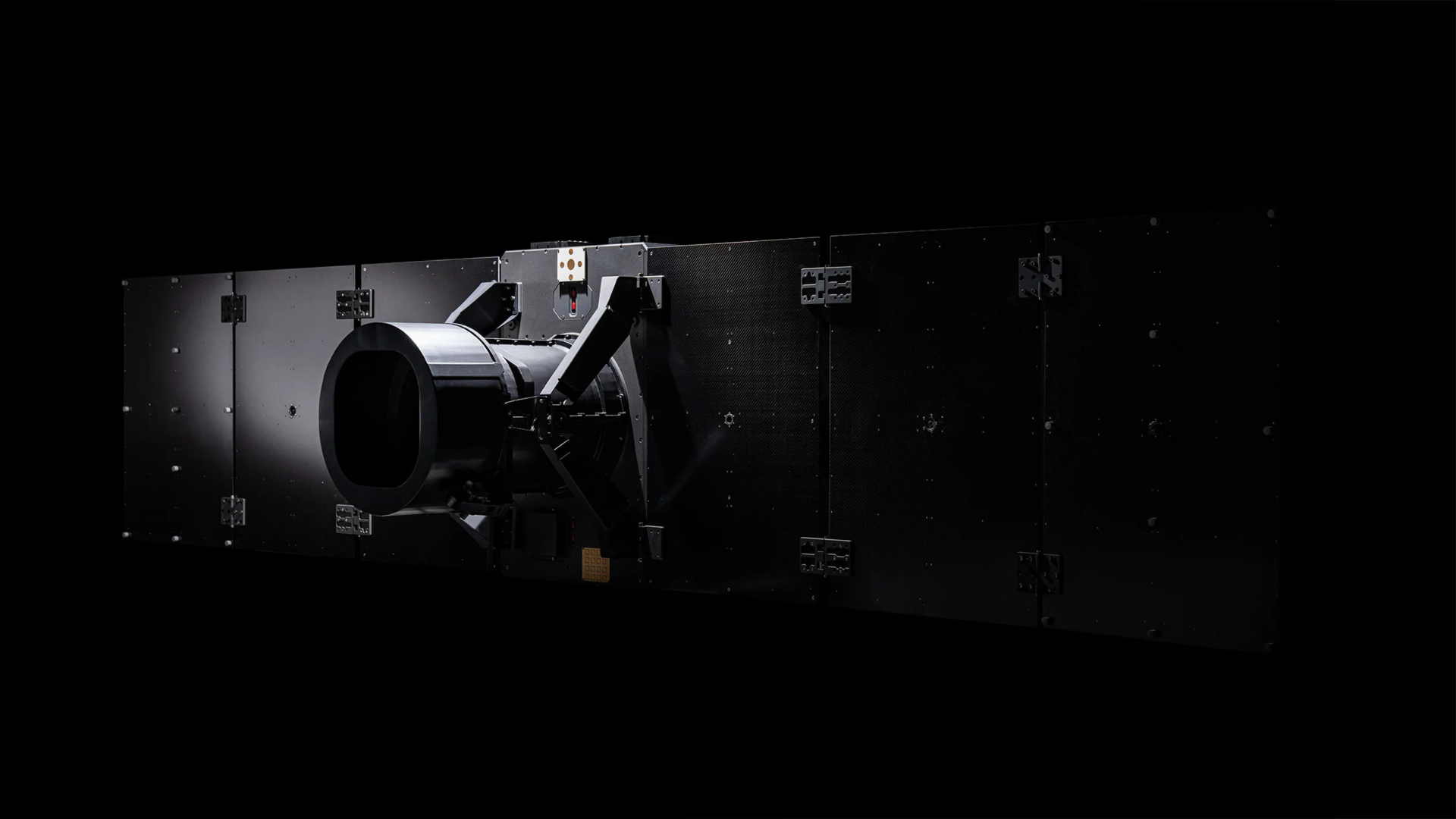

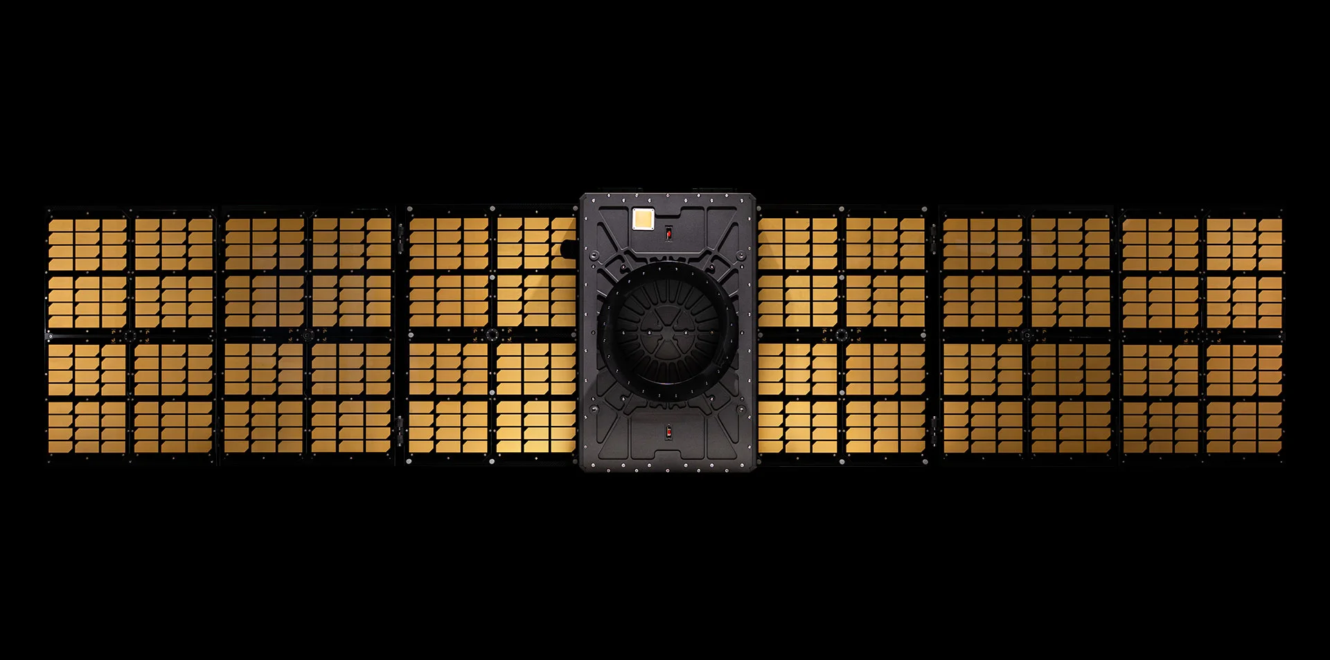

PRODUCT GALLERY
3000
MODULES IN ORBIT
120
DELIVERED SATELLITES
200
TB DATA DOWNLINKED
All our products undergo Space Qualification, involving stringent testing under extreme conditions to ensure robustness and high performance
LEARN MORE
Datasheet & CAD File
