6U SOLAR ARRAY

Deployable solar panels for CubeSats
Cad file & datasheet
Select Options
Select Options
Download
Cad file & datasheet
Select Options
Select Options
30+%
EFFICIENT SOLAR CELLS
19.2 W
OF POWER IN LEO PER SIDE
BURN-WIRE
RELEASE MECHANISM

High power output and radiation resistance with 29+% effeciency at EOL

Designed for a 5-year mission lifetime

CONFIGURATION OPTIONS

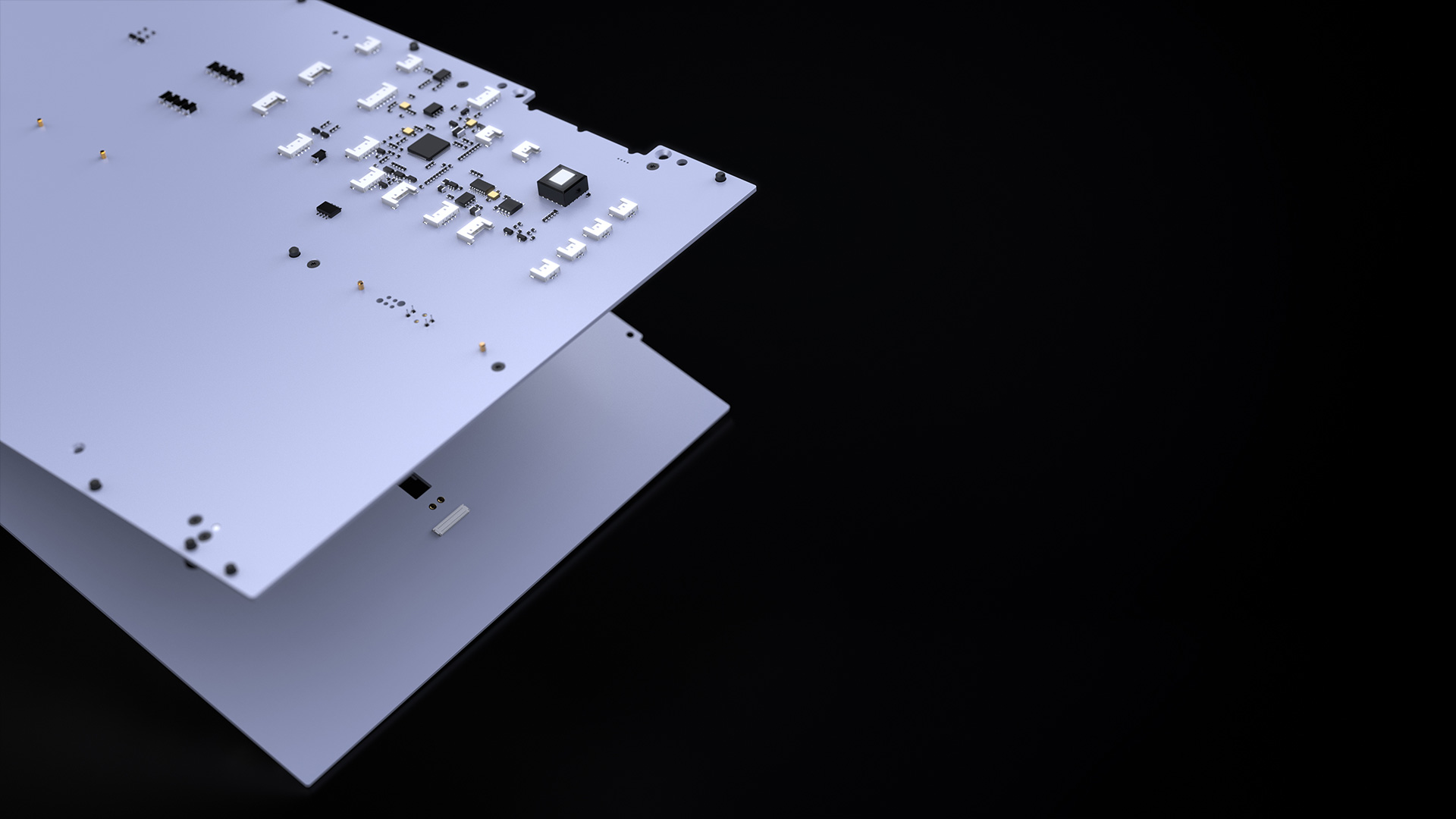

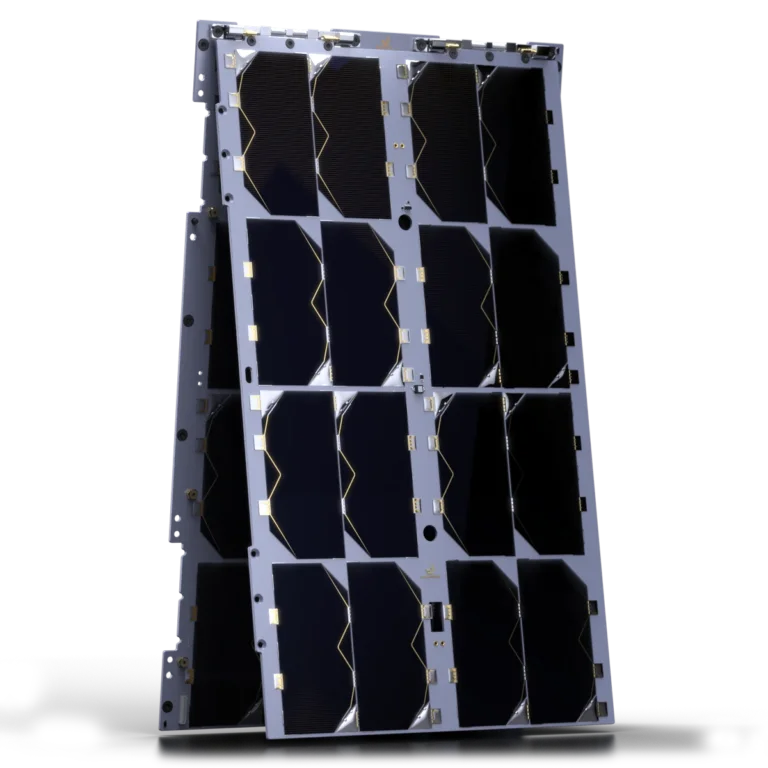

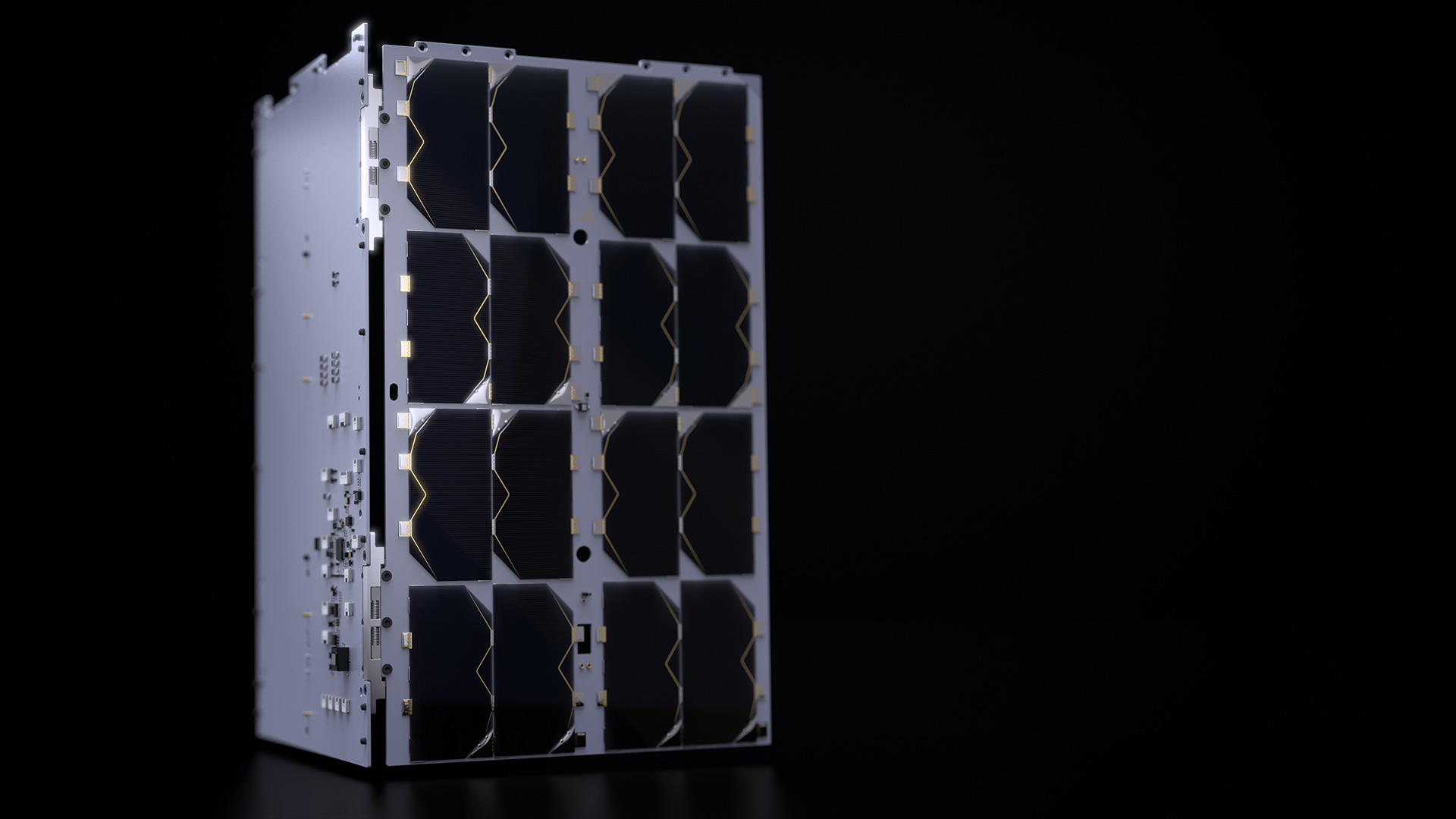

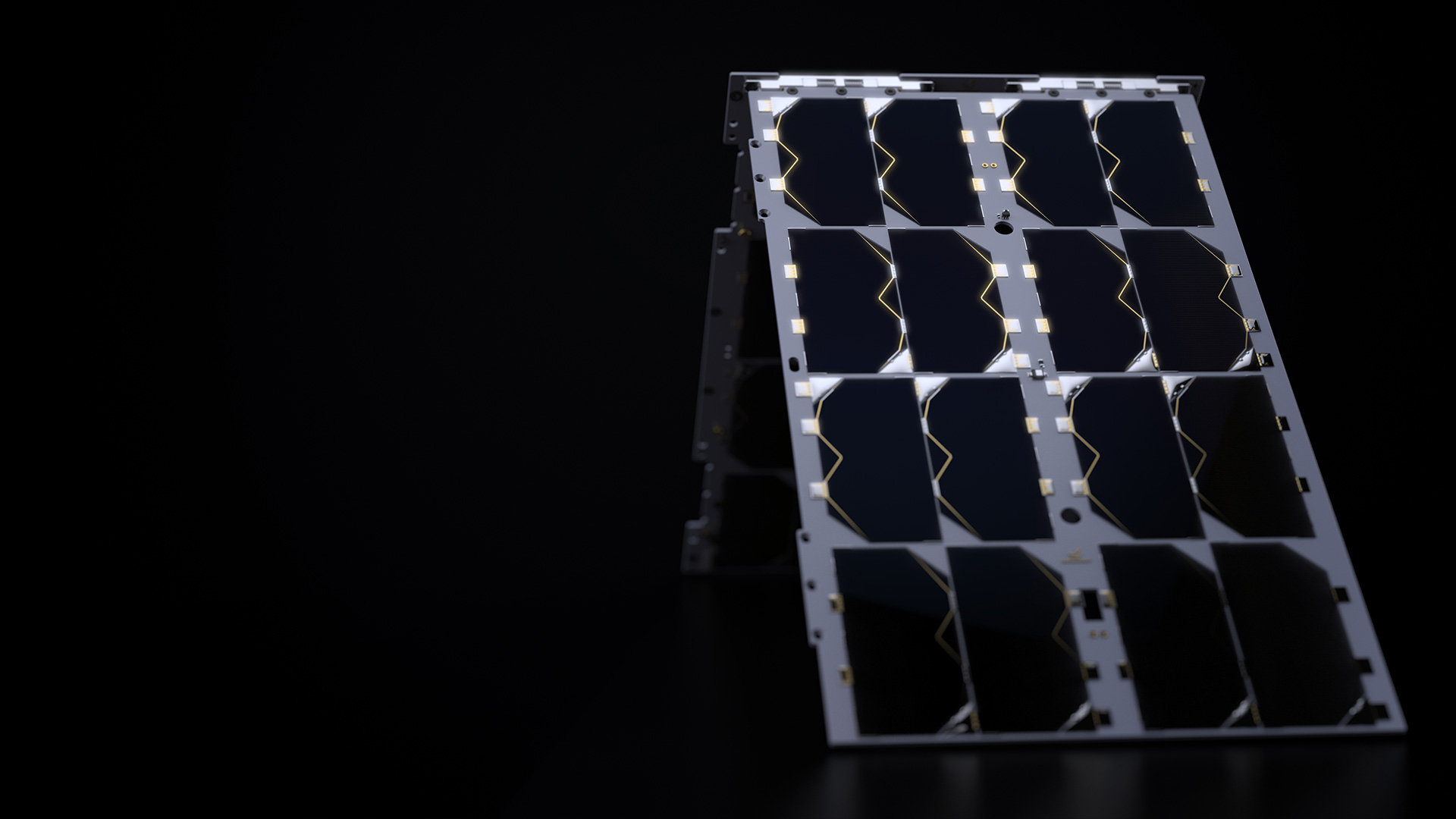

6U Deployable Solar Panel
  • 209 mm x 342 mm x 8.7 mm
  • 655 g - 770 g

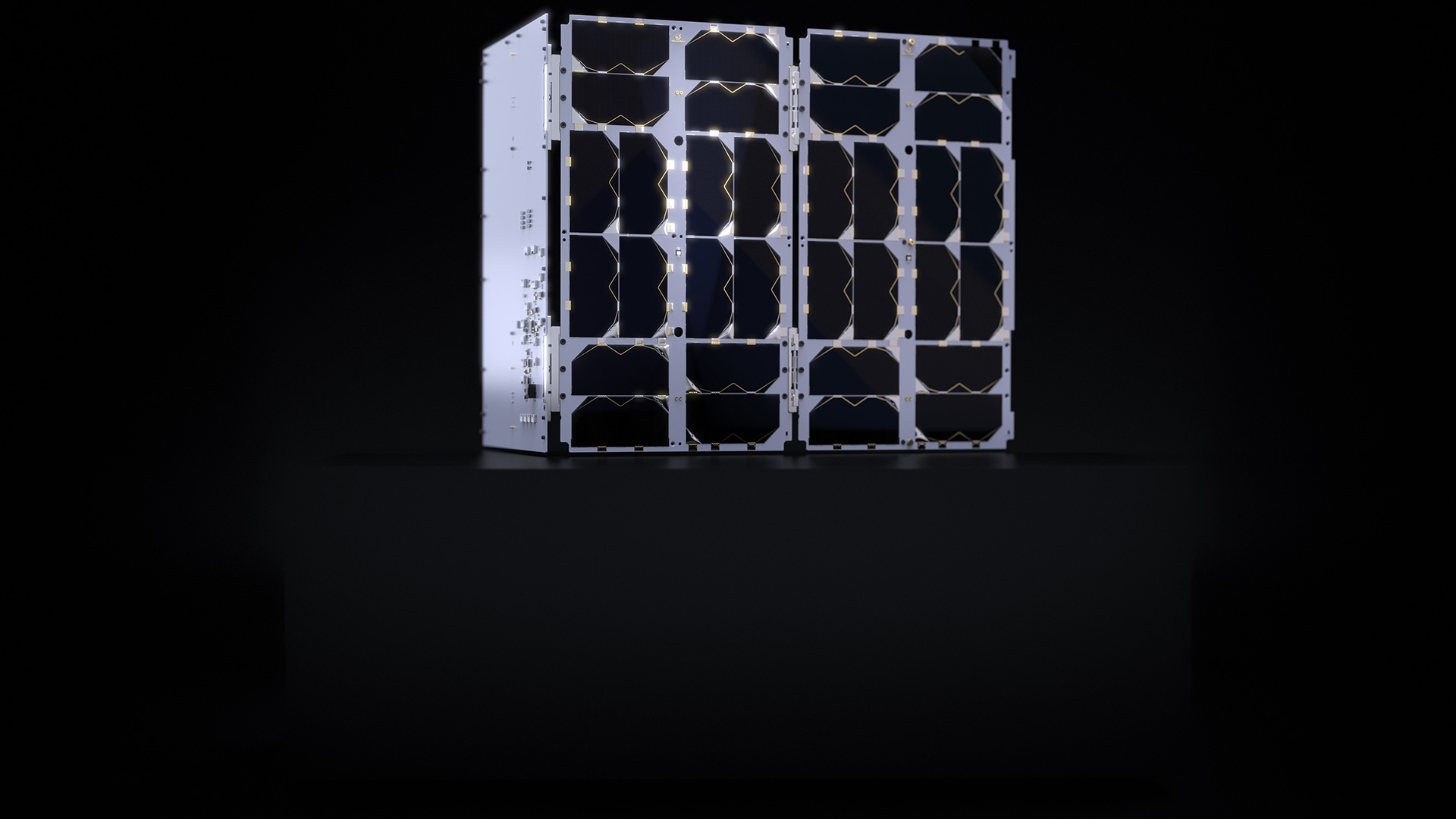

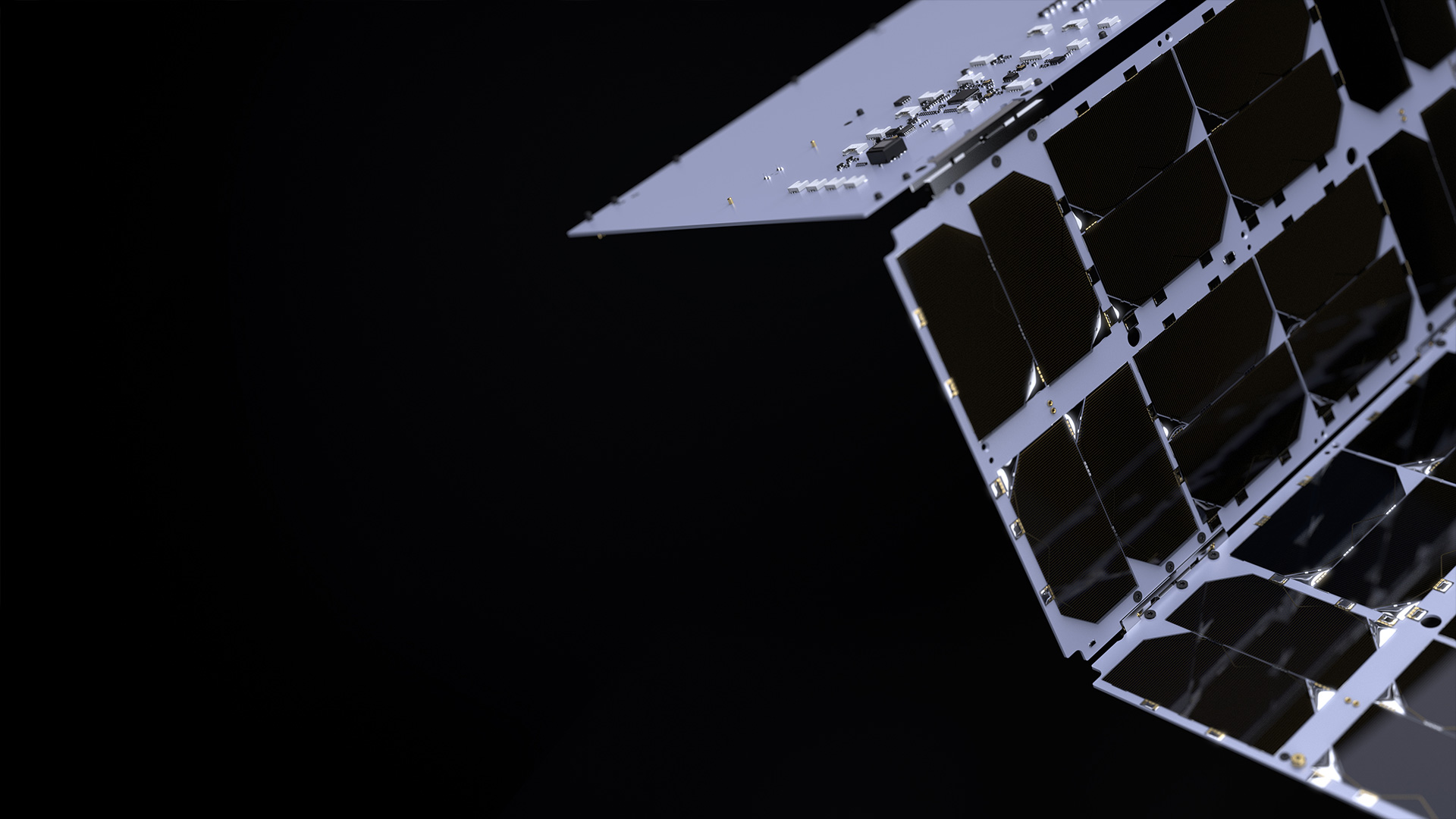

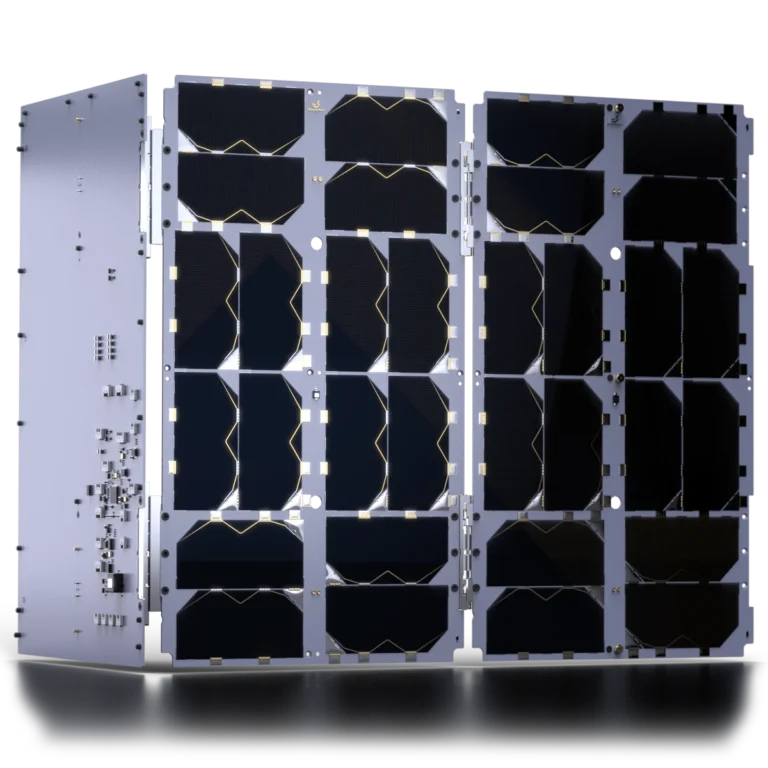

6U Double Deployable Solar Panel
  • 209 mm x 342 mm x 10 mm
  • 1065 g
TECHNICAL SPECS
Power Efficiency at EOL
30+%
Power Efficiency at BOL
29+%
Number of cells
32 (Single or Double Deployable)
Max Power in LEO
38.4 W (Single Deployables and X/Y Double Deployable) or 29.3 W (Z Double Deployable)
Reverse bias protection
Internal bypass diode
Solar Cell Assembly (SCA) thickness
280-300 μm
Integrated Sensors
Photodiodes (up to 3)
Mass
655-1065 g (configuration dependent)
Max Voltage
39.8 V (16S1P)
Max Current
4 A (4S8P)
Optional
Connector for external magnetorquer, low-power MCU, up to 2 photodiodes, temperature sensor
6U Solar Array integrates seamlessly with all EnduroSat systems

Included

Complete User Manual
1 hour engineering support
Delivery cost
Handling and administration costs

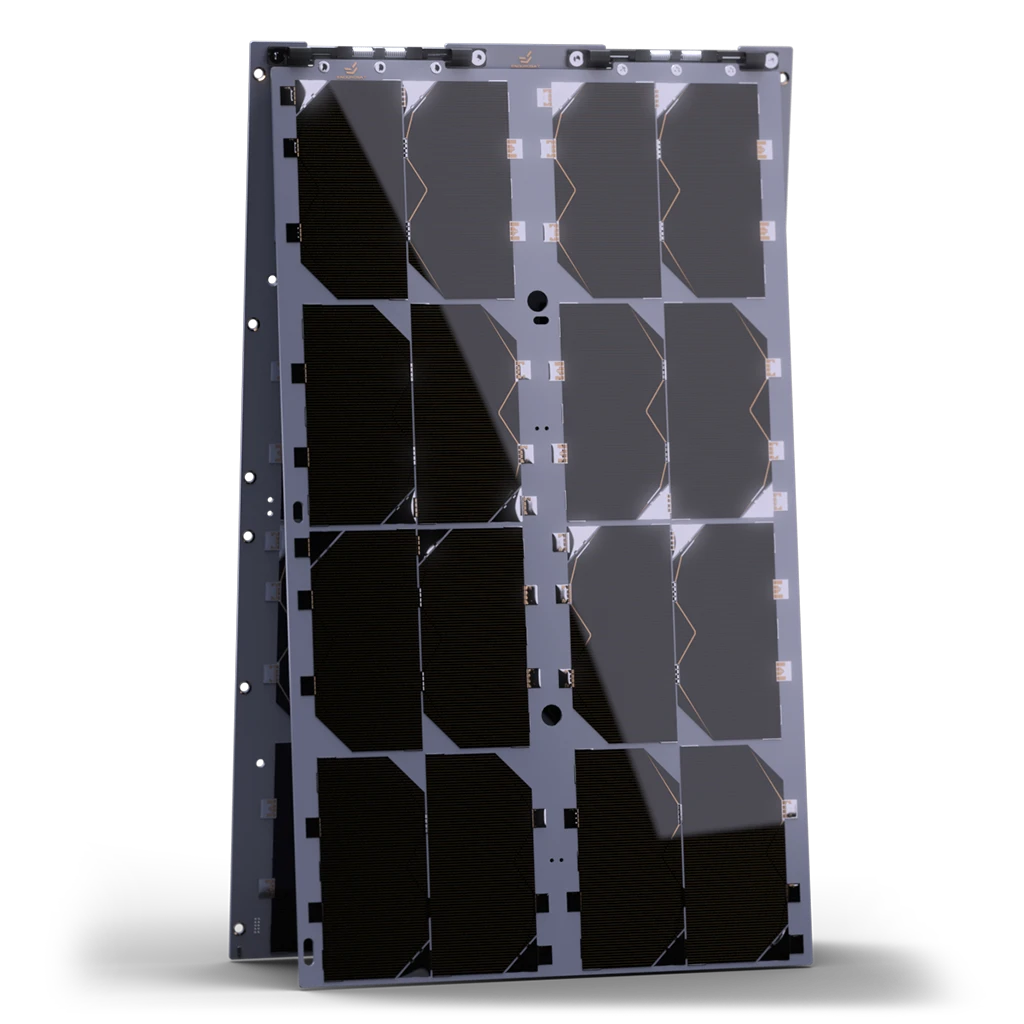

CubeSat 6U Deployable solar panels with triple-junction photovoltaic solar cells

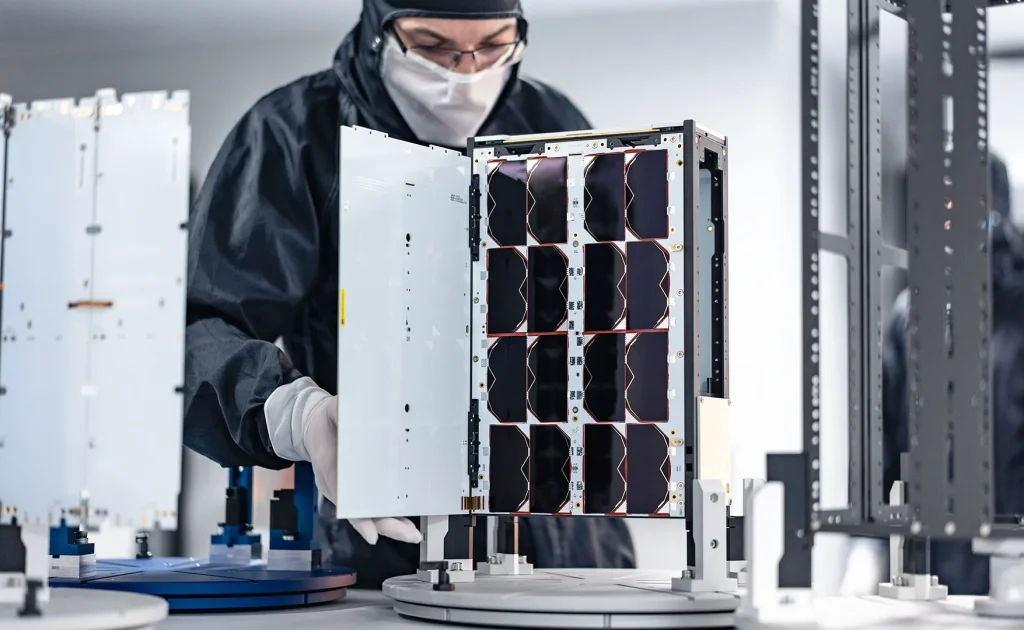

6U Deployable Solar Array web 15

Supports parallel array connections for custom power needs

Includes photodiodes and accessible RBF inhibition mechanism

Flexible installation with adjustable Z and X/Y hinge options

Single 5V power supply needed for operation

PRODUCT GALLERY

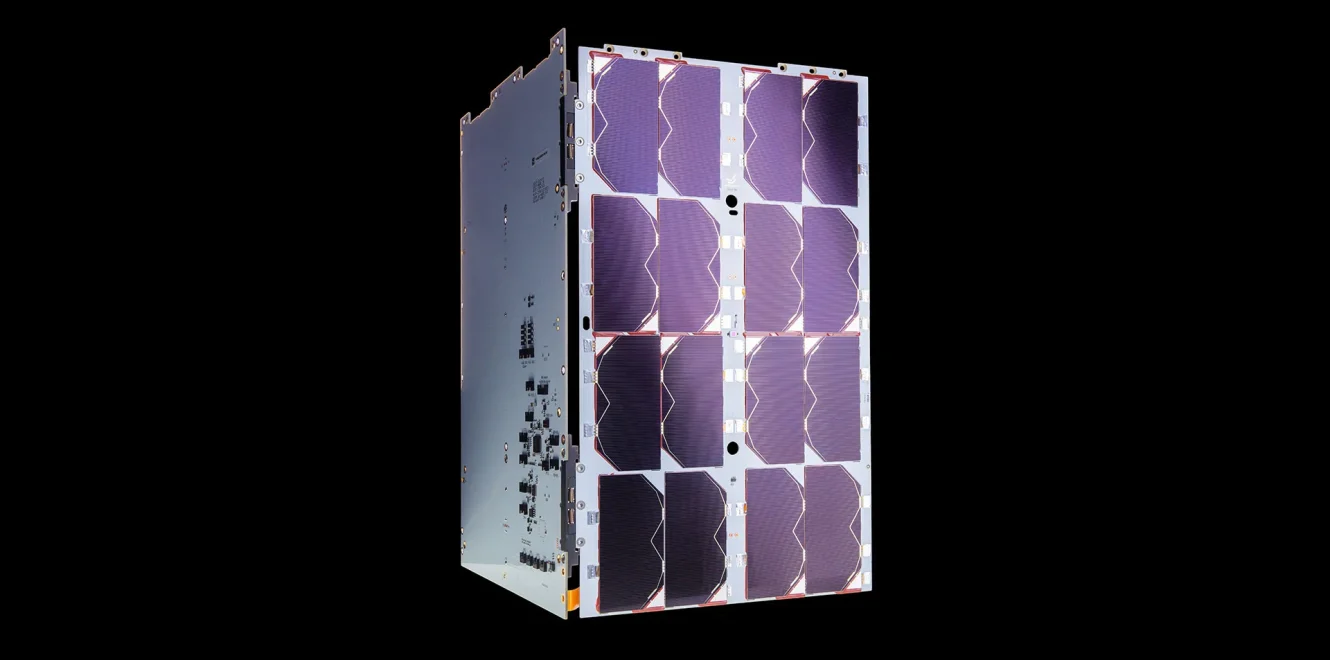

6U Deployable Solar Array web 8

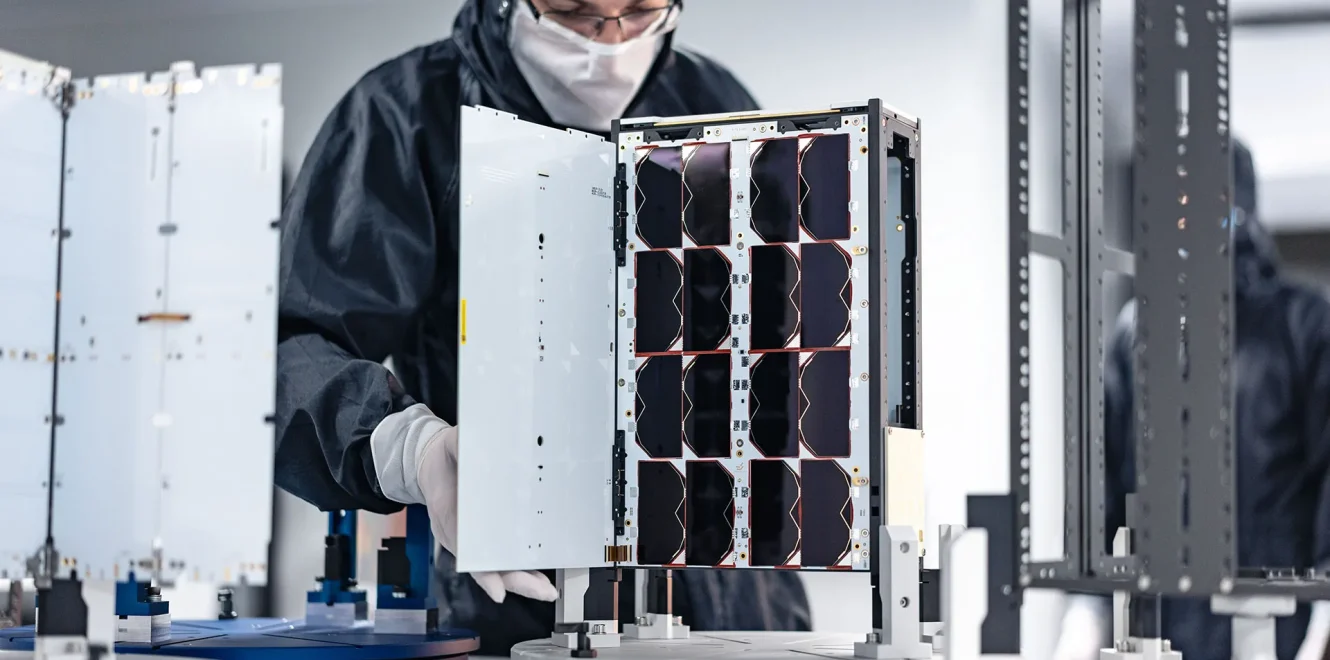

6U Deployable Solar Array web 15

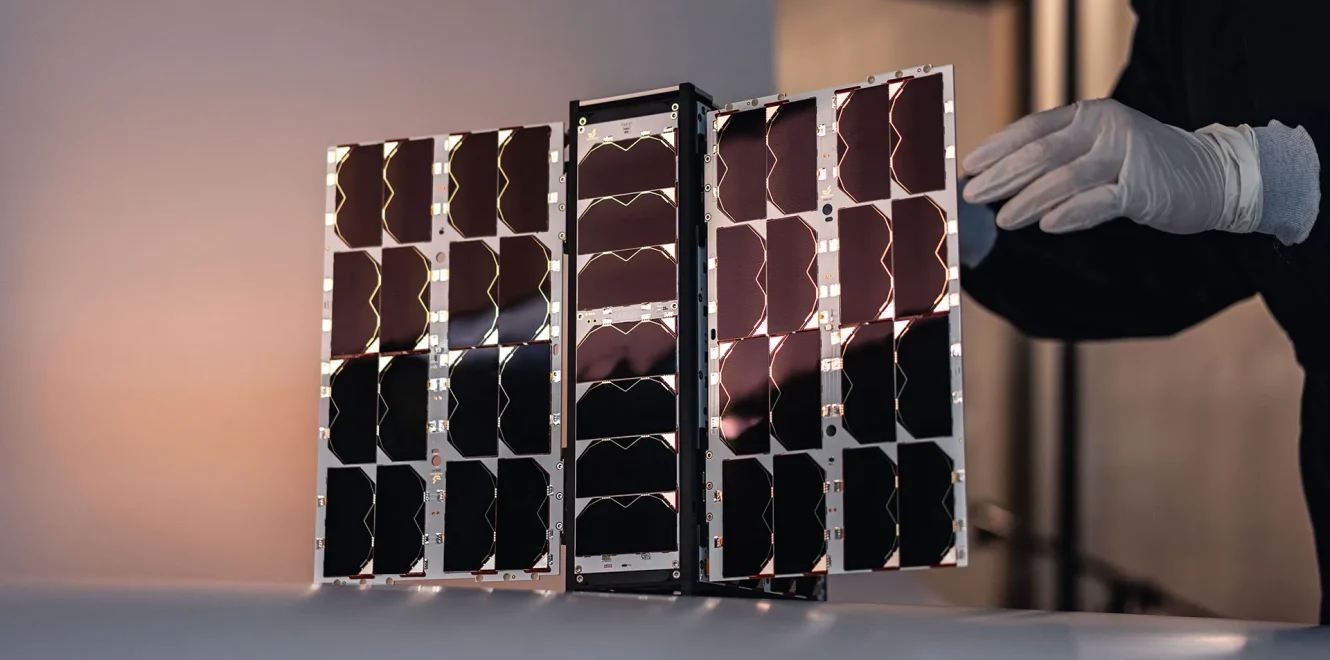

6U Deployable Solar Array web 14

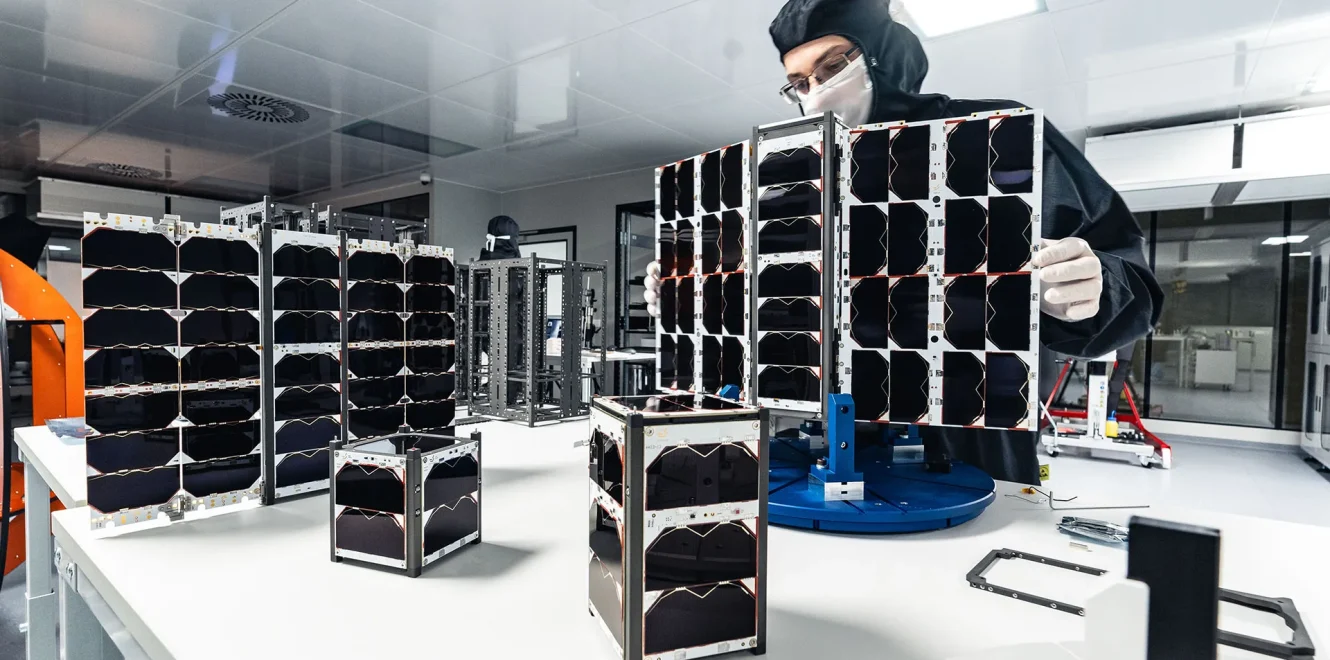

6U Deployable Solar Array web 13

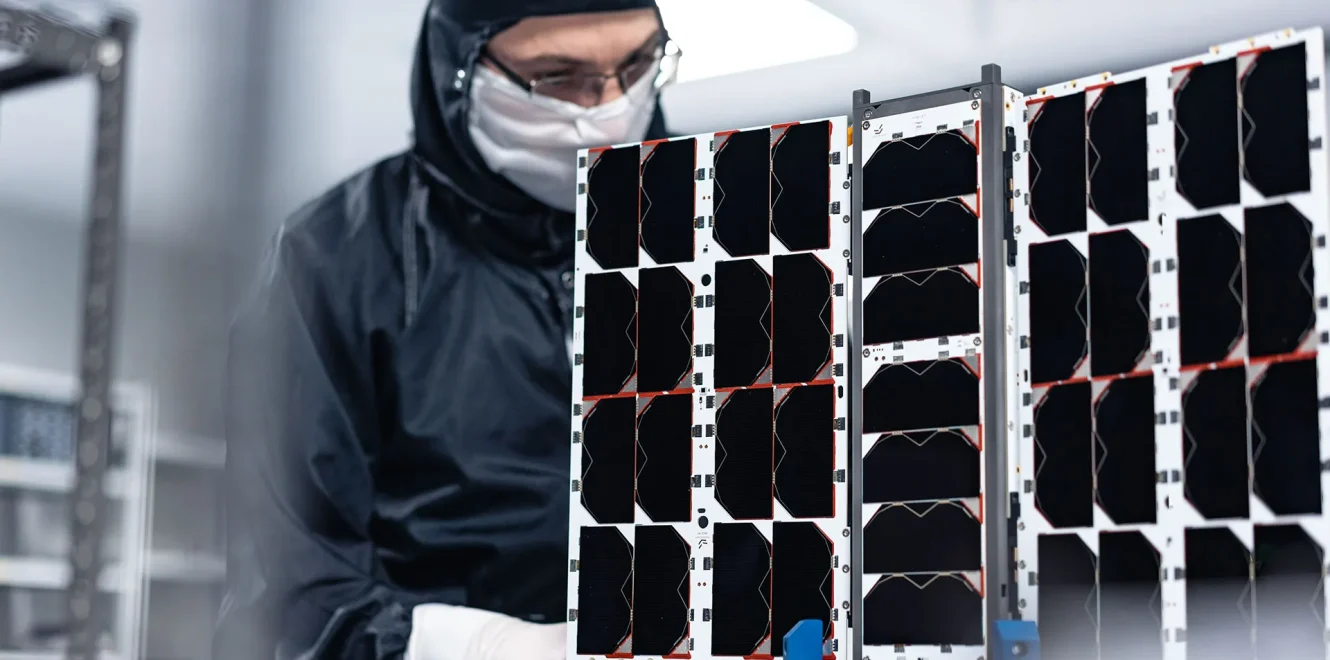

6U Deployable Solar Array web 10

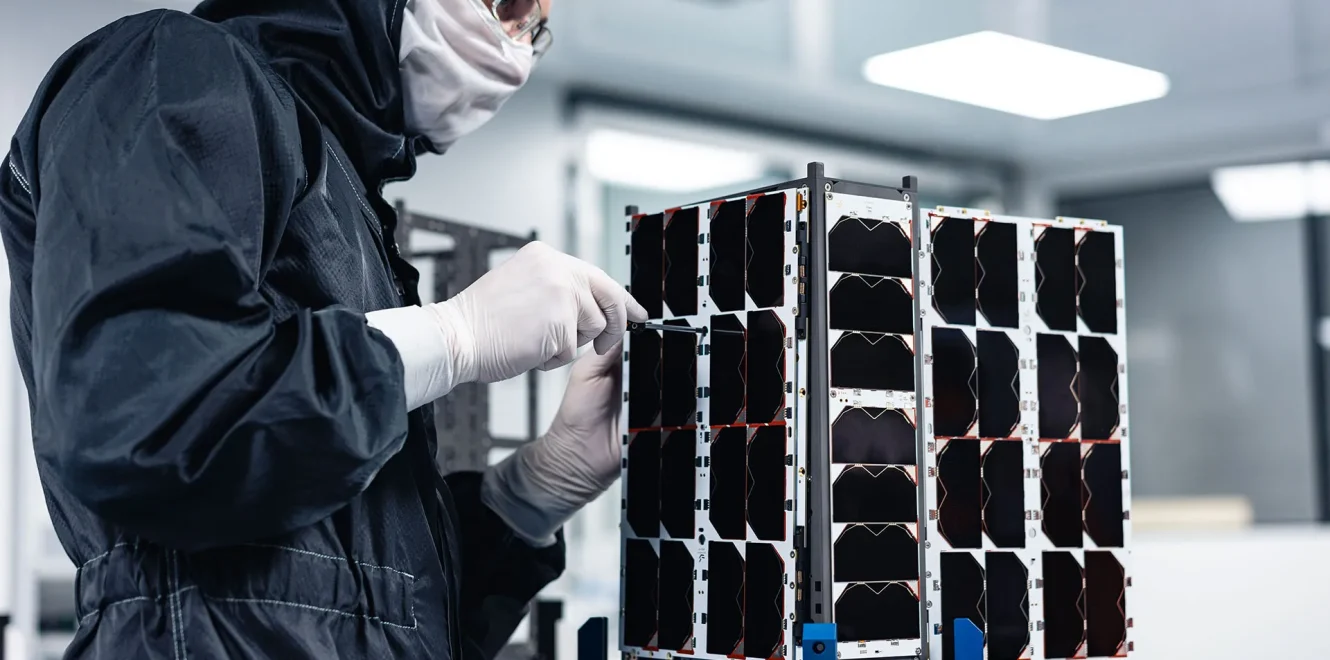

6U Deployable Solar Array web 7

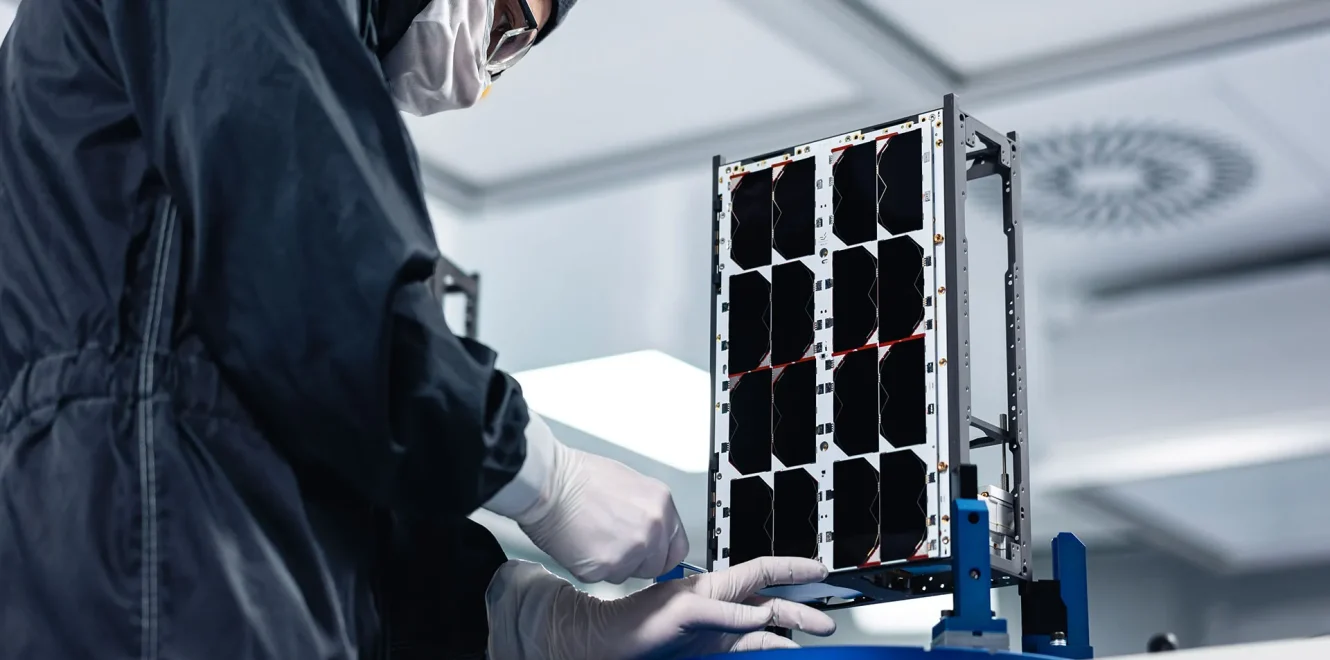

6U Deployable Solar Array web 5

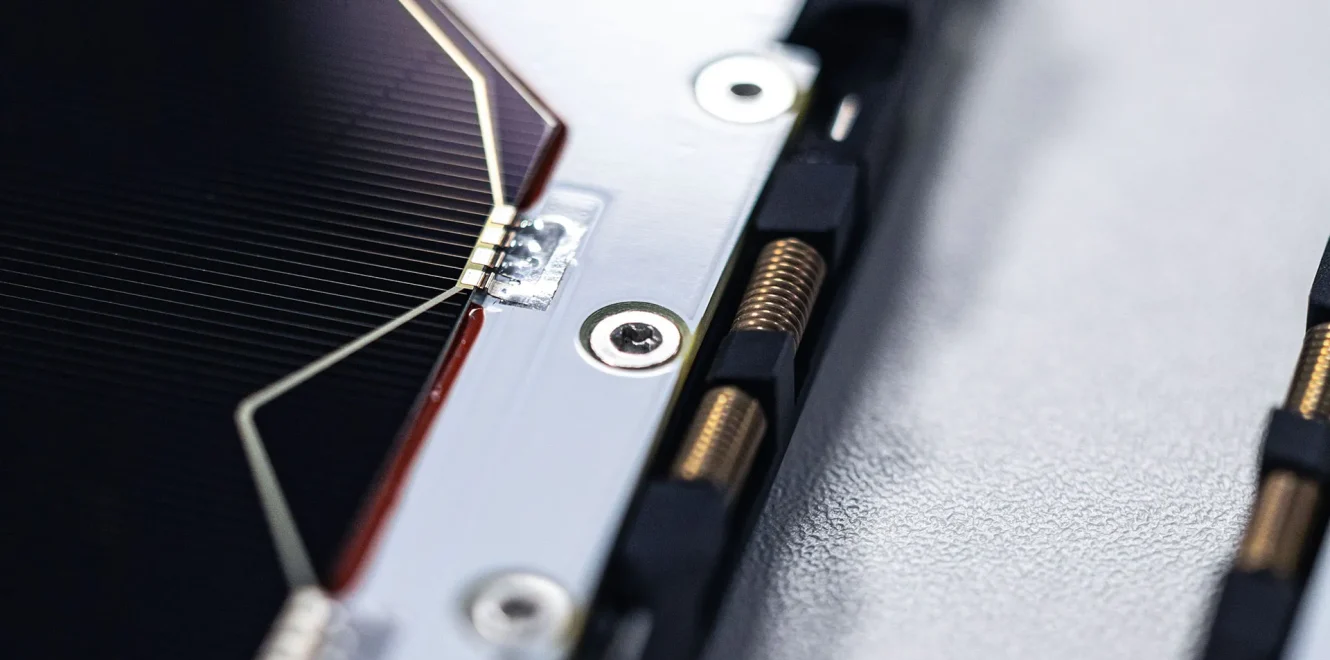

6U Deployable Solar Array web 1
