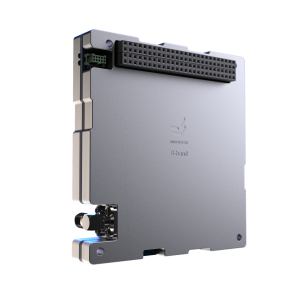

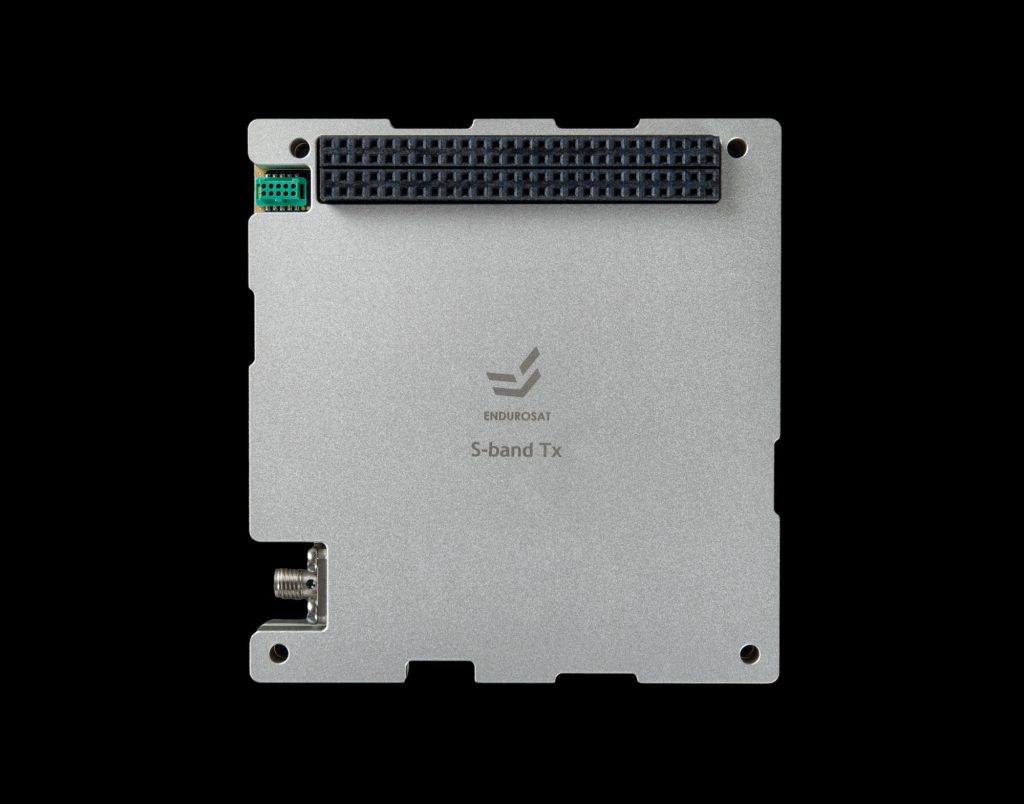

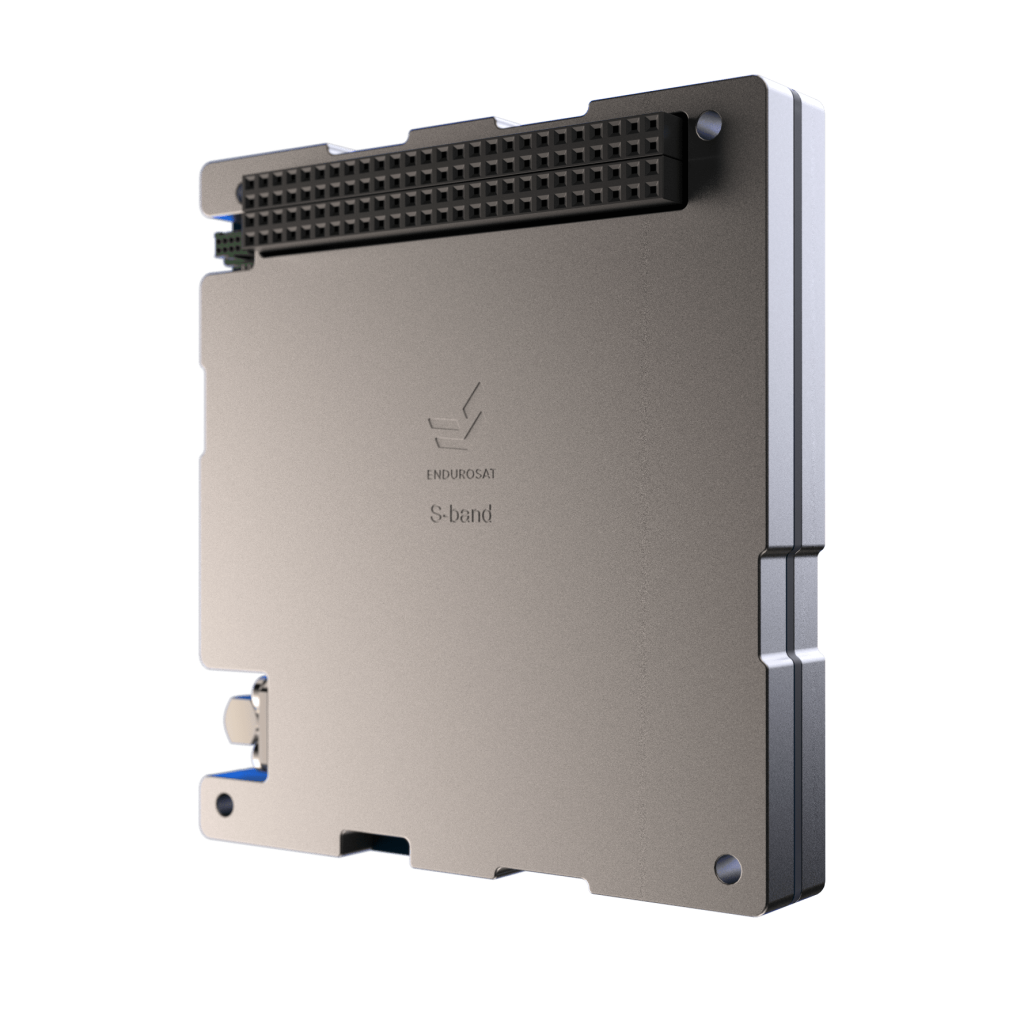

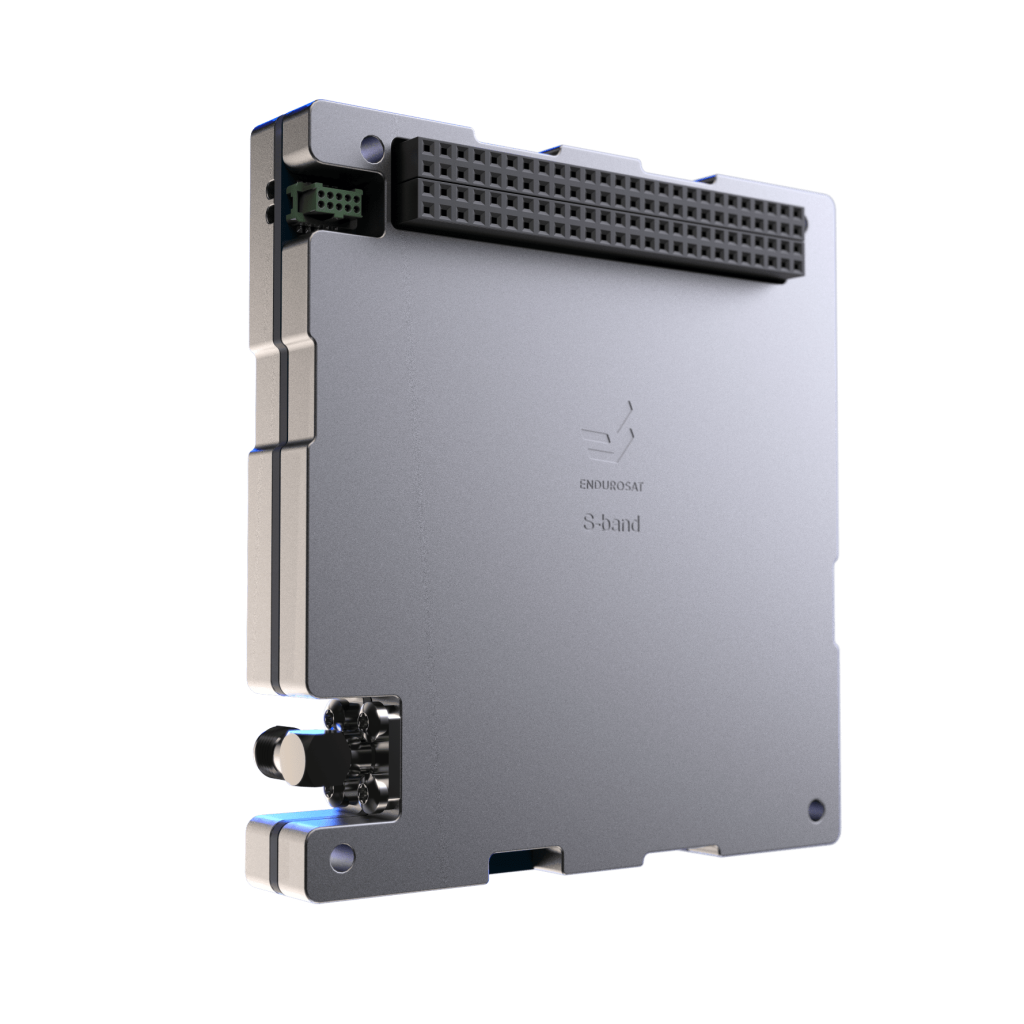

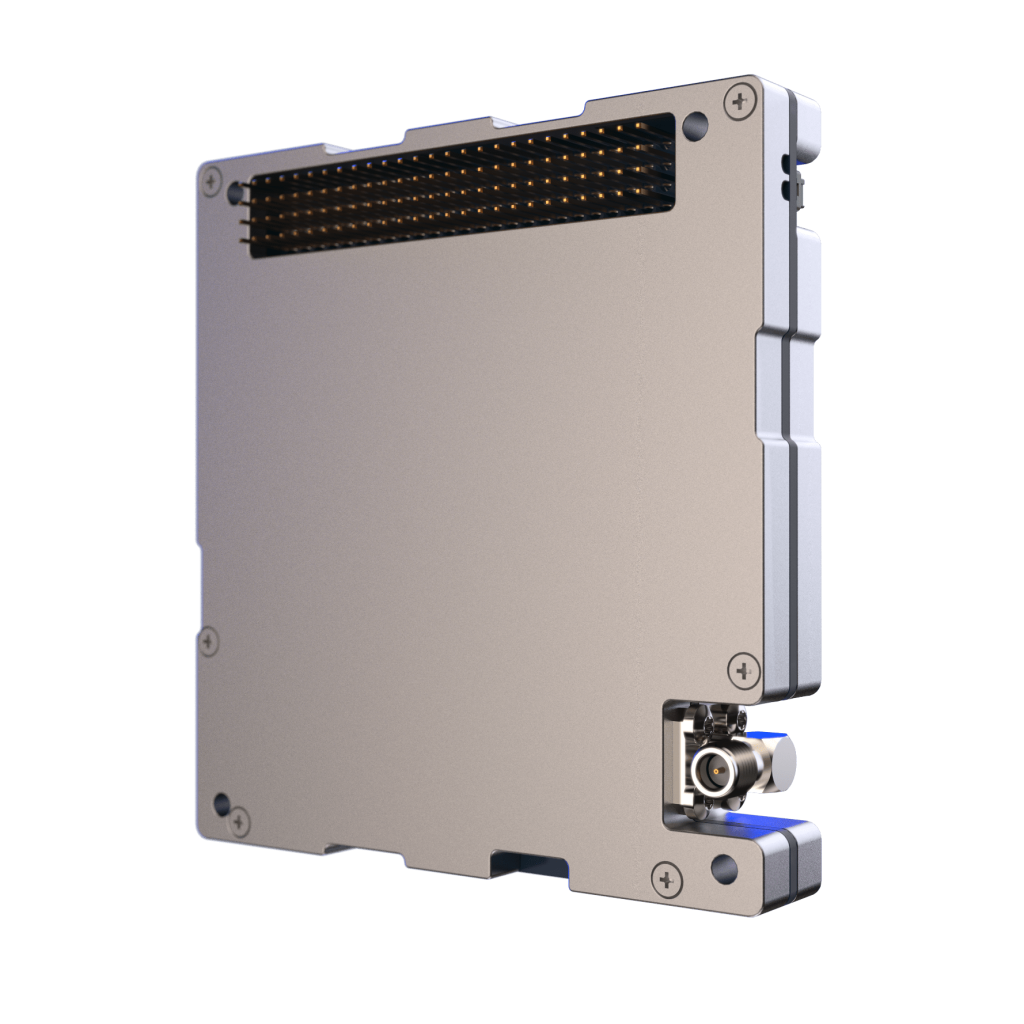

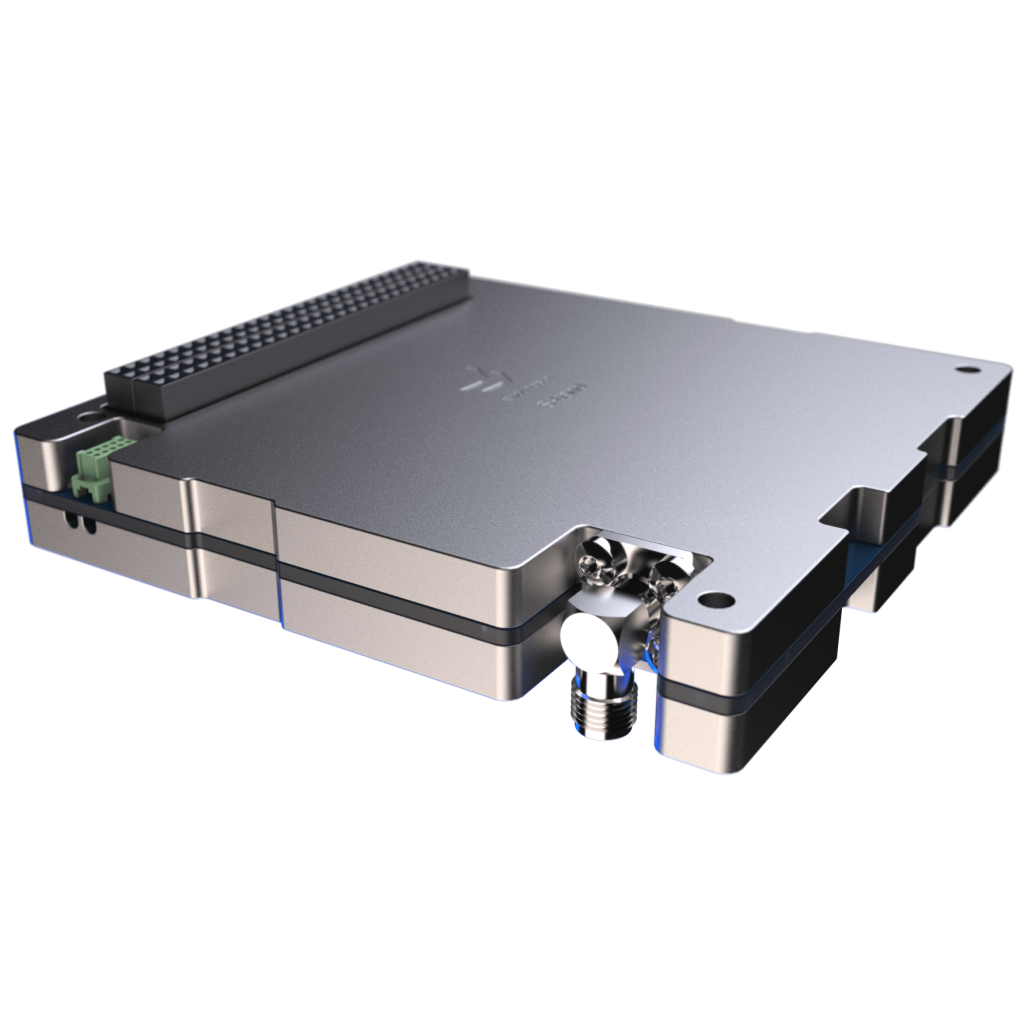

S-BAND TRANSCEIVER

Name: S-BAND TRANSCEIVER
Brand: EnduroSat
Price: 17500 USD
Availability: InStock

Reliable TMTC for CubeSats and SmallSats

Cad file & datasheet

Add

S-BAND TRANSCEIVER

Download

Cad file & datasheet

Add

125 KBPS

MAXIMUM DATA RATE

FULL

DUPLEX COMMUNICATION

AES-256

ENCRYPTED COMMUNICATION

Adjust data rates & output power for varying operational environments

Next level of communication security with AES-256 encryption

TECHNICAL SPECS

Frequency Range (Tx)

2200 - 2290 MHz

Frequency Range (Rx)

2025 - 2110 MHz

Modulation

GFSK

Configurable Data Rate

10 to 125 kbps

Mass

320 g ± 5%

Wide Voltage Supply

11 – 28 V DC

Output Power Range

24 to 33 dBm at 1 dB intervals

Power Consumption at Idle (Rx Only)

1.2 W @ 12V

Maximum Power Consumption

11 W @12V (33 dBm)

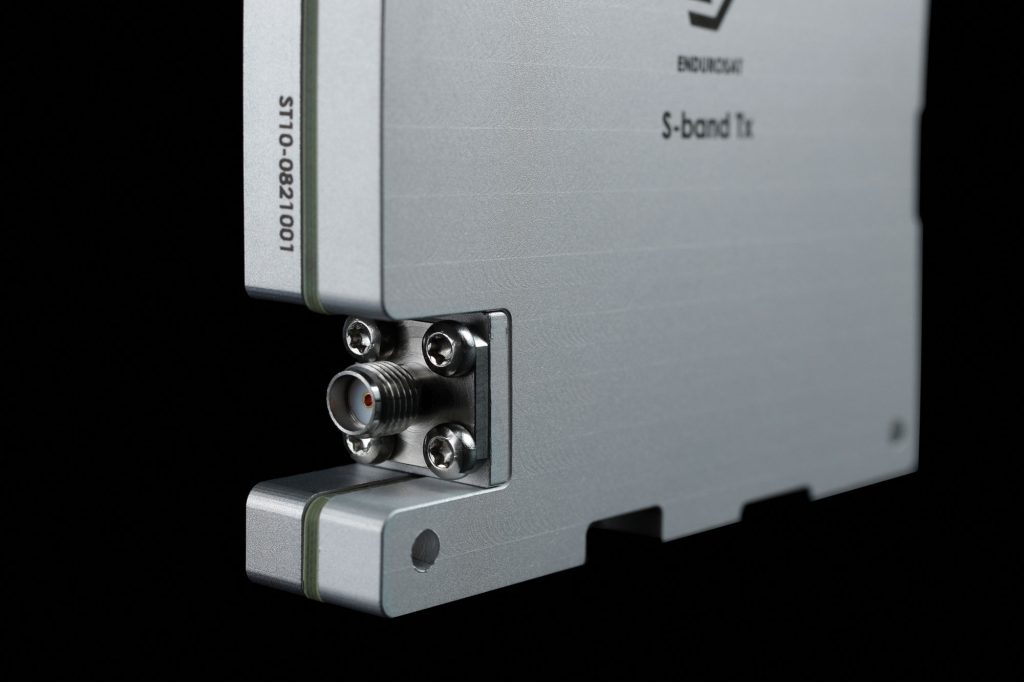

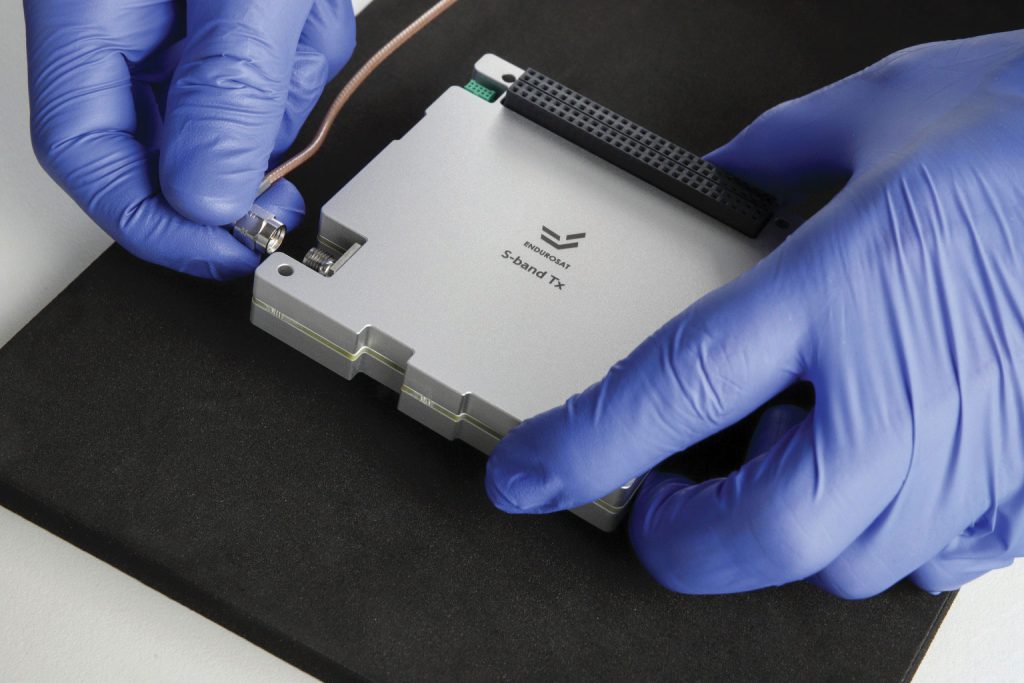

Antenna Connector (Tx and Rx)

Full Detent SMP

Control Interfaces

2x CAN FD – 1 Mbps; CSPES

Available Interface

for powering, debugging and programming

Firmware Updates

Local and remote (in-flight) secured application update

GSaS Compatibility through SpaceOps

KSAT, Leaf Space, Skynopy, RBC Signal, ATLAS

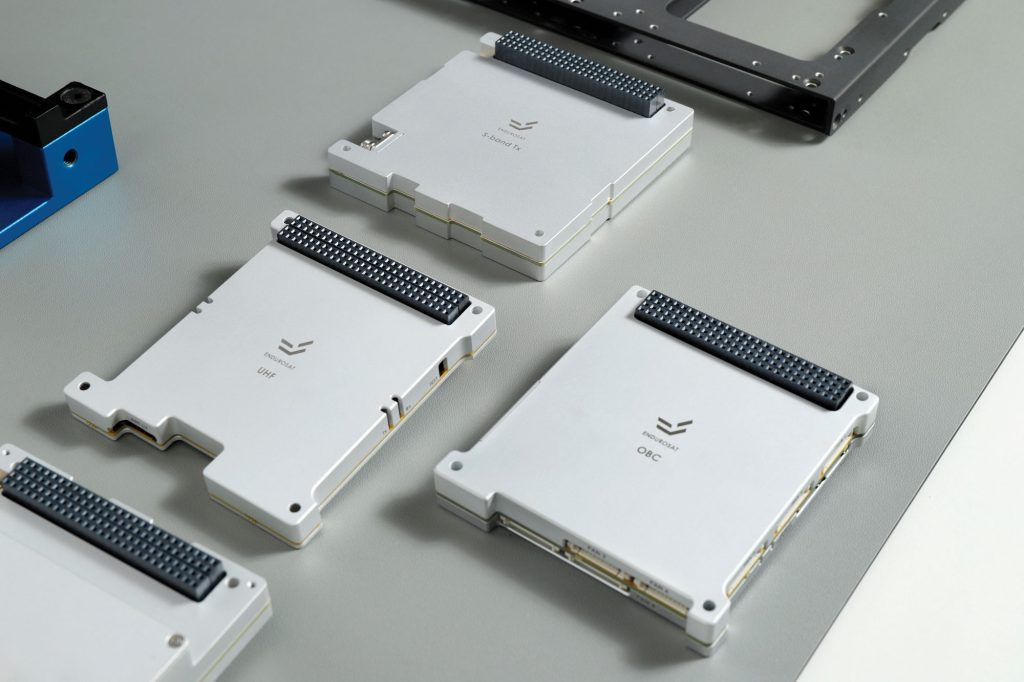

S-Band Transceiver integrates seamlessly with all EnduroSat systems

Included

Complete User Manual

5h engineering support

Delivery cost

Handling and administration costs

Full-duplex radio with integrated independent Tx and Rx channels

High-efficiency amplifiers with integrated electrical and temperature protections

Automatic frequency correction over modulation deviation

CCSDS Unified Space Data Link Protocol support for greater interoperability
