CAD file &
Datasheet

$ 4,600 – $ 7,200

Select Options

Reliable communication

UHF Antenna III

Flight-proven deployable UHF antenna

this cubesat module has flight heritage
this cubesat module is featured in NASA state of the art report
uhf-antenna-3-cubesat-endurosat

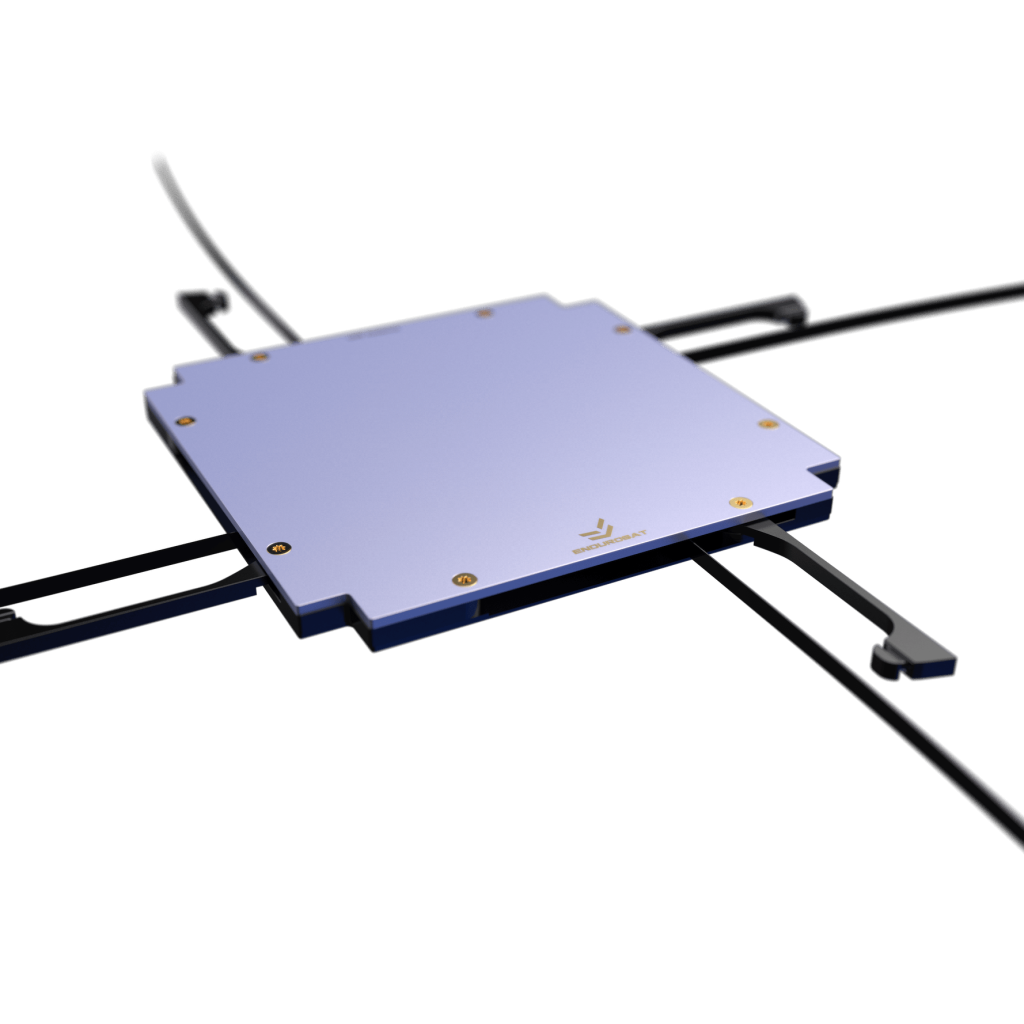

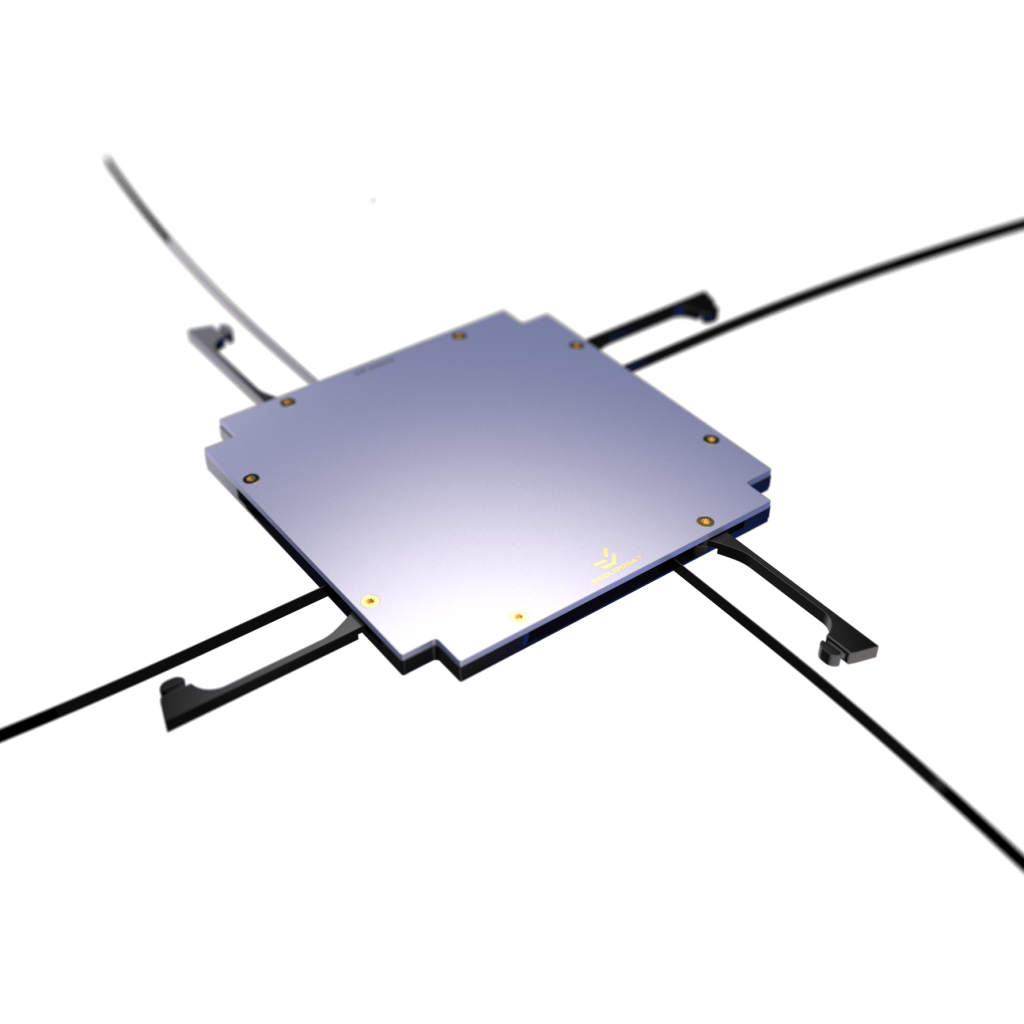

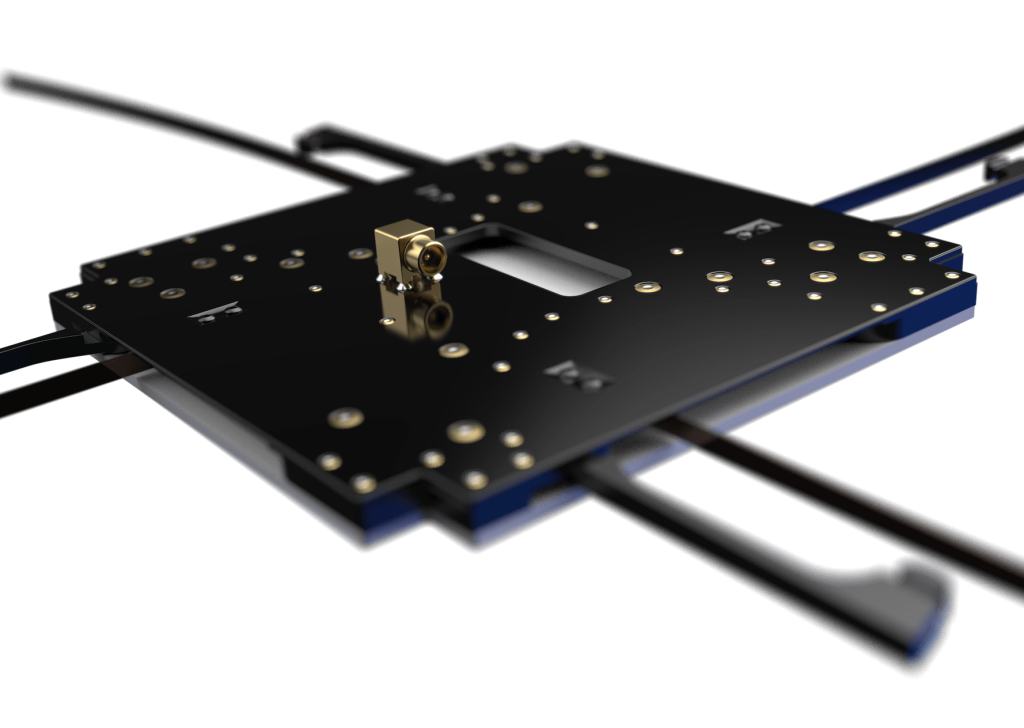

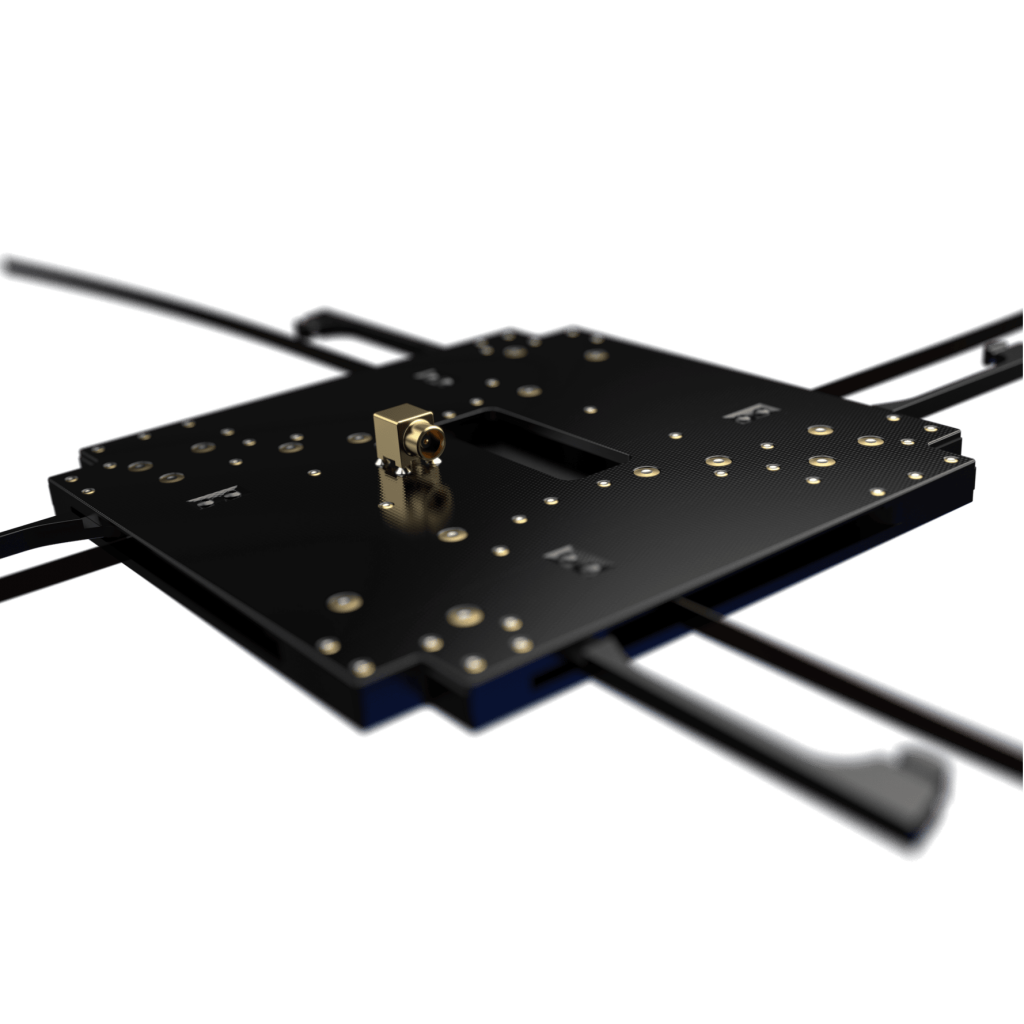

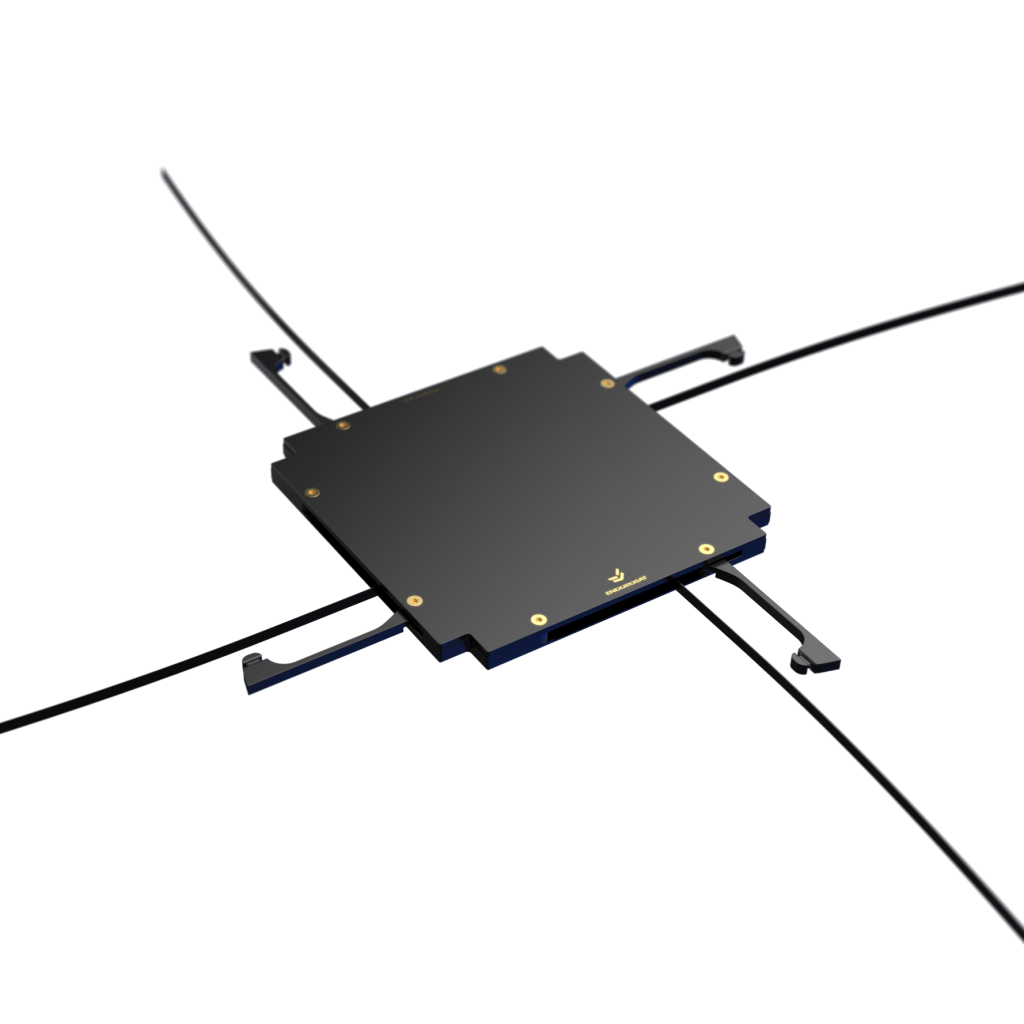

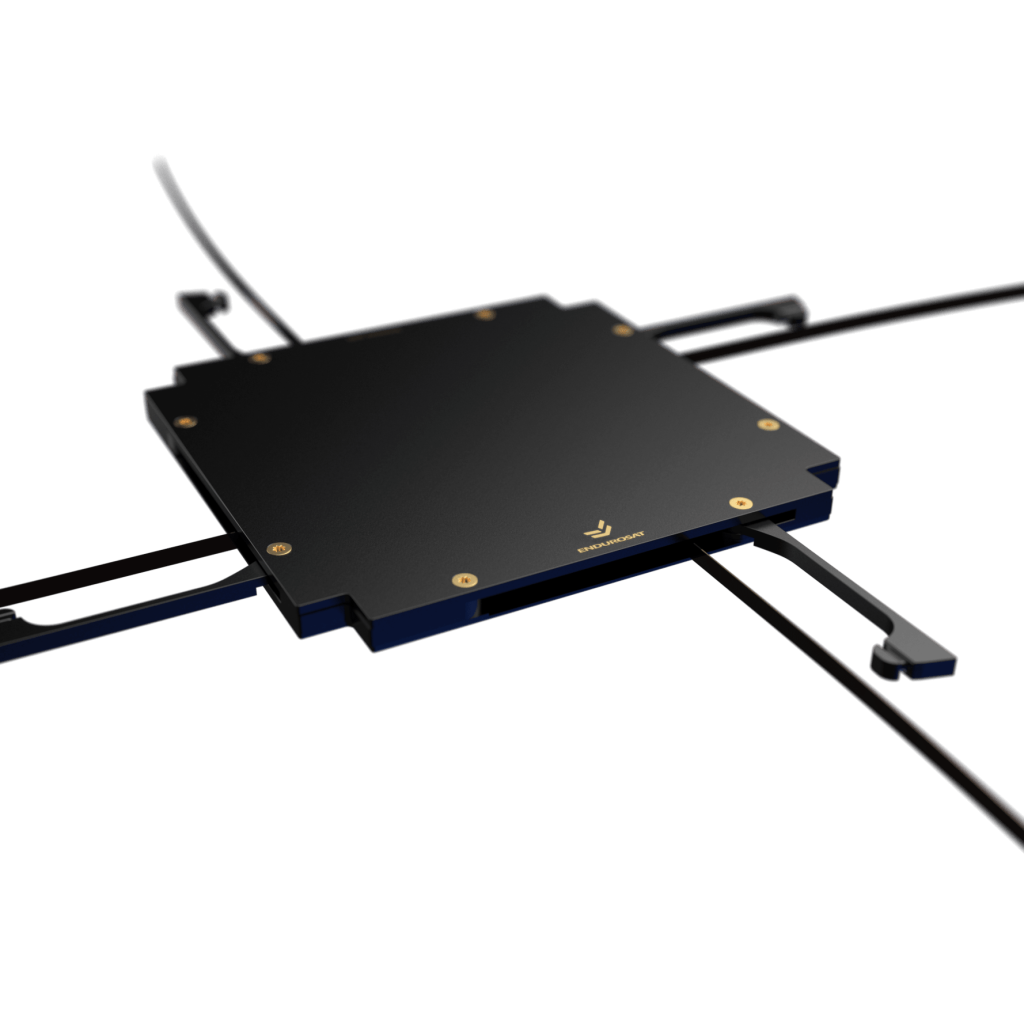

Flight-proven deployable UHF antenna

3Xredundant burnwire
mechanism
RHcircular
polarization
0+dBi
gain

Proven in tens of successful missions. Triple redundant burnwire mechanism with feedback

uhf-antenna-3-cubesat-endurosat

Deployment redundancy

Our Antenna: Tripple

Industry: Double

Circularly polarized for better reception

uhf-antenna-3-cubesat-endurosat

Applications

Telemetry and telecommanding (TMTC) iconTelemetry and Telecommands (TMTC)
Communications backup iconCommunications Backup
Ground Station setup iconGround Station Setup

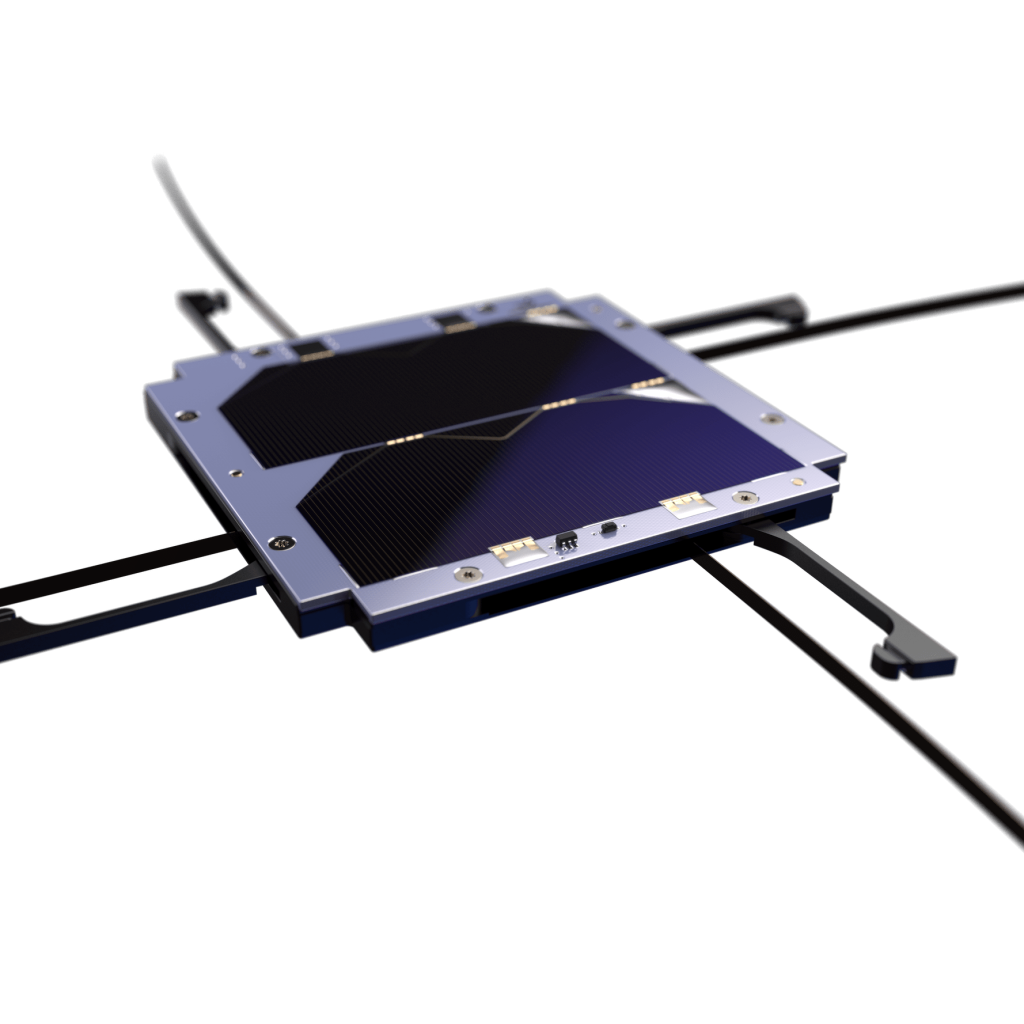

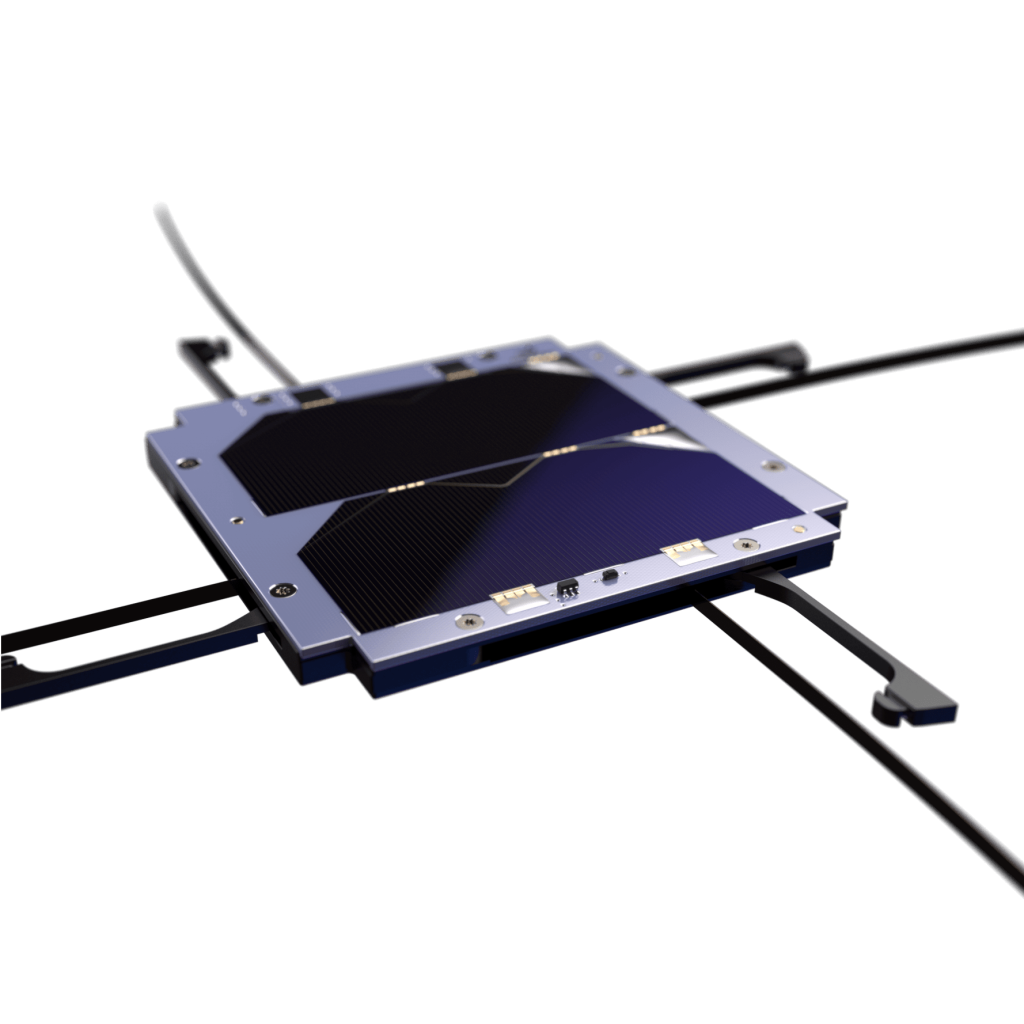

Configurable with a solar panel in the same form factor

uhf-antenna-3-cubesat-endurosat

Features

Frequency range 435 - 438 MHz or 400 - 403 MHz (commercial)
Type Omnidirectional
Gain > 0 dBi
Polarization Circular
Mass 85 g
Monitoring and control interface I2C
Direct deployment Two redundant channels with logical level

Compatible with a wide array of satellite structures

uhf-antenna-3-cubesat-endurosat

Included

user manual book icon Complete User Manual
customer support icon 5h engineering support
delivery cost icon Delivery cost
handling and administration costs icon Handling and administration costs
