CAD file &
Datasheet$ 3,800 Buy

High-speed communication

S-Band Antenna Commercial

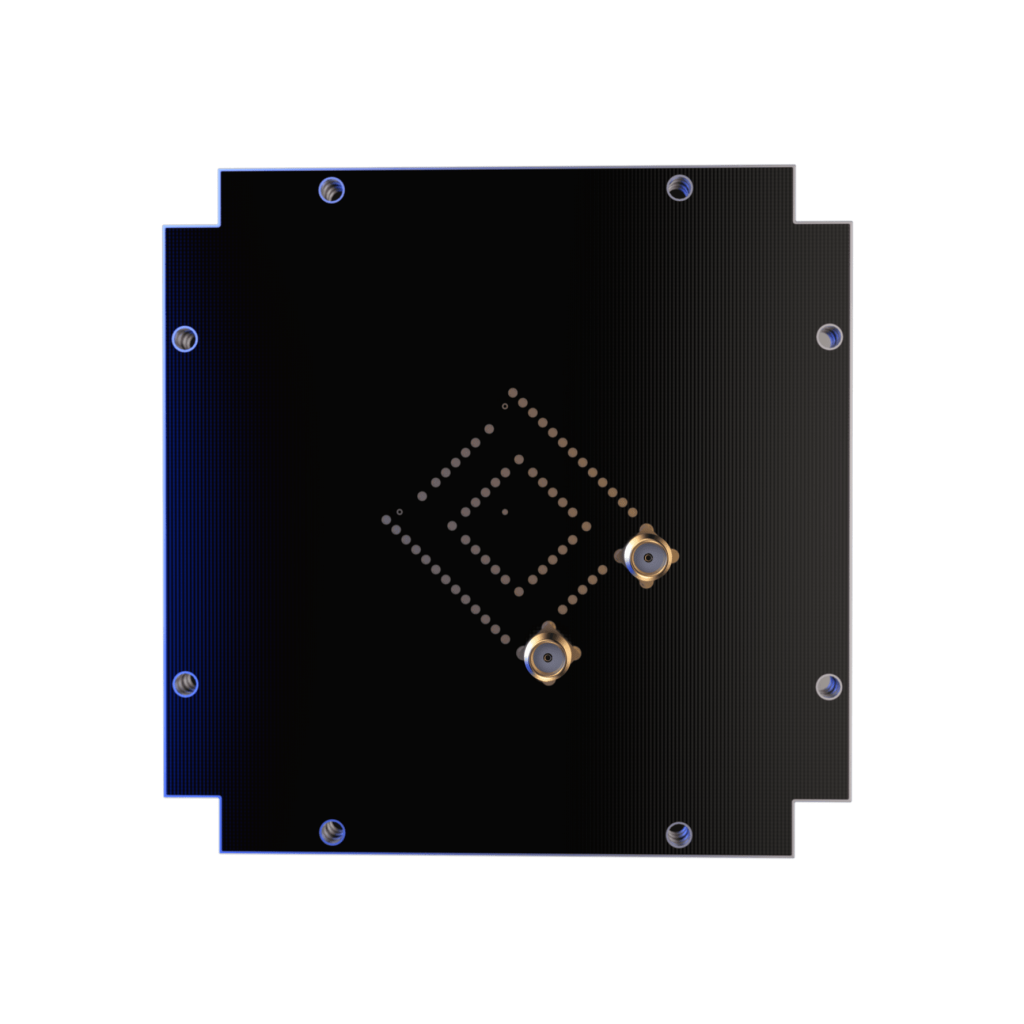

Flight-proven S-band patch antenna

this cubesat module has flight heritage
this cubesat module is featured in NASA state of the art report
s-band-antenna-commercial-cubesat-endurosat

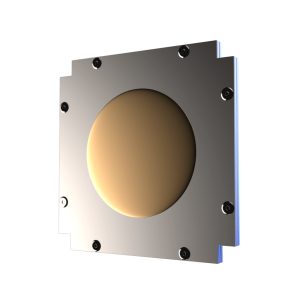

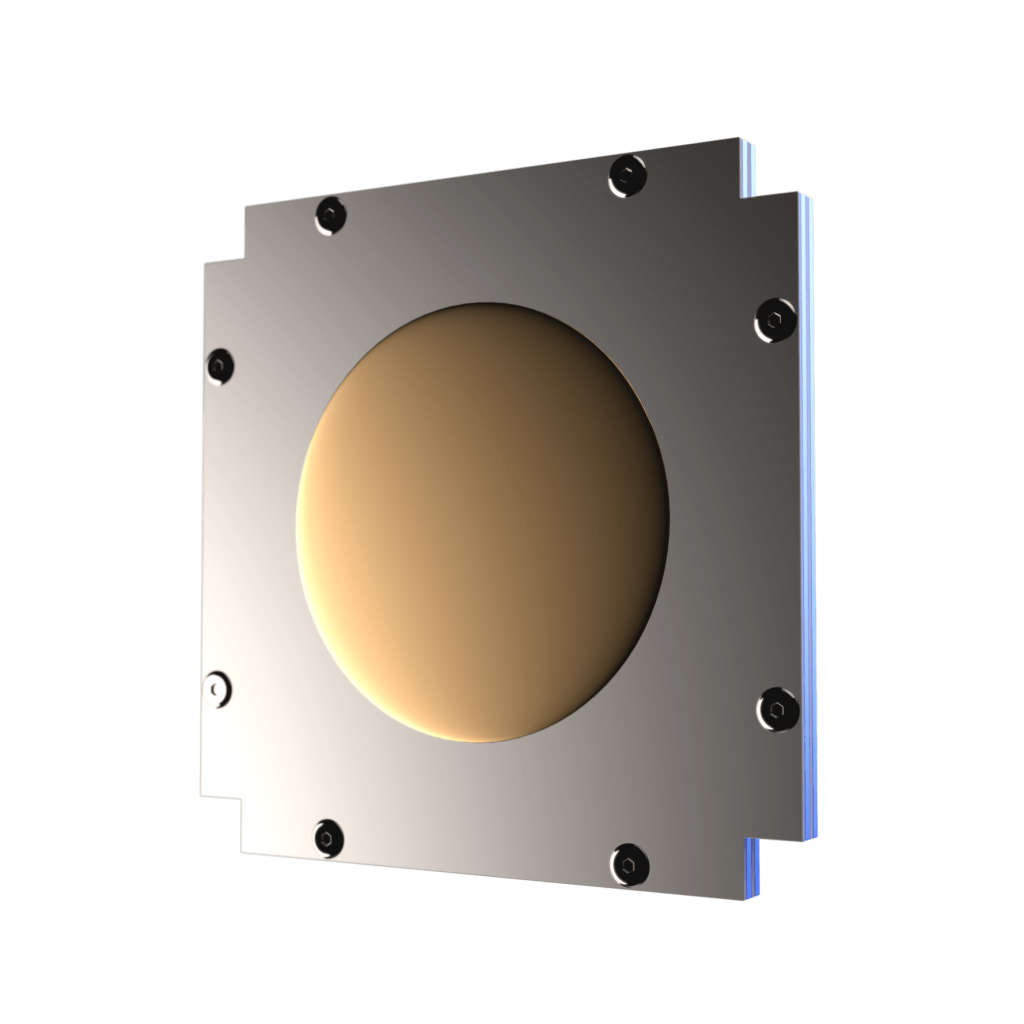

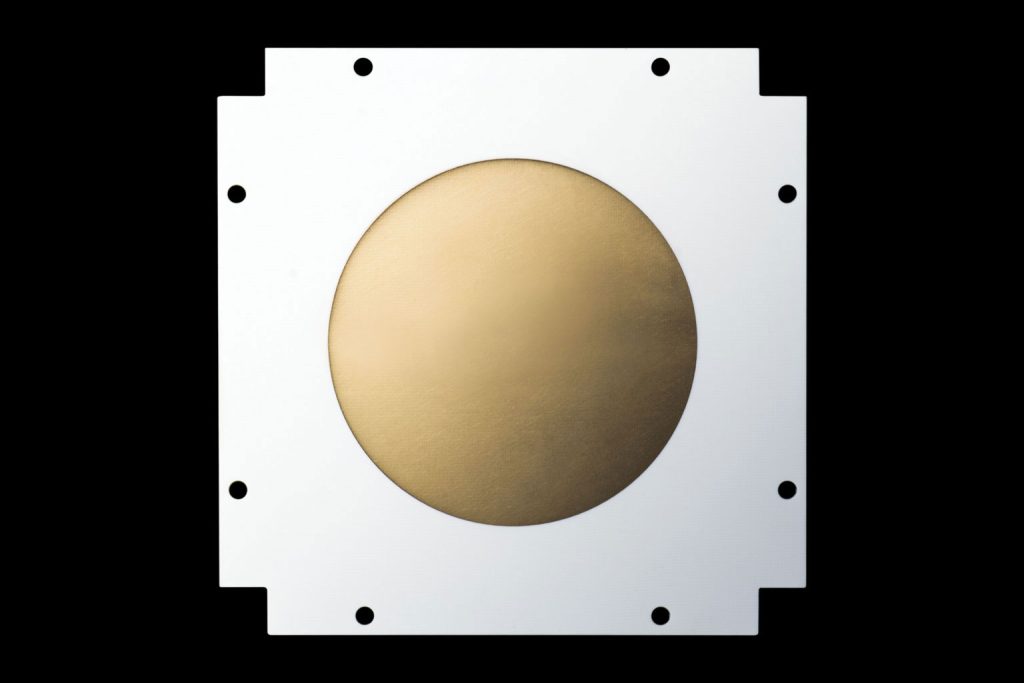

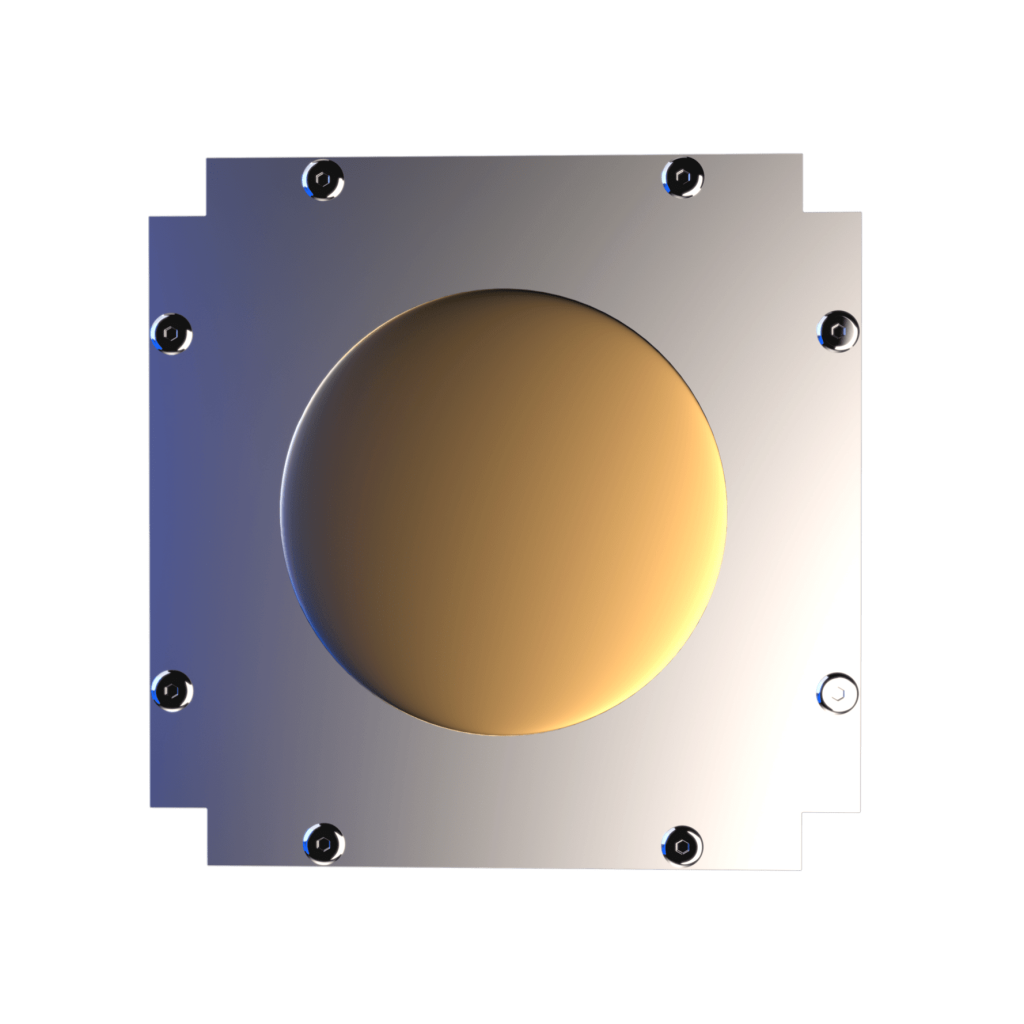

Flight-proven S-band patch antenna

20%higher
gain
RH/LHCircular
polarization
7+dBi
gain

20% higher gain than the previous generation

s-band-antenna-commercial-cubesat-endurosat

Gain

Current generation: 7 dBi

Previous generation: 5.5 dBi

Circularly polarized for better reception

s-band-antenna-commercial-cubesat-endurosat

Applications

Payload downlink iconPayload Downlink
Telemetry and telecommanding (TMTC) iconTelemetry and Telecommands (TMTC)
Intersatellite communications iconInter-satellite Communications

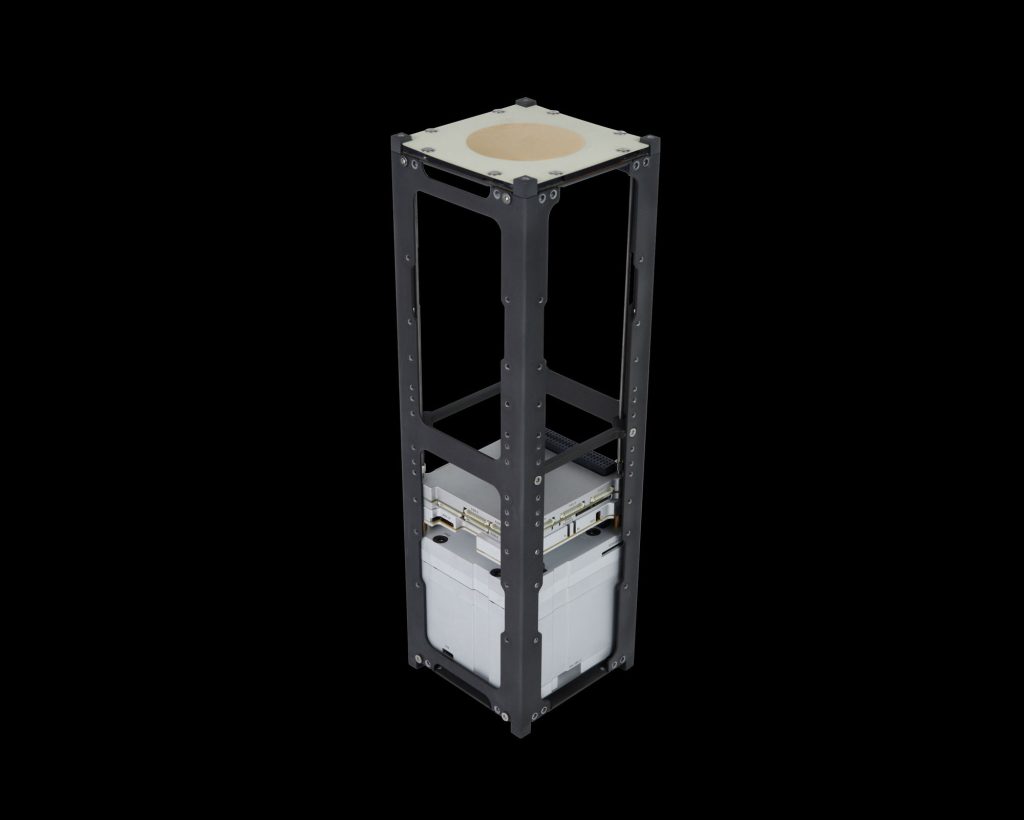

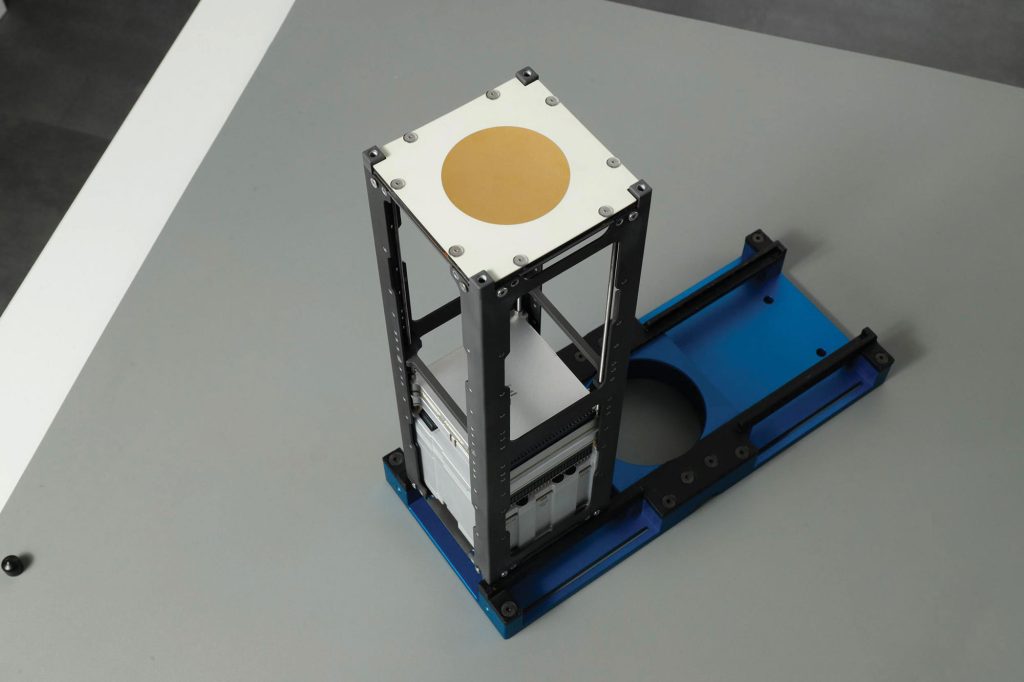

Customizable for easy mount, X/Y or Z

s-band-antenna-commercial-cubesat-endurosat

Features

Frequency range 2025 - 2110 MHz
Half Power Beam Width (HPBW) 70 deg
Gain 7+ dBi over operational bandwidth
Polarization Selectable Circular
Mass 81 g
Configurable Mounting X/Y or Z CubeSat mounting
RF Power Handling up to 4 W

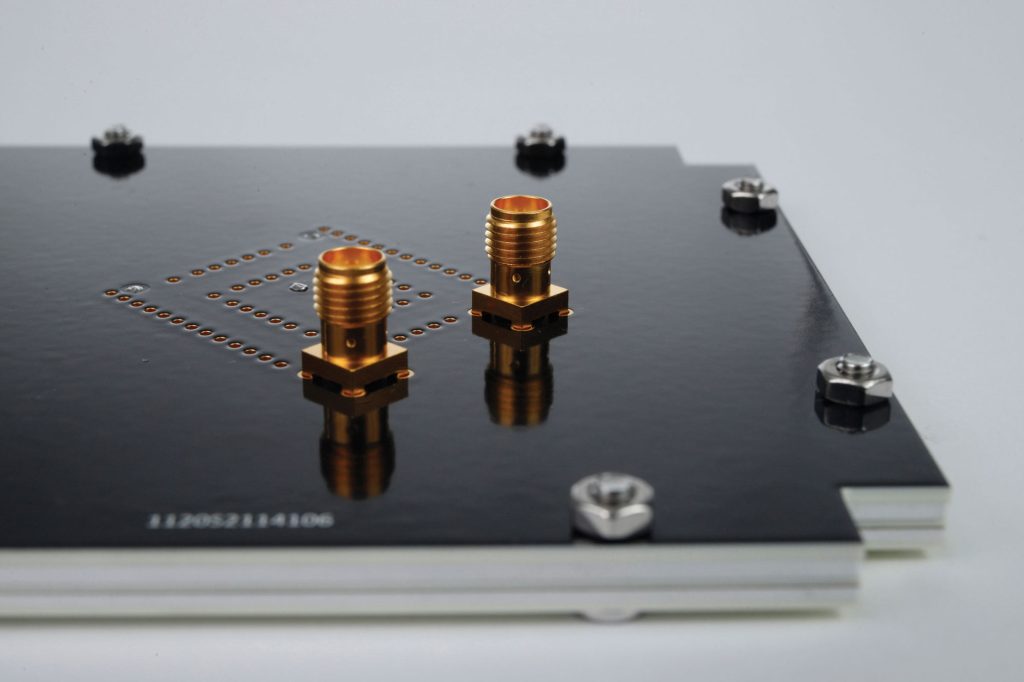

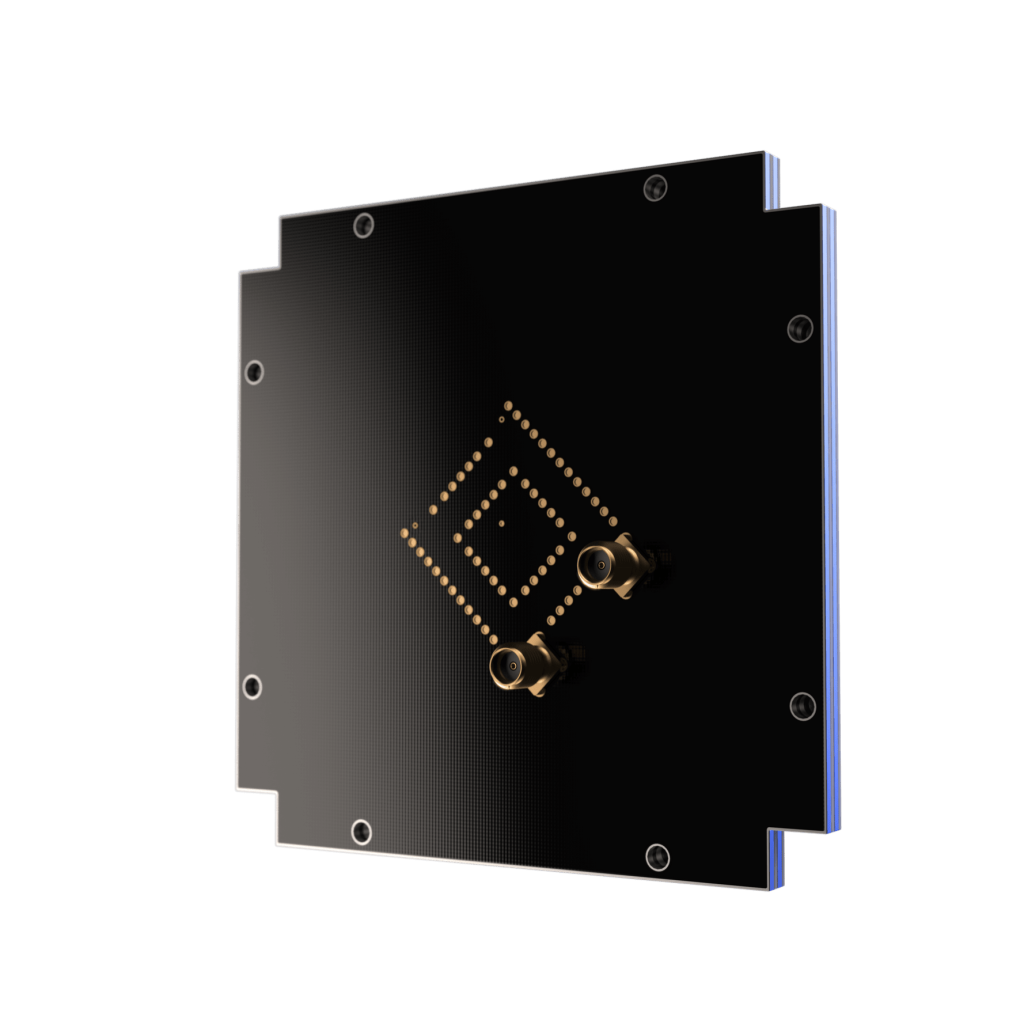

Selectable Right Hand (RH) or Left Hand (LH) Circular Polarization

s-band-antenna-commercial-cubesat-endurosat

Included

user manual book icon Complete User Manual
customer support icon 5h engineering support
delivery cost icon Delivery cost
handling and administration costs icon Handling and administration costs
