FRAME L

Download
Cad file & datasheet
START YOUR MISSION

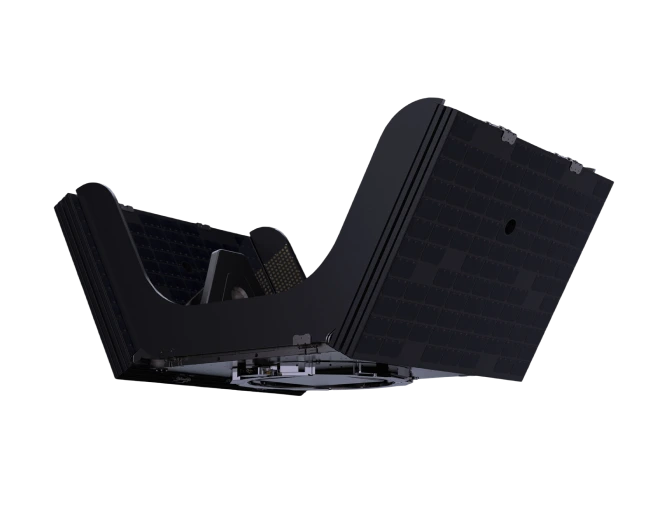

FRAME L

ESPA-Grande class · 500 kg total mass
Cad file & datasheet
START YOUR MISSION
300 KG
AVAILABLE PAYLOAD MASS
7 kW
MAX CONTINUOUS POWER
4 GBPS
GROSS DATARATE
Applications

Built for advanced payloads

VNIR
Multispectral & Hyperspectral Imager
Thermal
Broadband & Multispectral Imager
SAR
Synthetic Aperture Radar
Telecom
Fixed Broadband
SIGINT
Signals Intelligence
  • VNIR
    Multispectral & Hyperspectral Imager
  • Thermal
    Broadband & Multispectral Imager
  • SAR
    Synthetic Aperture Radar
  • Telecom
    Fixed Broadband
  • SIGINT
    Signals Intelligence
Platform

Designed for serial production

1.0 m³ of payload volume
Standardized mechanical interfaces

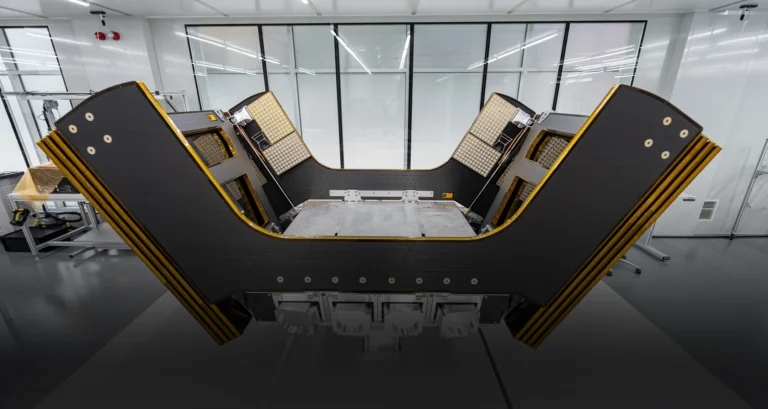

EnduroSat Frame L Microsatellite Bus payload volume
Up to 1 km/s
Delta-V propulsion
Plug & play integration
Cableless, universal avionics

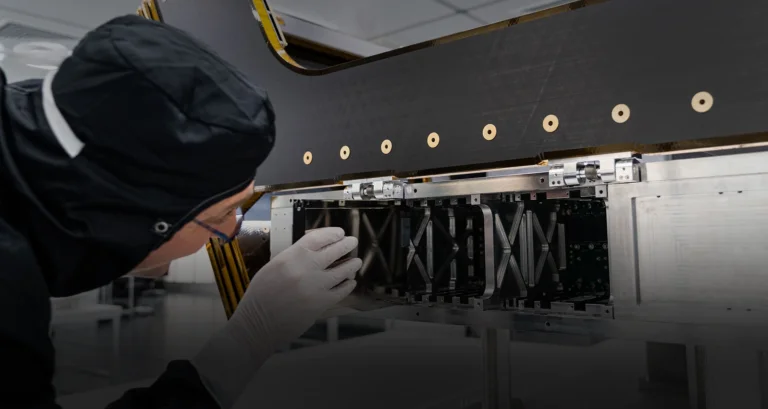

EnduroSat Frame L Microsatellite Bus plug and play integration
Military-grade encryption
AES-256-GCM

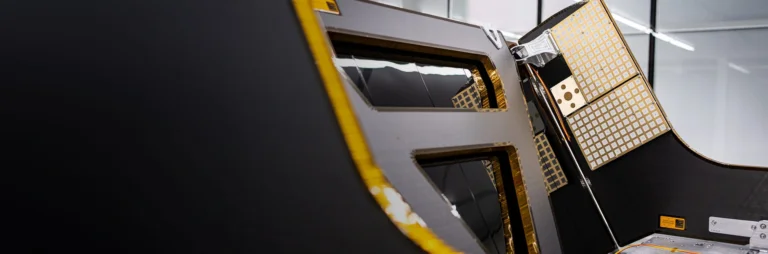

EnduroSat Frame L Microsatellite Bus with antennas
CAPACITY

Assembled in 8 hours. 700 per year

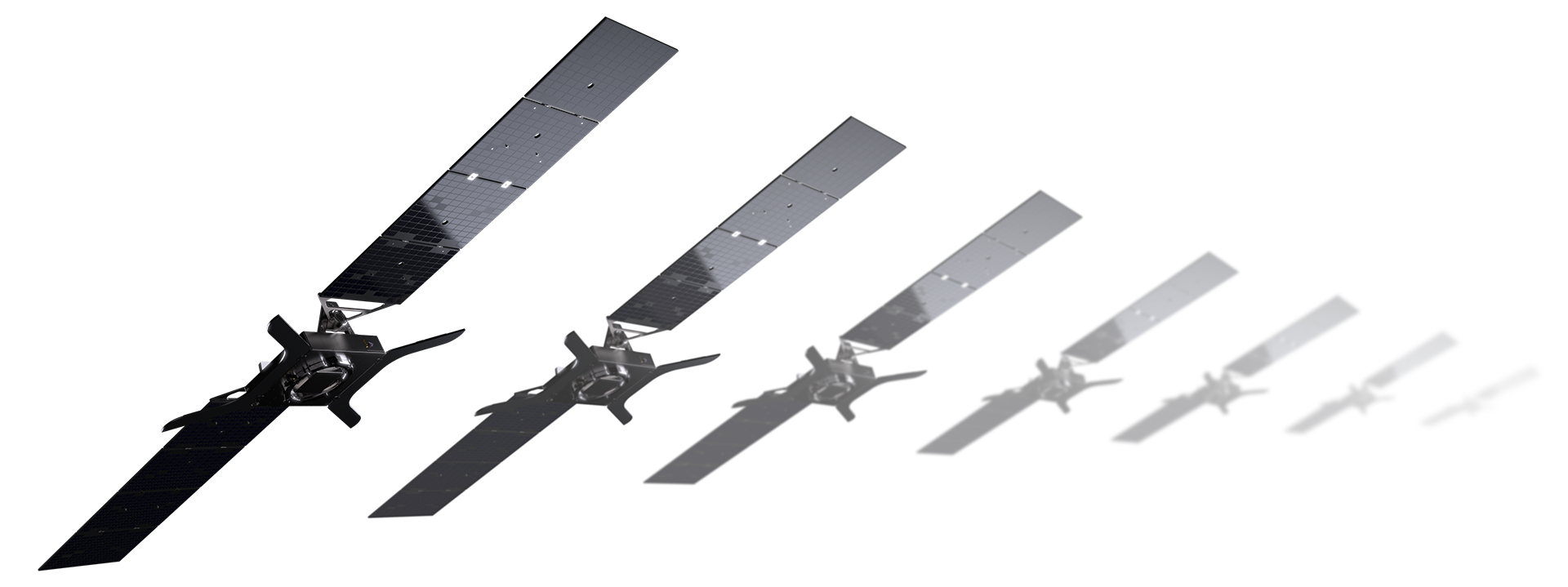

EnduroSat Frame L Microsatellite Bus production capacity visualization
Built on a line that already delivers
100
Satellites deployed in orbit
200
Satellites delivered to customers
5000
Subsystems in orbit

High-speed data links

100/10G Ethernet, SpaceWire, SpaceFibre & CameraLink

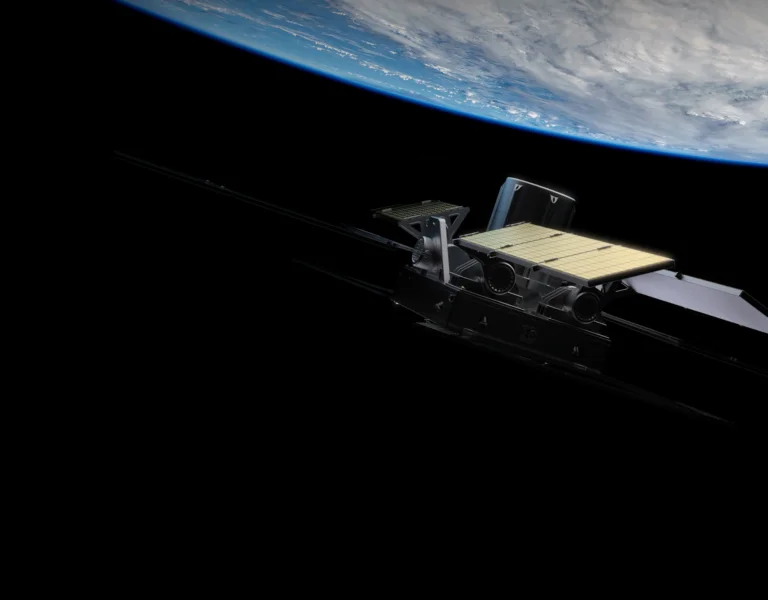

EnduroSat Frame L Microsatellite Bus in orbit visualization
Specifications

Your satellite bus at a glance

PAYLOAD & MECHANICAL
Bus mass
200-250 kg (configuration dependent)
Available payload mass
up to 300 kg
Available payload volume envelope
at least 1 x 1 x 1 m (SpaceX full plate XL)
Launch adapter
24" ESPA, 31.6" ring, or 4-point interface
Power & Performance
Peak solar input power
2.7 kW
Max power to payload​
7kW at 10% duty cycle
Orbit-averaged power to payload​
1 kW
Available power buses
28V reg. or 30-50 V unreg.
Additional power buses (PPCU)
3.3V, 5V, 12V reg. and custom up to 30V
Pointing accuracy / knowledge
0.056° / 0.016°
Design lifetime
7 years in LEO
PRICING

Cost goes down as you scale

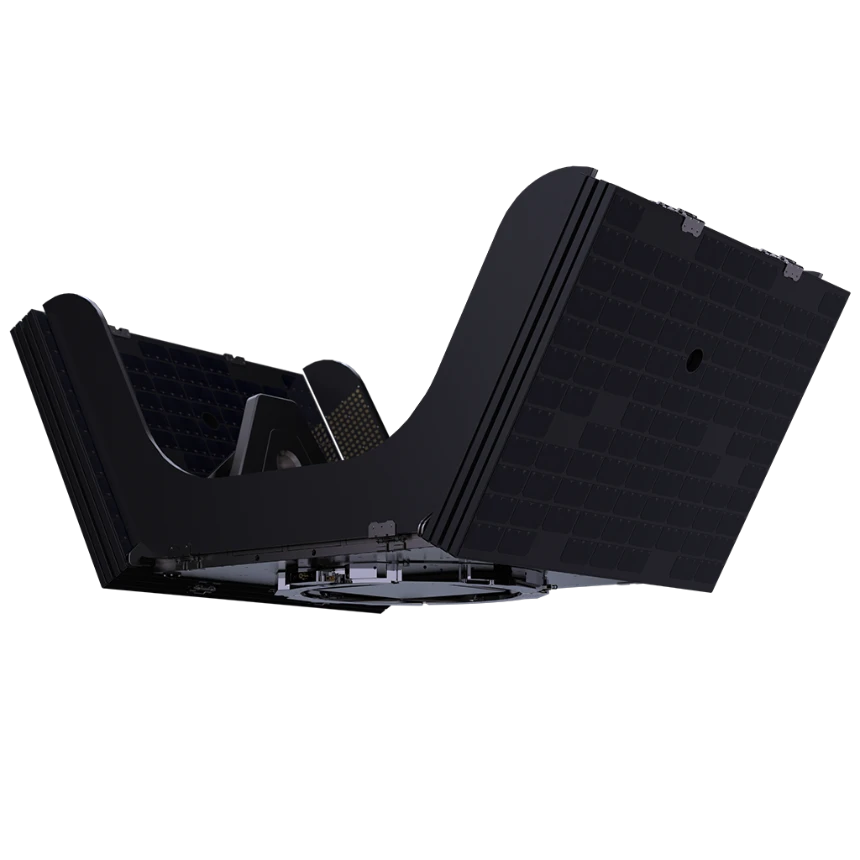

EnduroSat Frame L - 500kg satellite bus - ESPA-class microsatellite
Fleet size
1 1000+
BUS UNIT COST
10
Satellites
DESIGN YOUR MISSION
  • Software Development Kit (SDK)
  • SpaceDev 1-year subscription
  • 20h engineering support
  • Delivery cost
  • Handling & administration costs
  • Design review & consulting
Available payload mass
70 kg
300 kg
0.5–3T
Max continuous power
3.4 kW
7 kW
10 kW
Gross datarate
2 Gbps
4 Gbps
4 Gbps
Delta-V capacity
170–400 m/sec
400–1000 m/sec
200–500 m/sec
Bus mass
85–100 kg
200–250 kg
500 kg
QUALITY MATTERS

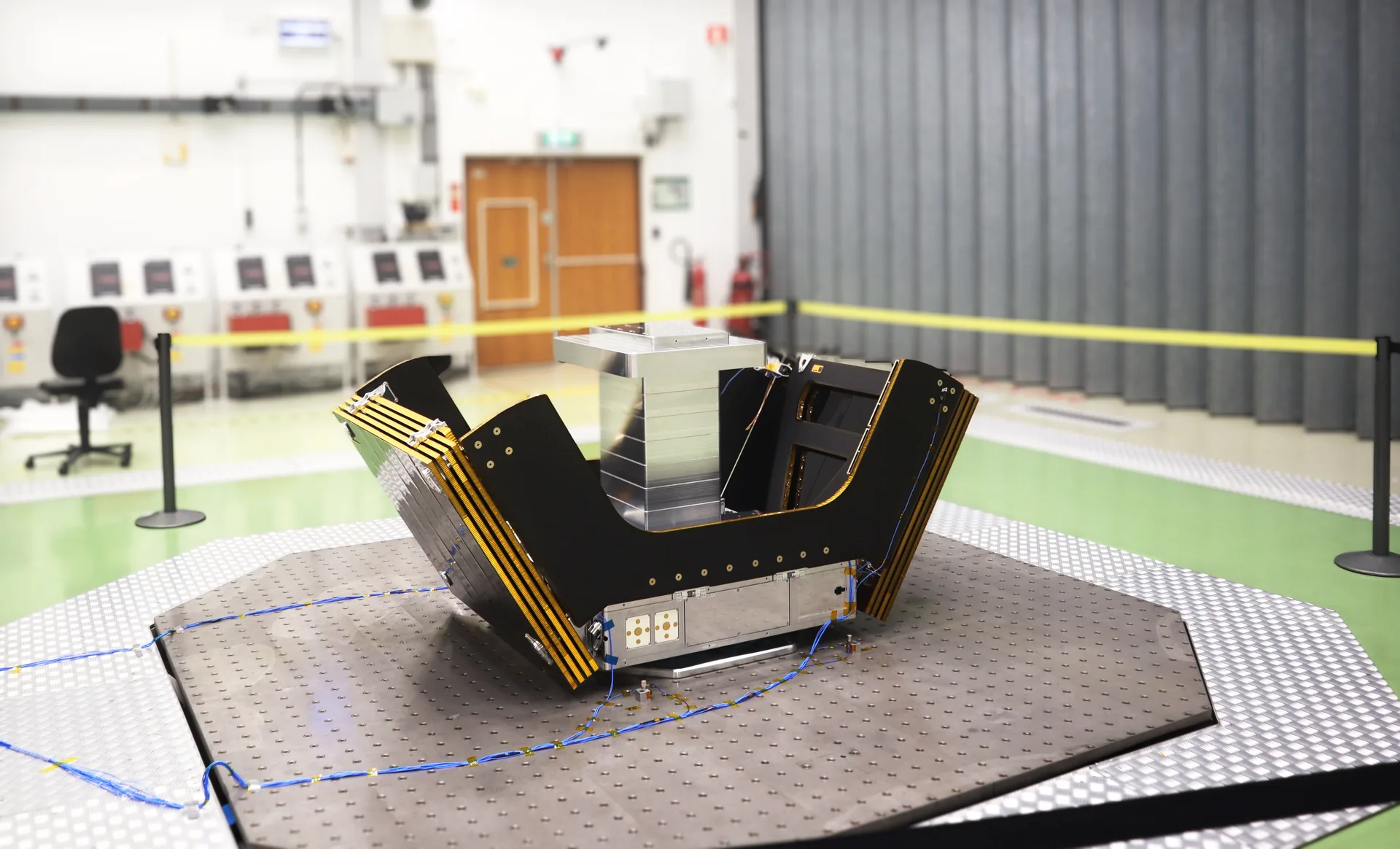

Full environmental and flight qualification

AVAILABLE WITH SPACE SERVICE

Risk and complexity eliminated

From idea to orbit in just 6 months
EXPLORE SPACE SERVICE
