Reliable uplink

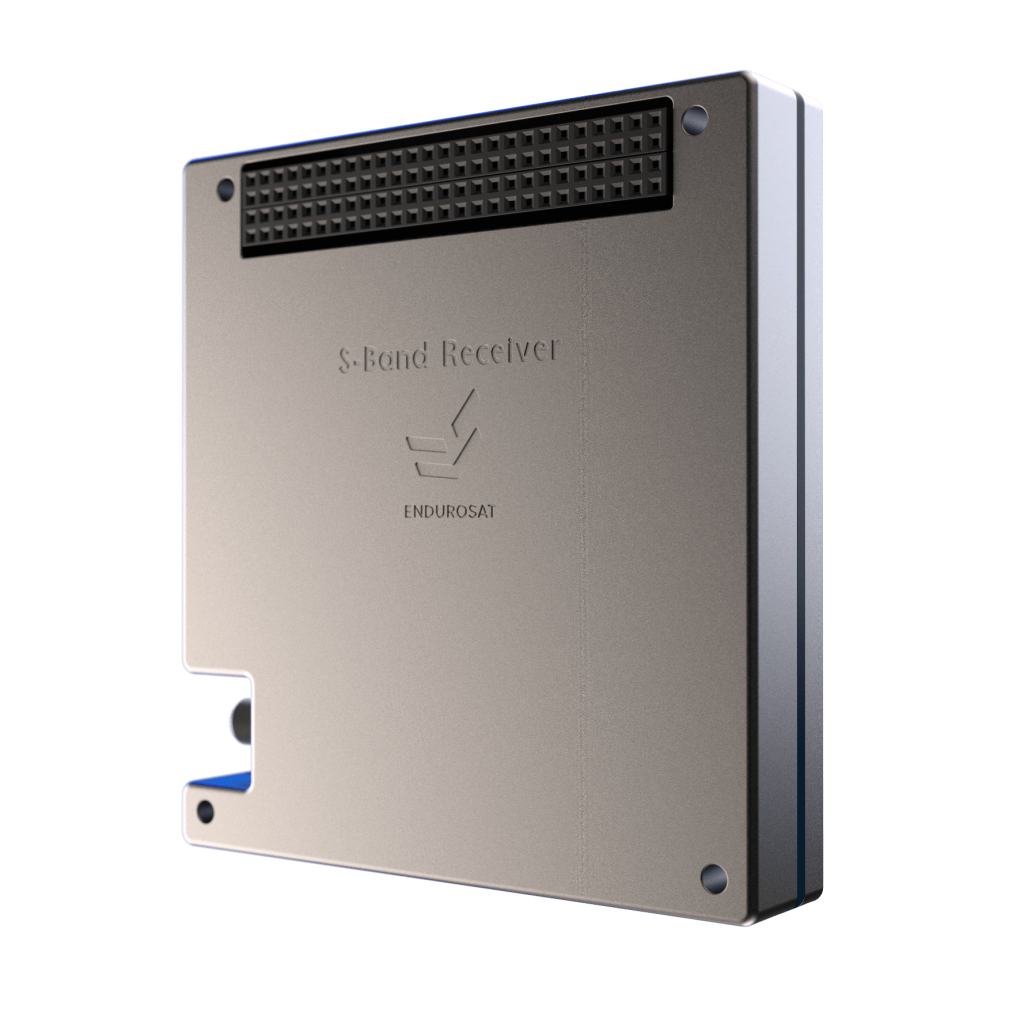

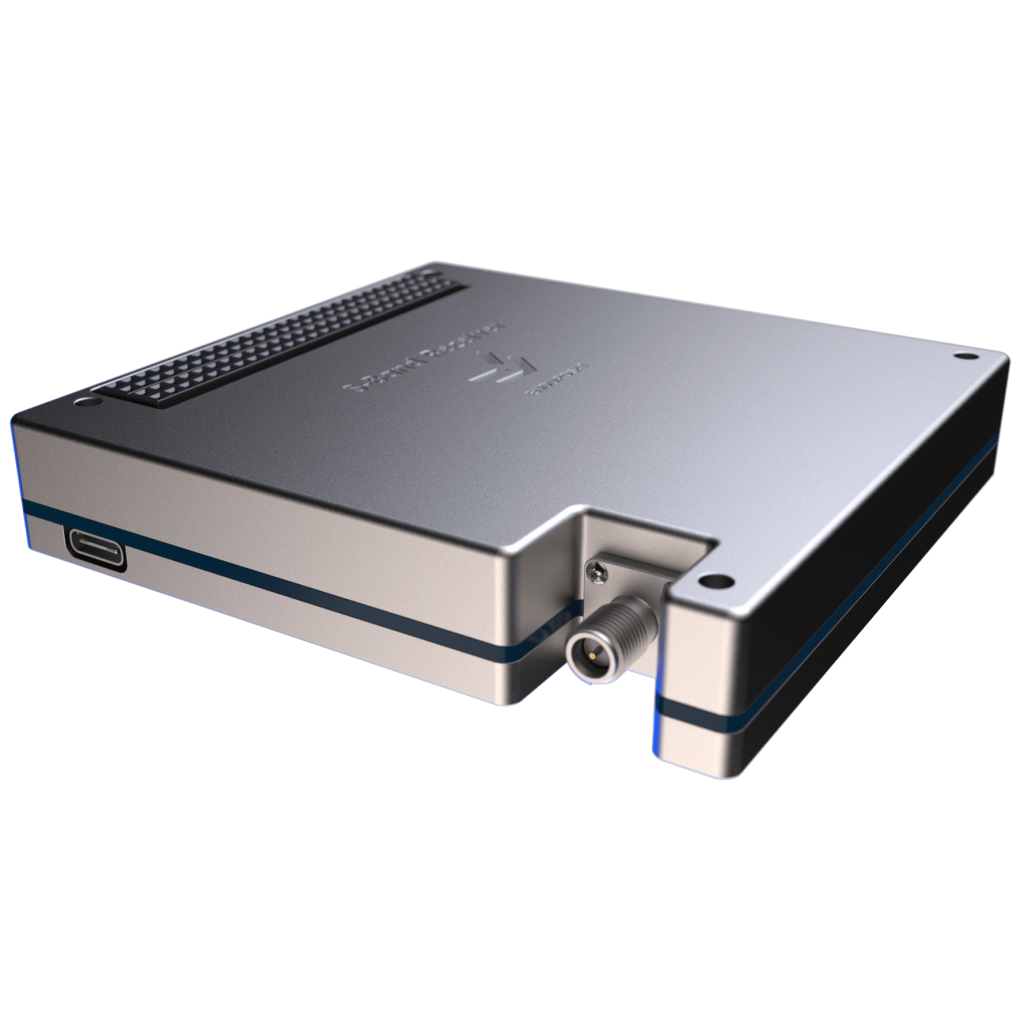

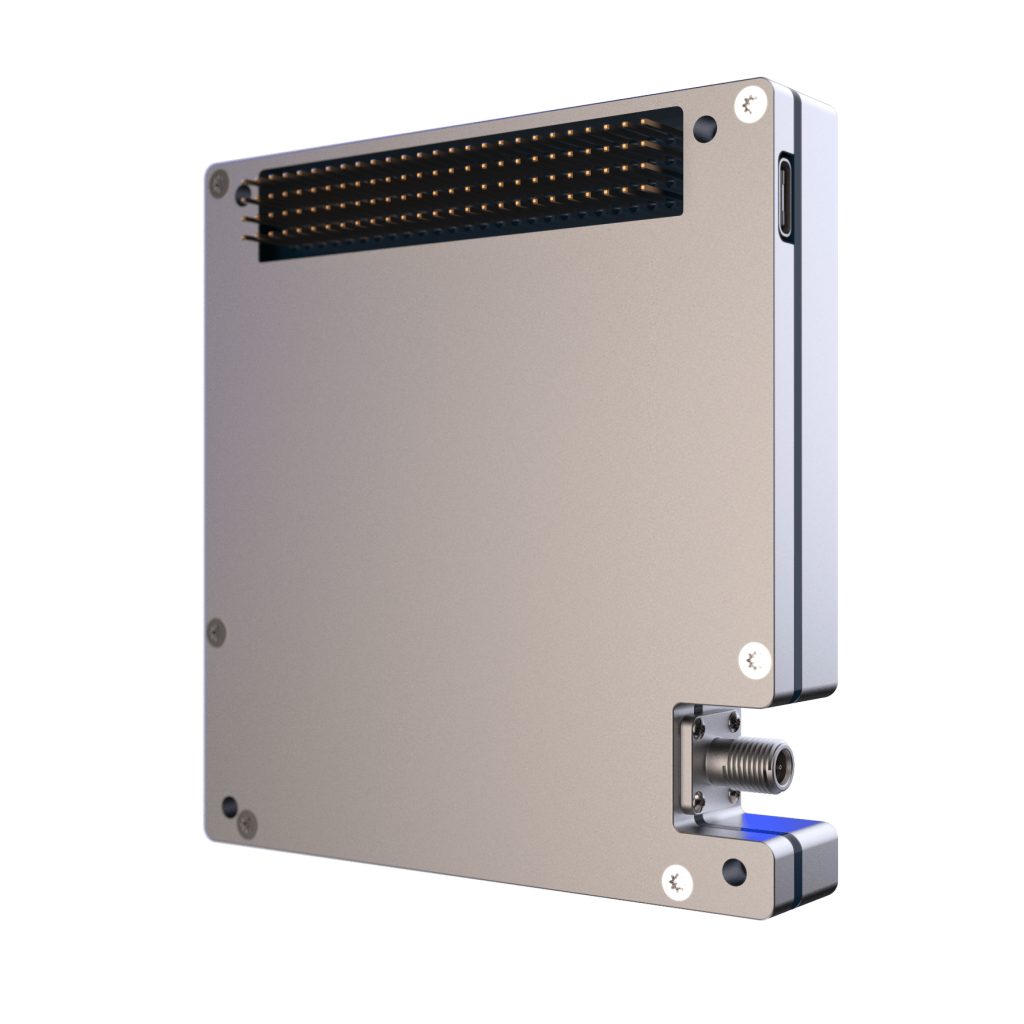

S-Band Receiver

Fully qualified S-band receiver with
unmatched performance on the market

this cubesat module is featured in NASA state of the art report
s-band-receiver-cubesat-communication-endurosat

Fully qualified S-band receiver with
unmatched performance on the market

4xhigher uplink speed
CCSDScompliant
VersatileReconfigurable in orbit

Uplink data highway with up-to 2x higher speeds than its class

s-band-receiver-cubesat-communication-endurosat

Datarate

Our S-band: 4 Mbps

Industry: 2 Mbps

CCSDS compliant

s-band-receiver-cubesat-communication-endurosat

Applications

Intersatellite communications iconInter-satellite Communications
Telecommand uplink (TC) iconTelecommand Uplink (TC)
Satellite software updates iconIn-orbit Updates

Low-power standby mode

s-band-receiver-cubesat-communication-endurosat

Features

Frequency range 2025 – 2110 MHz
Modulation BPSK, QPSK
Noise figure 2.1 dB
Maximum receive datarate 4 Mbps
Mass 180 g
Receive power consumption 2.5 W
Firmware updates Local and remote (in-flight) secured application update
Internal memory up to 32 GB
Wide Power Supply Range 9-15 V or 5 V
Sensitivity -95 dBm
Interfaces RS-485 / UART / LVDS

In-flight configurable parameters

Features in-orbit firmware update capability

s-band-receiver-cubesat-communication-endurosat

Included

user manual book icon Complete User Manual
included cables icon Complete set of cables
customer support icon 5h engineering support
delivery cost icon Delivery cost
handling and administration costs icon Handling and administration costs
