High-speed communication

X-Band 2×2 Patch Array

Fully qualified X-band patch antenna

this cubesat module has flight heritage
this cubesat module is featured in NASA state of the art report

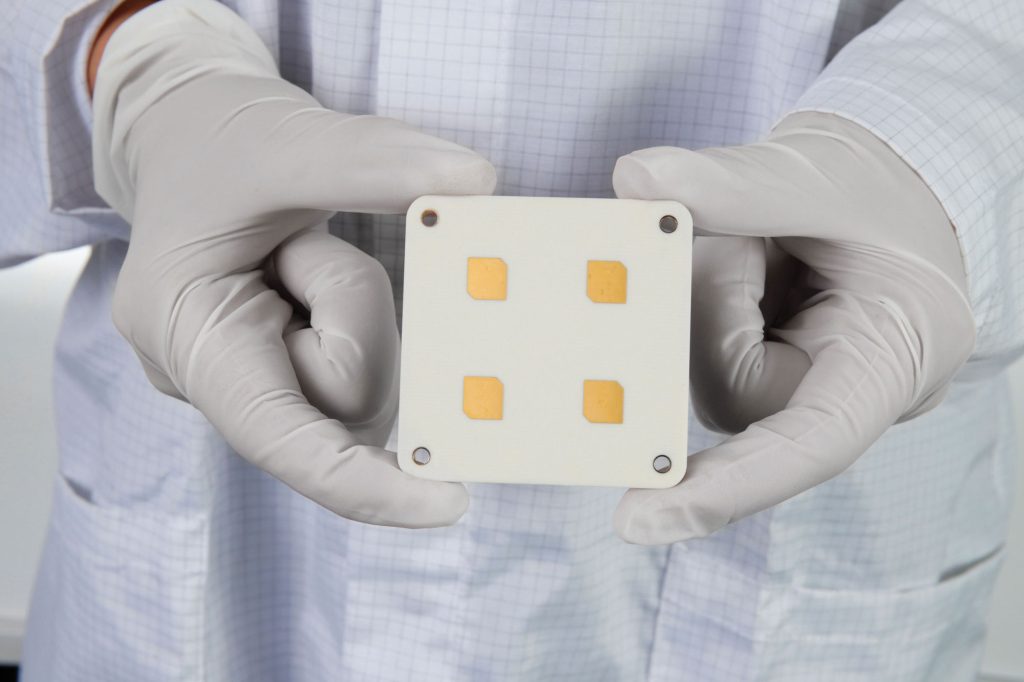

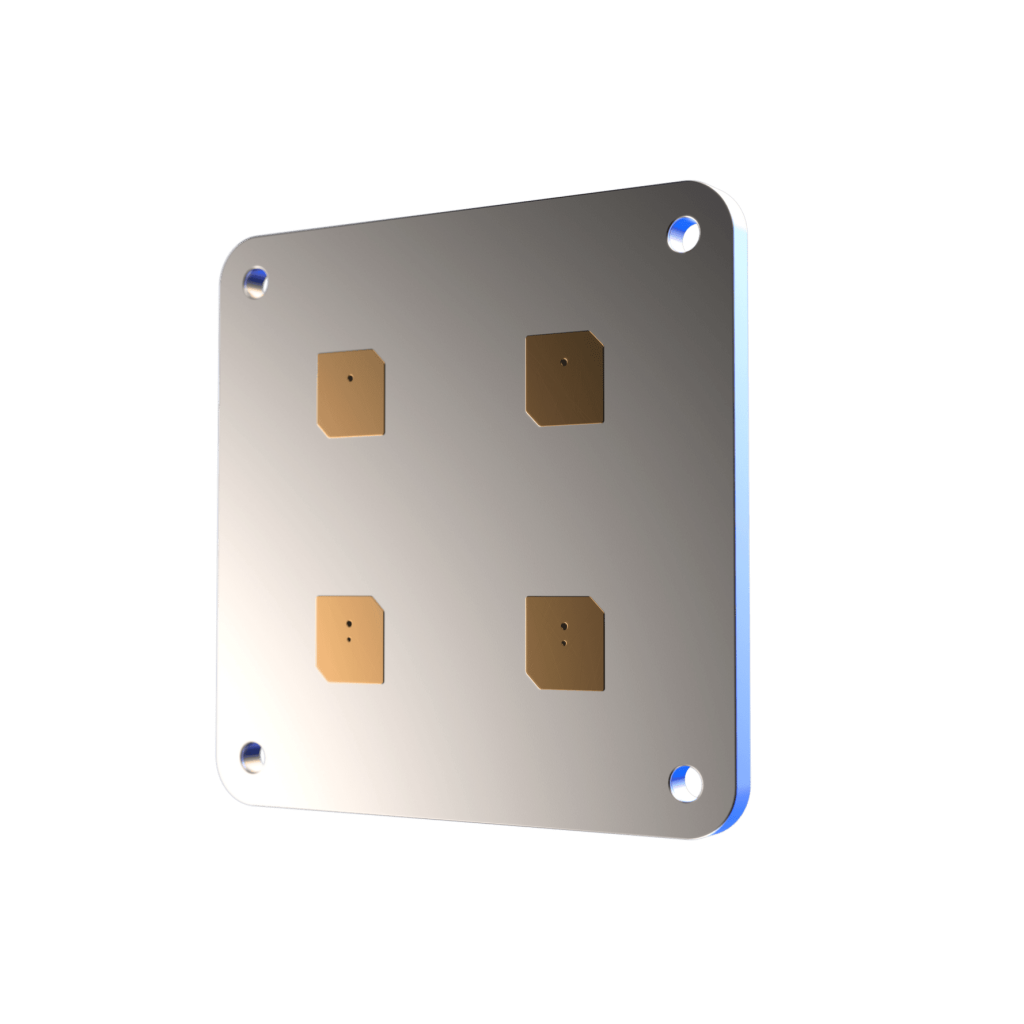

x-band-2x2-cubesat-endurosat

Fully qualified X-band patch antenna

40%smaller
footprint
12+dBi
Gain
RHCircular
Polarization

Industry-leading gain at a 40% smaller footprint

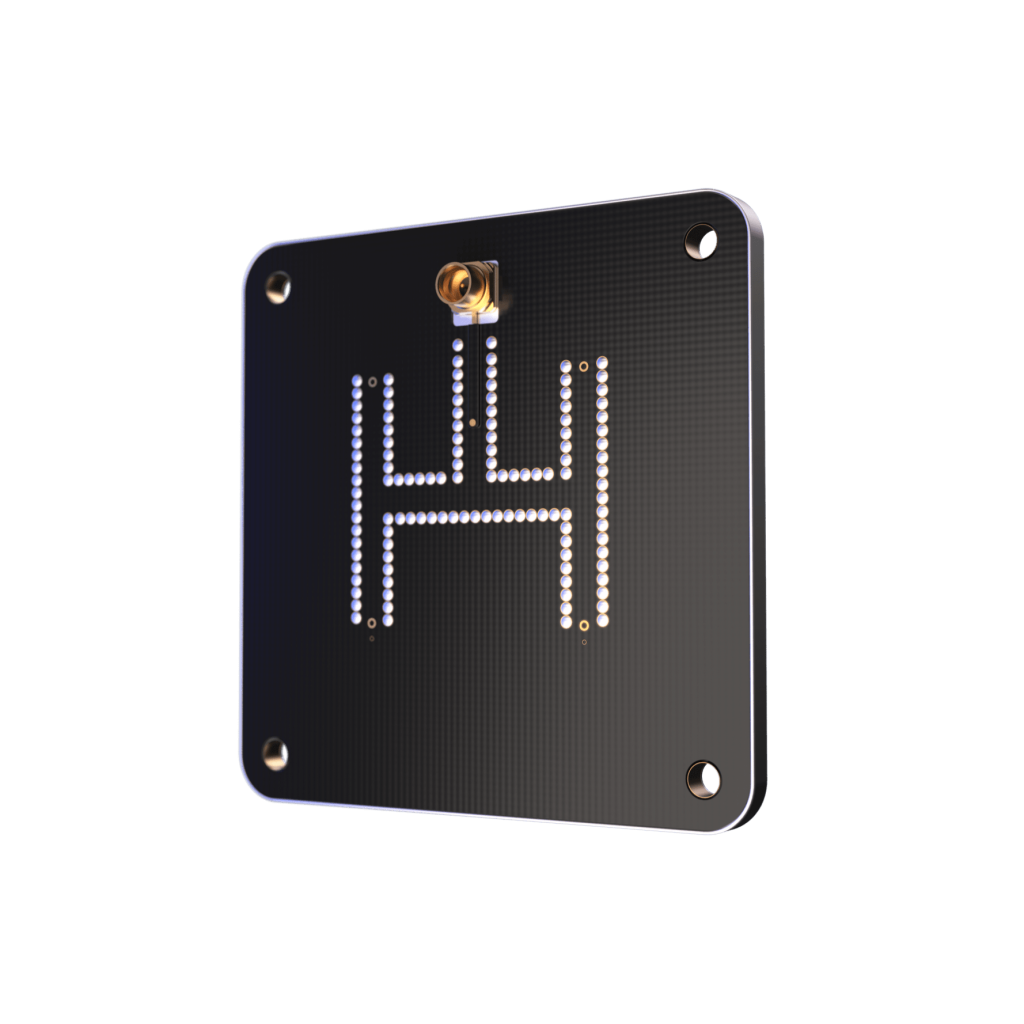

x-band-2x2-cubesat-antenna-endurosat

Gain/Footprint ratio

Our Antenna: 40% higher

Industry

Circularly polarized for better reception

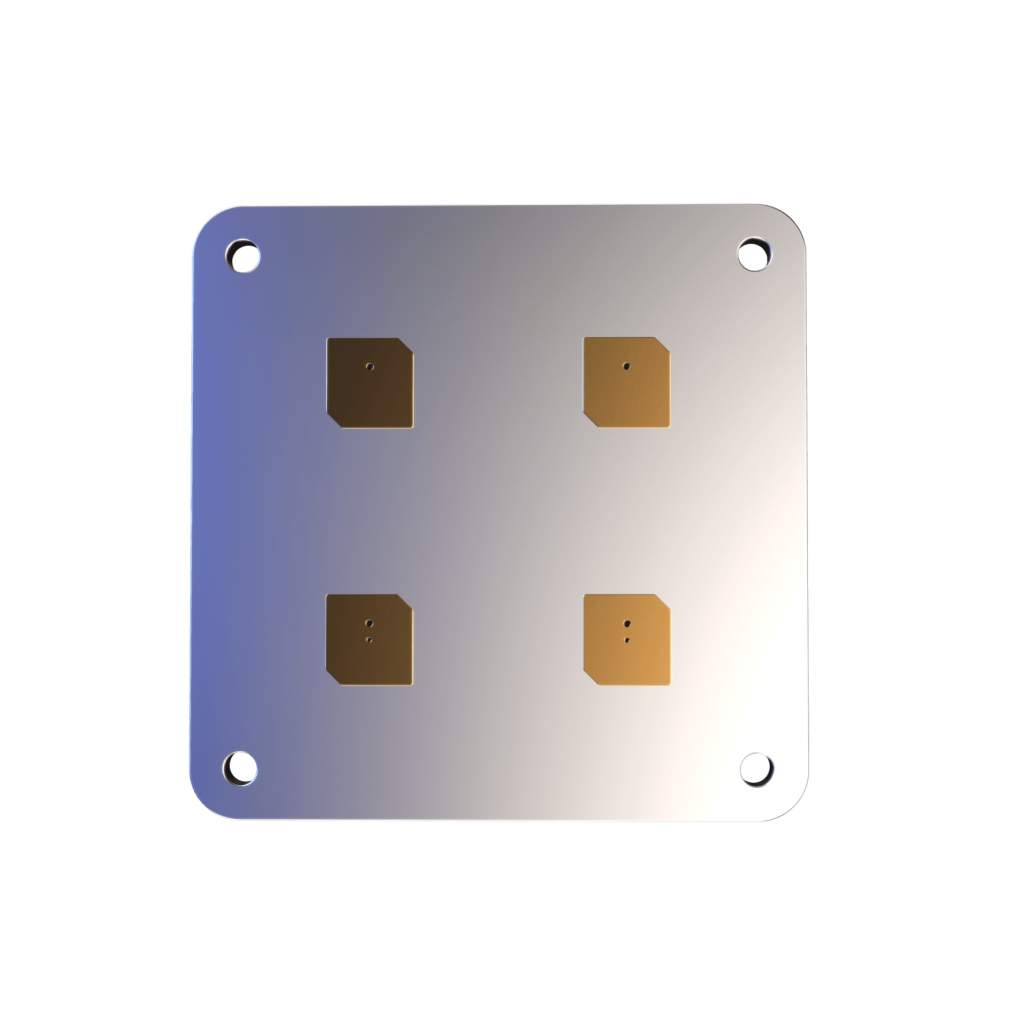

x-band-2x2-cubesat-antenna-endurosat applications

Applications

Intersatellite communications iconInter-satellite Communications
Images and video downlink iconImages and Video Downlink

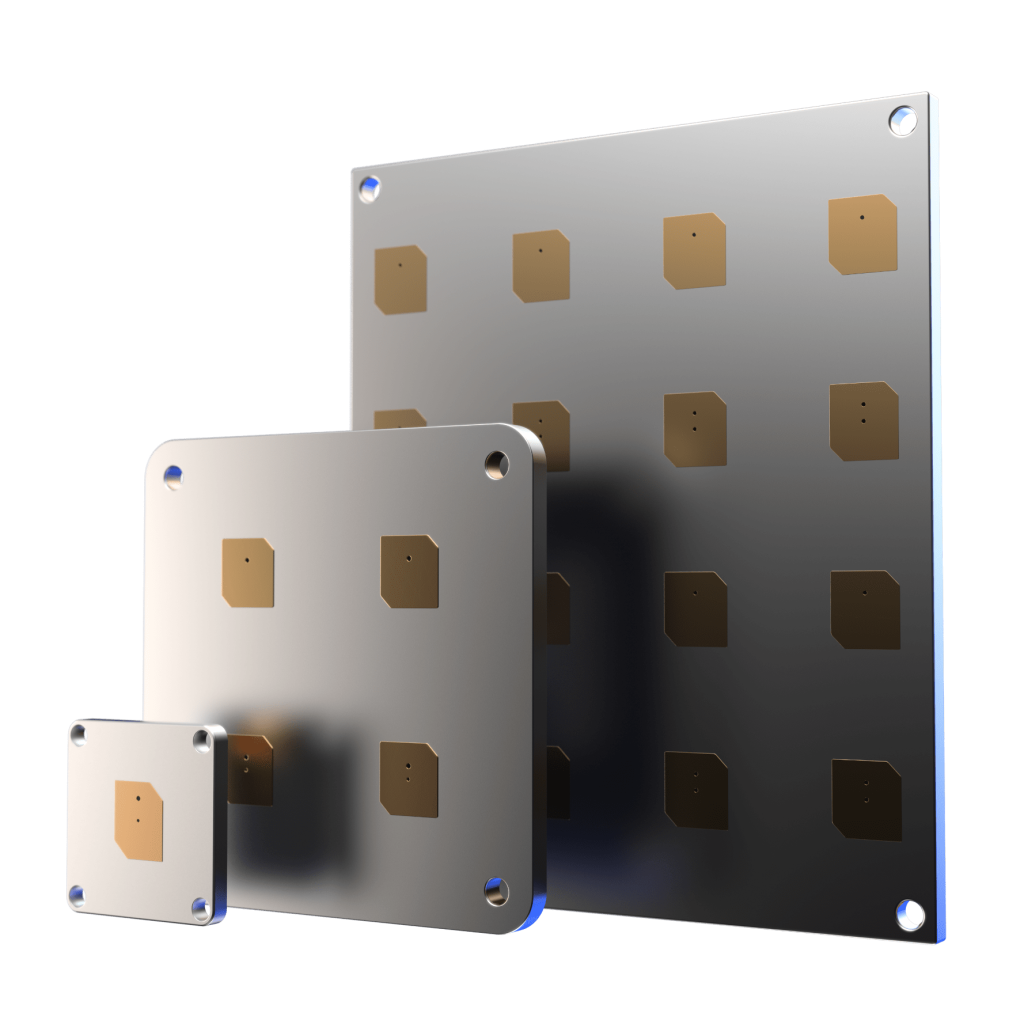

Flexible design. Available in a single, 2x2 and 4x4 configurations

x-band-cubesat-antenna-endurosat type of antennas

Features

Frequency range 8025 - 8400 MHz
Half Power Beam Width (HPBW) 40 deg
Gain 12+ dBi over operational bandwidth
Polarization Right Hand Circular
Mass 23.2 g
RF Output Power up to 4 W

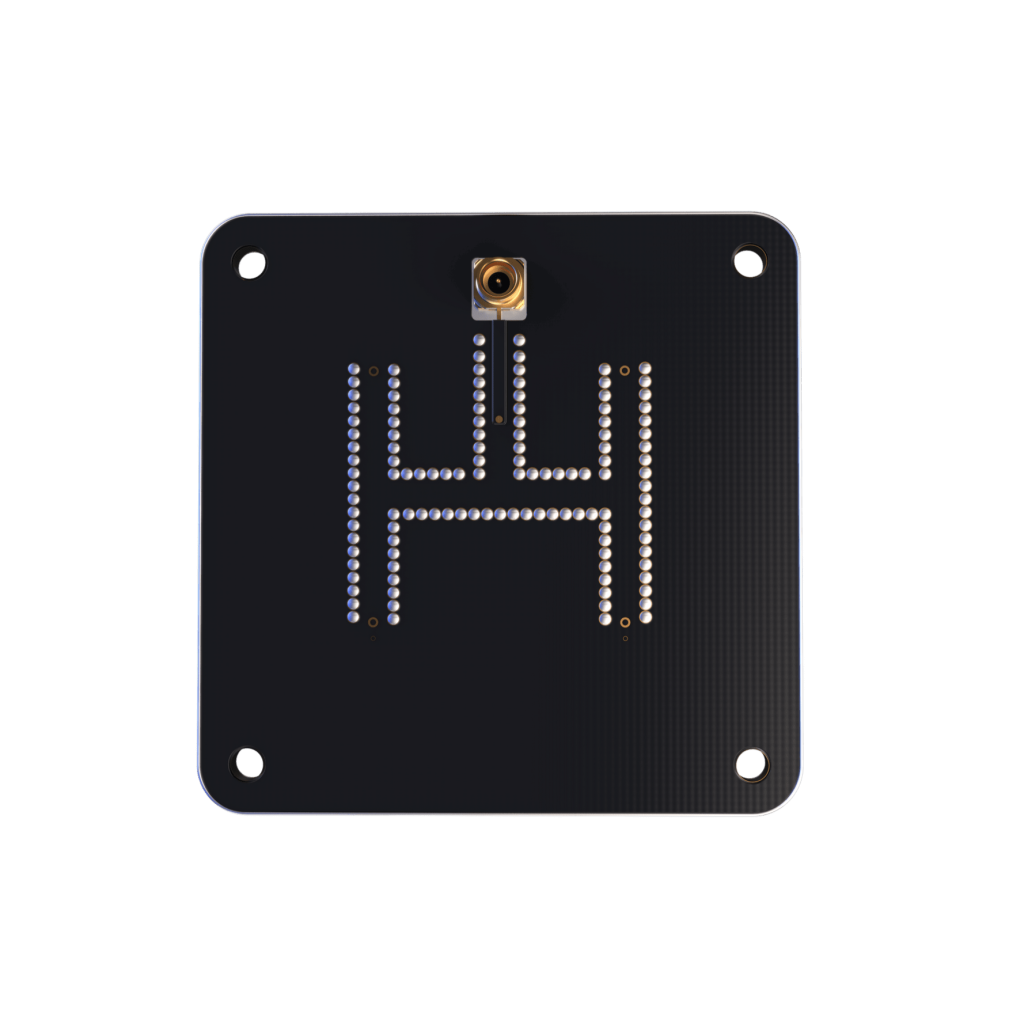

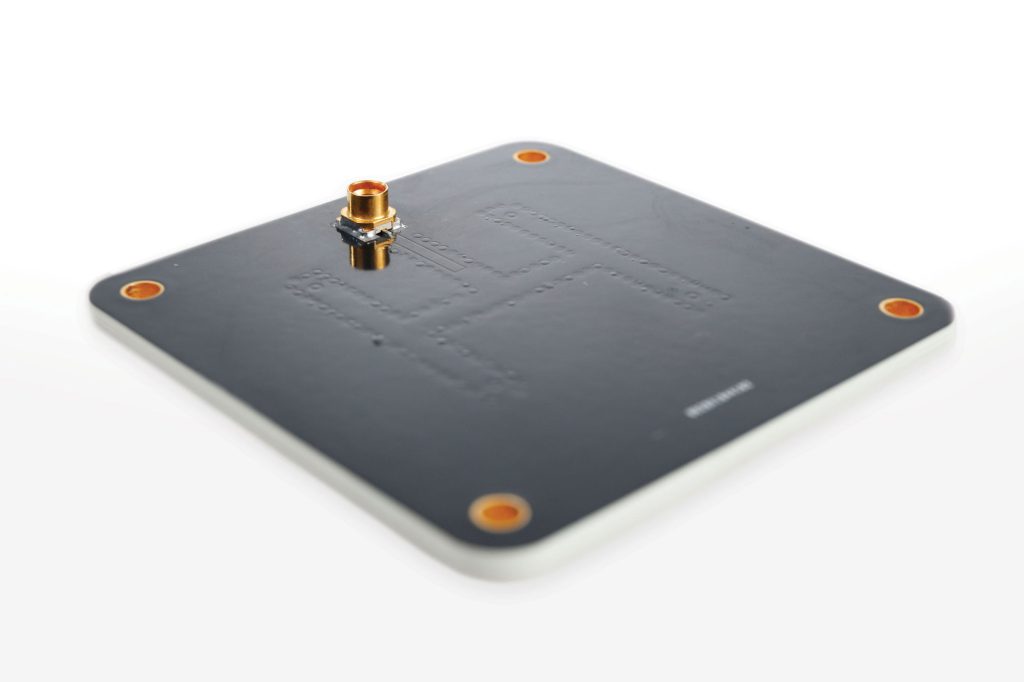

x-band-2x2-cubesat-antenna-endurosat back view

Included

user manual book icon Complete User Manual
included cables icon RF Cable
customer support icon 5h engineering support
