6U DEPLOYABLE SOLAR ARRAY

Generating Power For Advanced Missions

Cad file & datasheet

buy

Cad file & datasheet

buy

29.5%

TRIPLE JUNCTION SOLAR CELLS

ADCS

READY SENSORS

19.2 W

IN LEO PER SIDE

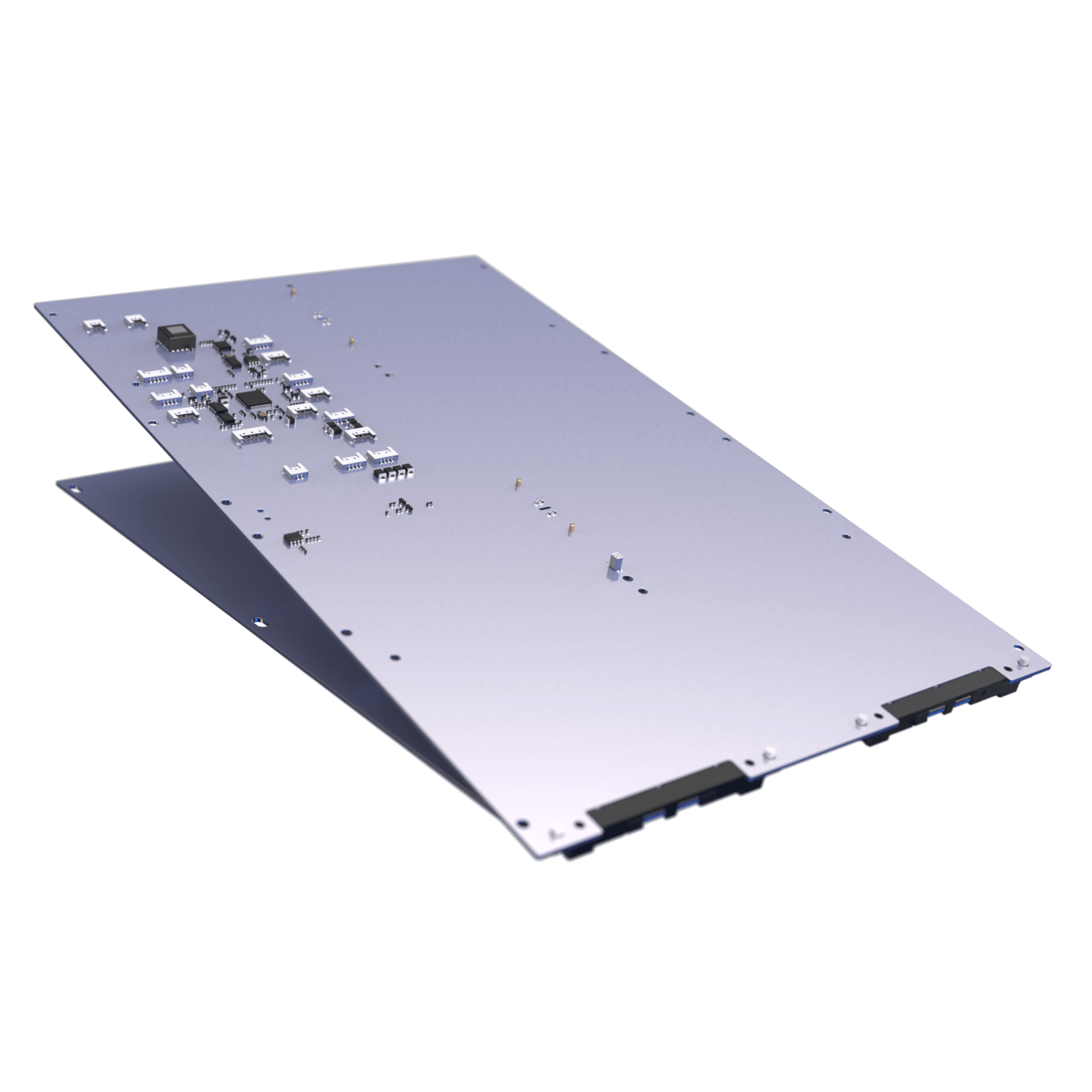

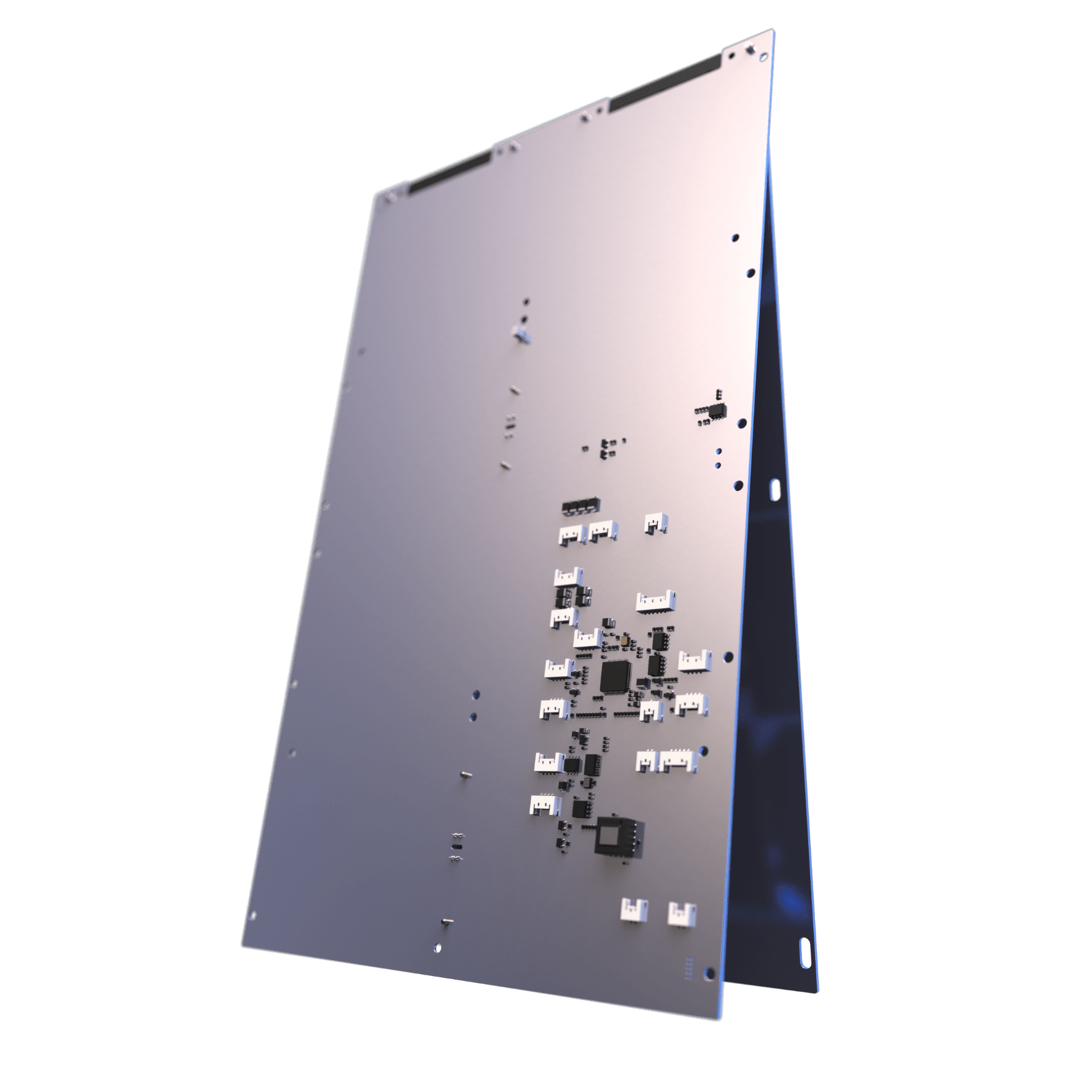

Space-qualified deployable Solar Array

FEATURES

Power Efficiency At EOL

29+%

Max Power

19.2+W in LEO per side per solar panel

Internal By-Pass Diode

reverse bias protection

Solar Cell Assembly (SCA) thickness

280-300 μm

Sensors

Temperature and Sun, optional Gyroscope

MTQ

Integrated H-Bridge for control of external magnetorquer

RBF

Available with Remove Before Flight pin

Mass

757 g

Flexibility

Multiple panels can be connected in series or parallel

Max Voltage

24V (8s2p), 12V (4s4p)

Max Current

1А (8s2p), 2A (4s4p)

PCB Thickness

1.6 mm

Generating Power for Advanced Missions

Included

Complete User Manual

Power and data cables

1 hour engineering support

Delivery cost

Handling and administration costs

Space-qualified deployable Solar Array

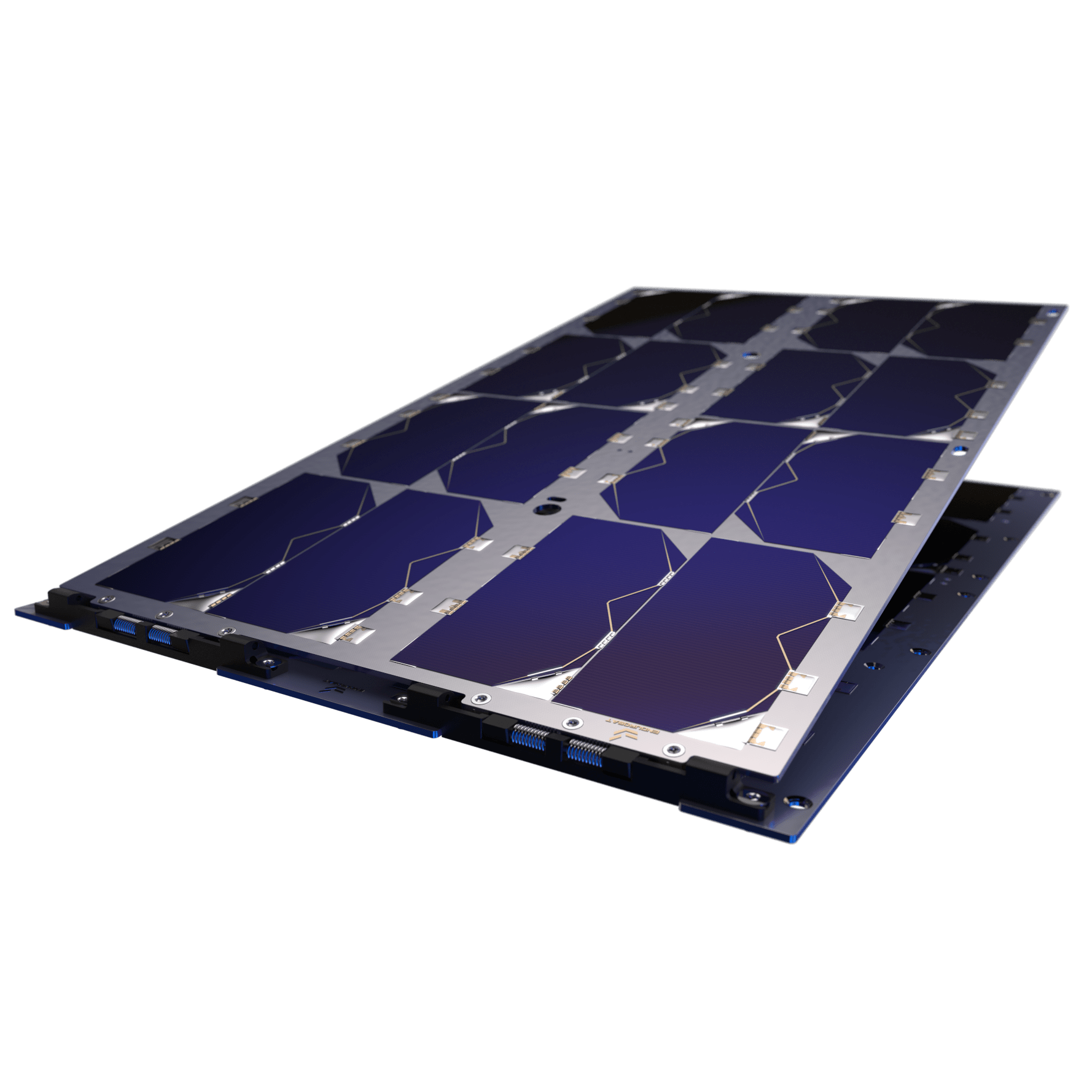

Triple Junction space-grade Solar Cells with efficiency higher than 29.5%

6U Deployable Solar Array web render 2 e1711026582826

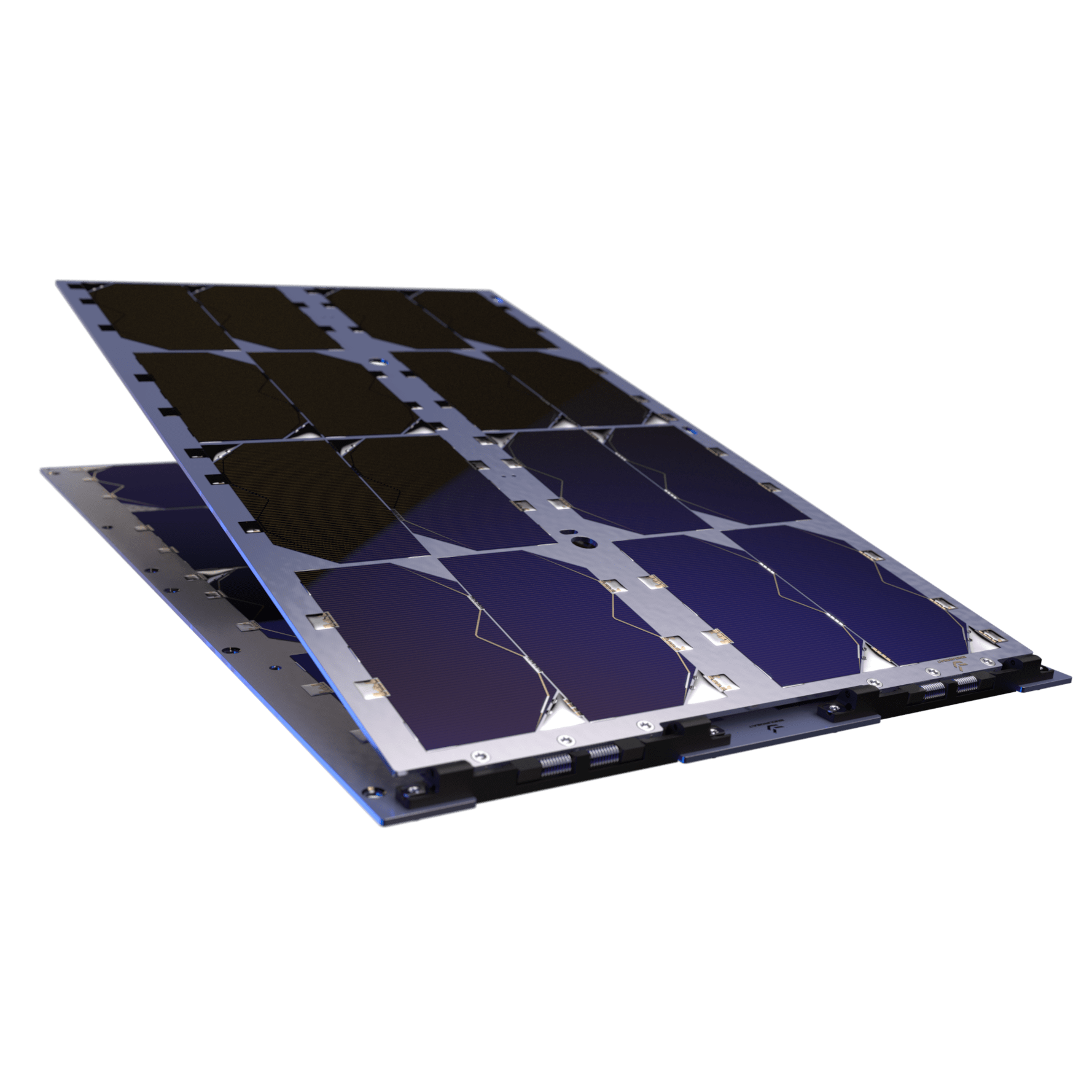

Industry-leading redundant burnwire mechanism with feedback configurable for X/Y & Z side deployment

6U Deployable Solar Array web render 3 e1711026609738

High radiation resilience

CELL EFFICIENCY REMAINS HIGHER THAN 29% FOR 5 YEARS IN LEO

Integrated sun sensors + gyroscope option

SERIES OR PARALLEL CONNECTIONS COVERING DIVERSE POWER SYSTEM REQUIREMENTS
