Versatile and redundant

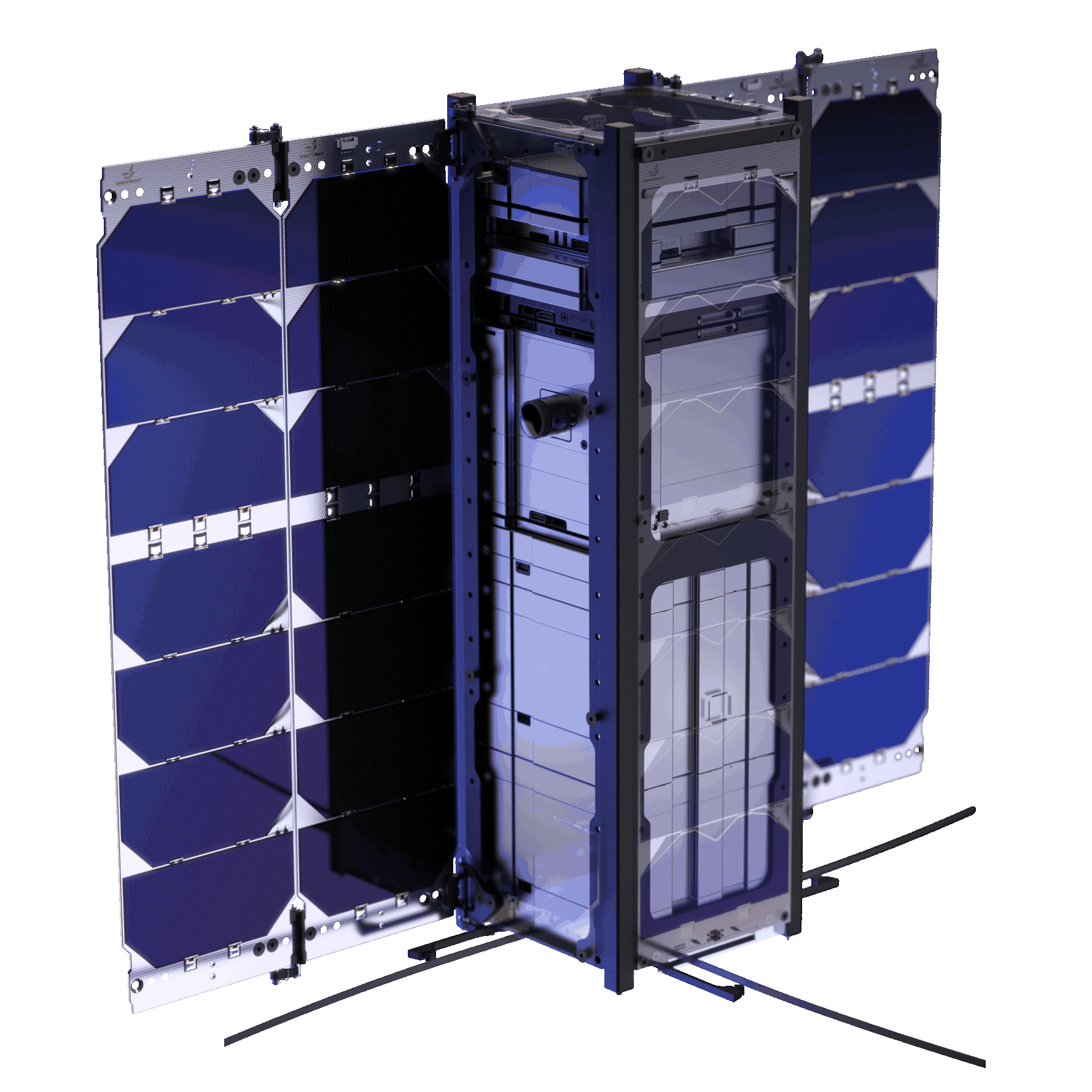

3U CubeSat Platform

Multi-purpose platform capable of supporting wide range of pointing, volume and power requirements

3u-cubesat-platform-endurosat-nanosatellite

Multi-purpose platform capable of supporting wide range of pointing, volume and power requirements

1.7Upayload volume
4xbetter efficiency
SecureTMTC AND PAYLOAD DATA

Preconfigured for your mission, including an option for complete payload integration provided by EnduroSat

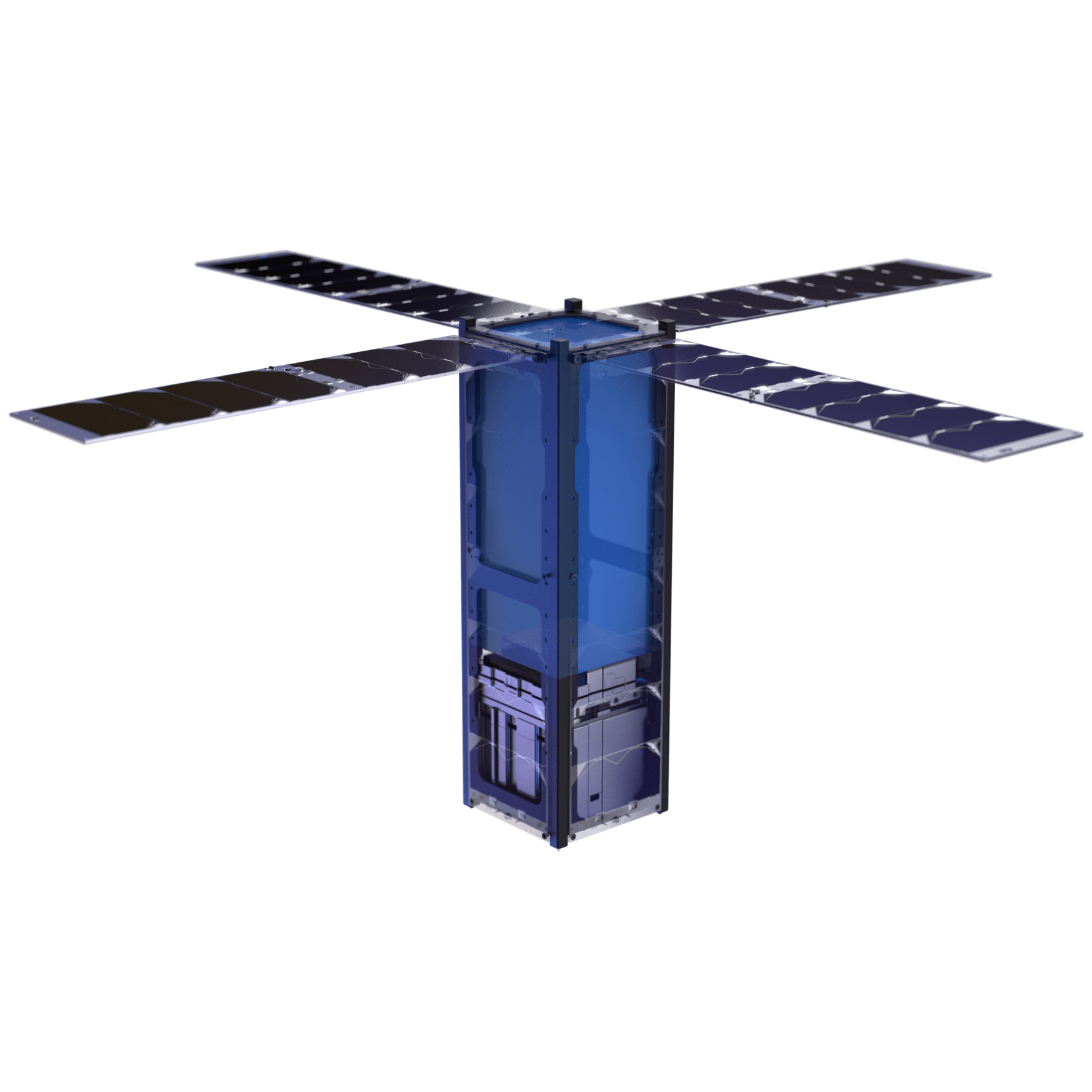

3u-cubesat-platform-endurosat-nanosatellite-volume

Payload volume

OUR PLATFORM: 1.7U

Industry average: 1.2U

Robust data handling of up-to 10 payloads. Embedded operational modes framework at 4x better efficiency

Mission life: 3 to 5 years (orbit dependant)

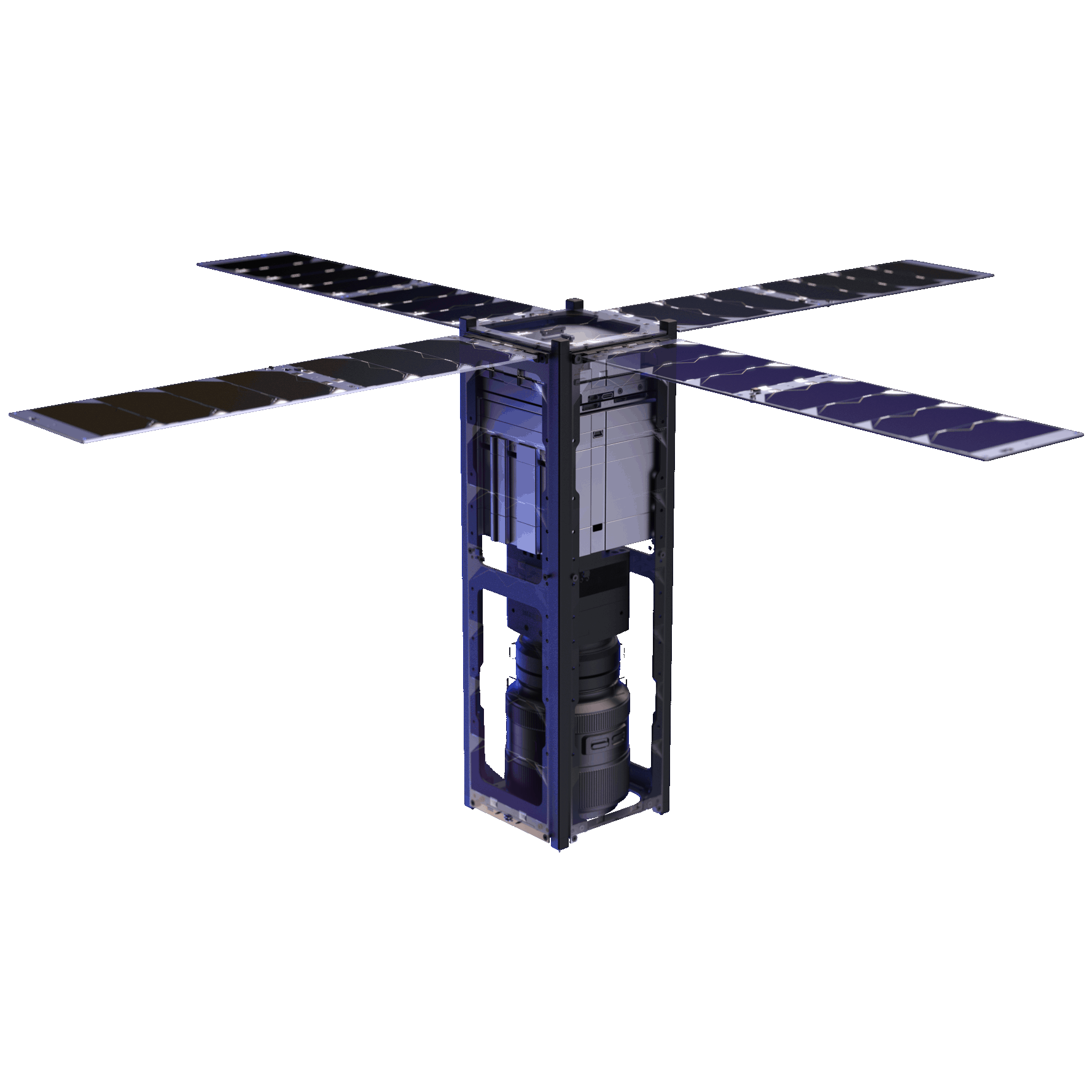

3u-cubesat-platform-endurosat-nanosatellite-applications

Applications

science and research iconScience and Research
Earth Observation iconEarth Observation
IoT and communications iconIoT and Communications

Secure communication for telemetry, telecommands and payload

HIGH SPEED S-BAND AND X-BAND TRANSMITTERS FOR DATA-INTENSIVE PAYLOADS

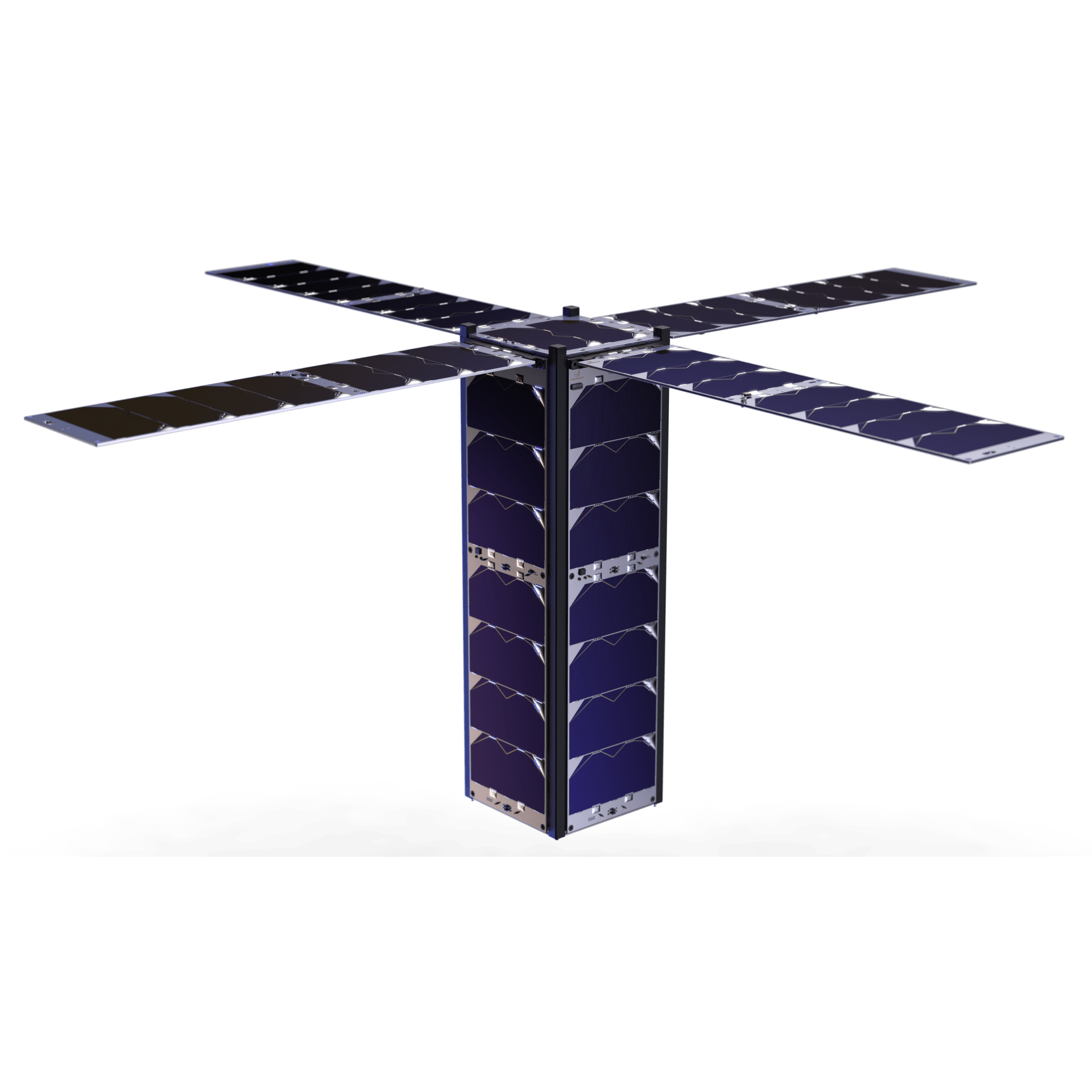

3u-cubesat-platform-endurosat-nanosatellite-features

Features

Bus mass 2.4-2.9 kg (configuration dependent)
Available payload mass 0.5-1.6 kg (configuration dependent)
Available Payload volume up to 97 x 97 x 173 mm3
Average Payload power available 10 W
Available power buses 3 V, 5 V, customizable 6-12 V and Battery raw
Telemetry data rate 19.6 kbps
Payload data rate up to 125 Mbps

Available with magnetic-only and three-axis reaction wheels attitude control

Meeting diverse pointing and stability requirements

3u-cubesat-platform-endurosat-nanosatellite included

Included

user manual book icon Integration manual
Software Development Kit icon Software Development Kit (SDK)
included cables icon Complete set of bus cables
included custom cables icon JTAG and debugging cables
customer support icon 10h engineering support
